8-50 — AIR CONDITIONING SYSTEM; FRONT (#130927) — 90 parça

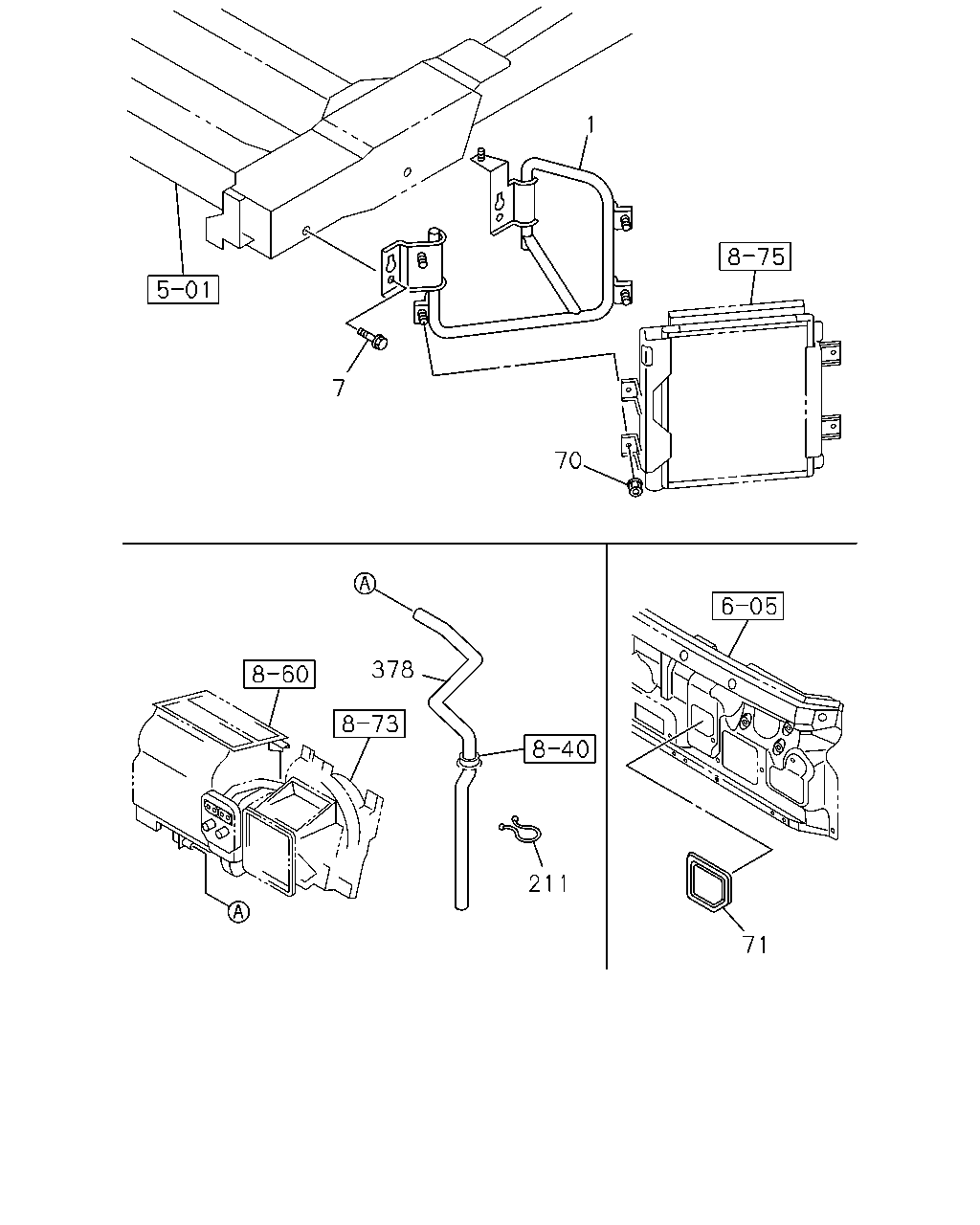

7 1 70 378 211 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98214-411-0	01	1	1311-1412	●
1	BRACKET; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98214-411-0	01	1	1501-	●	●
7	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M12X30 FLANGE	0-28651-230-0	04	1	1311-1412	●
7	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M12X30 FLANGE	0-28651-230-0	04	1	1501-	●	●
70	NUT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M8 FLANGE MAL	0-91180-108-0	04	1	1311-1412	●
70	NUT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M8 FLANGE MAL	0-91180-108-0	04	1	1501-	●	●
71	COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98017-234-1	01	1	1311-1412	●
71	COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98017-234-1	01	1	1501-	●	●
211	CLIP; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=44	8-94463-508-0	01	1	1311-1412	●
211	CLIP; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=44	8-94463-508-0	01	1	1501-	●	●
378	HOSE; DRAIN,EVAPORATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97387-174-2	01	1	1311-1412	●
378	HOSE; DRAIN,EVAPORATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97387-174-2	01	1	1501-	●	●

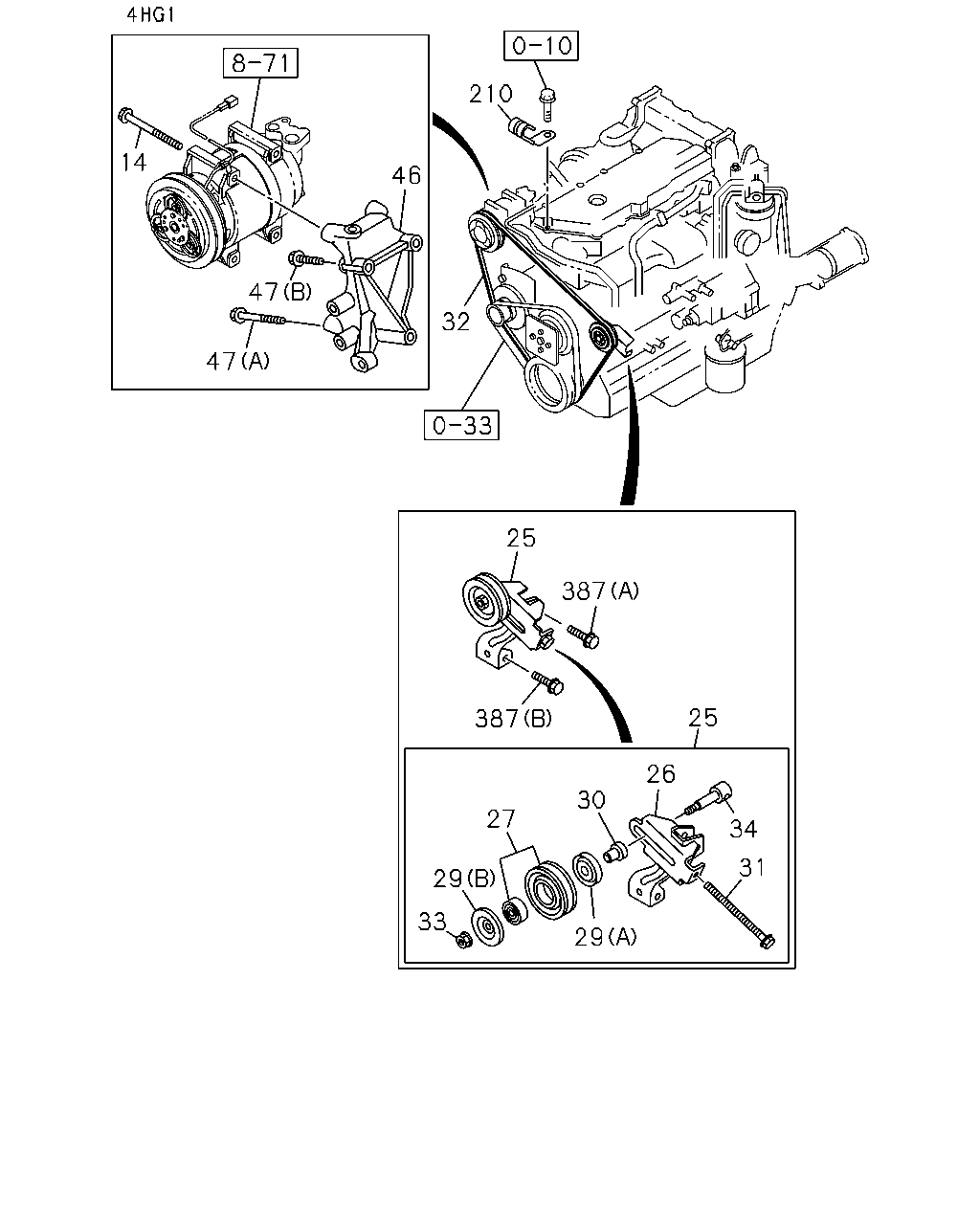

14 47 47 46 32 210 25 387 387 25 26 30 27 29 33 29 34 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M8X90 FLANGE	0-28050-890-0	04	1	1311-1412	●
14	BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M8X90 FLANGE	0-28050-890-0	04	1	1501-	●	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 1-GROOVE	8-97161-198-1	01	1	1311-1412	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 1-GROOVE	8-97161-198-1	01	1	1501-	●	●
26	BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97161-031-1	01	1	1311-1412	●
26	BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97161-031-1	01	1	1501-	●	●
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97386-869-0	01	1	1311-1412	●
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97386-869-0	01	1	1501-	●	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97384-114-0	01	1	1311-1412	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97384-114-0	01	1	1501-	●	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-97384-115-0	01	1	1311-1412	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-97384-115-0	01	1	1501-	●	●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-117-0	01	1	1311-1412	●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-117-0	01	1	1501-	●	●
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-113-0	01	1	1311-1412	●
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-113-0	01	1	1501-	●	●
32	BELT; A/C CMPR 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1569	8-97180-183-3	01	1	1311-	●
32	BELT; A/C CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1674	8-98010-841-1	01	1	1312-1412	●
32	BELT; A/C CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1674	8-98010-841-1	01	1	1501-	●	●
32	BELT; A/C CMPR 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) BEST VALUE PARTS	5-87610-097-0	01	1	1311-	●
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-118-0	01	1	1311-1412	●
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-118-0	01	1	1501-	●	●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-116-0	01	1	1311-1412	●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-116-0	01	1	1501-	●	●
46	BRACKET; CMPR 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97305-489-0	01	1	1311-	●
46	BRACKET; CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98006-515-3	01	1	1312-1412	●
46	BRACKET; CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98006-515-3	01	1	1501-	●	●
47	BOLT; BRKT TO BODY 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M10X110 FLANGE	0-28156-011-0	01	1	1311-	●
47	BOLT; BRKT TO BODY 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M10X55 FLANGE	8-97365-449-0	02	1	1311-	●
47	BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) M10X90 FLANGE	0-28151-090-0	02	1	1312-1412	●
47	BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) M10X90 FLANGE	0-28151-090-0	02	1	1501-	●	●
47	BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D) M10X120 FLANGE	0-28156-012-0	01	1	1312-1412	●
47	BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D) M10X120 FLANGE	0-28156-012-0	01	1	1501-	●	●
210	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1311-1412	●
210	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1501-	●	●
387	BOLT; TENSIONER FIX 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M8X50 FLANGE	0-28050-850-0	01	1	1311-	●
387	BOLT; TENSIONER FIX 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M10X65 FLANGE	8-94344-540-1	01	1	1311-	●

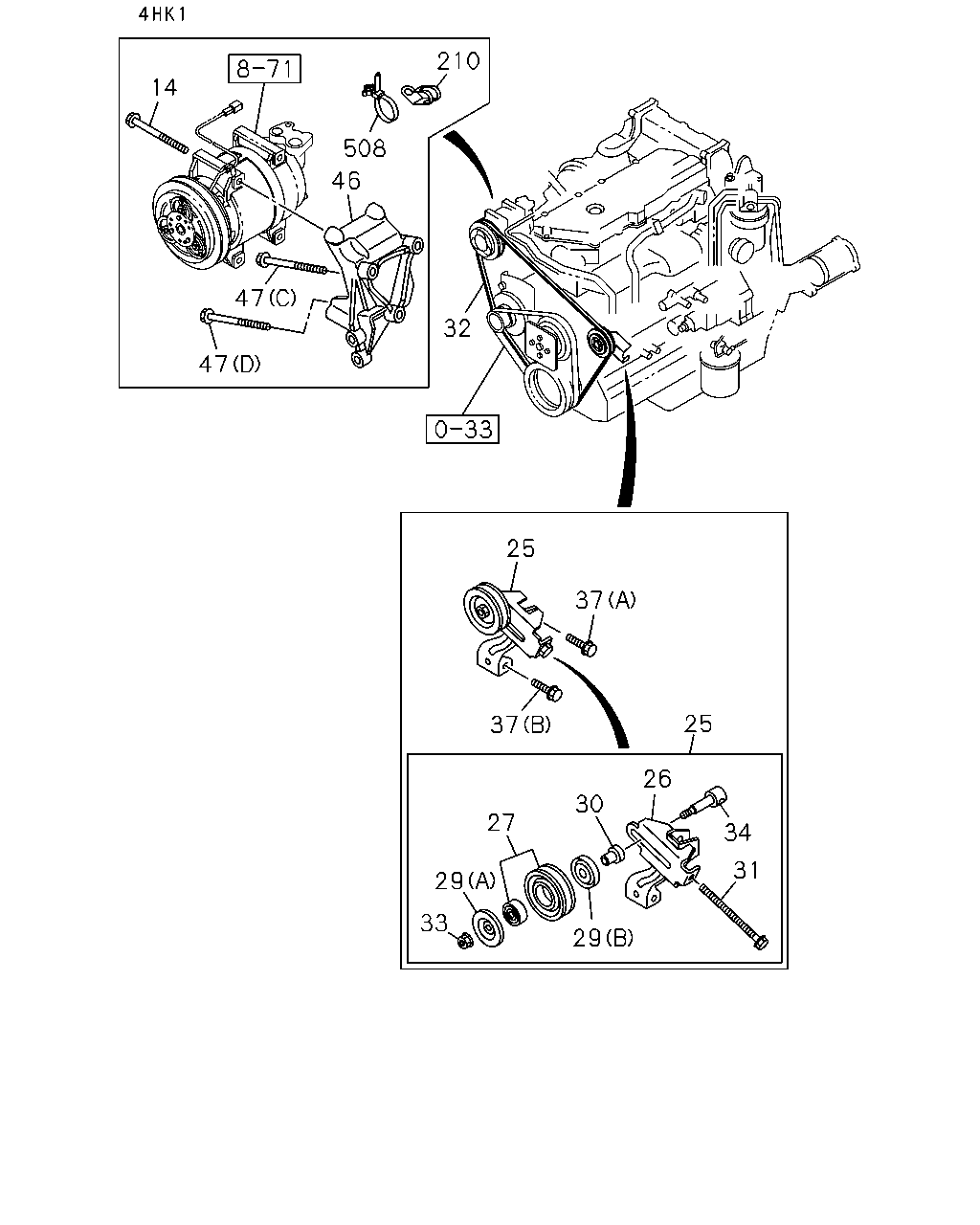

14 508 46 47 47 210 32 25 37 37 27 26 25 30 29 33 29 31 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M8X90 FLANGE	0-28050-890-0	04	1	1311-1412	●
14	BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M8X90 FLANGE	0-28050-890-0	04	1	1501-	●	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 1-GROOVE	8-97161-198-1	01	1	1311-1412	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 1-GROOVE	8-97161-198-1	01	1	1501-	●	●
26	BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97161-031-1	01	1	1311-1412	●
26	BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97161-031-1	01	1	1501-	●	●
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97386-869-0	01	1	1311-1412	●
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97386-869-0	01	1	1501-	●	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97384-114-0	01	1	1311-1412	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97384-114-0	01	1	1501-	●	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-97384-115-0	01	1	1311-1412	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-97384-115-0	01	1	1501-	●	●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-117-0	01	1	1311-1412	●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-117-0	01	1	1501-	●	●
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-113-0	01	1	1311-1412	●
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-113-0	01	1	1501-	●	●
32	BELT; A/C CMPR 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1569	8-97180-183-3	01	1	1311-	●
32	BELT; A/C CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1674	8-98010-841-1	01	1	1312-1412	●
32	BELT; A/C CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1674	8-98010-841-1	01	1	1501-	●	●
32	BELT; A/C CMPR 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) BEST VALUE PARTS	5-87610-097-0	01	1	1311-	●
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-118-0	01	1	1311-1412	●
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-118-0	01	1	1501-	●	●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-116-0	01	1	1311-1412	●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97384-116-0	01	1	1501-	●	●
37	BOLT; PULLEY BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M8X50 FLANGE	0-28050-850-0	01	1	1312-1412	●
37	BOLT; PULLEY BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M8X50 FLANGE	0-28050-850-0	01	1	1501-	●	●
37	BOLT; PULLEY BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M10X65 FLANGE	8-94344-540-1	01	1	1312-1412	●
37	BOLT; PULLEY BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M10X65 FLANGE	8-94344-540-1	01	1	1501-	●	●
46	BRACKET; CMPR 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97305-489-0	01	1	1311-	●
46	BRACKET; CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98006-515-3	01	1	1312-1412	●
46	BRACKET; CMPR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98006-515-3	01	1	1501-	●	●
47	BOLT; BRKT TO BODY 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M10X110 FLANGE	0-28156-011-0	01	1	1311-	●
47	BOLT; BRKT TO BODY 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M10X55 FLANGE	8-97365-449-0	02	1	1311-	●
47	BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) M10X90 FLANGE	0-28151-090-0	02	1	1312-1412	●
47	BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) M10X90 FLANGE	0-28151-090-0	02	1	1501-	●	●
47	BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D) M10X120 FLANGE	0-28156-012-0	01	1	1312-1412	●
47	BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D) M10X120 FLANGE	0-28156-012-0	01	1	1501-	●	●
210	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1311-1412	●
210	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1501-	●	●
508	CLIP; HARNESS 4HK1-TCN ENG(RDQ) L=170.3	1-09987-182-0	01	1	1312-1412	●
508	CLIP; HARNESS 4HK1-TCN ENG(RDQ) L=170.3	1-09987-182-0	01	1	1501-	●	●
