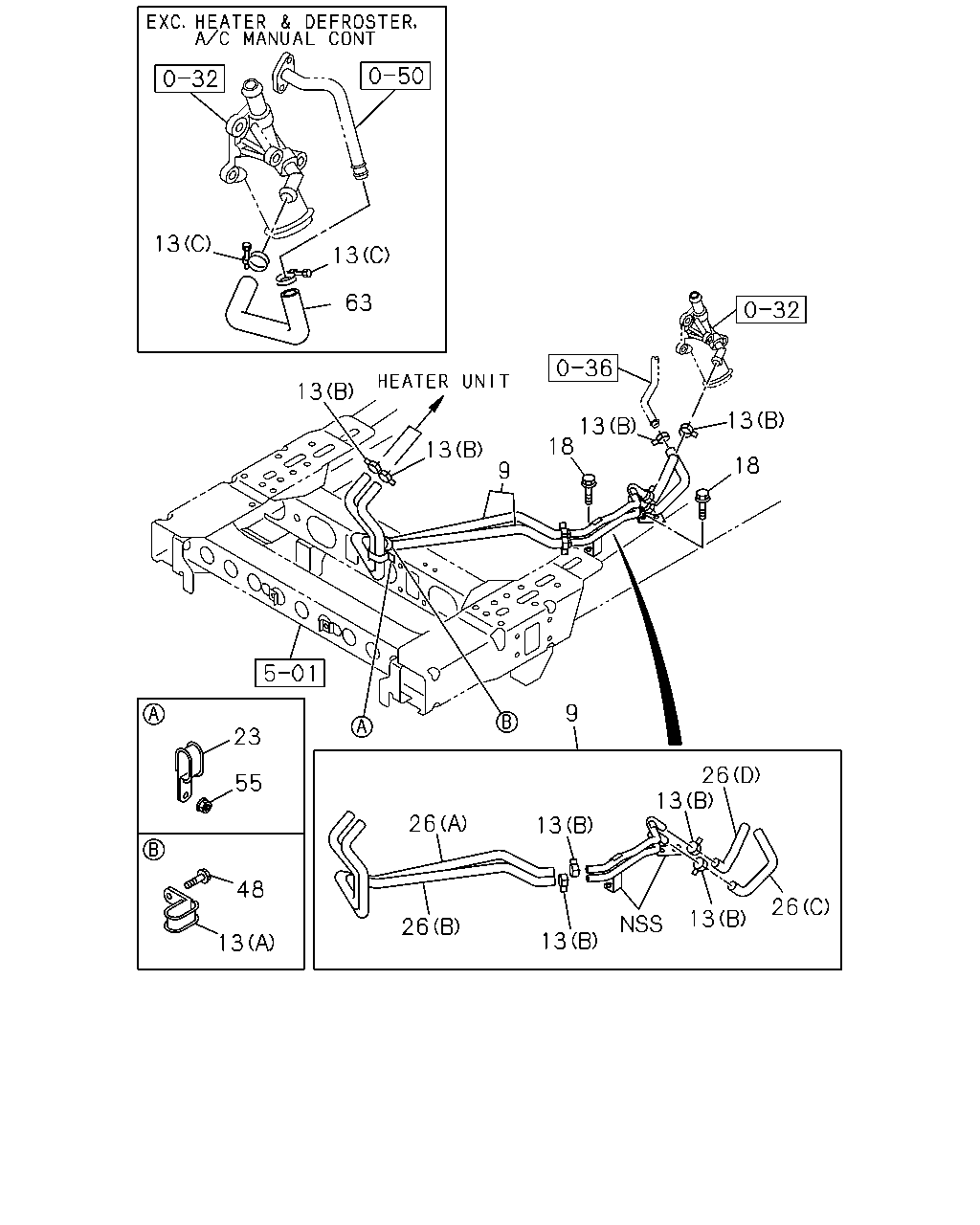

8-45 — HEATER PIPING (#130926) — 34 parça

13 13 63 13 13 18 13 13 18 9 9 23 55 26 13 13 13 26 13 26 48 13 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98064-107-1	01	1	1311-1412	●
9	PIPE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98064-107-1	01	1	1501-	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	1311-1412	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	1501-	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-97359-141-0	04	1	1311-1412	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-97359-141-0	04	1	1311-1412	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-97359-141-0	04	1	1501-	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-97359-141-0	04	1	1501-	●	●
13	CLIP; HTR HOSE 4HG1-T ENG(RDP) COOLER WO/HEATER(C65) (C) ID=25	8-94233-115-0	02	1	1311-1311	●
13	CLIP; HTR HOSE 4HG1-T ENG(RDP) COOLER WO/HEATER(C65) (C) ID=25	8-94233-115-0	02	1	1312-1412	●
13	CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=25	8-94233-115-0	02	1	1312-1412	●
13	CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=25	8-94233-115-0	02	1	1501-	●	●
13	CLIP; HTR HOSE 4HG1-T ENG(RDP) COOLER WO/HEATER(C65) (C) ID=25	8-94233-115-0	02	1	1501-	●
18	BOLT; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE MAL	0-28650-825-0	02	1	1311-1412	●
18	BOLT; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE MAL	0-28650-825-0	02	1	1501-	●	●
23	CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-98166-023-0	01	1	1311-1412	●
23	CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) B=18	8-98166-023-0	01	1	1501-	●	●
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98050-293-0	01	1	1311-1412	●
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98050-293-0	01	1	1501-	●	●
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98050-294-0	01	1	1311-1412	●
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98050-294-0	01	1	1501-	●	●
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98050-295-0	01	1	1311-1412	●
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98050-295-0	01	1	1501-	●	●
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98050-296-0	01	1	1311-1412	●
26	HOSE; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98050-296-0	01	1	1501-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE MAL	0-28050-612-0	01	1	1311-1412	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE MAL	0-28050-612-0	01	1	1501-	●	●
55	NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE MAL	0-91180-106-0	01	1	1311-1412	●
55	NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE MAL	0-91180-106-0	01	1	1501-	●	●
63	HOSE; WATER 4HG1-T ENG(RDP) COOLER WO/HEATER(C65)	8-94134-250-1	01	1	1311-1311	●
63	HOSE; WATER 4HG1-T ENG(RDP) COOLER WO/HEATER(C65)	8-94134-250-1	01	1	1312-1412	●
63	HOSE; WATER 4HK1-TCN ENG(RDQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94134-250-1	01	1	1312-1412	●
63	HOSE; WATER 4HK1-TCN ENG(RDQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94134-250-1	01	1	1501-	●	●
63	HOSE; WATER 4HG1-T ENG(RDP) COOLER WO/HEATER(C65)	8-94134-250-1	01	1	1501-	●
