8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#130922) — 140 parça

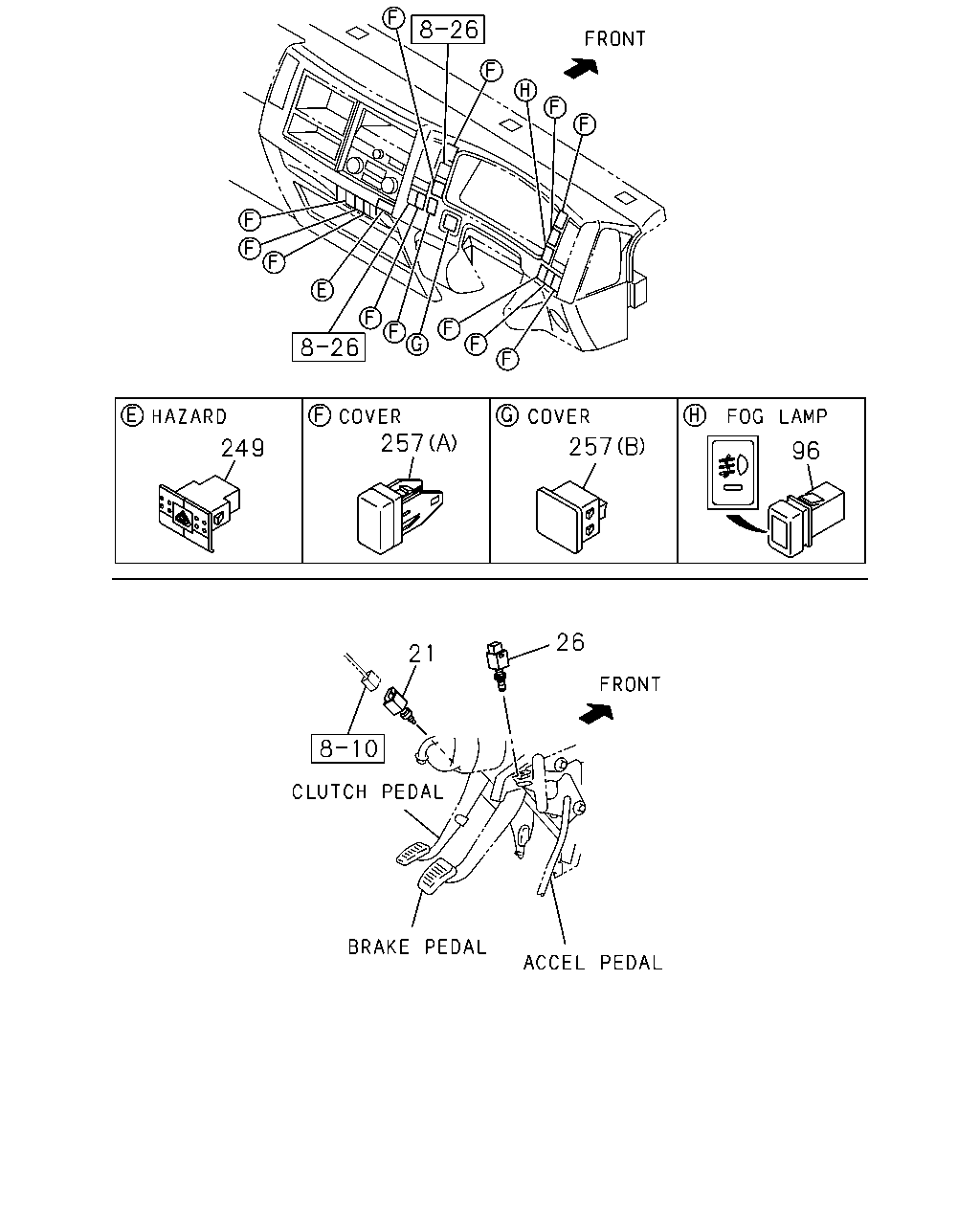

249 257 257 96 26 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	SWITCH; CLU	8-97358-248-0	01	1	1311-1412	●
21	SWITCH; CLU	8-97358-248-0	01	1	1501-	●	●
26	SWITCH; ACCEL 4HG1-T ENG(RDP)	8-97358-315-0	01	1	1311-	●
96	SWITCH; FOG LAMP	8-97387-031-4	01	1	1311-1412	●
96	SWITCH; FOG LAMP	8-97387-031-4	01	1	1501-	●	●
249	SWITCH; HAZARD	8-97386-922-1	01	1	1311-1412	●
249	SWITCH; HAZARD	8-97386-922-1	01	1	1501-	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	02	1	1311-1412	●
257	COVER; HOLE,SW (A)	8-98025-954-1	02	1	1501-	●	●
257	COVER; HOLE,SW (B)	8-98029-914-1	01	1	1311-1412	●
257	COVER; HOLE,SW (B)	8-98029-914-1	01	1	1501-	●	●
257	COVER; HOLE,SW (C) MAL	8-98029-917-0	01	1	1311-	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-1412	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-1412	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-1412	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-1412	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-1412	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-1412	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-1412	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1501-	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1501-	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1501-	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1501-	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1501-	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1501-	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1501-	●	●

151 154 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
151	RELAY; HTR & A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	1312-1412	●
151	RELAY; HTR & A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	1501-	●	●
154	RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1311-1412	●
154	RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1501-	●	●
315	RELAY; EXH BRAKE CONT 4HG1-T ENG(RDP) 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1311-1311	●
315	RELAY; EXH BRAKE CONT 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1312-1412	●
315	RELAY; EXH BRAKE CONT 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1501-	●	●

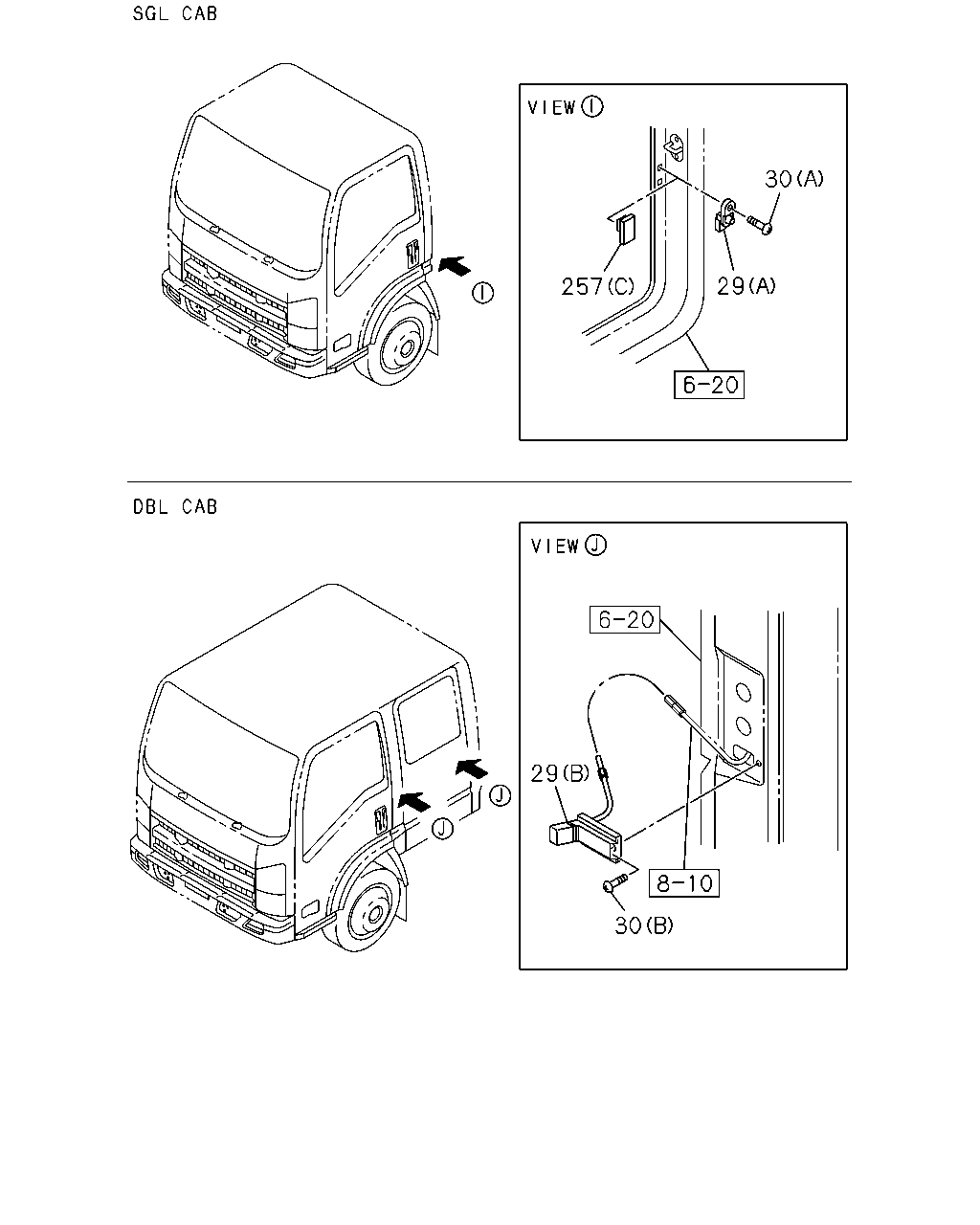

257 30 29 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	SWITCH; DOOR (B) FRONT MAL	8-97855-032-3	01	1	1501-		●
29	SWITCH; DOOR (B) FRONT MAL	8-97855-032-3	01	1	1501-		●
29	SWITCH; DOOR (B) REAR	8-98054-195-0	01	1	1501-		●
29	SWITCH; DOOR (B) REAR	8-98054-195-0	01	1	1501-		●
29	SWITCH; DOOR (A) BLACK	8-98022-211-0	01	1	1311-	●
30	SCREW; DOOR SW (B) M5X16 MAL	8-94279-341-0	04	1	1501-		●
30	SCREW; DOOR SW (A) M5X18	8-98047-201-0	01	1	1311-	●
257	COVER; HOLE,SW (A)	8-98025-954-1	02	1	1311-1412	●
257	COVER; HOLE,SW (A)	8-98025-954-1	02	1	1501-	●	●
257	COVER; HOLE,SW (B)	8-98029-914-1	01	1	1311-1412	●
257	COVER; HOLE,SW (B)	8-98029-914-1	01	1	1501-	●	●
257	COVER; HOLE,SW (C) MAL	8-98029-917-0	01	1	1311-	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-1412	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-1412	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-1412	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-1412	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-1412	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-1412	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1311-1412	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1501-	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1501-	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1501-	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1501-	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1501-	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1501-	●	●
257	COVER; HOLE,SW (A)	8-98025-954-1	01	1	1501-	●	●

315 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
154	RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1311-1412	●
154	RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1501-	●	●
315	RELAY; EXH BRAKE CONT 4HG1-T ENG(RDP) 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1311-1311	●
315	RELAY; EXH BRAKE CONT 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1312-1412	●
315	RELAY; EXH BRAKE CONT 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1501-	●	●

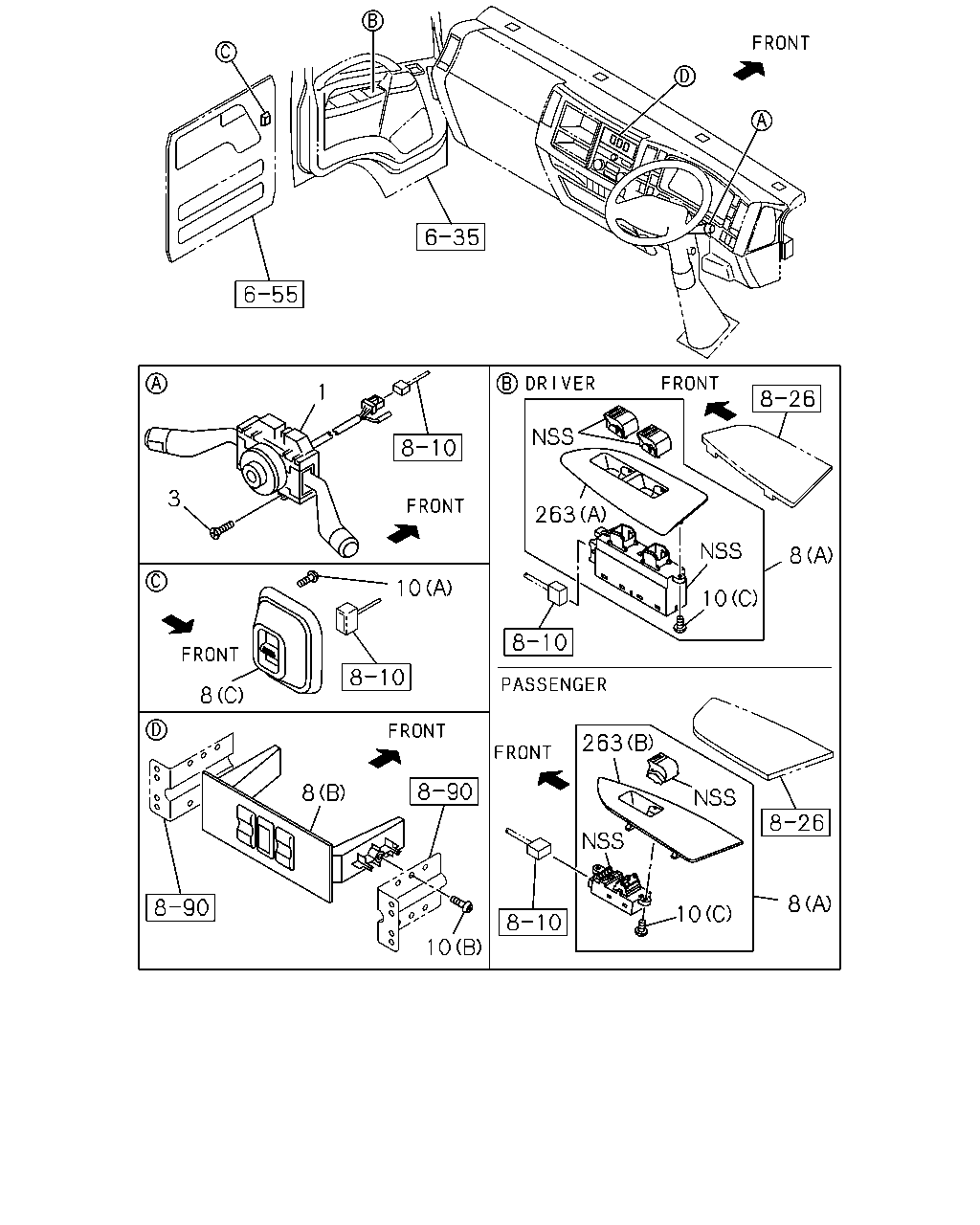

1 3 10 8 10 10 263 8 8 10 263 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SWITCH; COMB 4HG1-T ENG(RDP) INTERMITTENT WIPER<C13>	8-98114-332-1	01	1	1311-1311	●
1	SWITCH; COMB 4HG1-T ENG(RDP) INTERMITTENT WIPER<C13>	8-98243-736-0	01	1	1311-	●
1	SWITCH; COMB 4HG1-T ENG(RDP) EXC. INTERMITTENT WIPER<C13>	8-98114-331-1	01	1	1311-1311	●
1	SWITCH; COMB 4HG1-T ENG(RDP) EXC. INTERMITTENT WIPER<C13>	8-98243-735-0	01	1	1311-	●
1	SWITCH; COMB 4HK1-TCN ENG(RDQ) INTERMITTENT WIPER<C13>	8-98243-729-0	01	1	1312-1412	●
1	SWITCH; COMB 4HK1-TCN ENG(RDQ) INTERMITTENT WIPER<C13>	8-98243-729-0	01	1	1501-	●	●
1	SWITCH; COMB 4HK1-TCN ENG(RDQ) EXC. INTERMITTENT WIPER<C13>	8-98243-728-0	01	1	1312-1412	●
1	SWITCH; COMB 4HK1-TCN ENG(RDQ) EXC. INTERMITTENT WIPER<C13>	8-98243-728-0	01	1	1501-	●	●
3	SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	1311-1412	●
3	SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	1501-	●	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (B)	8-97386-987-2	01	1	1501-		●
8	SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) REAR SIDE	8-97387-035-0	02	1	1501-		●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE	8-98159-543-0	01	1	1311-1412	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE	8-98159-543-0	01	1	1501-1509	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE	8-98159-543-0	01	1	1501-1509		●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE	8-98316-415-0	01	1	1510-	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE	8-98316-415-0	01	1	1510-		●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE	8-97387-034-2	01	1	1311-1412	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE	8-97387-034-2	01	1	1501-1509	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE	8-97387-034-2	01	1	1501-1509		●
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE	8-98298-750-0	01	1	1510-	●
8	SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE	8-98298-750-0	01	1	1510-		●
10	SCREW; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> (A) M4X14 TAPPING	0-74360-414-0	04	1	1501-		●
10	SCREW; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> (B) T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1501-		●
10	SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32> (C)	8-98153-865-0	03	1	1311-1412	●
10	SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32> (C)	8-98153-865-0	03	1	1501-	●
10	SCREW; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> (C)	8-98153-865-0	03	1	1501-		●
263	COVER; SW POWER WINDOW FRT DOOR<A32> (A)	8-98153-836-0	01	1	1311-1412	●
263	COVER; SW POWER WINDOW FRT DOOR<A32> (A)	8-98153-836-0	01	1	1501-	●
263	COVER; SW POWER WINDOW FRT&REAR DOOR<A31> (A)	8-98153-836-0	01	1	1501-		●
263	COVER; SW POWER WINDOW FRT DOOR<A32> (B)	8-98153-841-0	01	1	1311-1412	●
263	COVER; SW POWER WINDOW FRT DOOR<A32> (B)	8-98153-841-0	01	1	1501-	●
263	COVER; SW POWER WINDOW FRT&REAR DOOR<A31> (B)	8-98153-841-0	01	1	1501-		●

39 180 183

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-98060-789-0	01	1	1311-1412	●
39	RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-98060-789-0	01	1	1501-	●	●
180	BRACKET; RELAY 4HG1-T ENG(RDP) AUTO DOOR LOCK<AU4>	8-98091-660-0	01	1	1311-	●
183	NUT; RELAY BRKT 4HG1-T ENG(RDP) AUTO DOOR LOCK<AU4> M6 FLANGE MAL	0-91180-106-0	01	1	1311-	●

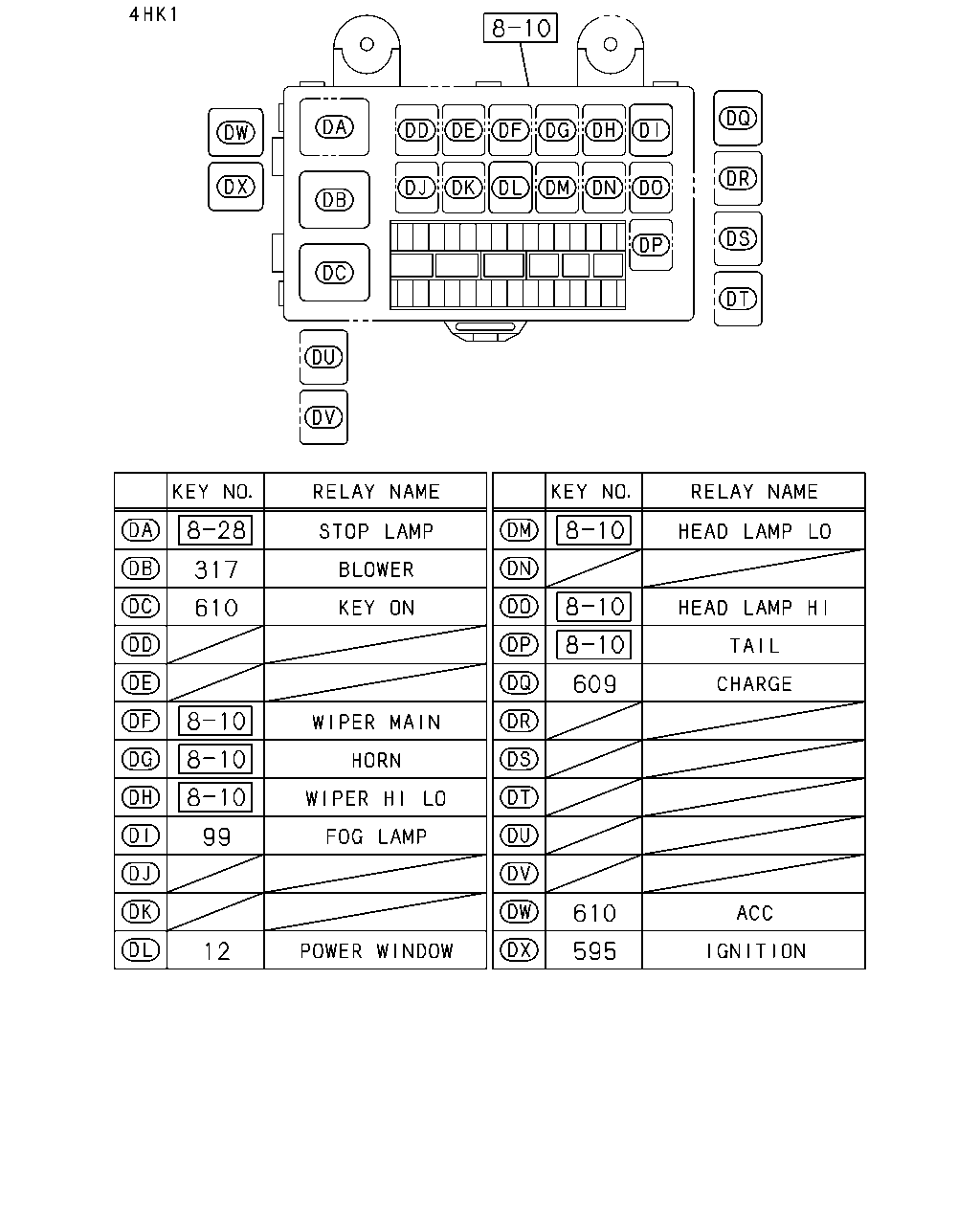

527 86 87 609 317 610 45 693 12 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	RELAY; POWER WINDOW 4HG1-T ENG(RDP) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1311-1311	●
12	RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1312-1412	●
12	RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1501-	●
12	RELAY; POWER WINDOW 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1501-		●
12	RELAY; POWER WINDOW 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1501-		●
45	RELAY; HORN 4HG1-T ENG(RDP) 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1311-	●
86	RELAY; HI-BEAM 4HG1-T ENG(RDP) 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1311-	●
87	RELAY; LOW-BEAM 4HG1-T ENG(RDP) 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1311-	●
99	RELAY; FOG LAMP 4HG1-T ENG(RDP) 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1311-1311	●
99	RELAY; FOG LAMP 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1312-1412	●
99	RELAY; FOG LAMP 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1501-	●	●
317	RELAY; BLOWER MOTOR,HTR 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	1311-1412	●
317	RELAY; BLOWER MOTOR,HTR 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	1501-	●	●
527	RELAY; TAIL 4HG1-T ENG(RDP) 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1311-	●
609	RELAY; CHARGE 4HG1-T ENG(RDP) 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1311-	●
610	RELAY; KEY ON 4HG1-T ENG(RDP) 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	1311-1311	●
610	RELAY; KEY ON 4HK1-TCN ENG(RDQ) 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	1312-1412	●
610	RELAY; KEY ON 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	1312-1412	●
610	RELAY; KEY ON 4HK1-TCN ENG(RDQ) 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	1501-	●	●
610	RELAY; KEY ON 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	1501-	●	●
693	RELAY; A/C.COMP.CUT 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	1311-	●

317 610 99 12 610 595 609

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	RELAY; POWER WINDOW 4HG1-T ENG(RDP) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1311-1311	●
12	RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1312-1412	●
12	RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1501-	●
12	RELAY; POWER WINDOW 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1501-		●
12	RELAY; POWER WINDOW 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1501-		●
99	RELAY; FOG LAMP 4HG1-T ENG(RDP) 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1311-1311	●
99	RELAY; FOG LAMP 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1312-1412	●
99	RELAY; FOG LAMP 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1501-	●	●
317	RELAY; BLOWER MOTOR,HTR 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	1311-1412	●
317	RELAY; BLOWER MOTOR,HTR 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	1501-	●	●
595	RELAY; IGNITION 4HK1-TCN ENG(RDQ) 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	1312-1412	●
595	RELAY; IGNITION 4HK1-TCN ENG(RDQ) 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	1501-	●	●
609	RELAY; CHARGE 4HG1-T ENG(RDP) 24V 10A PANASONIC MAL	8-97173-035-1	01	1	1311-	●
610	RELAY; KEY ON 4HG1-T ENG(RDP) 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	1311-1311	●
610	RELAY; KEY ON 4HK1-TCN ENG(RDQ) 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	1312-1412	●
610	RELAY; KEY ON 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	1312-1412	●
610	RELAY; KEY ON 4HK1-TCN ENG(RDQ) 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	1501-	●	●
610	RELAY; KEY ON 24V 12.5A PANASONIC MAL	8-97262-933-0	01	1	1501-	●	●
