8-21 — METER ASM (#130921) — 26 parça

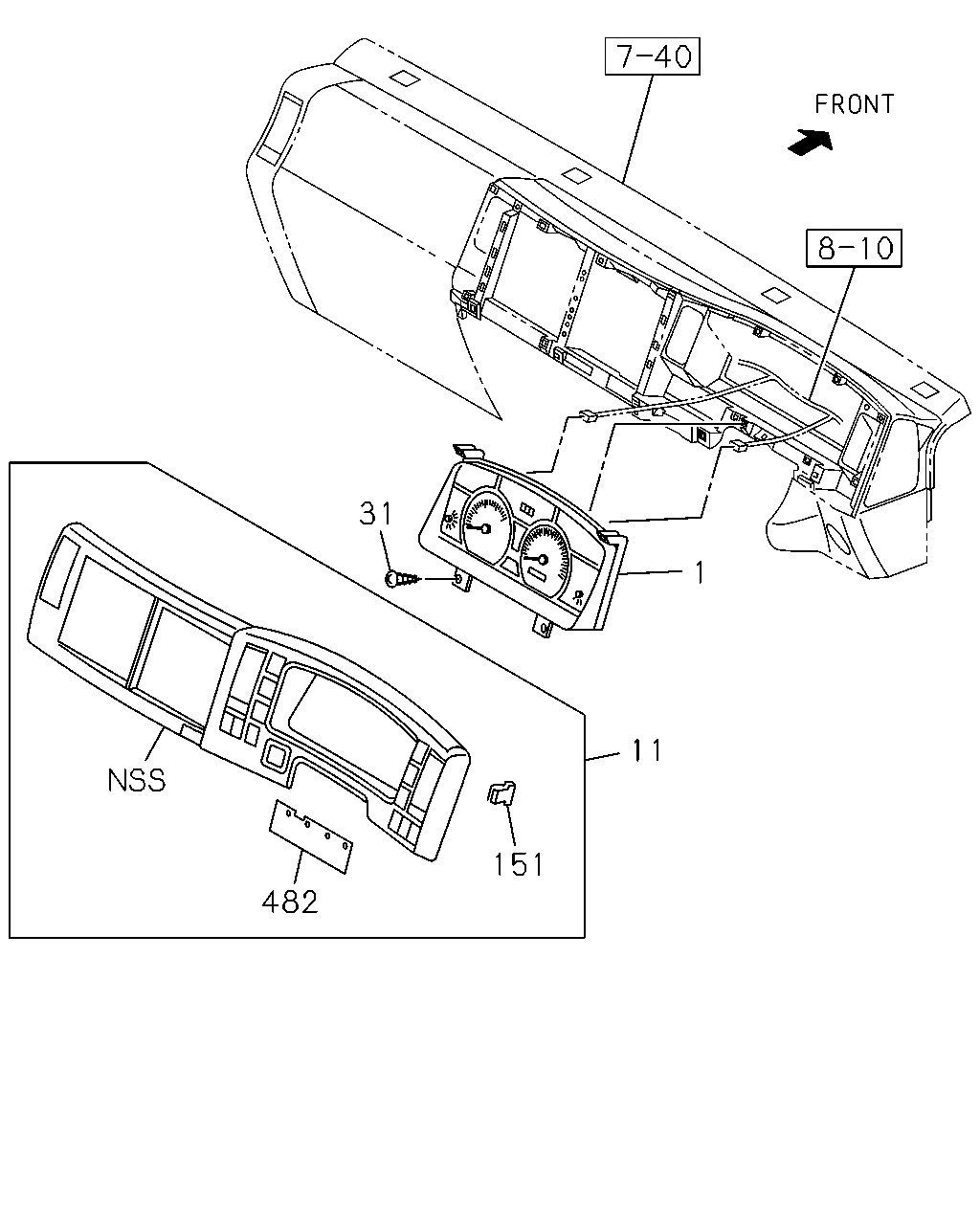

çizim 386900
31 1 11 151 482
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
4HG1-T ENG(RDP) 		8-98231-339-0 01 1 1311- ●
1 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) 		8-98021-249-4 01 1 1312-1412 ●
1 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) 		8-98021-249-4 01 1 1501- ● ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 1311-1412 ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 1501- ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 04 1 1311-1412 ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 04 1 1501- ● ●
151 CLIP; METER CLUSTER 8-98021-271-0 13 1 1311-1412 ●
151 CLIP; METER CLUSTER 8-98021-271-0 13 1 1501- ● ●
482 SEAL; CLUSTER METER 8-98116-842-0 01 1 1311-1412 ●
482 SEAL; CLUSTER METER 8-98116-842-0 01 1 1501- ● ●
çizim 386919
1 2 110 81 480
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
4HG1-T ENG(RDP) 		8-98231-339-0 01 1 1311- ●
1 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) 		8-98021-249-4 01 1 1312-1412 ●
1 METER COMPL; CLUSTER
4HK1-TCN ENG(RDQ) 		8-98021-249-4 01 1 1501- ● ●
2 PANEL; CLUSTER
4HG1-T ENG(RDP) 		8-98054-432-0 01 1 1311-1311 ●
2 PANEL; CLUSTER 8-98054-432-0 01 1 1312-1412 ●
2 PANEL; CLUSTER 8-98054-432-0 01 1 1501- ● ●
81 METER SUB ASM
4HG1-T ENG(RDP) 		8-98231-340-0 01 1 1311- ●
81 METER SUB ASM
4HK1-TCN ENG(RDQ) 		8-98073-677-0 01 1 1312-1412 ●
81 METER SUB ASM
4HK1-TCN ENG(RDQ) 		8-98073-677-0 01 1 1501- ● ●
110 GLASS; CLUSTER METER
4HG1-T ENG(RDP) 		8-98054-431-0 01 1 1311-1311 ●
110 GLASS; CLUSTER METER 8-98054-431-0 01 1 1312-1412 ●
110 GLASS; CLUSTER METER 8-98054-431-0 01 1 1501- ● ●
480 COVER; METER
4HG1-T ENG(RDP) BLACK 		8-98054-433-0 01 1 1311-1311 ●
480 COVER; METER
BLACK 		8-98054-433-0 01 1 1312-1412 ●
480 COVER; METER
BLACK 		8-98054-433-0 01 1 1501- ● ●
