Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#130920) — 433 parça

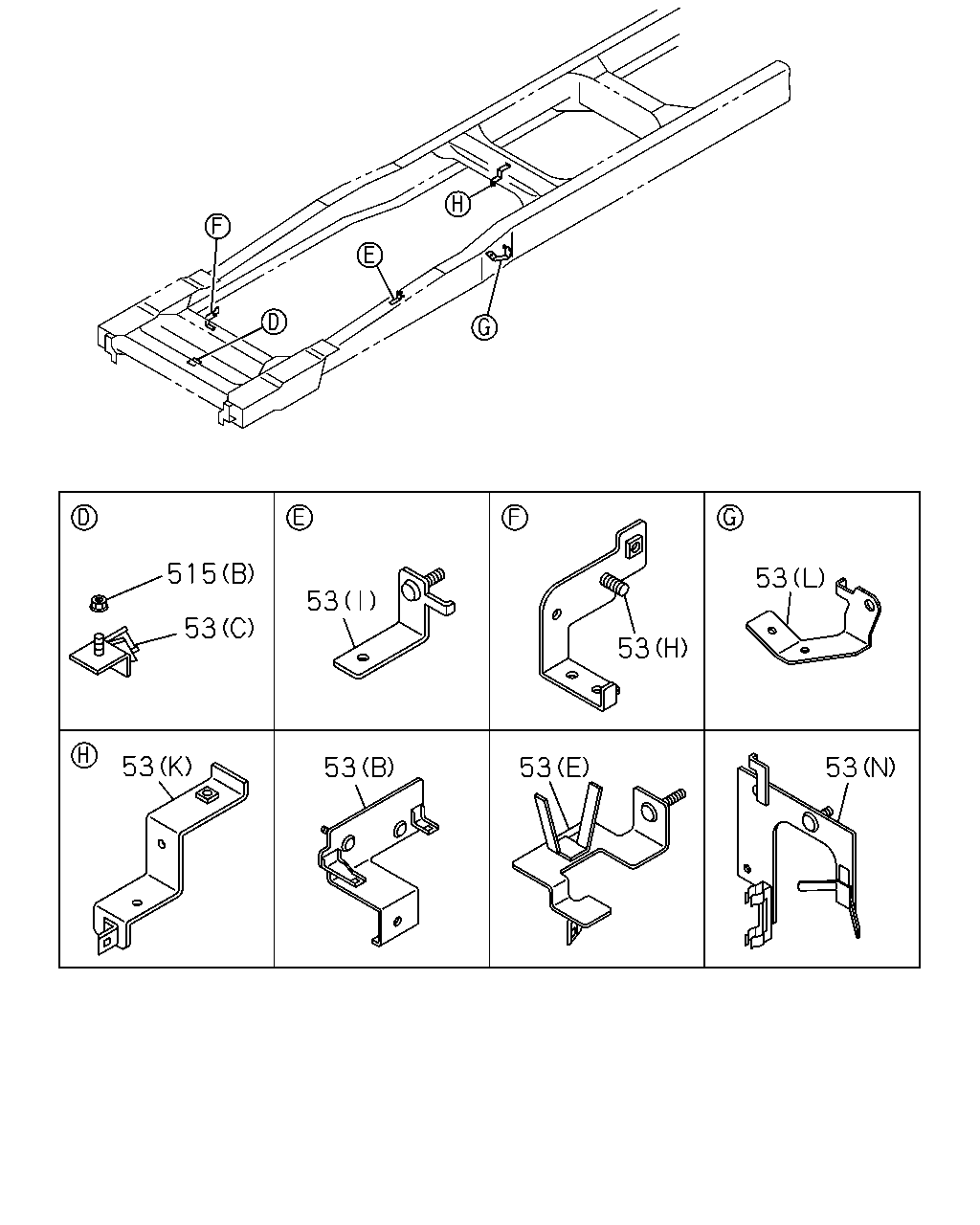

515 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	BRACKET; HARNESS 4HG1-T ENG(RDP) (N)	8-98126-454-2	01	1	1311-1405	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> (N)	8-98126-454-2	01	1	1406-	●
53	BRACKET; HARNESS (C)	8-98018-900-2	01	1	1311-1412	●
53	BRACKET; HARNESS (C)	8-98018-900-2	01	1	1501-	●	●
53	BRACKET; HARNESS (G)	8-98051-457-0	01	1	1311-1412	●
53	BRACKET; HARNESS (G)	8-98051-457-0	01	1	1501-	●	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1311-1412	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1501-	●	●
53	BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (J)	8-98084-590-0	01	1	1311-1412	●
53	BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (J)	8-98084-590-0	01	1	1501-	●	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) (M)	8-98114-461-2	01	1	1311-1311	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (M)	8-98114-461-2	01	1	1312-	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) (L)	8-98130-669-1	01	1	1311-1311	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (L)	8-98130-669-1	01	1	1312-1412	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (L)	8-98130-669-1	01	1	1501-	●
53	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (L)	8-98130-669-1	01	1	1501-		●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) (E)	8-98132-377-0	01	1	1311-1311	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (E)	8-98132-377-0	01	1	1312-	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) (B)	8-98173-558-0	01	1	1311-1311	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (B)	8-98173-558-0	01	1	1312-	●
53	BRACKET; HARNESS (H)	8-98077-503-1	01	1	1311-1311	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1312-1412	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1501-	●
53	BRACKET; HARNESS (H)	8-98077-503-1	01	1	1501-		●
53	BRACKET; HARNESS (K)	8-98077-504-0	01	1	1311-1311	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	1312-1412	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	1501-	●	●
53	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (D)	8-98074-502-0	01	1	1312-1412	●
53	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (D)	8-98074-502-0	01	1	1501-	●	●
53	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (F)	8-98052-804-0	01	1	1312-1412	●
53	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (F)	8-98052-804-0	01	1	1501-	●	●
53	BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (I)	8-98083-225-1	01	1	1312-	●
515	NUT; BRKT (A) M6 FLANGE MAL	0-91180-106-0	01	1	1311-1412	●
515	NUT; BRKT (A) M6 FLANGE MAL	0-91180-106-0	01	1	1501-	●	●
515	NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1311-1412	●
515	NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1501-	●	●
515	NUT; BRKT 4HG1-T ENG(RDP) (D) M8 FLANGE MAL	0-91180-108-0	02	1	1311-1311	●
515	NUT; BRKT 4HG1-T ENG(RDP) (D) M8 FLANGE MAL	0-91180-108-0	02	1	1311-1311	●
515	NUT; BRKT 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (D) M8 FLANGE MAL	0-91180-108-0	02	1	1312-	●
515	NUT; BRKT 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (D) M8 FLANGE MAL	0-91180-108-0	02	1	1312-	●
515	NUT; BRKT (C) M10 FLANGE MAL	0-91180-110-0	01	1	1311-1311	●
515	NUT; BRKT 4HG1-T ENG(RDP) (C) M10 FLANGE MAL	0-91180-110-0	01	1	1311-1311	●
515	NUT; BRKT 4HG1-T ENG(RDP) (C) M10 FLANGE MAL	0-91180-110-0	01	1	1311-1311	●
515	NUT; BRKT 4HG1-T ENG(RDP) (C) M10 FLANGE MAL	0-91180-110-0	01	1	1312-1405	●
515	NUT; BRKT (C) M10 FLANGE MAL	0-91180-110-0	01	1	1312-1405	●
515	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> (C) M10 FLANGE MAL	0-91180-110-0	01	1	1312-1405	●
515	NUT; BRKT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> (C) M10 FLANGE MAL	0-91180-110-0	01	1	1406-1412	●
515	NUT; BRKT (C) M10 FLANGE MAL	0-91180-110-0	01	1	1406-1412	●
515	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> (C) M10 FLANGE MAL	0-91180-110-0	01	1	1406-1412	●
515	NUT; BRKT (C) M10 FLANGE MAL	0-91180-110-0	01	1	1501-	●	●
515	NUT; BRKT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> (C) M10 FLANGE MAL	0-91180-110-0	01	1	1501-	●
515	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> (C) M10 FLANGE MAL	0-91180-110-0	01	1	1501-	●
515	NUT; BRKT 4HK1-TCN ENG(RDQ) (C) M10 FLANGE MAL	0-91180-110-0	01	1	1501-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	BRACKET; HARNESS 4HG1-T ENG(RDP) (N)	8-98126-454-2	01	1	1311-1405	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> (N)	8-98126-454-2	01	1	1406-	●
53	BRACKET; HARNESS (C)	8-98018-900-2	01	1	1311-1412	●
53	BRACKET; HARNESS (C)	8-98018-900-2	01	1	1501-	●	●
53	BRACKET; HARNESS (G)	8-98051-457-0	01	1	1311-1412	●
53	BRACKET; HARNESS (G)	8-98051-457-0	01	1	1501-	●	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1311-1412	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1501-	●	●
53	BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (J)	8-98084-590-0	01	1	1311-1412	●
53	BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (J)	8-98084-590-0	01	1	1501-	●	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) (M)	8-98114-461-2	01	1	1311-1311	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (M)	8-98114-461-2	01	1	1312-	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) (L)	8-98130-669-1	01	1	1311-1311	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (L)	8-98130-669-1	01	1	1312-1412	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (L)	8-98130-669-1	01	1	1501-	●
53	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (L)	8-98130-669-1	01	1	1501-		●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) (E)	8-98132-377-0	01	1	1311-1311	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (E)	8-98132-377-0	01	1	1312-	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) (B)	8-98173-558-0	01	1	1311-1311	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (B)	8-98173-558-0	01	1	1312-	●
53	BRACKET; HARNESS (H)	8-98077-503-1	01	1	1311-1311	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1312-1412	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1501-	●
53	BRACKET; HARNESS (H)	8-98077-503-1	01	1	1501-		●
53	BRACKET; HARNESS (K)	8-98077-504-0	01	1	1311-1311	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	1312-1412	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	1501-	●	●
53	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (D)	8-98074-502-0	01	1	1312-1412	●
53	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (D)	8-98074-502-0	01	1	1501-	●	●
53	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (F)	8-98052-804-0	01	1	1312-1412	●
53	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (F)	8-98052-804-0	01	1	1501-	●	●
53	BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (I)	8-98083-225-1	01	1	1312-	●

48 48 16 22 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (K) L=60	8-94449-165-0	02	1	1501-		●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (L) L=60	8-97063-335-0	02	1	1501-		●
16	CLIP; HARNESS COOLER WO/HEATER(C65) (J) L=140 MAL	5-09707-031-1	01	1	1401-1412	●
16	CLIP; HARNESS COOLER WO/HEATER(C65) (J) L=140 MAL	5-09707-031-1	01	1	1501-	●	●
16	CLIP; HARNESS 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (G) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1311-	●
16	CLIP; HARNESS (B) ID=6 & 10-13 MAL	8-97069-515-0	02	1	1311-1412	●
16	CLIP; HARNESS (B) ID=6 & 10-13 MAL	8-97069-515-0	02	1	1501-	●	●
16	CLIP; HARNESS (A) L=155 MAL	8-97173-307-0	14	1	1311-1412	●
16	CLIP; HARNESS (A) L=155 MAL	8-97173-307-0	14	1	1501-	●	●
16	CLIP; HARNESS (C) L=40.6 MAL	8-97229-357-0	02	1	1311-1412	●
16	CLIP; HARNESS (C) L=40.6 MAL	8-97229-357-0	02	1	1501-	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6 MAL	8-97229-357-0	02	1	1501-		●
16	CLIP; HARNESS (F) MAL	8-98052-679-0	02	1	1311-1412	●
16	CLIP; HARNESS (F) MAL	8-98052-679-0	02	1	1501-	●	●
16	CLIP; HARNESS 4HG1-T ENG(RDP) (D) ID=10 & 16 MAL	8-94413-325-0	01	1	1311-1311	●
16	CLIP; HARNESS 4HK1-TCN ENG(RDQ) (H)	8-97101-436-0	01	1	1312-1412	●
16	CLIP; HARNESS 4HK1-TCN ENG(RDQ) (H)	8-97101-436-0	01	1	1501-	●	●
16	CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	1311-1311	●
16	CLIP; HARNESS (D) ID=10 & 16 MAL	8-94413-325-0	01	1	1312-1412	●
16	CLIP; HARNESS (D) ID=10 & 16 MAL	8-94413-325-0	01	1	1501-	●	●
16	CLIP; HARNESS RR BODY FLAT BED<RS6> (E) L=112	8-94232-618-0	05	1	1312-	●
16	CLIP; HARNESS EXC. RR BODY FLAT BED<RS6> (I) L=250	5-09707-030-1	01	1	1312-1412	●
16	CLIP; HARNESS EXC. RR BODY FLAT BED<RS6> (I) L=250	5-09707-030-1	01	1	1501-	●
16	CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	1501-		●
22	CLIP; ENG HARNESS 4HG1-T ENG(RDP) (A) L=170.3	1-09987-182-0	01	1	1311-	●
22	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1312-1412	●	●
22	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1312-1412	●
22	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1501-	●	●
22	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1501-	●	●
48	CLIP; FRAME HARNESS (D) ID=14 L=47 MAL	5-09700-319-0	05	1	1311-1311	●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (D) ID=14 L=47 MAL	5-09700-319-0	05	1	1312-1412	●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (D) ID=14 L=47 MAL	5-09700-319-0	05	1	1501-	●
48	CLIP; FRAME HARNESS (D) ID=14 L=47 MAL	5-09700-319-0	05	1	1501-		●
48	CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C) L=450	1-09707-142-1	01	1	1312-	●
48	CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 16.5	8-94424-440-0	01	1	1312-	●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=14 L=47 MAL	5-09700-319-0	10	1	1312-	●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1312-1412	●
483	CLIP; ENG HARNESS 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> (F) L=140 MAL	5-09707-031-1	01	1	1410-	●
483	CLIP; ENG HARNESS 4HG1-T ENG(RDP) (F) L=140 MAL	5-09707-031-1	01	1	1311-1409	●
483	CLIP; ENG HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> (F) L=140 MAL	5-09707-031-1	03	1	1410-	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (A) ID=19 L=60	0-95235-896-0	01	1	1312-1412	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (A) ID=19 L=60	0-95235-896-0	01	1	1501-	●	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (B) ID=12 L=70	1-09700-097-1	01	1	1312-1412	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (B) ID=12 L=70	1-09700-097-1	01	1	1501-	●	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (C) ID=24 L=24	1-09701-001-1	01	1	1312-1412	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (C) ID=24 L=24	1-09701-001-1	01	1	1501-	●	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (E) L=36	8-94224-891-1	04	1	1312-1412	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (E) L=36	8-94224-891-1	04	1	1501-	●	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (D) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1312-1412	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (D) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1501-	●	●

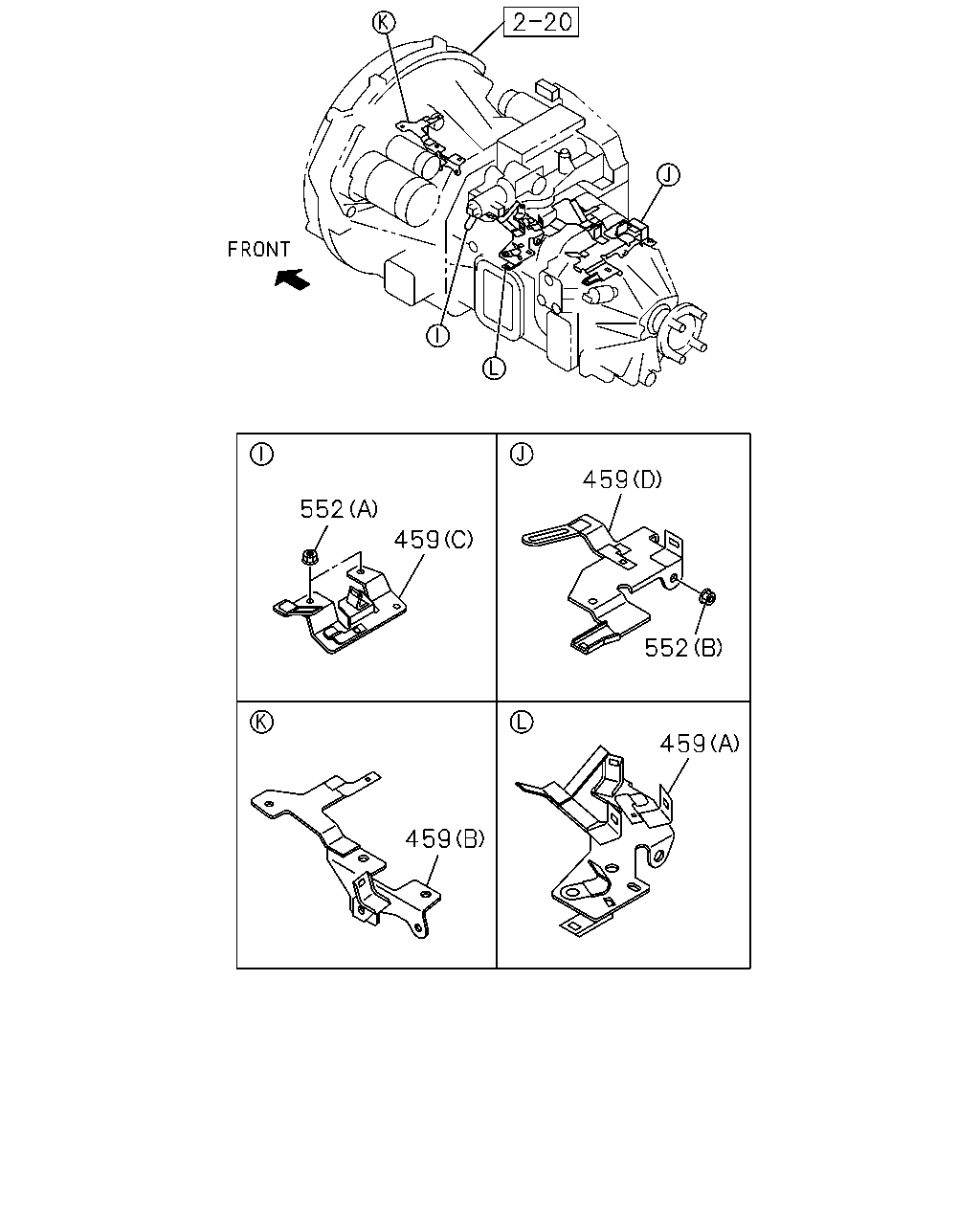

552 459 459 459 552 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
459	BRACKET; SUPPORT,HARNESS 4HG1-T ENG(RDP) (B)	8-98123-282-0	01	1	1311-	●
459	BRACKET; SUPPORT,HARNESS 4HG1-T ENG(RDP) (A)	8-98123-286-1	01	1	1311-	●
459	BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) (C)	8-98020-227-3	01	1	1312-1412	●
459	BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) (C)	8-98020-227-3	01	1	1501-	●	●
459	BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) (D)	8-98196-974-0	01	1	1312-1412	●
459	BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) (D)	8-98196-974-0	01	1	1501-	●	●
552	NUT; BRKT,HARNESS 4HG1-T ENG(RDP) (A) M8 FLANGE MAL	0-91180-108-0	02	1	1311-1311	●
552	NUT; BRKT,HARNESS (A) M8 FLANGE MAL	0-91180-108-0	02	1	1312-1412	●
552	NUT; BRKT,HARNESS (A) M8 FLANGE MAL	0-91180-108-0	02	1	1501-	●	●
552	NUT; BRKT,HARNESS 4HG1-T ENG(RDP) (B) M10 FLANGE MAL	0-91180-110-0	01	1	1311-1311	●
552	NUT; BRKT,HARNESS (B) M10 FLANGE MAL	0-91180-110-0	01	1	1312-1412	●
552	NUT; BRKT,HARNESS (B) M10 FLANGE MAL	0-91180-110-0	01	1	1501-	●	●

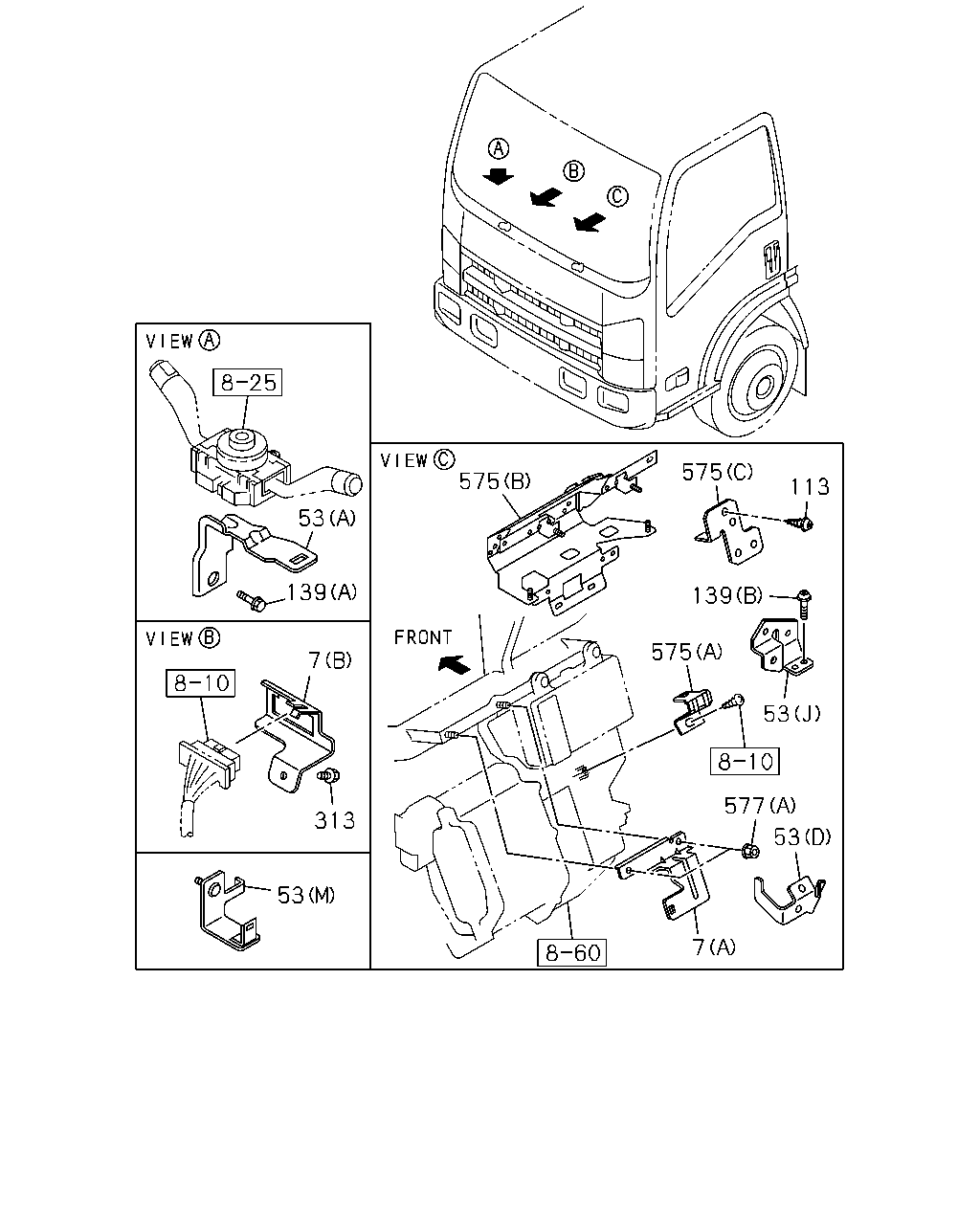

53 139 7 313 53 575 575 139 575 577 53 7 113 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR 4HG1-T ENG(RDP) (B)	8-98043-070-1	01	1	1311-1311	●
7	BRACKET; CONNECTOR (B)	8-98043-070-1	01	1	1312-1412	●
7	BRACKET; CONNECTOR (B)	8-98043-070-1	01	1	1501-	●	●
7	BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ) (A)	8-98029-762-4	01	1	1312-1412	●
7	BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ) (A)	8-98029-762-4	01	1	1501-	●	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) (N)	8-98126-454-2	01	1	1311-1405	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> (N)	8-98126-454-2	01	1	1406-	●
53	BRACKET; HARNESS (C)	8-98018-900-2	01	1	1311-1412	●
53	BRACKET; HARNESS (C)	8-98018-900-2	01	1	1501-	●	●
53	BRACKET; HARNESS (G)	8-98051-457-0	01	1	1311-1412	●
53	BRACKET; HARNESS (G)	8-98051-457-0	01	1	1501-	●	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1311-1412	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1501-	●	●
53	BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (J)	8-98084-590-0	01	1	1311-1412	●
53	BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (J)	8-98084-590-0	01	1	1501-	●	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) (M)	8-98114-461-2	01	1	1311-1311	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (M)	8-98114-461-2	01	1	1312-	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) (L)	8-98130-669-1	01	1	1311-1311	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (L)	8-98130-669-1	01	1	1312-1412	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (L)	8-98130-669-1	01	1	1501-	●
53	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (L)	8-98130-669-1	01	1	1501-		●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) (E)	8-98132-377-0	01	1	1311-1311	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (E)	8-98132-377-0	01	1	1312-	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) (B)	8-98173-558-0	01	1	1311-1311	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (B)	8-98173-558-0	01	1	1312-	●
53	BRACKET; HARNESS (H)	8-98077-503-1	01	1	1311-1311	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1312-1412	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1501-	●
53	BRACKET; HARNESS (H)	8-98077-503-1	01	1	1501-		●
53	BRACKET; HARNESS (K)	8-98077-504-0	01	1	1311-1311	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	1312-1412	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	1501-	●	●
53	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (D)	8-98074-502-0	01	1	1312-1412	●
53	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (D)	8-98074-502-0	01	1	1501-	●	●
53	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (F)	8-98052-804-0	01	1	1312-1412	●
53	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (F)	8-98052-804-0	01	1	1501-	●	●
53	BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (I)	8-98083-225-1	01	1	1312-	●
113	SCREW; HARNESS CONNECTOR 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> VIN MODEL YEAR 2015<VZF> M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	01	1	1509-	●
139	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	01	1	1311-1412	●
139	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	01	1	1501-	●	●
139	BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	01	1	1311-1412	●
139	BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	01	1	1501-	●	●
313	BOLT; BRKT 4HG1-T ENG(RDP) M6X16 FLANGE	0-28450-616-0	01	1	1311-1311	●
313	BOLT; BRKT M6X16 FLANGE	0-28450-616-0	01	1	1312-1412	●
313	BOLT; BRKT M6X16 FLANGE	0-28450-616-0	01	1	1501-	●	●
575	BRACKET; FUSE BOX 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> VIN MODEL YEAR 2015<VZF> (C)	1-82698-128-2	01	1	1509-	●
575	BRACKET; FUSE BOX 4HG1-T ENG(RDP) (B)	8-98173-144-3	01	1	1311-	●
575	BRACKET; FUSE BOX 4HK1-TCN ENG(RDQ) (A)	8-98042-656-2	01	1	1312-1412	●
575	BRACKET; FUSE BOX 4HK1-TCN ENG(RDQ) (A)	8-98042-656-2	01	1	1501-	●	●
577	NUT; FUSE BOX 4HG1-T ENG(RDP) (A) M6 FLANGE MAL	0-91180-106-0	02	1	1311-	●
577	NUT; FUSE BOX 4HG1-T ENG(RDP) (B) M5 FLANGE	5-09440-003-0	04	1	1311-	●
577	NUT; FUSE BOX 4HK1-TCN ENG(RDQ) (A) M6 FLANGE MAL	0-91180-106-0	04	1	1312-1412	●
577	NUT; FUSE BOX 4HK1-TCN ENG(RDQ) (A) M6 FLANGE MAL	0-91180-106-0	04	1	1501-	●	●

16 16 16 14 14 16 102 483 102 16 16 22 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ) (B) L=140 MAL	5-09707-031-1	01	1	1502-	●	●
14	CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ) (A) L=150	8-97355-273-0	01	1	1312-1412	●
14	CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ) (A) L=150	8-97355-273-0	01	1	1501-	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (K) L=60	8-94449-165-0	02	1	1501-		●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (L) L=60	8-97063-335-0	02	1	1501-		●
16	CLIP; HARNESS COOLER WO/HEATER(C65) (J) L=140 MAL	5-09707-031-1	01	1	1401-1412	●
16	CLIP; HARNESS COOLER WO/HEATER(C65) (J) L=140 MAL	5-09707-031-1	01	1	1501-	●	●
16	CLIP; HARNESS 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (G) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1311-	●
16	CLIP; HARNESS (B) ID=6 & 10-13 MAL	8-97069-515-0	02	1	1311-1412	●
16	CLIP; HARNESS (B) ID=6 & 10-13 MAL	8-97069-515-0	02	1	1501-	●	●
16	CLIP; HARNESS (A) L=155 MAL	8-97173-307-0	14	1	1311-1412	●
16	CLIP; HARNESS (A) L=155 MAL	8-97173-307-0	14	1	1501-	●	●
16	CLIP; HARNESS (C) L=40.6 MAL	8-97229-357-0	02	1	1311-1412	●
16	CLIP; HARNESS (C) L=40.6 MAL	8-97229-357-0	02	1	1501-	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6 MAL	8-97229-357-0	02	1	1501-		●
16	CLIP; HARNESS (F) MAL	8-98052-679-0	02	1	1311-1412	●
16	CLIP; HARNESS (F) MAL	8-98052-679-0	02	1	1501-	●	●
16	CLIP; HARNESS 4HG1-T ENG(RDP) (D) ID=10 & 16 MAL	8-94413-325-0	01	1	1311-1311	●
16	CLIP; HARNESS 4HK1-TCN ENG(RDQ) (H)	8-97101-436-0	01	1	1312-1412	●
16	CLIP; HARNESS 4HK1-TCN ENG(RDQ) (H)	8-97101-436-0	01	1	1501-	●	●
16	CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	1311-1311	●
16	CLIP; HARNESS (D) ID=10 & 16 MAL	8-94413-325-0	01	1	1312-1412	●
16	CLIP; HARNESS (D) ID=10 & 16 MAL	8-94413-325-0	01	1	1501-	●	●
16	CLIP; HARNESS RR BODY FLAT BED<RS6> (E) L=112	8-94232-618-0	05	1	1312-	●
16	CLIP; HARNESS EXC. RR BODY FLAT BED<RS6> (I) L=250	5-09707-030-1	01	1	1312-1412	●
16	CLIP; HARNESS EXC. RR BODY FLAT BED<RS6> (I) L=250	5-09707-030-1	01	1	1501-	●
16	CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	1501-		●
22	CLIP; ENG HARNESS 4HG1-T ENG(RDP) (A) L=170.3	1-09987-182-0	01	1	1311-	●
22	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1312-1412	●	●
22	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1312-1412	●
22	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1501-	●	●
22	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1501-	●	●
48	CLIP; FRAME HARNESS (D) ID=14 L=47 MAL	5-09700-319-0	05	1	1311-1311	●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (D) ID=14 L=47 MAL	5-09700-319-0	05	1	1312-1412	●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (D) ID=14 L=47 MAL	5-09700-319-0	05	1	1501-	●
48	CLIP; FRAME HARNESS (D) ID=14 L=47 MAL	5-09700-319-0	05	1	1501-		●
48	CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C) L=450	1-09707-142-1	01	1	1312-	●
48	CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 16.5	8-94424-440-0	01	1	1312-	●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=14 L=47 MAL	5-09700-319-0	10	1	1312-	●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1312-1412	●
102	CLIP; BAND 4HK1-TCN ENG(RDQ) (B) L=250	5-09707-030-1	01	1	1312-1412	●
102	CLIP; BAND 4HK1-TCN ENG(RDQ) (B) L=250	5-09707-030-1	01	1	1501-	●	●
102	CLIP; BAND 4HK1-TCN ENG(RDQ) (A) L=140 MAL	5-09707-031-1	02	1	1312-1412	●
102	CLIP; BAND 4HK1-TCN ENG(RDQ) (A) L=140 MAL	5-09707-031-1	02	1	1501-	●	●
483	CLIP; ENG HARNESS 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> (F) L=140 MAL	5-09707-031-1	01	1	1410-	●
483	CLIP; ENG HARNESS 4HG1-T ENG(RDP) (F) L=140 MAL	5-09707-031-1	01	1	1311-1409	●
483	CLIP; ENG HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> (F) L=140 MAL	5-09707-031-1	03	1	1410-	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (A) ID=19 L=60	0-95235-896-0	01	1	1312-1412	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (A) ID=19 L=60	0-95235-896-0	01	1	1501-	●	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (B) ID=12 L=70	1-09700-097-1	01	1	1312-1412	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (B) ID=12 L=70	1-09700-097-1	01	1	1501-	●	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (C) ID=24 L=24	1-09701-001-1	01	1	1312-1412	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (C) ID=24 L=24	1-09701-001-1	01	1	1501-	●	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (E) L=36	8-94224-891-1	04	1	1312-1412	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (E) L=36	8-94224-891-1	04	1	1501-	●	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (D) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1312-1412	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (D) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1501-	●	●

515 53 53 53 53 53 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	BRACKET; HARNESS 4HG1-T ENG(RDP) (N)	8-98126-454-2	01	1	1311-1405	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> (N)	8-98126-454-2	01	1	1406-	●
53	BRACKET; HARNESS (C)	8-98018-900-2	01	1	1311-1412	●
53	BRACKET; HARNESS (C)	8-98018-900-2	01	1	1501-	●	●
53	BRACKET; HARNESS (G)	8-98051-457-0	01	1	1311-1412	●
53	BRACKET; HARNESS (G)	8-98051-457-0	01	1	1501-	●	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1311-1412	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1501-	●	●
53	BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (J)	8-98084-590-0	01	1	1311-1412	●
53	BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (J)	8-98084-590-0	01	1	1501-	●	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) (M)	8-98114-461-2	01	1	1311-1311	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (M)	8-98114-461-2	01	1	1312-	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) (L)	8-98130-669-1	01	1	1311-1311	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (L)	8-98130-669-1	01	1	1312-1412	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (L)	8-98130-669-1	01	1	1501-	●
53	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (L)	8-98130-669-1	01	1	1501-		●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) (E)	8-98132-377-0	01	1	1311-1311	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (E)	8-98132-377-0	01	1	1312-	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) (B)	8-98173-558-0	01	1	1311-1311	●
53	BRACKET; HARNESS 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (B)	8-98173-558-0	01	1	1312-	●
53	BRACKET; HARNESS (H)	8-98077-503-1	01	1	1311-1311	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1312-1412	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1501-	●
53	BRACKET; HARNESS (H)	8-98077-503-1	01	1	1501-		●
53	BRACKET; HARNESS (K)	8-98077-504-0	01	1	1311-1311	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	1312-1412	●
53	BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	1501-	●	●
53	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (D)	8-98074-502-0	01	1	1312-1412	●
53	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (D)	8-98074-502-0	01	1	1501-	●	●

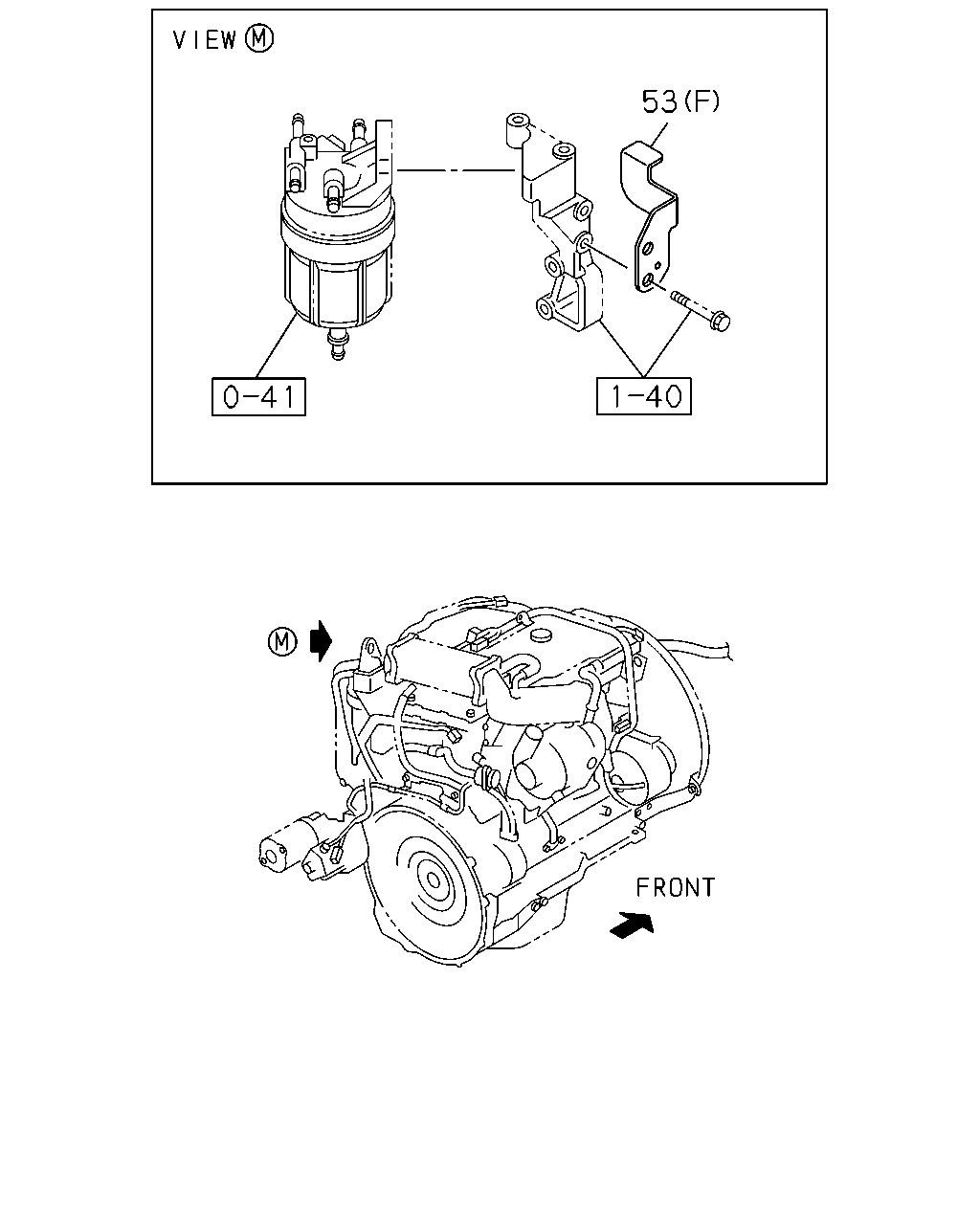

53	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (F)	8-98052-804-0	01	1	1312-1412	●
53	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (F)	8-98052-804-0	01	1	1501-	●	●
53	BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (I)	8-98083-225-1	01	1	1312-	●
515	NUT; BRKT (A) M6 FLANGE MAL	0-91180-106-0	01	1	1311-1412	●
515	NUT; BRKT (A) M6 FLANGE MAL	0-91180-106-0	01	1	1501-	●	●
515	NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1311-1412	●
515	NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1501-	●	●
515	NUT; BRKT 4HG1-T ENG(RDP) (D) M8 FLANGE MAL	0-91180-108-0	02	1	1311-1311	●
515	NUT; BRKT 4HG1-T ENG(RDP) (D) M8 FLANGE MAL	0-91180-108-0	02	1	1311-1311	●
515	NUT; BRKT 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (D) M8 FLANGE MAL	0-91180-108-0	02	1	1312-	●
515	NUT; BRKT 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (D) M8 FLANGE MAL	0-91180-108-0	02	1	1312-	●
515	NUT; BRKT (C) M10 FLANGE MAL	0-91180-110-0	01	1	1311-1311	●
515	NUT; BRKT 4HG1-T ENG(RDP) (C) M10 FLANGE MAL	0-91180-110-0	01	1	1311-1311	●
515	NUT; BRKT 4HG1-T ENG(RDP) (C) M10 FLANGE MAL	0-91180-110-0	01	1	1311-1311	●
515	NUT; BRKT 4HG1-T ENG(RDP) (C) M10 FLANGE MAL	0-91180-110-0	01	1	1312-1405	●
515	NUT; BRKT (C) M10 FLANGE MAL	0-91180-110-0	01	1	1312-1405	●
515	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> (C) M10 FLANGE MAL	0-91180-110-0	01	1	1312-1405	●
515	NUT; BRKT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> (C) M10 FLANGE MAL	0-91180-110-0	01	1	1406-1412	●
515	NUT; BRKT (C) M10 FLANGE MAL	0-91180-110-0	01	1	1406-1412	●
515	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> (C) M10 FLANGE MAL	0-91180-110-0	01	1	1406-1412	●
515	NUT; BRKT (C) M10 FLANGE MAL	0-91180-110-0	01	1	1501-	●	●
515	NUT; BRKT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> (C) M10 FLANGE MAL	0-91180-110-0	01	1	1501-	●
515	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> (C) M10 FLANGE MAL	0-91180-110-0	01	1	1501-	●
515	NUT; BRKT 4HK1-TCN ENG(RDQ) (C) M10 FLANGE MAL	0-91180-110-0	01	1	1501-		●

150 38 313 139 150 480 529 480 529 386 377 386 577 24 294 515 577 294 515 515 552 24 515 552 516 139 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	NUT; HARNESS (A) M6 FLANGE MAL	0-91180-106-0	01	1	1311-1409	●
24	NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-1412	●
24	NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1501-	●	●
24	NUT; HARNESS 4HK1-TCN ENG(RDQ) (B) M10 FLANGE MAL	0-91180-110-0	01	1	1312-1412	●
24	NUT; HARNESS 4HK1-TCN ENG(RDQ) (B) M10 FLANGE MAL	0-91180-110-0	01	1	1501-	●	●
38	BOLT; CLIP,HARNESS 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6X12 FLANGE	0-28250-612-0	02	1	1311-	●
139	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	01	1	1311-1412	●
139	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	01	1	1501-	●	●
139	BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	01	1	1311-1412	●
139	BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	01	1	1501-	●	●
150	BOLT; CLIP 4HK1-TCN ENG(RDQ) (A) M6X10 FLANGE	0-28050-610-0	01	1	1312-1412	●
150	BOLT; CLIP 4HK1-TCN ENG(RDQ) (A) M6X10 FLANGE	0-28050-610-0	01	1	1501-	●	●
150	BOLT; CLIP 4HK1-TCN ENG(RDQ) (B) M8X16 FLANGE MAL	0-28050-816-0	04	1	1312-1412	●
150	BOLT; CLIP 4HK1-TCN ENG(RDQ) (B) M8X16 FLANGE MAL	0-28050-816-0	04	1	1501-	●	●
294	NUT 4HG1-T ENG(RDP) (A) M6 W/LK WASHER	8-94424-179-0	01	1	1311-	●
294	NUT 4HK1-TCN ENG(RDQ) (B) M8 FLANGE MAL	0-91180-108-0	01	1	1312-1412	●
294	NUT 4HK1-TCN ENG(RDQ) (B) M8 FLANGE MAL	0-91180-108-0	01	1	1501-	●	●
313	BOLT; BRKT 4HG1-T ENG(RDP) M6X16 FLANGE	0-28450-616-0	01	1	1311-1311	●
313	BOLT; BRKT M6X16 FLANGE	0-28450-616-0	01	1	1312-1412	●
313	BOLT; BRKT M6X16 FLANGE	0-28450-616-0	01	1	1501-	●	●
377	BOLT; CAB EARTH (B) M8X18.5 W/PL WASHER MAL	8-98141-255-0	03	1	1311-1412	●
377	BOLT; CAB EARTH (B) M8X18.5 W/PL WASHER MAL	8-98141-255-0	03	1	1501-	●	●
377	BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1311-1412	●
377	BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1501-	●	●
386	BOLT; GRAND HARNESS (A) M8X18.5 W/PL WASHER MAL	8-98141-255-0	01	1	1311-1412	●
386	BOLT; GRAND HARNESS (A) M8X18.5 W/PL WASHER MAL	8-98141-255-0	01	1	1501-	●	●
386	BOLT; GRAND HARNESS (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1311-1412	●
386	BOLT; GRAND HARNESS (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1501-	●	●
480	BOLT; BRKT 4HG1-T ENG(RDP) (B) M10X30 FLANGE	0-28651-030-0	01	1	1311-1311	●
480	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE MAL	0-28650-825-0	01	1	1312-1412	●
480	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE MAL	0-28650-825-0	01	1	1501-	●	●
480	BOLT; BRKT (A) M8X25 FLANGE MAL	0-28650-825-0	01	1	1311-1311	●
480	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1312-1412	●
480	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1501-	●	●
515	NUT; BRKT (A) M6 FLANGE MAL	0-91180-106-0	01	1	1311-1412	●
515	NUT; BRKT (A) M6 FLANGE MAL	0-91180-106-0	01	1	1501-	●	●
515	NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1311-1412	●
515	NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1501-	●	●
515	NUT; BRKT 4HG1-T ENG(RDP) (D) M8 FLANGE MAL	0-91180-108-0	02	1	1311-1311	●
515	NUT; BRKT 4HG1-T ENG(RDP) (D) M8 FLANGE MAL	0-91180-108-0	02	1	1311-1311	●
515	NUT; BRKT 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (D) M8 FLANGE MAL	0-91180-108-0	02	1	1312-	●
515	NUT; BRKT 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (D) M8 FLANGE MAL	0-91180-108-0	02	1	1312-	●
515	NUT; BRKT (C) M10 FLANGE MAL	0-91180-110-0	01	1	1311-1311	●
515	NUT; BRKT 4HG1-T ENG(RDP) (C) M10 FLANGE MAL	0-91180-110-0	01	1	1311-1311	●
515	NUT; BRKT 4HG1-T ENG(RDP) (C) M10 FLANGE MAL	0-91180-110-0	01	1	1311-1311	●
515	NUT; BRKT 4HG1-T ENG(RDP) (C) M10 FLANGE MAL	0-91180-110-0	01	1	1312-1405	●
515	NUT; BRKT (C) M10 FLANGE MAL	0-91180-110-0	01	1	1312-1405	●
515	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> (C) M10 FLANGE MAL	0-91180-110-0	01	1	1312-1405	●
515	NUT; BRKT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> (C) M10 FLANGE MAL	0-91180-110-0	01	1	1406-1412	●
515	NUT; BRKT (C) M10 FLANGE MAL	0-91180-110-0	01	1	1406-1412	●
515	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> (C) M10 FLANGE MAL	0-91180-110-0	01	1	1406-1412	●
515	NUT; BRKT (C) M10 FLANGE MAL	0-91180-110-0	01	1	1501-	●	●
515	NUT; BRKT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> (C) M10 FLANGE MAL	0-91180-110-0	01	1	1501-	●
515	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> (C) M10 FLANGE MAL	0-91180-110-0	01	1	1501-	●
515	NUT; BRKT 4HK1-TCN ENG(RDQ) (C) M10 FLANGE MAL	0-91180-110-0	01	1	1501-		●
516	BOLT; HARNESS M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1311-1412	●
516	BOLT; HARNESS M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1501-	●	●
529	BOLT; RELAY BOX 4HG1-T ENG(RDP) (B) M8X25 FLANGE MAL	0-28650-825-0	03	1	1311-1311	●
529	BOLT; RELAY BOX 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE MAL	0-28650-825-0	03	1	1312-	●
529	BOLT; RELAY BOX 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1312-1412	●
529	BOLT; RELAY BOX EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1312-1412	●
529	BOLT; RELAY BOX 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1501-	●
529	BOLT; RELAY BOX EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1501-	●
529	BOLT; RELAY BOX 4HK1-TCN ENG(RDQ) (A) M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1501-		●
552	NUT; BRKT,HARNESS 4HG1-T ENG(RDP) (A) M8 FLANGE MAL	0-91180-108-0	02	1	1311-1311	●
552	NUT; BRKT,HARNESS (A) M8 FLANGE MAL	0-91180-108-0	02	1	1312-1412	●
552	NUT; BRKT,HARNESS (A) M8 FLANGE MAL	0-91180-108-0	02	1	1501-	●	●
552	NUT; BRKT,HARNESS 4HG1-T ENG(RDP) (B) M10 FLANGE MAL	0-91180-110-0	01	1	1311-1311	●
552	NUT; BRKT,HARNESS (B) M10 FLANGE MAL	0-91180-110-0	01	1	1312-1412	●
552	NUT; BRKT,HARNESS (B) M10 FLANGE MAL	0-91180-110-0	01	1	1501-	●	●
577	NUT; FUSE BOX 4HG1-T ENG(RDP) (A) M6 FLANGE MAL	0-91180-106-0	02	1	1311-	●
577	NUT; FUSE BOX 4HG1-T ENG(RDP) (B) M5 FLANGE	5-09440-003-0	04	1	1311-	●
577	NUT; FUSE BOX 4HK1-TCN ENG(RDQ) (A) M6 FLANGE MAL	0-91180-106-0	04	1	1312-1412	●
577	NUT; FUSE BOX 4HK1-TCN ENG(RDQ) (A) M6 FLANGE MAL	0-91180-106-0	04	1	1501-	●	●

16 483 483 483 483 16 16 16 16 530 513 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (K) L=60	8-94449-165-0	02	1	1501-		●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (L) L=60	8-97063-335-0	02	1	1501-		●
16	CLIP; HARNESS COOLER WO/HEATER(C65) (J) L=140 MAL	5-09707-031-1	01	1	1401-1412	●
16	CLIP; HARNESS COOLER WO/HEATER(C65) (J) L=140 MAL	5-09707-031-1	01	1	1501-	●	●
16	CLIP; HARNESS 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (G) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1311-	●
16	CLIP; HARNESS (B) ID=6 & 10-13 MAL	8-97069-515-0	02	1	1311-1412	●
16	CLIP; HARNESS (B) ID=6 & 10-13 MAL	8-97069-515-0	02	1	1501-	●	●
16	CLIP; HARNESS (A) L=155 MAL	8-97173-307-0	14	1	1311-1412	●
16	CLIP; HARNESS (A) L=155 MAL	8-97173-307-0	14	1	1501-	●	●
16	CLIP; HARNESS (C) L=40.6 MAL	8-97229-357-0	02	1	1311-1412	●
16	CLIP; HARNESS (C) L=40.6 MAL	8-97229-357-0	02	1	1501-	●	●
16	CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6 MAL	8-97229-357-0	02	1	1501-		●
16	CLIP; HARNESS (F) MAL	8-98052-679-0	02	1	1311-1412	●
16	CLIP; HARNESS (F) MAL	8-98052-679-0	02	1	1501-	●	●
16	CLIP; HARNESS 4HG1-T ENG(RDP) (D) ID=10 & 16 MAL	8-94413-325-0	01	1	1311-1311	●
16	CLIP; HARNESS 4HK1-TCN ENG(RDQ) (H)	8-97101-436-0	01	1	1312-1412	●
16	CLIP; HARNESS 4HK1-TCN ENG(RDQ) (H)	8-97101-436-0	01	1	1501-	●	●
16	CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	1311-1311	●
16	CLIP; HARNESS (D) ID=10 & 16 MAL	8-94413-325-0	01	1	1312-1412	●
16	CLIP; HARNESS (D) ID=10 & 16 MAL	8-94413-325-0	01	1	1501-	●	●
16	CLIP; HARNESS RR BODY FLAT BED<RS6> (E) L=112	8-94232-618-0	05	1	1312-	●
16	CLIP; HARNESS EXC. RR BODY FLAT BED<RS6> (I) L=250	5-09707-030-1	01	1	1312-1412	●
16	CLIP; HARNESS EXC. RR BODY FLAT BED<RS6> (I) L=250	5-09707-030-1	01	1	1501-	●
16	CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	1501-		●
48	CLIP; FRAME HARNESS (D) ID=14 L=47 MAL	5-09700-319-0	05	1	1311-1311	●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (D) ID=14 L=47 MAL	5-09700-319-0	05	1	1312-1412	●
48	CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (D) ID=14 L=47 MAL	5-09700-319-0	05	1	1501-	●
48	CLIP; FRAME HARNESS (D) ID=14 L=47 MAL	5-09700-319-0	05	1	1501-		●
48	CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C) L=450	1-09707-142-1	01	1	1312-	●
48	CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 16.5	8-94424-440-0	01	1	1312-	●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=14 L=47 MAL	5-09700-319-0	10	1	1312-	●
48	CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1312-1412	●
483	CLIP; ENG HARNESS 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> (F) L=140 MAL	5-09707-031-1	01	1	1410-	●
483	CLIP; ENG HARNESS 4HG1-T ENG(RDP) (F) L=140 MAL	5-09707-031-1	01	1	1311-1409	●
483	CLIP; ENG HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> (F) L=140 MAL	5-09707-031-1	03	1	1410-	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (A) ID=19 L=60	0-95235-896-0	01	1	1312-1412	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (A) ID=19 L=60	0-95235-896-0	01	1	1501-	●	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (B) ID=12 L=70	1-09700-097-1	01	1	1312-1412	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (B) ID=12 L=70	1-09700-097-1	01	1	1501-	●	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (C) ID=24 L=24	1-09701-001-1	01	1	1312-1412	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (C) ID=24 L=24	1-09701-001-1	01	1	1501-	●	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (E) L=36	8-94224-891-1	04	1	1312-1412	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (E) L=36	8-94224-891-1	04	1	1501-	●	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (D) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1312-1412	●
483	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (D) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1501-	●	●
513	TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 130X80 MAL	8-97304-373-0	01	1	1311-1412	●
513	TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 130X80 MAL	8-97304-373-0	01	1	1501-	●	●
530	SEAL; HARNESS OD=32 BLACK MAL	8-98031-126-0	01	1	1311-1412	●
530	SEAL; HARNESS OD=32 BLACK MAL	8-98031-126-0	01	1	1501-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
