Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#130919) — 465 parça

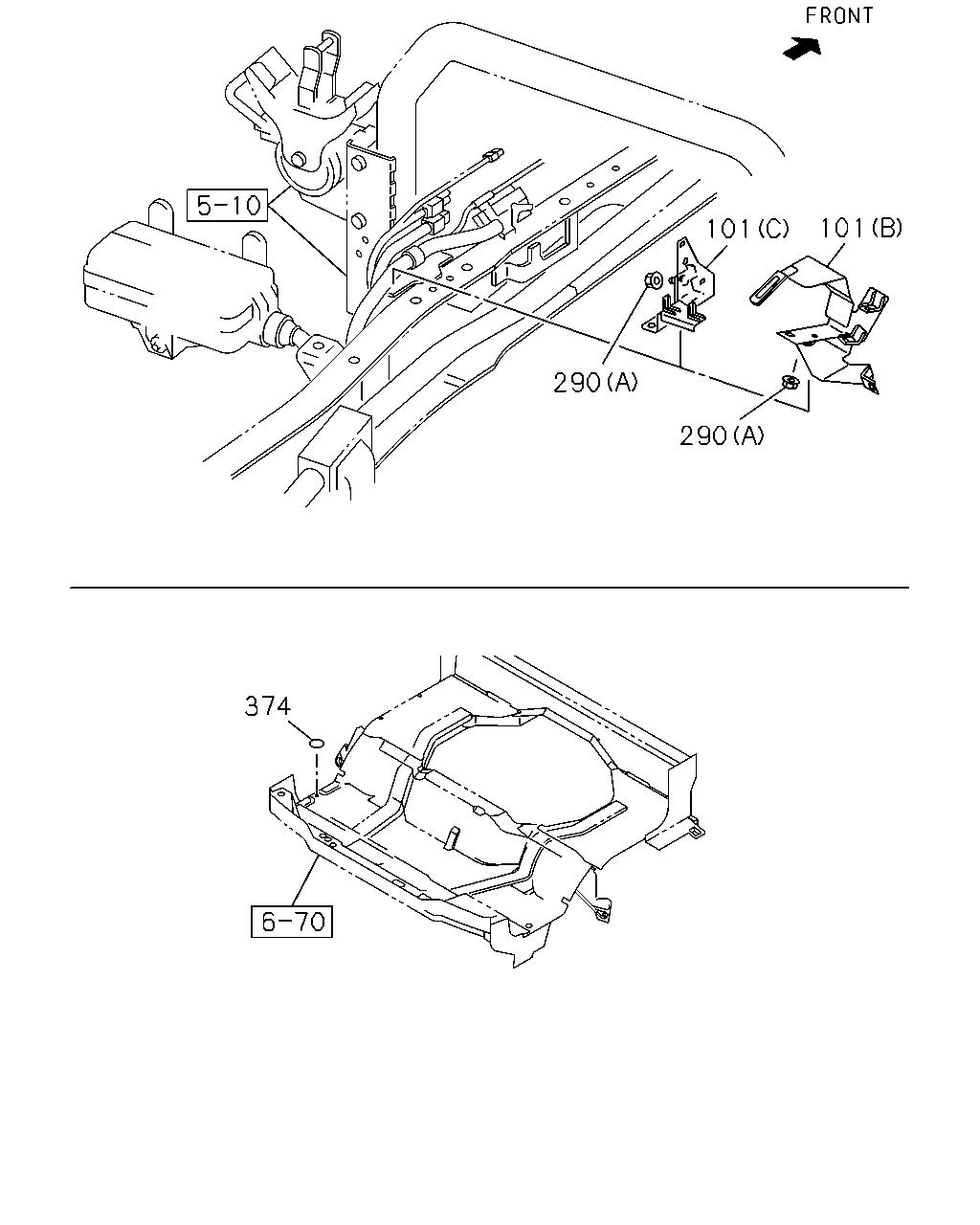

101 101 290 290 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (A)	8-98052-805-0	01	1	1312-1412	●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (A)	8-98052-805-0	01	1	1501-	●	●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98094-483-1	01	1	1312-1412	●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98094-483-1	01	1	1501-	●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (B)	8-98094-483-1	01	1	1501-		●
101	BRACKET; HARNESS CONNECTOR EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98032-447-1	01	1	1312-	●
290	NUT; BRKT 4HK1-TCN ENG(RDQ) (B) M6 FLANGE MAL	0-91180-106-0	02	1	1312-1412	●
290	NUT; BRKT 4HK1-TCN ENG(RDQ) (B) M6 FLANGE MAL	0-91180-106-0	02	1	1501-	●	●
290	NUT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) M8 FLANGE MAL	0-91180-108-0	01	1	1312-1412	●
290	NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8 FLANGE MAL	0-91180-108-0	01	1	1312-1412	●
290	NUT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) M8 FLANGE MAL	0-91180-108-0	01	1	1501-	●
290	NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8 FLANGE MAL	0-91180-108-0	01	1	1501-	●
290	NUT; BRKT 4HK1-TCN ENG(RDQ) (A) M8 FLANGE MAL	0-91180-108-0	01	1	1501-		●
374	PLUG; HARNESS CONNECTOR OD=24.5 T=7.5 MAL	8-97224-683-0	01	1	1501-		●
374	PLUG; HARNESS CONNECTOR OD=32 BLACK MAL	8-98031-126-0	01	1	1311-	●

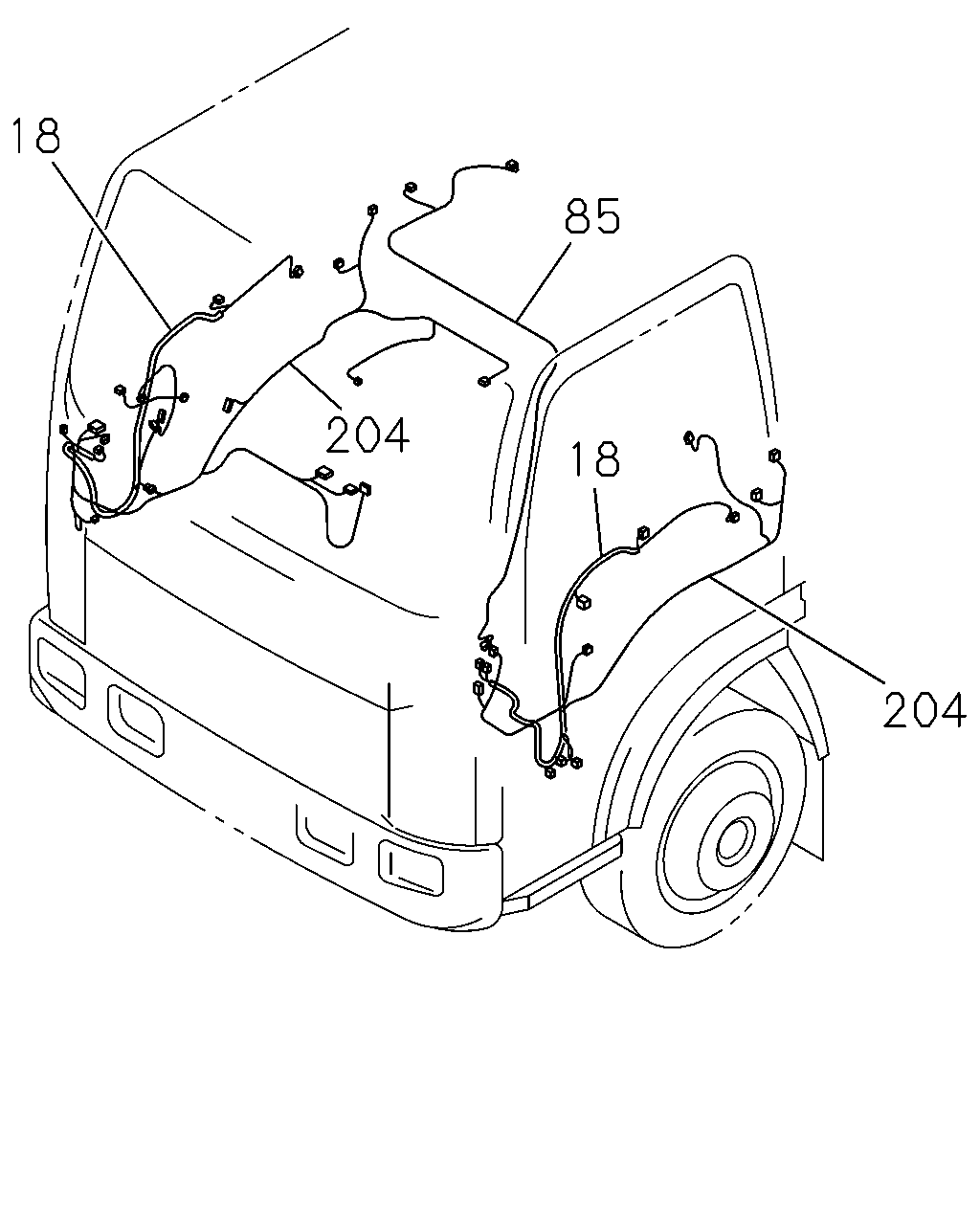

204 85 18 204 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31>	8-98202-555-0	02	1	1501-		●
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32> MAL	8-98071-076-2	01	1	1311-1412	●
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32> MAL	8-98071-076-2	01	1	1501-	●
18	HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> MAL	8-98071-076-2	01	1	1501-		●
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32> MAL	8-98071-084-3	01	1	1311-1412	●
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32> MAL	8-98071-084-3	01	1	1501-	●
18	HARNESS; DOOR POWER WINDOW FRT&REAR DOOR<A31> MAL	8-98071-084-3	01	1	1501-		●
18	HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32> MAL	8-98071-075-2	01	1	1311-1412	●
18	HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32> MAL	8-98071-075-2	01	1	1501-	●
18	HARNESS; DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31> MAL	8-98071-075-2	01	1	1501-		●
18	HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32> MAL	8-98071-083-2	01	1	1311-1412	●
18	HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32> MAL	8-98071-083-2	01	1	1501-	●
18	HARNESS; DOOR EXC. POWER WINDOW FRT&REAR DOOR<A31> MAL	8-98071-083-2	01	1	1501-		●
85	HARNESS; ROOM LAMP	8-98029-741-4	01	1	1501-		●
85	HARNESS; ROOM LAMP MAL	8-98047-149-3	01	1	1311-	●
204	HARNESS; CABLE,FLOOR POWER WINDOW FRT&REAR DOOR<A31>	8-98070-792-3	01	1	1501-		●
204	HARNESS; CABLE,FLOOR POWER WINDOW FRT&REAR DOOR<A31>	8-98070-810-3	01	1	1501-		●
204	HARNESS; CABLE,FLOOR EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98070-791-3	01	1	1501-		●
204	HARNESS; CABLE,FLOOR EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98070-809-3	01	1	1501-		●
204	HARNESS; CABLE,FLOOR MAL	8-98070-787-4	01	1	1311-	●

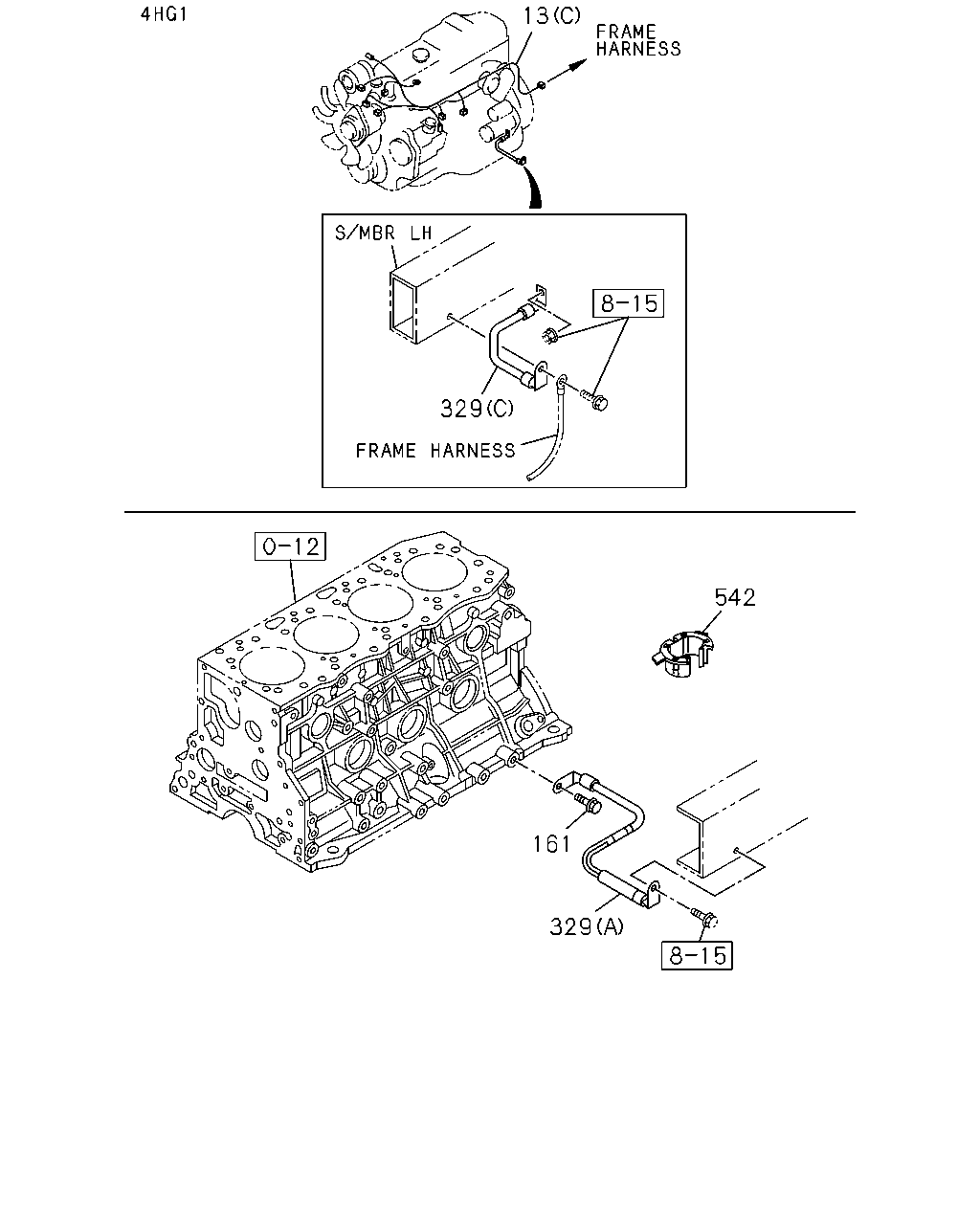

13 329 542 161 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	HARNESS; ENG 4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> (C)	8-97356-988-1	01	1	1407-1410	●
13	HARNESS; ENG 4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> (C)	8-98298-790-0	01	1	1411-	●
13	HARNESS; ENG 4HG1-T ENG(RDP) (C)	8-97360-767-1	01	1	1311-1406	●
13	HARNESS; ENG 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> (C)	8-97360-767-1	01	1	1407-	●
13	HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN) (A)	8-98209-819-0	01	1	1312-1412	●
13	HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN) (A)	8-98209-819-0	01	1	1501-	●	●
13	HARNESS; ENG 4HK1-TCN ENG(RDQ) (B)	8-98171-638-0	01	1	1312-1412	●
13	HARNESS; ENG 4HK1-TCN ENG(RDQ) (B)	8-98171-638-0	01	1	1501-	●	●
13	HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (A)	8-98209-820-0	01	1	1312-1412	●
13	HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (A)	8-98209-820-0	01	1	1501-	●	●
161	BOLT; GROUND,HARNESS 4HG1-T ENG(RDP) M8X16 FLANGE MAL	0-28050-816-0	01	1	1311-1311	●
161	BOLT; GROUND,HARNESS M8X16 FLANGE MAL	0-28050-816-0	01	1	1312-1412	●
161	BOLT; GROUND,HARNESS M8X16 FLANGE MAL	0-28050-816-0	01	1	1501-	●	●
329	CABLE; ENG TO FRAME 4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> (C)	8-97177-383-0	01	1	1407-	●
329	CABLE; ENG TO FRAME 4HG1-T ENG(RDP) (A)	8-98123-064-0	01	1	1311-	●
329	CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98102-465-0	01	1	1312-1412	●
329	CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98102-465-0	01	1	1501-	●
329	CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ) (B)	8-98102-465-0	01	1	1501-		●
542	GROMMET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> ID=17	8-94128-319-2	01	1	1312-	●

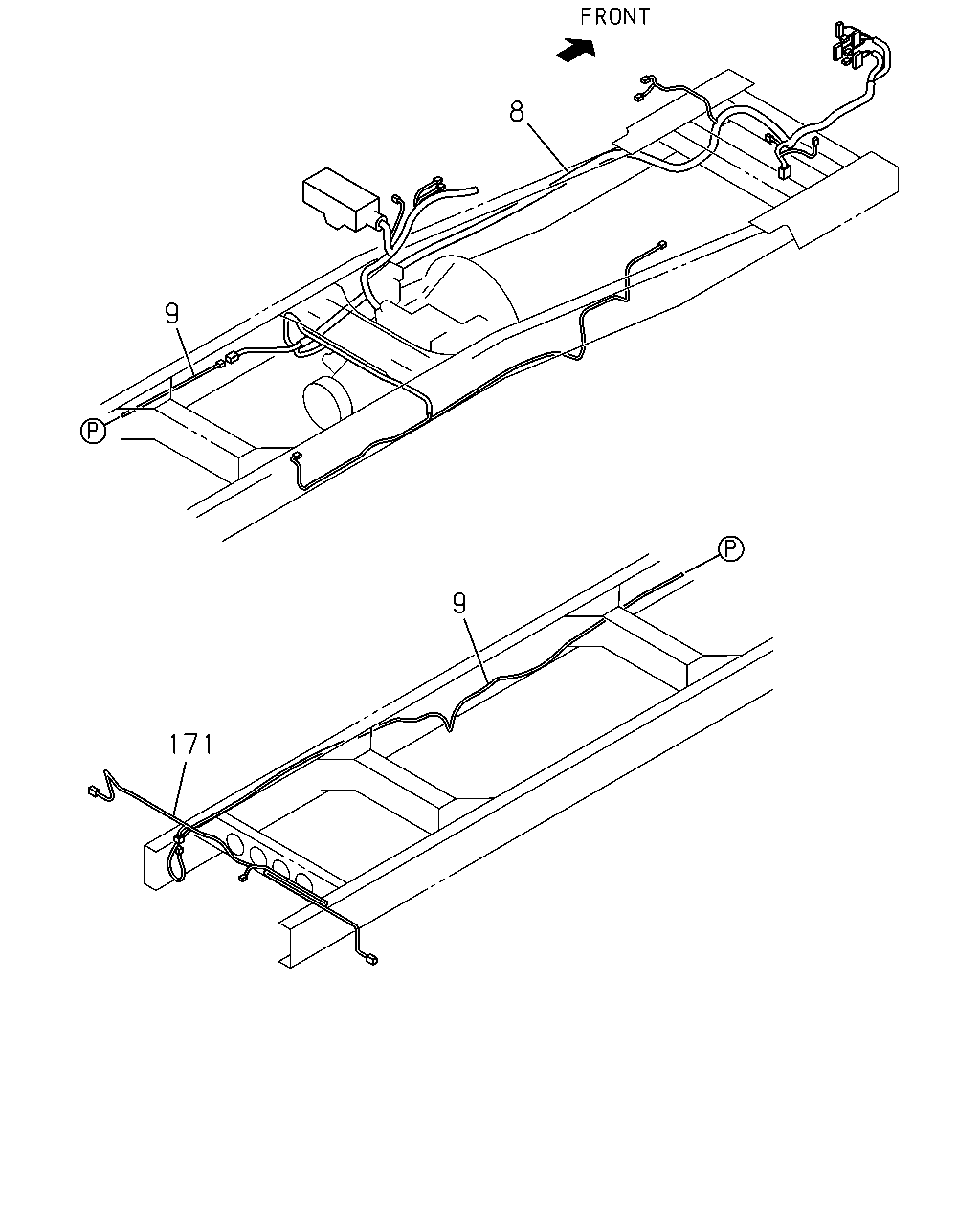

8 9 9 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

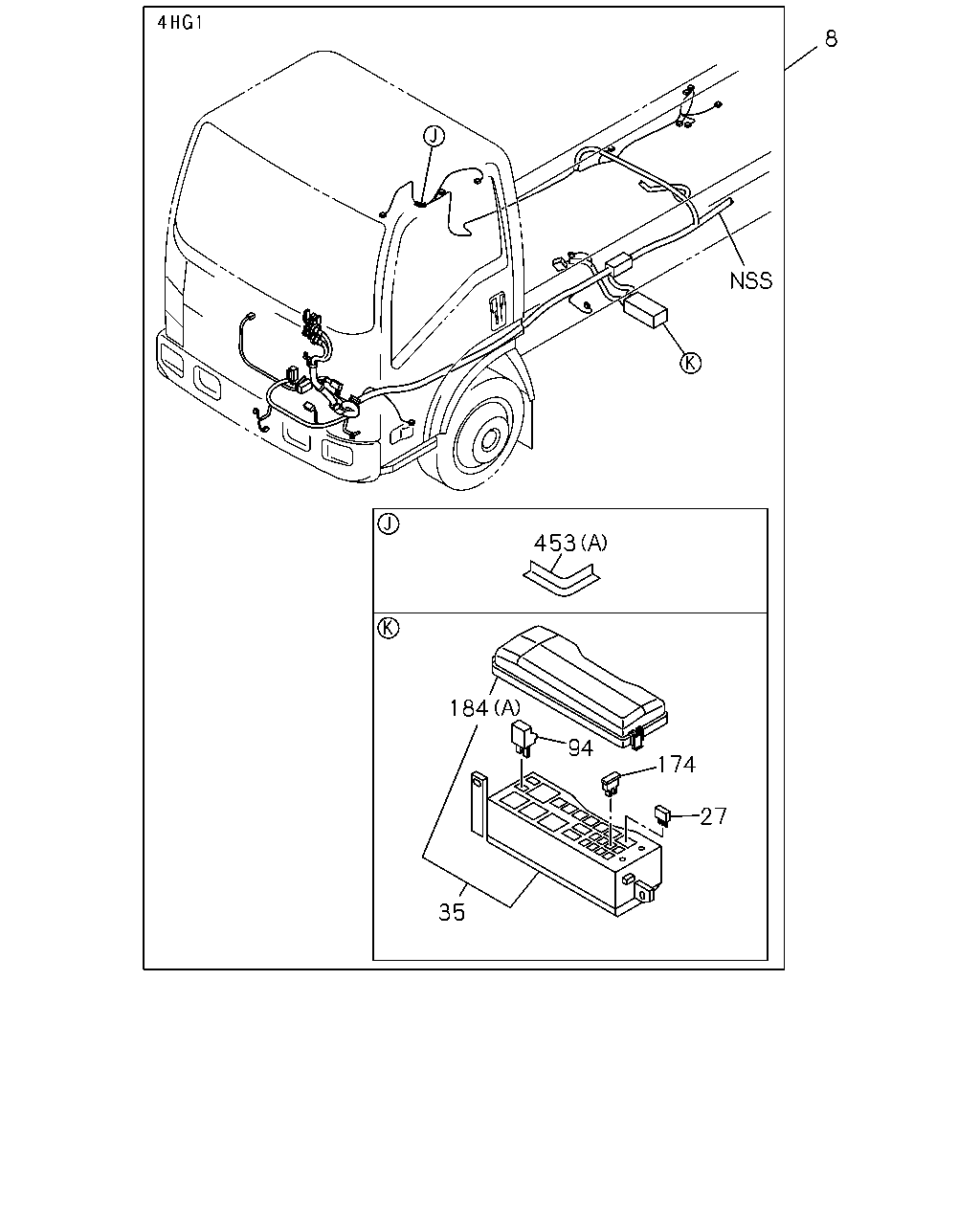

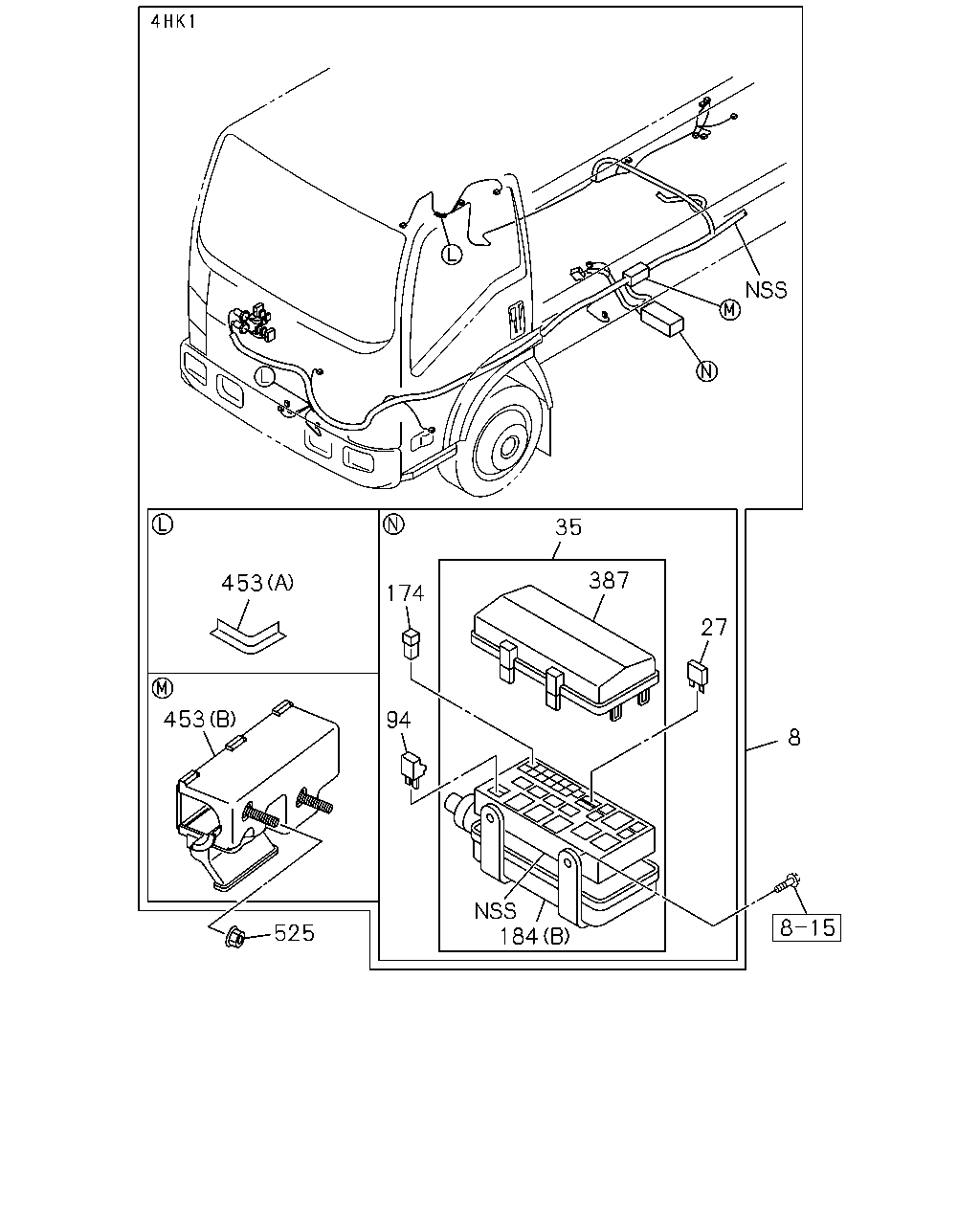

8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST)	8-98296-559-0	01	1	1501-		●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) VIN MODEL YEAR 2015<VZF> FRAME STRAIGHT TYPE<7KJ>	8-98322-884-0	01	1	1509-1509	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> VIN MODEL YEAR 2015<VZF> FRAME STRAIGHT TYPE<7KJ>	8-98322-884-0	01	1	1509-1509	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) EXHAUST BRAKE<NF8> VIN MODEL YEAR 2015<VZF> FRAME STRAIGHT TYPE<7KJ>	8-98322-884-0	01	1	1510-	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> RR BODY FLAT BED<RS6> VIN MODEL YEAR 2015<VZF> FRAME STRAIGHT TYPE<7KJ>	8-98322-884-0	01	1	1510-	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) VIN MODEL YEAR 2015<VZF> FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>	8-98322-885-0	01	1	1509-1509	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> VIN MODEL YEAR 2015<VZF> FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>	8-98322-885-0	01	1	1510-	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) MAL	8-98244-380-0	01	1	1311-1311	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> MAL	8-98244-380-0	01	1	1312-1409	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> MAL	8-98294-415-0	01	1	1410-1508	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>,VIN MODEL YEAR 2015<VZF> MAL	8-98294-415-0	01	1	1509-1509	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>,VIN MODEL YEAR 2015<VZF> MAL	8-98294-415-0	01	1	1510-	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) M/T MYY5T(RSM) WHEEL BASE 3800MM(38W) MAL	8-98199-735-1	01	1	1311-1311	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> MAL	8-98199-735-1	01	1	1312-1409	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> MAL	8-98199-735-1	01	1	1312-1409	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> MAL	8-98294-412-0	01	1	1410-1508	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> MAL	8-98294-412-0	01	1	1410-1508	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. VIN MODEL YEAR 2015<VZF> MAL	8-98294-412-0	01	1	1509-1509	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> EXC. VIN MODEL YEAR 2015<VZF> MAL	8-98294-412-0	01	1	1509-1509	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. VIN MODEL YEAR 2015<VZF> MAL	8-98294-412-0	01	1	1510-	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> EXC. VIN MODEL YEAR 2015<VZF> MAL	8-98294-412-0	01	1	1510-	●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> MAL	8-98115-312-4	01	1	1312-1409	●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> MAL	8-98294-279-0	01	1	1410-	●
9	HARNESS; FRAME,RR 4HK1-TCN ENG(RDQ)	8-98147-455-0	01	1	1501-		●
9	HARNESS; FRAME,RR 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) MAL	8-98173-515-0	01	1	1311-1311	●
9	HARNESS; FRAME,RR 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> MAL	8-98173-515-0	01	1	1312-	●
9	HARNESS; FRAME,RR 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) MAL	8-98173-516-0	01	1	1311-1311	●
9	HARNESS; FRAME,RR 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> MAL	8-98173-516-0	01	1	1312-	●
9	HARNESS; FRAME,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ>	8-98117-248-0	01	1	1312-	●
9	HARNESS; FRAME,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> MAL	8-98117-249-0	01	1	1312-	●
9	HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98047-001-2	01	1	1312-	●
9	HARNESS; FRAME,RR WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98047-009-2	01	1	1312-	●
171	HARNESS; CABLE,TAIL LAMP MAL	8-98156-027-0	01	1	1311-1412	●
171	HARNESS; CABLE,TAIL LAMP MAL	8-98156-027-0	01	1	1501-	●	●

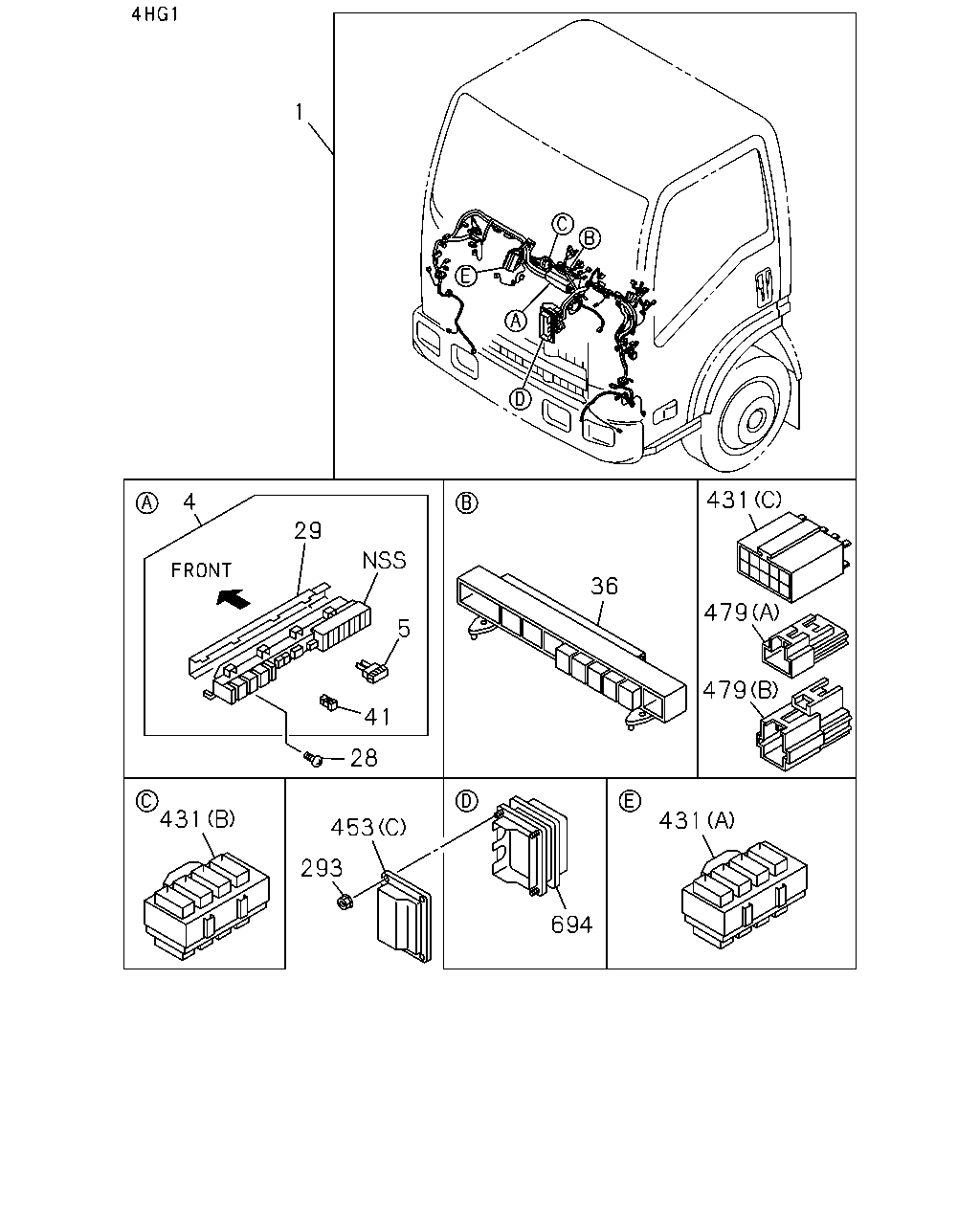

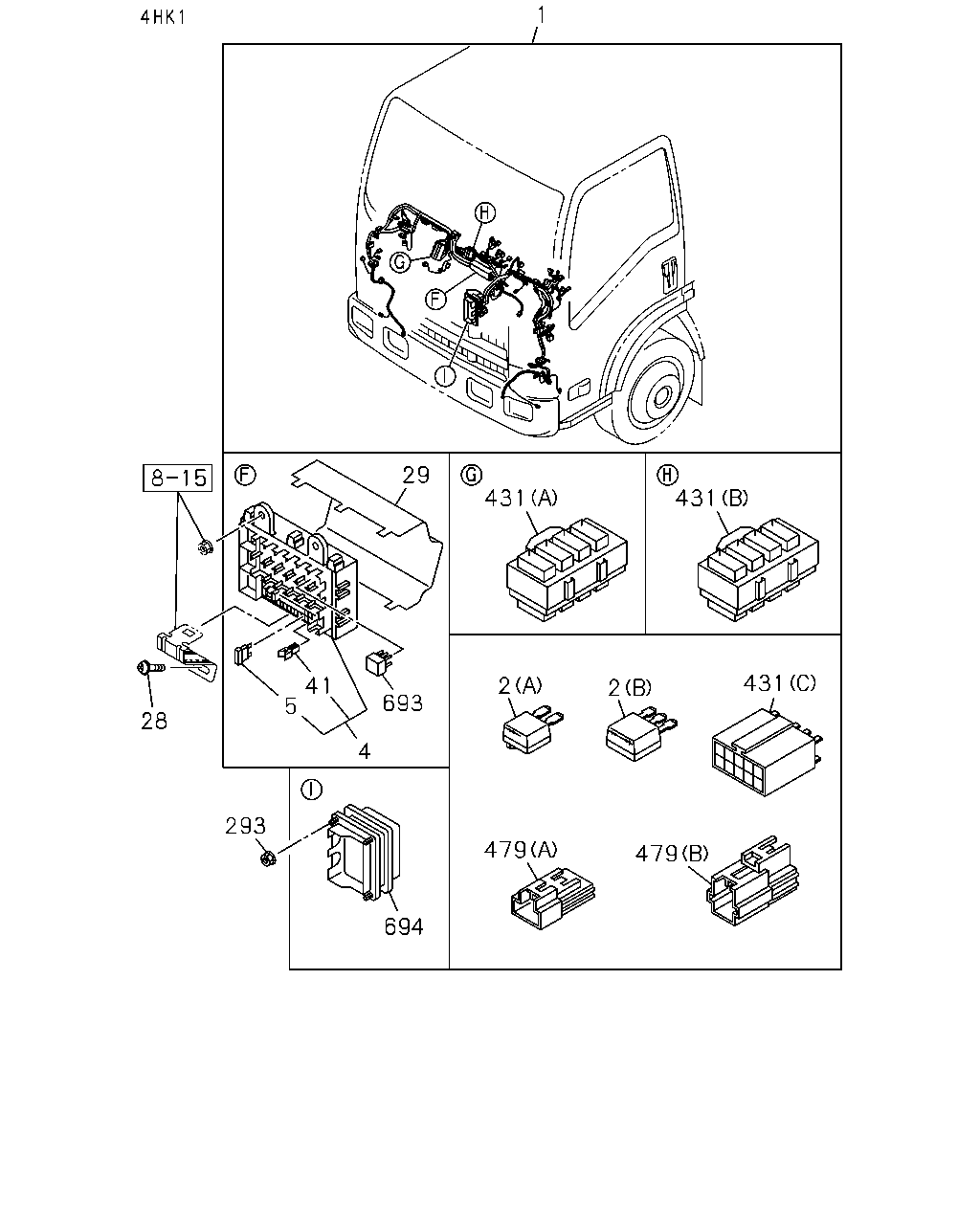

1 4 29 5 41 28 431 453 293 694 431 479 479 431 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB POWER WINDOW FRT&REAR DOOR<A31>	8-98242-715-0	01	1	1501-1502		●
1	HARNESS; CAB POWER WINDOW FRT&REAR DOOR<A31>	8-98302-832-0	01	1	1503-		●
1	HARNESS; CAB 4HG1-T ENG(RDP) INTERMITTENT WIPER<C13> VIN MODEL YEAR 2015<VZF> EXC. FAST GLOW SYSTEM<KM6>	8-98291-055-0	01	1	1509-	●
1	HARNESS; CAB 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> VIN MODEL YEAR 2015<VZF>	8-98172-115-2	01	1	1509-	●
1	HARNESS; CAB 4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> EXC. INTERMITTENT WIPER<C13>,FAST GLOW SYSTEM<KM6>	8-98298-782-0	01	1	1509-	●
1	HARNESS; CAB 4HG1-T ENG(RDP) POWER WINDOW FRT DOOR<A32> MAL	8-98172-118-2	01	1	1311-1508	●
1	HARNESS; CAB 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. POWER WINDOW FRT DOOR<A32> MAL	8-98172-118-2	01	1	1311-1508	●
1	HARNESS; CAB 4HG1-T ENG(RDP) POWER WINDOW FRT DOOR<A32> EXC. VIN MODEL YEAR 2015<VZF> MAL	8-98172-118-2	01	1	1509-	●
1	HARNESS; CAB 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. POWER WINDOW FRT DOOR<A32>,VIN MODEL YEAR 2015<VZF> MAL	8-98172-118-2	01	1	1509-	●
1	HARNESS; CAB 4HG1-T ENG(RDP) EXC. POWER WINDOW FRT DOOR<A32>,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98172-117-2	01	1	1311-1508	●
1	HARNESS; CAB 4HG1-T ENG(RDP) EXC. POWER WINDOW FRT DOOR<A32>,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),VIN MODEL YEAR 2015<VZF>	8-98172-117-2	01	1	1509-	●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) MAL	8-98207-655-0	01	1	1312-	●

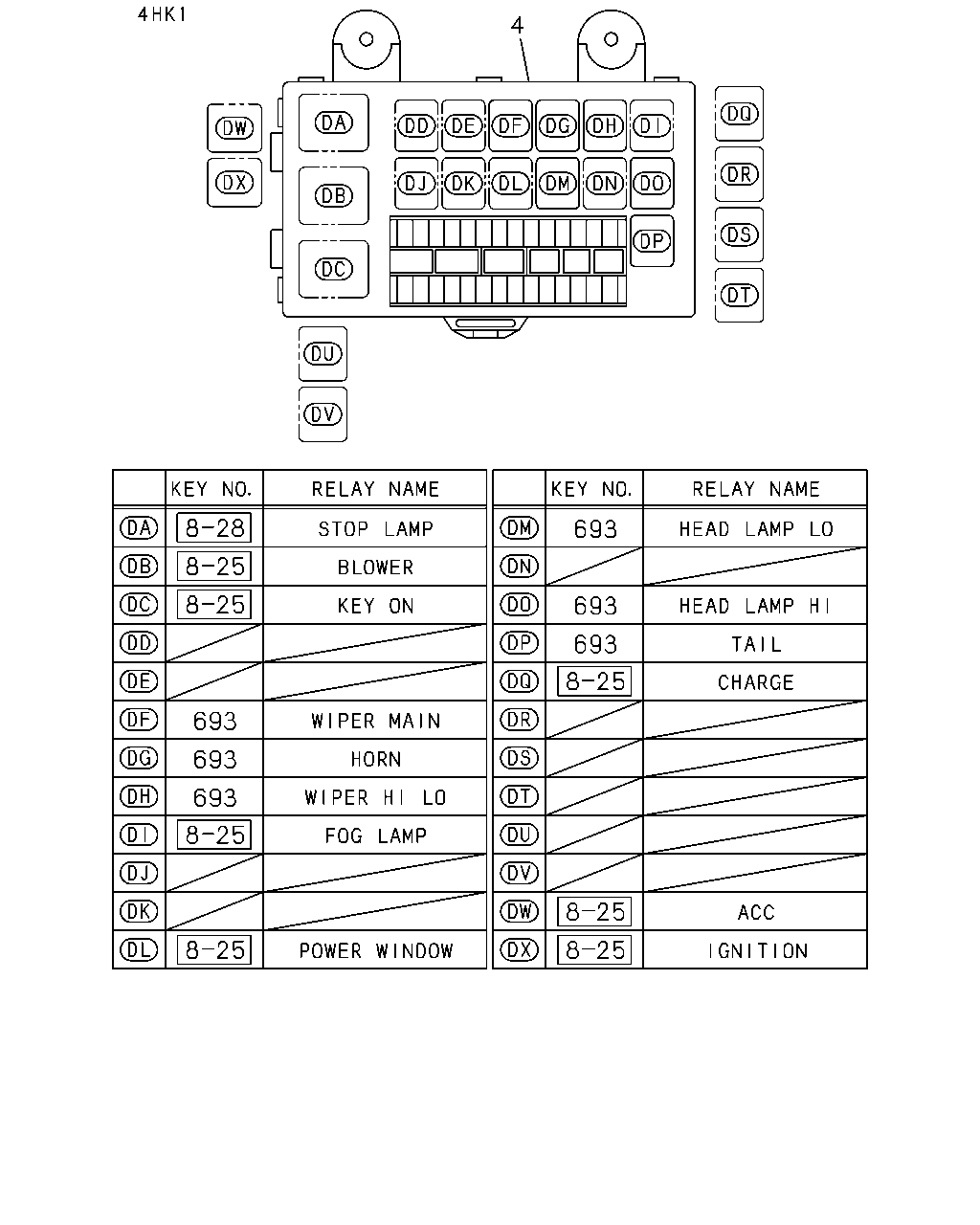

4	BOX ASM; FUSE,HARNESS 4HG1-T ENG(RDP) MAL	8-97187-921-1	01	1	1311-	●
4	BOX ASM; FUSE,HARNESS 4HK1-TCN ENG(RDQ) MAL	8-98067-619-1	01	1	1312-1412	●
4	BOX ASM; FUSE,HARNESS 4HK1-TCN ENG(RDQ) MAL	8-98067-619-1	01	1	1501-	●
4	BOX ASM; FUSE,HARNESS 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> MAL	8-98067-619-1	01	1	1501-		●
5	FUSE; FACIA HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> EXC. FAST GLOW SYSTEM<KM6> 20A MINI YELLOW MAL	8-97062-024-0	AR	1	1509-	●
5	FUSE; FACIA HARNESS 4HG1-T ENG(RDP) 10A MINI RED MAL	8-97062-022-0	AR	1	1311-	●
5	FUSE; FACIA HARNESS 4HG1-T ENG(RDP) 15A MINI BLUE MAL	8-97062-023-0	AR	1	1311-	●
5	FUSE; FACIA HARNESS 4HG1-T ENG(RDP) 25A MINI CLEAR MAL	8-97062-025-0	AR	1	1311-1508	●
5	FUSE; FACIA HARNESS 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> VIN MODEL YEAR 2015<VZF> 25A MINI CLEAR MAL	8-97062-025-0	AR	1	1509-	●
5	FUSE; FACIA HARNESS 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> 25A MINI CLEAR MAL	8-97062-025-0	AR	1	1509-	●
5	FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) 10A RED MAL	8-98054-257-0	AR	1	1312-1412	●
5	FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) 10A RED MAL	8-98054-257-0	AR	1	1501-	●
5	FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> 10A RED MAL	8-98054-257-0	AR	1	1501-		●
5	FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) 15A BLUE MAL	8-98054-258-0	AR	1	1312-1412	●
5	FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) 15A BLUE MAL	8-98054-258-0	AR	1	1501-	●
5	FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> 15A BLUE MAL	8-98054-258-0	AR	1	1501-		●
5	FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) 20A YELLOW MAL	8-98054-259-0	AR	1	1312-1412	●
5	FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) 20A YELLOW MAL	8-98054-259-0	AR	1	1501-	●
5	FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> 20A YELLOW MAL	8-98054-259-0	AR	1	1501-		●
28	SCREW; FUSE BOX M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	01	1	1311-1412	●
28	SCREW; FUSE BOX M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	01	1	1501-	●	●
29	COVER; FUSE BOX 4HG1-T ENG(RDP) MAL	8-97074-955-0	01	1	1311-	●
29	COVER; FUSE BOX 4HK1-TCN ENG(RDQ) MAL	8-98056-968-0	01	1	1312-1412	●
29	COVER; FUSE BOX 4HK1-TCN ENG(RDQ) MAL	8-98056-968-0	01	1	1501-	●
29	COVER; FUSE BOX 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> MAL	8-98056-968-0	01	1	1501-		●
36	BOX; RELAY 4HG1-T ENG(RDP) MAL	8-97187-918-1	01	1	1311-	●
41	PULLER; FUSE 4HG1-T ENG(RDP) MAL	8-97103-388-0	01	1	1311-	●
41	PULLER; FUSE 4HK1-TCN ENG(RDQ) MAL	8-98054-260-0	01	1	1312-1412	●
41	PULLER; FUSE 4HK1-TCN ENG(RDQ) MAL	8-98054-260-0	01	1	1501-	●
41	PULLER; FUSE 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> MAL	8-98054-260-0	01	1	1501-		●
293	NUT M6 FLANGE MAL	0-91180-106-0	04	1	1311-1412	●
293	NUT M6 FLANGE MAL	0-91180-106-0	04	1	1501-	●	●
431	CONNECTOR; JOINT 4HG1-T ENG(RDP) (C) 10P MAL	8-97077-943-0	02	1	1311-	●
431	CONNECTOR; JOINT 4HG1-T ENG(RDP) (B) MAL	8-98046-206-0	01	1	1311-1311	●
431	CONNECTOR; JOINT (B) MAL	8-98046-206-0	01	1	1312-1412	●
431	CONNECTOR; JOINT (B) MAL	8-98046-206-0	01	1	1501-	●
431	CONNECTOR; JOINT POWER WINDOW FRT&REAR DOOR<A31> (B) MAL	8-98046-206-0	01	1	1501-		●
431	CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) (A) MAL	8-98046-205-0	01	1	1312-1412	●
431	CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) (A) MAL	8-98046-205-0	01	1	1501-	●
431	CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> (A) MAL	8-98046-205-0	01	1	1501-		●
453	PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A) MAL	8-94417-716-0	01	1	1501-		●
453	PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	1311-1412	●
453	PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	1501-	●	●
453	PROTECTOR; HARNESS 4HG1-T ENG(RDP) M/T MYY5T(RSM) (A) MAL	8-94417-716-0	03	1	1311-1311	●
453	PROTECTOR; HARNESS 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-94417-716-0	03	1	1312-1508	●
453	PROTECTOR; HARNESS 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-94417-716-0	03	1	1509-1509	●
453	PROTECTOR; HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-94417-716-0	03	1	1509-1509	●
453	PROTECTOR; HARNESS 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-94417-716-0	03	1	1509-1509	●
453	PROTECTOR; HARNESS 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-94417-716-0	03	1	1510-	●
453	PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-94417-716-0	02	1	1312-	●
453	PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) MAL	8-98031-620-1	01	1	1312-1412	●
453	PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) MAL	8-98031-620-1	01	1	1501-	●
453	PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (B) MAL	8-98031-620-1	01	1	1501-		●
479	CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98108-678-0	01	1	1311-1412	●
479	CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98108-678-0	01	1	1501-	●	●
479	CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98108-679-0	01	1	1311-1412	●
479	CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98108-679-0	01	1	1501-	●	●
694	BOX ASM; CONNECTOR 4HG1-T ENG(RDP) MAL	8-98057-772-0	01	1	1311-1311	●
694	BOX ASM; CONNECTOR MAL	8-98057-772-0	01	1	1312-1412	●
694	BOX ASM; CONNECTOR MAL	8-98057-772-0	01	1	1501-	●
694	BOX ASM; CONNECTOR POWER WINDOW FRT&REAR DOOR<A31> MAL	8-98057-772-0	01	1	1501-		●

431 431 2 2 431 29 1 41 5 693 293 28 694 479 479 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB POWER WINDOW FRT&REAR DOOR<A31>	8-98242-715-0	01	1	1501-1502		●
1	HARNESS; CAB POWER WINDOW FRT&REAR DOOR<A31>	8-98302-832-0	01	1	1503-		●
1	HARNESS; CAB 4HG1-T ENG(RDP) INTERMITTENT WIPER<C13> VIN MODEL YEAR 2015<VZF> EXC. FAST GLOW SYSTEM<KM6>	8-98291-055-0	01	1	1509-	●
1	HARNESS; CAB 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> VIN MODEL YEAR 2015<VZF>	8-98172-115-2	01	1	1509-	●
1	HARNESS; CAB 4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> EXC. INTERMITTENT WIPER<C13>,FAST GLOW SYSTEM<KM6>	8-98298-782-0	01	1	1509-	●
1	HARNESS; CAB 4HG1-T ENG(RDP) POWER WINDOW FRT DOOR<A32> MAL	8-98172-118-2	01	1	1311-1508	●
1	HARNESS; CAB 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. POWER WINDOW FRT DOOR<A32> MAL	8-98172-118-2	01	1	1311-1508	●
1	HARNESS; CAB 4HG1-T ENG(RDP) POWER WINDOW FRT DOOR<A32> EXC. VIN MODEL YEAR 2015<VZF> MAL	8-98172-118-2	01	1	1509-	●
1	HARNESS; CAB 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. POWER WINDOW FRT DOOR<A32>,VIN MODEL YEAR 2015<VZF> MAL	8-98172-118-2	01	1	1509-	●
1	HARNESS; CAB 4HG1-T ENG(RDP) EXC. POWER WINDOW FRT DOOR<A32>,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98172-117-2	01	1	1311-1508	●
1	HARNESS; CAB 4HG1-T ENG(RDP) EXC. POWER WINDOW FRT DOOR<A32>,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),VIN MODEL YEAR 2015<VZF>	8-98172-117-2	01	1	1509-	●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) MAL	8-98207-655-0	01	1	1312-	●
2	DIODE; CABLE HARNESS (A) BLACK 2P-1.5A MAL	8-94422-639-1	AR	1	1312-1412	●
2	DIODE; CABLE HARNESS (A) BLACK 2P-1.5A MAL	8-94422-639-1	AR	1	1501-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 3P-1.5A MAL	8-94422-640-1	AR	1	1312-1412	●
2	DIODE; CABLE HARNESS (B) BLACK 3P-1.5A MAL	8-94422-640-1	AR	1	1501-	●	●
4	BOX ASM; FUSE,HARNESS 4HG1-T ENG(RDP) MAL	8-97187-921-1	01	1	1311-	●
4	BOX ASM; FUSE,HARNESS 4HK1-TCN ENG(RDQ) MAL	8-98067-619-1	01	1	1312-1412	●
4	BOX ASM; FUSE,HARNESS 4HK1-TCN ENG(RDQ) MAL	8-98067-619-1	01	1	1501-	●
4	BOX ASM; FUSE,HARNESS 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> MAL	8-98067-619-1	01	1	1501-		●
5	FUSE; FACIA HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> EXC. FAST GLOW SYSTEM<KM6> 20A MINI YELLOW MAL	8-97062-024-0	AR	1	1509-	●
5	FUSE; FACIA HARNESS 4HG1-T ENG(RDP) 10A MINI RED MAL	8-97062-022-0	AR	1	1311-	●
5	FUSE; FACIA HARNESS 4HG1-T ENG(RDP) 15A MINI BLUE MAL	8-97062-023-0	AR	1	1311-	●
5	FUSE; FACIA HARNESS 4HG1-T ENG(RDP) 25A MINI CLEAR MAL	8-97062-025-0	AR	1	1311-1508	●
5	FUSE; FACIA HARNESS 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> VIN MODEL YEAR 2015<VZF> 25A MINI CLEAR MAL	8-97062-025-0	AR	1	1509-	●
5	FUSE; FACIA HARNESS 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> 25A MINI CLEAR MAL	8-97062-025-0	AR	1	1509-	●
5	FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) 10A RED MAL	8-98054-257-0	AR	1	1312-1412	●
5	FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) 10A RED MAL	8-98054-257-0	AR	1	1501-	●
5	FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> 10A RED MAL	8-98054-257-0	AR	1	1501-		●
5	FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) 15A BLUE MAL	8-98054-258-0	AR	1	1312-1412	●
5	FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) 15A BLUE MAL	8-98054-258-0	AR	1	1501-	●
5	FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> 15A BLUE MAL	8-98054-258-0	AR	1	1501-		●
5	FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) 20A YELLOW MAL	8-98054-259-0	AR	1	1312-1412	●
5	FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) 20A YELLOW MAL	8-98054-259-0	AR	1	1501-	●
5	FUSE; FACIA HARNESS 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> 20A YELLOW MAL	8-98054-259-0	AR	1	1501-		●
28	SCREW; FUSE BOX M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	01	1	1311-1412	●
28	SCREW; FUSE BOX M5X16 TAPPING HEXALOBULAR MAL	0-72180-516-0	01	1	1501-	●	●
29	COVER; FUSE BOX 4HG1-T ENG(RDP) MAL	8-97074-955-0	01	1	1311-	●
29	COVER; FUSE BOX 4HK1-TCN ENG(RDQ) MAL	8-98056-968-0	01	1	1312-1412	●
29	COVER; FUSE BOX 4HK1-TCN ENG(RDQ) MAL	8-98056-968-0	01	1	1501-	●
29	COVER; FUSE BOX 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> MAL	8-98056-968-0	01	1	1501-		●
41	PULLER; FUSE 4HG1-T ENG(RDP) MAL	8-97103-388-0	01	1	1311-	●
41	PULLER; FUSE 4HK1-TCN ENG(RDQ) MAL	8-98054-260-0	01	1	1312-1412	●
41	PULLER; FUSE 4HK1-TCN ENG(RDQ) MAL	8-98054-260-0	01	1	1501-	●
41	PULLER; FUSE 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> MAL	8-98054-260-0	01	1	1501-		●
293	NUT M6 FLANGE MAL	0-91180-106-0	04	1	1311-1412	●
293	NUT M6 FLANGE MAL	0-91180-106-0	04	1	1501-	●	●
431	CONNECTOR; JOINT 4HG1-T ENG(RDP) (C) 10P MAL	8-97077-943-0	02	1	1311-	●
431	CONNECTOR; JOINT 4HG1-T ENG(RDP) (B) MAL	8-98046-206-0	01	1	1311-1311	●
431	CONNECTOR; JOINT (B) MAL	8-98046-206-0	01	1	1312-1412	●
431	CONNECTOR; JOINT (B) MAL	8-98046-206-0	01	1	1501-	●
431	CONNECTOR; JOINT POWER WINDOW FRT&REAR DOOR<A31> (B) MAL	8-98046-206-0	01	1	1501-		●
431	CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) (A) MAL	8-98046-205-0	01	1	1312-1412	●
431	CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) (A) MAL	8-98046-205-0	01	1	1501-	●
431	CONNECTOR; JOINT 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> (A) MAL	8-98046-205-0	01	1	1501-		●
479	CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98108-678-0	01	1	1311-1412	●
479	CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98108-678-0	01	1	1501-	●	●
479	CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98108-679-0	01	1	1311-1412	●
479	CAP; CONNECTOR EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98108-679-0	01	1	1501-	●	●
693	RELAY; FUSE BOX 4HK1-TCN ENG(RDQ) 24V 10A PANASONIC MAL	8-97173-035-1	AR	1	1312-1412	●
693	RELAY; FUSE BOX 4HK1-TCN ENG(RDQ) 24V 10A PANASONIC MAL	8-97173-035-1	AR	1	1501-	●
693	RELAY; FUSE BOX 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC MAL	8-97173-035-1	AR	1	1501-		●
694	BOX ASM; CONNECTOR 4HG1-T ENG(RDP) MAL	8-98057-772-0	01	1	1311-1311	●
694	BOX ASM; CONNECTOR MAL	8-98057-772-0	01	1	1312-1412	●
694	BOX ASM; CONNECTOR MAL	8-98057-772-0	01	1	1501-	●
694	BOX ASM; CONNECTOR POWER WINDOW FRT&REAR DOOR<A31> MAL	8-98057-772-0	01	1	1501-		●

8 453 184 94 174 27 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST)	8-98296-559-0	01	1	1501-		●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) VIN MODEL YEAR 2015<VZF> FRAME STRAIGHT TYPE<7KJ>	8-98322-884-0	01	1	1509-1509	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> VIN MODEL YEAR 2015<VZF> FRAME STRAIGHT TYPE<7KJ>	8-98322-884-0	01	1	1509-1509	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) EXHAUST BRAKE<NF8> VIN MODEL YEAR 2015<VZF> FRAME STRAIGHT TYPE<7KJ>	8-98322-884-0	01	1	1510-	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> RR BODY FLAT BED<RS6> VIN MODEL YEAR 2015<VZF> FRAME STRAIGHT TYPE<7KJ>	8-98322-884-0	01	1	1510-	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) VIN MODEL YEAR 2015<VZF> FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>	8-98322-885-0	01	1	1509-1509	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> VIN MODEL YEAR 2015<VZF> FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>	8-98322-885-0	01	1	1510-	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) MAL	8-98244-380-0	01	1	1311-1311	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> MAL	8-98244-380-0	01	1	1312-1409	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> MAL	8-98294-415-0	01	1	1410-1508	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>,VIN MODEL YEAR 2015<VZF> MAL	8-98294-415-0	01	1	1509-1509	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>,VIN MODEL YEAR 2015<VZF> MAL	8-98294-415-0	01	1	1510-	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) M/T MYY5T(RSM) WHEEL BASE 3800MM(38W) MAL	8-98199-735-1	01	1	1311-1311	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> MAL	8-98199-735-1	01	1	1312-1409	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> MAL	8-98199-735-1	01	1	1312-1409	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> MAL	8-98294-412-0	01	1	1410-1508	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> MAL	8-98294-412-0	01	1	1410-1508	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. VIN MODEL YEAR 2015<VZF> MAL	8-98294-412-0	01	1	1509-1509	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> EXC. VIN MODEL YEAR 2015<VZF> MAL	8-98294-412-0	01	1	1509-1509	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. VIN MODEL YEAR 2015<VZF> MAL	8-98294-412-0	01	1	1510-	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> EXC. VIN MODEL YEAR 2015<VZF> MAL	8-98294-412-0	01	1	1510-	●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> MAL	8-98115-312-4	01	1	1312-1409	●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> MAL	8-98294-279-0	01	1	1410-	●
27	FUSE UNIT 10A MINI RED MAL	8-97062-022-0	AR	1	1311-1412	●
27	FUSE UNIT 10A MINI RED MAL	8-97062-022-0	AR	1	1501-	●	●
27	FUSE UNIT 10A RED MAL	8-98054-257-0	AR	1	1312-1412	●
27	FUSE UNIT 10A RED MAL	8-98054-257-0	AR	1	1501-	●	●
35	BOX; RELAY & FUSE 4HG1-T ENG(RDP) M/T MYY5T(RSM) MAL	8-98173-937-0	01	1	1311-1311	●
35	BOX; RELAY & FUSE 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> MAL	8-98173-937-0	01	1	1312-1508	●
35	BOX; RELAY & FUSE 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> MAL	8-98173-937-0	01	1	1509-1509	●
35	BOX; RELAY & FUSE 4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> FRAME STRAIGHT TYPE<7KJ> MAL	8-98173-937-0	01	1	1509-1509	●
35	BOX; RELAY & FUSE 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> MAL	8-98173-937-0	01	1	1509-1509	●
35	BOX; RELAY & FUSE 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> MAL	8-98173-937-0	01	1	1510-	●
35	BOX; RELAY & FUSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> MAL	8-98030-763-0	01	1	1312-1412	●
35	BOX; RELAY & FUSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> MAL	8-98030-763-0	01	1	1501-	●
35	BOX; RELAY & FUSE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) MAL	8-98030-763-0	01	1	1501-		●
94	DIODE; FRAME HARNESS BLACK 2P-1.5A MAL	8-94422-639-1	AR	1	1311-1412	●
94	DIODE; FRAME HARNESS BLACK 2P-1.5A MAL	8-94422-639-1	AR	1	1501-	●	●
174	FUSE; SLOW BLOW 30A PINK MAL	8-97183-643-0	AR	1	1311-1412	●
174	FUSE; SLOW BLOW 30A PINK MAL	8-97183-643-0	AR	1	1501-	●	●
174	FUSE; SLOW BLOW 40A GREEN MAL	8-97183-644-0	AR	1	1311-1412	●
174	FUSE; SLOW BLOW 40A GREEN MAL	8-97183-644-0	AR	1	1501-	●	●
174	FUSE; SLOW BLOW 60A YELLOW MAL	8-97219-407-0	AR	1	1311-1412	●
174	FUSE; SLOW BLOW 60A YELLOW MAL	8-97219-407-0	AR	1	1501-	●	●
174	FUSE; SLOW BLOW 30A PINK MAL	8-98079-191-0	AR	1	1312-1412	●
174	FUSE; SLOW BLOW 30A PINK MAL	8-98079-191-0	AR	1	1501-	●	●
174	FUSE; SLOW BLOW 40A GREEN MAL	8-98079-192-0	AR	1	1312-1412	●
174	FUSE; SLOW BLOW 40A GREEN MAL	8-98079-192-0	AR	1	1501-	●	●
174	FUSE; SLOW BLOW 50A RED MAL	8-98079-193-0	AR	1	1312-1412	●
174	FUSE; SLOW BLOW 50A RED MAL	8-98079-193-0	AR	1	1501-	●	●
184	COVER; RELAY & FUSE BOX 4HG1-T ENG(RDP) M/T MYY5T(RSM) (A) MAL	8-98179-321-0	01	1	1311-1311	●
184	COVER; RELAY & FUSE BOX 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-98179-321-0	01	1	1312-1508	●
184	COVER; RELAY & FUSE BOX 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-98179-321-0	01	1	1509-1509	●
184	COVER; RELAY & FUSE BOX 4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-98179-321-0	01	1	1509-1509	●
184	COVER; RELAY & FUSE BOX 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-98179-321-0	01	1	1509-1509	●
184	COVER; RELAY & FUSE BOX 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-98179-321-0	01	1	1510-	●
184	COVER; RELAY & FUSE BOX 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) MAL	8-98030-766-0	01	1	1312-1412	●
184	COVER; RELAY & FUSE BOX 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) MAL	8-98030-766-0	01	1	1501-	●
184	COVER; RELAY & FUSE BOX 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (B) MAL	8-98030-766-0	01	1	1501-		●
453	PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A) MAL	8-94417-716-0	01	1	1501-		●
453	PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	1311-1412	●
453	PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	1501-	●	●
453	PROTECTOR; HARNESS 4HG1-T ENG(RDP) M/T MYY5T(RSM) (A) MAL	8-94417-716-0	03	1	1311-1311	●
453	PROTECTOR; HARNESS 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-94417-716-0	03	1	1312-1508	●
453	PROTECTOR; HARNESS 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-94417-716-0	03	1	1509-1509	●
453	PROTECTOR; HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-94417-716-0	03	1	1509-1509	●
453	PROTECTOR; HARNESS 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-94417-716-0	03	1	1509-1509	●
453	PROTECTOR; HARNESS 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-94417-716-0	03	1	1510-	●
453	PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-94417-716-0	02	1	1312-	●
453	PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) MAL	8-98031-620-1	01	1	1312-1412	●
453	PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) MAL	8-98031-620-1	01	1	1501-	●
453	PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (B) MAL	8-98031-620-1	01	1	1501-		●

453 453 525 174 35 387 27 94 184 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST)	8-98296-559-0	01	1	1501-		●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) VIN MODEL YEAR 2015<VZF> FRAME STRAIGHT TYPE<7KJ>	8-98322-884-0	01	1	1509-1509	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> VIN MODEL YEAR 2015<VZF> FRAME STRAIGHT TYPE<7KJ>	8-98322-884-0	01	1	1509-1509	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) EXHAUST BRAKE<NF8> VIN MODEL YEAR 2015<VZF> FRAME STRAIGHT TYPE<7KJ>	8-98322-884-0	01	1	1510-	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> RR BODY FLAT BED<RS6> VIN MODEL YEAR 2015<VZF> FRAME STRAIGHT TYPE<7KJ>	8-98322-884-0	01	1	1510-	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) VIN MODEL YEAR 2015<VZF> FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>	8-98322-885-0	01	1	1509-1509	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> VIN MODEL YEAR 2015<VZF> FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>	8-98322-885-0	01	1	1510-	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) MAL	8-98244-380-0	01	1	1311-1311	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> MAL	8-98244-380-0	01	1	1312-1409	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> MAL	8-98294-415-0	01	1	1410-1508	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>,VIN MODEL YEAR 2015<VZF> MAL	8-98294-415-0	01	1	1509-1509	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>,VIN MODEL YEAR 2015<VZF> MAL	8-98294-415-0	01	1	1510-	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) M/T MYY5T(RSM) WHEEL BASE 3800MM(38W) MAL	8-98199-735-1	01	1	1311-1311	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> MAL	8-98199-735-1	01	1	1312-1409	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> MAL	8-98199-735-1	01	1	1312-1409	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> MAL	8-98294-412-0	01	1	1410-1508	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> MAL	8-98294-412-0	01	1	1410-1508	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. VIN MODEL YEAR 2015<VZF> MAL	8-98294-412-0	01	1	1509-1509	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> EXC. VIN MODEL YEAR 2015<VZF> MAL	8-98294-412-0	01	1	1509-1509	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. VIN MODEL YEAR 2015<VZF> MAL	8-98294-412-0	01	1	1510-	●
8	HARNESS; FRAME,FRT 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> EXC. VIN MODEL YEAR 2015<VZF> MAL	8-98294-412-0	01	1	1510-	●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> MAL	8-98115-312-4	01	1	1312-1409	●
8	HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> MAL	8-98294-279-0	01	1	1410-	●
27	FUSE UNIT 10A MINI RED MAL	8-97062-022-0	AR	1	1311-1412	●
27	FUSE UNIT 10A MINI RED MAL	8-97062-022-0	AR	1	1501-	●	●
27	FUSE UNIT 10A RED MAL	8-98054-257-0	AR	1	1312-1412	●
27	FUSE UNIT 10A RED MAL	8-98054-257-0	AR	1	1501-	●	●
35	BOX; RELAY & FUSE 4HG1-T ENG(RDP) M/T MYY5T(RSM) MAL	8-98173-937-0	01	1	1311-1311	●
35	BOX; RELAY & FUSE 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> MAL	8-98173-937-0	01	1	1312-1508	●
35	BOX; RELAY & FUSE 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> MAL	8-98173-937-0	01	1	1509-1509	●
35	BOX; RELAY & FUSE 4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> FRAME STRAIGHT TYPE<7KJ> MAL	8-98173-937-0	01	1	1509-1509	●
35	BOX; RELAY & FUSE 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> MAL	8-98173-937-0	01	1	1509-1509	●
35	BOX; RELAY & FUSE 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> MAL	8-98173-937-0	01	1	1510-	●
35	BOX; RELAY & FUSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> MAL	8-98030-763-0	01	1	1312-1412	●
35	BOX; RELAY & FUSE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> MAL	8-98030-763-0	01	1	1501-	●
35	BOX; RELAY & FUSE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) MAL	8-98030-763-0	01	1	1501-		●
94	DIODE; FRAME HARNESS BLACK 2P-1.5A MAL	8-94422-639-1	AR	1	1311-1412	●
94	DIODE; FRAME HARNESS BLACK 2P-1.5A MAL	8-94422-639-1	AR	1	1501-	●	●
174	FUSE; SLOW BLOW 30A PINK MAL	8-97183-643-0	AR	1	1311-1412	●
174	FUSE; SLOW BLOW 30A PINK MAL	8-97183-643-0	AR	1	1501-	●	●
174	FUSE; SLOW BLOW 40A GREEN MAL	8-97183-644-0	AR	1	1311-1412	●
174	FUSE; SLOW BLOW 40A GREEN MAL	8-97183-644-0	AR	1	1501-	●	●
174	FUSE; SLOW BLOW 60A YELLOW MAL	8-97219-407-0	AR	1	1311-1412	●
174	FUSE; SLOW BLOW 60A YELLOW MAL	8-97219-407-0	AR	1	1501-	●	●
174	FUSE; SLOW BLOW 30A PINK MAL	8-98079-191-0	AR	1	1312-1412	●
174	FUSE; SLOW BLOW 30A PINK MAL	8-98079-191-0	AR	1	1501-	●	●
174	FUSE; SLOW BLOW 40A GREEN MAL	8-98079-192-0	AR	1	1312-1412	●
174	FUSE; SLOW BLOW 40A GREEN MAL	8-98079-192-0	AR	1	1501-	●	●
174	FUSE; SLOW BLOW 50A RED MAL	8-98079-193-0	AR	1	1312-1412	●
174	FUSE; SLOW BLOW 50A RED MAL	8-98079-193-0	AR	1	1501-	●	●
184	COVER; RELAY & FUSE BOX 4HG1-T ENG(RDP) M/T MYY5T(RSM) (A) MAL	8-98179-321-0	01	1	1311-1311	●
184	COVER; RELAY & FUSE BOX 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-98179-321-0	01	1	1312-1508	●
184	COVER; RELAY & FUSE BOX 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-98179-321-0	01	1	1509-1509	●
184	COVER; RELAY & FUSE BOX 4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-98179-321-0	01	1	1509-1509	●
184	COVER; RELAY & FUSE BOX 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-98179-321-0	01	1	1509-1509	●
184	COVER; RELAY & FUSE BOX 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-98179-321-0	01	1	1510-	●
184	COVER; RELAY & FUSE BOX 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) MAL	8-98030-766-0	01	1	1312-1412	●
184	COVER; RELAY & FUSE BOX 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) MAL	8-98030-766-0	01	1	1501-	●
184	COVER; RELAY & FUSE BOX 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (B) MAL	8-98030-766-0	01	1	1501-		●
387	COVER; RELAY BOX 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98081-367-0	01	1	1312-1412	●
387	COVER; RELAY BOX EXC. FRAME STRAIGHT TYPE<7KJ>	8-98081-367-0	01	1	1312-1412	●
387	COVER; RELAY BOX 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98081-367-0	01	1	1501-	●
387	COVER; RELAY BOX EXC. FRAME STRAIGHT TYPE<7KJ>	8-98081-367-0	01	1	1501-	●
387	COVER; RELAY BOX 4HK1-TCN ENG(RDQ)	8-98081-367-0	01	1	1501-		●
453	PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A) MAL	8-94417-716-0	01	1	1501-		●
453	PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	1311-1412	●
453	PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	1501-	●	●
453	PROTECTOR; HARNESS 4HG1-T ENG(RDP) M/T MYY5T(RSM) (A) MAL	8-94417-716-0	03	1	1311-1311	●
453	PROTECTOR; HARNESS 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-94417-716-0	03	1	1312-1508	●
453	PROTECTOR; HARNESS 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-94417-716-0	03	1	1509-1509	●
453	PROTECTOR; HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-94417-716-0	03	1	1509-1509	●
453	PROTECTOR; HARNESS 4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-94417-716-0	03	1	1509-1509	●
453	PROTECTOR; HARNESS 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-94417-716-0	03	1	1510-	●
453	PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) MAL	8-94417-716-0	02	1	1312-	●
453	PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) MAL	8-98031-620-1	01	1	1312-1412	●
453	PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) MAL	8-98031-620-1	01	1	1501-	●
453	PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (B) MAL	8-98031-620-1	01	1	1501-		●
525	NUT; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> M8 FLANGE MAL	0-91180-108-0	02	1	1312-1412	●
525	NUT; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE MAL	0-91180-108-0	02	1	1312-1412	●
525	NUT; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> M8 FLANGE MAL	0-91180-108-0	02	1	1501-	●
525	NUT; CLIP EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE MAL	0-91180-108-0	02	1	1501-	●
525	NUT; CLIP 4HK1-TCN ENG(RDQ) M8 FLANGE MAL	0-91180-108-0	02	1	1501-		●

699 699 13 161 329 668 102 668 325 267 13 534 700 101 267

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	HARNESS; ENG 4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> (C)	8-97356-988-1	01	1	1407-1410	●
13	HARNESS; ENG 4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> (C)	8-98298-790-0	01	1	1411-	●
13	HARNESS; ENG 4HG1-T ENG(RDP) (C)	8-97360-767-1	01	1	1311-1406	●
13	HARNESS; ENG 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> (C)	8-97360-767-1	01	1	1407-	●
13	HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN) (A)	8-98209-819-0	01	1	1312-1412	●
13	HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN) (A)	8-98209-819-0	01	1	1501-	●	●
13	HARNESS; ENG 4HK1-TCN ENG(RDQ) (B)	8-98171-638-0	01	1	1312-1412	●
13	HARNESS; ENG 4HK1-TCN ENG(RDQ) (B)	8-98171-638-0	01	1	1501-	●	●
13	HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (A)	8-98209-820-0	01	1	1312-1412	●
13	HARNESS; ENG 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (A)	8-98209-820-0	01	1	1501-	●	●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (A)	8-98052-805-0	01	1	1312-1412	●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (A)	8-98052-805-0	01	1	1501-	●	●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98094-483-1	01	1	1312-1412	●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98094-483-1	01	1	1501-	●
101	BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (B)	8-98094-483-1	01	1	1501-		●
101	BRACKET; HARNESS CONNECTOR EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98032-447-1	01	1	1312-	●
102	BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) M10X16 FLANGE	0-28151-016-0	02	1	1312-1412	●
102	BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) M10X16 FLANGE	0-28151-016-0	02	1	1501-	●	●
161	BOLT; GROUND,HARNESS 4HG1-T ENG(RDP) M8X16 FLANGE MAL	0-28050-816-0	01	1	1311-1311	●
161	BOLT; GROUND,HARNESS M8X16 FLANGE MAL	0-28050-816-0	01	1	1312-1412	●
161	BOLT; GROUND,HARNESS M8X16 FLANGE MAL	0-28050-816-0	01	1	1501-	●	●
267	BOLT; BRKT 4HK1-TCN ENG(RDQ) (C) M6X12 FLANGE MAL	0-28050-612-0	02	1	1312-1412	●
267	BOLT; BRKT 4HK1-TCN ENG(RDQ) (C) M6X12 FLANGE MAL	0-28050-612-0	02	1	1501-	●	●
267	BOLT; BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (B) M8X12 FLANGE	0-28050-812-0	01	1	1312-1412	●
267	BOLT; BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (B) M8X12 FLANGE	0-28050-812-0	01	1	1501-	●	●
267	BOLT; BRKT 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) (A) M10X120 FLANGE	0-28156-012-0	01	1	1312-1412	●
267	BOLT; BRKT 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) (A) M10X120 FLANGE	0-28156-012-0	01	1	1501-	●	●
325	WASHER; PL,BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) ID=8.4 OD=18	0-91610-608-0	01	1	1312-1412	●
325	WASHER; PL,BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) ID=8.4 OD=18	0-91610-608-0	01	1	1501-	●	●
329	CABLE; ENG TO FRAME 4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> (C)	8-97177-383-0	01	1	1407-	●
329	CABLE; ENG TO FRAME 4HG1-T ENG(RDP) (A)	8-98123-064-0	01	1	1311-	●
329	CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98102-465-0	01	1	1312-1412	●
329	CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98102-465-0	01	1	1501-	●
329	CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ) (B)	8-98102-465-0	01	1	1501-		●
534	BOLT 4HK1-TCN ENG(RDQ) M10X55 FLANGE	8-97365-449-0	03	1	1312-1412	●
534	BOLT 4HK1-TCN ENG(RDQ) M10X55 FLANGE	8-97365-449-0	03	1	1501-	●	●
668	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (B)	8-98011-484-0	01	1	1312-1412	●
668	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (B)	8-98011-484-0	01	1	1501-	●	●
668	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (A)	8-98205-089-0	01	1	1312-1412	●
668	BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (A)	8-98205-089-0	01	1	1501-	●	●
699	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (B) L=213.5	8-98000-506-1	01	1	1312-1412	●
699	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (B) L=213.5	8-98000-506-1	01	1	1501-	●	●
699	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (A) L=146.2	8-98052-677-0	01	1	1312-1412	●
699	CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (A) L=146.2	8-98052-677-0	01	1	1501-	●	●
700	TUBE; DISTANCE 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) L=105	8-98084-726-0	01	1	1312-1412	●
700	TUBE; DISTANCE 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) L=105	8-98084-726-0	01	1	1501-	●	●

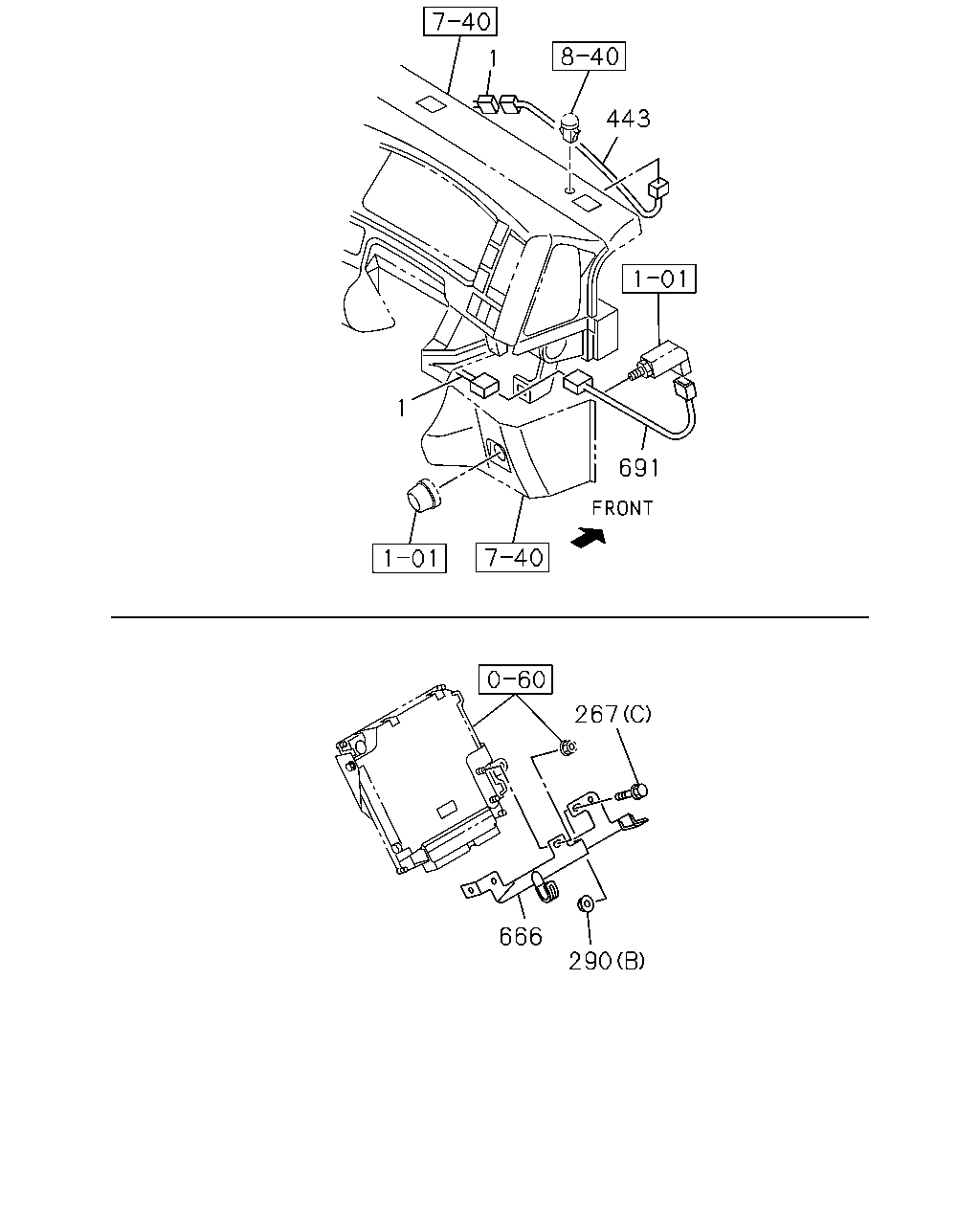

443 1 691 1 267 666 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB POWER WINDOW FRT&REAR DOOR<A31>	8-98242-715-0	01	1	1501-1502		●
1	HARNESS; CAB POWER WINDOW FRT&REAR DOOR<A31>	8-98302-832-0	01	1	1503-		●
1	HARNESS; CAB 4HG1-T ENG(RDP) INTERMITTENT WIPER<C13> VIN MODEL YEAR 2015<VZF> EXC. FAST GLOW SYSTEM<KM6>	8-98291-055-0	01	1	1509-	●
1	HARNESS; CAB 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> VIN MODEL YEAR 2015<VZF>	8-98172-115-2	01	1	1509-	●
1	HARNESS; CAB 4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> EXC. INTERMITTENT WIPER<C13>,FAST GLOW SYSTEM<KM6>	8-98298-782-0	01	1	1509-	●
1	HARNESS; CAB 4HG1-T ENG(RDP) POWER WINDOW FRT DOOR<A32> MAL	8-98172-118-2	01	1	1311-1508	●
1	HARNESS; CAB 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. POWER WINDOW FRT DOOR<A32> MAL	8-98172-118-2	01	1	1311-1508	●
1	HARNESS; CAB 4HG1-T ENG(RDP) POWER WINDOW FRT DOOR<A32> EXC. VIN MODEL YEAR 2015<VZF> MAL	8-98172-118-2	01	1	1509-	●
1	HARNESS; CAB 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. POWER WINDOW FRT DOOR<A32>,VIN MODEL YEAR 2015<VZF> MAL	8-98172-118-2	01	1	1509-	●
1	HARNESS; CAB 4HG1-T ENG(RDP) EXC. POWER WINDOW FRT DOOR<A32>,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98172-117-2	01	1	1311-1508	●
1	HARNESS; CAB 4HG1-T ENG(RDP) EXC. POWER WINDOW FRT DOOR<A32>,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),VIN MODEL YEAR 2015<VZF>	8-98172-117-2	01	1	1509-	●
1	HARNESS; CAB 4HK1-TCN ENG(RDQ) MAL	8-98207-655-0	01	1	1312-	●
267	BOLT; BRKT 4HK1-TCN ENG(RDQ) (C) M6X12 FLANGE MAL	0-28050-612-0	02	1	1312-1412	●
267	BOLT; BRKT 4HK1-TCN ENG(RDQ) (C) M6X12 FLANGE MAL	0-28050-612-0	02	1	1501-	●	●
267	BOLT; BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (B) M8X12 FLANGE	0-28050-812-0	01	1	1312-1412	●
267	BOLT; BRKT 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (B) M8X12 FLANGE	0-28050-812-0	01	1	1501-	●	●
267	BOLT; BRKT 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) (A) M10X120 FLANGE	0-28156-012-0	01	1	1312-1412	●
267	BOLT; BRKT 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) (A) M10X120 FLANGE	0-28156-012-0	01	1	1501-	●	●
290	NUT; BRKT 4HK1-TCN ENG(RDQ) (B) M6 FLANGE MAL	0-91180-106-0	02	1	1312-1412	●
290	NUT; BRKT 4HK1-TCN ENG(RDQ) (B) M6 FLANGE MAL	0-91180-106-0	02	1	1501-	●	●
290	NUT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) M8 FLANGE MAL	0-91180-108-0	01	1	1312-1412	●
290	NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8 FLANGE MAL	0-91180-108-0	01	1	1312-1412	●
290	NUT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) M8 FLANGE MAL	0-91180-108-0	01	1	1501-	●
290	NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8 FLANGE MAL	0-91180-108-0	01	1	1501-	●
290	NUT; BRKT 4HK1-TCN ENG(RDQ) (A) M8 FLANGE MAL	0-91180-108-0	01	1	1501-		●
443	HARNESS; EXT,A/C COOLER WO/HEATER(C65) MAL	8-98103-712-0	01	1	1311-1412	●
443	HARNESS; EXT,A/C COOLER WO/HEATER(C65) MAL	8-98103-712-0	01	1	1501-	●	●
666	BRACKET; CLIP 4HK1-TCN ENG(RDQ)	8-98110-213-0	01	1	1312-1412	●
666	BRACKET; CLIP 4HK1-TCN ENG(RDQ)	8-98110-213-0	01	1	1501-	●	●
691	HARNESS; IDLE CONT 4HK1-TCN ENG(RDQ) MAL	8-98049-014-2	01	1	1312-1412	●
691	HARNESS; IDLE CONT 4HK1-TCN ENG(RDQ) MAL	8-98049-014-2	01	1	1501-	●	●

4 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOX ASM; FUSE,HARNESS 4HG1-T ENG(RDP) MAL	8-97187-921-1	01	1	1311-	●
4	BOX ASM; FUSE,HARNESS 4HK1-TCN ENG(RDQ) MAL	8-98067-619-1	01	1	1312-1412	●
4	BOX ASM; FUSE,HARNESS 4HK1-TCN ENG(RDQ) MAL	8-98067-619-1	01	1	1501-	●
4	BOX ASM; FUSE,HARNESS 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> MAL	8-98067-619-1	01	1	1501-		●
693	RELAY; FUSE BOX 4HK1-TCN ENG(RDQ) 24V 10A PANASONIC MAL	8-97173-035-1	AR	1	1312-1412	●
693	RELAY; FUSE BOX 4HK1-TCN ENG(RDQ) 24V 10A PANASONIC MAL	8-97173-035-1	AR	1	1501-	●
693	RELAY; FUSE BOX 4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC MAL	8-97173-035-1	AR	1	1501-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
