◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51501 - NPR(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#130916) — 92 parça

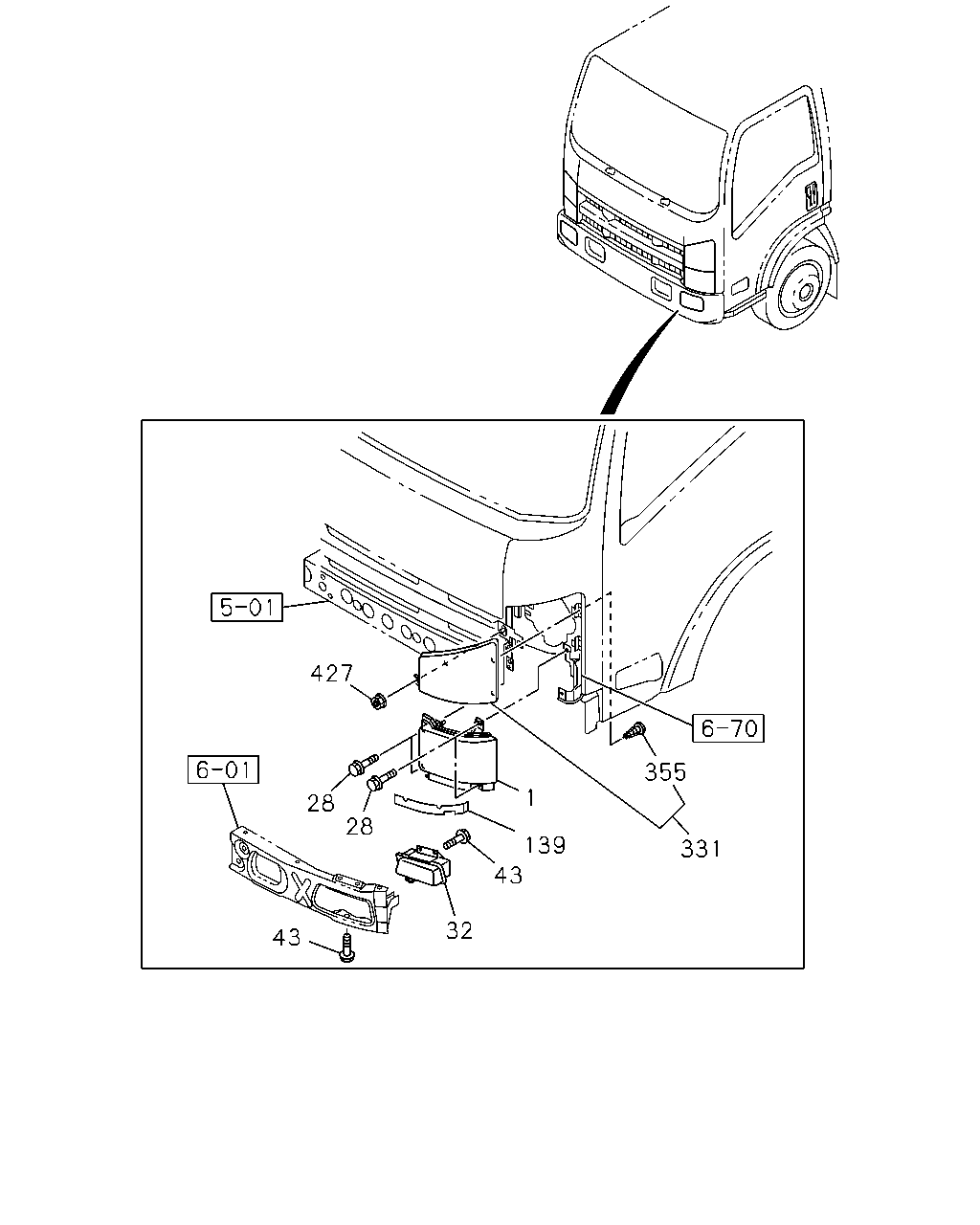

çizim 386147
427 28 28 1 139 43 32 43 355 331
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 8-98241-325-0 01 1 1311-1412 ●
1 LAMP ASM; HEAD 8-98241-325-0 01 1 1501- ● ●
1 LAMP ASM; HEAD 8-98241-326-0 01 1 1311-1412 ●
1 LAMP ASM; HEAD 8-98241-326-0 01 1 1501- ● ●
28 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER MAL 		8-98164-723-0 08 1 1311-1412 ●
28 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER MAL 		8-98164-723-0 08 1 1501- ● ●
32 LAMP ASM; FOG 8-98232-058-1 01 1 1311-1412 ●
32 LAMP ASM; FOG 8-98232-058-1 01 1 1501- ● ●
32 LAMP ASM; FOG 8-98232-059-1 01 1 1311-1412 ●
32 LAMP ASM; FOG 8-98232-059-1 01 1 1501- ● ●
43 BOLT; FOG LAMP
M6X20 W/LK&PL WASHER 		0-50640-620-0 06 1 1311-1412 ●
43 BOLT; FOG LAMP
M6X20 W/LK&PL WASHER 		0-50640-620-0 06 1 1501- ● ●
139 COVER; HEADLAMP 8-98034-056-1 02 1 1311-1412 ●
139 COVER; HEADLAMP 8-98034-056-1 02 1 1501- ● ●
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 1311-1412 ●
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 1501- ● ●
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 1311-1412 ●
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 1501- ● ●
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 1311-1412 ●
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 1501- ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE MAL 		0-91180-106-0 02 1 1311-1412 ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE MAL 		0-91180-106-0 02 1 1501- ● ●
çizim 386154
331 431 357 399 355 432 1 4 23 420 20 457 382 5 5 408
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD 8-98241-325-0 01 1 1311-1412 ●
1 LAMP ASM; HEAD 8-98241-325-0 01 1 1501- ● ●
1 LAMP ASM; HEAD 8-98241-326-0 01 1 1311-1412 ●
1 LAMP ASM; HEAD 8-98241-326-0 01 1 1501- ● ●
4 HEADLAMP UNIT 8-98226-182-0 01 1 1311-1412 ●
4 HEADLAMP UNIT 8-98226-182-0 01 1 1501- ● ●
4 HEADLAMP UNIT 8-98226-183-0 01 1 1311-1412 ●
4 HEADLAMP UNIT 8-98226-183-0 01 1 1501- ● ●
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1311-1412 ●
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 1501- ● ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1311-1412 ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 1501- ● ●
20 SCREW; HEADLAMP
MAL 		8-97378-871-0 06 1 1311-1412 ●
20 SCREW; HEADLAMP
MAL 		8-97378-871-0 06 1 1501- ● ●
23 COVER; BULB,HEADLAMP
MAL 		8-97232-491-0 02 1 1311-1412 ●
23 COVER; BULB,HEADLAMP
MAL 		8-97232-491-0 02 1 1501- ● ●
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 1311-1412 ●
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 1501- ● ●
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 1311-1412 ●
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 1501- ● ●
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 1311-1412 ●
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 1501- ● ●
357 BULB; TURN SIGNAL
24V 21W AMBER MAL 		8-97323-806-0 02 1 1311-1412 ●
357 BULB; TURN SIGNAL
24V 21W AMBER MAL 		8-97323-806-0 02 1 1501- ● ●
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1311-1412 ●
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1501- ● ●
399 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 1311-1412 ●
399 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 1501- ● ●
408 CAP; BREATHER,HEADLAMP
MAL 		8-97378-874-0 02 1 1311-1412 ●
408 CAP; BREATHER,HEADLAMP
MAL 		8-97378-874-0 02 1 1501- ● ●
420 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1311-1412 ●
420 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1501- ● ●
431 CAP; TURN SIGNAL,LAMP
MAL 		8-97378-874-0 02 1 1311-1412 ●
431 CAP; TURN SIGNAL,LAMP
MAL 		8-97378-874-0 02 1 1501- ● ●
432 FASTENER; TURN SIGNAL,LAMP 8-98051-431-0 04 1 1311-1412 ●
432 FASTENER; TURN SIGNAL,LAMP 8-98051-431-0 04 1 1501- ● ●
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1311-1412 ●
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1501- ● ●
çizim 386637
32 36 44 47 49 15 448
BalonParca AdiParca NoAdetTipApplied Date A B
15 BULB; FOG LAMP
24V 70W 		1-82194-106-0 02 1 1311-1412 ●
15 BULB; FOG LAMP
24V 70W 		1-82194-106-0 02 1 1501- ● ●
32 LAMP ASM; FOG 8-98232-058-1 01 1 1311-1412 ●
32 LAMP ASM; FOG 8-98232-058-1 01 1 1501- ● ●
32 LAMP ASM; FOG 8-98232-059-1 01 1 1311-1412 ●
32 LAMP ASM; FOG 8-98232-059-1 01 1 1501- ● ●
36 CORD; FOG LAMP 1-82118-015-0 01 1 1311-1412 ●
36 CORD; FOG LAMP 1-82118-015-0 01 1 1501- ● ●
36 CORD; FOG LAMP 1-82118-016-0 01 1 1311-1412 ●
36 CORD; FOG LAMP 1-82118-016-0 01 1 1501- ● ●
44 NUT; FOG LAMP
M6 		8-98217-430-0 02 1 1311-1412 ●
44 NUT; FOG LAMP
M6 		8-98217-430-0 02 1 1501- ● ●
47 WASHER; PL,FOG LAMP 8-98217-429-0 02 1 1311-1412 ●
47 WASHER; PL,FOG LAMP 8-98217-429-0 02 1 1501- ● ●
49 BRACKET; LAMP 8-98051-435-0 01 1 1311-1412 ●
49 BRACKET; LAMP 8-98051-435-0 01 1 1501- ● ●
49 BRACKET; LAMP 8-98051-436-0 01 1 1311-1412 ●
49 BRACKET; LAMP 8-98051-436-0 01 1 1501- ● ●
448 CAP ASM; LAMP
MAL 		8-97378-874-0 02 1 1311-1412 ●
448 CAP ASM; LAMP
MAL 		8-97378-874-0 02 1 1501- ● ●

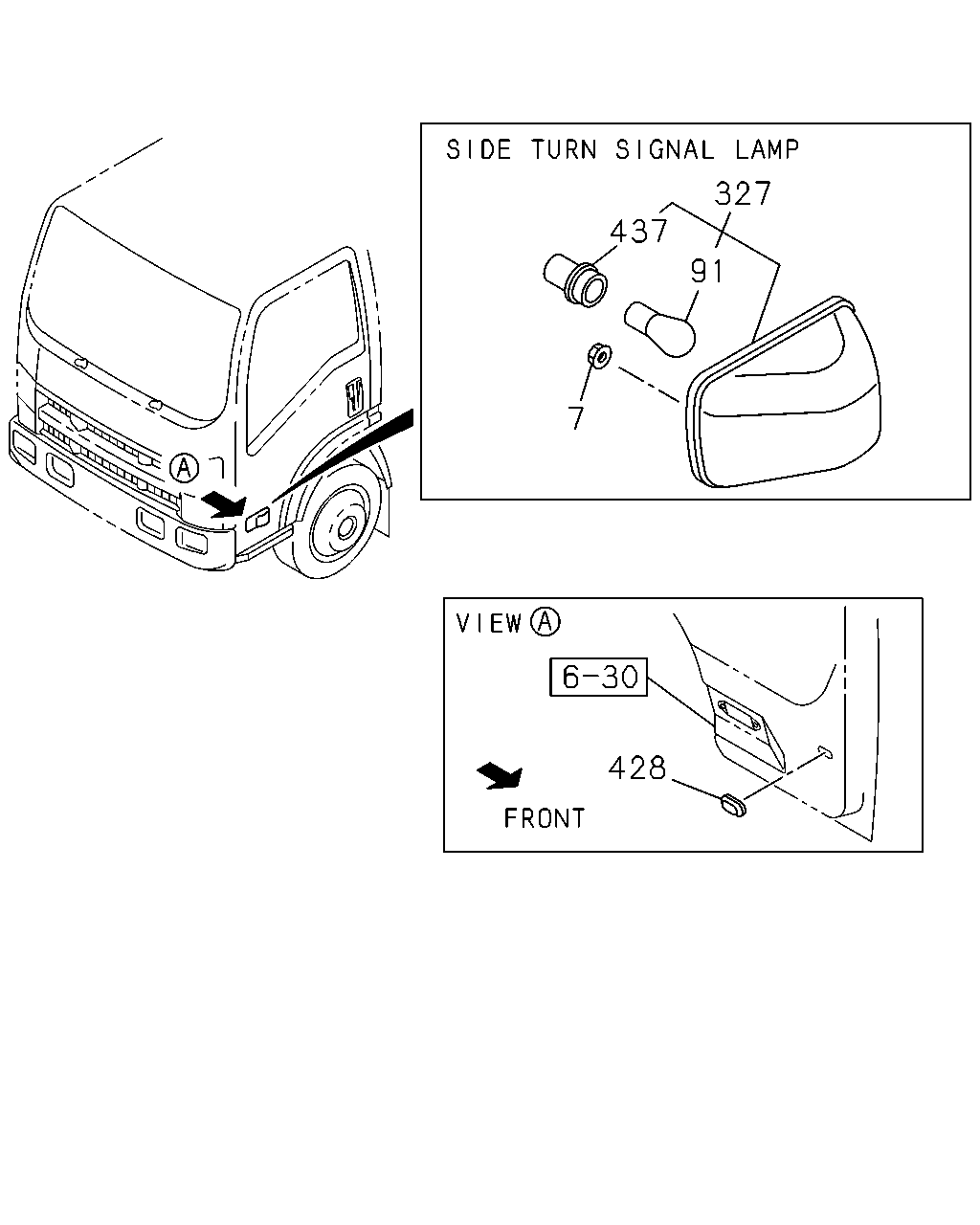

çizim 386685
437 327 7 91 428
BalonParca AdiParca NoAdetTipApplied Date A B
7 NUT; FRT COMB LAMP
M6 FLANGE MAL 		0-91180-106-0 02 1 1311-1412 ●
7 NUT; FRT COMB LAMP
M6 FLANGE MAL 		0-91180-106-0 02 1 1501- ● ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1311-1412 ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 1501- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1311-1412 ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 1501- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1311-1412 ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 1501- ● ●
428 GROMMET; SIDE COMB LAMP 8-94430-184-1 02 1 1311-1412 ●
428 GROMMET; SIDE COMB LAMP 8-94430-184-1 02 1 1501- ● ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1311-1412 ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 1501- ● ●
