◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51501 - NPR(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#130915) — 47 parça

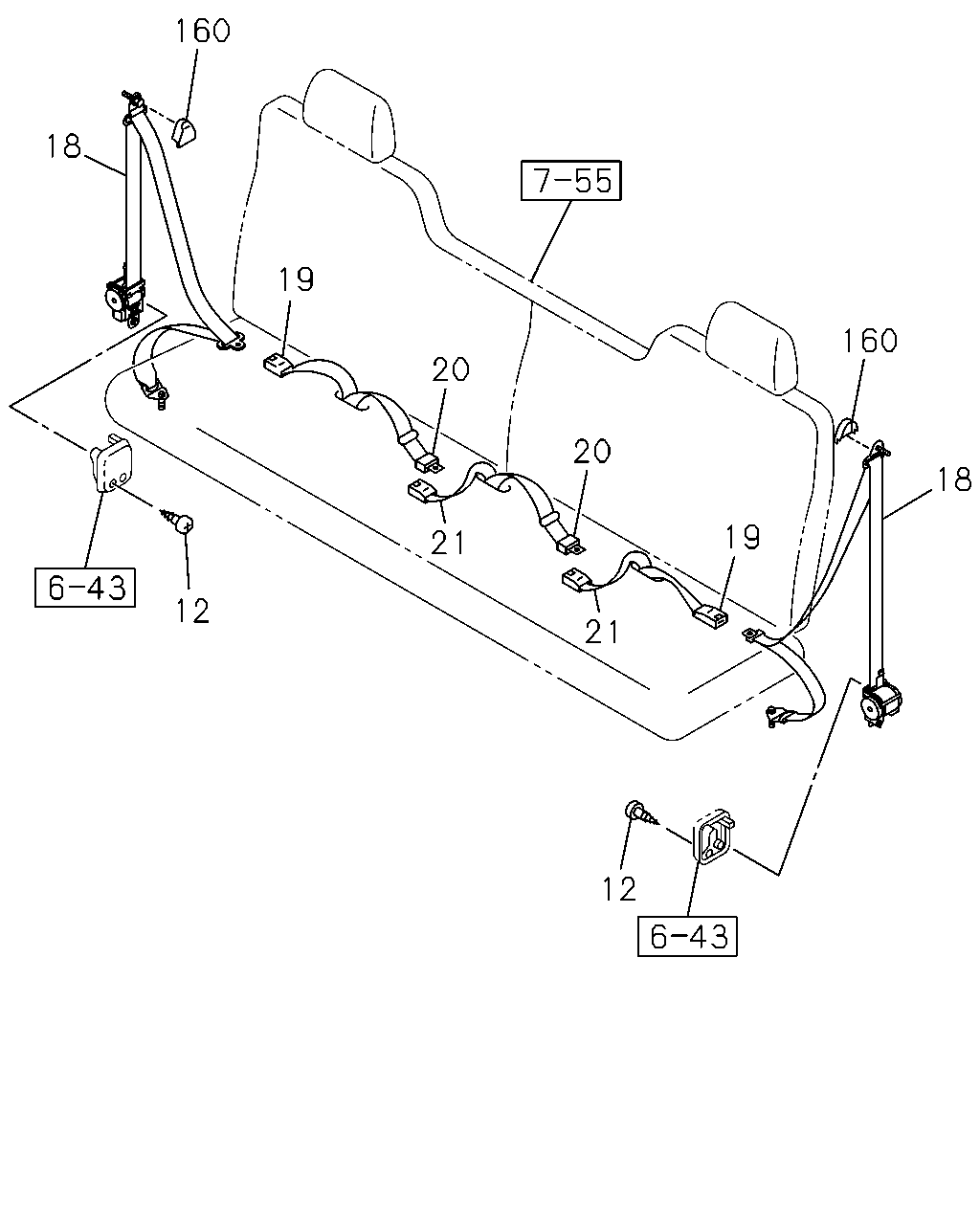

çizim 386011
160 18 12 19 20 21 20 21 19 160 18 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING 		0-74360-414-0 04 1 1501- ●
18 BELT; SEAT,RR
GRAY 		8-97405-185-8 02 1 1501- ●
19 BELT; RR SEAT,BUCKLE SIDE
GRAY 		8-97405-992-3 02 1 1501- ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97411-511-3 01 1 1501- ●
20 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97411-512-3 01 1 1501- ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97405-993-0 01 1 1501- ●
21 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97407-144-0 01 1 1501- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1501- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1311-1412 ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1501- ● ●

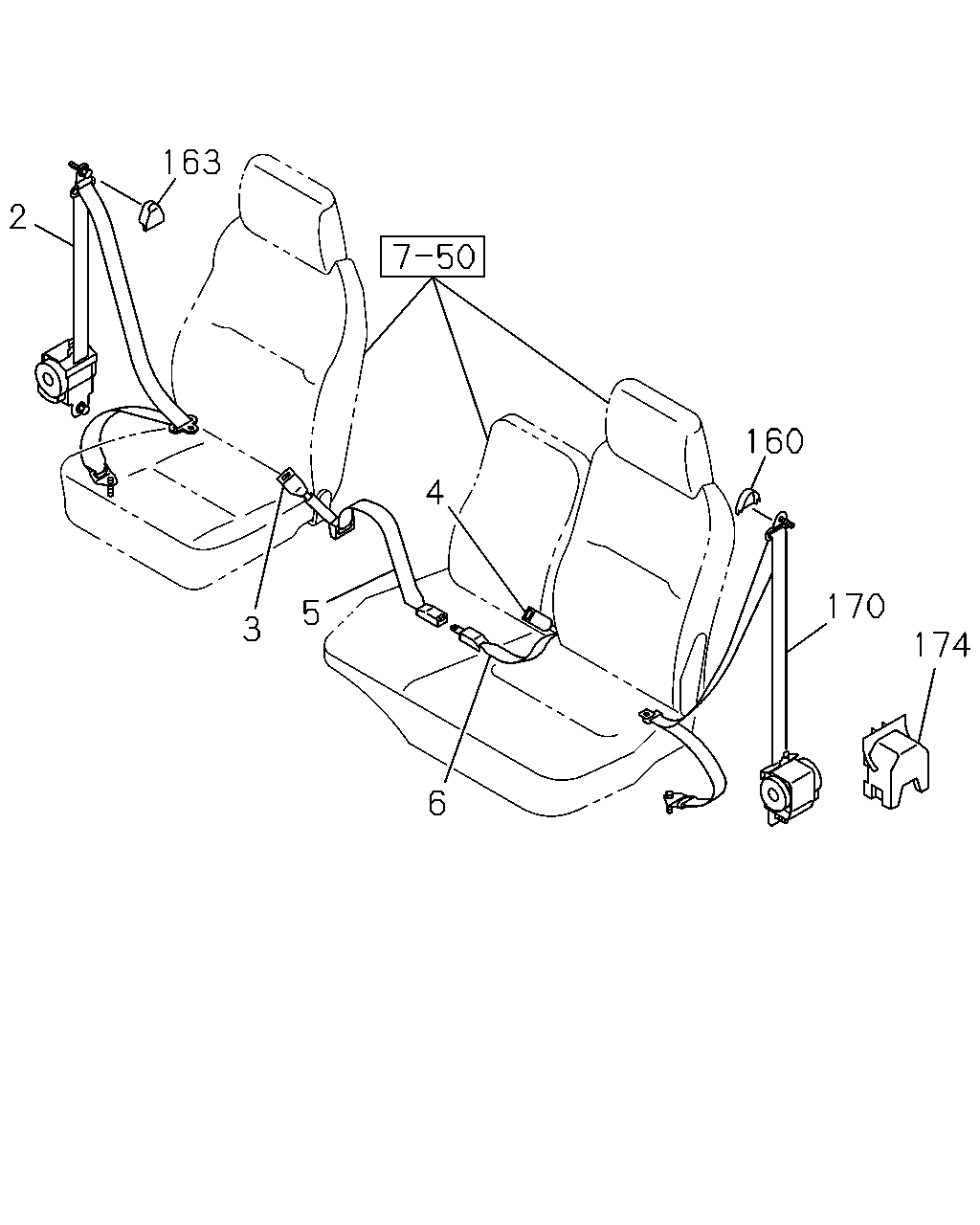

çizim 386683
2 163 4 5 3 6 170 160 174
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97405-180-7 01 1 1311-1406 ●
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97428-457-1 01 1 1407-1412 ●
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97428-457-1 01 1 1501- ● ●
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97405-175-2 01 1 1311-1412 ●
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97405-175-2 01 1 1501- ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97405-178-0 01 1 1311-1412 ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97405-178-0 01 1 1501- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97405-182-1 01 1 1311-1412 ●
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97405-182-1 01 1 1501- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97411-507-2 01 1 1311-1412 ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97411-507-2 01 1 1501- ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 02 1 1501- ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1311-1412 ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1501- ● ●
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1311-1412 ●
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1501- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97405-180-7 01 1 1311-1406 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97428-457-1 01 1 1407-1412 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97428-457-1 01 1 1501- ● ●
174 COVER; RETRACTOR,SEAT BELT 8-98039-376-1 01 1 1311- ●

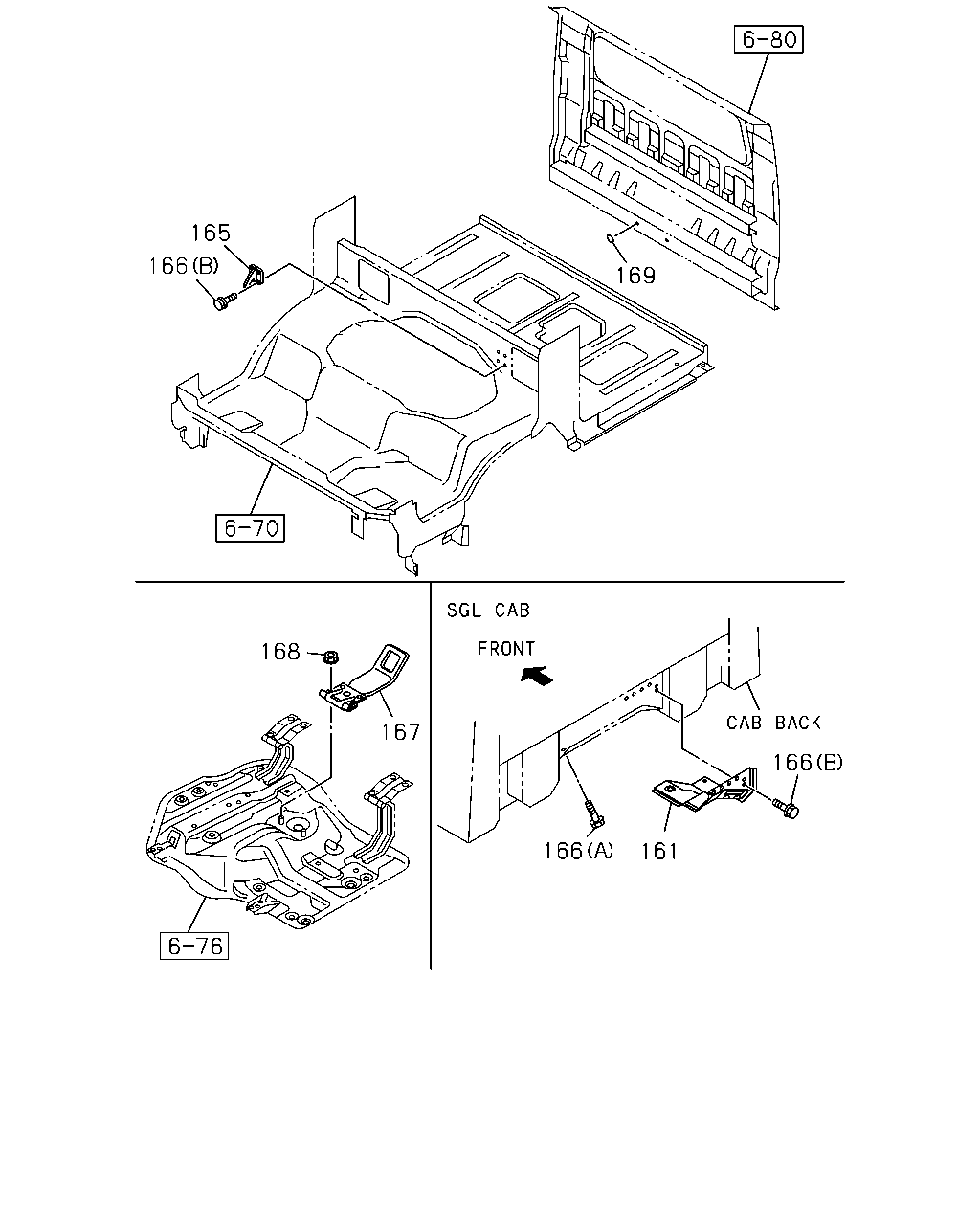

çizim 514767
165 166 168 167 166 161 166 169
BalonParca AdiParca NoAdetTipApplied Date A B
161 REINFORCEMENT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-98015-216-2 01 1 1311- ●
165 HOOK; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-98040-143-0 01 1 1311-1412 ●
165 HOOK; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-98040-143-0 01 1 1501- ●
165 HOOK; SEAT BELT ANCHOR 8-98040-143-0 01 1 1501- ●
166 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> (B) M8X25 FLANGE MAL 		0-28650-825-0 04 1 1311-1412 ●
166 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> (B) M8X25 FLANGE MAL 		0-28650-825-0 05 1 1501- ●
166 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> (B) M8X25 FLANGE MAL 		0-28650-825-0 05 1 1311-1412 ●
166 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> (B) M8X25 FLANGE MAL 		0-28650-825-0 04 1 1501- ●
166 BOLT; SEAT BELT ANCHOR
(B) M8X25 FLANGE MAL 		0-28650-825-0 04 1 1501- ●
166 BOLT; SEAT BELT ANCHOR
EXC. INSPECTION ENGINE COVER<8GA> (A) M8X20 FLANGE MAL 		0-28050-820-0 02 1 1311- ●
167 PLATE; ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-97589-140-0 01 1 1311-1412 ●
167 PLATE; ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-97589-140-0 01 1 1501- ●
167 PLATE; ANCHOR 8-97589-140-0 01 1 1501- ●
168 NUT; ANCHOR PLATE
INSPECTION ENGINE COVER<8GA> M8 FLANGE MAL 		0-91180-108-0 02 1 1311-1412 ●
168 NUT; ANCHOR PLATE
INSPECTION ENGINE COVER<8GA> M8 FLANGE MAL 		0-91180-108-0 02 1 1501- ●
168 NUT; ANCHOR PLATE
M8 FLANGE MAL 		0-91180-108-0 02 1 1501- ●
169 SEAL
OD=36 T=0.05 BLACK MAL 		5-76777-035-0 02 1 1501- ●
