7-40 — INSTRUMENT PANEL AND BOX (#130910) — 241 parça

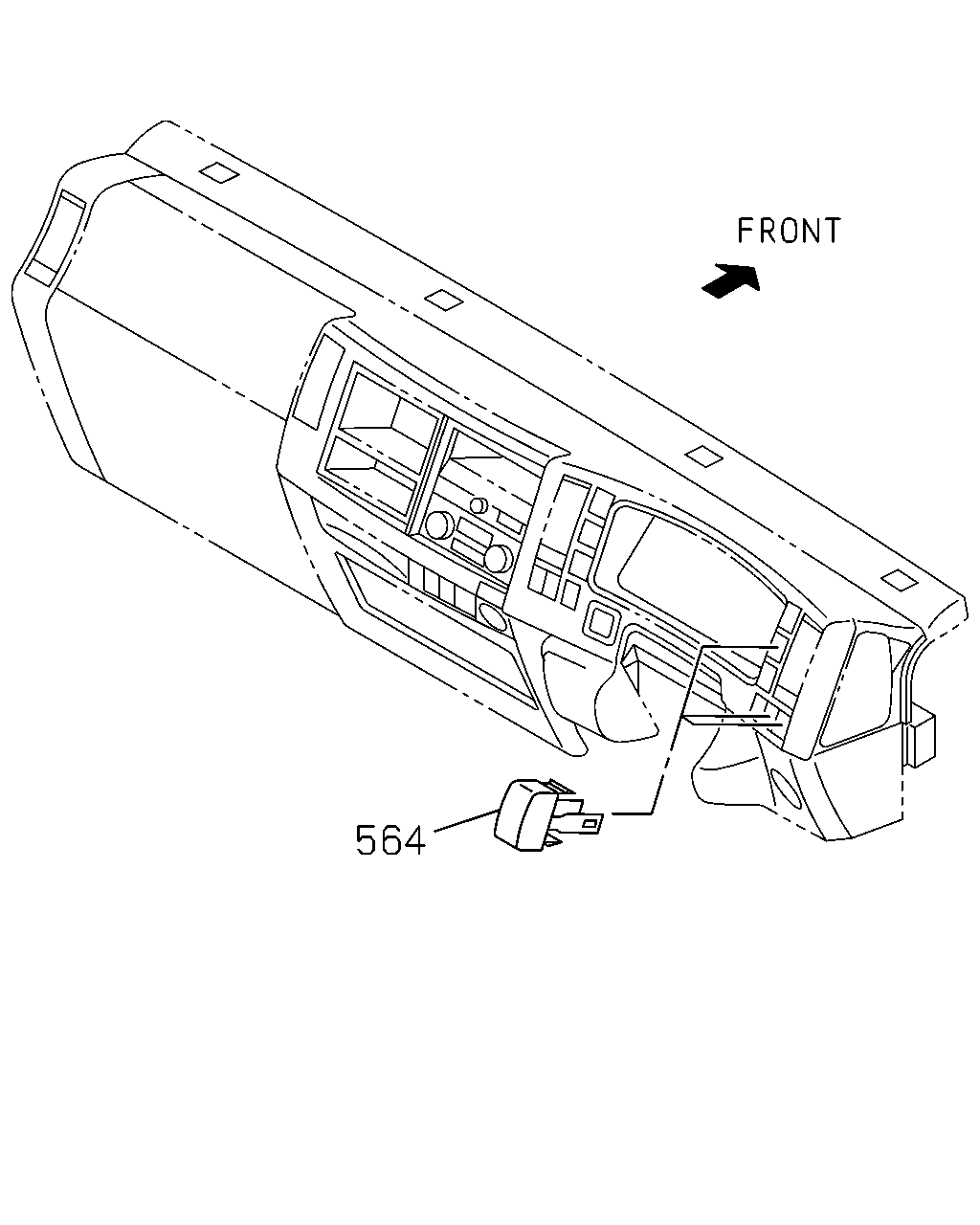

çizim 385993
564
BalonParca AdiParca NoAdetTipApplied Date A B
564 COVER; SW 8-98025-954-1 03 1 1311-1412 ●
564 COVER; SW 8-98025-954-1 03 1 1501- ● ●

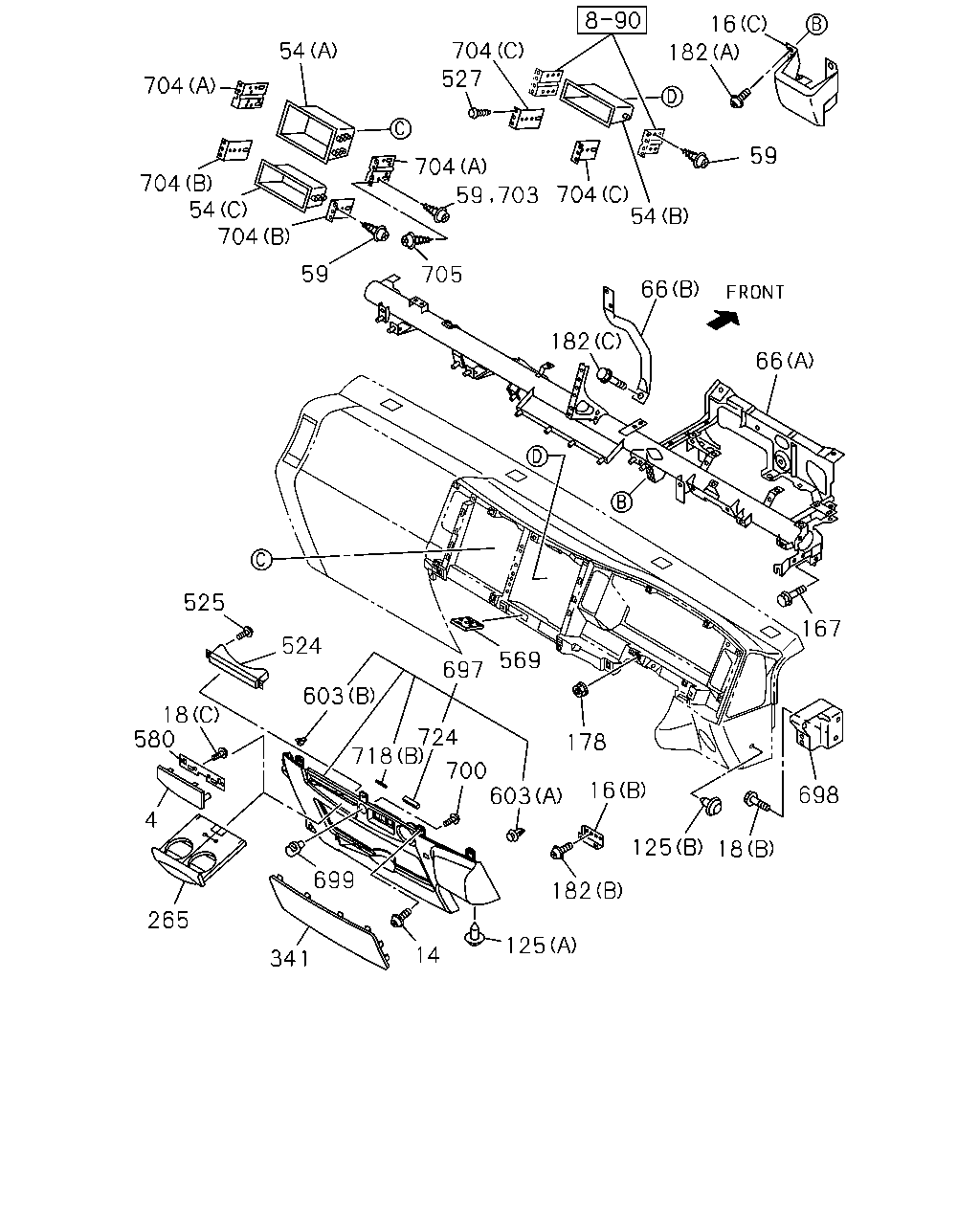

çizim 386231
16 182 59 54 66 66 182 705 703 704 59 704 527 704 54 704 704 704 59 525 524 603 18 580 4 265 341 699 14 125 718 700 603 724 697 182 16 178 569 125 18 698 167 54
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 1311-1412 ●
4 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 1501- ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 04 1 1311-1412 ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 04 1 1501- ● ●
16 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97585-532-0 01 1 1311-1412 ●
16 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97585-532-0 01 1 1501- ● ●
16 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-97585-612-2 01 1 1311-1412 ●
16 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-97585-612-2 01 1 1501- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1311-1412 ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1501- ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE MAL 		0-28050-816-0 04 1 1311-1412 ●
18 BOLT; BRKT
(B) M8X16 FLANGE MAL 		0-28050-816-0 04 1 1501- ● ●
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1311-1412 ●
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1501- ● ●
18 BOLT; BRKT
EXC. CUP HOLDER<7KZ> (C) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1311-1412 ●
18 BOLT; BRKT
EXC. CUP HOLDER<7KZ> (C) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1501- ● ●
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1311-1412 ●
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1501- ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1311-1412 ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1501- ●
54 POCKET; CENTER CLUSTER
EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1501- ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1311-1412 ●
54 POCKET; CENTER CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1311-1412 ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1501- ● ●
54 POCKET; CENTER CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1501- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1311-1412 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1311-1412 ●
59 SCREW; CLUSTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1311-1412 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1501- ● ●
59 SCREW; CLUSTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1501- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1501- ●
59 SCREW; CLUSTER POCKET
EXC. POWER WINDOW FRT&REAR DOOR<A31> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1501- ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-578-1 01 1 1311-1412 ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-578-1 01 1 1501- ● ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98199-358-1 01 1 1311-1412 ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98199-358-1 01 1 1501- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1311-1412 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1501- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1311-1412 ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1501- ● ●
125 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1311-1412 ●
125 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1501- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE MAL 		8-97264-766-0 04 1 1311-1412 ●
167 BOLT; REINF TO INST
M8X23 FLANGE MAL 		8-97264-766-0 04 1 1501- ● ●
178 NUT; INST PANEL
M6 FLANGE MAL 		0-91180-106-0 03 1 1311-1412 ●
178 NUT; INST PANEL
M6 FLANGE MAL 		0-91180-106-0 03 1 1501- ● ●
182 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 02 1 1311-1412 ●
182 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 02 1 1501- ● ●
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1311-1412 ●
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1501- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X20 W/LK&PL WASHER MAL 		8-97359-709-0 01 1 1311-1412 ●
182 BOLT; BRKT,INST PANEL
(C) M8X20 W/LK&PL WASHER MAL 		8-97359-709-0 01 1 1501- ● ●
265 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1311-1412 ●
265 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1501- ● ●
341 LID; FUSE BOX
GRAY 		8-97423-658-0 01 1 1311-1412 ●
341 LID; FUSE BOX
GRAY 		8-97423-658-0 01 1 1501- ● ●
524 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1311-1412 ●
524 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1501- ● ●
525 SCREW; CUP STAND
CUP HOLDER<7KZ> M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 03 1 1311-1412 ●
525 SCREW; CUP STAND
CUP HOLDER<7KZ> M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 03 1 1501- ● ●
527 CLIP; INST CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) DARK GRAY MAL 		8-97098-326-0 01 1 1311-1412 ●
527 CLIP; INST CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) DARK GRAY MAL 		8-97098-326-0 01 1 1501- ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 1311-1412 ●
569 HOLDER; CARD 8-97410-276-1 01 1 1501- ● ●
580 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 1311-1412 ●
580 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 1501- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1311-1412 ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1501- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 02 1 1311-1412 ●
603 CLIP; COVER
(B) 		8-98021-271-0 02 1 1501- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1311-1412 ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1501- ● ●
603 CLIP; COVER
4HG1-T ENG(RDP) (B) 		8-98021-271-0 03 1 1311-1311 ●
603 CLIP; COVER
(B) 		8-98021-271-0 03 1 1312-1412 ●
603 CLIP; COVER
(B) 		8-98021-271-0 03 1 1501- ●
603 CLIP; COVER
4HK1-TCN ENG(RDQ) (B) 		8-98021-271-0 03 1 1501- ●
697 PANEL; INST CENTER
GRAY 		8-97423-656-1 01 1 1311-1412 ●
697 PANEL; INST CENTER
GRAY 		8-97423-656-1 01 1 1501- ● ●
698 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1311-1412 ●
698 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1501- ● ●
698 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1311-1412 ●
698 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1501- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1311-1412 ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1501- ● ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 01 1 1311-1412 ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 01 1 1501- ● ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1311-1412 ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1501- ● ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1311-1412 ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1501- ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1311-1412 ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1501- ● ●
704 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) 		8-98107-549-0 02 1 1311-1412 ●
704 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) 		8-98107-549-0 02 1 1501- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 04 1 1311-1412 ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 04 1 1311-1412 ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 04 1 1501- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 04 1 1501- ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 01 1 1311-1412 ●
705 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 01 1 1501- ● ●
718 SEAL; COVER
4HG1-T ENG(RDP) (C) 		8-98218-319-0 01 1 1311- ●
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1311-1412 ●
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1501- ● ●
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1311-1412 ●
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1501- ● ●
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1311-1412 ●
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1501- ● ●
718 SEAL; COVER
4HG1-T ENG(RDP) (A) 30X15 		8-98097-696-0 01 1 1311-1311 ●
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1312-1412 ●
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1501- ●
718 SEAL; COVER
4HK1-TCN ENG(RDQ) (A) 30X15 		8-98097-696-0 01 1 1501- ●
724 INSULATOR; INST PANEL 8-98200-042-0 01 1 1311-1412 ●
724 INSULATOR; INST PANEL 8-98200-042-0 01 1 1501- ● ●

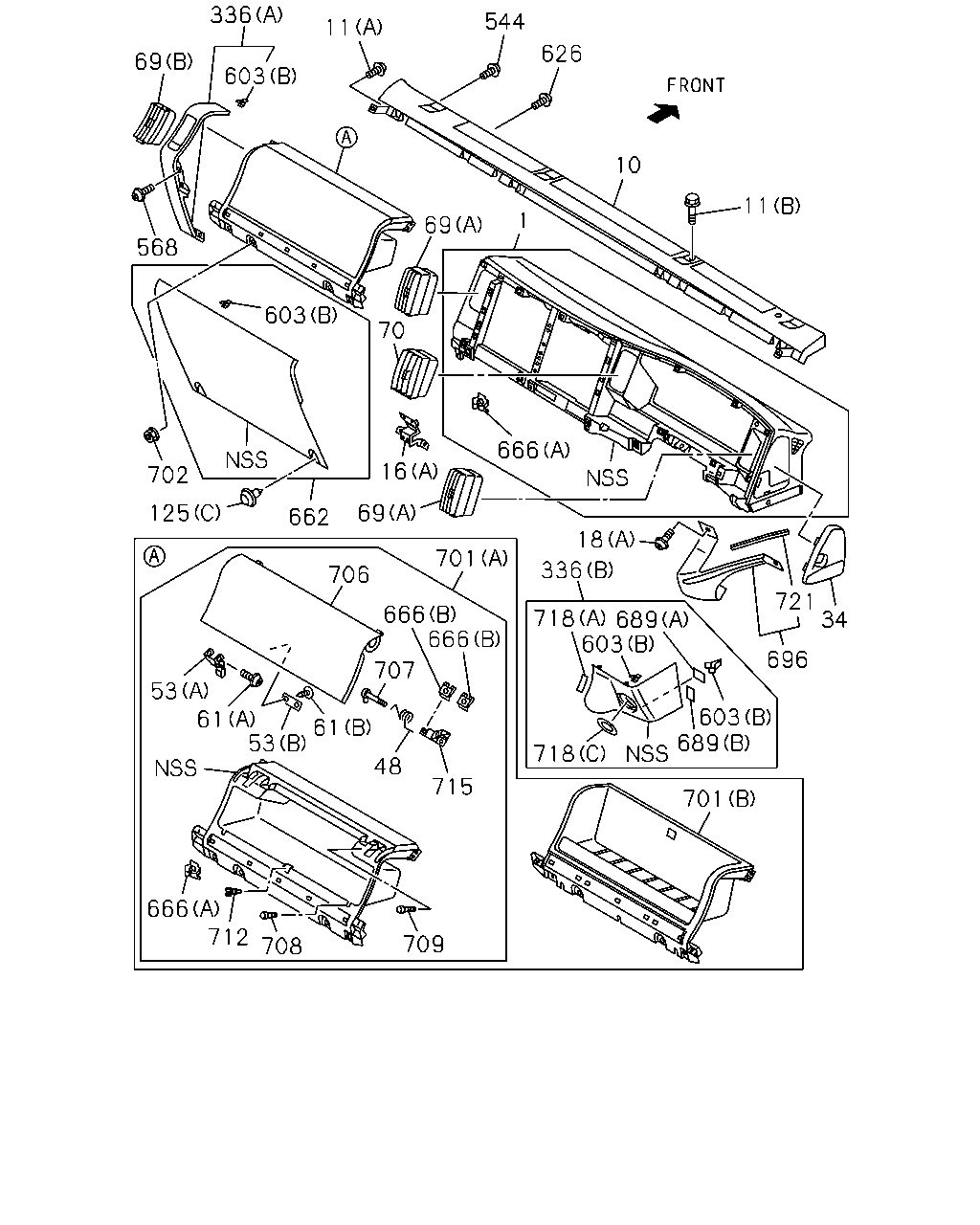

çizim 386349
336 11 544 10 11 603 603 69 70 568 702 662 16 69 69 666 18 336 718 689 603 718 689 701 696 603 721 34 626 706 666 666 53 48 715 61 707 53 61 666 712 708 709 701 125 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97405-253-8 01 1 1311-1412 ●
1 PANEL; INST
GRAY 		8-97405-253-8 01 1 1501- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1311-1412 ●
10 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1501- ● ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 08 1 1311-1412 ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 08 1 1501- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1311-1412 ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1501- ● ●
16 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97585-532-0 01 1 1311-1412 ●
16 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97585-532-0 01 1 1501- ● ●
16 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-97585-612-2 01 1 1311-1412 ●
16 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-97585-612-2 01 1 1501- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1311-1412 ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1501- ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE MAL 		0-28050-816-0 04 1 1311-1412 ●
18 BOLT; BRKT
(B) M8X16 FLANGE MAL 		0-28050-816-0 04 1 1501- ● ●
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1311-1412 ●
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1501- ● ●
18 BOLT; BRKT
EXC. CUP HOLDER<7KZ> (C) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1311-1412 ●
18 BOLT; BRKT
EXC. CUP HOLDER<7KZ> (C) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1501- ● ●
34 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 1311-1412 ●
34 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 1501- ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-986-0 01 1 1311-1311 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-410-0 01 1 1312-1405 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1406-1412 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1501- ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-987-0 01 1 1311-1311 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-411-0 01 1 1312-1405 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1406-1412 ●
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1501- ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98108-913-0 01 1 1311-1405 ●
53 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) 		8-98270-765-0 01 1 1406-1412 ●
53 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) 		8-98270-765-0 01 1 1501- ● ●
61 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98108-915-0 01 1 1311-1405 ●
61 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) M4X85 		8-97926-404-0 02 1 1406-1412 ●
61 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) M4X85 		8-97926-404-0 02 1 1501- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1311-1412 ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1501- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1311-1412 ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1501- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1311-1412 ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1501- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1311-1412 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1501- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1311-1412 ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1501- ● ●
125 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1311-1412 ●
125 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1501- ● ●
336 COVER; INST PANEL SIDE
4HG1-T ENG(RDP) (B) GRAY 		8-97414-961-4 01 1 1311- ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 1311-1412 ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 1501- ● ●
336 COVER; INST PANEL SIDE
4HK1-TCN ENG(RDQ) (B) GRAY 		8-97414-688-1 01 1 1312-1412 ●
336 COVER; INST PANEL SIDE
4HK1-TCN ENG(RDQ) (B) GRAY 		8-97414-688-1 01 1 1501- ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 03 1 1311-1412 ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 03 1 1501- ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 01 1 1311-1412 ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 01 1 1501- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1311-1412 ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1501- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 02 1 1311-1412 ●
603 CLIP; COVER
(B) 		8-98021-271-0 02 1 1501- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1311-1412 ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1501- ● ●
603 CLIP; COVER
4HG1-T ENG(RDP) (B) 		8-98021-271-0 03 1 1311-1311 ●
603 CLIP; COVER
(B) 		8-98021-271-0 03 1 1312-1412 ●
603 CLIP; COVER
(B) 		8-98021-271-0 03 1 1501- ●
603 CLIP; COVER
4HK1-TCN ENG(RDQ) (B) 		8-98021-271-0 03 1 1501- ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1311-1412 ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1501- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97405-258-2 01 1 1311-1412 ●
662 COVER; LWR,INST PANEL
GRAY 		8-97405-258-2 01 1 1501- ● ●
666 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98037-629-0 02 1 1311-1412 ●
666 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98037-629-0 02 1 1501- ● ●
666 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) 		8-98038-450-0 04 1 1311-1311 ●
666 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) M5 		8-97926-400-0 04 1 1312-1412 ●
666 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) M5 		8-97926-400-0 04 1 1501- ● ●
666 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 1311-1412 ●
666 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 1501- ● ●
689 SEAL; INST
4HG1-T ENG(RDP) (A) 7X31 		8-98061-777-0 01 1 1311-1311 ●
689 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 1312-1412 ●
689 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 1501- ●
689 SEAL; INST
4HK1-TCN ENG(RDQ) (A) 7X31 		8-98061-777-0 01 1 1501- ●
689 SEAL; INST
4HG1-T ENG(RDP) (B) 18X170 		8-98061-778-1 01 1 1311-1311 ●
689 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 1312-1412 ●
689 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 1501- ●
689 SEAL; INST
4HK1-TCN ENG(RDQ) (B) 18X170 		8-98061-778-1 01 1 1501- ●
696 BRACKET; KNEE 8-98199-366-0 01 1 1311-1412 ●
696 BRACKET; KNEE 8-98199-366-0 01 1 1501- ● ●
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY 		8-97415-542-6 01 1 1311-1405 ●
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY 		8-97429-702-1 01 1 1406-1412 ●
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY 		8-97429-702-1 01 1 1501- ● ●
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> (B) GRAY 		8-97422-091-1 01 1 1311-1412 ●
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> (B) GRAY 		8-97422-091-1 01 1 1501- ● ●
702 NUT; TRAY
M6 FLANGE MAL 		0-91180-106-0 02 1 1311-1412 ●
702 NUT; TRAY
M6 FLANGE MAL 		0-91180-106-0 02 1 1501- ● ●
706 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY 		8-97415-541-0 01 1 1311-1405 ●
706 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1406-1412 ●
706 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1501- ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98035-730-1 02 1 1311-1311 ●
707 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1312-1412 ●
707 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1501- ● ●
708 STOPPER; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1311-1412 ●
708 STOPPER; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1501- ● ●
709 SCREW; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1311-1412 ●
709 SCREW; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1501- ● ●
712 LOCK; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1311-1412 ●
712 LOCK; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1501- ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-928-0 01 1 1311-1311 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1312-1412 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1501- ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-929-0 01 1 1311-1311 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1312-1412 ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1501- ● ●
718 SEAL; COVER
4HG1-T ENG(RDP) (C) 		8-98218-319-0 01 1 1311- ●
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1311-1412 ●
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1501- ● ●
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1311-1412 ●
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1501- ● ●
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1311-1412 ●
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1501- ● ●
718 SEAL; COVER
4HG1-T ENG(RDP) (A) 30X15 		8-98097-696-0 01 1 1311-1311 ●
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1312-1412 ●
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1501- ●
718 SEAL; COVER
4HK1-TCN ENG(RDQ) (A) 30X15 		8-98097-696-0 01 1 1501- ●
721 FINISHER; BRKT,KNEE
L=75 		8-98176-240-0 01 1 1311-1412 ●
721 FINISHER; BRKT,KNEE
L=75 		8-98176-240-0 01 1 1501- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
