6-80 — BACK PANEL (#130902) — 70 parça

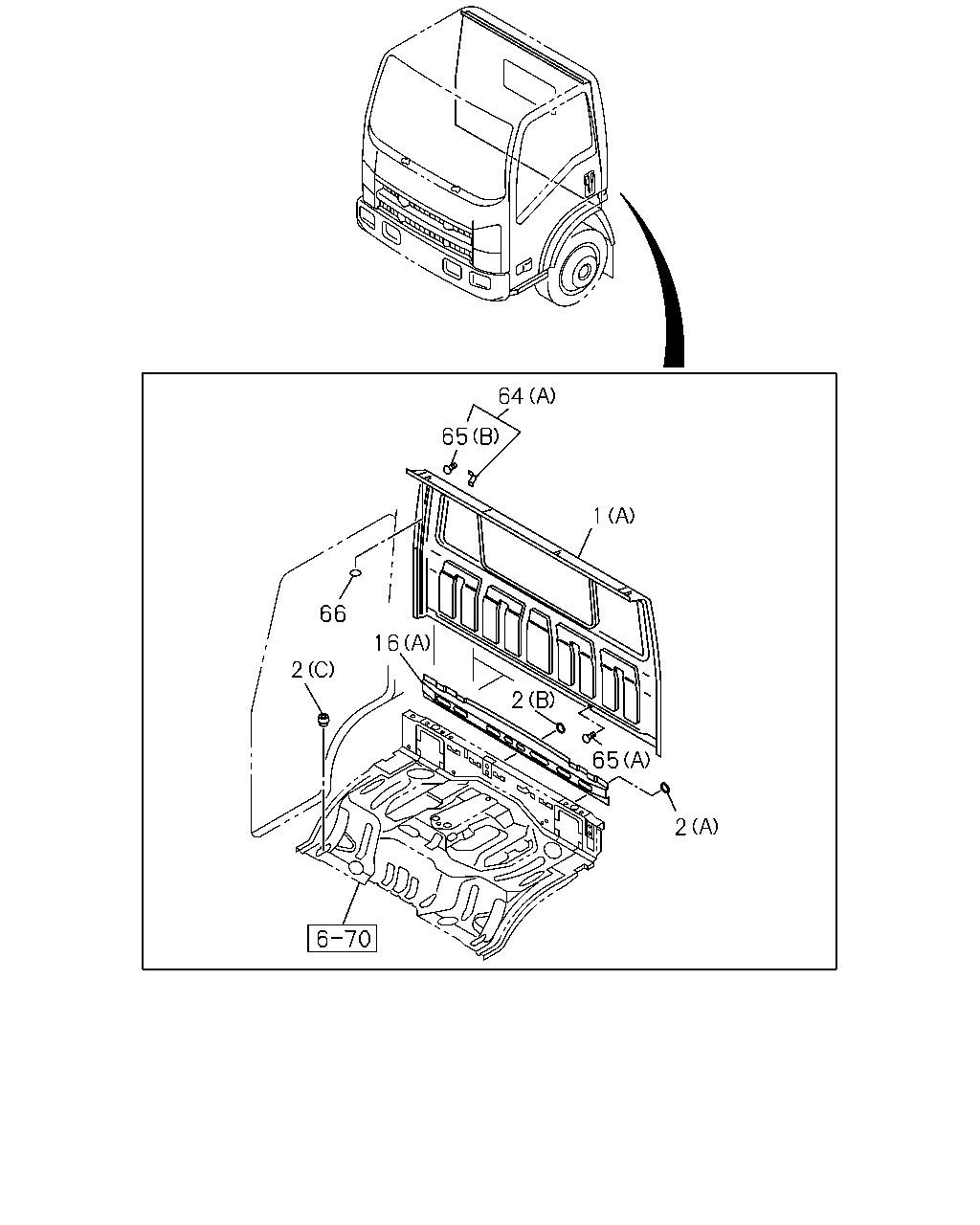

çizim 386596
65 64 66 2 2 1 65 2 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; BACK OUTER
(B) 		8-97583-731-4 01 1 1501- ●
1 PANEL; BACK OUTER
(B) 		8-97583-749-5 01 1 1501- ●
1 PANEL; BACK OUTER
EXC. GLASS BACK LIGHT DELETE<8CA> (A) 		8-97584-304-3 01 1 1311- ●
1 PANEL; BACK OUTER
GLASS BACK LIGHT DELETE<8CA> (A) 		8-97584-311-4 01 1 1311-1311 ●
1 PANEL; BACK OUTER
GLASS BACK LIGHT DELETE<8CA> EXC. RR BODY FLAT BED<RS6> (A) 		8-97584-311-4 01 1 1312- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(E) OD=35 MAL 		8-94122-971-0 04 1 1501- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(D) OD=15.0 MAL 		8-94279-040-0 02 1 1501- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
INSPECTION ENGINE COVER<8GA> (B) OD=32 BLACK MAL 		8-98031-126-0 10 1 1311- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK MAL 		1-76798-019-0 02 1 1311-1412 ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK MAL 		1-76798-019-0 02 1 1501- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=12.1 MAL 		8-97898-423-0 04 1 1311-1412 ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=12.1 MAL 		8-97898-423-0 04 1 1501- ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=32 BLACK MAL 		8-98031-126-0 02 1 1311-1412 ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=32 BLACK MAL 		8-98031-126-0 02 1 1501- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
EXC. INSPECTION ENGINE COVER<8GA> (B) OD=32 BLACK MAL 		8-98031-126-0 06 1 1311- ●
16 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97583-754-0 01 1 1501- ●
16 REINFORCEMENT; BACK OUTER PNL
(C) 		8-98006-213-0 01 1 1501- ●
16 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-608-2 01 1 1311- ●
64 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 1501- ●
64 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 1501- ●
64 BRACKET; AIR INTAKE DUCT
(A) 		8-97584-611-1 01 1 1311- ●
65 STUD; BACK PANEL
(B) MAL 		8-94389-701-0 02 1 1501- ●
65 STUD; BACK PANEL
(B) MAL 		8-94389-701-0 01 1 1311- ●
65 STUD; BACK PANEL
RR BODY FLAT BED<RS6> EXC. GLASS BACK LIGHT DELETE<8CA> (A) M6X12 		8-98013-112-0 04 1 1312- ●
66 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> OD=20 T=0.05 WHITE MAL 		8-98059-421-0 04 1 1311-1412 ●
66 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> OD=20 T=0.05 WHITE MAL 		8-98059-421-0 04 1 1501- ●
66 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE MAL 		8-98059-421-0 04 1 1501- ●
66 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> OD=20 T=0.05 WHITE MAL 		8-98059-421-0 05 1 1311- ●
66 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> OD=20 T=0.05 BLACK MAL 		5-76777-036-0 04 1 1311-1412 ●
66 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> OD=20 T=0.05 BLACK MAL 		5-76777-036-0 04 1 1501- ●
66 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK MAL 		5-76777-036-0 04 1 1501- ●
66 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> OD=20 T=0.05 BLACK MAL 		5-76777-036-0 05 1 1311- ●

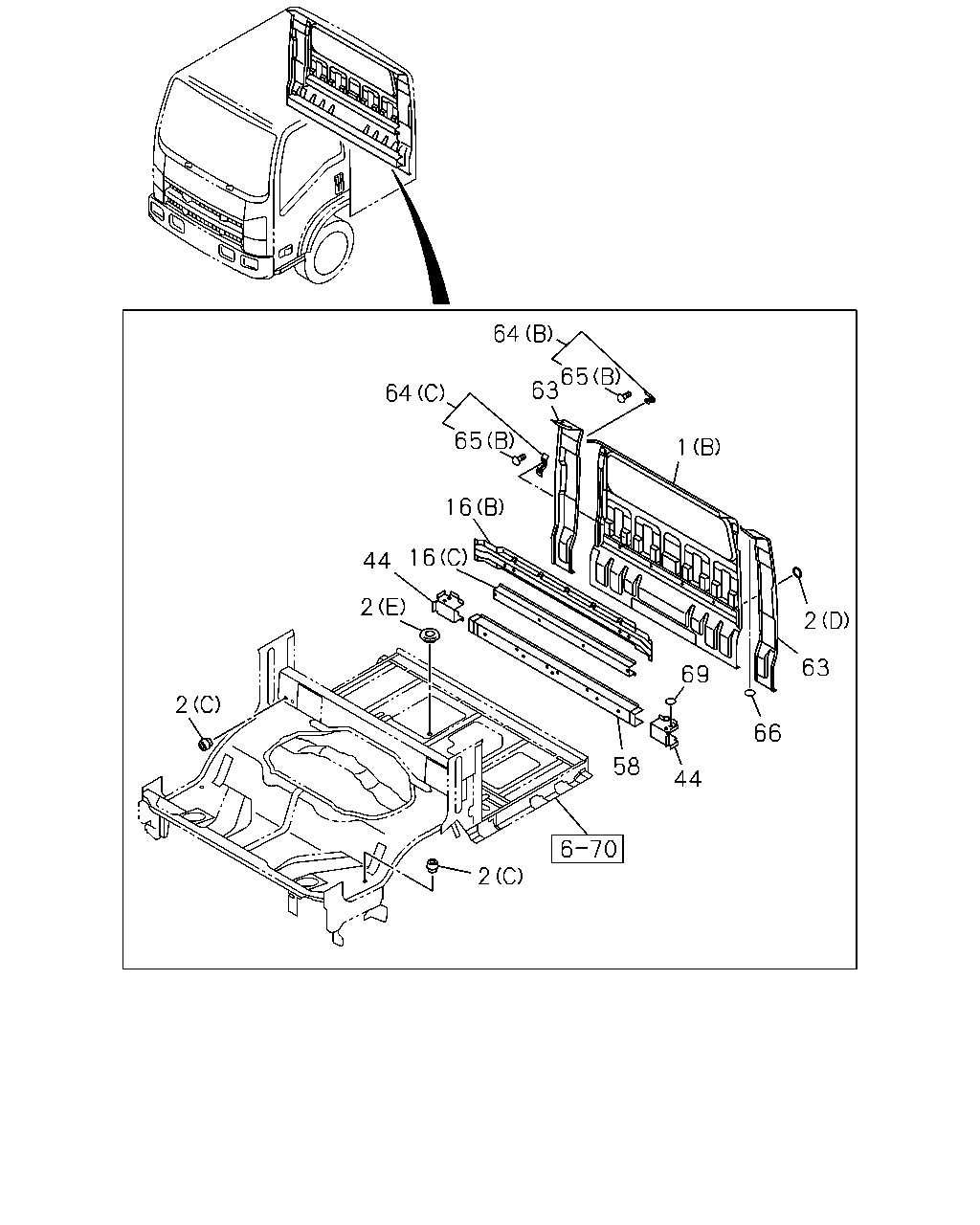

çizim 514543
2 44 2 2 58 44 69 66 63 2 1 16 16 64 64 63 65 65
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; BACK OUTER
(B) 		8-97583-731-4 01 1 1501- ●
1 PANEL; BACK OUTER
(B) 		8-97583-749-5 01 1 1501- ●
1 PANEL; BACK OUTER
EXC. GLASS BACK LIGHT DELETE<8CA> (A) 		8-97584-304-3 01 1 1311- ●
1 PANEL; BACK OUTER
GLASS BACK LIGHT DELETE<8CA> (A) 		8-97584-311-4 01 1 1311-1311 ●
1 PANEL; BACK OUTER
GLASS BACK LIGHT DELETE<8CA> EXC. RR BODY FLAT BED<RS6> (A) 		8-97584-311-4 01 1 1312- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(E) OD=35 MAL 		8-94122-971-0 04 1 1501- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(D) OD=15.0 MAL 		8-94279-040-0 02 1 1501- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
INSPECTION ENGINE COVER<8GA> (B) OD=32 BLACK MAL 		8-98031-126-0 10 1 1311- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK MAL 		1-76798-019-0 02 1 1311-1412 ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK MAL 		1-76798-019-0 02 1 1501- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=12.1 MAL 		8-97898-423-0 04 1 1311-1412 ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=12.1 MAL 		8-97898-423-0 04 1 1501- ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=32 BLACK MAL 		8-98031-126-0 02 1 1311-1412 ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=32 BLACK MAL 		8-98031-126-0 02 1 1501- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
EXC. INSPECTION ENGINE COVER<8GA> (B) OD=32 BLACK MAL 		8-98031-126-0 06 1 1311- ●
16 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97583-754-0 01 1 1501- ●
16 REINFORCEMENT; BACK OUTER PNL
(C) 		8-98006-213-0 01 1 1501- ●
16 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-608-2 01 1 1311- ●
44 BRACKET; RR SEAT ANCHOR 8-98055-947-0 01 1 1501- ●
44 BRACKET; RR SEAT ANCHOR 8-98055-949-0 01 1 1501- ●
58 REINFORCEMENT; SEAT BELT ANCHOR 8-98006-720-0 01 1 1501- ●
63 PANEL; BACK,SIDE 8-97583-750-6 01 1 1501- ●
63 PANEL; BACK,SIDE 8-97583-751-5 01 1 1501- ●
64 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 1501- ●
64 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 1501- ●
64 BRACKET; AIR INTAKE DUCT
(A) 		8-97584-611-1 01 1 1311- ●
65 STUD; BACK PANEL
(B) MAL 		8-94389-701-0 02 1 1501- ●
65 STUD; BACK PANEL
(B) MAL 		8-94389-701-0 01 1 1311- ●
65 STUD; BACK PANEL
RR BODY FLAT BED<RS6> EXC. GLASS BACK LIGHT DELETE<8CA> (A) M6X12 		8-98013-112-0 04 1 1312- ●
66 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> OD=20 T=0.05 WHITE MAL 		8-98059-421-0 04 1 1311-1412 ●
66 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> OD=20 T=0.05 WHITE MAL 		8-98059-421-0 04 1 1501- ●
66 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE MAL 		8-98059-421-0 04 1 1501- ●
66 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> OD=20 T=0.05 WHITE MAL 		8-98059-421-0 05 1 1311- ●
66 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> OD=20 T=0.05 BLACK MAL 		5-76777-036-0 04 1 1311-1412 ●
66 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> OD=20 T=0.05 BLACK MAL 		5-76777-036-0 04 1 1501- ●
66 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK MAL 		5-76777-036-0 04 1 1501- ●
66 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> OD=20 T=0.05 BLACK MAL 		5-76777-036-0 05 1 1311- ●
69 SEAL; LOCATION HOLE
OD=20 T=0.05 BLACK MAL 		5-76777-036-0 04 1 1501- ●
