6-78 — FLOOR HOLE PLUG (#130901) — 21 parça

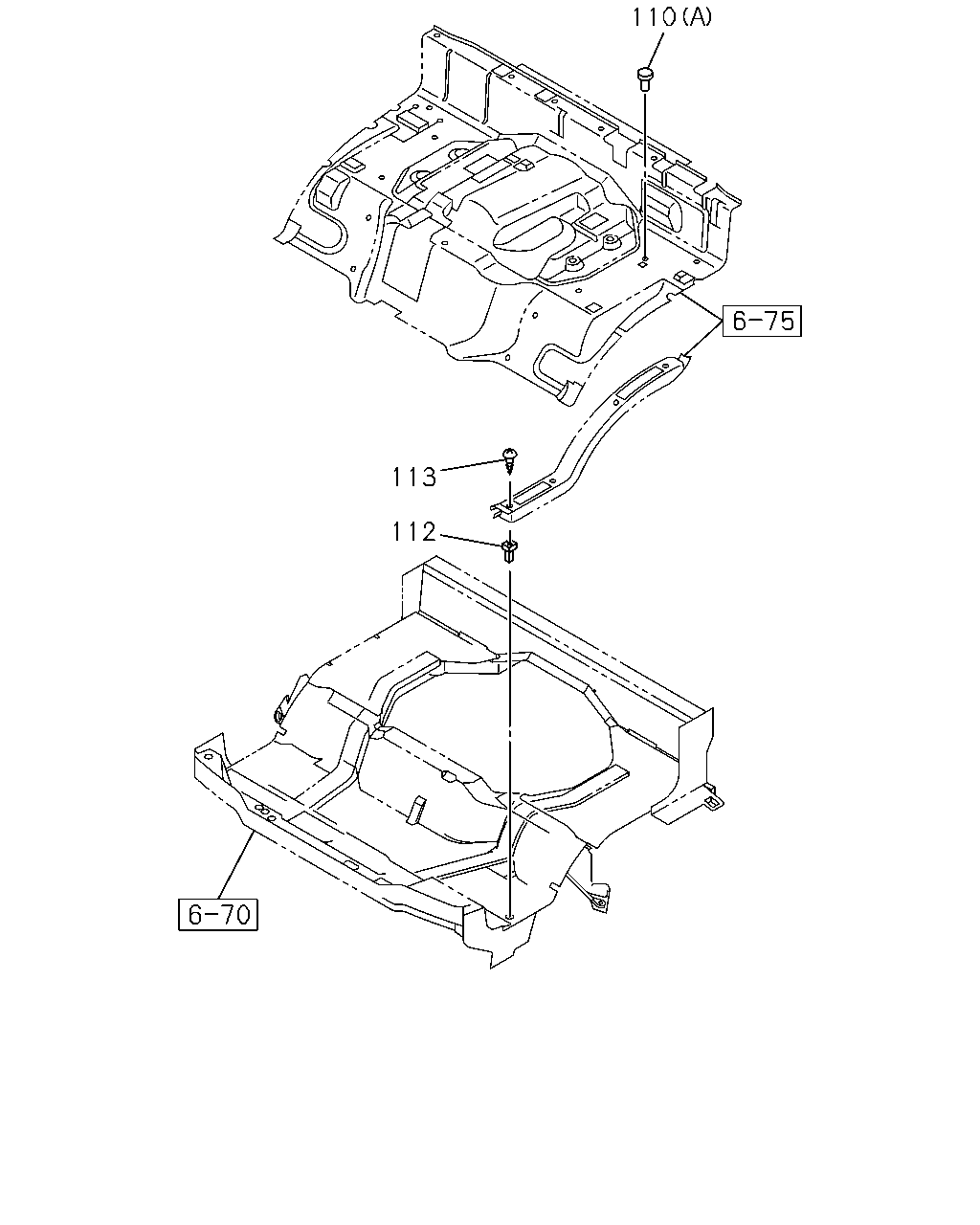

110 113 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
110	FASTENER; FLOOR MAT 4HK1-TCN ENG(RDQ) (A) BLACK MAL	8-94279-089-0	02	1	1501-	●
110	FASTENER; FLOOR MAT (A) BLACK MAL	8-94279-089-0	09	1	1501-	●
110	FASTENER; FLOOR MAT (B) H=15 MAL	8-94463-268-1	08	1	1501-	●
110	FASTENER; FLOOR MAT (C) DARK GRAY MAL	8-97098-326-0	04	1	1501-	●
110	FASTENER; FLOOR MAT INSPECTION ENGINE COVER<8GA> (A) BLACK MAL	8-94279-089-0	10	1	1311-		●
110	FASTENER; FLOOR MAT EXC. INSPECTION ENGINE COVER<8GA> (A) BLACK MAL	8-94279-089-0	11	1	1311-		●
112	GROMMET; SCREW,TRIM COVER H=15 MAL	8-94463-268-1	08	1	1311-1412		●
112	GROMMET; SCREW,TRIM COVER H=15 MAL	8-94463-268-1	08	1	1501-	●	●
113	SCREW; TRIM COVER T25 M5X12 TAPPING HEXALOBULAR MAL	0-72180-512-0	08	1	1311-1412		●
113	SCREW; TRIM COVER T25 M5X12 TAPPING HEXALOBULAR MAL	0-72180-512-0	08	1	1501-	●	●

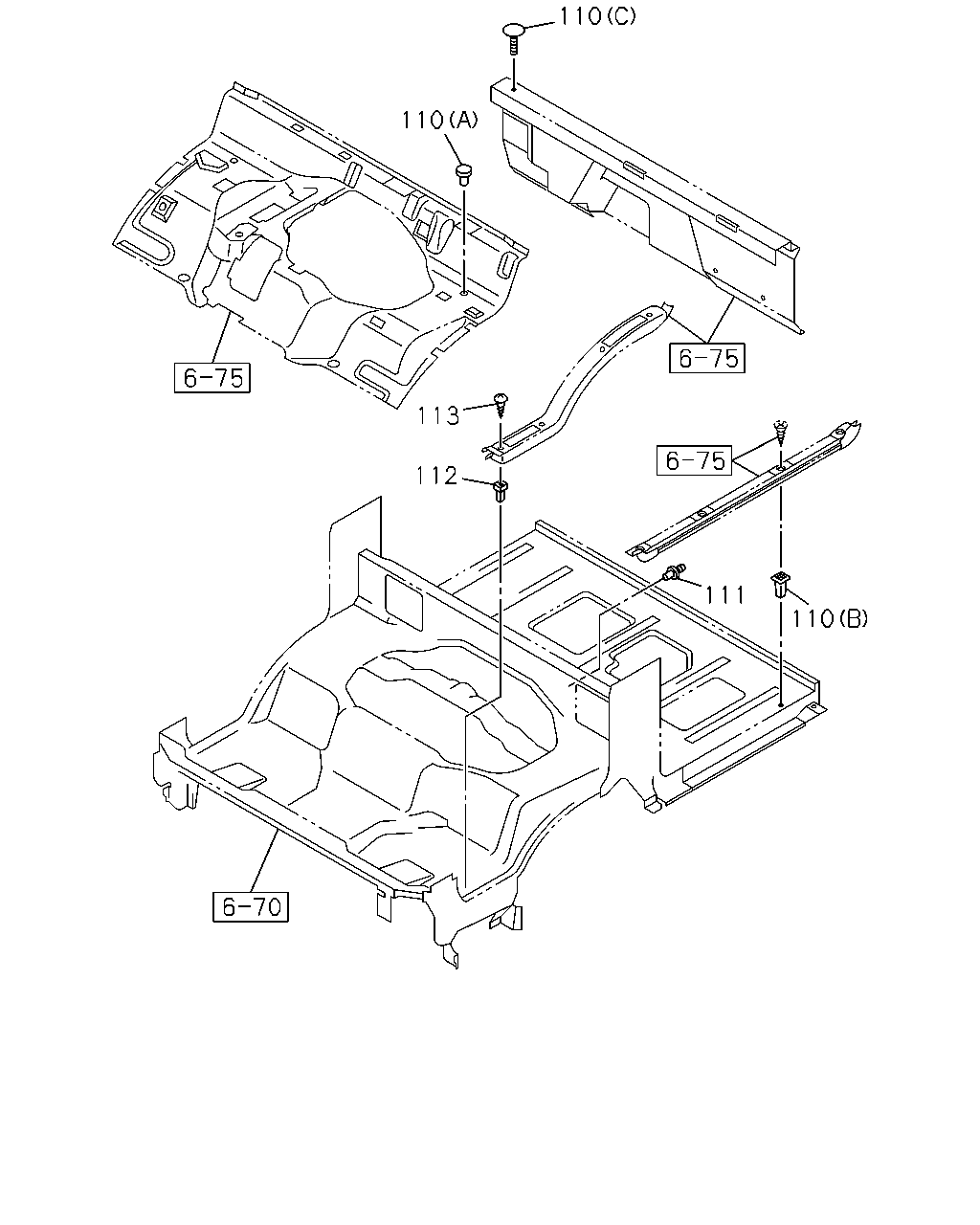

110 110 113 112 111 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
110	FASTENER; FLOOR MAT 4HK1-TCN ENG(RDQ) (A) BLACK MAL	8-94279-089-0	02	1	1501-	●
110	FASTENER; FLOOR MAT (A) BLACK MAL	8-94279-089-0	09	1	1501-	●
110	FASTENER; FLOOR MAT (B) H=15 MAL	8-94463-268-1	08	1	1501-	●
110	FASTENER; FLOOR MAT (C) DARK GRAY MAL	8-97098-326-0	04	1	1501-	●
110	FASTENER; FLOOR MAT INSPECTION ENGINE COVER<8GA> (A) BLACK MAL	8-94279-089-0	10	1	1311-		●
110	FASTENER; FLOOR MAT EXC. INSPECTION ENGINE COVER<8GA> (A) BLACK MAL	8-94279-089-0	11	1	1311-		●
111	FASTENER; FLOOR MAT,CAB RR MTG 4HK1-TCN ENG(RDQ) BLACK MAL	8-94279-089-0	11	1	1501-	●
112	GROMMET; SCREW,TRIM COVER H=15 MAL	8-94463-268-1	08	1	1311-1412		●
112	GROMMET; SCREW,TRIM COVER H=15 MAL	8-94463-268-1	08	1	1501-	●	●
113	SCREW; TRIM COVER T25 M5X12 TAPPING HEXALOBULAR MAL	0-72180-512-0	08	1	1311-1412		●
113	SCREW; TRIM COVER T25 M5X12 TAPPING HEXALOBULAR MAL	0-72180-512-0	08	1	1501-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
