Sayfa 6-76 - Isuzu EPC

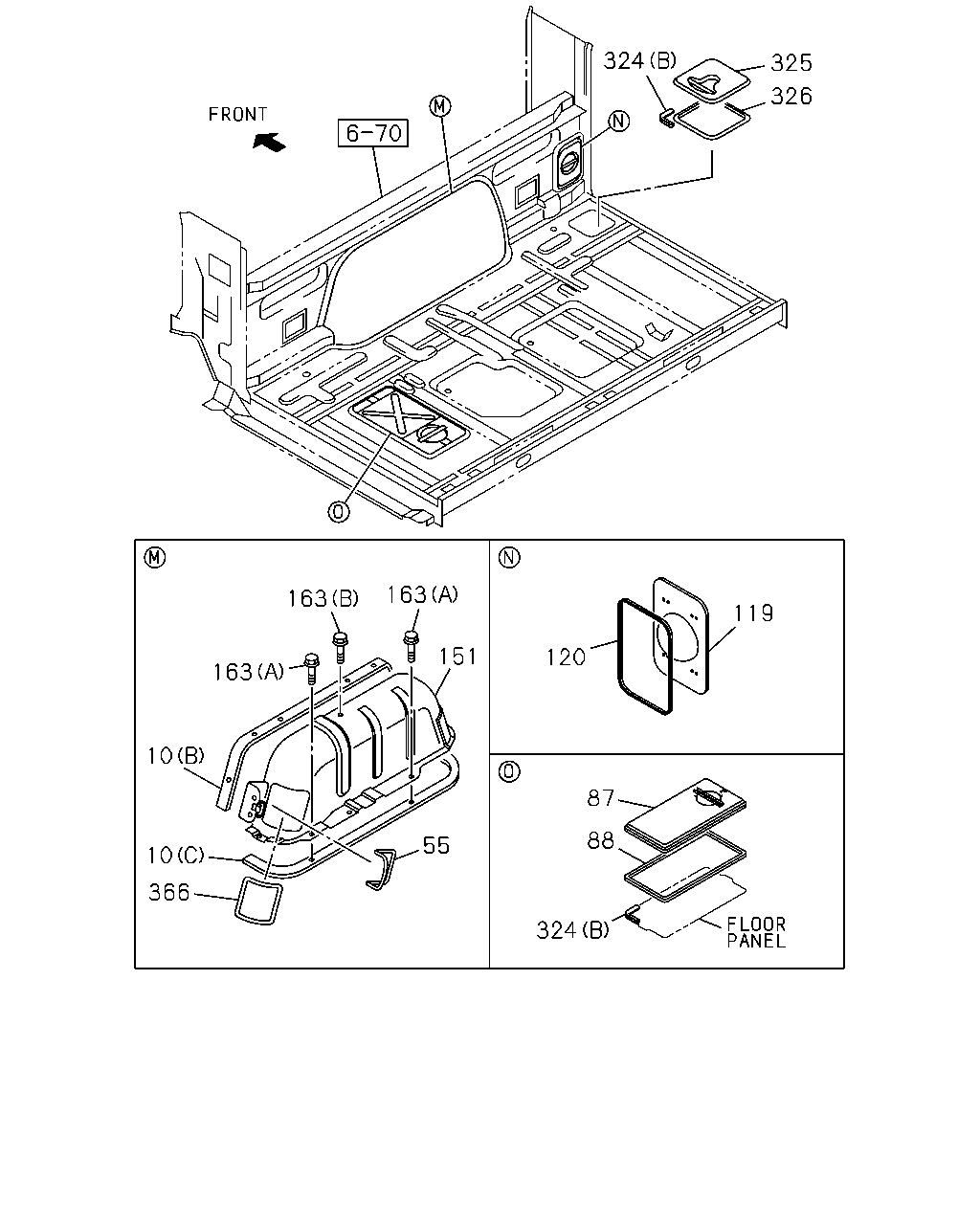

6-76 — FLOOR EQUIPMENT AND SEALING (#130900) — 213 parça

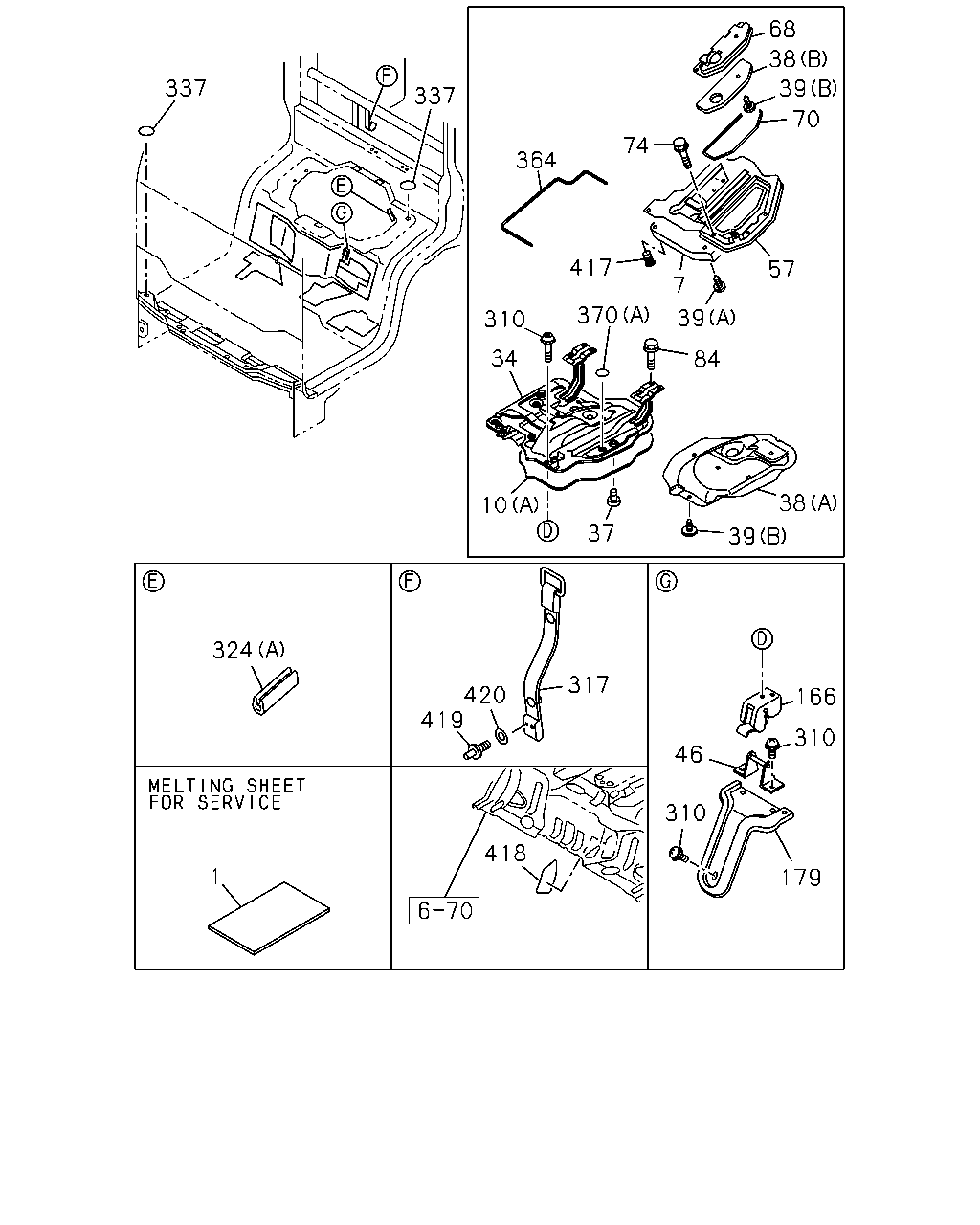

337 337 364 417 370 310 34 74 68 38 39 70 57 39 7 84 38 39 166 310 179 310 46 317 420 419 418 1 324 10 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY MAL	8-94262-093-0	AR	1	1311-1412	●
1	SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY MAL	8-94262-093-0	AR	1	1501-	●	●
7	INSULATOR; SUPPORT COVER INSPECTION ENGINE COVER<8GA>	8-97586-175-1	01	1	1311-1408	●
7	INSULATOR; SUPPORT COVER INSPECTION ENGINE COVER<8GA>	8-98242-228-0	01	1	1409-1412	●
7	INSULATOR; SUPPORT COVER INSPECTION ENGINE COVER<8GA>	8-98242-228-0	01	1	1501-	●
7	INSULATOR; SUPPORT COVER	8-98242-228-0	01	1	1501-		●
10	SEAL; ENG COVER 4HK1-TCN ENG(RDQ) (B)	8-98006-847-0	01	1	1501-		●
10	SEAL; ENG COVER 4HK1-TCN ENG(RDQ) (C)	8-98006-852-0	01	1	1501-		●
10	SEAL; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98029-377-0	01	1	1311-1412	●
10	SEAL; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98029-377-0	01	1	1501-	●
10	SEAL; ENG COVER (A)	8-98029-377-0	01	1	1501-		●
34	COVER ASM; ENG,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97587-395-3	01	1	1311-1412	●
34	COVER ASM; ENG,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97587-395-3	01	1	1501-	●
34	COVER ASM; ENG,CAB FLOOR	8-97587-395-3	01	1	1501-		●
37	RUBBER; BUFFER,ENG COVER INSPECTION ENGINE COVER<8GA> OD=30 T=10 MAL	5-74917-001-2	02	1	1311-1412	●
37	RUBBER; BUFFER,ENG COVER INSPECTION ENGINE COVER<8GA> OD=30 T=10 MAL	5-74917-001-2	02	1	1501-	●
37	RUBBER; BUFFER,ENG COVER OD=30 T=10 MAL	5-74917-001-2	02	1	1501-		●
38	INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (B)	8-97586-169-2	01	1	1311-1408	●
38	INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (B)	8-98242-234-0	01	1	1409-1412	●
38	INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (B)	8-98242-234-0	01	1	1501-	●
38	INSULATOR; ENG COVER (B)	8-98242-234-0	01	1	1501-		●
38	INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-97586-182-2	01	1	1311-1408	●
38	INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98242-226-0	01	1	1409-1412	●
38	INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98242-226-0	01	1	1501-	●
38	INSULATOR; ENG COVER (A)	8-98242-226-0	01	1	1501-		●
39	CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> (B) OD=30 MAL	8-94279-952-0	07	1	1311-1412	●
39	CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> (B) OD=30 MAL	8-94279-952-0	07	1	1501-	●
39	CLIP; INSULATOR,COVER (B) OD=30 MAL	8-94279-952-0	07	1	1501-		●
39	CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> (A) ID=6.2 L=11.4	8-97808-623-0	05	1	1311-1412	●
39	CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> (A) ID=6.2 L=11.4	8-97808-623-0	05	1	1501-	●
39	CLIP; INSULATOR,COVER (A) ID=6.2 L=11.4	8-97808-623-0	05	1	1501-		●
46	HOOK ASM; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-145-0	02	1	1311-1412	●
46	HOOK ASM; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-145-0	02	1	1501-	●
46	HOOK ASM; ENG COVER	8-98040-145-0	02	1	1501-		●
57	COVER ASM; SUPPORT,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97587-400-3	01	1	1311-1412	●
57	COVER ASM; SUPPORT,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97587-400-3	01	1	1501-	●
57	COVER ASM; SUPPORT,CAB FLOOR	8-97587-400-3	01	1	1501-		●
68	COVER ASM; SUB,ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-141-0	01	1	1311-1412	●
68	COVER ASM; SUB,ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-141-0	01	1	1501-	●
68	COVER ASM; SUB,ENG COVER	8-98040-141-0	01	1	1501-		●
70	SEAL; ENG SUB COVER,CAB FLOOR INSPECTION ENGINE COVER<8GA> MAL	8-97853-050-1	01	1	1311-1412	●
70	SEAL; ENG SUB COVER,CAB FLOOR INSPECTION ENGINE COVER<8GA> MAL	8-97853-050-1	01	1	1501-	●
70	SEAL; ENG SUB COVER,CAB FLOOR MAL	8-97853-050-1	01	1	1501-		●
74	BOLT; SUPPORT COVER TO FLOOR INSPECTION ENGINE COVER<8GA> M8X20 FLANGE MAL	0-28650-820-0	10	1	1311-1412	●
74	BOLT; SUPPORT COVER TO FLOOR INSPECTION ENGINE COVER<8GA> M8X20 FLANGE MAL	0-28650-820-0	10	1	1501-	●
74	BOLT; SUPPORT COVER TO FLOOR M8X20 FLANGE MAL	0-28650-820-0	10	1	1501-		●
84	BOLT; ENG COVER HINGE INSPECTION ENGINE COVER<8GA> M8X20 FLANGE MAL	0-28650-820-0	04	1	1311-1412	●
84	BOLT; ENG COVER HINGE INSPECTION ENGINE COVER<8GA> M8X20 FLANGE MAL	0-28650-820-0	04	1	1501-	●
84	BOLT; ENG COVER HINGE M8X20 FLANGE MAL	0-28650-820-0	04	1	1501-		●
166	LOCK; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-152-0	02	1	1311-1412	●
166	LOCK; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-152-0	02	1	1501-	●
166	LOCK; ENG COVER	8-98040-152-0	02	1	1501-		●
179	REINFORCEMENT; COVER INSPECTION ENGINE COVER<8GA>	8-98048-301-1	01	1	1311-1412	●
179	REINFORCEMENT; COVER INSPECTION ENGINE COVER<8GA>	8-98048-301-1	01	1	1501-	●
179	REINFORCEMENT; COVER	8-98048-301-1	01	1	1501-		●
310	SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> M6X16 FLANGE MAL	0-28650-616-0	04	1	1311-1412	●
310	SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> M6X16 FLANGE MAL	0-28650-616-0	04	1	1501-	●
310	SCREW; ENG COVER HOOK M6X16 FLANGE MAL	0-28650-616-0	04	1	1501-		●
310	SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> M6X16	0-38050-616-0	05	1	1311-1412	●
310	SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> M6X16	0-38050-616-0	05	1	1501-	●
310	SCREW; ENG COVER HOOK M6X16	0-38050-616-0	05	1	1501-		●
317	BAND; ENGINE COVER INSPECTION ENGINE COVER<8GA>	8-97585-575-0	01	1	1311-1412	●
317	BAND; ENGINE COVER INSPECTION ENGINE COVER<8GA>	8-97585-575-0	01	1	1501-	●
317	BAND; ENGINE COVER	8-97585-575-0	01	1	1501-		●
324	FINISHER; FLOOR PANEL (B) L=120	1-73948-004-0	02	1	1501-		●
324	FINISHER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A) L=140 MAL	8-97892-742-0	03	1	1311-1412	●
324	FINISHER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A) L=140 MAL	8-97892-742-0	03	1	1501-	●
324	FINISHER; FLOOR PANEL (A) L=140 MAL	8-97892-742-0	03	1	1501-		●
337	SEAL; CLIP HOLE OD=25 BLACK MAL	1-76798-019-0	23	1	1501-		●
337	SEAL; CLIP HOLE INSPECTION ENGINE COVER<8GA> OD=32 BLACK MAL	8-98031-126-0	01	1	1311-	●
337	SEAL; CLIP HOLE OD=32 BLACK MAL	8-98031-126-0	04	1	1311-1412	●
337	SEAL; CLIP HOLE OD=32 BLACK MAL	8-98031-126-0	04	1	1501-	●	●
337	SEAL; CLIP HOLE OD=32 BLACK MAL	8-98031-126-0	08	1	1311-1412	●
337	SEAL; CLIP HOLE OD=32 BLACK MAL	8-98031-126-0	08	1	1501-	●	●
364	FINISHER; ENG COVER SIDE INSPECTION ENGINE COVER<8GA> L=1100	8-97892-744-0	01	1	1311-1412	●
364	FINISHER; ENG COVER SIDE INSPECTION ENGINE COVER<8GA> L=1100	8-97892-744-0	01	1	1501-	●
364	FINISHER; ENG COVER SIDE L=1100	8-97892-744-0	01	1	1501-		●
370	SEAL; LOCATION HOLE INSPECTION ENGINE COVER<8GA> (A) OD=25 BLACK MAL	1-76798-019-0	01	1	1311-1412	●
370	SEAL; LOCATION HOLE INSPECTION ENGINE COVER<8GA> (A) OD=25 BLACK MAL	1-76798-019-0	01	1	1501-	●
370	SEAL; LOCATION HOLE (A) OD=25 BLACK MAL	1-76798-019-0	01	1	1501-		●
370	SEAL; LOCATION HOLE INSPECTION ENGINE COVER<8GA> (B) OD=20 T=0.05 BLACK MAL	5-76777-036-0	03	1	1311-	●
417	NUT; POP INSPECTION ENGINE COVER<8GA> M6 POP NUT MAL	8-98013-752-0	01	1	1311-1412	●
417	NUT; POP INSPECTION ENGINE COVER<8GA> M6 POP NUT MAL	8-98013-752-0	01	1	1501-	●
417	NUT; POP M6 POP NUT MAL	8-98013-752-0	01	1	1501-		●
418	SEAL; PROTECTOR	8-98090-191-1	01	1	1311-1412	●
418	SEAL; PROTECTOR 4HK1-TCN ENG(RDQ)	8-98090-191-1	01	1	1501-	●	●
418	SEAL; PROTECTOR	8-98090-192-1	01	1	1311-1412	●
418	SEAL; PROTECTOR 4HK1-TCN ENG(RDQ)	8-98090-192-1	01	1	1501-	●	●
419	RIVET; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98065-262-0	01	1	1311-1412	●
419	RIVET; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98065-262-0	01	1	1501-	●
419	RIVET; ENG COVER	8-98065-262-0	01	1	1501-		●
420	WASHER; ENG COVER INSPECTION ENGINE COVER<8GA> ID=5.3 OD=16	0-91614-705-0	01	1	1311-1412	●
420	WASHER; ENG COVER INSPECTION ENGINE COVER<8GA> ID=5.3 OD=16	0-91614-705-0	01	1	1501-	●
420	WASHER; ENG COVER ID=5.3 OD=16	0-91614-705-0	01	1	1501-		●

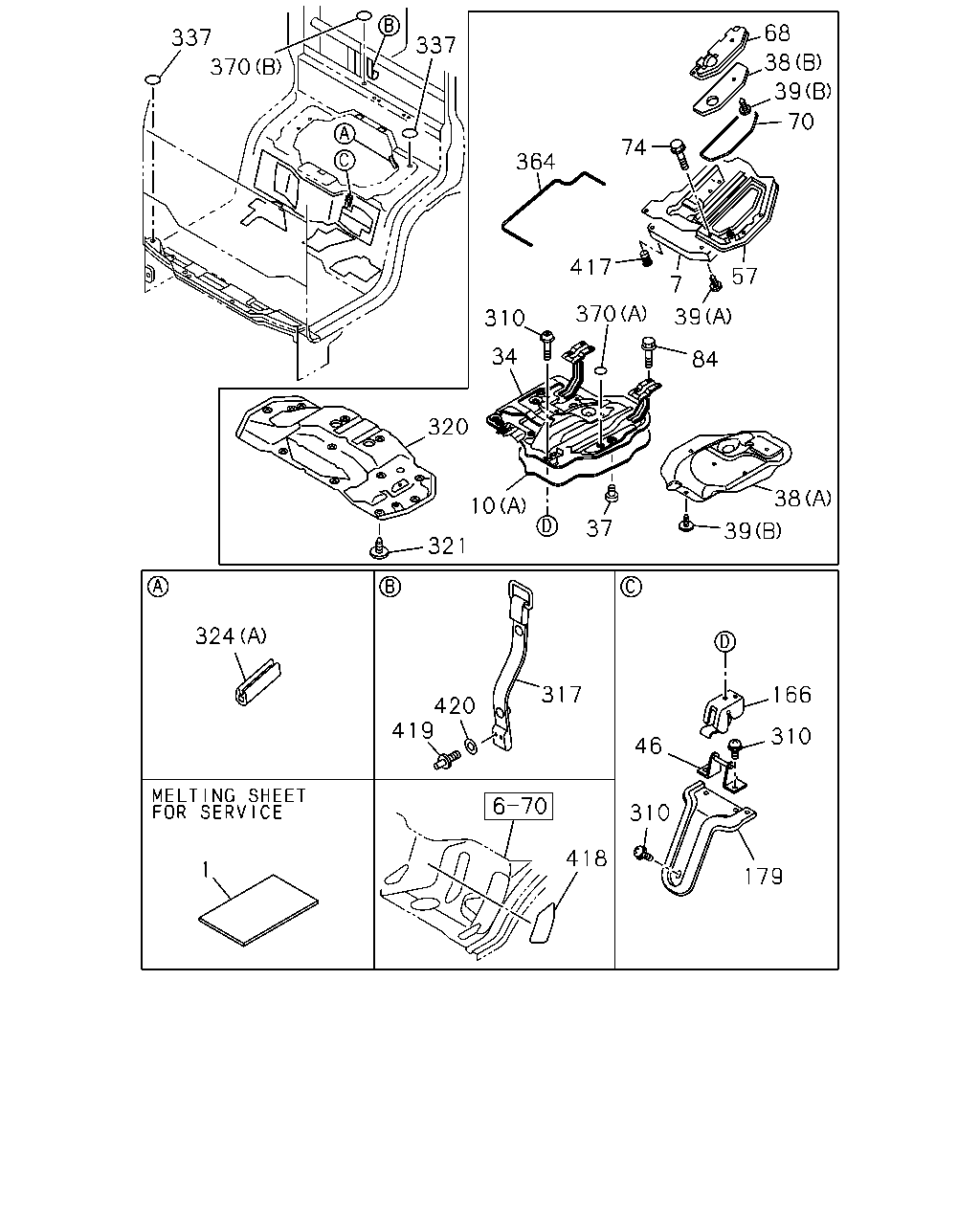

337 370 337 310 364 74 417 34 320 321 37 39 84 370 39 57 7 70 39 38 68 38 166 310 46 310 179 418 317 420 419 324 1 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY MAL	8-94262-093-0	AR	1	1311-1412	●
1	SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY MAL	8-94262-093-0	AR	1	1501-	●	●
7	INSULATOR; SUPPORT COVER INSPECTION ENGINE COVER<8GA>	8-97586-175-1	01	1	1311-1408	●
7	INSULATOR; SUPPORT COVER INSPECTION ENGINE COVER<8GA>	8-98242-228-0	01	1	1409-1412	●
7	INSULATOR; SUPPORT COVER INSPECTION ENGINE COVER<8GA>	8-98242-228-0	01	1	1501-	●
7	INSULATOR; SUPPORT COVER	8-98242-228-0	01	1	1501-		●
10	SEAL; ENG COVER 4HK1-TCN ENG(RDQ) (B)	8-98006-847-0	01	1	1501-		●
10	SEAL; ENG COVER 4HK1-TCN ENG(RDQ) (C)	8-98006-852-0	01	1	1501-		●
10	SEAL; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98029-377-0	01	1	1311-1412	●
10	SEAL; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98029-377-0	01	1	1501-	●
10	SEAL; ENG COVER (A)	8-98029-377-0	01	1	1501-		●
34	COVER ASM; ENG,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97587-395-3	01	1	1311-1412	●
34	COVER ASM; ENG,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97587-395-3	01	1	1501-	●
34	COVER ASM; ENG,CAB FLOOR	8-97587-395-3	01	1	1501-		●
37	RUBBER; BUFFER,ENG COVER INSPECTION ENGINE COVER<8GA> OD=30 T=10 MAL	5-74917-001-2	02	1	1311-1412	●
37	RUBBER; BUFFER,ENG COVER INSPECTION ENGINE COVER<8GA> OD=30 T=10 MAL	5-74917-001-2	02	1	1501-	●
37	RUBBER; BUFFER,ENG COVER OD=30 T=10 MAL	5-74917-001-2	02	1	1501-		●
38	INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (B)	8-97586-169-2	01	1	1311-1408	●
38	INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (B)	8-98242-234-0	01	1	1409-1412	●
38	INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (B)	8-98242-234-0	01	1	1501-	●
38	INSULATOR; ENG COVER (B)	8-98242-234-0	01	1	1501-		●
38	INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-97586-182-2	01	1	1311-1408	●
38	INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98242-226-0	01	1	1409-1412	●
38	INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98242-226-0	01	1	1501-	●
38	INSULATOR; ENG COVER (A)	8-98242-226-0	01	1	1501-		●
39	CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> (B) OD=30 MAL	8-94279-952-0	07	1	1311-1412	●
39	CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> (B) OD=30 MAL	8-94279-952-0	07	1	1501-	●
39	CLIP; INSULATOR,COVER (B) OD=30 MAL	8-94279-952-0	07	1	1501-		●
39	CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> (A) ID=6.2 L=11.4	8-97808-623-0	05	1	1311-1412	●
39	CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> (A) ID=6.2 L=11.4	8-97808-623-0	05	1	1501-	●
39	CLIP; INSULATOR,COVER (A) ID=6.2 L=11.4	8-97808-623-0	05	1	1501-		●
46	HOOK ASM; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-145-0	02	1	1311-1412	●
46	HOOK ASM; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-145-0	02	1	1501-	●
46	HOOK ASM; ENG COVER	8-98040-145-0	02	1	1501-		●
57	COVER ASM; SUPPORT,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97587-400-3	01	1	1311-1412	●
57	COVER ASM; SUPPORT,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97587-400-3	01	1	1501-	●
57	COVER ASM; SUPPORT,CAB FLOOR	8-97587-400-3	01	1	1501-		●
68	COVER ASM; SUB,ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-141-0	01	1	1311-1412	●
68	COVER ASM; SUB,ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-141-0	01	1	1501-	●
68	COVER ASM; SUB,ENG COVER	8-98040-141-0	01	1	1501-		●
70	SEAL; ENG SUB COVER,CAB FLOOR INSPECTION ENGINE COVER<8GA> MAL	8-97853-050-1	01	1	1311-1412	●
70	SEAL; ENG SUB COVER,CAB FLOOR INSPECTION ENGINE COVER<8GA> MAL	8-97853-050-1	01	1	1501-	●
70	SEAL; ENG SUB COVER,CAB FLOOR MAL	8-97853-050-1	01	1	1501-		●
74	BOLT; SUPPORT COVER TO FLOOR INSPECTION ENGINE COVER<8GA> M8X20 FLANGE MAL	0-28650-820-0	10	1	1311-1412	●
74	BOLT; SUPPORT COVER TO FLOOR INSPECTION ENGINE COVER<8GA> M8X20 FLANGE MAL	0-28650-820-0	10	1	1501-	●
74	BOLT; SUPPORT COVER TO FLOOR M8X20 FLANGE MAL	0-28650-820-0	10	1	1501-		●
84	BOLT; ENG COVER HINGE INSPECTION ENGINE COVER<8GA> M8X20 FLANGE MAL	0-28650-820-0	04	1	1311-1412	●
84	BOLT; ENG COVER HINGE INSPECTION ENGINE COVER<8GA> M8X20 FLANGE MAL	0-28650-820-0	04	1	1501-	●
84	BOLT; ENG COVER HINGE M8X20 FLANGE MAL	0-28650-820-0	04	1	1501-		●
166	LOCK; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-152-0	02	1	1311-1412	●
166	LOCK; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-152-0	02	1	1501-	●
166	LOCK; ENG COVER	8-98040-152-0	02	1	1501-		●
179	REINFORCEMENT; COVER INSPECTION ENGINE COVER<8GA>	8-98048-301-1	01	1	1311-1412	●
179	REINFORCEMENT; COVER INSPECTION ENGINE COVER<8GA>	8-98048-301-1	01	1	1501-	●
179	REINFORCEMENT; COVER	8-98048-301-1	01	1	1501-		●
310	SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> M6X16 FLANGE MAL	0-28650-616-0	04	1	1311-1412	●
310	SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> M6X16 FLANGE MAL	0-28650-616-0	04	1	1501-	●
310	SCREW; ENG COVER HOOK M6X16 FLANGE MAL	0-28650-616-0	04	1	1501-		●
310	SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> M6X16	0-38050-616-0	05	1	1311-1412	●
310	SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> M6X16	0-38050-616-0	05	1	1501-	●
310	SCREW; ENG COVER HOOK M6X16	0-38050-616-0	05	1	1501-		●
317	BAND; ENGINE COVER INSPECTION ENGINE COVER<8GA>	8-97585-575-0	01	1	1311-1412	●
317	BAND; ENGINE COVER INSPECTION ENGINE COVER<8GA>	8-97585-575-0	01	1	1501-	●
317	BAND; ENGINE COVER	8-97585-575-0	01	1	1501-		●
320	INSULATOR; FLOOR,FRT EXC. INSPECTION ENGINE COVER<8GA>	8-97586-164-7	01	1	1311-1408	●
320	INSULATOR; FLOOR,FRT EXC. INSPECTION ENGINE COVER<8GA>	8-98242-225-0	01	1	1409-	●
321	CLIP; INSULATOR,FLOOR EXC. INSPECTION ENGINE COVER<8GA> ID=6.2 L=11.4	8-97808-623-0	15	1	1311-	●
324	FINISHER; FLOOR PANEL (B) L=120	1-73948-004-0	02	1	1501-		●
324	FINISHER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A) L=140 MAL	8-97892-742-0	03	1	1311-1412	●
324	FINISHER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A) L=140 MAL	8-97892-742-0	03	1	1501-	●
324	FINISHER; FLOOR PANEL (A) L=140 MAL	8-97892-742-0	03	1	1501-		●
337	SEAL; CLIP HOLE OD=25 BLACK MAL	1-76798-019-0	23	1	1501-		●
337	SEAL; CLIP HOLE INSPECTION ENGINE COVER<8GA> OD=32 BLACK MAL	8-98031-126-0	01	1	1311-	●
337	SEAL; CLIP HOLE OD=32 BLACK MAL	8-98031-126-0	04	1	1311-1412	●
337	SEAL; CLIP HOLE OD=32 BLACK MAL	8-98031-126-0	04	1	1501-	●	●
337	SEAL; CLIP HOLE OD=32 BLACK MAL	8-98031-126-0	08	1	1311-1412	●
337	SEAL; CLIP HOLE OD=32 BLACK MAL	8-98031-126-0	08	1	1501-	●	●
364	FINISHER; ENG COVER SIDE INSPECTION ENGINE COVER<8GA> L=1100	8-97892-744-0	01	1	1311-1412	●
364	FINISHER; ENG COVER SIDE INSPECTION ENGINE COVER<8GA> L=1100	8-97892-744-0	01	1	1501-	●
364	FINISHER; ENG COVER SIDE L=1100	8-97892-744-0	01	1	1501-		●
370	SEAL; LOCATION HOLE INSPECTION ENGINE COVER<8GA> (A) OD=25 BLACK MAL	1-76798-019-0	01	1	1311-1412	●
370	SEAL; LOCATION HOLE INSPECTION ENGINE COVER<8GA> (A) OD=25 BLACK MAL	1-76798-019-0	01	1	1501-	●
370	SEAL; LOCATION HOLE (A) OD=25 BLACK MAL	1-76798-019-0	01	1	1501-		●
370	SEAL; LOCATION HOLE INSPECTION ENGINE COVER<8GA> (B) OD=20 T=0.05 BLACK MAL	5-76777-036-0	03	1	1311-	●
417	NUT; POP INSPECTION ENGINE COVER<8GA> M6 POP NUT MAL	8-98013-752-0	01	1	1311-1412	●
417	NUT; POP INSPECTION ENGINE COVER<8GA> M6 POP NUT MAL	8-98013-752-0	01	1	1501-	●
417	NUT; POP M6 POP NUT MAL	8-98013-752-0	01	1	1501-		●
418	SEAL; PROTECTOR	8-98090-191-1	01	1	1311-1412	●
418	SEAL; PROTECTOR 4HK1-TCN ENG(RDQ)	8-98090-191-1	01	1	1501-	●	●
418	SEAL; PROTECTOR	8-98090-192-1	01	1	1311-1412	●
418	SEAL; PROTECTOR 4HK1-TCN ENG(RDQ)	8-98090-192-1	01	1	1501-	●	●
419	RIVET; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98065-262-0	01	1	1311-1412	●
419	RIVET; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98065-262-0	01	1	1501-	●
419	RIVET; ENG COVER	8-98065-262-0	01	1	1501-		●
420	WASHER; ENG COVER INSPECTION ENGINE COVER<8GA> ID=5.3 OD=16	0-91614-705-0	01	1	1311-1412	●
420	WASHER; ENG COVER INSPECTION ENGINE COVER<8GA> ID=5.3 OD=16	0-91614-705-0	01	1	1501-	●
420	WASHER; ENG COVER ID=5.3 OD=16	0-91614-705-0	01	1	1501-		●

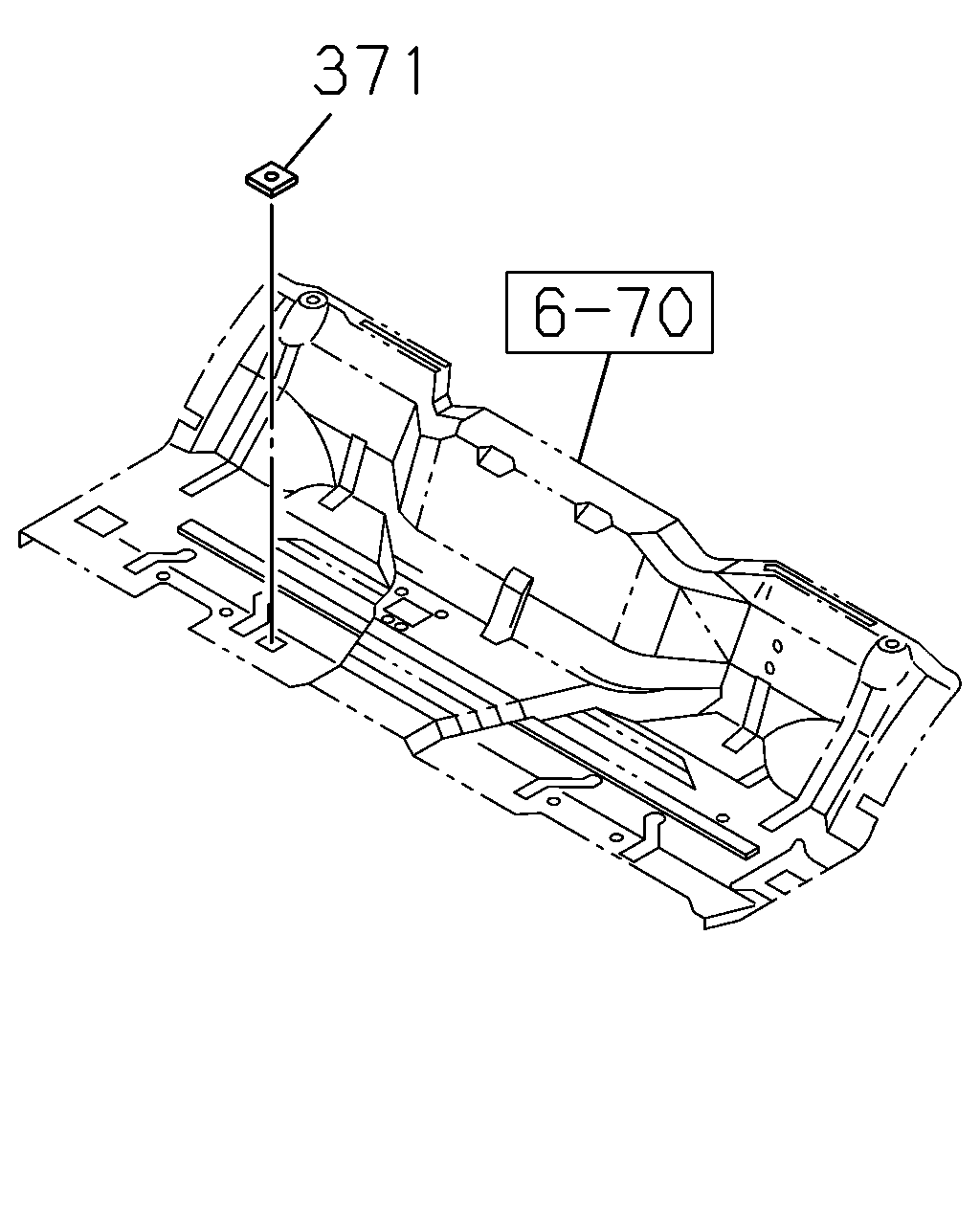

371

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	371	GROMMET; LOCATION HOLE 14.5X14.5 BLACK	8-94279-714-0	02	1	1311-1412	●
	371	GROMMET; LOCATION HOLE 14.5X14.5 BLACK	8-94279-714-0	02	1	1501-	●	●

324 325 326 163 163 151 120 119 163 10 10 366 55 324 87 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	SEAL; ENG COVER 4HK1-TCN ENG(RDQ) (B)	8-98006-847-0	01	1	1501-		●
10	SEAL; ENG COVER 4HK1-TCN ENG(RDQ) (C)	8-98006-852-0	01	1	1501-		●
10	SEAL; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98029-377-0	01	1	1311-1412	●
10	SEAL; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98029-377-0	01	1	1501-	●
10	SEAL; ENG COVER (A)	8-98029-377-0	01	1	1501-		●
55	SEAL; SUPPORT COVER 4HK1-TCN ENG(RDQ)	8-97583-500-1	01	1	1501-		●
87	COVER; BATTERY CHECK HOLE	8-97856-332-4	01	1	1501-		●
88	SEAL; BATTERY CHECK HOLE COVER	8-97853-725-1	01	1	1501-		●
119	LID; P/S OIL TANK	8-97853-440-2	01	1	1501-		●
120	SEAL; LID,P/S	8-97853-441-1	01	1	1501-		●
151	COVER ASM; ENG 4HK1-TCN ENG(RDQ)	8-98043-008-4	01	1	1501-		●
163	BOLT; RR,ENG COVER,FRT 4HK1-TCN ENG(RDQ) (A) M6X16 FLANGE MAL	0-28650-616-0	11	1	1501-		●
163	BOLT; RR,ENG COVER,FRT (B) M6X20 FLANGE MAL	0-28650-620-0	01	1	1501-		●
324	FINISHER; FLOOR PANEL (B) L=120	1-73948-004-0	02	1	1501-		●
324	FINISHER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A) L=140 MAL	8-97892-742-0	03	1	1311-1412	●
324	FINISHER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A) L=140 MAL	8-97892-742-0	03	1	1501-	●
324	FINISHER; FLOOR PANEL (A) L=140 MAL	8-97892-742-0	03	1	1501-		●
325	COVER; LLC	8-97856-974-0	01	1	1501-		●
326	SEAL; COVER	8-97856-975-1	01	1	1501-		●
366	FINISHER; COVER 4HK1-TCN ENG(RDQ)	8-97583-501-0	01	1	1501-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
