1-50 — EXHAUST PIPE AND SILENCER (#13090) — 58 parça

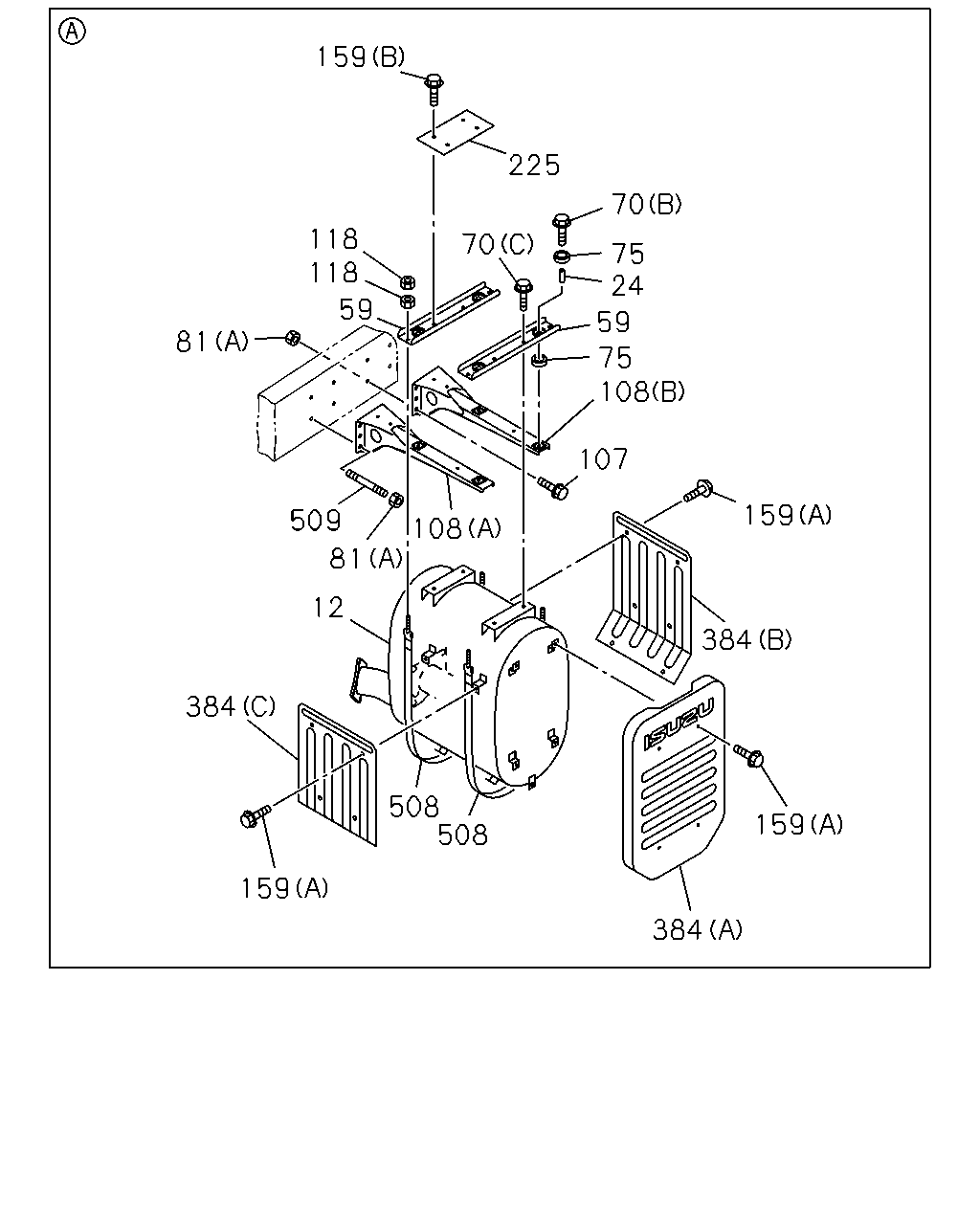

159 225 70 118 118 70 75 24 59 59 81 75 108 107 108 159 509 81 12 384 384 508 508 159 159 384

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH CATALYSIS CONTROL<6MZ>	8-97611-402-0	01	1	0611-
24	COLLAR; DIST,CLAMP CATALYSIS CONTROL<6MZ> L=22	9-22159-024-0	04	1	0611-
59	BRACKET; EXH SILENCER,FRT CATALYSIS CONTROL<6MZ>	1-22151-710-1	02	1	0611-
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (B) M10X50 FLANGE	0-28051-050-0	01	1	0611-
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (B) M10X50 FLANGE	0-28051-050-0	04	1	0611-
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (C) M10X20 FLANGE	0-28651-020-0	04	1	0611-
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (A) M10X35 FLANGE	0-28651-035-0	02	1	0611-
75	RUBBER; SUPPORT,BRKT CATALYSIS CONTROL<6MZ> OD=40	1-22159-094-0	08	1	0611-
81	NUT; BRKT CATALYSIS CONTROL<6MZ> (B) M10 FLANGE	0-91180-210-0	01	1	0611-0611
81	NUT; BRKT CATALYSIS CONTROL<6MZ> (B) M10 FLANGE	0-91180-210-0	03	1	0611-
81	NUT; BRKT CATALYSIS CONTROL<6MZ> (A) M12 FLANGE	0-91180-212-0	08	1	0611-
107	BOLT; BRKT CATALYSIS CONTROL<6MZ> M12X35 FLANGE	0-28651-235-0	04	1	0611-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR CATALYSIS CONTROL<6MZ> (A)	1-22131-774-3	01	1	0611-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR CATALYSIS CONTROL<6MZ> (B)	1-22131-775-3	01	1	0611-
118	NUT; SILENCER MTG BRKT CATALYSIS CONTROL<6MZ> M10	0-91110-510-0	08	1	0611-
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28650-820-0	02	1	0611-
159	BOLT; HEAT PROTECTOR CATALYSIS CONTROL<6MZ> (A) M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	0611-
225	PROTECTOR; HEAT	1-22119-515-0	01	1	0611-
384	PROTECTOR; HEAT SILENCER MTG CATALYSIS CONTROL<6MZ> (B)	1-22119-341-3	01	1	0611-
384	PROTECTOR; HEAT SILENCER MTG CATALYSIS CONTROL<6MZ> (A)	1-22119-378-4	01	1	0611-
384	PROTECTOR; HEAT SILENCER MTG CATALYSIS CONTROL<6MZ> (C)	1-22119-527-0	01	1	0611-
508	BAND; EXHAUST SILENCER CATALYSIS CONTROL<6MZ>	1-22159-382-0	02	1	0611-
509	STUD; BRKT CATALYSIS CONTROL<6MZ> M12X40 L=56	1-09300-123-0	04	1	0611-

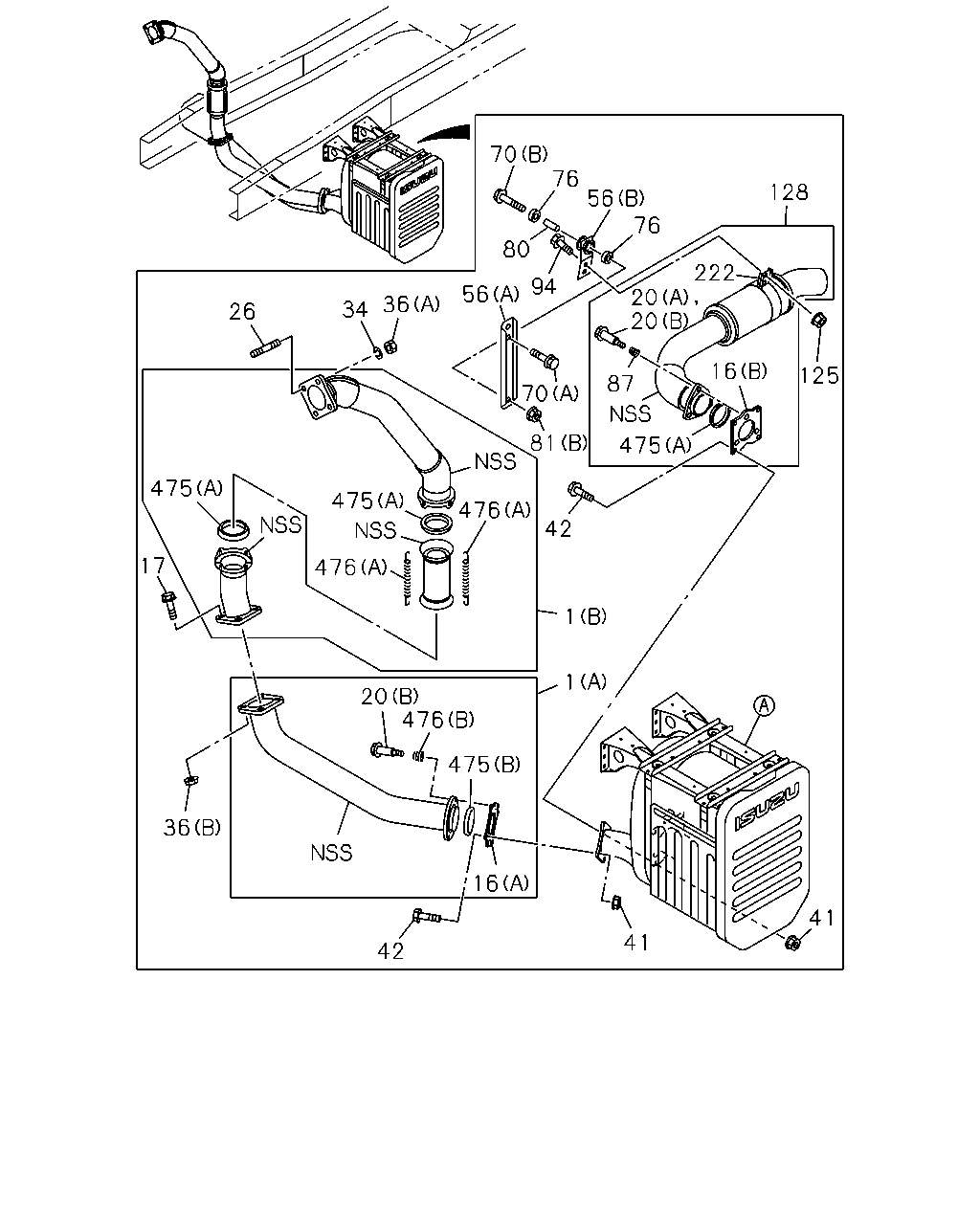

70 76 56 76 128 80 222 20 20 94 56 36 34 26 16 125 87 70 81 475 475 475 476 42 17 476 1 1 20 476 36 16 41 41 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH CATALYSIS CONTROL<6MZ> (A)	1-22123-573-1	01	1	0611-
1	PIPE; EXH CATALYSIS CONTROL<6MZ> (B)	1-22124-034-0	01	1	0611-
16	FLANGE; EXH PIPE CATALYSIS CONTROL<6MZ> (B)	1-22115-229-0	01	1	0611-
16	FLANGE; EXH PIPE CATALYSIS CONTROL<6MZ> (A)	1-22115-217-0	01	1	0611-
17	BOLT; EXH PIPE CATALYSIS CONTROL<6MZ> M12X25 FLANGE	1-09000-604-0	04	1	0611-
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> (A) M10X51.4	1-09009-167-0	03	1	0611-0701
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> (B) M10X51.4	8-94436-943-0	03	1	0702-
20	BOLT; FLANGE,EXH PIPE CATALYSIS CONTROL<6MZ> (B) M10X51.4	8-94436-943-0	02	1	0611-
26	STUD; EXH MANIF CATALYSIS CONTROL<6MZ> M12X140 L=160	1-09302-163-0	04	1	0611-
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	0611-
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	0611-
36	NUT; EXH PIPE CATALYSIS CONTROL<6MZ> (B) M12	0-91110-512-0	04	1	0611-
41	NUT; EXH PIPE TO EXH SILENCER CATALYSIS CONTROL<6MZ> M12	0-91110-512-0	08	1	0611-
42	BOLT; EXH PIPE TO EXH SILENCER CATALYSIS CONTROL<6MZ> M12X25 FLANGE	1-09000-604-0	08	1	0611-
56	BRACKET; CLAMP,EXH PIPE CATALYSIS CONTROL<6MZ> (A)	8-97615-956-0	01	1	0611-
56	BRACKET; CLAMP,EXH PIPE CATALYSIS CONTROL<6MZ> (B)	8-97615-964-0	01	1	0611-
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (B) M10X50 FLANGE	0-28051-050-0	01	1	0611-
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (B) M10X50 FLANGE	0-28051-050-0	04	1	0611-
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (C) M10X20 FLANGE	0-28651-020-0	04	1	0611-
70	BOLT; BRKT CATALYSIS CONTROL<6MZ> (A) M10X35 FLANGE	0-28651-035-0	02	1	0611-
76	SUPPORT; BRKT CATALYSIS CONTROL<6MZ> OD=40	1-22159-094-0	02	1	0611-
80	COLLAR; DIST,SUPPORT RUBBER CATALYSIS CONTROL<6MZ> L=22	9-22159-024-0	01	1	0611-
81	NUT; BRKT CATALYSIS CONTROL<6MZ> (B) M10 FLANGE	0-91180-210-0	01	1	0611-0611
81	NUT; BRKT CATALYSIS CONTROL<6MZ> (B) M10 FLANGE	0-91180-210-0	03	1	0611-
81	NUT; BRKT CATALYSIS CONTROL<6MZ> (A) M12 FLANGE	0-91180-212-0	08	1	0611-
87	SPRING; PRE SILENCER CATALYSIS CONTROL<6MZ>	8-94141-851-0	03	1	0611-
94	BOLT; CLAMP CATALYSIS CONTROL<6MZ> M8X40 FLANGE	0-28650-840-0	02	1	0611-
125	NUT; CLAMP CATALYSIS CONTROL<6MZ> M8 FLANGE	0-91180-108-0	02	1	0611-
128	PIPE; EXH,RR CATALYSIS CONTROL<6MZ>	8-97615-965-1	01	1	0611-
222	CLAMP; EXH PIPE CATALYSIS CONTROL<6MZ>	1-22133-293-0	01	1	0611-
475	BEARING; SEAL,VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (A) OD=122	1-22119-297-1	01	1	0611-
475	BEARING; SEAL,VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (B) OD=112	1-22119-294-1	01	1	0611-
475	BEARING; SEAL,VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (A) OD=122	1-22119-297-0	02	1	0611-
476	SPRING; VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (B)	8-94141-851-0	02	1	0611-
476	SPRING; VIBNON,EXH PIPE CATALYSIS CONTROL<6MZ> (A)	1-09583-248-0	04	1	0611-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
