Sayfa 6-70 - Isuzu EPC

6-70 — FLOOR PANEL (#130898) — 235 parça

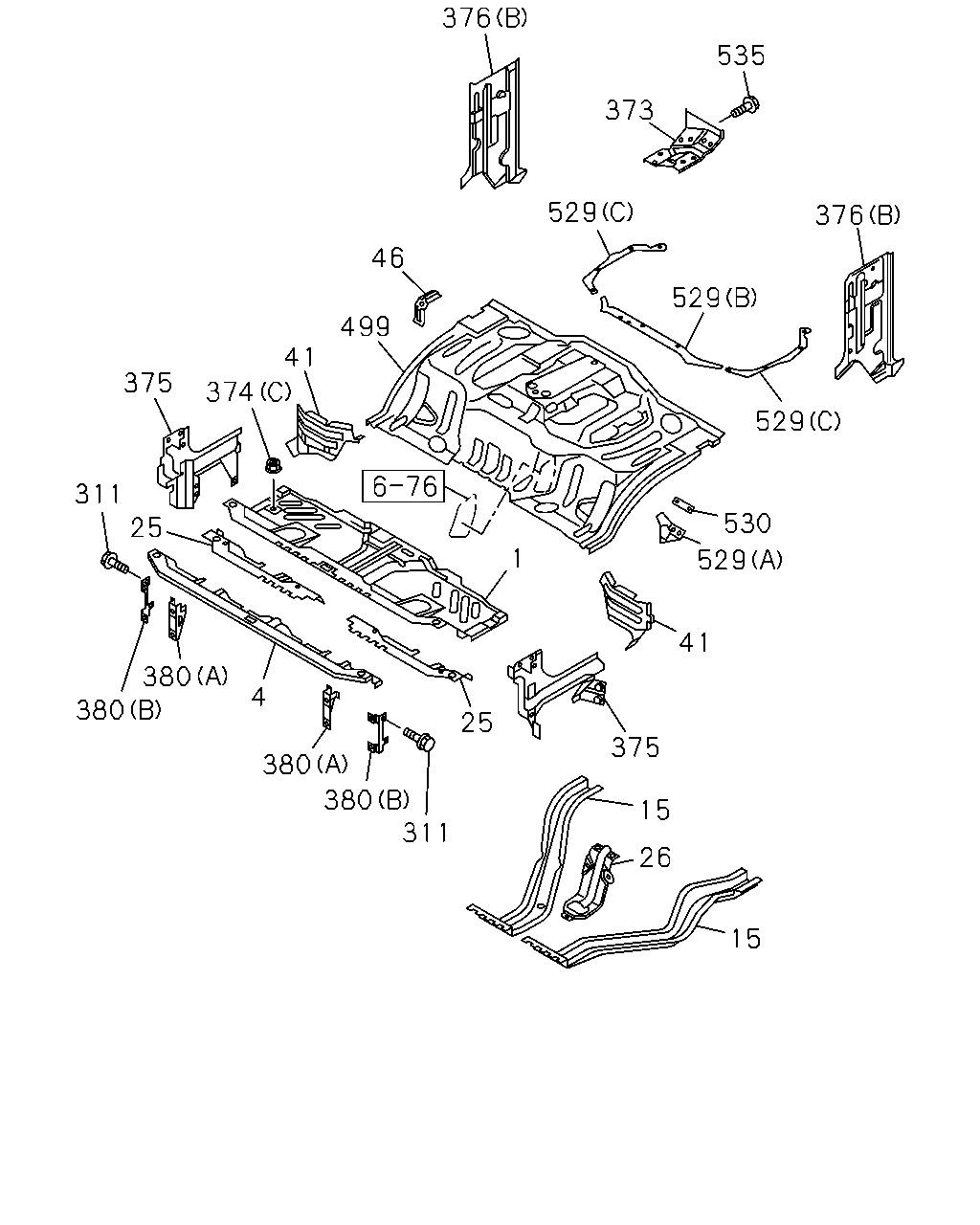

535 376 529 373 376 529 529 530 529 41 375 15 26 15 46 499 41 374 375 311 25 380 380 380 311 380 25 1 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL; FLOOR	8-98112-870-0	01	1	1311-1412	●
1	PANEL; FLOOR	8-98112-870-0	01	1	1501-	●	●
4	FRAME; FLOOR,FRT MAL	8-98107-595-0	01	1	1311-1412	●
4	FRAME; FLOOR,FRT MAL	8-98107-595-0	01	1	1501-	●	●
15	FRAME; UNDER MAL	8-98059-497-1	01	1	1311-1412	●
15	FRAME; UNDER MAL	8-98059-497-1	01	1	1501-	●	●
15	FRAME; UNDER MAL	8-98059-498-1	01	1	1311-1412	●
15	FRAME; UNDER MAL	8-98059-498-1	01	1	1501-	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT	8-97583-823-0	01	1	1311-1412	●
25	REINFORCEMENT; FRAME FLOOR,FRT	8-97583-823-0	01	1	1501-	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT	8-98107-587-0	01	1	1311-1412	●
25	REINFORCEMENT; FRAME FLOOR,FRT	8-98107-587-0	01	1	1501-	●	●
26	PANEL; GEAR CONT REINF	8-97589-382-1	01	1	1311-1412	●
26	PANEL; GEAR CONT REINF	8-97589-382-1	01	1	1501-	●	●
41	SUPPORT; STEP,RR	8-97583-880-1	01	1	1311-1412	●
41	SUPPORT; STEP,RR	8-97583-880-1	01	1	1501-	●	●
41	SUPPORT; STEP,RR	8-97583-881-1	01	1	1311-1412	●
41	SUPPORT; STEP,RR	8-97583-881-1	01	1	1501-	●	●
46	BRACKET; FRT SEAT,RR OUTER	8-97583-834-0	01	1	1311-1412	●
46	BRACKET; FRT SEAT,RR OUTER	8-97583-834-0	01	1	1501-	●	●
311	BOLT; BRKT M6X16 FLANGE MAL	0-28650-616-0	04	1	1311-1412	●
311	BOLT; BRKT M6X16 FLANGE MAL	0-28650-616-0	04	1	1501-	●	●
373	REINFORCEMENT; SEAT BELT 4HK1-TCN ENG(RDQ)	8-98015-216-2	01	1	1501-		●
373	REINFORCEMENT; SEAT BELT 4HG1-T ENG(RDP) MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-523-2	01	1	1311-1311	●
373	REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-523-2	01	1	1312-	●
373	REINFORCEMENT; SEAT BELT 4HG1-T ENG(RDP) MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-524-2	01	1	1311-1311	●
373	REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-524-2	01	1	1312-	●
374	NUT; FLOOR 4HK1-TCN ENG(RDQ) (D) M6 POP NUT MAL	8-98013-752-0	01	1	1501-		●
374	NUT; FLOOR 4HG1-T ENG(RDP) MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	1311-1311	●
374	NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	1312-	●
374	NUT; FLOOR (B) M6 MAL	1-09984-110-0	02	1	1311-1412	●
374	NUT; FLOOR (B) M6 MAL	1-09984-110-0	02	1	1501-	●	●
374	NUT; FLOOR 4HG1-T ENG(RDP) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) M8	1-09984-111-0	04	1	1311-1311	●
374	NUT; FLOOR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) M8	1-09984-111-0	04	1	1312-1412	●
374	NUT; FLOOR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) M8	1-09984-111-0	04	1	1501-	●
374	NUT; FLOOR 4HK1-TCN ENG(RDQ) (A) M8	1-09984-111-0	04	1	1501-		●
374	NUT; FLOOR (C) M8	9-09114-068-0	04	1	1311-1412	●
374	NUT; FLOOR (C) M8	9-09114-068-0	04	1	1501-	●	●
375	CLOSING; PILLAR	8-97583-882-3	01	1	1311-1412	●
375	CLOSING; PILLAR	8-97583-882-3	01	1	1501-	●	●
375	CLOSING; PILLAR	8-97583-883-2	01	1	1311-1412	●
375	CLOSING; PILLAR	8-97583-883-2	01	1	1501-	●	●
376	CLOSING; PILLAR,LWR 4HK1-TCN ENG(RDQ) (B)	8-98024-544-7	01	1	1501-		●
376	CLOSING; PILLAR,LWR 4HK1-TCN ENG(RDQ) (B)	8-98024-545-6	01	1	1501-		●
376	CLOSING; PILLAR,LWR (A)	8-97583-888-2	01	1	1311-	●
376	CLOSING; PILLAR,LWR (A)	8-97584-618-2	01	1	1311-	●
380	BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	1311-1412	●
380	BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	1501-	●	●
380	BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	1311-1412	●
380	BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	1501-	●	●
380	BRACKET; HEAD LAMP (A) MAL	8-97589-384-4	01	1	1311-1412	●
380	BRACKET; HEAD LAMP (A) MAL	8-97589-384-4	01	1	1501-	●	●
380	BRACKET; HEAD LAMP (A) MAL	8-97589-385-3	01	1	1311-1412	●
380	BRACKET; HEAD LAMP (A) MAL	8-97589-385-3	01	1	1501-	●	●
499	PANEL; FLOOR,RR 4HG1-T ENG(RDP) MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98206-873-0	01	1	1311-1311	●
499	PANEL; FLOOR,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98206-873-0	01	1	1312-	●
499	PANEL; FLOOR,RR 4HG1-T ENG(RDP) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98205-116-0	01	1	1311-1311	●
499	PANEL; FLOOR,RR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98205-116-0	01	1	1312-1412	●
499	PANEL; FLOOR,RR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98205-116-0	01	1	1501-	●
499	PANEL; FLOOR,RR 4HK1-TCN ENG(RDQ)	8-98205-116-0	01	1	1501-		●
529	RETAINER; FLOOR PANEL 4HG1-T ENG(RDP) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (B)	8-97589-249-0	01	1	1311-1311	●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (B)	8-97589-249-0	01	1	1312-1412	●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (B)	8-97589-249-0	01	1	1501-	●
529	RETAINER; FLOOR PANEL 4HK1-TCN ENG(RDQ) (B)	8-97589-249-0	01	1	1501-		●
529	RETAINER; FLOOR PANEL 4HG1-T ENG(RDP) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (C)	8-97589-467-1	01	1	1311-1311	●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (C)	8-97589-467-1	01	1	1312-1412	●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (C)	8-97589-467-1	01	1	1501-	●
529	RETAINER; FLOOR PANEL 4HK1-TCN ENG(RDQ) (C)	8-97589-467-1	01	1	1501-		●
529	RETAINER; FLOOR PANEL 4HG1-T ENG(RDP) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (C)	8-97589-468-1	01	1	1311-1311	●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (C)	8-97589-468-1	01	1	1312-1412	●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (C)	8-97589-468-1	01	1	1501-	●
529	RETAINER; FLOOR PANEL 4HK1-TCN ENG(RDQ) (C)	8-97589-468-1	01	1	1501-		●
529	RETAINER; FLOOR PANEL 4HG1-T ENG(RDP) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A)	8-98030-358-0	01	1	1311-1311	●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A)	8-98030-358-0	01	1	1312-1412	●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A)	8-98030-358-0	01	1	1501-	●
529	RETAINER; FLOOR PANEL 4HK1-TCN ENG(RDQ) (A)	8-98030-358-0	01	1	1501-		●
530	BRACKET; COVER 4HG1-T ENG(RDP) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-97589-255-0	01	1	1311-1311	●
530	BRACKET; COVER INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-97589-255-0	01	1	1312-1412	●
530	BRACKET; COVER INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-97589-255-0	01	1	1501-	●
530	BRACKET; COVER 4HK1-TCN ENG(RDQ)	8-97589-255-0	01	1	1501-		●
535	BOLT; REINFORCEMENT 4HK1-TCN ENG(RDQ) M8X20 FLANGE MAL	0-28650-820-0	05	1	1501-		●

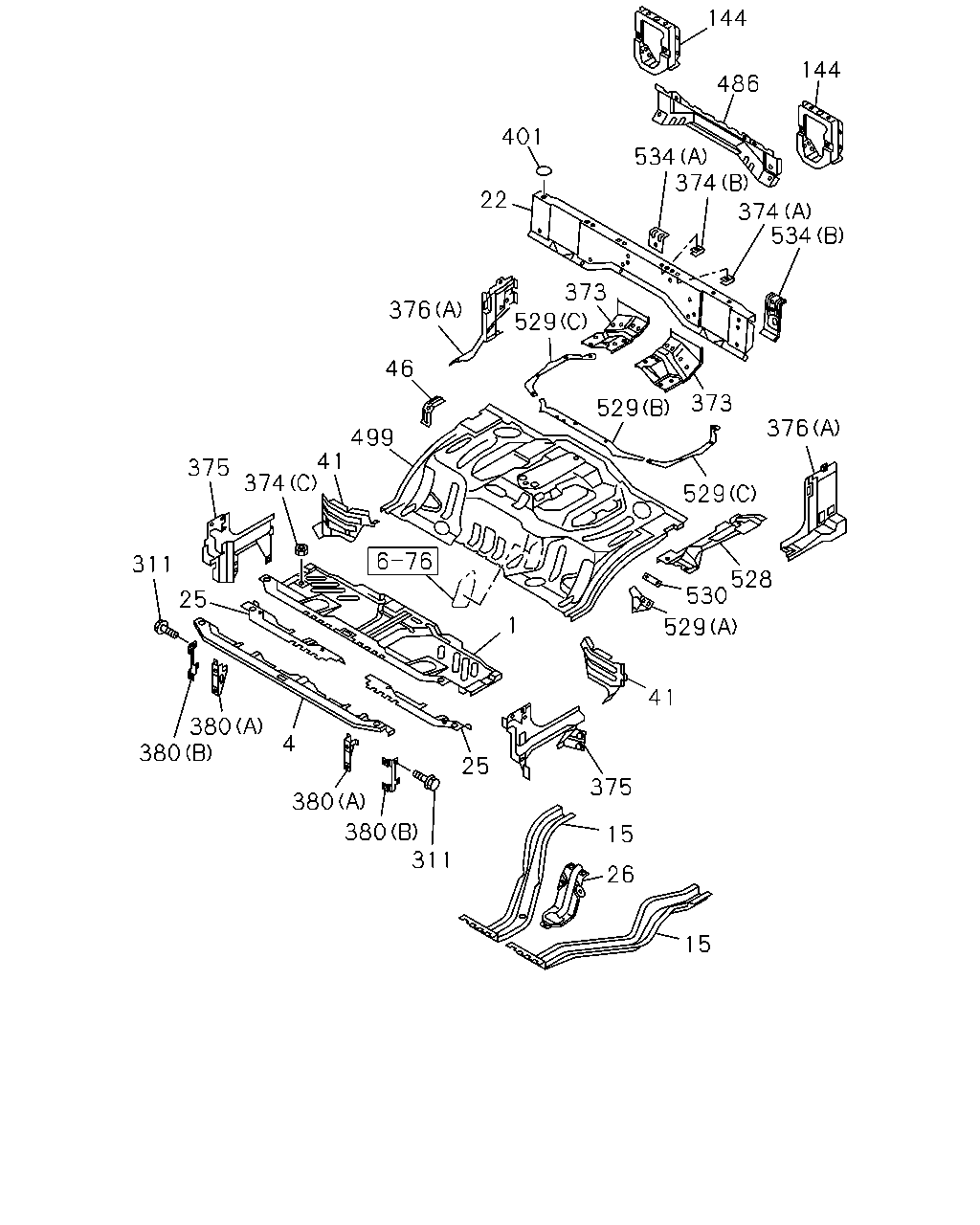

144 144 486 534 374 401 22 373 529 373 529 376 528 530 529 376 46 529 374 534 499 41 374 375 311 25 380 38 380 380 311 25 41 375 15 26 15 4 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL; FLOOR	8-98112-870-0	01	1	1311-1412	●
1	PANEL; FLOOR	8-98112-870-0	01	1	1501-	●	●
4	FRAME; FLOOR,FRT MAL	8-98107-595-0	01	1	1311-1412	●
4	FRAME; FLOOR,FRT MAL	8-98107-595-0	01	1	1501-	●	●
15	FRAME; UNDER MAL	8-98059-497-1	01	1	1311-1412	●
15	FRAME; UNDER MAL	8-98059-497-1	01	1	1501-	●	●
15	FRAME; UNDER MAL	8-98059-498-1	01	1	1311-1412	●
15	FRAME; UNDER MAL	8-98059-498-1	01	1	1501-	●	●
22	FRAME; FLOOR REAR 4HG1-T ENG(RDP) MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-848-4	01	1	1311-1311	●
22	FRAME; FLOOR REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-848-4	01	1	1312-	●
22	FRAME; FLOOR REAR 4HG1-T ENG(RDP) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-97587-394-4	01	1	1311-1311	●
22	FRAME; FLOOR REAR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-97587-394-4	01	1	1312-1412	●
22	FRAME; FLOOR REAR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-97587-394-4	01	1	1501-	●
22	FRAME; FLOOR REAR 4HK1-TCN ENG(RDQ)	8-97587-394-4	01	1	1501-		●
25	REINFORCEMENT; FRAME FLOOR,FRT	8-97583-823-0	01	1	1311-1412	●
25	REINFORCEMENT; FRAME FLOOR,FRT	8-97583-823-0	01	1	1501-	●	●
25	REINFORCEMENT; FRAME FLOOR,FRT	8-98107-587-0	01	1	1311-1412	●
25	REINFORCEMENT; FRAME FLOOR,FRT	8-98107-587-0	01	1	1501-	●	●
26	PANEL; GEAR CONT REINF	8-97589-382-1	01	1	1311-1412	●
26	PANEL; GEAR CONT REINF	8-97589-382-1	01	1	1501-	●	●
41	SUPPORT; STEP,RR	8-97583-880-1	01	1	1311-1412	●
41	SUPPORT; STEP,RR	8-97583-880-1	01	1	1501-	●	●
41	SUPPORT; STEP,RR	8-97583-881-1	01	1	1311-1412	●
41	SUPPORT; STEP,RR	8-97583-881-1	01	1	1501-	●	●
46	BRACKET; FRT SEAT,RR OUTER	8-97583-834-0	01	1	1311-1412	●
46	BRACKET; FRT SEAT,RR OUTER	8-97583-834-0	01	1	1501-	●	●
144	BRACKET; MTG,RR 4HG1-T ENG(RDP) MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97589-544-2	02	1	1311-1311	●
144	BRACKET; MTG,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97589-544-3	02	1	1312-	●
144	BRACKET; MTG,RR 4HG1-T ENG(RDP) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98112-244-1	02	1	1311-1311	●
144	BRACKET; MTG,RR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98112-244-1	02	1	1312-1412	●
144	BRACKET; MTG,RR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98112-244-2	02	1	1501-	●
144	BRACKET; MTG,RR 4HK1-TCN ENG(RDQ)	8-98112-244-2	02	1	1501-		●
311	BOLT; BRKT M6X16 FLANGE MAL	0-28650-616-0	04	1	1311-1412	●
311	BOLT; BRKT M6X16 FLANGE MAL	0-28650-616-0	04	1	1501-	●	●
373	REINFORCEMENT; SEAT BELT 4HK1-TCN ENG(RDQ)	8-98015-216-2	01	1	1501-		●
373	REINFORCEMENT; SEAT BELT 4HG1-T ENG(RDP) MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-523-2	01	1	1311-1311	●
373	REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-523-2	01	1	1312-	●
373	REINFORCEMENT; SEAT BELT 4HG1-T ENG(RDP) MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-524-2	01	1	1311-1311	●
373	REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-524-2	01	1	1312-	●
374	NUT; FLOOR 4HK1-TCN ENG(RDQ) (D) M6 POP NUT MAL	8-98013-752-0	01	1	1501-		●
374	NUT; FLOOR 4HG1-T ENG(RDP) MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	1311-1311	●
374	NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	1312-	●
374	NUT; FLOOR (B) M6 MAL	1-09984-110-0	02	1	1311-1412	●
374	NUT; FLOOR (B) M6 MAL	1-09984-110-0	02	1	1501-	●	●
374	NUT; FLOOR 4HG1-T ENG(RDP) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) M8	1-09984-111-0	04	1	1311-1311	●
374	NUT; FLOOR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) M8	1-09984-111-0	04	1	1312-1412	●
374	NUT; FLOOR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) M8	1-09984-111-0	04	1	1501-	●
374	NUT; FLOOR 4HK1-TCN ENG(RDQ) (A) M8	1-09984-111-0	04	1	1501-		●
374	NUT; FLOOR (C) M8	9-09114-068-0	04	1	1311-1412	●
374	NUT; FLOOR (C) M8	9-09114-068-0	04	1	1501-	●	●
375	CLOSING; PILLAR	8-97583-882-3	01	1	1311-1412	●
375	CLOSING; PILLAR	8-97583-882-3	01	1	1501-	●	●
375	CLOSING; PILLAR	8-97583-883-2	01	1	1311-1412	●
375	CLOSING; PILLAR	8-97583-883-2	01	1	1501-	●	●
376	CLOSING; PILLAR,LWR 4HK1-TCN ENG(RDQ) (B)	8-98024-544-7	01	1	1501-		●
376	CLOSING; PILLAR,LWR 4HK1-TCN ENG(RDQ) (B)	8-98024-545-6	01	1	1501-		●
376	CLOSING; PILLAR,LWR (A)	8-97583-888-2	01	1	1311-	●
376	CLOSING; PILLAR,LWR (A)	8-97584-618-2	01	1	1311-	●
380	BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	1311-1412	●
380	BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	1501-	●	●
380	BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	1311-1412	●
380	BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	1501-	●	●
380	BRACKET; HEAD LAMP (A) MAL	8-97589-384-4	01	1	1311-1412	●
380	BRACKET; HEAD LAMP (A) MAL	8-97589-384-4	01	1	1501-	●	●
380	BRACKET; HEAD LAMP (A) MAL	8-97589-385-3	01	1	1311-1412	●
380	BRACKET; HEAD LAMP (A) MAL	8-97589-385-3	01	1	1501-	●	●
401	GROMMET; HOLE OD=24.5 T=7.5 MAL	8-97224-683-0	01	1	1311-1412	●
401	GROMMET; HOLE OD=24.5 T=7.5 MAL	8-97224-683-0	01	1	1501-	●	●
486	REINFORCEMENT; FRAME FLOOR,REAR 4HG1-T ENG(RDP) MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98030-613-2	01	1	1311-1311	●
486	REINFORCEMENT; FRAME FLOOR,REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98030-613-2	01	1	1312-	●
486	REINFORCEMENT; FRAME FLOOR,REAR 4HG1-T ENG(RDP) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98030-614-2	01	1	1311-1311	●
486	REINFORCEMENT; FRAME FLOOR,REAR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98030-614-2	01	1	1312-1412	●
486	REINFORCEMENT; FRAME FLOOR,REAR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98030-614-2	01	1	1501-	●
486	REINFORCEMENT; FRAME FLOOR,REAR 4HK1-TCN ENG(RDQ)	8-98030-614-2	01	1	1501-		●
499	PANEL; FLOOR,RR 4HG1-T ENG(RDP) MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98206-873-0	01	1	1311-1311	●
499	PANEL; FLOOR,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98206-873-0	01	1	1312-	●
499	PANEL; FLOOR,RR 4HG1-T ENG(RDP) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98205-116-0	01	1	1311-1311	●
499	PANEL; FLOOR,RR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98205-116-0	01	1	1312-1412	●
499	PANEL; FLOOR,RR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98205-116-0	01	1	1501-	●
499	PANEL; FLOOR,RR 4HK1-TCN ENG(RDQ)	8-98205-116-0	01	1	1501-		●
528	REINFORCEMENT; PARKING BRAKE 4HG1-T ENG(RDP) MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97584-619-4	01	1	1311-1311	●
528	REINFORCEMENT; PARKING BRAKE MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97584-619-4	01	1	1312-	●
529	RETAINER; FLOOR PANEL 4HG1-T ENG(RDP) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (B)	8-97589-249-0	01	1	1311-1311	●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (B)	8-97589-249-0	01	1	1312-1412	●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (B)	8-97589-249-0	01	1	1501-	●
529	RETAINER; FLOOR PANEL 4HK1-TCN ENG(RDQ) (B)	8-97589-249-0	01	1	1501-		●
529	RETAINER; FLOOR PANEL 4HG1-T ENG(RDP) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (C)	8-97589-467-1	01	1	1311-1311	●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (C)	8-97589-467-1	01	1	1312-1412	●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (C)	8-97589-467-1	01	1	1501-	●
529	RETAINER; FLOOR PANEL 4HK1-TCN ENG(RDQ) (C)	8-97589-467-1	01	1	1501-		●
529	RETAINER; FLOOR PANEL 4HG1-T ENG(RDP) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (C)	8-97589-468-1	01	1	1311-1311	●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (C)	8-97589-468-1	01	1	1312-1412	●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (C)	8-97589-468-1	01	1	1501-	●
529	RETAINER; FLOOR PANEL 4HK1-TCN ENG(RDQ) (C)	8-97589-468-1	01	1	1501-		●
529	RETAINER; FLOOR PANEL 4HG1-T ENG(RDP) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A)	8-98030-358-0	01	1	1311-1311	●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A)	8-98030-358-0	01	1	1312-1412	●
529	RETAINER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A)	8-98030-358-0	01	1	1501-	●
529	RETAINER; FLOOR PANEL 4HK1-TCN ENG(RDQ) (A)	8-98030-358-0	01	1	1501-		●
530	BRACKET; COVER 4HG1-T ENG(RDP) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-97589-255-0	01	1	1311-1311	●
530	BRACKET; COVER INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-97589-255-0	01	1	1312-1412	●
530	BRACKET; COVER INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-97589-255-0	01	1	1501-	●
530	BRACKET; COVER 4HK1-TCN ENG(RDQ)	8-97589-255-0	01	1	1501-		●
534	REINFORCEMENT; SEAT BACK (B)	8-97583-851-3	01	1	1311-1412	●
534	REINFORCEMENT; SEAT BACK (B)	8-97583-851-3	01	1	1501-	●	●
534	REINFORCEMENT; SEAT BACK (A)	8-98019-181-2	01	1	1311-1412	●
534	REINFORCEMENT; SEAT BACK (A)	8-98019-181-2	01	1	1501-	●	●

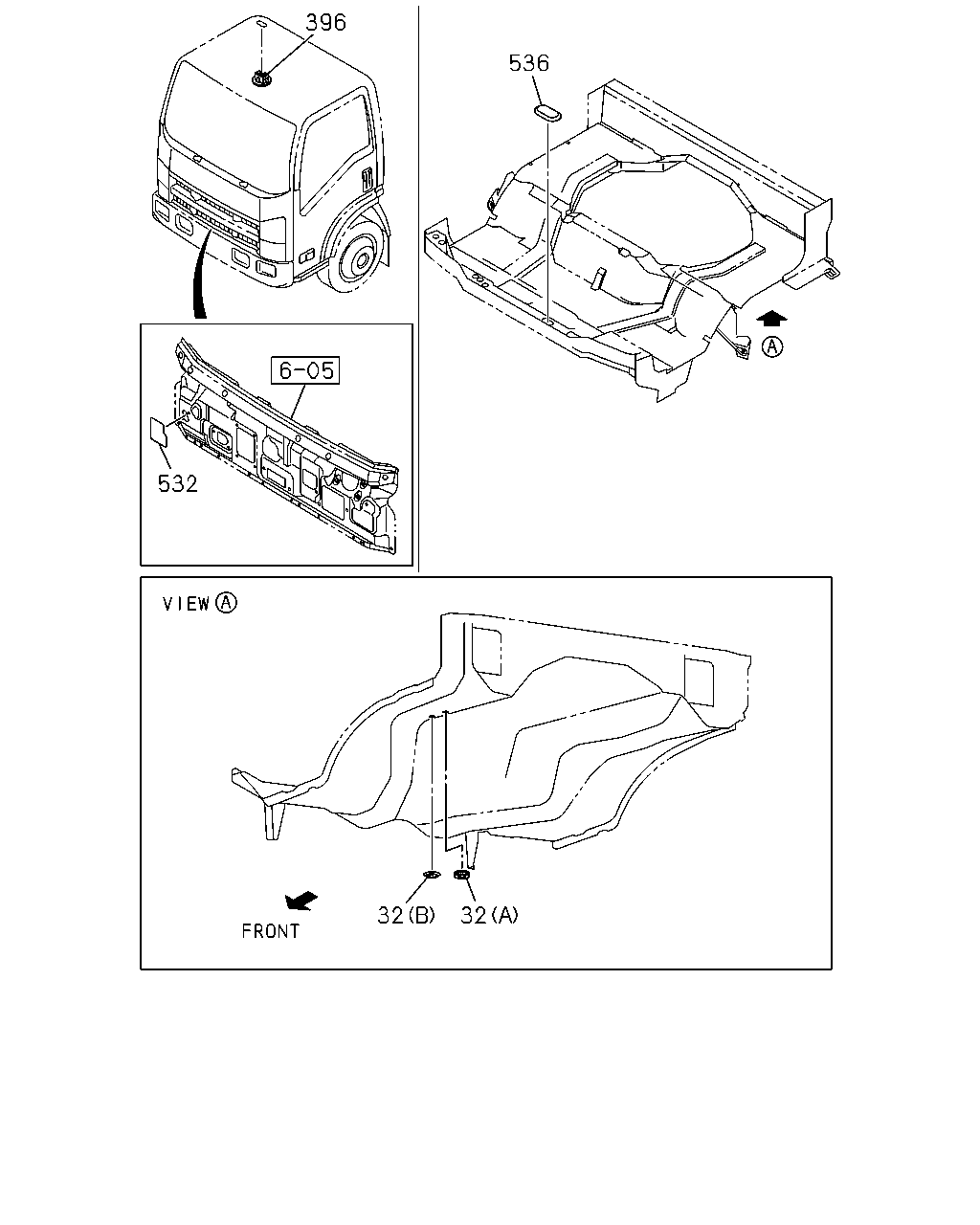

396 532 536 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	GROMMET; FLOOR PANEL,LOCATION HOLE (A) OD=15.0 MAL	8-94279-040-0	02	1	1311-1412	●
32	GROMMET; FLOOR PANEL,LOCATION HOLE (A) OD=15.0 MAL	8-94279-040-0	02	1	1501-	●	●
32	GROMMET; FLOOR PANEL,LOCATION HOLE (B) OD=12.1 MAL	8-97898-423-0	02	1	1311-1412	●
32	GROMMET; FLOOR PANEL,LOCATION HOLE (B) OD=12.1 MAL	8-97898-423-0	02	1	1501-	●	●
396	GROMMET; LOCATION HOLE	8-98054-990-0	02	1	1311-	●
532	SEAL; CABLE EXC. PTO MANUAL CONTROL(6WC)	8-98042-432-1	01	1	1311-1412	●
532	SEAL; CABLE EXC. PTO MANUAL CONTROL(6WC)	8-98042-432-1	01	1	1501-	●	●
536	PLUG; CABLE,PTO	8-98029-219-1	01	1	1311-1412	●
536	PLUG; CABLE,PTO	8-98029-219-1	01	1	1501-	●	●

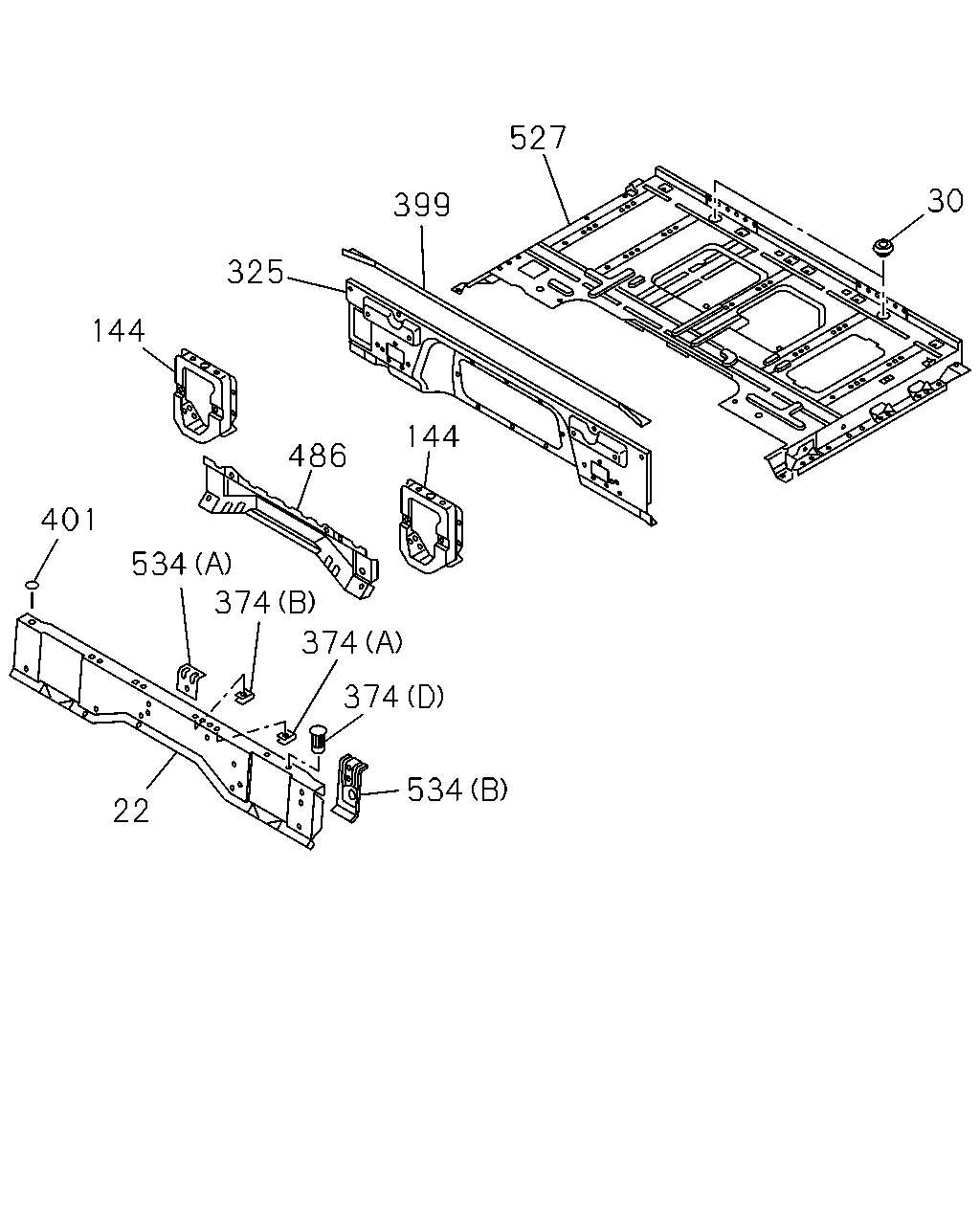

144 325 399 527 30 401 22 534 374 374 374 534 486 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	FRAME; FLOOR REAR 4HG1-T ENG(RDP) MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-848-4	01	1	1311-1311	●
22	FRAME; FLOOR REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-848-4	01	1	1312-	●
22	FRAME; FLOOR REAR 4HG1-T ENG(RDP) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-97587-394-4	01	1	1311-1311	●
22	FRAME; FLOOR REAR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-97587-394-4	01	1	1312-1412	●
22	FRAME; FLOOR REAR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-97587-394-4	01	1	1501-	●
22	FRAME; FLOOR REAR 4HK1-TCN ENG(RDQ)	8-97587-394-4	01	1	1501-		●
30	GROMMET; CAB MTG RAIL OD=74	8-94279-731-0	02	1	1501-		●
144	BRACKET; MTG,RR 4HG1-T ENG(RDP) MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97589-544-2	02	1	1311-1311	●
144	BRACKET; MTG,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97589-544-3	02	1	1312-	●
144	BRACKET; MTG,RR 4HG1-T ENG(RDP) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98112-244-1	02	1	1311-1311	●
144	BRACKET; MTG,RR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98112-244-1	02	1	1312-1412	●
144	BRACKET; MTG,RR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98112-244-2	02	1	1501-	●
144	BRACKET; MTG,RR 4HK1-TCN ENG(RDQ)	8-98112-244-2	02	1	1501-		●
325	REINFORCEMENT ASM; RR MTG 4HK1-TCN ENG(RDQ) MAL	8-98006-699-3	01	1	1501-		●
374	NUT; FLOOR 4HK1-TCN ENG(RDQ) (D) M6 POP NUT MAL	8-98013-752-0	01	1	1501-		●
374	NUT; FLOOR 4HG1-T ENG(RDP) MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	1311-1311	●
374	NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	1312-	●
374	NUT; FLOOR (B) M6 MAL	1-09984-110-0	02	1	1311-1412	●
374	NUT; FLOOR (B) M6 MAL	1-09984-110-0	02	1	1501-	●	●
374	NUT; FLOOR 4HG1-T ENG(RDP) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) M8	1-09984-111-0	04	1	1311-1311	●
374	NUT; FLOOR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) M8	1-09984-111-0	04	1	1312-1412	●
374	NUT; FLOOR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) M8	1-09984-111-0	04	1	1501-	●
374	NUT; FLOOR 4HK1-TCN ENG(RDQ) (A) M8	1-09984-111-0	04	1	1501-		●
374	NUT; FLOOR (C) M8	9-09114-068-0	04	1	1311-1412	●
374	NUT; FLOOR (C) M8	9-09114-068-0	04	1	1501-	●	●
399	PANEL; EXTENSION,RR MTG RAIL 4HK1-TCN ENG(RDQ) MAL	8-97587-702-1	01	1	1501-		●
401	GROMMET; HOLE OD=24.5 T=7.5 MAL	8-97224-683-0	01	1	1311-1412	●
401	GROMMET; HOLE OD=24.5 T=7.5 MAL	8-97224-683-0	01	1	1501-	●	●
486	REINFORCEMENT; FRAME FLOOR,REAR 4HG1-T ENG(RDP) MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98030-613-2	01	1	1311-1311	●
486	REINFORCEMENT; FRAME FLOOR,REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98030-613-2	01	1	1312-	●
486	REINFORCEMENT; FRAME FLOOR,REAR 4HG1-T ENG(RDP) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98030-614-2	01	1	1311-1311	●
486	REINFORCEMENT; FRAME FLOOR,REAR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98030-614-2	01	1	1312-1412	●
486	REINFORCEMENT; FRAME FLOOR,REAR INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98030-614-2	01	1	1501-	●
486	REINFORCEMENT; FRAME FLOOR,REAR 4HK1-TCN ENG(RDQ)	8-98030-614-2	01	1	1501-		●
527	FLOOR; RR 4HK1-TCN ENG(RDQ)	8-98081-184-3	01	1	1501-		●
534	REINFORCEMENT; SEAT BACK (B)	8-97583-851-3	01	1	1311-1412	●
534	REINFORCEMENT; SEAT BACK (B)	8-97583-851-3	01	1	1501-	●	●
534	REINFORCEMENT; SEAT BACK (A)	8-98019-181-2	01	1	1311-1412	●
534	REINFORCEMENT; SEAT BACK (A)	8-98019-181-2	01	1	1501-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
