6-66 — HEAD LINING AND TRIM (#130897) — 65 parça

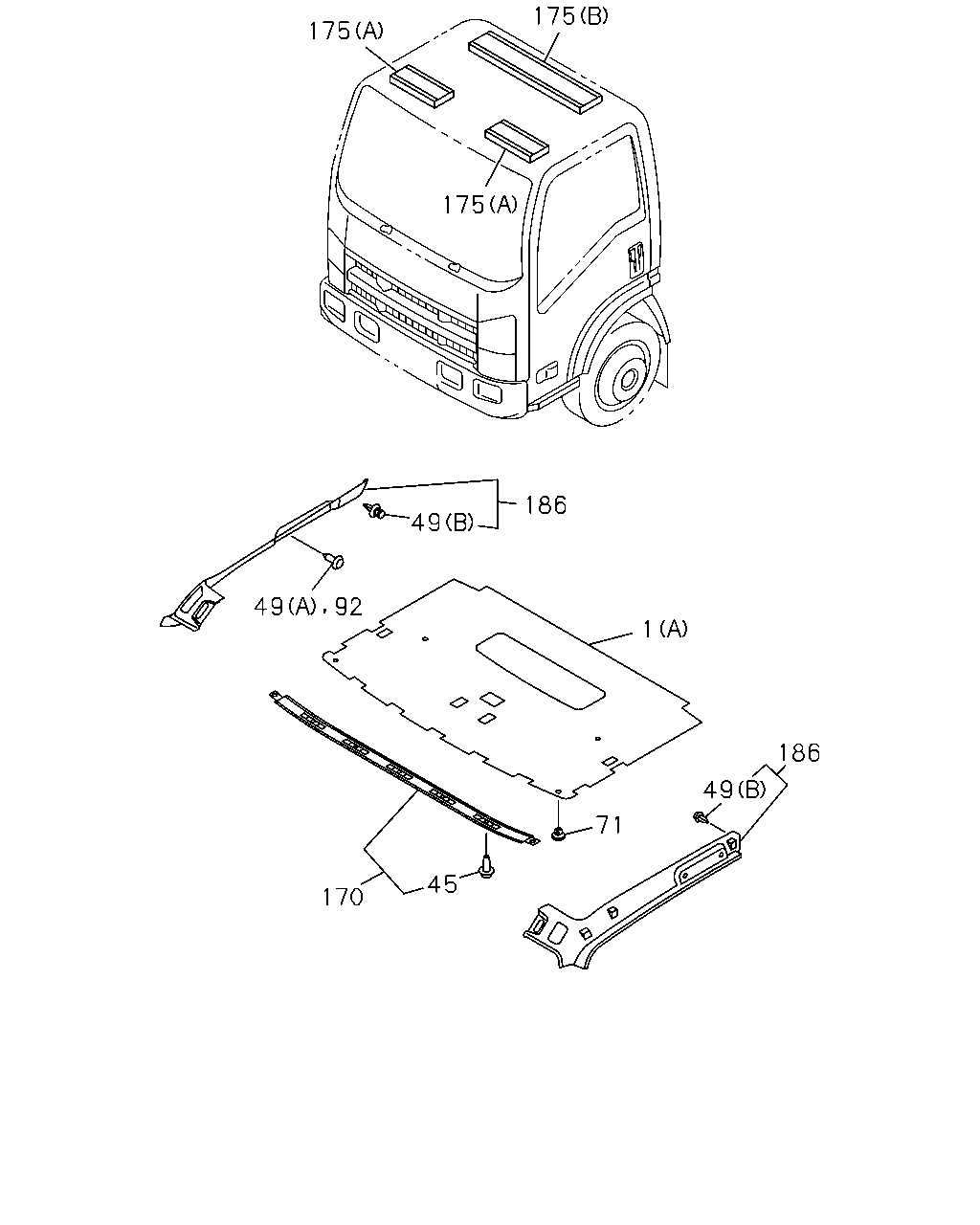

175 175 175 186 49 1 186 49 71 45 170 49 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINING; HD HEADER TRAY DRIVER<W56> (B) DARK GRAY	8-97405-277-3	01	1	1501-	●
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97405-279-3	01	1	1501-	●
1	LINING; HD EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97405-278-2	01	1	1501-	●
1	LINING; HD HEADER TRAY DRIVER<W56> (A) DARK GRAY	8-97405-272-8	01	1	1311-		●
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97405-270-8	01	1	1311-		●
1	LINING; HD EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97405-269-7	01	1	1311-		●
45	CLIP; FINISHER	8-98035-592-1	03	1	1311-1412		●
45	CLIP; FINISHER	8-98035-592-1	03	1	1501-	●	●
49	CLIP; TRIM COVER ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY	8-97407-768-0	02	1	1311-1412		●
49	CLIP; TRIM COVER ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY	8-97407-768-0	02	1	1501-	●	●
49	CLIP; TRIM COVER (B)	8-98059-610-0	03	1	1311-1410		●
49	CLIP; TRIM COVER (B)	8-98059-610-0	02	1	1411-1412		●
49	CLIP; TRIM COVER (B)	8-98059-610-0	02	1	1501-	●	●
71	FASTENER; HD LINING DARK GRAY	8-97405-282-0	20	1	1501-	●
71	FASTENER; HD LINING DARK GRAY	8-97405-282-0	06	1	1311-		●
92	RETAINER; TRIM COVER EXC. ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97407-768-0	04	1	1311-1412		●
92	RETAINER; TRIM COVER EXC. ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97407-768-0	04	1	1501-	●	●
170	FINISHER; HEAD LINING DARK GRAY	8-97405-281-5	01	1	1311-1412		●
170	FINISHER; HEAD LINING DARK GRAY	8-97405-281-5	01	1	1501-	●	●
175	CUSHION; HEAD LINING (D)	8-98037-298-3	03	1	1501-	●
175	CUSHION; HEAD LINING (C)	8-98054-171-3	02	1	1501-	●
175	CUSHION; HEAD LINING (A)	8-98037-299-3	02	1	1311-		●
175	CUSHION; HEAD LINING (B)	8-98037-300-3	01	1	1311-		●
186	TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-250-3	01	1	1311-1412		●
186	TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-250-3	01	1	1501-	●	●
186	TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-252-3	01	1	1311-1412		●
186	TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-252-3	01	1	1501-	●	●
186	TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-251-3	01	1	1311-1412		●
186	TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-251-3	01	1	1501-	●	●
186	TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-3	01	1	1311-1412		●
186	TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-3	01	1	1501-	●	●

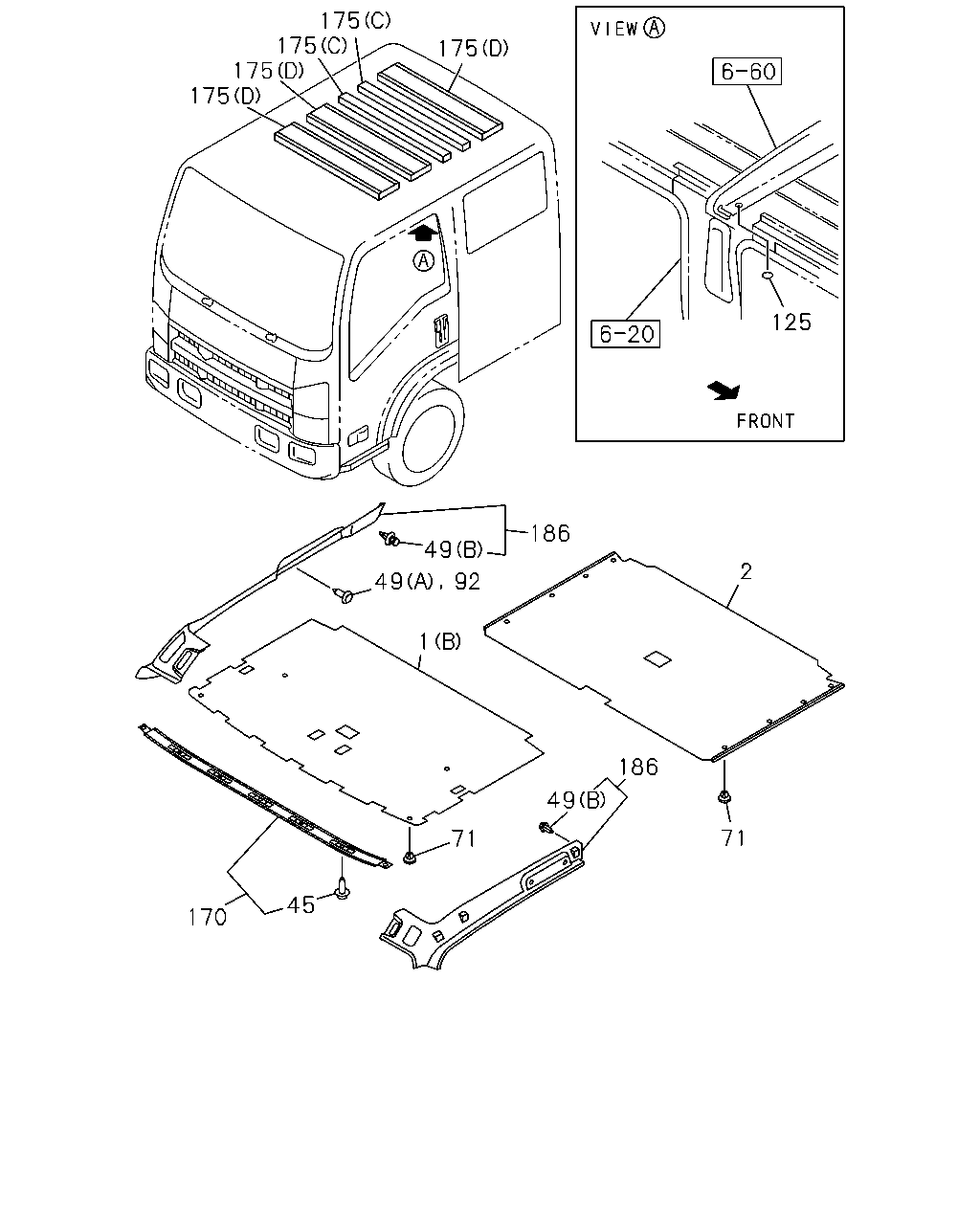

175 175 175 175 175 49 186 49 92 186 49 71 71 45 170 2 1 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINING; HD HEADER TRAY DRIVER<W56> (B) DARK GRAY	8-97405-277-3	01	1	1501-	●
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97405-279-3	01	1	1501-	●
1	LINING; HD EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY	8-97405-278-2	01	1	1501-	●
1	LINING; HD HEADER TRAY DRIVER<W56> (A) DARK GRAY	8-97405-272-8	01	1	1311-		●
1	LINING; HD HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97405-270-8	01	1	1311-		●
1	LINING; HD EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY	8-97405-269-7	01	1	1311-		●
2	LINING; HD,ROOF RR DARK GRAY	8-97405-280-3	01	1	1501-	●
45	CLIP; FINISHER	8-98035-592-1	03	1	1311-1412		●
45	CLIP; FINISHER	8-98035-592-1	03	1	1501-	●	●
49	CLIP; TRIM COVER ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY	8-97407-768-0	02	1	1311-1412		●
49	CLIP; TRIM COVER ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY	8-97407-768-0	02	1	1501-	●	●
49	CLIP; TRIM COVER (B)	8-98059-610-0	03	1	1311-1410		●
49	CLIP; TRIM COVER (B)	8-98059-610-0	02	1	1411-1412		●
49	CLIP; TRIM COVER (B)	8-98059-610-0	02	1	1501-	●	●
71	FASTENER; HD LINING DARK GRAY	8-97405-282-0	20	1	1501-	●
71	FASTENER; HD LINING DARK GRAY	8-97405-282-0	06	1	1311-		●
92	RETAINER; TRIM COVER EXC. ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97407-768-0	04	1	1311-1412		●
92	RETAINER; TRIM COVER EXC. ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97407-768-0	04	1	1501-	●	●
125	SEAL; HOLE BODY COLOR ARC WHITE(729) OD=36 WHITE	1-76778-007-0	02	1	1501-	●
125	SEAL; HOLE BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) OD=36 T=0.05 BLACK MAL	5-76777-035-0	02	1	1501-	●
170	FINISHER; HEAD LINING DARK GRAY	8-97405-281-5	01	1	1311-1412		●
170	FINISHER; HEAD LINING DARK GRAY	8-97405-281-5	01	1	1501-	●	●
175	CUSHION; HEAD LINING (D)	8-98037-298-3	03	1	1501-	●
175	CUSHION; HEAD LINING (C)	8-98054-171-3	02	1	1501-	●
175	CUSHION; HEAD LINING (A)	8-98037-299-3	02	1	1311-		●
175	CUSHION; HEAD LINING (B)	8-98037-300-3	01	1	1311-		●
186	TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-250-3	01	1	1311-1412		●
186	TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-250-3	01	1	1501-	●	●
186	TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-252-3	01	1	1311-1412		●
186	TRIM; ROOM,CANT RAIL SIDE HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-252-3	01	1	1501-	●	●
186	TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-251-3	01	1	1311-1412		●
186	TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-251-3	01	1	1501-	●	●
186	TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-3	01	1	1311-1412		●
186	TRIM; ROOM,CANT RAIL SIDE EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-263-3	01	1	1501-	●	●
