6-47 — MUD GUARD AND INSULATOR (#130895) — 119 parça

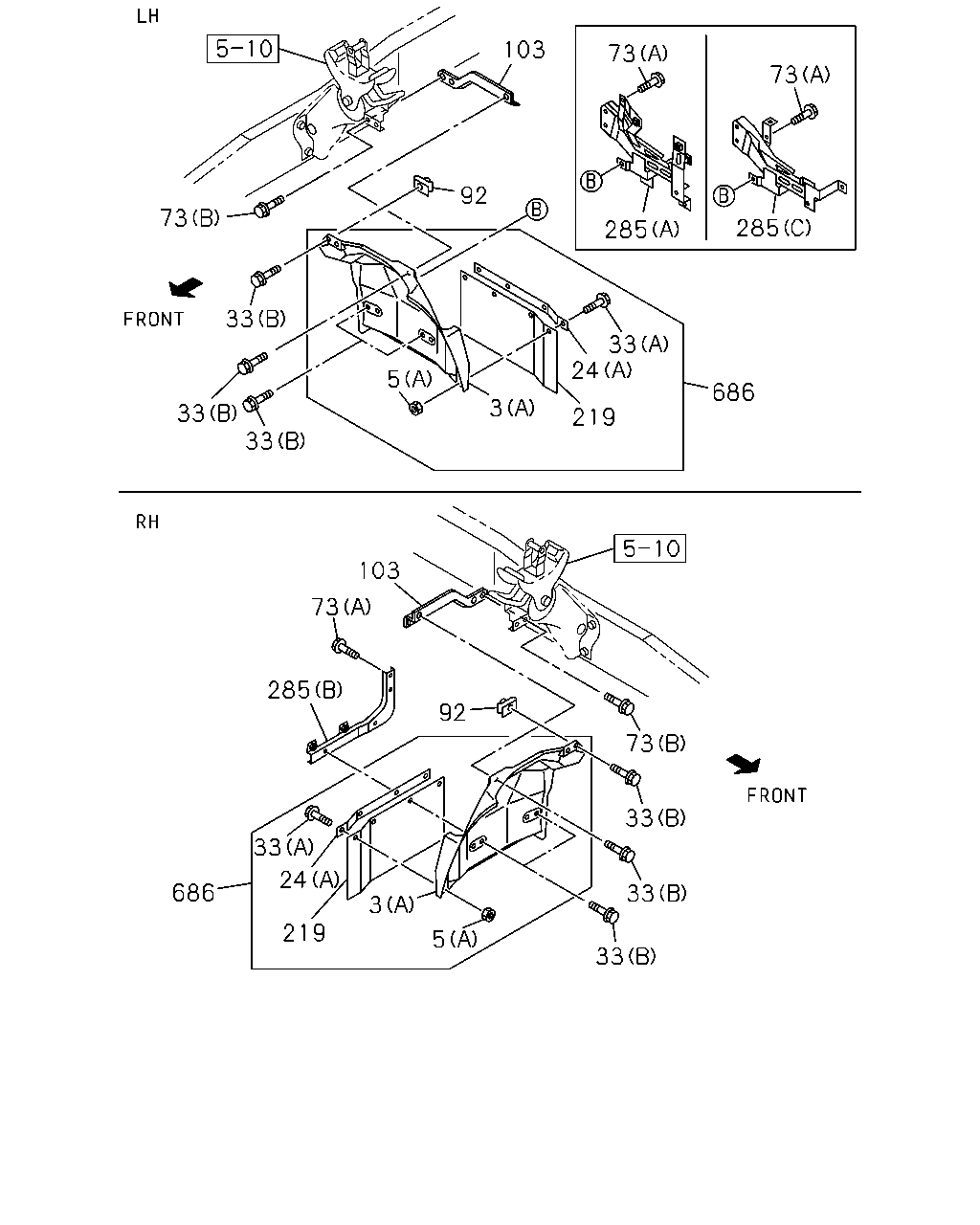

103 73 73 285 85 33 686 24 219 3 5 33 73 33 33 92 103 3 92 285 3 33 33 33 5 3 219 24 33 686

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GUARD; MUD,RR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A)	8-98004-029-5	01	1	1311-1412	●
3	GUARD; MUD,RR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A)	8-98004-029-5	01	1	1501-	●
3	GUARD; MUD,RR (A)	8-98004-029-5	01	1	1501-		●
3	GUARD; MUD,RR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A)	8-98004-030-4	01	1	1311-1412	●
3	GUARD; MUD,RR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A)	8-98004-030-4	01	1	1501-	●
3	GUARD; MUD,RR (A)	8-98004-030-4	01	1	1501-		●
3	GUARD; MUD,RR RR BODY FLAT BED<RS6> (B) H=440 B=430	8-97214-177-1	02	1	1312-	●
5	NUT; FLAP RUBBER (B) M6 FLANGE MAL	0-91180-106-0	02	1	1501-		●
5	NUT; FLAP RUBBER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A) M6	8-98227-380-0	08	1	1311-1412	●
5	NUT; FLAP RUBBER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A) M6	8-98227-380-0	08	1	1501-	●
5	NUT; FLAP RUBBER (A) M6	8-98227-380-0	08	1	1501-		●
24	PLATE; MUD COVER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A)	8-98004-031-1	02	1	1311-1412	●
24	PLATE; MUD COVER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A)	8-98004-031-1	02	1	1501-	●
24	PLATE; MUD COVER (A)	8-98004-031-1	02	1	1501-		●
24	PLATE; MUD COVER (B)	8-98154-258-0	02	1	1311-1412	●
24	PLATE; MUD COVER (B)	8-98154-258-0	02	1	1501-	●	●
33	BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1311-1412	●
33	BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1501-	●	●
33	BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1311-1412	●
33	BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1501-	●	●
33	BOLT; MUD COVER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A) M6X16 FLANGE	8-98227-381-0	08	1	1311-1412	●
33	BOLT; MUD COVER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A) M6X16 FLANGE	8-98227-381-0	08	1	1501-	●
33	BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1501-		●
73	BOLT; MUD COVER BRKT (B) M8X25 FLANGE MAL	0-28650-825-0	04	1	1311-1412	●
73	BOLT; MUD COVER BRKT (B) M8X25 FLANGE MAL	0-28650-825-0	04	1	1501-	●	●
73	BOLT; MUD COVER BRKT (A) M10X25 FLANGE MAL	0-28651-025-0	04	1	1311-1412	●
73	BOLT; MUD COVER BRKT (A) M10X25 FLANGE MAL	0-28651-025-0	04	1	1501-	●	●
92	NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	1311-1412	●
92	NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	1501-	●	●
103	BRACKET ASM; RR MUD FLAP	8-98001-315-2	01	1	1311-1412	●
103	BRACKET ASM; RR MUD FLAP	8-98001-315-2	01	1	1501-	●	●
103	BRACKET ASM; RR MUD FLAP	8-98001-319-2	01	1	1311-1412	●
103	BRACKET ASM; RR MUD FLAP	8-98001-319-2	01	1	1501-	●	●
219	FLAP; MUD GUARD G.V.W. 6.0-6.5TON(RPV)	8-98004-032-1	02	1	1311-	●
219	FLAP; MUD GUARD G.V.W. 7.0-7.5TON(RPX)	8-98004-033-1	02	1	1311-1412	●
219	FLAP; MUD GUARD G.V.W. 7.0-7.5TON(RPX)	8-98004-033-1	02	1	1501-	●
219	FLAP; MUD GUARD	8-98004-033-1	02	1	1501-		●
285	BRACKET; MUD COVER 4HG1-T ENG(RDP) (C)	8-98169-721-0	01	1	1311-	●
285	BRACKET; MUD COVER (B)	8-98001-314-2	01	1	1311-1412	●
285	BRACKET; MUD COVER (B)	8-98001-314-2	01	1	1501-	●	●
285	BRACKET; MUD COVER 4HK1-TCN ENG(RDQ) (A)	8-98001-320-3	01	1	1312-1412	●
285	BRACKET; MUD COVER 4HK1-TCN ENG(RDQ) (A)	8-98001-320-3	01	1	1501-	●	●
686	FLAP ASM; MUD G.V.W. 6.0-6.5TON(RPV)	8-97387-746-7	01	1	1311-	●
686	FLAP ASM; MUD G.V.W. 6.0-6.5TON(RPV)	8-97387-747-6	01	1	1311-	●
686	FLAP ASM; MUD G.V.W. 7.0-7.5TON(RPX)	8-97387-750-7	01	1	1311-1412	●
686	FLAP ASM; MUD G.V.W. 7.0-7.5TON(RPX)	8-97387-750-7	01	1	1501-	●
686	FLAP ASM; MUD	8-97387-750-7	01	1	1501-		●
686	FLAP ASM; MUD G.V.W. 7.0-7.5TON(RPX)	8-97387-751-6	01	1	1311-1412	●
686	FLAP ASM; MUD G.V.W. 7.0-7.5TON(RPX)	8-97387-751-6	01	1	1501-	●
686	FLAP ASM; MUD	8-97387-751-6	01	1	1501-		●

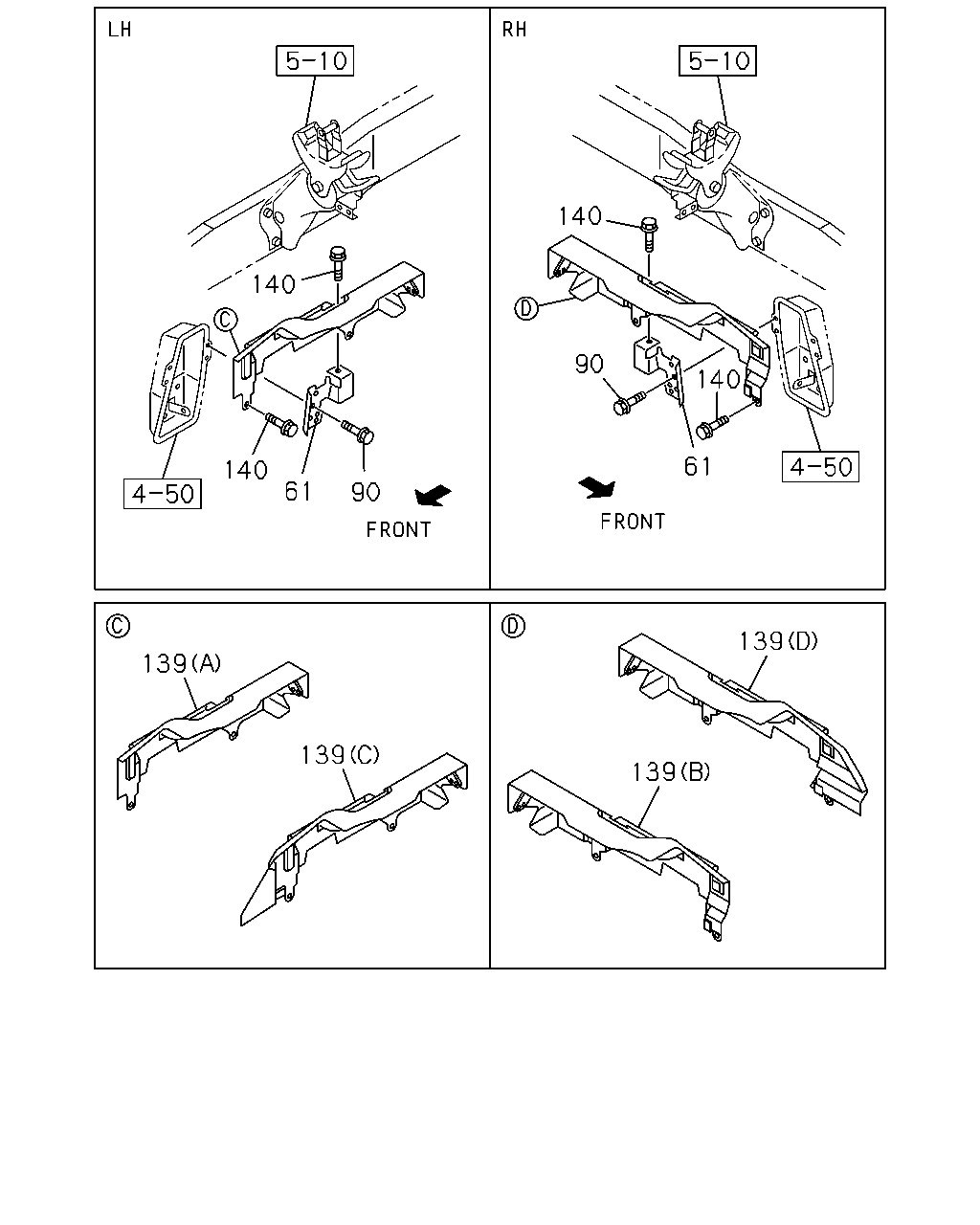

61 140 90 140 140 90 140 61 139 139 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	BRACKET; COVER	8-98040-465-1	01	1	1311-1412	●
61	BRACKET; COVER	8-98040-465-1	01	1	1501-	●	●
61	BRACKET; COVER	8-98040-466-1	01	1	1311-1412	●
61	BRACKET; COVER	8-98040-466-1	01	1	1501-	●	●
90	BOLT; COVER M8X25 FLANGE MAL	0-28650-825-0	04	1	1311-1412	●
90	BOLT; COVER M8X25 FLANGE MAL	0-28650-825-0	04	1	1501-	●	●
139	PANEL; SIDE (B)	8-98043-920-2	01	1	1311-1311	●
139	PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-98043-920-2	01	1	1312-1412	●
139	PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-98043-920-2	01	1	1501-	●	●
139	PANEL; SIDE (A)	8-98115-458-1	01	1	1311-1311	●
139	PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (A)	8-98115-458-1	01	1	1312-1412	●
139	PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (A)	8-98115-458-1	01	1	1501-	●	●
139	PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97387-727-4	01	1	1312-	●
139	PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97387-728-8	01	1	1312-	●
140	BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	06	1	1311-1412	●
140	BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	06	1	1501-	●	●

369 5 3 32 238 681

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GUARD; MUD,RR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A)	8-98004-029-5	01	1	1311-1412	●
3	GUARD; MUD,RR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A)	8-98004-029-5	01	1	1501-	●
3	GUARD; MUD,RR (A)	8-98004-029-5	01	1	1501-		●
3	GUARD; MUD,RR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A)	8-98004-030-4	01	1	1311-1412	●
3	GUARD; MUD,RR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A)	8-98004-030-4	01	1	1501-	●
3	GUARD; MUD,RR (A)	8-98004-030-4	01	1	1501-		●
3	GUARD; MUD,RR RR BODY FLAT BED<RS6> (B) H=440 B=430	8-97214-177-1	02	1	1312-	●
5	NUT; FLAP RUBBER (B) M6 FLANGE MAL	0-91180-106-0	02	1	1501-		●
5	NUT; FLAP RUBBER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A) M6	8-98227-380-0	08	1	1311-1412	●
5	NUT; FLAP RUBBER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A) M6	8-98227-380-0	08	1	1501-	●
5	NUT; FLAP RUBBER (A) M6	8-98227-380-0	08	1	1501-		●
32	NUT; MUD GUARD RR BODY FLAT BED<RS6> M6 FLANGE	8-97065-431-0	06	1	1312-	●
238	SCREW; MUD GUARD RR BODY FLAT BED<RS6> M6X16 FLANGE	8-98098-459-0	06	1	1312-	●
369	PLATE	8-98061-674-0	01	1	1501-		●
681	FLAP; AIR CLEANER	8-98061-671-0	01	1	1501-		●

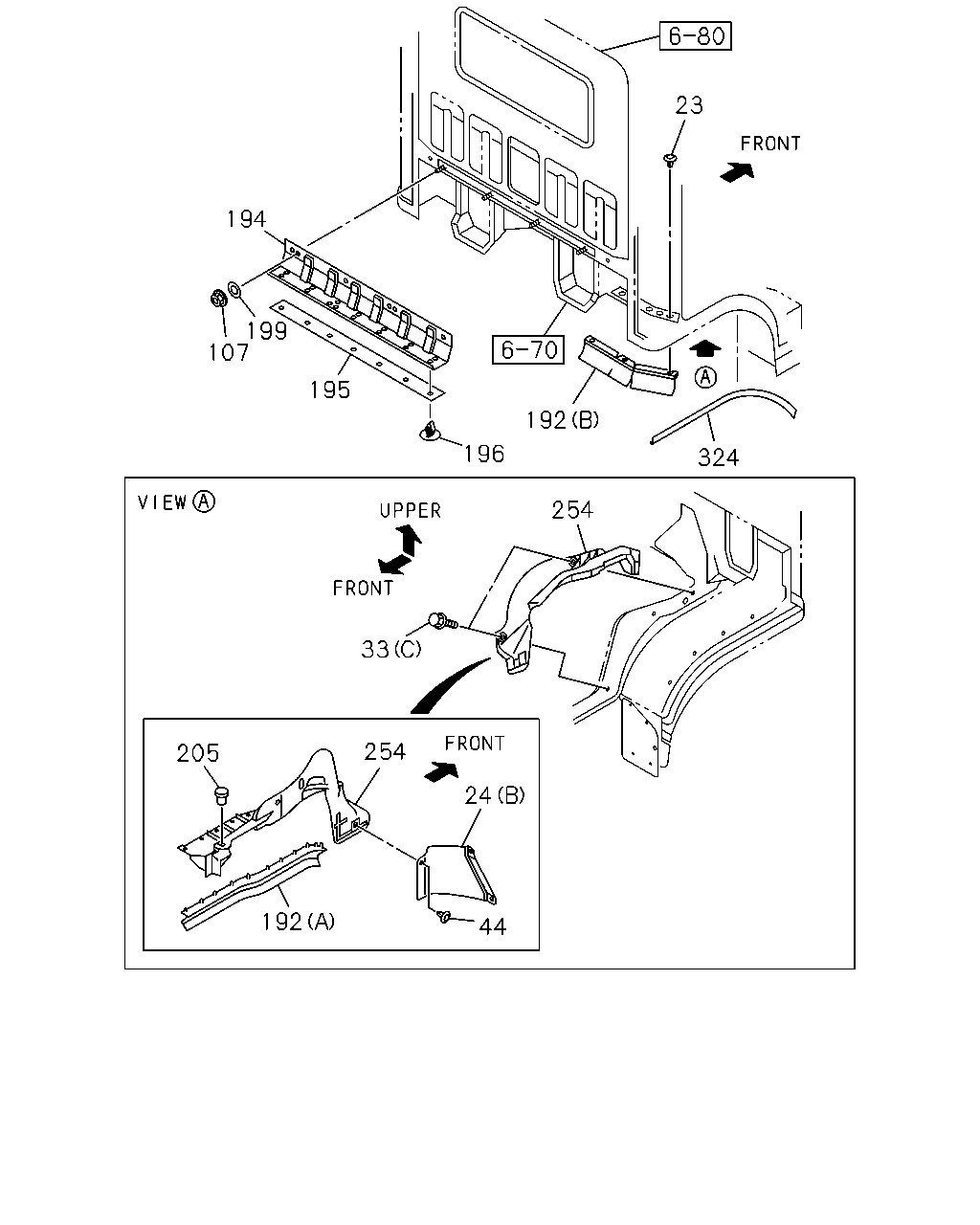

194 199 107 195 196 192 23 324 254 33 254 24 44 192 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	FASTENER; MUD COVER OD=8.3 MAL	8-97997-832-0	06	1	1311-1412	●
23	FASTENER; MUD COVER OD=8.3 MAL	8-97997-832-0	06	1	1501-	●	●
24	PLATE; MUD COVER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A)	8-98004-031-1	02	1	1311-1412	●
24	PLATE; MUD COVER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A)	8-98004-031-1	02	1	1501-	●
24	PLATE; MUD COVER (A)	8-98004-031-1	02	1	1501-		●
24	PLATE; MUD COVER (B)	8-98154-258-0	02	1	1311-1412	●
24	PLATE; MUD COVER (B)	8-98154-258-0	02	1	1501-	●	●
33	BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1311-1412	●
33	BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1501-	●	●
33	BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1311-1412	●
33	BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1501-	●	●
33	BOLT; MUD COVER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A) M6X16 FLANGE	8-98227-381-0	08	1	1311-1412	●
33	BOLT; MUD COVER G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) (A) M6X16 FLANGE	8-98227-381-0	08	1	1501-	●
33	BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1501-		●
44	CLIP; ANCHOR OD=16 L=11	1-76378-155-0	06	1	1311-1412	●
44	CLIP; ANCHOR OD=16 L=11	1-76378-155-0	06	1	1501-	●	●
107	NUT; HEAT PROTECTOR RR BODY FLAT BED<RS6> M6 FLANGE	8-94279-514-0	04	1	1312-1412	●
107	NUT; HEAT PROTECTOR RR BODY FLAT BED<RS6> M6 FLANGE	8-94279-514-0	04	1	1501-	●
107	NUT; HEAT PROTECTOR M6 FLANGE	8-94279-514-0	04	1	1501-		●
192	SEAL; MUD COVER (A)	8-98022-755-1	01	1	1311-1412	●
192	SEAL; MUD COVER (A)	8-98022-755-1	01	1	1501-	●	●
192	SEAL; MUD COVER (A)	8-98022-756-1	01	1	1311-1412	●
192	SEAL; MUD COVER (A)	8-98022-756-1	01	1	1501-	●	●
192	SEAL; MUD COVER (B)	8-98022-782-3	02	1	1311-1412	●
192	SEAL; MUD COVER (B)	8-98022-782-3	02	1	1501-	●	●
194	BRACKET; HEAT PROTECTOR	8-98065-107-0	01	1	1501-		●
195	PROTECTOR; HEAT	8-94272-528-1	01	1	1501-		●
195	PROTECTOR; HEAT RR BODY FLAT BED<RS6>	8-98028-224-1	01	1	1312-	●
196	CLIP; HEAT PROTECTOR MAL	8-94244-922-0	07	1	1501-		●
199	WASHER; PL,HEAT PROTECTOR	8-94292-135-0	04	1	1501-		●
205	FASTENER; MUD COVER D=5.8 SCREW & GROMMET NYLON MAL	8-94242-150-0	02	1	1311-1412	●
205	FASTENER; MUD COVER D=5.8 SCREW & GROMMET NYLON MAL	8-94242-150-0	02	1	1501-	●	●
254	COVER; MUD,VALANCE	8-98022-750-3	01	1	1311-1412	●
254	COVER; MUD,VALANCE	8-98022-750-3	01	1	1501-	●	●
254	COVER; MUD,VALANCE	8-98022-751-3	01	1	1311-1412	●
254	COVER; MUD,VALANCE	8-98022-751-3	01	1	1501-	●	●
324	PROTECTOR; FRT FENDER	8-98022-786-2	02	1	1311-1412	●
324	PROTECTOR; FRT FENDER	8-98022-786-2	02	1	1501-	●	●
