◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51501 - NPR(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#130894) — 30 parça

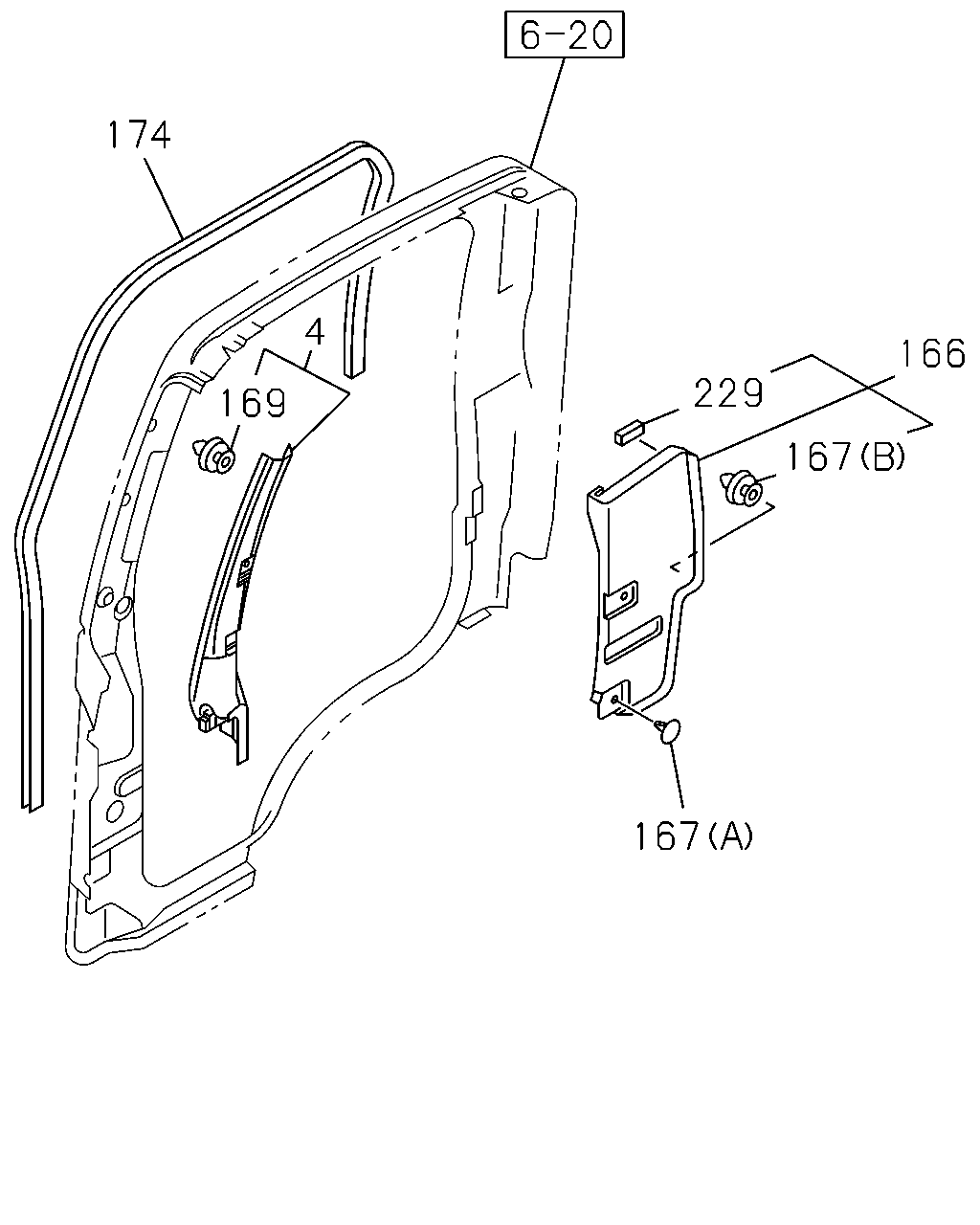

çizim 386326
174 169 4 167 167 229 166
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-254-2 01 1 1311-1412 ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-254-2 01 1 1501- ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-255-2 01 1 1311-1412 ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-255-2 01 1 1501- ● ●
166 TRIM; RR PILLAR
GRAY 		8-97405-297-2 01 1 1311- ●
166 TRIM; RR PILLAR
GRAY 		8-97412-727-0 01 1 1311- ●
167 CLIP; TRIM,RR PILLAR
(A) GRAY 		8-97406-421-0 04 1 1311- ●
167 CLIP; TRIM,RR PILLAR
(B) 		8-98059-610-0 06 1 1311- ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK MAL 		8-94279-974-1 04 1 1311-1412 ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK MAL 		8-94279-974-1 04 1 1501- ● ●
174 FINISHER; BODY SIDE
L=3159 		8-98154-667-0 01 1 1501- ●
174 FINISHER; BODY SIDE
L=3159 		8-98154-668-0 01 1 1501- ●
174 FINISHER; BODY SIDE
L=2609 		8-98154-665-0 01 1 1311- ●
174 FINISHER; BODY SIDE
L=2609 		8-98154-666-0 01 1 1311- ●
229 SEAL 8-98081-818-0 01 1 1311- ●

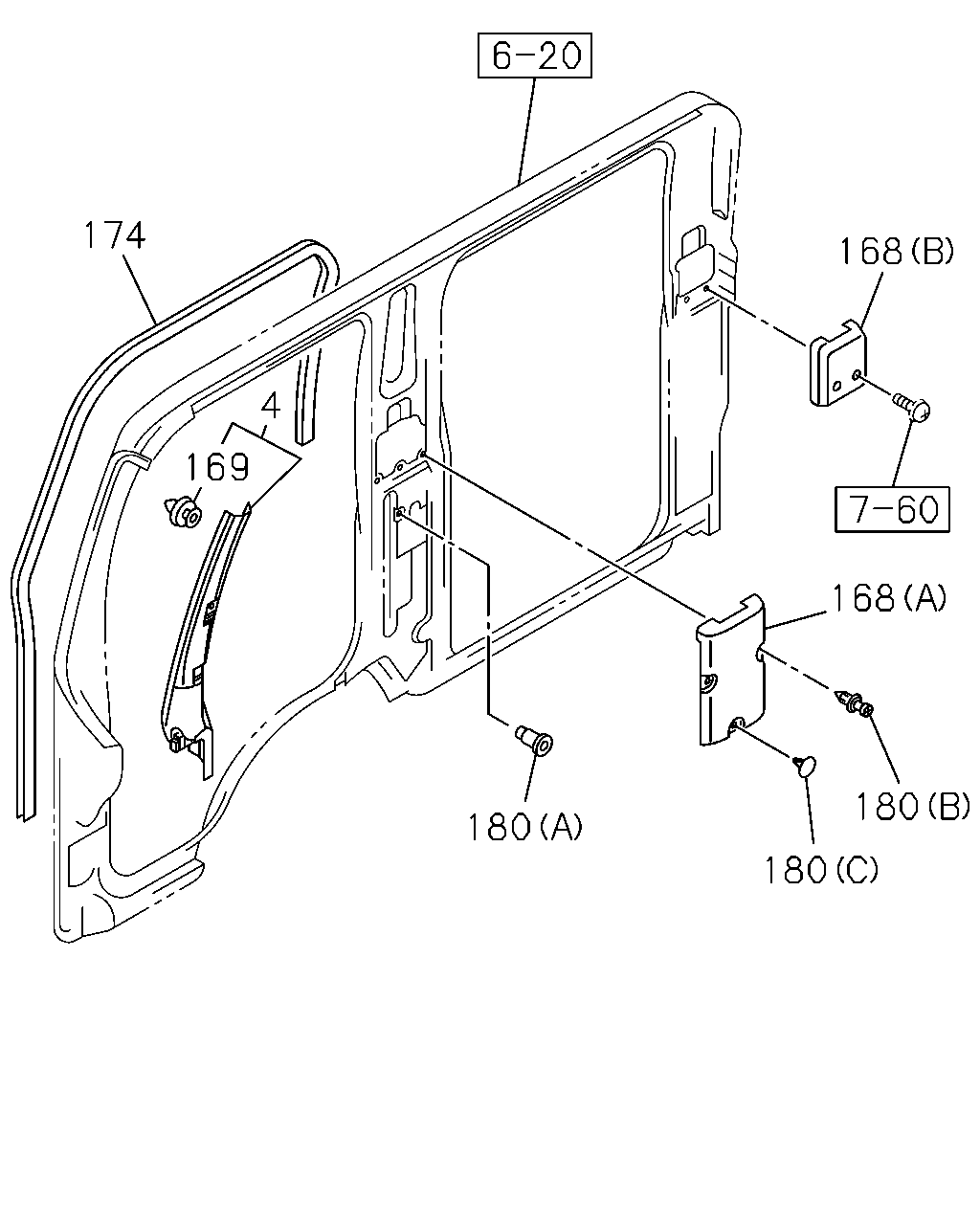

çizim 513216
174 169 4 180 180 168 180 168
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-254-2 01 1 1311-1412 ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-254-2 01 1 1501- ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-255-2 01 1 1311-1412 ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-255-2 01 1 1501- ● ●
168 COVER; SEAT BELT RETRACTOR
(A) GRAY 		8-97405-191-2 02 1 1501- ●
168 COVER; SEAT BELT RETRACTOR
(B) GRAY 		8-97405-192-3 02 1 1501- ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK MAL 		8-94279-974-1 04 1 1311-1412 ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK MAL 		8-94279-974-1 04 1 1501- ● ●
174 FINISHER; BODY SIDE
L=3159 		8-98154-667-0 01 1 1501- ●
174 FINISHER; BODY SIDE
L=3159 		8-98154-668-0 01 1 1501- ●
174 FINISHER; BODY SIDE
L=2609 		8-98154-665-0 01 1 1311- ●
174 FINISHER; BODY SIDE
L=2609 		8-98154-666-0 01 1 1311- ●
180 FASTENER; COVER
(A) 		8-97319-495-0 02 1 1501- ●
180 FASTENER; COVER
(B) GRAY 		8-97405-246-0 04 1 1501- ●
180 FASTENER; COVER
(C) GRAY 		8-97405-247-0 02 1 1501- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
