◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51501 - NPR(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#130891) — 76 parça

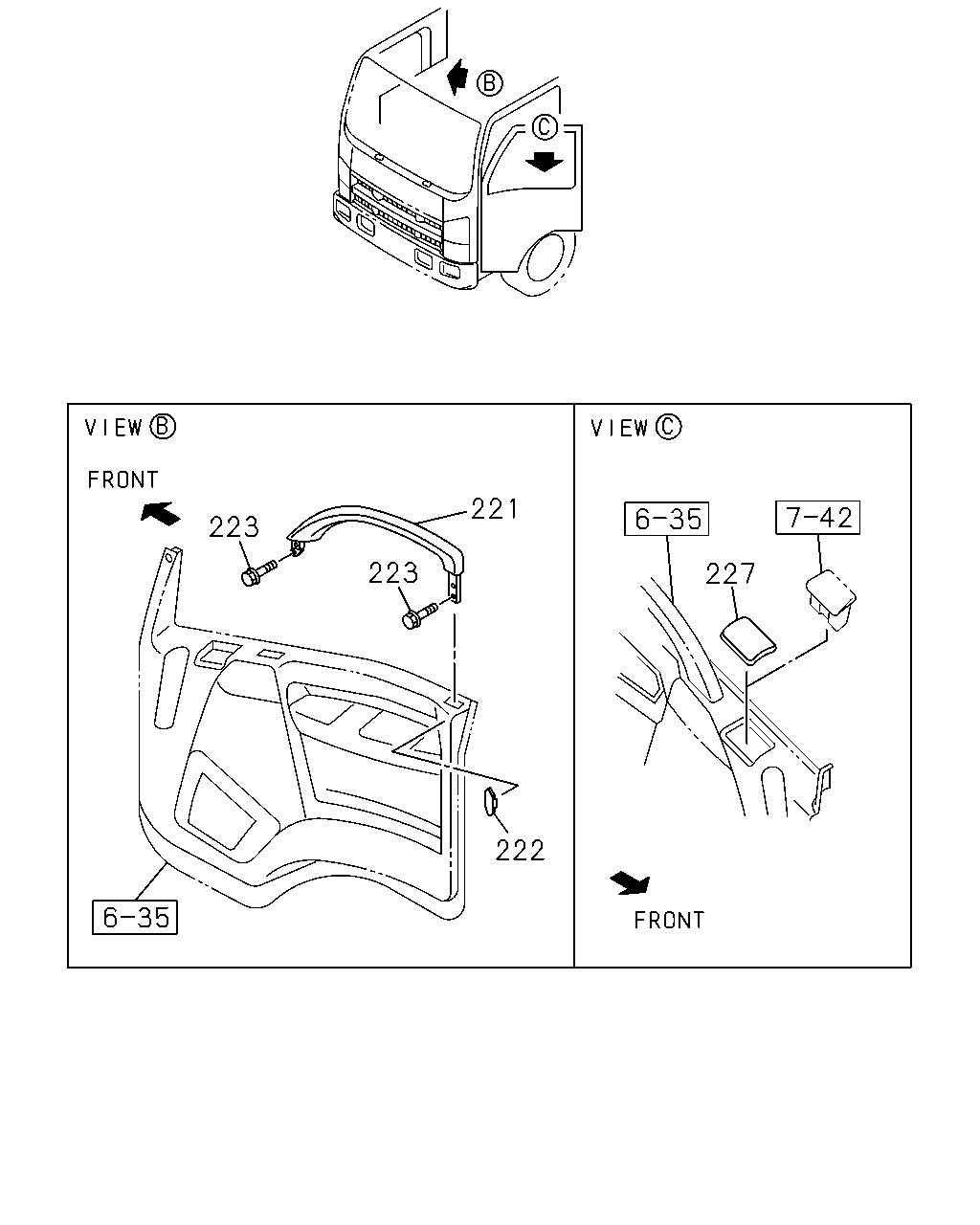

çizim 386040
227 221 223 223 222
BalonParca AdiParca NoAdetTipApplied Date A B
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97405-316-2 01 1 1311-1412 ●
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97405-316-2 01 1 1501- ● ●
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97405-317-2 01 1 1311-1412 ●
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97405-317-2 01 1 1501- ● ●
222 CAP; GUARD BAR
GRAY 		8-97405-318-0 01 1 1311-1412 ●
222 CAP; GUARD BAR
GRAY 		8-97405-318-0 01 1 1501- ● ●
222 CAP; GUARD BAR
GRAY 		8-97405-319-0 01 1 1311-1412 ●
222 CAP; GUARD BAR
GRAY 		8-97405-319-0 01 1 1501- ● ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 1311-1412 ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 1501- ● ●
227 RUBBER; SHUTTER
EXC. ASH TRAY ASSIST DOOR<8LX> GRAY 		8-97405-321-0 01 1 1311-1412 ●
227 RUBBER; SHUTTER
EXC. ASH TRAY ASSIST DOOR<8LX> GRAY 		8-97405-321-0 01 1 1501- ● ●

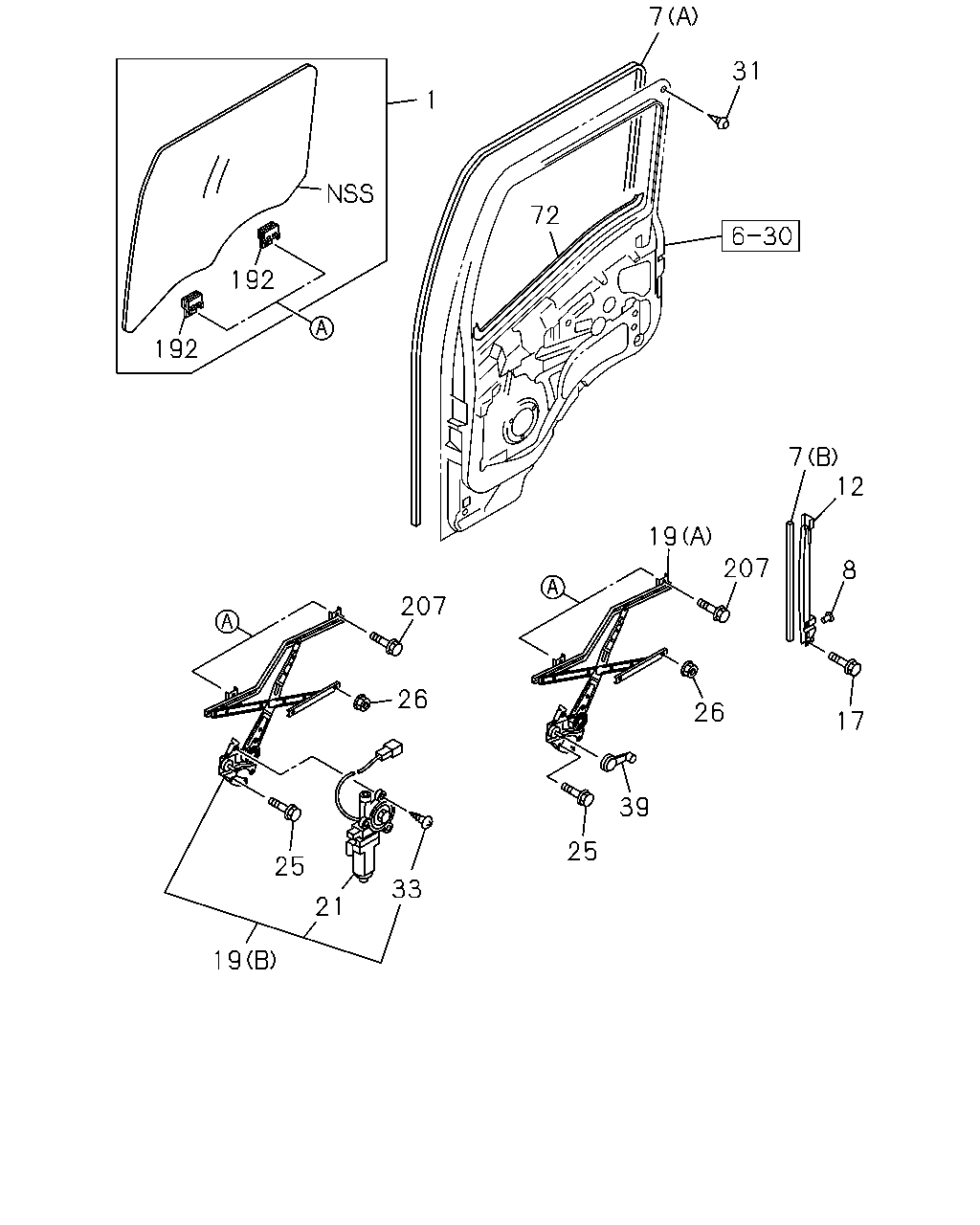

çizim 386565
192 192 7 1 72 31 7 12 8 17 19 207 26 25 21 33 19 26 39 25 207
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
MAL 		8-98211-764-0 01 1 1311-1408 ●
1 GLASS; FRT DOOR
MAL 		8-98134-017-0 01 1 1409-1412 ●
1 GLASS; FRT DOOR
MAL 		8-98134-017-0 01 1 1501- ● ●
1 GLASS; FRT DOOR
MAL 		8-98211-765-0 01 1 1311-1408 ●
1 GLASS; FRT DOOR
MAL 		8-98134-018-0 01 1 1409-1412 ●
1 GLASS; FRT DOOR
MAL 		8-98134-018-0 01 1 1501- ● ●
7 GLASS RUN; FRT DOOR
(B) 		8-98031-742-2 02 1 1311-1411 ●
7 GLASS RUN; FRT DOOR
(B) 		8-98260-310-0 02 1 1412-1412 ●
7 GLASS RUN; FRT DOOR
(B) 		8-98260-310-0 02 1 1501- ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-195-3 01 1 1311-1411 ●
7 GLASS RUN; FRT DOOR
(A) 		8-98260-308-0 01 1 1412-1412 ●
7 GLASS RUN; FRT DOOR
(A) 		8-98260-308-0 01 1 1501- ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-196-3 01 1 1311-1411 ●
7 GLASS RUN; FRT DOOR
(A) 		8-98260-309-0 01 1 1412-1412 ●
7 GLASS RUN; FRT DOOR
(A) 		8-98260-309-0 01 1 1501- ● ●
8 CLIP; GLASS GUIDE 8-98048-796-0 02 1 1311-1412 ●
8 CLIP; GLASS GUIDE 8-98048-796-0 02 1 1501- ● ●
12 CHANNEL; GLASS RUN,FRT 8-98188-418-0 01 1 1311-1411 ●
12 CHANNEL; GLASS RUN,FRT 8-98260-318-0 01 1 1412-1412 ●
12 CHANNEL; GLASS RUN,FRT 8-98260-318-0 01 1 1501- ● ●
12 CHANNEL; GLASS RUN,FRT 8-98188-419-0 01 1 1311-1411 ●
12 CHANNEL; GLASS RUN,FRT 8-98260-319-0 01 1 1412-1412 ●
12 CHANNEL; GLASS RUN,FRT 8-98260-319-0 01 1 1501- ● ●
17 SCREW; RR CHANNEL
M6X10 FLANGE 		0-28050-610-0 04 1 1311-1412 ●
17 SCREW; RR CHANNEL
M6X10 FLANGE 		0-28050-610-0 04 1 1501- ● ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (B) 		8-98029-237-3 01 1 1311-1412 ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (B) 		8-98029-237-3 01 1 1501- ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98029-237-3 01 1 1501- ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (B) 		8-98050-288-2 01 1 1311-1412 ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (B) 		8-98050-288-2 01 1 1501- ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98050-288-2 01 1 1501- ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (A) 		8-98029-233-3 01 1 1311-1412 ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (A) 		8-98029-233-3 01 1 1501- ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98029-233-3 01 1 1501- ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (A) 		8-98029-234-3 01 1 1311-1412 ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (A) 		8-98029-234-3 01 1 1501- ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98029-234-3 01 1 1501- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-98058-429-0 01 1 1311-1412 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-98058-429-0 01 1 1501- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98058-429-0 01 1 1501- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-98058-430-0 01 1 1311-1412 ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-98058-430-0 01 1 1501- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98058-430-0 01 1 1501- ●
25 BOLT; WINDOW REG
M6X10 FLANGE 		0-28050-610-0 08 1 1311-1412 ●
25 BOLT; WINDOW REG
M6X10 FLANGE 		0-28050-610-0 08 1 1501- ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE MAL 		0-91180-106-0 04 1 1311-1412 ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE MAL 		0-91180-106-0 04 1 1501- ● ●
31 STOPPER; RUBBER,DOOR INNER 8-94358-581-0 04 1 1311-1412 ●
31 STOPPER; RUBBER,DOOR INNER 8-94358-581-0 04 1 1501- ● ●
33 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> 		8-98058-431-0 06 1 1311-1412 ●
33 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> 		8-98058-431-0 06 1 1501- ●
33 SCREW; REG MOTOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98058-431-0 06 1 1501- ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-313-3 02 1 1311-1412 ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-313-3 02 1 1501- ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> GRAY 		8-97405-313-3 02 1 1501- ●
72 SEAL; WAIST,FRT DOOR 8-98029-192-1 01 1 1311-1412 ●
72 SEAL; WAIST,FRT DOOR 8-98029-192-1 01 1 1501- ● ●
72 SEAL; WAIST,FRT DOOR 8-98029-193-1 01 1 1311-1412 ●
72 SEAL; WAIST,FRT DOOR 8-98029-193-1 01 1 1501- ● ●
192 HOLDER; DOOR GLASS
MAL 		8-98211-762-0 04 1 1311-1408 ●
192 HOLDER; DOOR GLASS
MAL 		8-98134-194-0 04 1 1409-1412 ●
192 HOLDER; DOOR GLASS
MAL 		8-98134-194-0 04 1 1501- ● ●
207 SCREW; DOOR GLASS
M6X10 FLANGE 		0-28050-610-0 04 1 1311-1412 ●
207 SCREW; DOOR GLASS
M6X10 FLANGE 		0-28050-610-0 04 1 1501- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
