6-05 — FRONT PANEL (#130887) — 111 parça

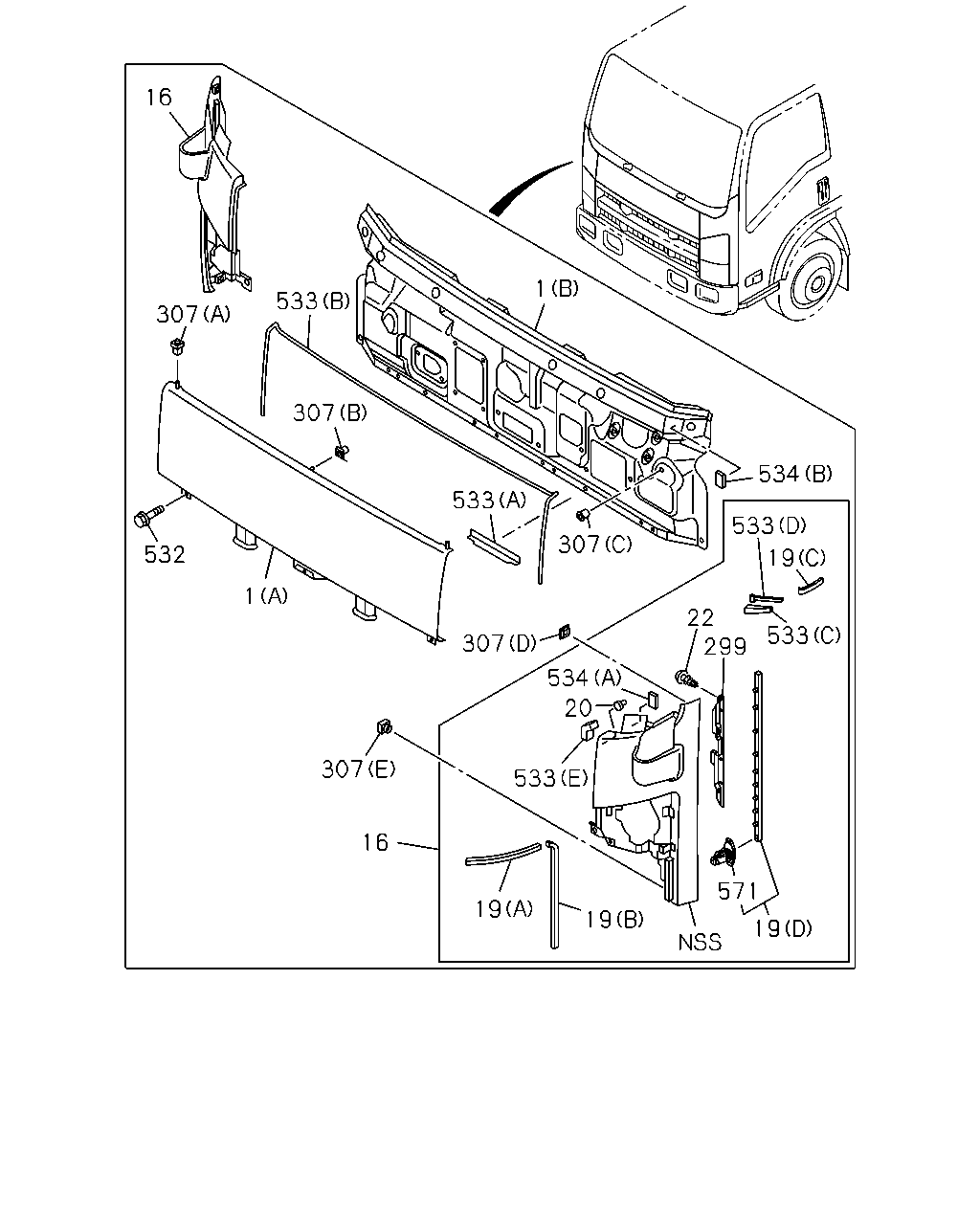

çizim 385632
1 534 533 533 299 22 534 533 307 307 16 1 532 307 307 533 533 307 19 19 571 19 19 16 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 1311-1412 ●
1 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 1501- ● ●
1 PANEL ASM; FRT
4HG1-T ENG(RDP) PTO MANUAL CONTROL(6WC) (B) 		8-98182-390-0 01 1 1311-1311 ●
1 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98182-390-0 01 1 1312-1412 ●
1 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98182-390-0 01 1 1501- ● ●
1 PANEL ASM; FRT
4HG1-T ENG(RDP) EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98181-027-0 01 1 1311-1311 ●
1 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98181-027-0 01 1 1312-1412 ●
1 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98181-027-0 01 1 1501- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97406-039-9 01 1 1311-1412 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97406-039-9 01 1 1501- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97406-040-9 01 1 1311-1412 ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97406-040-9 01 1 1501- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-715-9 01 1 1311-1412 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-715-9 01 1 1501- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-716-9 01 1 1311-1412 ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-716-9 01 1 1501- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97414-635-9 01 1 1311- ●
16 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97414-636-9 01 1 1311- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97409-870-9 01 1 1311-1412 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97409-870-9 01 1 1501- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97409-872-9 01 1 1311-1412 ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97409-872-9 01 1 1501- ● ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 1311-1412 ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 1501- ● ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 1311-1412 ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 1501- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 02 1 1311-1412 ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 02 1 1501- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 02 1 1311-1412 ●
19 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 02 1 1501- ● ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 02 1 1311-1412 ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 02 1 1501- ● ●
20 CLIP; FRT PANEL SIDE 8-97410-739-1 04 1 1311-1412 ●
20 CLIP; FRT PANEL SIDE 8-97410-739-1 04 1 1501- ● ●
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1311-1412 ●
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1501- ● ●
299 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 1311-1412 ●
299 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 1501- ● ●
299 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 1311-1412 ●
299 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 1501- ● ●
307 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 1311-1412 ●
307 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 1501- ● ●
307 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 1311-1412 ●
307 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 1501- ● ●
307 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 1311-1412 ●
307 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 1501- ● ●
307 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 1311-1412 ●
307 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 1501- ● ●
307 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 1311-1412 ●
307 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 1501- ● ●
307 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 1311-1412 ●
307 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 1501- ● ●
532 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 1311-1412 ●
532 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 1501- ● ●
533 SEAL; FRT PANEL
(B) 		8-98021-964-4 01 1 1311-1412 ●
533 SEAL; FRT PANEL
(B) 		8-98021-964-4 01 1 1501-1506 ● ●
533 SEAL; FRT PANEL
(B) 		8-98309-764-0 01 1 1507- ● ●
533 SEAL; FRT PANEL
(A) 		8-98021-965-2 01 1 1311-1412 ●
533 SEAL; FRT PANEL
(A) 		8-98021-965-2 01 1 1501- ● ●
533 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 1311-1412 ●
533 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 1501- ● ●
533 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 1311-1412 ●
533 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 1501- ● ●
533 SEAL; FRT PANEL
(D) 		8-98043-511-1 02 1 1311-1412 ●
533 SEAL; FRT PANEL
(D) 		8-98043-511-1 02 1 1501- ● ●
533 SEAL; FRT PANEL
(E) 		8-98064-939-0 02 1 1311-1412 ●
533 SEAL; FRT PANEL
(E) 		8-98064-939-0 02 1 1501- ● ●
534 FASTENER
(B) 40X25 		8-98089-411-1 02 1 1311-1412 ●
534 FASTENER
(B) 40X25 		8-98089-411-1 02 1 1501- ● ●
534 FASTENER
(A) 40X25 		8-98089-412-1 02 1 1311-1412 ●
534 FASTENER
(A) 40X25 		8-98089-412-1 02 1 1501- ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 1311-1412 ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 1501- ● ●

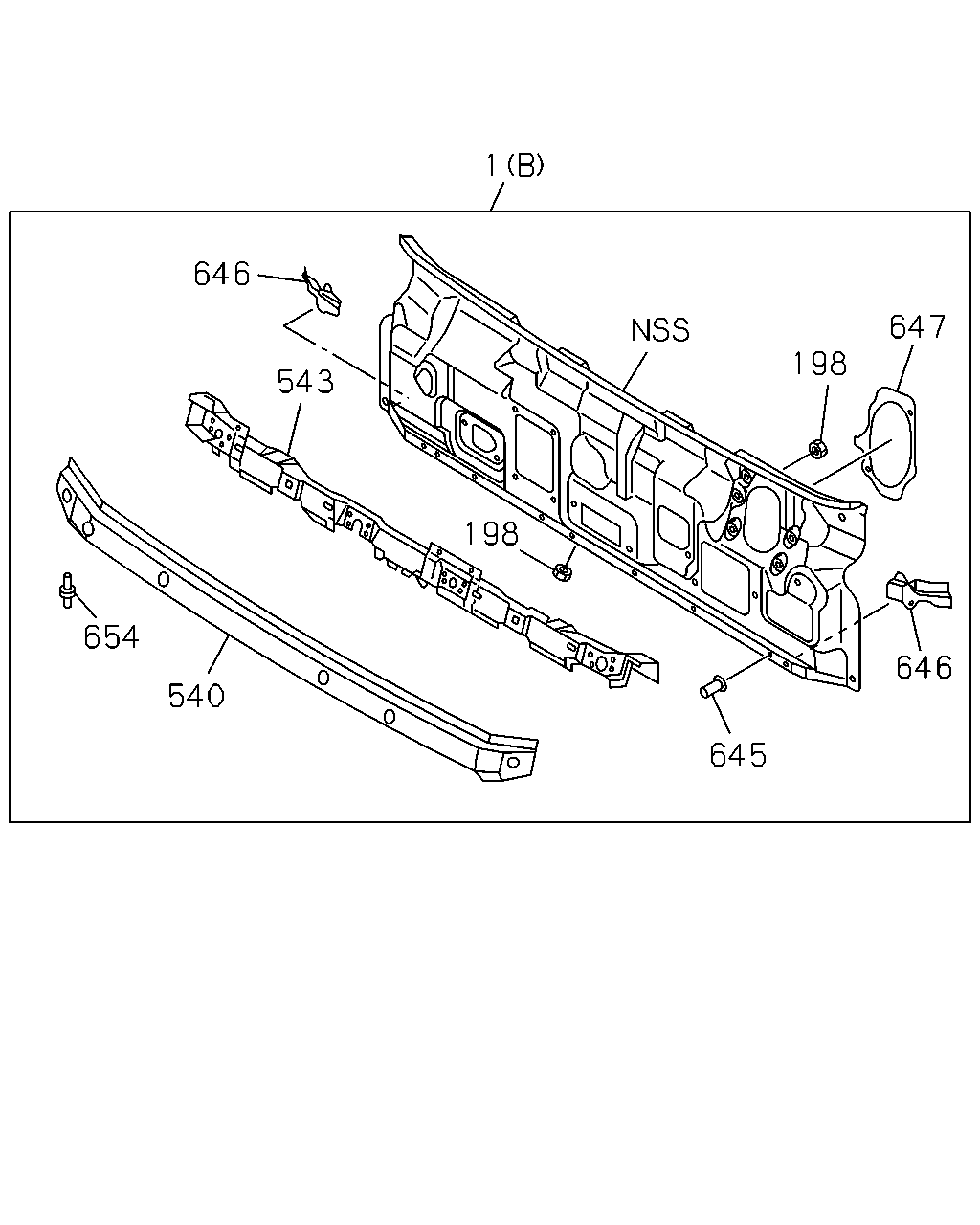

çizim 385684
198 645 646 647 1 646 654 540 198 543
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 1311-1412 ●
1 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 1501- ● ●
1 PANEL ASM; FRT
4HG1-T ENG(RDP) PTO MANUAL CONTROL(6WC) (B) 		8-98182-390-0 01 1 1311-1311 ●
1 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98182-390-0 01 1 1312-1412 ●
1 PANEL ASM; FRT
PTO MANUAL CONTROL(6WC) (B) 		8-98182-390-0 01 1 1501- ● ●
1 PANEL ASM; FRT
4HG1-T ENG(RDP) EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98181-027-0 01 1 1311-1311 ●
1 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98181-027-0 01 1 1312-1412 ●
1 PANEL ASM; FRT
EXC. PTO MANUAL CONTROL(6WC) (B) 		8-98181-027-0 01 1 1501- ● ●
198 NUT; PANEL
4HG1-T ENG(RDP) PTO MANUAL CONTROL(6WC) M6 MAL 		9-09114-086-0 06 1 1311-1311 ●
198 NUT; PANEL
PTO MANUAL CONTROL(6WC) M6 MAL 		9-09114-086-0 06 1 1312-1412 ●
198 NUT; PANEL
PTO MANUAL CONTROL(6WC) M6 MAL 		9-09114-086-0 06 1 1501- ● ●
198 NUT; PANEL
4HG1-T ENG(RDP) EXC. PTO MANUAL CONTROL(6WC) M6 MAL 		9-09114-086-0 04 1 1311-1311 ●
198 NUT; PANEL
EXC. PTO MANUAL CONTROL(6WC) M6 MAL 		9-09114-086-0 04 1 1312-1412 ●
198 NUT; PANEL
EXC. PTO MANUAL CONTROL(6WC) M6 MAL 		9-09114-086-0 04 1 1501- ● ●
540 PANEL; FRONT,OUTER
4HG1-T ENG(RDP) 		8-97585-325-3 01 1 1311-1311 ●
540 PANEL; FRONT,OUTER 8-97585-325-3 01 1 1312-1412 ●
540 PANEL; FRONT,OUTER 8-97585-325-3 01 1 1501- ● ●
543 CLOSING; FRT MTG RAIL
4HG1-T ENG(RDP) 		8-97585-328-5 01 1 1311-1311 ●
543 CLOSING; FRT MTG RAIL 8-97585-328-5 01 1 1312-1412 ●
543 CLOSING; FRT MTG RAIL 8-97585-328-5 01 1 1501- ● ●
645 STUD; FRT PANEL
4HG1-T ENG(RDP) M6X12 		8-98013-112-0 06 1 1311-1311 ●
645 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 1312-1412 ●
645 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 1501- ● ●
646 REINFORCEMENT; DASH
4HG1-T ENG(RDP) 		8-98023-098-1 01 1 1311-1311 ●
646 REINFORCEMENT; DASH 8-98023-098-1 01 1 1312-1412 ●
646 REINFORCEMENT; DASH 8-98023-098-1 01 1 1501- ● ●
646 REINFORCEMENT; DASH
4HG1-T ENG(RDP) 		8-98023-099-1 01 1 1311-1311 ●
646 REINFORCEMENT; DASH 8-98023-099-1 01 1 1312-1412 ●
646 REINFORCEMENT; DASH 8-98023-099-1 01 1 1501- ● ●
647 REINFORCEMENT; WIPER MOTOR
4HG1-T ENG(RDP) 		8-98006-327-0 01 1 1311-1311 ●
647 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 1312-1412 ●
647 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 1501- ● ●
654 PIN; FRT PANEL
4HG1-T ENG(RDP) 		8-98021-967-2 02 1 1311-1311 ●
654 PIN; FRT PANEL 8-98021-967-2 02 1 1312-1412 ●
654 PIN; FRT PANEL 8-98021-967-2 02 1 1501- ● ●
çizim 513672
524 523
BalonParca AdiParca NoAdetTipApplied Date A B
523 COVER; FENDER RR 8-97410-295-2 01 1 1501- ●
523 COVER; FENDER RR 8-97410-296-2 01 1 1501- ●
524 CLIP; FENDER COVER
OD=8.5 GRAY 		8-97893-482-0 06 1 1501- ●
