◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51501 - NPR(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#130885) — 27 parça

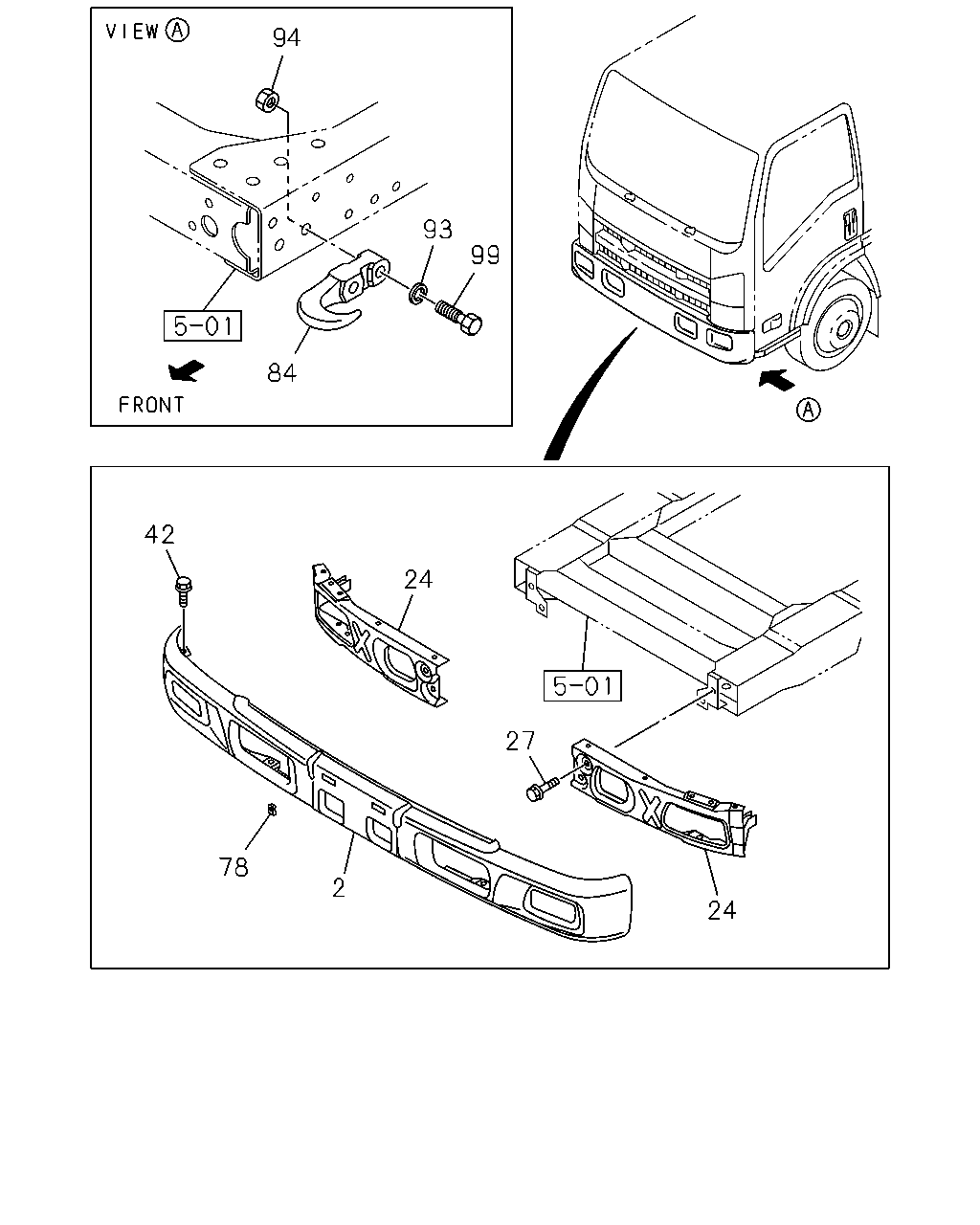

çizim 386470
94 84 93 99 42 24 27 24 78 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 BUMPER; FRT,CENTER
FOG LAMP<T96> FRONT BUMPER PAINTED<VB5> PRIMER 		8-98055-079-2 01 1 1311-1412 ●
2 BUMPER; FRT,CENTER
FOG LAMP<T96> FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97405-627-5 01 1 1311-1412 ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> WHITE 		8-97405-628-5 01 1 1311-1412 ●
2 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> BLUE 		8-97405-629-5 01 1 1311-1412 ●
2 BUMPER; FRT,CENTER
FOG LAMP<T96> FRONT BUMPER PAINTED<VB5> PRIMER 		8-98055-079-2 01 1 1501- ● ●
2 BUMPER; FRT,CENTER
FOG LAMP<T96> FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97405-627-5 01 1 1501- ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> WHITE 		8-97405-628-5 01 1 1501- ● ●
2 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> BLUE 		8-97405-629-5 01 1 1501- ● ●
24 BAR; FRT BUMPER 8-98025-184-5 01 1 1311-1412 ●
24 BAR; FRT BUMPER 8-98025-184-5 01 1 1501- ● ●
24 BAR; FRT BUMPER 8-98025-185-5 01 1 1311-1412 ●
24 BAR; FRT BUMPER 8-98025-185-5 01 1 1501- ● ●
27 BOLT; BUMPER TO BACK BAR
4HG1-T ENG(RDP) M10X30 W/TORQUES 		8-98092-250-0 04 1 1311-1311 ●
27 BOLT; BUMPER TO BACK BAR
M10X30 W/TORQUES 		8-98092-250-0 04 1 1312-1412 ●
27 BOLT; BUMPER TO BACK BAR
M10X30 W/TORQUES 		8-98092-250-0 04 1 1501- ● ●
42 BOLT; BUMPER
M6X16 W/LK&PL WASHER 		0-52010-616-0 10 1 1311-1412 ●
42 BOLT; BUMPER
M6X16 W/LK&PL WASHER 		0-52010-616-0 10 1 1501- ● ●
78 NUT; SPIRE
M6 		8-98029-416-0 02 1 1311-1412 ●
78 NUT; SPIRE
M6 		8-98029-416-0 02 1 1501- ● ●
84 HOOK 8-97387-665-0 01 1 1311-1412 ●
84 HOOK 8-97387-665-0 01 1 1501- ● ●
93 WASHER; LK,HOOK
ID=14.2 MAL 		0-91510-814-0 02 1 1311-1412 ●
93 WASHER; LK,HOOK
ID=14.2 MAL 		0-91510-814-0 02 1 1501- ● ●
94 NUT; HOOK
M14 MAL 		0-91110-514-0 01 1 1311-1412 ●
94 NUT; HOOK
M14 MAL 		0-91110-514-0 01 1 1501- ● ●
99 BOLT; HOOK
M14X55 		8-97301-262-0 02 1 1311-1412 ●
99 BOLT; HOOK
M14X55 		8-97301-262-0 02 1 1501- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
