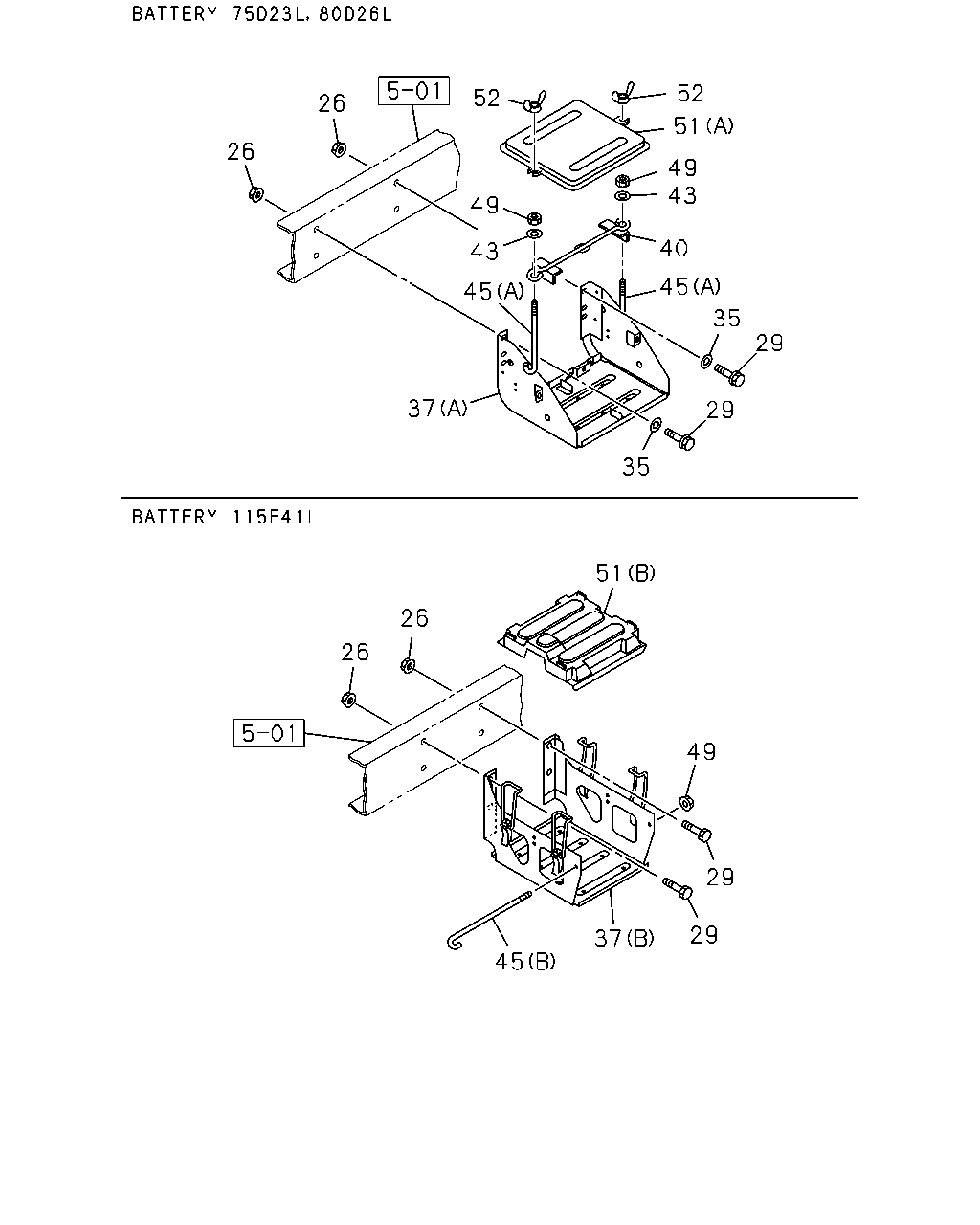

5-20 — BATTERY CARRIER (#130883) — 33 parça

45 37 29 29 49 51 26 26 35 29 29 35 45 40 43 49 51 52 37 45 43 49 52 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	NUT; BRKT M10 FLANGE MAL	0-91180-210-0	04	1	1311-1412	●
26	NUT; BRKT M10 FLANGE MAL	0-91180-210-0	04	1	1501-	●	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28661-035-0	04	1	1311-1412	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28661-035-0	04	1	1501-	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1311-1412	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1501-	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1> ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1501-		●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A) MAL	8-97384-067-2	01	1	1311-1412	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A) MAL	8-97384-067-2	01	1	1501-	●	●
37	BRACKET; BATTERY BATTERY 75D23L<8LZ> (A) MAL	8-97384-068-2	01	1	1311-	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1311-1412	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1501-	●	●
40	CLAMP; BATTERY BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> MAL	5-53615-004-1	01	1	1311-1412	●
40	CLAMP; BATTERY BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> MAL	5-53615-004-1	01	1	1501-	●
40	CLAMP; BATTERY BATTERY 80D26L<TM1> MAL	5-53615-004-1	01	1	1501-		●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> ID=8.4 OD=22	0-91614-708-0	02	1	1311-1412	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> ID=8.4 OD=22	0-91614-708-0	02	1	1501-	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1> ID=8.4 OD=22	0-91614-708-0	02	1	1501-		●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> (A) L=120 MAL	9-53616-615-0	02	1	1311-1412	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> (A) L=120 MAL	9-53616-615-0	02	1	1501-	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1> (A) L=120 MAL	9-53616-615-0	02	1	1501-		●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (B) L=430	8-97134-740-0	02	1	1312-1412	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (B) L=430	8-97134-740-0	02	1	1501-	●	●
49	NUT; ROD,BATTERY M8 FLANGE MAL	0-91180-108-0	02	1	1311-1412	●
49	NUT; ROD,BATTERY M8 FLANGE MAL	0-91180-108-0	02	1	1501-	●	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> (A) MAL	8-97120-747-0	01	1	1311-1412	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> (A) MAL	8-97120-747-0	01	1	1501-	●
51	COVER; BATTERY BATTERY 80D26L<TM1> (A) MAL	8-97120-747-0	01	1	1501-		●
51	COVER; BATTERY BATTERY 115E41L<8MA> (B)	1-53612-029-1	01	1	1312-1412	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (B)	1-53612-029-1	01	1	1501-	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> M8 WING NUT	0-91118-408-0	02	1	1311-1412	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 75D23L<8LZ> M8 WING NUT	0-91118-408-0	02	1	1501-	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1> M8 WING NUT	0-91118-408-0	02	1	1501-		●
