5-15 — CAB MOUNTING; CAB SIDE (#130882) — 103 parça

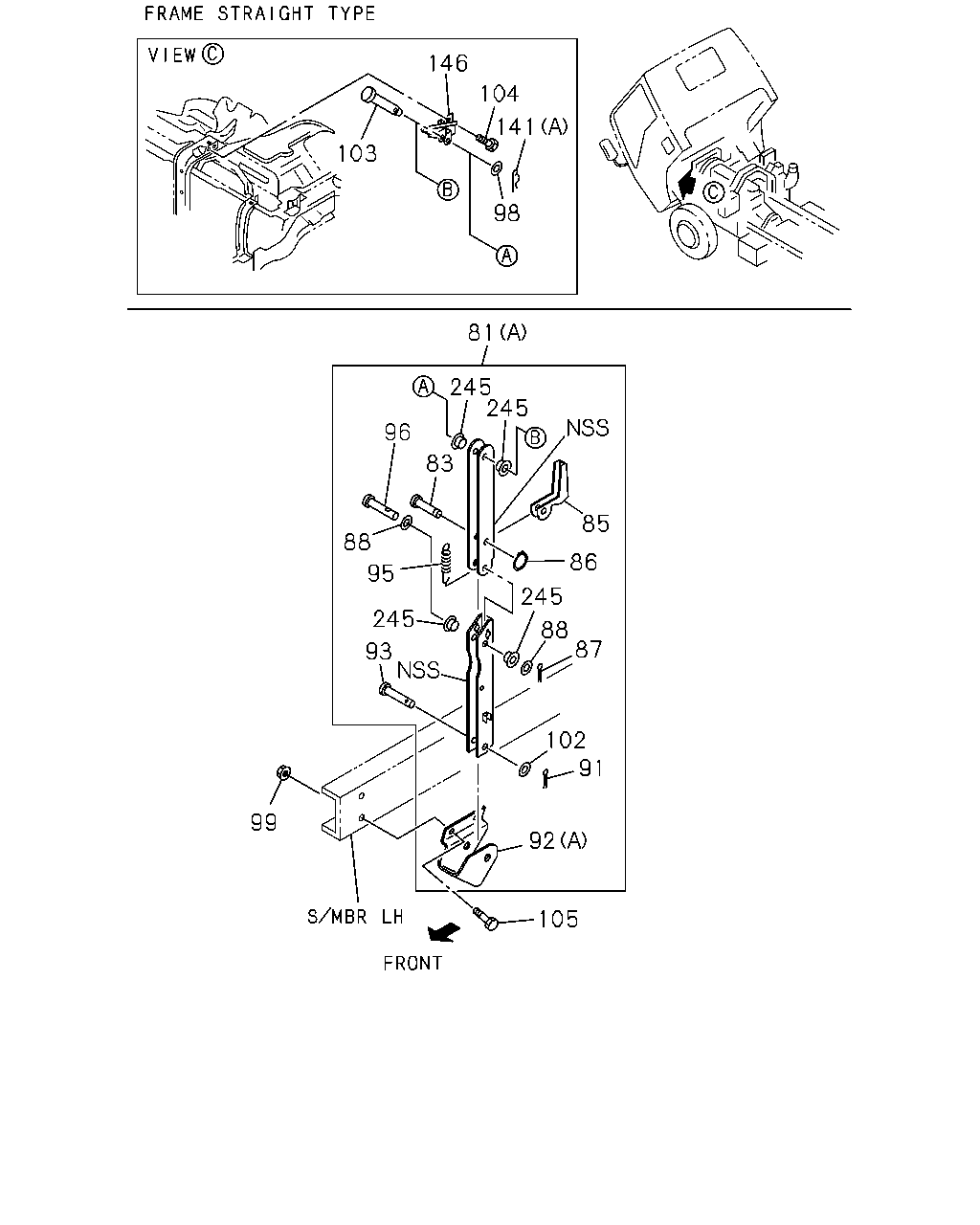

146 103 104 98 81 245 96 88 95 245 93 99 105 92 102 91 87 88 245 86 85 245 83 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
81	STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (A)	8-98159-857-0	01	1	1311-1311	●
81	STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-98159-857-0	01	1	1312-	●
81	STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98123-307-0	01	1	1312-	●
83	PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ>	8-98122-493-0	01	1	1311-	●
85	LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> MAL	8-94331-481-0	01	1	1311-	●
86	RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> ID=6	0-91805-506-0	01	1	1311-	●
87	PIN; SPLIT,CAB STAY PIN MANUAL TILT CAB<RWZ> OD=2.8 L=20	0-81123-020-0	01	1	1311-	●
88	WASHER; PL,CAB STAY PIN MANUAL TILT CAB<RWZ> ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1311-	●
91	PIN; SPLIT,CAB STAY MANUAL TILT CAB<RWZ> OD=3.7 L=20	0-81124-020-0	01	1	1311-	●
92	BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> (A)	8-98011-317-0	01	1	1311-1311	●
92	BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-98011-317-0	01	1	1312-	●
92	BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98001-020-0	01	1	1312-	●
93	PIN; CAB STAY MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	1311-	●
95	SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> MAL	8-94160-167-2	01	1	1311-	●
96	PIN; JOINT MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	1311-	●
98	WASHER; CAB STAY MANUAL TILT CAB<RWZ> ID=10.5 T=2.0	1-09985-183-0	01	1	1311-	●
99	NUT; CAB STAY MANUAL TILT CAB<RWZ> M10 FLANGE MAL	0-91180-110-0	02	1	1311-	●
102	WASHER; PL,CAB STAY MANUAL TILT CAB<RWZ> ID=12.5 OD=26	0-91610-612-0	01	1	1311-	●
103	PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=10 L=48	1-09744-107-0	01	1	1311-	●
104	BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28660-820-0	03	1	1311-	●
105	BOLT; CAB STAY MANUAL TILT CAB<RWZ> M10X30 FLANGE	0-28651-030-0	02	1	1311-	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	1311-	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1311-	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1311-	●
146	BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-97387-328-2	01	1	1311-	●
245	BUSHING; CAB STAY MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	1311-	●

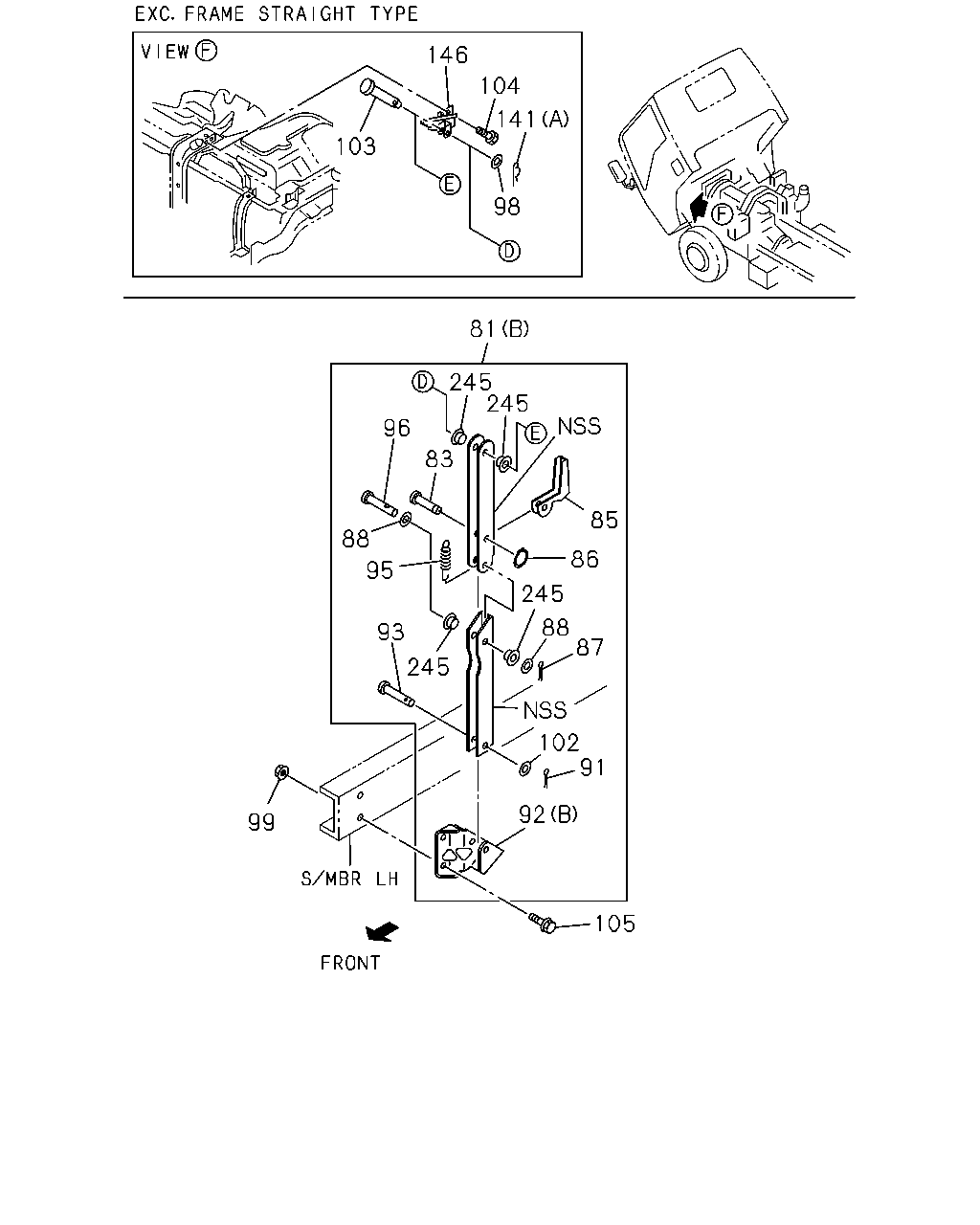

103 146 141 104 98 81 245 85 83 96 245 88 95 93 245 245 86 88 87 102 91 92 99 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
81	STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (A)	8-98159-857-0	01	1	1311-1311	●
81	STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-98159-857-0	01	1	1312-	●
81	STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98123-307-0	01	1	1312-	●
83	PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ>	8-98122-493-0	01	1	1311-	●
85	LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> MAL	8-94331-481-0	01	1	1311-	●
86	RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> ID=6	0-91805-506-0	01	1	1311-	●
87	PIN; SPLIT,CAB STAY PIN MANUAL TILT CAB<RWZ> OD=2.8 L=20	0-81123-020-0	01	1	1311-	●
88	WASHER; PL,CAB STAY PIN MANUAL TILT CAB<RWZ> ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1311-	●
91	PIN; SPLIT,CAB STAY MANUAL TILT CAB<RWZ> OD=3.7 L=20	0-81124-020-0	01	1	1311-	●
92	BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> (A)	8-98011-317-0	01	1	1311-1311	●
92	BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-98011-317-0	01	1	1312-	●
92	BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98001-020-0	01	1	1312-	●
93	PIN; CAB STAY MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	1311-	●
95	SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> MAL	8-94160-167-2	01	1	1311-	●
96	PIN; JOINT MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	1311-	●
98	WASHER; CAB STAY MANUAL TILT CAB<RWZ> ID=10.5 T=2.0	1-09985-183-0	01	1	1311-	●
99	NUT; CAB STAY MANUAL TILT CAB<RWZ> M10 FLANGE MAL	0-91180-110-0	02	1	1311-	●
102	WASHER; PL,CAB STAY MANUAL TILT CAB<RWZ> ID=12.5 OD=26	0-91610-612-0	01	1	1311-	●
103	PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=10 L=48	1-09744-107-0	01	1	1311-	●
104	BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28660-820-0	03	1	1311-	●
105	BOLT; CAB STAY MANUAL TILT CAB<RWZ> M10X30 FLANGE	0-28651-030-0	02	1	1311-	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	1311-	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1311-	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1311-	●
146	BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-97387-328-2	01	1	1311-	●
245	BUSHING; CAB STAY MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	1311-	●

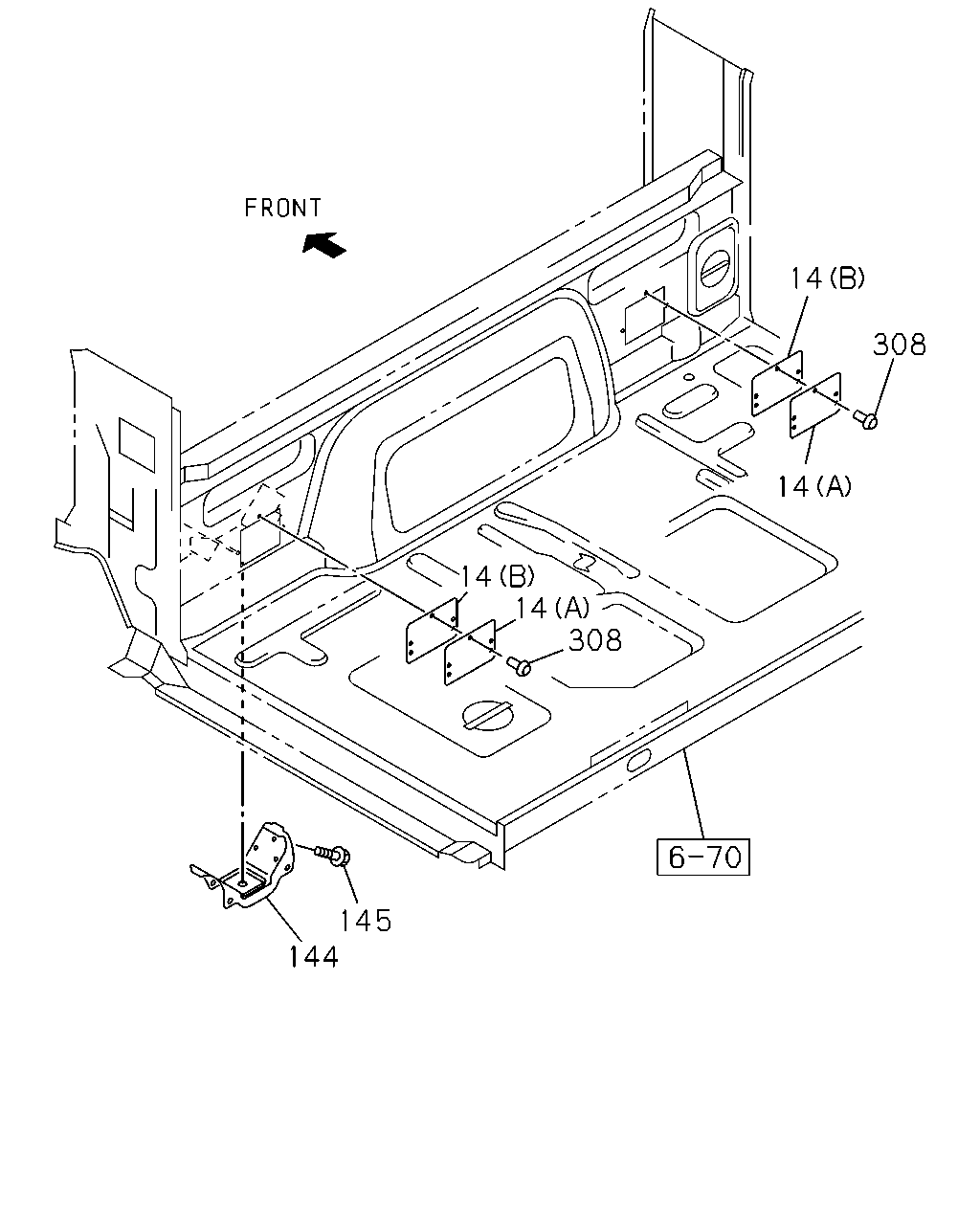

144 145 14 14 308 14 14 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	COVER; MTG,CAB (A) BLACK L=125	8-94273-738-3	02	1	1501-		●
14	COVER; MTG,CAB (B) BLACK L=124	8-98132-457-0	02	1	1501-		●
144	BRACKET ASM; CAB RR MTG	8-97853-060-4	02	1	1501-		●
144	BRACKET ASM; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>	8-97853-066-4	02	1	1311-	●
145	BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> M8X24.5 W/LK&PL WASHER MAL	8-98051-939-0	12	1	1311-1412	●
145	BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> M8X24.5 W/LK&PL WASHER MAL	8-98051-939-0	12	1	1501-	●
145	BOLT; CAB RR MTG BRKT M8X24.5 W/LK&PL WASHER MAL	8-98051-939-0	12	1	1501-		●
308	RIVET; COVER D6X12.5	8-94146-425-0	06	1	1501-		●

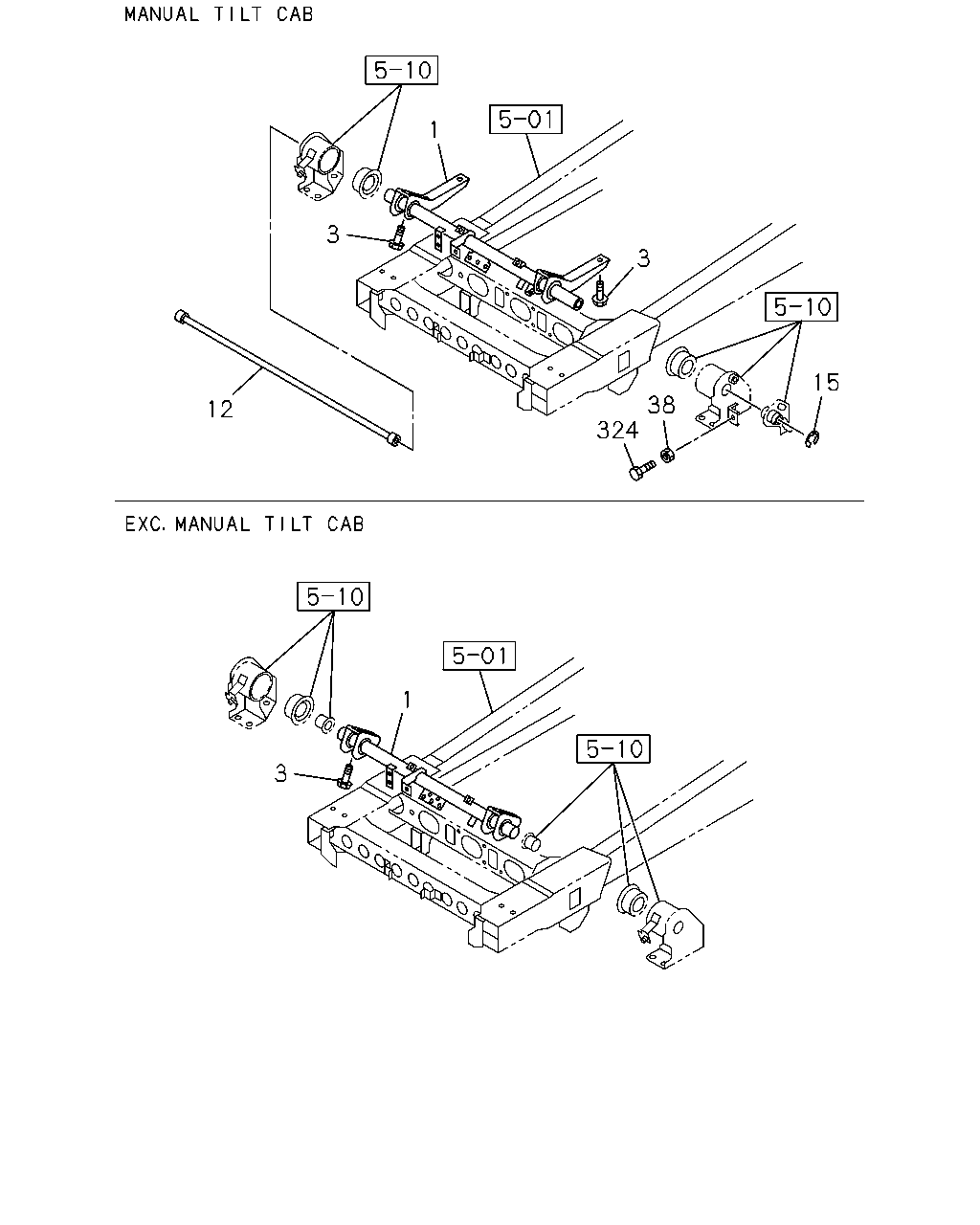

3 1 3 15 38 324 3 1 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER; TORSION BAR MANUAL TILT CAB<RWZ>	8-98074-174-1	01	1	1311-	●
1	LEVER; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-98077-693-0	01	1	1311-1412	●
1	LEVER; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-98077-693-0	01	1	1501-	●
1	LEVER; TORSION BAR	8-98077-693-0	01	1	1501-		●
3	BOLT; LEVER MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER MAL	8-97359-033-0	06	1	1311-	●
3	BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER MAL	8-97359-033-0	04	1	1311-1412	●
3	BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER MAL	8-97359-033-0	04	1	1501-	●
3	BOLT; LEVER M12X37 W/LK&PL WASHER MAL	8-97359-033-0	04	1	1501-		●
12	BAR; TORSION,UPR MANUAL TILT CAB<RWZ>	8-98166-027-0	01	1	1311-	●
15	RING; SNAP,TORSION BAR MANUAL TILT CAB<RWZ> MAL	8-97359-034-0	01	1	1311-	●
38	NUT; LK MANUAL TILT CAB<RWZ> M14	8-98039-988-0	01	1	1311-	●
324	BOLT; ADJUST MANUAL TILT CAB<RWZ> M14X55	8-98004-319-1	01	1	1311-	●

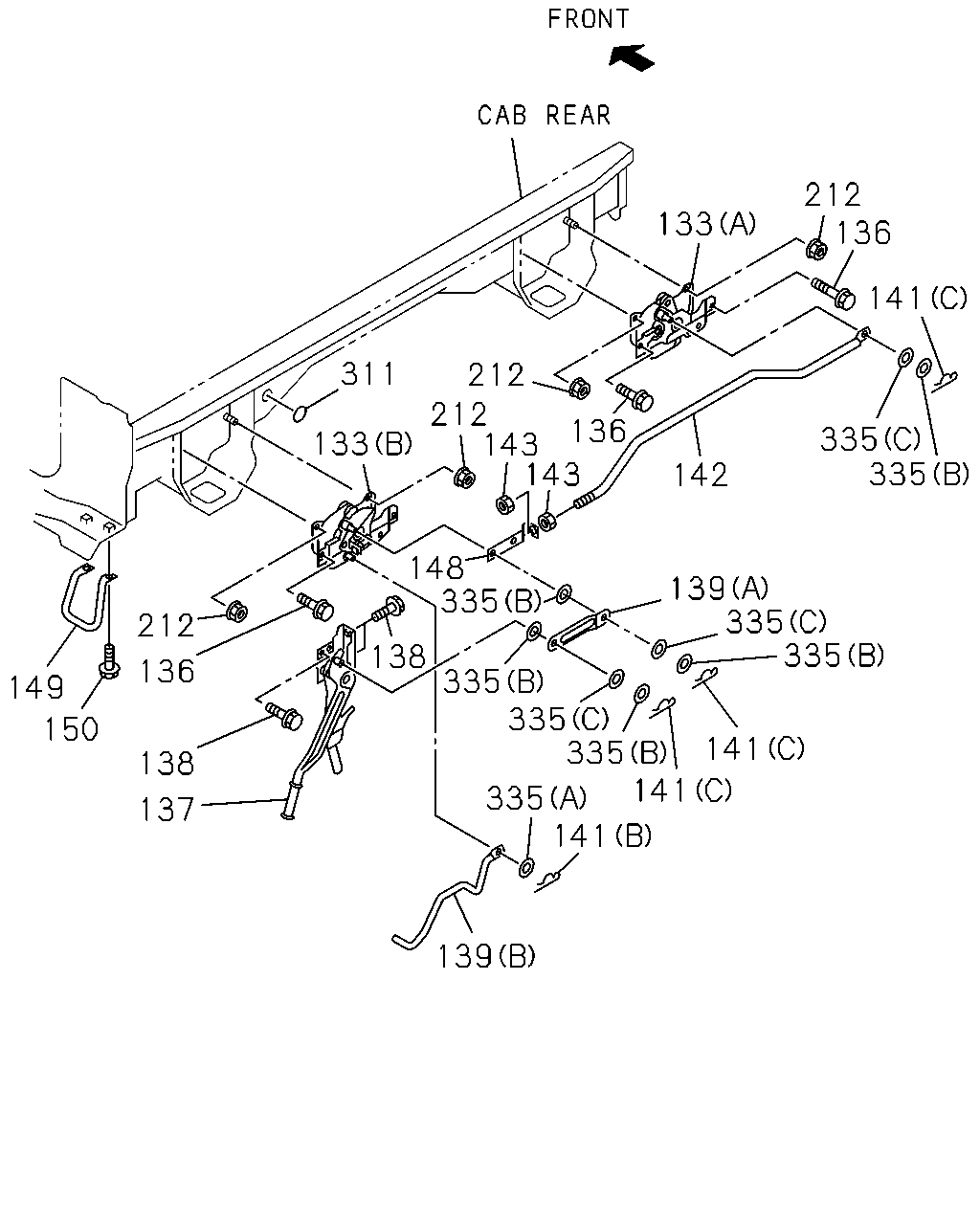

311 133 212 136 138 137 149 138 212 212 143 143 136 133 142 212 141 136 335 335 139 335 335 141 141 335 335 141 139 335 335 148 335 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
133	LOCK ASM; CAB MANUAL TILT CAB<RWZ> (B)	8-97410-270-2	01	1	1311-	●
133	LOCK ASM; CAB MANUAL TILT CAB<RWZ> (A)	8-98182-353-0	01	1	1311-	●
136	BOLT; CAB LK MANUAL TILT CAB<RWZ> M8X20 FLANGE MAL	0-28650-820-0	04	1	1311-	●
137	CONTROL UNIT; CAB LOCK MANUAL TILT CAB<RWZ>	8-97584-469-3	01	1	1311-	●
138	BOLT; CAB LOCK CONT UNIT MANUAL TILT CAB<RWZ> M8X20 FLANGE MAL	0-28650-820-0	03	1	1311-	●
139	ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (A)	8-97584-483-2	01	1	1311-	●
139	ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (B)	8-98128-202-0	01	1	1311-	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	1311-	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1311-	●
141	PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1311-	●
142	ROD; HOOK TO HOOK 4HG1-T ENG(RDP) MANUAL TILT CAB<RWZ>	8-97410-633-0	01	1	1311-1311	●
142	ROD; HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-633-0	01	1	1312-	●
143	NUT; JAW JOINT,HOOK TO HOOK 4HG1-T ENG(RDP) MANUAL TILT CAB<RWZ> M10 MAL	0-91110-510-0	02	1	1311-1311	●
143	NUT; JAW JOINT,HOOK TO HOOK MANUAL TILT CAB<RWZ> M10 MAL	0-91110-510-0	02	1	1312-	●
148	JOINT; JAW,HOOK TO HOOK 4HG1-T ENG(RDP) MANUAL TILT CAB<RWZ>	8-97410-736-0	01	1	1311-1311	●
148	JOINT; JAW,HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-736-0	01	1	1312-	●
149	HANDLE; TILT MANUAL TILT CAB<RWZ>	8-98067-938-0	01	1	1311-	●
150	BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> M8X25 FLANGE MAL	0-28650-825-0	02	1	1311-	●
212	NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> M8 FLANGE MAL	0-91180-108-0	04	1	1311-	●
311	SEAL; CAB LOCK OD=32 BLACK MAL	8-98031-126-0	01	1	1311-	●
335	WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) ID=12.5 OD=22 MAL	0-91610-512-0	05	1	1311-	●
335	WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) ID=8.4 OD=14	5-09550-002-0	01	1	1311-	●
335	WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) ID=13 OD=22 MAL	8-98060-839-0	03	1	1311-	●

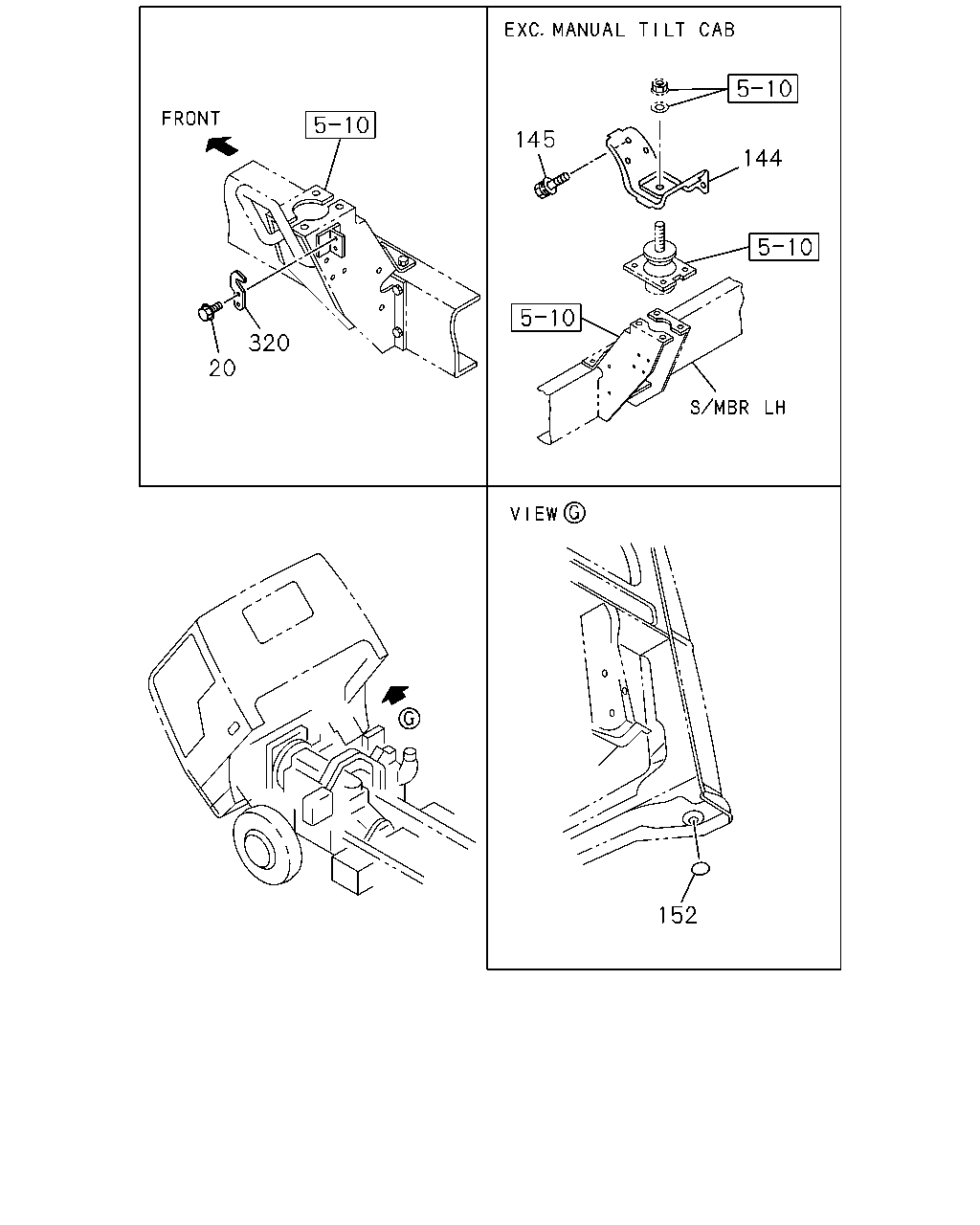

20 320 145 144 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	BOLT MANUAL TILT CAB<RWZ> M12X40 FLANGE MAL	0-28651-240-0	04	1	1311-	●
144	BRACKET ASM; CAB RR MTG	8-97853-060-4	02	1	1501-		●
144	BRACKET ASM; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>	8-97853-066-4	02	1	1311-	●
145	BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> M8X24.5 W/LK&PL WASHER MAL	8-98051-939-0	12	1	1311-1412	●
145	BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> M8X24.5 W/LK&PL WASHER MAL	8-98051-939-0	12	1	1501-	●
145	BOLT; CAB RR MTG BRKT M8X24.5 W/LK&PL WASHER MAL	8-98051-939-0	12	1	1501-		●
152	GROMMET; DUMMY HOLE,CAB TILT LOCK EXC. MANUAL TILT CAB<RWZ> OD=25 BLACK MAL	1-76798-019-0	02	1	1311-	●
320	ANCHOR; CAB RR MANUAL TILT CAB<RWZ>	8-98089-546-0	02	1	1311-	●
