Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#130881) — 265 parça

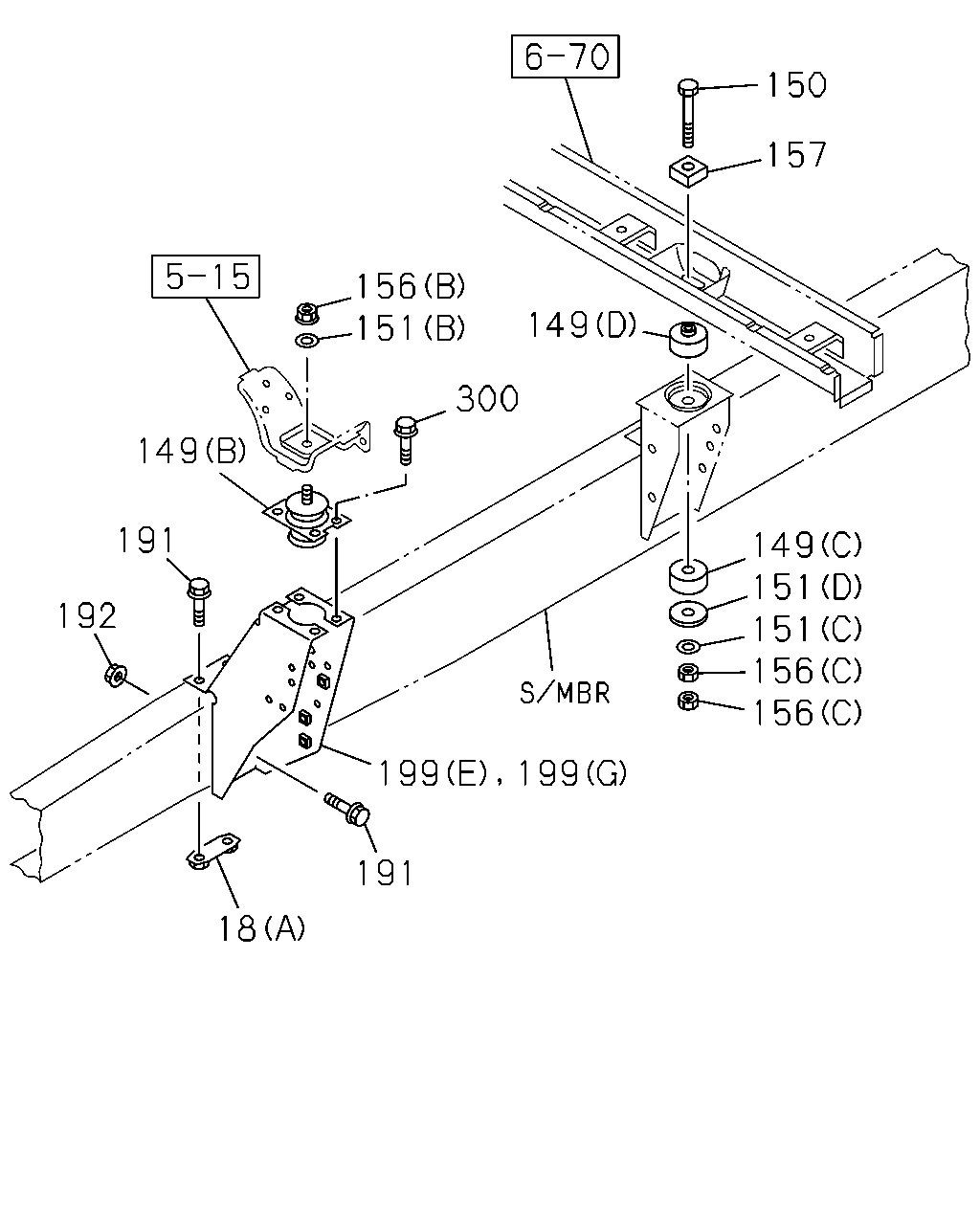

150 157 149 149 151 151 156 156 199 199 191 18 192 191 149 156 151 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	PLATE; MTG BRKT FIX (A) MAL	8-97034-139-2	02	1	1311-1412	●
18	PLATE; MTG BRKT FIX (A) MAL	8-97034-139-2	02	1	1501-	●	●
18	PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1311-1412	●
18	PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1501-	●	●
149	RUBBER; MTG,CAB,UPR RR (D) H=35	8-97256-684-0	02	1	1501-		●
149	RUBBER; MTG,CAB,UPR RR (C) H=26.5	8-97256-686-0	02	1	1501-		●
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62 MAL	8-98021-561-1	02	1	1311-	●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	1311-1412	●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	1501-	●
149	RUBBER; MTG,CAB,UPR RR (B) H=94	8-98038-868-0	02	1	1501-		●
150	BOLT; CAB MTG RR M14X110	8-97365-192-0	02	1	1501-		●
151	WASHER; CAB MTG,RR UPR (C) ID=15 OD=36	0-91614-714-0	02	1	1501-		●
151	WASHER; CAB MTG,RR UPR (D) ID=16 OD=60	8-97359-044-1	02	1	1501-		●
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62 MAL	8-97359-042-1	02	1	1311-	●
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	1311-1412	●
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	1501-	●
151	WASHER; CAB MTG,RR UPR (B) ID=16.5 OD=58	8-97359-040-1	02	1	1501-		●
156	NUT; CAB MTG RR (C) M14 MAL	0-91110-514-0	04	1	1501-		●
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16 MAL	0-91111-516-0	02	1	1311-	●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	1311-1412	●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	1501-	●
156	NUT; CAB MTG RR (B) M14 FLANGE	0-91180-114-0	02	1	1501-		●
157	RUBBER; MTG,CAB,TOP RR	8-97256-685-0	02	1	1501-		●
191	BOLT; BRKT FIX M12X40 FLANGE MAL	0-28651-240-0	08	1	1311-1311	●
191	BOLT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE MAL	0-28651-240-0	08	1	1312-1412	●
191	BOLT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE MAL	0-28651-240-0	08	1	1501-	●	●
191	BOLT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE MAL	0-28651-240-0	04	1	1312-	●
192	NUT; BRKT FIX M12 FLANGE MAL	0-91180-112-0	08	1	1311-1412	●
192	NUT; BRKT FIX M12 FLANGE MAL	0-91180-112-0	08	1	1501-1511	●	●
192	NUT; BRKT FIX M12 FLANGE MAL	0-91180-112-0	08	1	1512-	●	●
192	NUT; BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE MAL	0-91180-112-0	08	1	1512-	●
192	NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE MAL	0-91180-112-0	04	1	1312-1511	●
192	NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE MAL	0-91180-112-0	04	1	1312-1511	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98036-883-0	02	1	1311-	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C)	8-98024-776-4	01	1	1311-1311	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (C)	8-98024-776-4	01	1	1312-	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98024-777-4	01	1	1311-1311	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-98024-777-4	01	1	1312-	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (G)	8-98024-778-1	01	1	1311-1311	●
199	BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (G)	8-98024-778-1	01	1	1312-1412	●
199	BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (G)	8-98024-778-1	01	1	1501-1511	●
199	BRACKET; CAB RR MTG (G)	8-98024-778-1	01	1	1501-1511		●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (G)	8-98024-778-1	01	1	1512-	●
199	BRACKET; CAB RR MTG (G)	8-98024-778-1	01	1	1512-		●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (E)	8-98099-144-1	01	1	1311-1311	●
199	BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (E)	8-98099-144-1	01	1	1312-1412	●
199	BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (E)	8-98099-144-1	01	1	1501-1511	●
199	BRACKET; CAB RR MTG (E)	8-98099-144-1	01	1	1501-1511		●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (E)	8-98099-144-1	01	1	1512-	●
199	BRACKET; CAB RR MTG (E)	8-98099-144-1	01	1	1512-		●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98024-779-1	01	1	1312-1511	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98024-775-3	01	1	1512-	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>,FRAME STRAIGHT TYPE<7KJ> (F)	8-98024-771-1	01	1	1312-1511	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98024-774-3	01	1	1512-	●
199	BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98024-770-1	01	1	1312-1511	●
199	BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (H) MAL	8-97092-102-5	01	1	1312-1511	●
199	BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (H) MAL	8-97092-102-5	01	1	1312-1511	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (H) MAL	8-97092-102-5	02	1	1512-	●
300	BOLT; MTG RUBBER M10X20 FLANGE MAL	0-28651-020-0	08	1	1311-1412	●
300	BOLT; MTG RUBBER M10X20 FLANGE MAL	0-28651-020-0	08	1	1501-	●	●

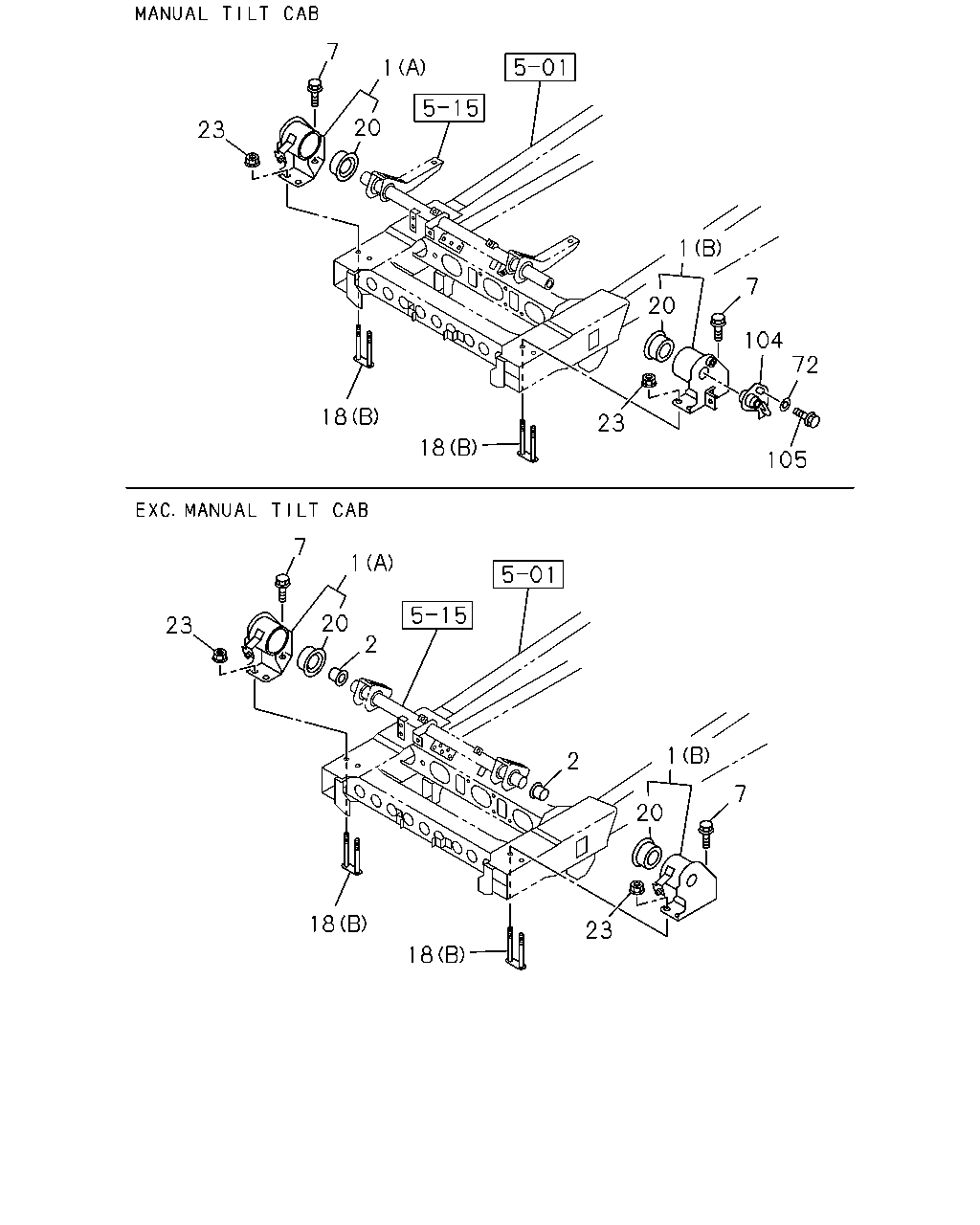

7 23 20 18 18 23 105 72 104 7 1 20 1 23 7 1 20 2 2 1 7 20 23 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ> (B)	8-98020-467-5	01	1	1311-	●
1	BRACKET; CAB MTG (A)	8-98074-798-2	01	1	1311-1412	●
1	BRACKET; CAB MTG (A)	8-98074-798-2	01	1	1501-	●	●
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ> (B)	8-98074-800-2	01	1	1311-1412	●
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ> (B)	8-98074-800-2	01	1	1501-	●
1	BRACKET; CAB MTG (B)	8-98074-800-2	01	1	1501-		●
2	BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	1311-1412	●
2	BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	1501-	●
2	BUSHING; TORSION BAR	8-97061-514-0	02	1	1501-		●
7	BOLT; BRKT,CAB TILT M14X40 FLANGE	0-28661-440-0	02	1	1311-1412	●
7	BOLT; BRKT,CAB TILT M14X40 FLANGE	0-28661-440-0	02	1	1501-	●	●
18	PLATE; MTG BRKT FIX (A) MAL	8-97034-139-2	02	1	1311-1412	●
18	PLATE; MTG BRKT FIX (A) MAL	8-97034-139-2	02	1	1501-	●	●
18	PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1311-1412	●
18	PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1501-	●	●
20	RUBBER; MTG,CAB BRKT	8-98007-037-1	02	1	1311-1412	●
20	RUBBER; MTG,CAB BRKT	8-98007-037-1	02	1	1501-	●	●
20	RUBBER; MTG,CAB BRKT	8-98007-037-1	02	1	1501-		●
23	NUT; MTG BRKT M14	8-98039-989-0	04	1	1311-1412	●
23	NUT; MTG BRKT M14	8-98039-989-0	04	1	1501-	●	●
72	WASHER; PL,BRKT TO FRAME MANUAL TILT CAB<RWZ> ID=15 OD=36	0-91614-714-0	01	1	1311-	●
104	BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97383-788-1	01	1	1311-	●
105	BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M14X35 FLANGE	0-28661-435-0	01	1	1311-	●

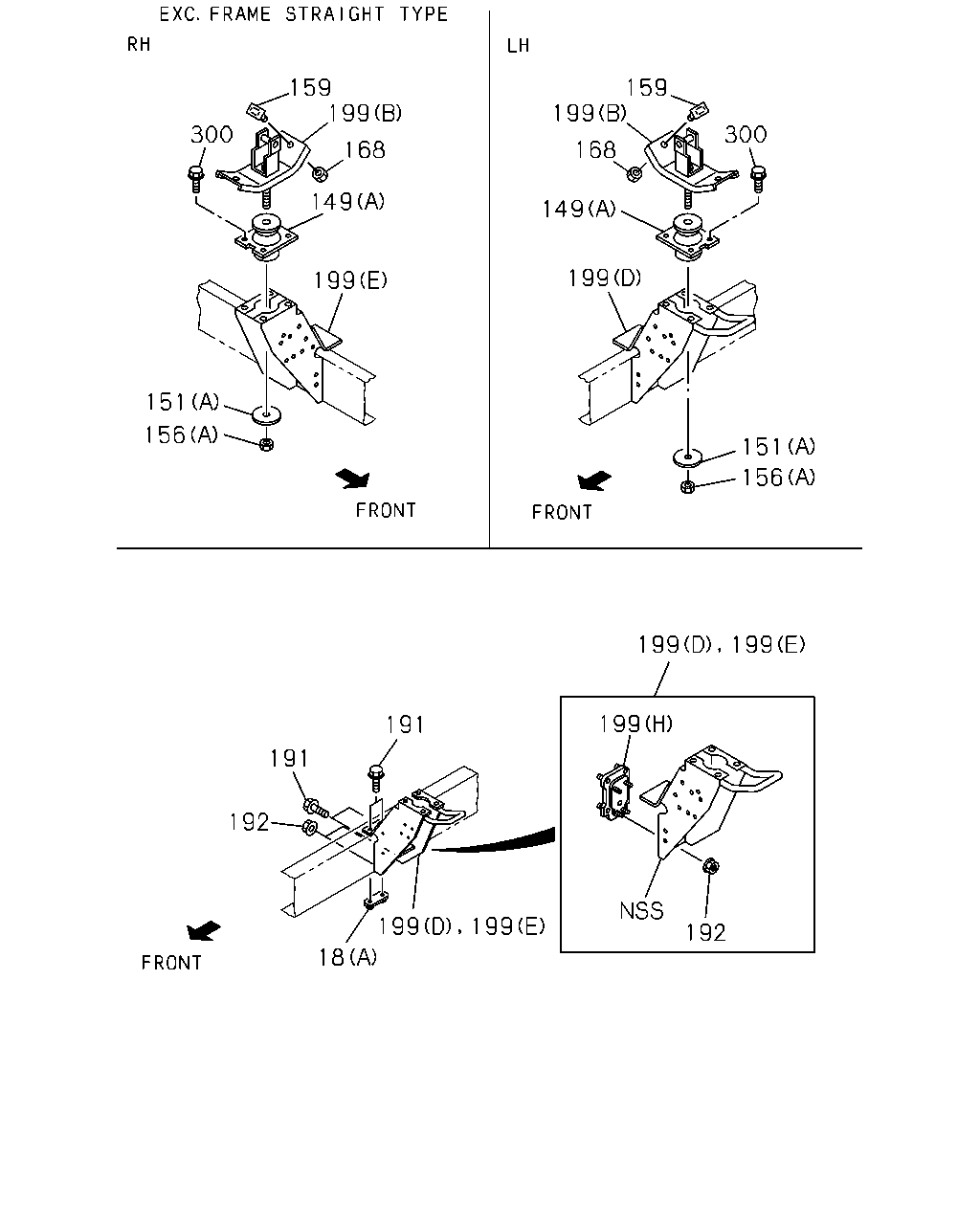

159 300 199 149 199 151 168 156 199 151 149 156 168 199 159 300 199 191 192 18 191 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	PLATE; MTG BRKT FIX (A) MAL	8-97034-139-2	02	1	1311-1412	●
18	PLATE; MTG BRKT FIX (A) MAL	8-97034-139-2	02	1	1501-	●	●
18	PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1311-1412	●
18	PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1501-	●	●
149	RUBBER; MTG,CAB,UPR RR (D) H=35	8-97256-684-0	02	1	1501-		●
149	RUBBER; MTG,CAB,UPR RR (C) H=26.5	8-97256-686-0	02	1	1501-		●
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62 MAL	8-98021-561-1	02	1	1311-	●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	1311-1412	●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	1501-	●
149	RUBBER; MTG,CAB,UPR RR (B) H=94	8-98038-868-0	02	1	1501-		●
151	WASHER; CAB MTG,RR UPR (C) ID=15 OD=36	0-91614-714-0	02	1	1501-		●
151	WASHER; CAB MTG,RR UPR (D) ID=16 OD=60	8-97359-044-1	02	1	1501-		●
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62 MAL	8-97359-042-1	02	1	1311-	●
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	1311-1412	●
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	1501-	●
151	WASHER; CAB MTG,RR UPR (B) ID=16.5 OD=58	8-97359-040-1	02	1	1501-		●
156	NUT; CAB MTG RR (C) M14 MAL	0-91110-514-0	04	1	1501-		●
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16 MAL	0-91111-516-0	02	1	1311-	●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	1311-1412	●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	1501-	●
156	NUT; CAB MTG RR (B) M14 FLANGE	0-91180-114-0	02	1	1501-		●
159	RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ> MAL	8-97113-340-0	04	1	1311-	●
168	NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> M8 FLANGE MAL	0-91180-108-0	04	1	1311-	●
191	BOLT; BRKT FIX M12X40 FLANGE MAL	0-28651-240-0	08	1	1311-1311	●
191	BOLT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE MAL	0-28651-240-0	08	1	1312-1412	●
191	BOLT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE MAL	0-28651-240-0	08	1	1501-	●	●
191	BOLT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE MAL	0-28651-240-0	04	1	1312-	●
192	NUT; BRKT FIX M12 FLANGE MAL	0-91180-112-0	08	1	1311-1412	●
192	NUT; BRKT FIX M12 FLANGE MAL	0-91180-112-0	08	1	1501-1511	●	●
192	NUT; BRKT FIX M12 FLANGE MAL	0-91180-112-0	08	1	1512-	●	●
192	NUT; BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE MAL	0-91180-112-0	08	1	1512-	●
192	NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE MAL	0-91180-112-0	04	1	1312-1511	●
192	NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE MAL	0-91180-112-0	04	1	1312-1511	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98036-883-0	02	1	1311-	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C)	8-98024-776-4	01	1	1311-1311	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (C)	8-98024-776-4	01	1	1312-	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98024-777-4	01	1	1311-1311	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-98024-777-4	01	1	1312-	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (G)	8-98024-778-1	01	1	1311-1311	●
199	BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (G)	8-98024-778-1	01	1	1312-1412	●
199	BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (G)	8-98024-778-1	01	1	1501-1511	●
199	BRACKET; CAB RR MTG (G)	8-98024-778-1	01	1	1501-1511		●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (G)	8-98024-778-1	01	1	1512-	●
199	BRACKET; CAB RR MTG (G)	8-98024-778-1	01	1	1512-		●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (E)	8-98099-144-1	01	1	1311-1311	●
199	BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (E)	8-98099-144-1	01	1	1312-1412	●
199	BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (E)	8-98099-144-1	01	1	1501-1511	●
199	BRACKET; CAB RR MTG (E)	8-98099-144-1	01	1	1501-1511		●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (E)	8-98099-144-1	01	1	1512-	●
199	BRACKET; CAB RR MTG (E)	8-98099-144-1	01	1	1512-		●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98024-779-1	01	1	1312-1511	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98024-775-3	01	1	1512-	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>,FRAME STRAIGHT TYPE<7KJ> (F)	8-98024-771-1	01	1	1312-1511	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98024-774-3	01	1	1512-	●
199	BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98024-770-1	01	1	1312-1511	●
199	BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (H) MAL	8-97092-102-5	01	1	1312-1511	●
199	BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (H) MAL	8-97092-102-5	01	1	1312-1511	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (H) MAL	8-97092-102-5	02	1	1512-	●
300	BOLT; MTG RUBBER M10X20 FLANGE MAL	0-28651-020-0	08	1	1311-1412	●
300	BOLT; MTG RUBBER M10X20 FLANGE MAL	0-28651-020-0	08	1	1501-	●	●

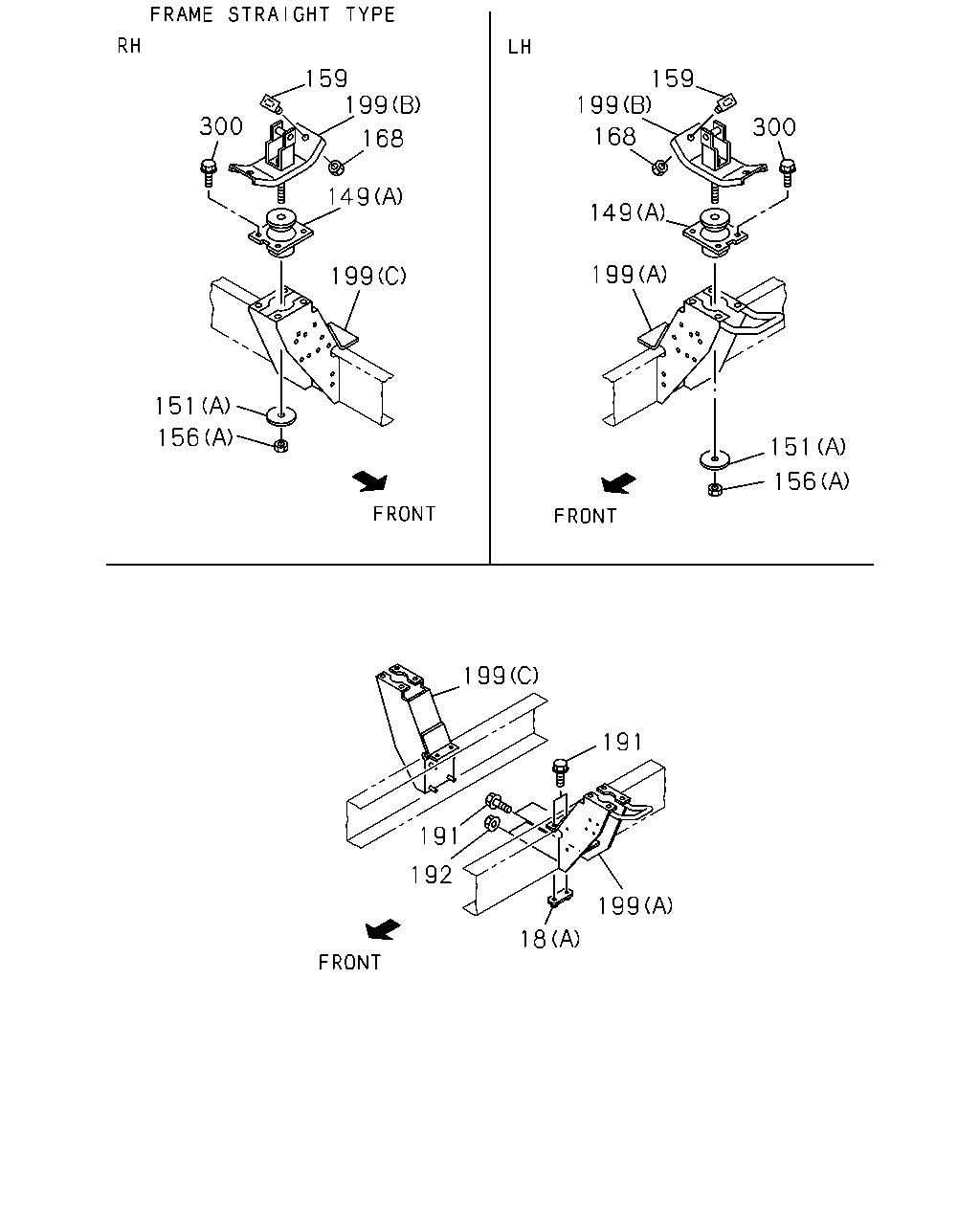

300 159 168 199 149 199 151 156 191 192 191 18 199 199 192 199 199 199 159 199 149 199 151 156 300 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	PLATE; MTG BRKT FIX (A) MAL	8-97034-139-2	02	1	1311-1412	●
18	PLATE; MTG BRKT FIX (A) MAL	8-97034-139-2	02	1	1501-	●	●
18	PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1311-1412	●
18	PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1501-	●	●
149	RUBBER; MTG,CAB,UPR RR (D) H=35	8-97256-684-0	02	1	1501-		●
149	RUBBER; MTG,CAB,UPR RR (C) H=26.5	8-97256-686-0	02	1	1501-		●
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62 MAL	8-98021-561-1	02	1	1311-	●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	1311-1412	●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	1501-	●
149	RUBBER; MTG,CAB,UPR RR (B) H=94	8-98038-868-0	02	1	1501-		●
151	WASHER; CAB MTG,RR UPR (C) ID=15 OD=36	0-91614-714-0	02	1	1501-		●
151	WASHER; CAB MTG,RR UPR (D) ID=16 OD=60	8-97359-044-1	02	1	1501-		●
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62 MAL	8-97359-042-1	02	1	1311-	●
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	1311-1412	●
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	1501-	●
151	WASHER; CAB MTG,RR UPR (B) ID=16.5 OD=58	8-97359-040-1	02	1	1501-		●
156	NUT; CAB MTG RR (C) M14 MAL	0-91110-514-0	04	1	1501-		●
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16 MAL	0-91111-516-0	02	1	1311-	●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	1311-1412	●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	1501-	●
156	NUT; CAB MTG RR (B) M14 FLANGE	0-91180-114-0	02	1	1501-		●
159	RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ> MAL	8-97113-340-0	04	1	1311-	●
168	NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> M8 FLANGE MAL	0-91180-108-0	04	1	1311-	●
191	BOLT; BRKT FIX M12X40 FLANGE MAL	0-28651-240-0	08	1	1311-1311	●
191	BOLT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE MAL	0-28651-240-0	08	1	1312-1412	●
191	BOLT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE MAL	0-28651-240-0	08	1	1501-	●	●
191	BOLT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE MAL	0-28651-240-0	04	1	1312-	●
192	NUT; BRKT FIX M12 FLANGE MAL	0-91180-112-0	08	1	1311-1412	●
192	NUT; BRKT FIX M12 FLANGE MAL	0-91180-112-0	08	1	1501-1511	●	●
192	NUT; BRKT FIX M12 FLANGE MAL	0-91180-112-0	08	1	1512-	●	●
192	NUT; BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE MAL	0-91180-112-0	08	1	1512-	●
192	NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE MAL	0-91180-112-0	04	1	1312-1511	●
192	NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE MAL	0-91180-112-0	04	1	1312-1511	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98036-883-0	02	1	1311-	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C)	8-98024-776-4	01	1	1311-1311	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (C)	8-98024-776-4	01	1	1312-	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98024-777-4	01	1	1311-1311	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-98024-777-4	01	1	1312-	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (G)	8-98024-778-1	01	1	1311-1311	●
199	BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (G)	8-98024-778-1	01	1	1312-1412	●
199	BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (G)	8-98024-778-1	01	1	1501-1511	●
199	BRACKET; CAB RR MTG (G)	8-98024-778-1	01	1	1501-1511		●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (G)	8-98024-778-1	01	1	1512-	●
199	BRACKET; CAB RR MTG (G)	8-98024-778-1	01	1	1512-		●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (E)	8-98099-144-1	01	1	1311-1311	●
199	BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (E)	8-98099-144-1	01	1	1312-1412	●
199	BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (E)	8-98099-144-1	01	1	1501-1511	●
199	BRACKET; CAB RR MTG (E)	8-98099-144-1	01	1	1501-1511		●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (E)	8-98099-144-1	01	1	1512-	●
199	BRACKET; CAB RR MTG (E)	8-98099-144-1	01	1	1512-		●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98024-779-1	01	1	1312-1511	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98024-775-3	01	1	1512-	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>,FRAME STRAIGHT TYPE<7KJ> (F)	8-98024-771-1	01	1	1312-1511	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98024-774-3	01	1	1512-	●
199	BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98024-770-1	01	1	1312-1511	●
199	BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (H) MAL	8-97092-102-5	01	1	1312-1511	●
199	BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (H) MAL	8-97092-102-5	01	1	1312-1511	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (H) MAL	8-97092-102-5	02	1	1512-	●
300	BOLT; MTG RUBBER M10X20 FLANGE MAL	0-28651-020-0	08	1	1311-1412	●
300	BOLT; MTG RUBBER M10X20 FLANGE MAL	0-28651-020-0	08	1	1501-	●	●

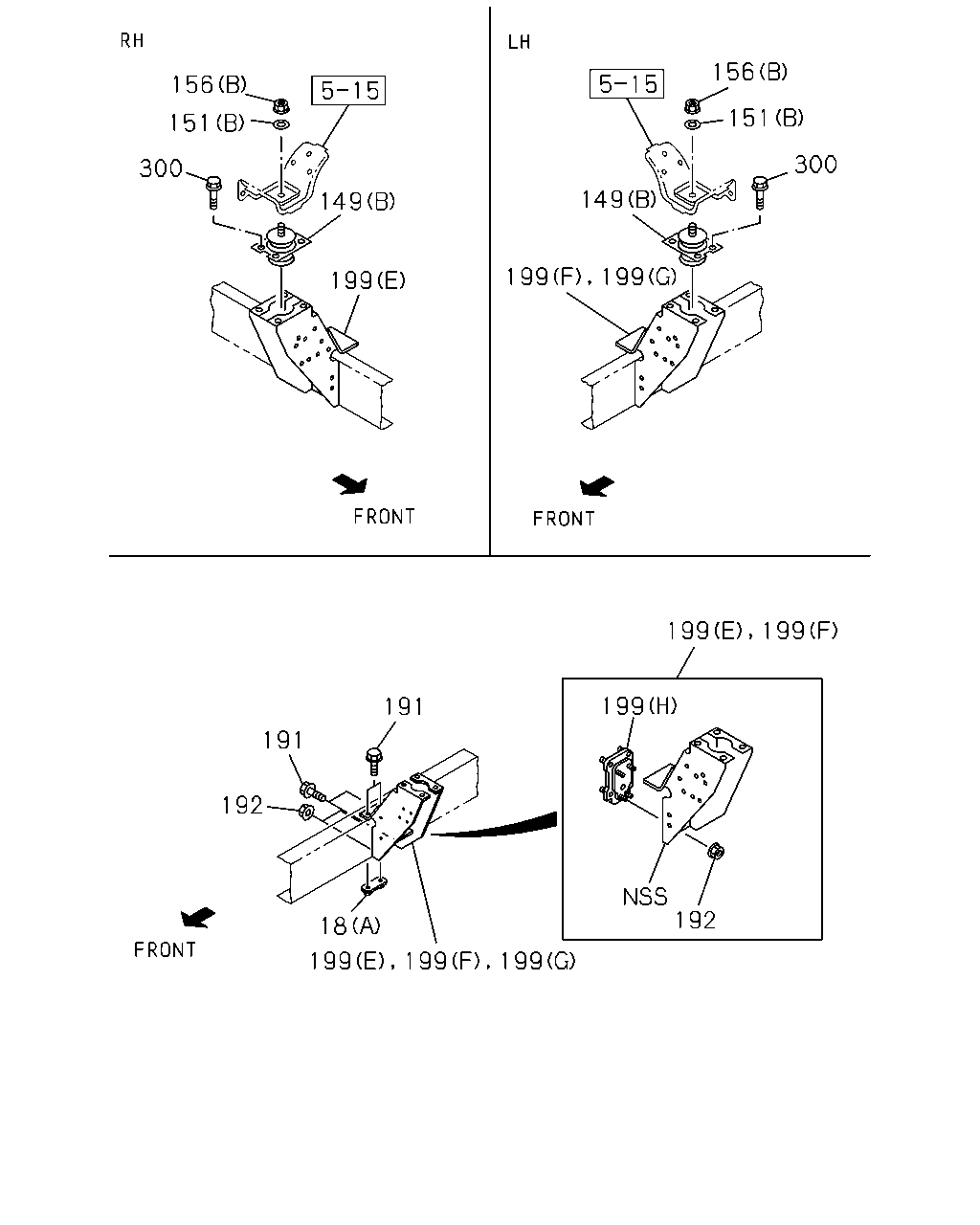

156 151 300 149 199 149 199 156 300 151 199 191 191 192 18 199 199 199 192 199 199 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	PLATE; MTG BRKT FIX (A) MAL	8-97034-139-2	02	1	1311-1412	●
18	PLATE; MTG BRKT FIX (A) MAL	8-97034-139-2	02	1	1501-	●	●
18	PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1311-1412	●
18	PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1501-	●	●
149	RUBBER; MTG,CAB,UPR RR (D) H=35	8-97256-684-0	02	1	1501-		●
149	RUBBER; MTG,CAB,UPR RR (C) H=26.5	8-97256-686-0	02	1	1501-		●
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62 MAL	8-98021-561-1	02	1	1311-	●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	1311-1412	●
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	1501-	●
149	RUBBER; MTG,CAB,UPR RR (B) H=94	8-98038-868-0	02	1	1501-		●
151	WASHER; CAB MTG,RR UPR (C) ID=15 OD=36	0-91614-714-0	02	1	1501-		●
151	WASHER; CAB MTG,RR UPR (D) ID=16 OD=60	8-97359-044-1	02	1	1501-		●
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62 MAL	8-97359-042-1	02	1	1311-	●
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	1311-1412	●
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	1501-	●
151	WASHER; CAB MTG,RR UPR (B) ID=16.5 OD=58	8-97359-040-1	02	1	1501-		●
156	NUT; CAB MTG RR (C) M14 MAL	0-91110-514-0	04	1	1501-		●
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> (A) M16 MAL	0-91111-516-0	02	1	1311-	●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	1311-1412	●
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	1501-	●
156	NUT; CAB MTG RR (B) M14 FLANGE	0-91180-114-0	02	1	1501-		●
191	BOLT; BRKT FIX M12X40 FLANGE MAL	0-28651-240-0	08	1	1311-1311	●
191	BOLT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE MAL	0-28651-240-0	08	1	1312-1412	●
191	BOLT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE MAL	0-28651-240-0	08	1	1501-	●	●
191	BOLT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE MAL	0-28651-240-0	04	1	1312-	●
192	NUT; BRKT FIX M12 FLANGE MAL	0-91180-112-0	08	1	1311-1412	●
192	NUT; BRKT FIX M12 FLANGE MAL	0-91180-112-0	08	1	1501-1511	●	●
192	NUT; BRKT FIX M12 FLANGE MAL	0-91180-112-0	08	1	1512-	●	●
192	NUT; BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE MAL	0-91180-112-0	08	1	1512-	●
192	NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE MAL	0-91180-112-0	04	1	1312-1511	●
192	NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE MAL	0-91180-112-0	04	1	1312-1511	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98036-883-0	02	1	1311-	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C)	8-98024-776-4	01	1	1311-1311	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (C)	8-98024-776-4	01	1	1312-	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98024-777-4	01	1	1311-1311	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-98024-777-4	01	1	1312-	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (G)	8-98024-778-1	01	1	1311-1311	●
199	BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (G)	8-98024-778-1	01	1	1312-1412	●
199	BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (G)	8-98024-778-1	01	1	1501-1511	●
199	BRACKET; CAB RR MTG (G)	8-98024-778-1	01	1	1501-1511		●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (G)	8-98024-778-1	01	1	1512-	●
199	BRACKET; CAB RR MTG (G)	8-98024-778-1	01	1	1512-		●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (E)	8-98099-144-1	01	1	1311-1311	●
199	BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (E)	8-98099-144-1	01	1	1312-1412	●
199	BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. MANUAL TILT CAB<RWZ> (E)	8-98099-144-1	01	1	1501-1511	●
199	BRACKET; CAB RR MTG (E)	8-98099-144-1	01	1	1501-1511		●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (E)	8-98099-144-1	01	1	1512-	●
199	BRACKET; CAB RR MTG (E)	8-98099-144-1	01	1	1512-		●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98024-779-1	01	1	1312-1511	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98024-775-3	01	1	1512-	●
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>,FRAME STRAIGHT TYPE<7KJ> (F)	8-98024-771-1	01	1	1312-1511	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98024-774-3	01	1	1512-	●
199	BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-98024-770-1	01	1	1312-1511	●
199	BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (H) MAL	8-97092-102-5	01	1	1312-1511	●
199	BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (H) MAL	8-97092-102-5	01	1	1312-1511	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (H) MAL	8-97092-102-5	02	1	1512-	●
300	BOLT; MTG RUBBER M10X20 FLANGE MAL	0-28651-020-0	08	1	1311-1412	●
300	BOLT; MTG RUBBER M10X20 FLANGE MAL	0-28651-020-0	08	1	1501-	●	●

141 140 419

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
140	NUT; BRKT MANUAL TILT CAB<RWZ> M8 FLANGE MAL	0-91180-108-0	04	1	1311-	●
141	BOLT; BRKT MANUAL TILT CAB<RWZ> M8X20 FLANGE MAL	0-28650-820-0	04	1	1311-	●
419	BRACKET; HOOK,SEAT BELT ANCHOR MANUAL TILT CAB<RWZ>	8-97857-422-4	01	1	1311-	●
419	BRACKET; HOOK,SEAT BELT ANCHOR MANUAL TILT CAB<RWZ>	8-97857-423-4	01	1	1311-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
