4-80 — ROAD WHEEL (#130879) — 48 parça

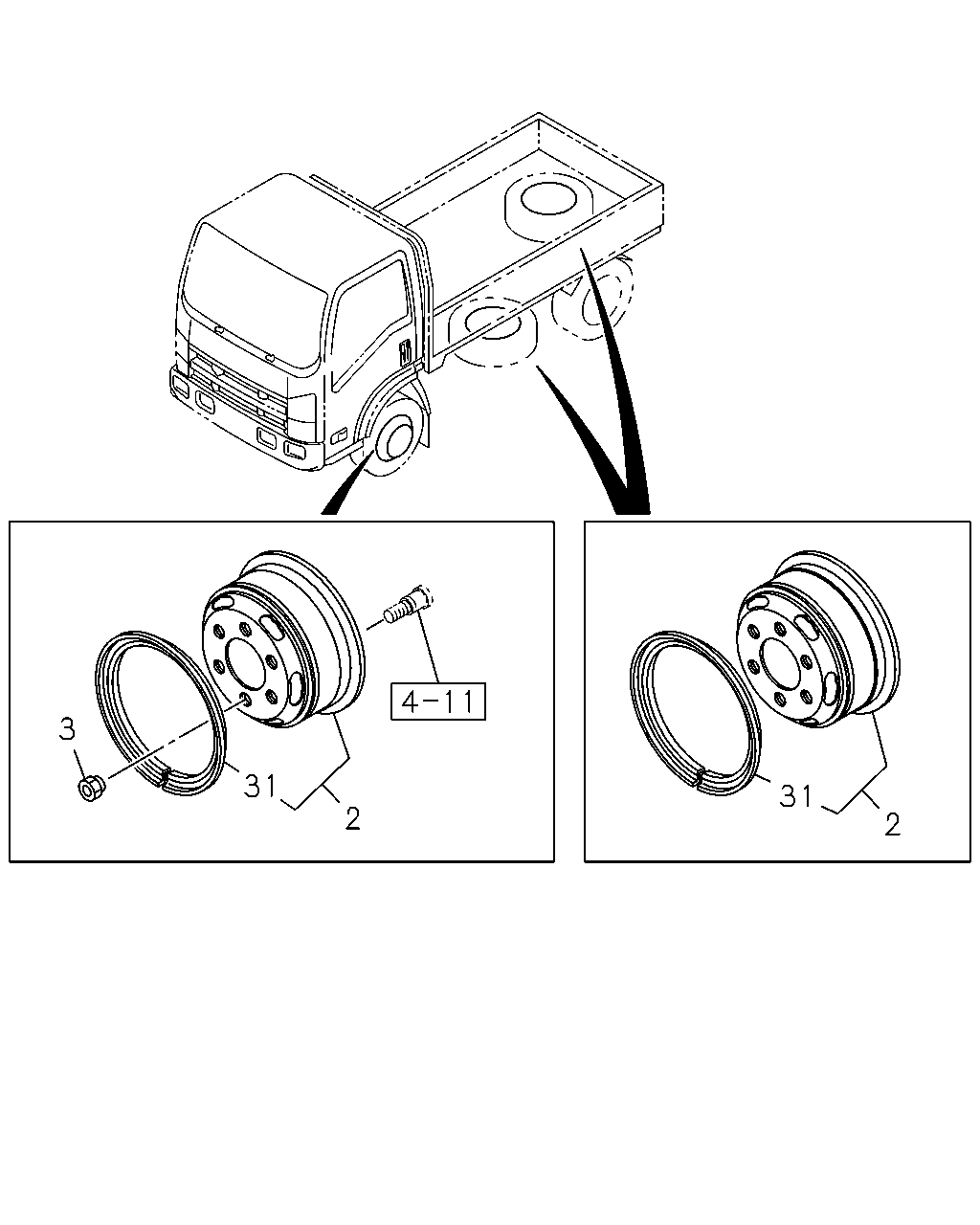

2 31 3 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE MAL	8-94438-670-4	01	1	1311-1412	●
2	WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE MAL	8-94438-670-4	01	1	1501-	●	●
2	WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE MAL	8-94438-670-4	06	1	1311-1412	●
2	WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE MAL	8-94438-670-4	06	1	1501-	●	●
2	WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE MAL	8-94378-330-1	01	1	1311-	●
2	WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE MAL	8-94378-330-1	06	1	1311-	●
3	NUT; WHEEL,FRT AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M20 RH THREAD MAL	8-97359-807-0	06	1	1311-1412	●
3	NUT; WHEEL,FRT AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M20 RH THREAD MAL	8-97359-807-0	06	1	1501-	●	●
3	NUT; WHEEL,FRT AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M20 LH THREAD MAL	8-97359-808-0	06	1	1311-1412	●
3	NUT; WHEEL,FRT AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M20 LH THREAD MAL	8-97359-808-0	06	1	1501-	●	●
3	NUT; WHEEL,FRT AXLE FRT&RR 7R-16-10 16X5.5F-115(07H) M18 RH THREAD MAL	8-98007-907-0	05	1	1311-	●
3	NUT; WHEEL,FRT AXLE FRT&RR 7R-16-10 16X5.5F-115(07H) M18 LH THREAD MAL	8-98007-908-0	05	1	1311-	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	1311-1412	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	1501-	●	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	1311-1412	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	1501-	●	●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK MAL	8-94135-601-0	01	1	1311-	●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK MAL	8-94135-601-0	06	1	1311-	●

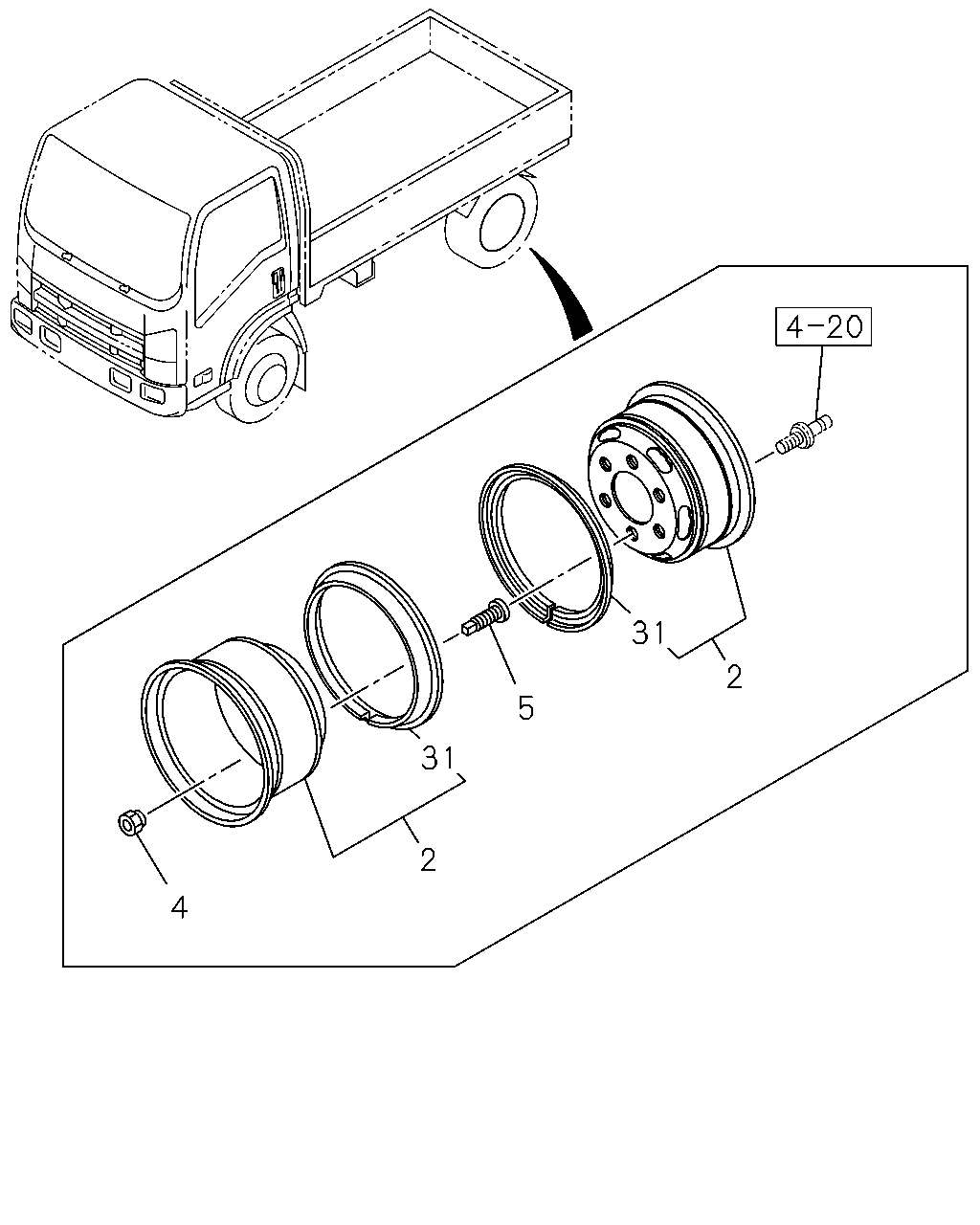

2 31 5 31 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE MAL	8-94438-670-4	01	1	1311-1412	●
2	WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE MAL	8-94438-670-4	01	1	1501-	●	●
2	WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE MAL	8-94438-670-4	06	1	1311-1412	●
2	WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE MAL	8-94438-670-4	06	1	1501-	●	●
2	WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE MAL	8-94378-330-1	01	1	1311-	●
2	WHEEL; DISC FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE MAL	8-94378-330-1	06	1	1311-	●
4	NUT; WHEEL,RR AXLE 4HG1-T ENG(RDP) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M30 RH THREAD MAL	8-97359-809-0	06	1	1311-1311	●
4	NUT; WHEEL,RR AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M30 RH THREAD MAL	8-97359-809-0	06	1	1312-1412	●
4	NUT; WHEEL,RR AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M30 RH THREAD MAL	8-97359-809-0	06	1	1501-	●	●
4	NUT; WHEEL,RR AXLE 4HG1-T ENG(RDP) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M30 LH THREAD MAL	8-97359-810-0	06	1	1311-1311	●
4	NUT; WHEEL,RR AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M30 LH THREAD MAL	8-97359-810-0	06	1	1312-1412	●
4	NUT; WHEEL,RR AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M30 LH THREAD MAL	8-97359-810-0	06	1	1501-	●	●
4	NUT; WHEEL,RR AXLE 4HG1-T ENG(RDP) FRT&RR 7R-16-10 16X5.5F-115(07H) M27 RH THREAD MAL	8-98007-824-0	05	1	1311-1311	●
4	NUT; WHEEL,RR AXLE FRT&RR 7R-16-10 16X5.5F-115(07H) EXC. FRAME STRAIGHT TYPE<7KJ> M27 RH THREAD MAL	8-98007-824-0	05	1	1312-	●
4	NUT; WHEEL,RR AXLE FRT&RR 7R-16-10 16X5.5F-115(07H) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> M27 RH THREAD MAL	8-98007-824-0	05	1	1312-	●
4	NUT; WHEEL,RR AXLE 4HG1-T ENG(RDP) FRT&RR 7R-16-10 16X5.5F-115(07H) M27 LH THREAD MAL	8-98007-825-0	05	1	1311-1311	●
4	NUT; WHEEL,RR AXLE FRT&RR 7R-16-10 16X5.5F-115(07H) EXC. FRAME STRAIGHT TYPE<7KJ> M27 LH THREAD MAL	8-98007-825-0	05	1	1312-	●
4	NUT; WHEEL,RR AXLE FRT&RR 7R-16-10 16X5.5F-115(07H) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> M27 LH THREAD MAL	8-98007-825-0	05	1	1312-	●
5	NUT; WHEEL,INNER,RR AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) OUTER M30,INNER M20 RH THREAD MAL	8-97359-805-0	06	1	1311-1412	●
5	NUT; WHEEL,INNER,RR AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) OUTER M30,INNER M20 RH THREAD MAL	8-97359-805-0	06	1	1501-	●	●
5	NUT; WHEEL,INNER,RR AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) OUTER M30,INNER M20 LH THREAD MAL	8-97359-806-0	06	1	1311-1412	●
5	NUT; WHEEL,INNER,RR AXLE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) OUTER M30,INNER M20 LH THREAD MAL	8-97359-806-0	06	1	1501-	●	●
5	NUT; WHEEL,INNER,RR AXLE FRT&RR 7R-16-10 16X5.5F-115(07H) OUTER M27,INNER M18 RH THREAD MAL	8-98007-810-0	05	1	1311-	●
5	NUT; WHEEL,INNER,RR AXLE FRT&RR 7R-16-10 16X5.5F-115(07H) OUTER M27,INNER M18 LH THREAD MAL	8-98007-811-0	05	1	1311-	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	1311-1412	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	1501-	●	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	1311-1412	●
31	RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	1501-	●	●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK MAL	8-94135-601-0	01	1	1311-	●
31	RING; SIDE,DISC WHEEL FRT&RR 7R-16-10 16X5.5F-115(07H) FRONT,REAR 16X5.50F STAMP, BLACK MAL	8-94135-601-0	06	1	1311-	●
