◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51501 - NPR(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65A - REAR LEAF SPRING ▶
4-65A — REAR LEAF SPRING (#130877) — 21 parça

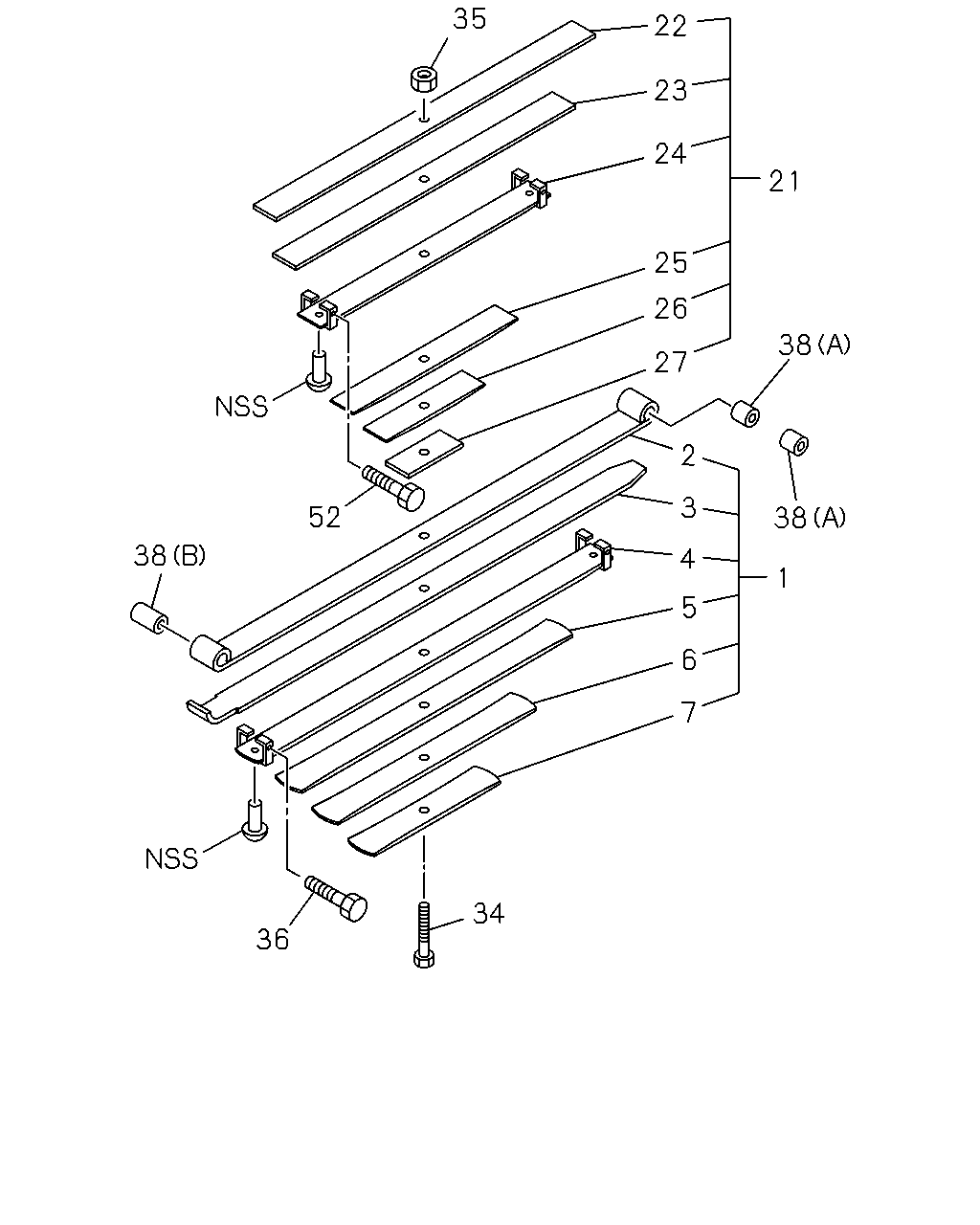

çizim 385586
35 22 23 21 25 52 26 38 38 27 1 2 3 4 5 6 7 34 36 38 24
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
MAL ASM PART: A = 8-98025-051-0 		8-98039-307-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
MAL ASM PART: A = 8-98025-051-0 		8-98039-308-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
MAL ASM PART: A = 8-98025-051-0 		8-98039-309-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
MAL ASM PART: A = 8-98025-051-0 		8-98039-310-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
MAL ASM PART: A = 8-98025-051-0 		8-98039-311-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
MAL ASM PART: A = 8-98025-051-0 		8-98039-312-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
MAL ASM PART: A = 8-98025-051-0 		8-98039-313-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
MAL ASM PART: A = 8-98025-051-0 		8-98039-314-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
MAL ASM PART: A = 8-98025-051-0 		8-98039-315-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
MAL ASM PART: A = 8-98025-051-0 		8-98039-316-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
MAL ASM PART: A = 8-98025-051-0 		8-98039-317-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
MAL ASM PART: A = 8-98025-051-0 		8-98039-318-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
MAL ASM PART: A = 8-98025-051-0 		8-98039-319-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
MAL ASM PART: A = 8-98025-051-0 		8-98039-320-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=135, MAL ASM PART: A = 8-98025-051-0 		8-98039-337-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 8-98025-051-0 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
MAL ASM PART: A = 8-98025-051-0 		8-98039-338-0 02 1 -
38 BUSHING; LEAF SPR,RR
(B), BEST VALUE PARTS ASM PART: A = 8-98025-051-0 		5-87610-163-0 01 1 -
38 BUSHING; LEAF SPR,RR
(A), OD=40 L=43.7 ASM PART: A = 8-98025-051-0 		8-94118-588-1 02 1 -
38 BUSHING; LEAF SPR,RR
(B), OD=42 L=81 ASM PART: A = 8-98025-051-0 		8-97074-826-0 01 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
MAL ASM PART: A = 8-98025-051-0 		8-98039-338-0 01 1 -
