◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51501 - NPR(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#130876) — 46 parça

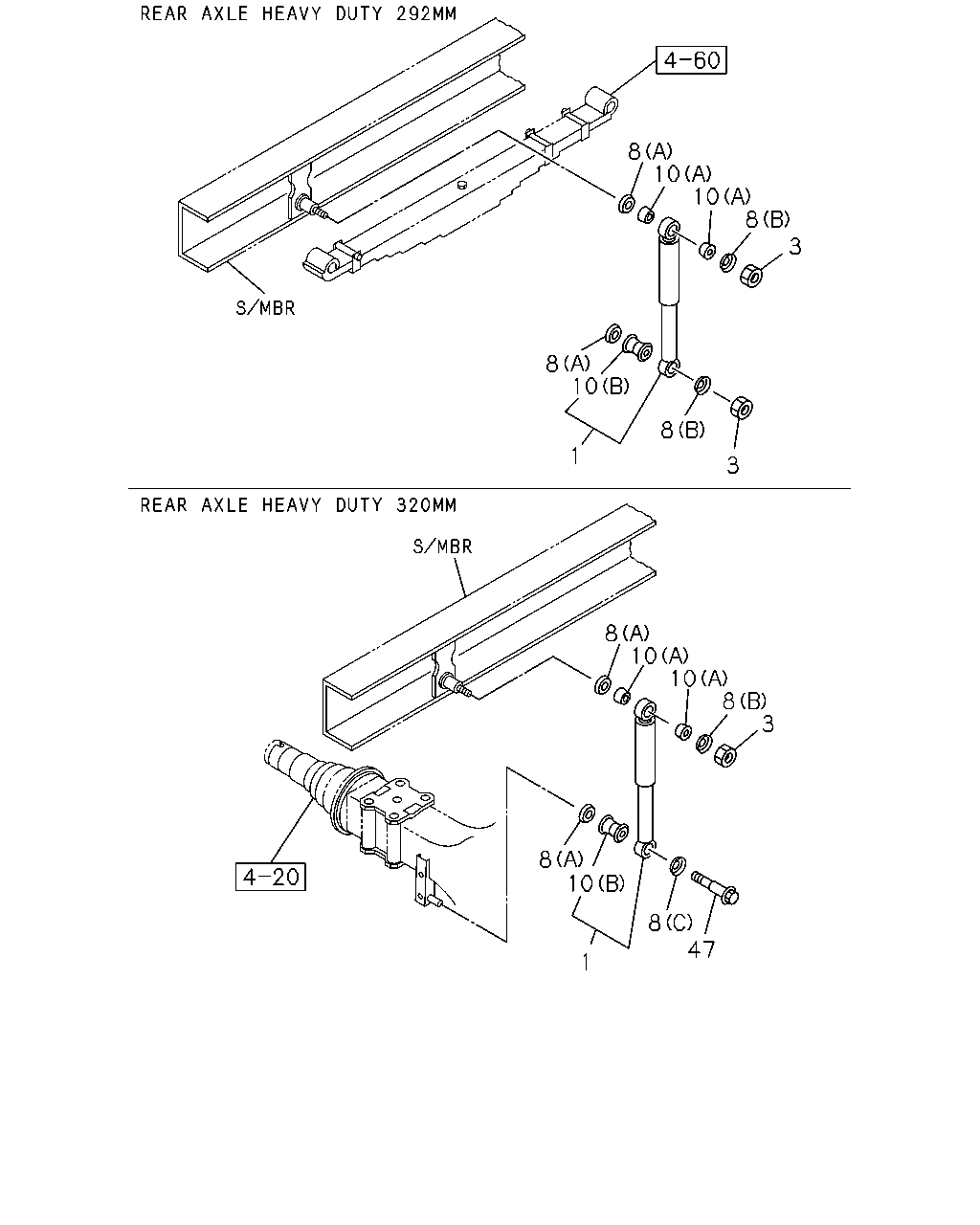

çizim 385843
8 10 10 8 3 8 10 8 3 1 8 10 10 8 3 8 10 1 8 47
BalonParca AdiParca NoAdetTipApplied Date A B
1 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV) MAL 		8-97253-651-2 02 1 1311-1311 ●
1 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> MAL 		8-97253-651-2 02 1 1312-1506 ●
1 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> MAL 		8-97253-651-2 02 1 1312-1506 ●
1 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> MAL 		8-98316-233-0 02 1 1507- ●
1 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> MAL 		8-98316-233-0 02 1 1507- ●
1 ABSORBER ASM; SHOCK,RR
G.V.W. 7.0-7.5TON(RPX) 		8-98079-868-1 02 1 1311-1311 ●
1 ABSORBER ASM; SHOCK,RR
G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 		8-98079-868-1 02 1 1312-1412 ●
1 ABSORBER ASM; SHOCK,RR
G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 		8-98079-868-1 02 1 1501- ●
1 ABSORBER ASM; SHOCK,RR 8-98079-868-1 02 1 1501- ●
1 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV) BEST VALUE PARTS MAL 		5-87610-132-0 02 1 1311-1311 ●
1 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS MAL 		5-87610-132-0 02 1 1312-1506 ●
1 ABSORBER ASM; SHOCK,RR
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS MAL 		5-87610-132-0 02 1 1312-1506 ●
1 ABSORBER ASM; SHOCK,RR
G.V.W. 7.0-7.5TON(RPX) BEST VALUE PARTS 		5-87610-133-0 02 1 1311-1311 ●
1 ABSORBER ASM; SHOCK,RR
G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS 		5-87610-133-0 02 1 1312-1412 ●
1 ABSORBER ASM; SHOCK,RR
G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS 		5-87610-133-0 02 1 1501- ●
1 ABSORBER ASM; SHOCK,RR
BEST VALUE PARTS 		5-87610-133-0 02 1 1501- ●
3 NUT; S/ABS
REAR AXLE HEAVY DUTY 292MM(G73) M14 MAL 		0-91110-514-0 02 1 1311-1311 ●
3 NUT; S/ABS
M14 MAL 		0-91110-514-0 02 1 1311-1311 ●
3 NUT; S/ABS
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> M14 MAL 		0-91110-514-0 02 1 1312-1412 ●
3 NUT; S/ABS
M14 MAL 		0-91110-514-0 02 1 1312-1412 ●
3 NUT; S/ABS
M14 MAL 		0-91110-514-0 02 1 1501- ● ●
3 NUT; S/ABS
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> M14 MAL 		0-91110-514-0 02 1 1501- ●
8 WASHER; S/ABS
(A) ID=20.0 		8-97360-057-0 04 1 1311-1412 ●
8 WASHER; S/ABS
(A) ID=20.0 		8-97360-057-0 04 1 1501- ● ●
8 WASHER; S/ABS
REAR AXLE HEAVY DUTY 292MM(G73) (B) ID=15 		8-97360-056-0 02 1 1311-1311 ●
8 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 1311-1311 ●
8 WASHER; S/ABS
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> (B) ID=15 		8-97360-056-0 02 1 1312-1412 ●
8 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 1312-1412 ●
8 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 1501- ● ●
8 WASHER; S/ABS
REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> (B) ID=15 		8-97360-056-0 02 1 1501- ●
8 WASHER; S/ABS
REAR AXLE HEAVY DUTY 320MM(6CP) (C) ID=10.5 		8-97360-058-0 02 1 1311-1311 ●
8 WASHER; S/ABS
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> (C) ID=10.5 		8-97360-058-0 02 1 1312-1412 ●
8 WASHER; S/ABS
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10.5 		8-97360-058-0 02 1 1312-1412 ●
8 WASHER; S/ABS
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> (C) ID=10.5 		8-97360-058-0 02 1 1501- ●
8 WASHER; S/ABS
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10.5 		8-97360-058-0 02 1 1501- ●
8 WASHER; S/ABS
(C) ID=10.5 		8-97360-058-0 02 1 1501- ●
10 BUSHING; RUBBER,S/ABS
(A) TOKICO MAL 		9-51631-014-0 04 1 1311-1412 ●
10 BUSHING; RUBBER,S/ABS
(A) TOKICO MAL 		9-51631-014-0 04 1 1501- ● ●
10 BUSHING; RUBBER,S/ABS
(B) TOKICO MAL 		8-94382-149-0 02 1 1501- ● ●
10 BUSHING; RUBBER,S/ABS
(B) TOKICO MAL 		8-94382-149-0 02 1 1311- ●
47 PIN; S/ABS SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) M10X16 FLANGE 		0-28051-016-0 02 1 1311-1311 ●
47 PIN; S/ABS SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> M10X16 FLANGE 		0-28051-016-0 02 1 1312-1412 ●
47 PIN; S/ABS SETTING
EXC. FRAME STRAIGHT TYPE<7KJ> M10X16 FLANGE 		0-28051-016-0 02 1 1312-1412 ●
47 PIN; S/ABS SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> M10X16 FLANGE 		0-28051-016-0 02 1 1501- ●
47 PIN; S/ABS SETTING
EXC. FRAME STRAIGHT TYPE<7KJ> M10X16 FLANGE 		0-28051-016-0 02 1 1501- ●
47 PIN; S/ABS SETTING
M10X16 FLANGE 		0-28051-016-0 02 1 1501- ●
