4-60 — REAR SUSPENSION (#130875) — 57 parça

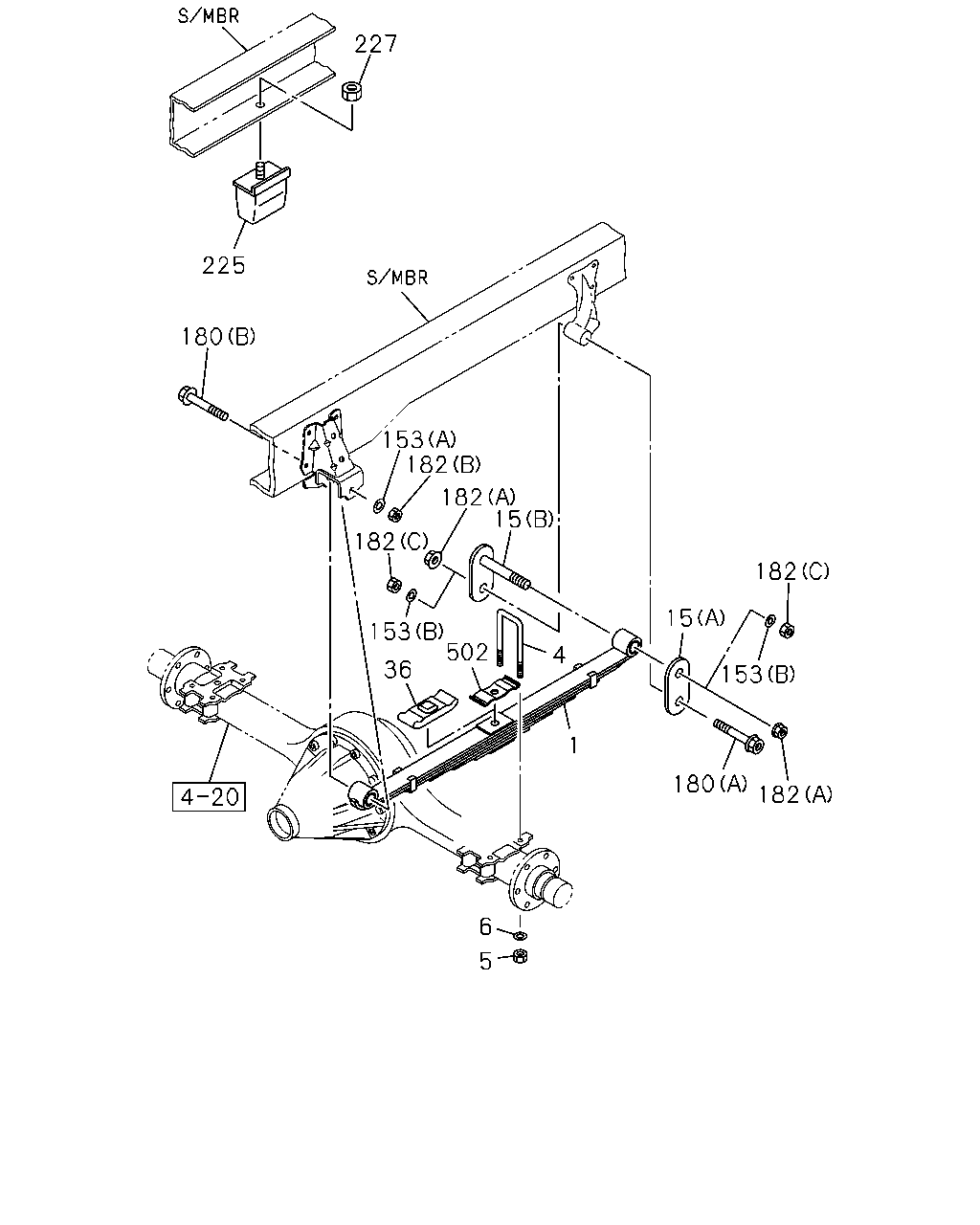

çizim 385736
227 225 180 153 182 182 15 182 153 502 4 15 182 153 180 182 36 6 5 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) 12-LEAF MAL 		8-98025-051-0 02 1 1311-1311 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 12-LEAF MAL 		8-98025-051-0 02 1 1312- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) 13-LEAF MAL 		8-98079-902-0 02 1 1311-1311 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 13-LEAF MAL 		8-98079-902-0 02 1 1312-1412 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 13-LEAF MAL 		8-98079-902-0 02 1 1501- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 13-LEAF MAL 		8-98079-902-0 02 1 1501- ●
4 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) L=285 MAL 		8-97141-874-0 04 1 1311-1311 ●
4 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> L=285 MAL 		8-97141-874-0 04 1 1312- ●
4 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) L=315 		1-51371-194-2 04 1 1311-1311 ●
4 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> L=315 		1-51371-194-2 04 1 1312- ●
4 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) L=345 MAL 		1-51371-195-2 04 1 1311-1311 ●
4 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> L=345 MAL 		1-51371-195-2 04 1 1312-1412 ●
4 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> L=345 MAL 		1-51371-195-2 04 1 1501- ●
4 U-BOLT; RR SPR
L=345 MAL 		1-51371-195-2 04 1 1501- ●
5 NUT; U-BOLT,RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) M16 		8-97360-121-0 08 1 1311-1311 ●
5 NUT; U-BOLT,RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) M16 		8-97360-121-0 08 1 1312- ●
5 NUT; U-BOLT,RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> M16 		8-97360-121-0 08 1 1312- ●
5 NUT; U-BOLT,RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) M18 FLANGE 		1-09440-039-1 08 1 1311-1311 ●
5 NUT; U-BOLT,RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 1312-1412 ●
5 NUT; U-BOLT,RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 1501- ●
5 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 1501- ●
6 WASHER; PL,U-BOLT
REAR AXLE HEAVY DUTY 292MM(G73) ID=16.4 		8-97360-118-0 08 1 1311-1311 ●
6 WASHER; PL,U-BOLT
REAR AXLE HEAVY DUTY 292MM(G73) ID=16.4 		8-97360-118-0 08 1 1312- ●
6 WASHER; PL,U-BOLT
REAR AXLE HEAVY DUTY 320MM(6CP) EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-97360-118-0 08 1 1312- ●
15 SHACKLE; RR SPR
(A) MAL 		8-94118-511-3 02 1 1311-1412 ●
15 SHACKLE; RR SPR
(A) MAL 		8-94118-511-3 02 1 1501- ● ●
15 SHACKLE; RR SPR
(B) MAL 		8-97360-011-0 02 1 1311-1412 ●
15 SHACKLE; RR SPR
(B) MAL 		8-97360-011-0 02 1 1501- ● ●
36 SEAT; HELPER RUBBER,RR SPR
4HG1-T ENG(RDP) REAR AXLE HEAVY DUTY 320MM(6CP) 		1-51372-059-0 02 1 1311-1311 ●
36 SEAT; HELPER RUBBER,RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		1-51372-059-0 02 1 1312-1412 ●
36 SEAT; HELPER RUBBER,RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 		1-51372-059-0 02 1 1501- ●
36 SEAT; HELPER RUBBER,RR SPR
4HK1-TCN ENG(RDQ) 		1-51372-059-0 02 1 1501- ●
153 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> (B) ID=16.5 		8-98011-489-0 04 1 1311-1412 ●
153 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> (B) ID=16.5 		8-98011-489-0 04 1 1501- ● ●
153 WASHER; PL,SPRING PIN
(A) ID=19 		8-97360-119-0 02 1 1311-1412 ●
153 WASHER; PL,SPRING PIN
(A) ID=19 		8-97360-119-0 02 1 1501- ● ●
180 PIN; RR SPR
KD PREPARATORY PACK<6HF> (A) M16X122 MAL 		8-98011-487-0 02 1 1311-1412 ●
180 PIN; RR SPR
KD PREPARATORY PACK<6HF> (A) M16X122 MAL 		8-98011-487-0 02 1 1501- ● ●
180 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 MAL 		8-98011-488-0 02 1 1311-1412 ●
180 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 MAL 		8-98011-488-0 02 1 1501- ● ●
180 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97360-110-0 02 1 1311-1412 ●
180 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97360-110-0 02 1 1501- ● ●
180 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 1311-1412 ●
180 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 1501- ● ●
182 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> (C) M16 		0-91110-516-0 04 1 1311-1412 ●
182 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> (C) M16 		0-91110-516-0 04 1 1501- ● ●
182 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 1311-1412 ●
182 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 1501- ● ●
182 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97360-125-0 04 1 1311-1412 ●
182 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97360-125-0 04 1 1501- ● ●
225 RUBBER; CUSHION,RR SPR 8-98187-342-0 02 1 1311-1412 ●
225 RUBBER; CUSHION,RR SPR 8-98187-342-0 02 1 1501- ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE MAL 		0-91180-112-0 02 1 1311-1412 ●
227 NUT; CUSHION RUBBER
M12 FLANGE MAL 		0-91180-112-0 02 1 1501- ● ●
502 CLAMP; RR LEAF SPR
4HG1-T ENG(RDP) REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) L=140 T=4.5 		8-94118-509-1 02 1 1311-1311 ●
502 CLAMP; RR LEAF SPR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 1312- ●
502 CLAMP; RR LEAF SPR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> L=130 T=4.5 		8-94119-069-2 02 1 1312- ●
