4-50 — FRONT SUSPENSION (#130873) — 70 parça

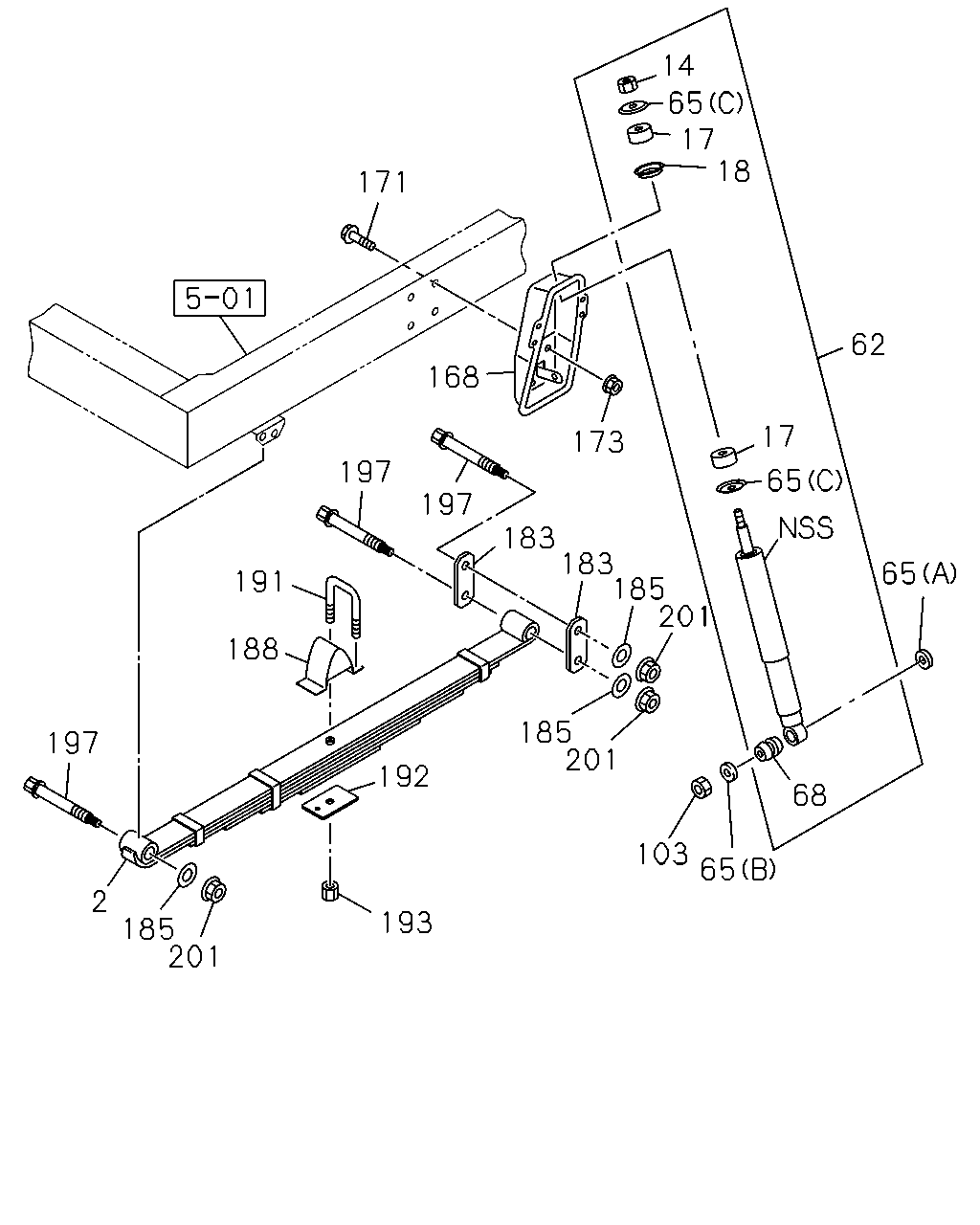

çizim 385825
14 17 65 18 62 17 65 65 65 68 103 201 193 201 185 197 2 192 188 191 197 168 197 183 173 171 183 201 185 185
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) 6-LEAF MAL 		8-98079-910-0 01 1 1311-1311 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 6-LEAF MAL 		8-98079-910-0 01 1 1312- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) 6-LEAF MAL 		8-98079-912-0 01 1 1311-1311 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 6-LEAF MAL 		8-98079-912-0 01 1 1312- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) 6-LEAF MAL 		8-98079-923-0 01 1 1311-1311 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 6-LEAF MAL 		8-98079-923-0 01 1 1312-1412 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 6-LEAF MAL 		8-98079-923-0 01 1 1501- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF MAL 		8-98079-923-0 01 1 1501- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) 6-LEAF MAL 		8-98079-924-0 01 1 1311-1311 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 6-LEAF MAL 		8-98079-924-0 01 1 1312-1412 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 6-LEAF MAL 		8-98079-924-0 01 1 1501- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF MAL 		8-98079-924-0 01 1 1501- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 6-LEAF 		8-98025-024-0 01 1 1312- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 6-LEAF 		8-98025-025-0 01 1 1312- ●
14 NUT; S/ABS,UPR
M10 T=8 MAL 		9-09640-020-0 02 1 1311-1412 ●
14 NUT; S/ABS,UPR
M10 T=8 MAL 		9-09640-020-0 02 1 1501- ● ●
17 BUSHING; RUBBER,S/ABS
TOKICO MAL 		9-51631-603-0 04 1 1311-1412 ●
17 BUSHING; RUBBER,S/ABS
TOKICO MAL 		9-51631-603-0 04 1 1501- ● ●
18 WASHER; CENTERING,S/ABS
TOKICO MAL 		8-94412-791-0 02 1 1311-1412 ●
18 WASHER; CENTERING,S/ABS
TOKICO MAL 		8-94412-791-0 02 1 1501- ● ●
62 ABSORBER ASM; SHOCK,FRT
G.V.W. 6.0-6.5TON(RPV) MAL 		8-97253-617-1 02 1 1311- ●
62 ABSORBER ASM; SHOCK,FRT
G.V.W. 7.0-7.5TON(RPX) 		8-98080-129-1 02 1 1311-1412 ●
62 ABSORBER ASM; SHOCK,FRT
G.V.W. 7.0-7.5TON(RPX) 		8-98080-129-1 02 1 1501- ●
62 ABSORBER ASM; SHOCK,FRT 8-98080-129-1 02 1 1501- ●
62 ABSORBER ASM; SHOCK,FRT
G.V.W. 6.0-6.5TON(RPV) BEST VALUE PARTS MAL 		5-87610-128-1 02 1 1311- ●
62 ABSORBER ASM; SHOCK,FRT
G.V.W. 7.0-7.5TON(RPX) BEST VALUE PARTS 		5-87610-153-0 02 1 1311-1412 ●
62 ABSORBER ASM; SHOCK,FRT
G.V.W. 7.0-7.5TON(RPX) BEST VALUE PARTS 		5-87610-153-0 02 1 1501- ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		5-87610-153-0 02 1 1501- ●
65 WASHER; S/ABS
(A) ID=21 OD=40 		0-91614-620-0 02 1 1311-1412 ●
65 WASHER; S/ABS
(A) ID=21 OD=40 		0-91614-620-0 02 1 1501- ● ●
65 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 1311-1412 ●
65 WASHER; S/ABS
(B) ID=15 		8-97360-056-0 02 1 1501- ● ●
65 WASHER; S/ABS
(C) OD=40 MAL 		9-51631-614-0 04 1 1311-1412 ●
65 WASHER; S/ABS
(C) OD=40 MAL 		9-51631-614-0 04 1 1501- ● ●
68 BUSHING; S/ABS
TOKICO MAL 		8-94382-149-0 02 1 1311-1412 ●
68 BUSHING; S/ABS
TOKICO MAL 		8-94382-149-0 02 1 1501- ● ●
103 NUT; S/ABS TO LWR LINK
M14 MAL 		0-91110-514-0 02 1 1311-1412 ●
103 NUT; S/ABS TO LWR LINK
M14 MAL 		0-91110-514-0 02 1 1501- ● ●
168 BRACKET; S/ABS,FRT SUSP 8-98015-001-0 01 1 1311-1412 ●
168 BRACKET; S/ABS,FRT SUSP 8-98015-001-0 01 1 1501- ● ●
168 BRACKET; S/ABS,FRT SUSP 8-98015-002-0 01 1 1311-1412 ●
168 BRACKET; S/ABS,FRT SUSP 8-98015-002-0 01 1 1501- ● ●
171 BOLT; S/ABS BRKT
M12X35 FLANGE 		0-28651-235-0 08 1 1311-1412 ●
171 BOLT; S/ABS BRKT
M12X35 FLANGE 		0-28651-235-0 08 1 1501- ● ●
173 NUT; S/ABS
M12 		8-97360-126-0 08 1 1311-1412 ●
173 NUT; S/ABS
M12 		8-97360-126-0 08 1 1501- ● ●
183 SHACKLE; FRT SUSP
MAL 		8-94110-399-3 04 1 1311-1412 ●
183 SHACKLE; FRT SUSP
MAL 		8-94110-399-3 04 1 1501- ● ●
185 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> ID=16.5 		8-98011-489-0 06 1 1311-1412 ●
185 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> ID=16.5 		8-98011-489-0 06 1 1501- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-516-0 02 1 1311-1412 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-516-0 02 1 1501- ● ●
191 U-BOLT; FRT SPR
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) L=135 MAL 		5-51171-015-4 04 1 1311-1311 ●
191 U-BOLT; FRT SPR
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> L=135 MAL 		5-51171-015-4 04 1 1312-1412 ●
191 U-BOLT; FRT SPR
G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> L=135 MAL 		5-51171-015-4 04 1 1312-1412 ●
191 U-BOLT; FRT SPR
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> L=135 MAL 		5-51171-015-4 04 1 1501- ●
191 U-BOLT; FRT SPR
G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> L=135 MAL 		5-51171-015-4 04 1 1501- ●
191 U-BOLT; FRT SPR
L=135 MAL 		5-51171-015-4 04 1 1501- ●
191 U-BOLT; FRT SPR
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> L=115 		8-94412-504-3 04 1 1312- ●
192 PIECE; DIST
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97093-554-1 02 1 1312- ●
193 NUT; U BOLT
M14 FLANGE 		8-97360-124-0 08 1 1311-1412 ●
193 NUT; U BOLT
M14 FLANGE 		8-97360-124-0 08 1 1501- ● ●
197 PIN; FRT SPR,FRT
KD PREPARATORY PACK<6HF> M16X122 MAL 		8-98011-487-0 06 1 1311-1412 ●
197 PIN; FRT SPR,FRT
KD PREPARATORY PACK<6HF> M16X122 MAL 		8-98011-487-0 06 1 1501- ● ●
197 PIN; FRT SPR,FRT
EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE 		8-97360-110-0 06 1 1311-1412 ●
197 PIN; FRT SPR,FRT
EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE 		8-97360-110-0 06 1 1501- ● ●
201 NUT; PIN LK
KD PREPARATORY PACK<6HF> M16 		0-91110-516-0 06 1 1311-1412 ●
201 NUT; PIN LK
KD PREPARATORY PACK<6HF> M16 		0-91110-516-0 06 1 1501- ● ●
201 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97360-125-0 06 1 1311-1412 ●
201 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97360-125-0 06 1 1501- ● ●
