51501 - NPR(MALAYSIA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-42 - POWER STEERING OIL PUMP
▶

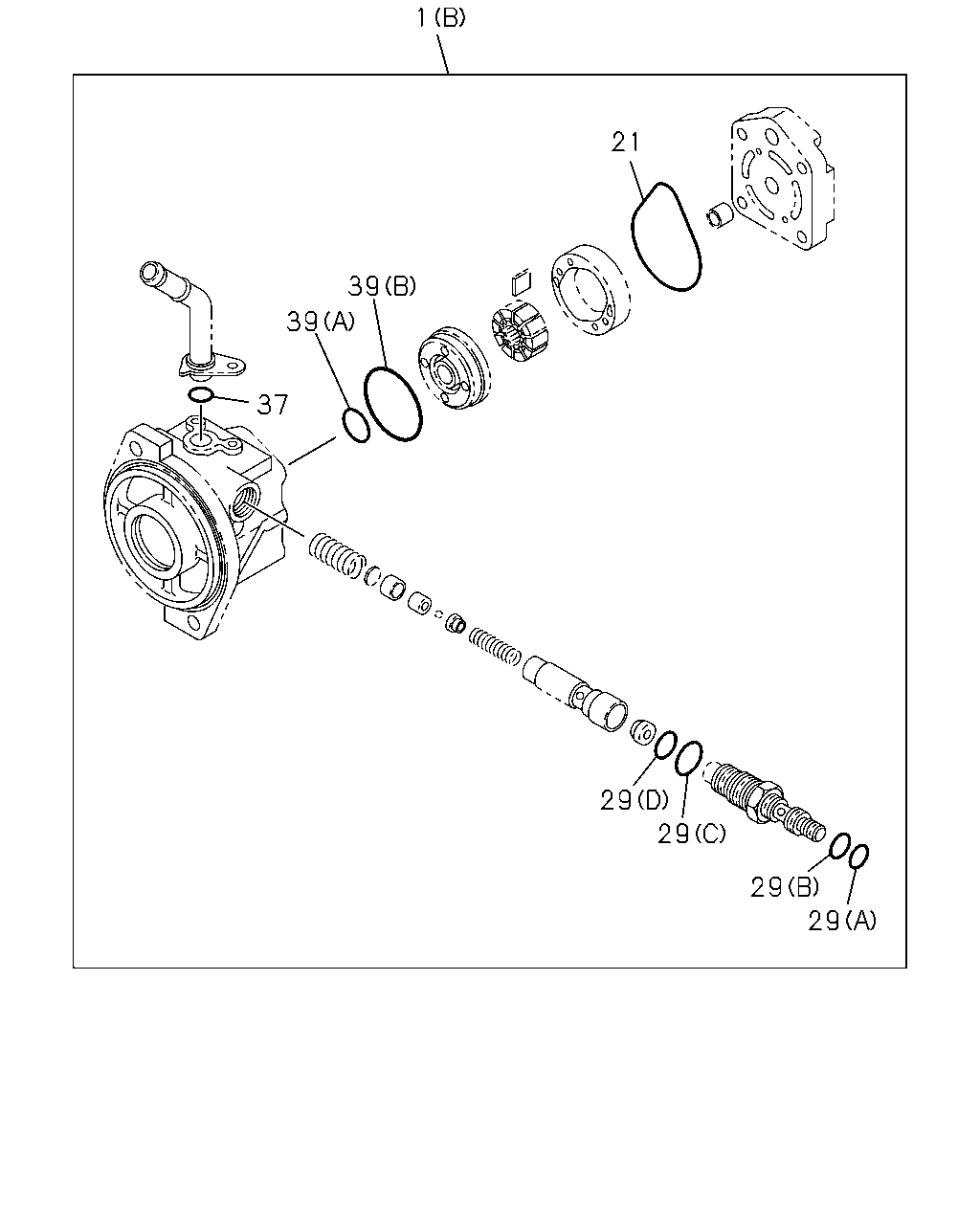

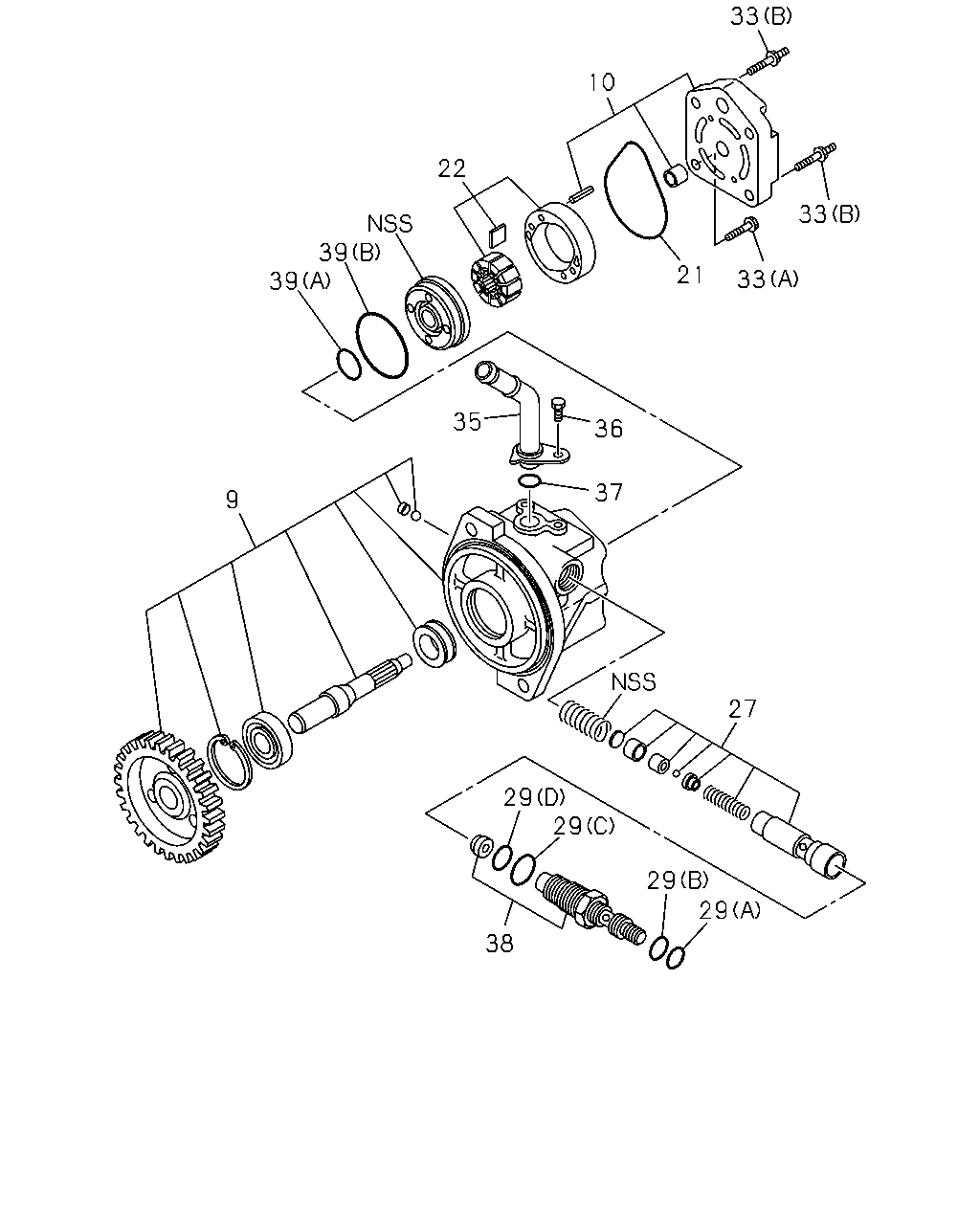

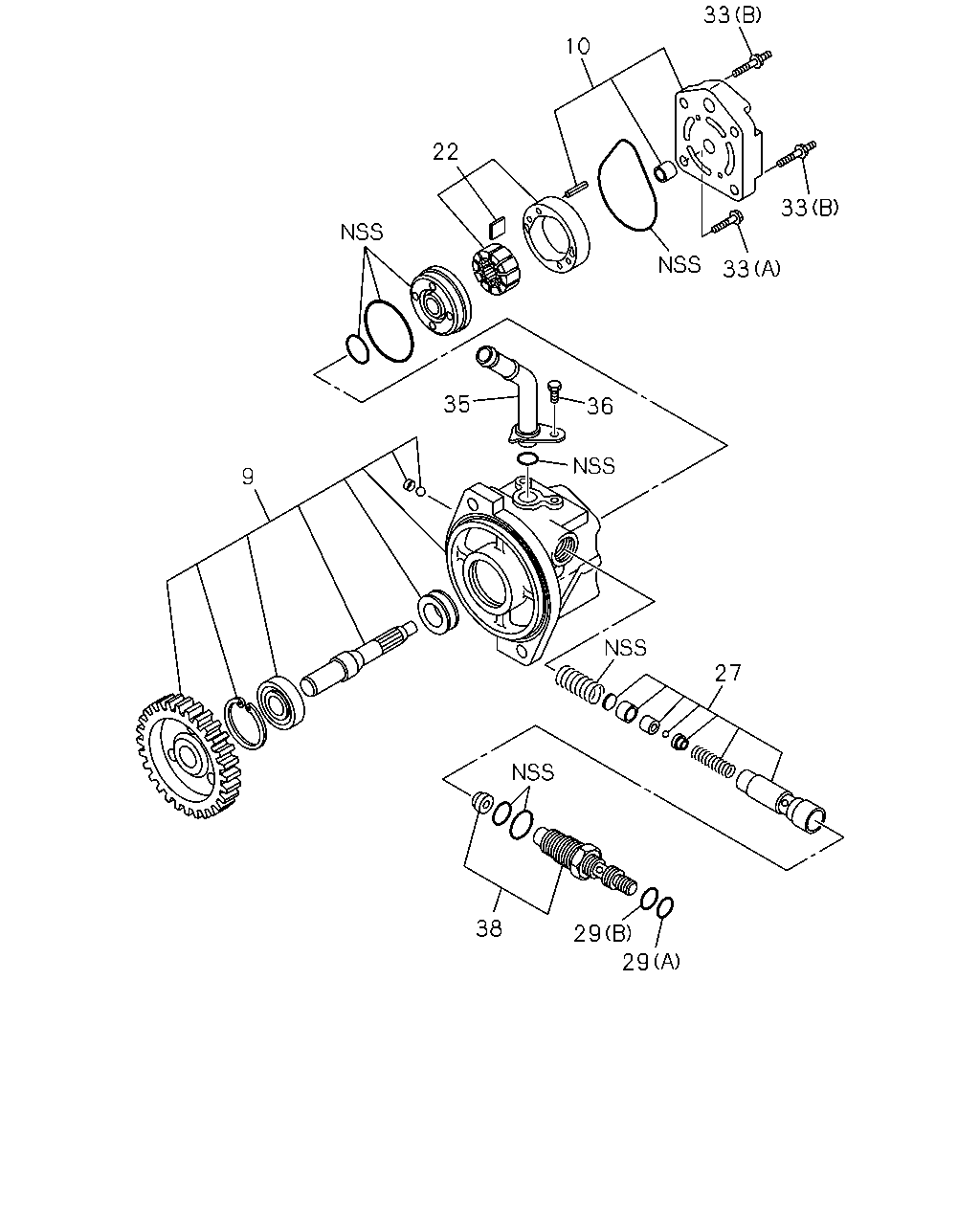

4-42 — POWER STEERING OIL PUMP
(#130872) — 64 parça
◀
[442A] COMPONENT;4HG1 (22 parça)
[442A] REPAIR KIT;4HG1(NO.1) (8 parça)
[442A] COMPONENT;4HK1 (18 parça)
[442A] REPAIR KIT;4HG1(NO.2) (10 parça)
[442A] REPAIR KIT;4HK1 (6 parça)
▶
39
39
22
10
33
21
33
33
35
36
37
9
27
29
38
29
29
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-98006-793-4, B = 8-98138-131-2
8-98058-097-0
01
1
-
10
BODY ASM; RR,OIL PUMP
ASM PART: A = 8-98006-793-4, B = 8-98138-131-2
8-98116-059-0
01
1
-
21
GASKET; FRT COVER TO BODY
ASM PART: B = 8-98138-131-2
8-94380-746-0
01
1
-
22
CARTRIDGE ASM; OIL PUMP
ASM PART: A = 8-98006-793-4, B = 8-98138-131-2
8-98216-517-0
01
1
-
27
VALVE ASM; OIL PUMP
ASM PART: A = 8-98006-793-4
8-98058-091-0
01
1
-
27
VALVE ASM; OIL PUMP
ASM PART: B = 8-98138-131-2
8-98139-288-0
01
1
-
29
GASKET; PLUG TO VLV
(C) ASM PART: B = 8-98138-131-2
8-94379-658-0
01
1
-
29
GASKET; PLUG TO VLV
(D) ASM PART: B = 8-98138-131-2
8-94379-659-0
01
1
-
29
GASKET; PLUG TO VLV
(A) ASM PART: A = 8-98006-793-4, B = 8-98138-131-2
8-94379-666-0
01
1
-
29
GASKET; PLUG TO VLV
(B) ASM PART: A = 8-98006-793-4, B = 8-98138-131-2
8-97075-581-0
01
1
-
33
BOLT; COVER
(A) ASM PART: A = 8-98006-793-4
8-97184-761-0
02
1
-
33
BOLT; COVER
(A) ASM PART: B = 8-98138-131-2
8-97184-761-0
01
1
-
33
BOLT; COVER
(B) ASM PART: A = 8-98006-793-4
8-97184-762-0
02
1
-
33
BOLT; COVER
(B) ASM PART: B = 8-98138-131-2
8-98139-286-0
03
1
-
35
PIPE; HOSE CONN,OIL PUMP
ASM PART: A = 8-98006-793-4
8-98058-094-0
01
1
-
35
PIPE; HOSE CONN,OIL PUMP
ASM PART: B = 8-98138-131-2
8-98139-290-0
01
1
-
36
BOLT; CONN,PIPE
ASM PART: A = 8-98006-793-4, B = 8-98138-131-2
8-97184-763-0
01
1
-
37
GASKET; PIPE CONN,OIL PUMP
ASM PART: B = 8-98138-131-2
8-97184-767-0
01
1
-
38
CONNECTOR; OIL PUMP
ASM PART: A = 8-98006-793-4
8-97093-504-0
01
1
-
38
CONNECTOR; OIL PUMP
ASM PART: B = 8-98138-131-2
8-98139-291-0
01
1
-
39
GASKET; OIL PUMP
(B) ASM PART: B = 8-98138-131-2
8-94379-647-0
01
1
-
39
GASKET; OIL PUMP
(A) ASM PART: B = 8-98138-131-2
8-97147-441-0
01
1
-
1
21
37
29
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
REPAIR KIT; OIL PUMP
(B) ASM PART: B = 8-98138-131-2
8-98058-095-0
01
1
-
1
REPAIR KIT; OIL PUMP
(A) ASM PART: A = 8-98006-793-4, B = 8-98138-131-2
8-98058-096-0
01
1
-
21
GASKET; FRT COVER TO BODY
ASM PART: B = 8-98138-131-2
8-94380-746-0
01
1
-
29
GASKET; PLUG TO VLV
(C) ASM PART: B = 8-98138-131-2
8-94379-658-0
01
1
-
29
GASKET; PLUG TO VLV
(D) ASM PART: B = 8-98138-131-2
8-94379-659-0
01
1
-
29
GASKET; PLUG TO VLV
(A) ASM PART: A = 8-98006-793-4, B = 8-98138-131-2
8-94379-666-0
01
1
-
29
GASKET; PLUG TO VLV
(B) ASM PART: A = 8-98006-793-4, B = 8-98138-131-2
8-97075-581-0
01
1
-
37
GASKET; PIPE CONN,OIL PUMP
ASM PART: B = 8-98138-131-2
8-97184-767-0
01
1
-
10
33
33
33
35
36
22
9
27
38
29
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-98006-793-4, B = 8-98138-131-2
8-98058-097-0
01
1
-
10
BODY ASM; RR,OIL PUMP
ASM PART: A = 8-98006-793-4, B = 8-98138-131-2
8-98116-059-0
01
1
-
22
CARTRIDGE ASM; OIL PUMP
ASM PART: A = 8-98006-793-4, B = 8-98138-131-2
8-98216-517-0
01
1
-
27
VALVE ASM; OIL PUMP
ASM PART: A = 8-98006-793-4
8-98058-091-0
01
1
-
27
VALVE ASM; OIL PUMP
ASM PART: B = 8-98138-131-2
8-98139-288-0
01
1
-
29
GASKET; PLUG TO VLV
(C) ASM PART: B = 8-98138-131-2
8-94379-658-0
01
1
-
29
GASKET; PLUG TO VLV
(D) ASM PART: B = 8-98138-131-2
8-94379-659-0
01
1
-
29
GASKET; PLUG TO VLV
(A) ASM PART: A = 8-98006-793-4, B = 8-98138-131-2
8-94379-666-0
01
1
-
29
GASKET; PLUG TO VLV
(B) ASM PART: A = 8-98006-793-4, B = 8-98138-131-2
8-97075-581-0
01
1
-
33
BOLT; COVER
(A) ASM PART: A = 8-98006-793-4
8-97184-761-0
02
1
-
33
BOLT; COVER
(A) ASM PART: B = 8-98138-131-2
8-97184-761-0
01
1
-
33
BOLT; COVER
(B) ASM PART: A = 8-98006-793-4
8-97184-762-0
02
1
-
33
BOLT; COVER
(B) ASM PART: B = 8-98138-131-2
8-98139-286-0
03
1
-
35
PIPE; HOSE CONN,OIL PUMP
ASM PART: A = 8-98006-793-4
8-98058-094-0
01
1
-
35
PIPE; HOSE CONN,OIL PUMP
ASM PART: B = 8-98138-131-2
8-98139-290-0
01
1
-
36
BOLT; CONN,PIPE
ASM PART: A = 8-98006-793-4, B = 8-98138-131-2
8-97184-763-0
01
1
-
38
CONNECTOR; OIL PUMP
ASM PART: A = 8-98006-793-4
8-97093-504-0
01
1
-
38
CONNECTOR; OIL PUMP
ASM PART: B = 8-98138-131-2
8-98139-291-0
01
1
-
1
21
39
39
37
29
29
29
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
REPAIR KIT; OIL PUMP
(B) ASM PART: B = 8-98138-131-2
8-98058-095-0
01
1
-
1
REPAIR KIT; OIL PUMP
(A) ASM PART: A = 8-98006-793-4, B = 8-98138-131-2
8-98058-096-0
01
1
-
21
GASKET; FRT COVER TO BODY
ASM PART: B = 8-98138-131-2
8-94380-746-0
01
1
-
29
GASKET; PLUG TO VLV
(C) ASM PART: B = 8-98138-131-2
8-94379-658-0
01
1
-
29
GASKET; PLUG TO VLV
(D) ASM PART: B = 8-98138-131-2
8-94379-659-0
01
1
-
29
GASKET; PLUG TO VLV
(A) ASM PART: A = 8-98006-793-4, B = 8-98138-131-2
8-94379-666-0
01
1
-
29
GASKET; PLUG TO VLV
(B) ASM PART: A = 8-98006-793-4, B = 8-98138-131-2
8-97075-581-0
01
1
-
37
GASKET; PIPE CONN,OIL PUMP
ASM PART: B = 8-98138-131-2
8-97184-767-0
01
1
-
39
GASKET; OIL PUMP
(B) ASM PART: B = 8-98138-131-2
8-94379-647-0
01
1
-
39
GASKET; OIL PUMP
(A) ASM PART: B = 8-98138-131-2
8-97147-441-0
01
1
-
1
29
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
REPAIR KIT; OIL PUMP
(B) ASM PART: B = 8-98138-131-2
8-98058-095-0
01
1
-
1
REPAIR KIT; OIL PUMP
(A) ASM PART: A = 8-98006-793-4, B = 8-98138-131-2
8-98058-096-0
01
1
-
29
GASKET; PLUG TO VLV
(C) ASM PART: B = 8-98138-131-2
8-94379-658-0
01
1
-
29
GASKET; PLUG TO VLV
(D) ASM PART: B = 8-98138-131-2
8-94379-659-0
01
1
-
29
GASKET; PLUG TO VLV
(A) ASM PART: A = 8-98006-793-4, B = 8-98138-131-2
8-94379-666-0
01
1
-
29
GASKET; PLUG TO VLV
(B) ASM PART: A = 8-98006-793-4, B = 8-98138-131-2
8-97075-581-0
01
1
-
