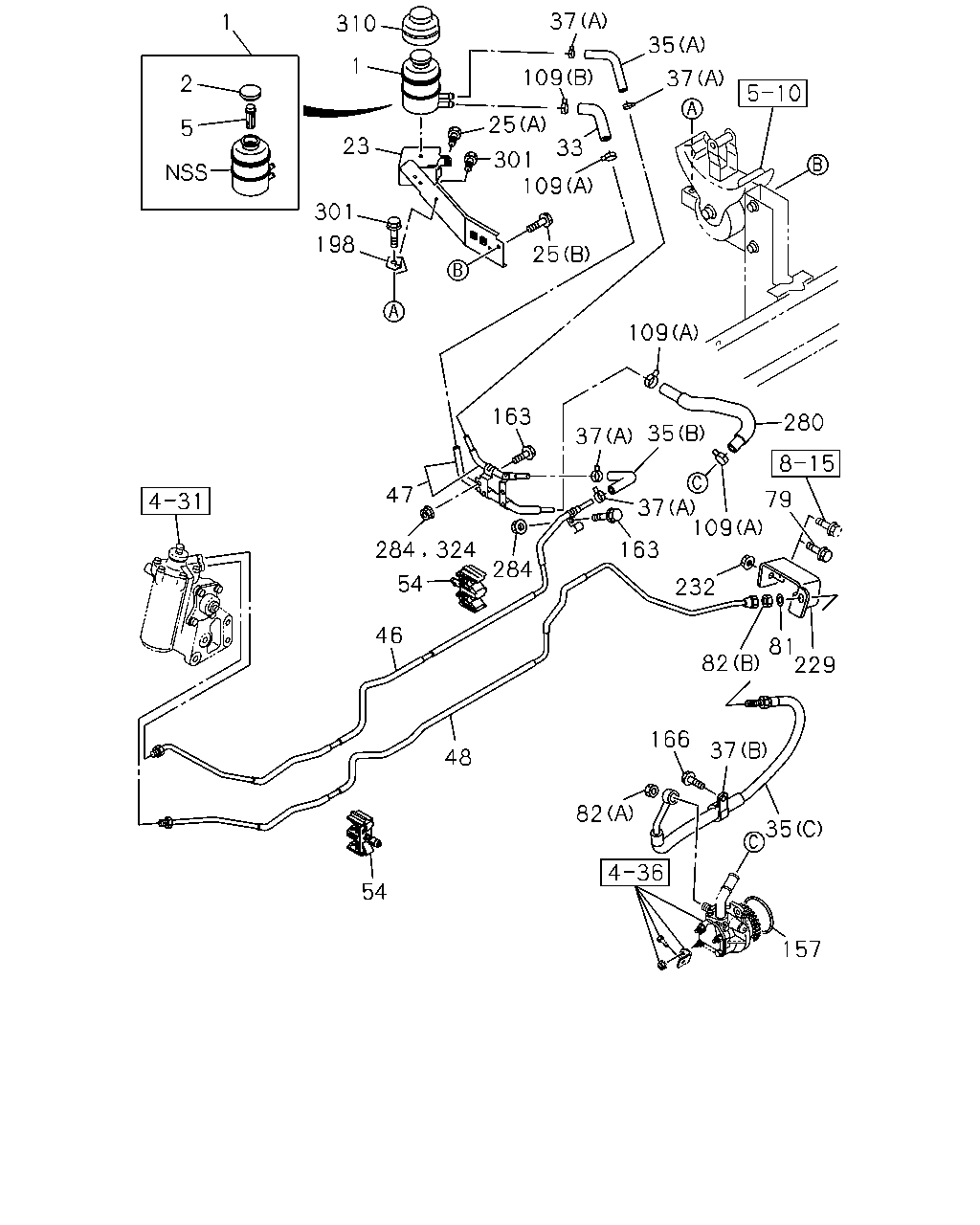

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#130869) — 89 parça

1 2 5 23 1 310 301 198 37 109 25 109 301 33 37 35 25 109 163 35 280 37 47 284 54 284 324 46 54 48 82 157 35 37 166 82 229 81 232 163 37 79 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	1311-1412	●
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	1501-	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	1311-1412	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	1501-	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1311-1412	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1501-	●	●
23	BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1311-1412	●
23	BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1501-	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE MAL	0-28450-620-0	01	1	1311-1412	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE MAL	0-28450-620-0	01	1	1501-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1311-1412	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1501-	●	●
33	HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1311-1412	●
33	HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1501-	●	●
35	HOSE; RETURN,P/S TANK (C)	8-98043-490-3	01	1	1501-		●
35	HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	1311-	●
35	HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1311-1412	●
35	HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1501-	●	●
35	HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1311-1412	●
35	HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1501-	●	●
37	CLIP; HOSE,P/S 4HG1-T ENG(RDP) (B) ID=26 L=26	1-09701-236-0	01	1	1311-1311	●
37	CLIP; HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (B) ID=26 L=26	1-09701-236-0	01	1	1312-1412	●
37	CLIP; HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (B) ID=26 L=26	1-09701-236-0	01	1	1501-	●
37	CLIP; HOSE,P/S 4HK1-TCN ENG(RDQ) (B) ID=26 L=26	1-09701-236-0	01	1	1501-		●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	04	1	1311-1412	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	04	1	1501-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK MAL	8-98041-184-3	01	1	1311-1412	●
46	PIPE; OIL,P/S UNIT TO OIL TANK FRAME STRAIGHT TYPE<7KJ> MAL	8-98041-184-3	01	1	1501-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCN ENG(RDQ) MAL	8-98041-184-3	01	1	1501-		●
47	PIPE; RETURN MAL	8-98083-166-1	01	1	1311-1412	●
47	PIPE; RETURN FRAME STRAIGHT TYPE<7KJ> MAL	8-98083-166-1	01	1	1501-	●
47	PIPE; RETURN 4HK1-TCN ENG(RDQ) MAL	8-98083-166-1	01	1	1501-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98069-442-4	01	1	1501-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT MAL	8-98041-185-4	01	1	1311-	●
54	CLIP; OIL PIPE 4HG1-T ENG(RDP) ID=10X2 H=37.5	8-97018-546-0	02	1	1311-1311	●
54	CLIP; OIL PIPE FRAME STRAIGHT TYPE<7KJ> ID=10X2 H=37.5	8-97018-546-0	02	1	1312-1412	●
54	CLIP; OIL PIPE FRAME STRAIGHT TYPE<7KJ> ID=10X2 H=37.5	8-97018-546-0	02	1	1501-	●
54	CLIP; OIL PIPE 4HK1-TCN ENG(RDQ) ID=10X2 H=37.5	8-97018-546-0	02	1	1501-		●
79	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1501-		●
81	WASHER; LK,FLEX HOSE 4HG1-T ENG(RDP) ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1311-1311	●
81	WASHER; LK,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1312-1412	●
81	WASHER; LK,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1501-	●
81	WASHER; LK,FLEX HOSE 4HK1-TCN ENG(RDQ) ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1501-		●
82	NUT; FLEX HOSE,P/S 4HG1-T ENG(RDP) (B) M16	8-94370-339-0	01	1	1311-1311	●
82	NUT; FLEX HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (B) M16	8-94370-339-0	01	1	1312-1412	●
82	NUT; FLEX HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (B) M16	8-94370-339-0	01	1	1501-	●
82	NUT; FLEX HOSE,P/S 4HK1-TCN ENG(RDQ) (B) M16	8-94370-339-0	01	1	1501-		●
82	NUT; FLEX HOSE,P/S 4HG1-T ENG(RDP) (A) M12 SELF LOCK	8-97028-390-1	01	1	1311-1311	●
82	NUT; FLEX HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (A) M12 SELF LOCK	8-97028-390-1	01	1	1312-1412	●
82	NUT; FLEX HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (A) M12 SELF LOCK	8-97028-390-1	01	1	1501-	●
82	NUT; FLEX HOSE,P/S 4HK1-TCN ENG(RDQ) (A) M12 SELF LOCK	8-97028-390-1	01	1	1501-		●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1311-1412	●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1501-	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	1311-1412	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	1501-	●	●
109	CLIP; RUBBER HOSE 4HG1-T ENG(RDP) (A) ID=21	8-98150-355-0	02	1	1311-1311	●
109	CLIP; RUBBER HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=21	8-98150-355-0	02	1	1312-1412	●
109	CLIP; RUBBER HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=21	8-98150-355-0	02	1	1501-	●
109	CLIP; RUBBER HOSE 4HK1-TCN ENG(RDQ) (A) ID=21	8-98150-355-0	02	1	1501-		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	1311-1412	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	1501-	●	●
163	BOLT; OIL PIPE 4HG1-T ENG(RDP) M8X25 FLANGE MAL	0-28650-825-0	02	1	1311-1311	●
163	BOLT; OIL PIPE FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE MAL	0-28650-825-0	02	1	1312-1412	●
163	BOLT; OIL PIPE FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE MAL	0-28650-825-0	02	1	1501-	●
163	BOLT; OIL PIPE 4HK1-TCN ENG(RDQ) M8X25 FLANGE MAL	0-28650-825-0	02	1	1501-		●
166	BOLT; CLIP 4HG1-T ENG(RDP) M8X25 FLANGE MAL	0-28650-825-0	01	1	1311-1311	●
166	BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE MAL	0-28650-825-0	01	1	1312-1412	●
166	BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE MAL	0-28650-825-0	01	1	1501-	●
166	BOLT; CLIP 4HK1-TCN ENG(RDQ) M8X25 FLANGE MAL	0-28650-825-0	01	1	1501-		●
198	STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1311-1412	●
198	STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1501-	●	●
229	BRACKET; HOSE,POWER STRG	8-98043-418-2	01	1	1501-		●
229	BRACKET; HOSE,POWER STRG	8-98079-341-0	01	1	1311-	●
232	NUT; BRKT 4HG1-T ENG(RDP) M10 FLANGE MAL	0-91180-110-0	01	1	1311-1311	●
232	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> M10 FLANGE MAL	0-91180-110-0	01	1	1312-1412	●
232	NUT; BRKT FRAME STRAIGHT TYPE<7KJ> M10 FLANGE MAL	0-91180-110-0	01	1	1501-	●
232	NUT; BRKT 4HK1-TCN ENG(RDQ) M10 FLANGE MAL	0-91180-110-0	01	1	1501-		●
280	HOSE; P/S OIL PUMP,INL 4HG1-T ENG(RDP)	8-98167-143-0	01	1	1311-	●
280	HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ)	8-98082-973-0	01	1	1312-1412	●
280	HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98082-973-0	01	1	1501-	●
280	HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ)	8-98082-973-0	01	1	1501-		●
284	NUT; PIPE 4HG1-T ENG(RDP) M8 FLANGE MAL	0-91180-108-0	01	1	1311-1311	●
284	NUT; PIPE FRAME STRAIGHT TYPE<7KJ> M8 FLANGE MAL	0-91180-108-0	01	1	1312-1412	●
284	NUT; PIPE FRAME STRAIGHT TYPE<7KJ> M8 FLANGE MAL	0-91180-108-0	01	1	1501-	●
284	NUT; PIPE 4HK1-TCN ENG(RDQ) M8 FLANGE MAL	0-91180-108-0	01	1	1501-		●
301	BOLT; STAY,OIL TANK M8X25 FLANGE MAL	0-28650-825-0	02	1	1311-1412	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE MAL	0-28650-825-0	02	1	1501-	●	●
310	COVER; OIL TANK	8-97103-394-0	01	1	1311-	●
324	NUT; OIL PIPE M8 FLANGE MAL	0-91180-108-0	01	1	1501-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
