4-31 — STEERING COLUMN AND SHAFT (#130867) — 67 parça

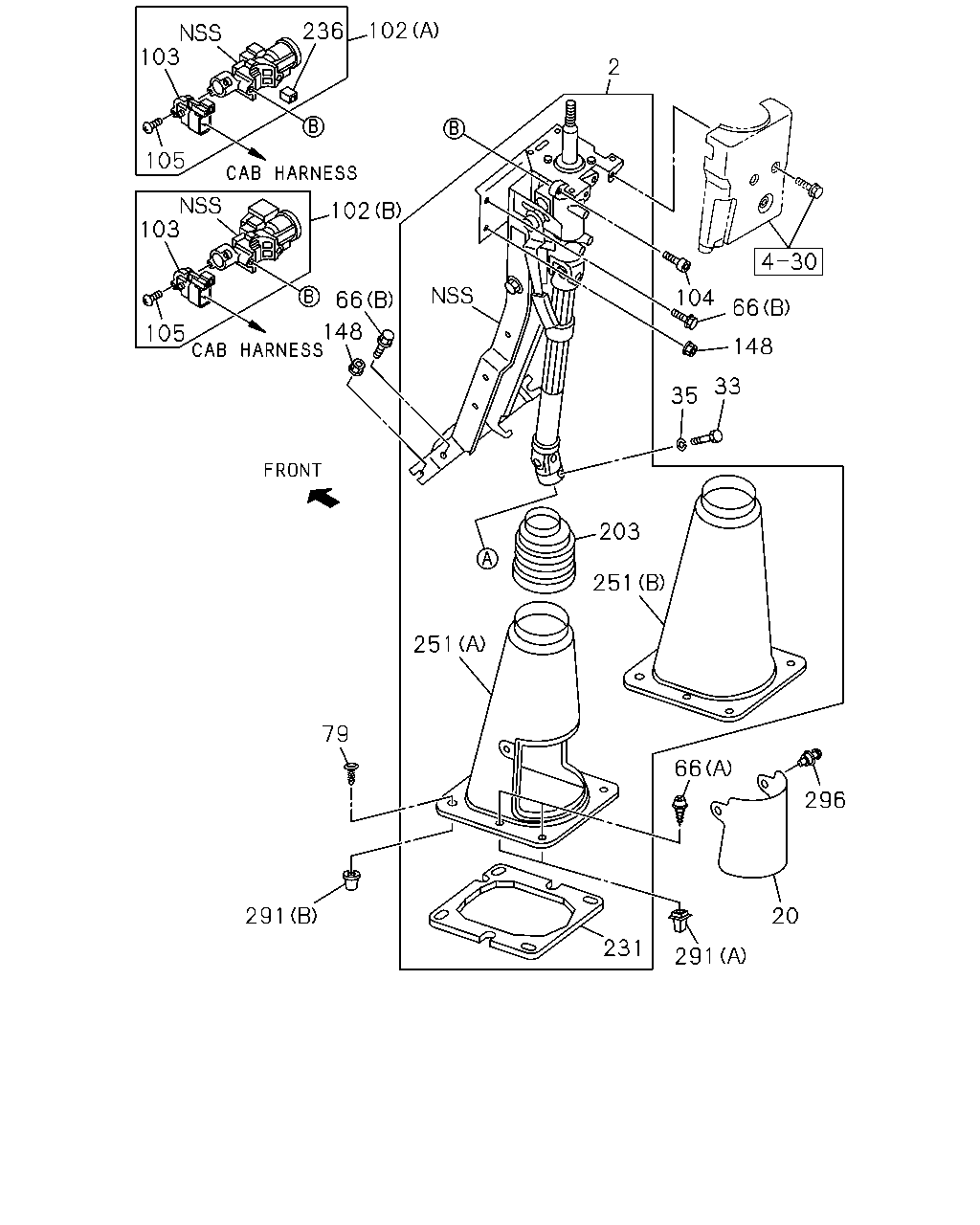

çizim 385624
103 105 103 105 148 66 102 236 102 79 291 251 203 251 231 66 291 20 296 35 33 148 66 104 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ> BLACK 		8-97418-802-2 01 1 1311- ●
2 SHAFT ASM; STRG
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97406-375-8 01 1 1311-1412 ●
2 SHAFT ASM; STRG
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97406-375-8 01 1 1501- ●
2 SHAFT ASM; STRG
BLACK 		8-97406-375-8 01 1 1501- ●
20 COVER; STRG SHAFT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97405-159-0 01 1 1311-1412 ●
20 COVER; STRG SHAFT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97405-159-0 01 1 1501- ●
20 COVER; STRG SHAFT
BLACK 		8-97405-159-0 01 1 1501- ●
33 BOLT; STRG SHAFT TO UNIT
M8X30 		8-97359-615-0 01 1 1311-1412 ●
33 BOLT; STRG SHAFT TO UNIT
M8X30 		8-97359-615-0 01 1 1501- ● ●
35 WASHER; LK,STRG SHAFT
ID=8.2 		0-91510-808-0 01 1 1311-1412 ●
35 WASHER; LK,STRG SHAFT
ID=8.2 		0-91510-808-0 01 1 1501- ● ●
66 BOLT; STRG COLUMN
(B) M8X20 FLANGE MAL 		0-28650-820-0 02 1 1311-1412 ●
66 BOLT; STRG COLUMN
(B) M8X20 FLANGE MAL 		0-28650-820-0 02 1 1501- ● ●
66 BOLT; STRG COLUMN
(A) M5X18 TAPPING MAL 		0-72180-518-0 04 1 1311-1412 ●
66 BOLT; STRG COLUMN
(A) M5X18 TAPPING MAL 		0-72180-518-0 04 1 1501- ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER MAL 		8-98051-939-0 02 1 1311-1412 ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER MAL 		8-98051-939-0 02 1 1501- ● ●
79 CLIP; STRG COLUMN COVER
L=19 BLACK 		8-94363-776-0 02 1 1311-1412 ●
79 CLIP; STRG COLUMN COVER
L=19 BLACK 		8-94363-776-0 02 1 1501- ● ●
102 LOCK ASM; STRG
4HG1-T ENG(RDP) (B) 		8-98006-150-0 01 1 1311- ●
102 LOCK ASM; STRG
4HK1-TCN ENG(RDQ) (A) 		8-97387-036-0 01 1 1312-1412 ●
102 LOCK ASM; STRG
4HK1-TCN ENG(RDQ) (A) 		8-97387-036-0 01 1 1501- ● ●
103 SWITCH; IGNITION
4HG1-T ENG(RDP) 		8-98045-349-0 01 1 1311-1311 ●
103 SWITCH; IGNITION 8-98045-349-0 01 1 1312-1412 ●
103 SWITCH; IGNITION 8-98045-349-0 01 1 1501- ● ●
104 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT 		8-97321-385-0 02 1 1311-1412 ●
104 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT 		8-97321-385-0 02 1 1501- ● ●
105 SCREW; IGN SW
4HG1-T ENG(RDP) 		8-98045-346-0 02 1 1311-1311 ●
105 SCREW; IGN SW 8-98045-346-0 02 1 1312-1412 ●
105 SCREW; IGN SW 8-98045-346-0 02 1 1501- ● ●
148 NUT; COLUMN TO BRKT
M8 W/DISHED WASHER MAL 		8-97329-625-0 03 1 1311-1412 ●
148 NUT; COLUMN TO BRKT
M8 W/DISHED WASHER MAL 		8-97329-625-0 03 1 1501- ● ●
203 BOOT; STRG COLUMN LWR 8-98137-331-0 01 1 1311-1412 ●
203 BOOT; STRG COLUMN LWR 8-98137-331-0 01 1 1501- ● ●
231 SEAL; RUBBER,STRG COLUMN 8-98137-329-0 01 1 1311-1412 ●
231 SEAL; RUBBER,STRG COLUMN 8-98137-329-0 01 1 1501- ● ●
236 SWITCH; DOOR WARNING,STRG LOCK
4HK1-TCN ENG(RDQ) 		8-98045-350-0 01 1 1312-1412 ●
236 SWITCH; DOOR WARNING,STRG LOCK
4HK1-TCN ENG(RDQ) 		8-98045-350-0 01 1 1501- ● ●
251 COVER; LWR
MANUAL TILT CAB<RWZ> (B) BLACK 		8-97418-804-0 01 1 1311- ●
251 COVER; LWR
EXC. MANUAL TILT CAB<RWZ> (A) BLACK 		8-97417-049-0 01 1 1311-1412 ●
251 COVER; LWR
EXC. MANUAL TILT CAB<RWZ> (A) BLACK 		8-97417-049-0 01 1 1501- ●
251 COVER; LWR
(A) BLACK 		8-97417-049-0 01 1 1501- ●
291 GROMMET; STRG SHAFT COVER
(A) H=15 MAL 		8-94463-268-1 04 1 1311-1412 ●
291 GROMMET; STRG SHAFT COVER
(A) H=15 MAL 		8-94463-268-1 04 1 1501- ● ●
291 GROMMET; STRG SHAFT COVER
(B) 		8-98029-442-1 02 1 1311-1412 ●
291 GROMMET; STRG SHAFT COVER
(B) 		8-98029-442-1 02 1 1501- ● ●
296 CLIP; COVER
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97868-409-0 01 1 1311-1412 ●
296 CLIP; COVER
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97868-409-0 01 1 1501- ●
296 CLIP; COVER
BLACK 		8-97868-409-0 01 1 1501- ●

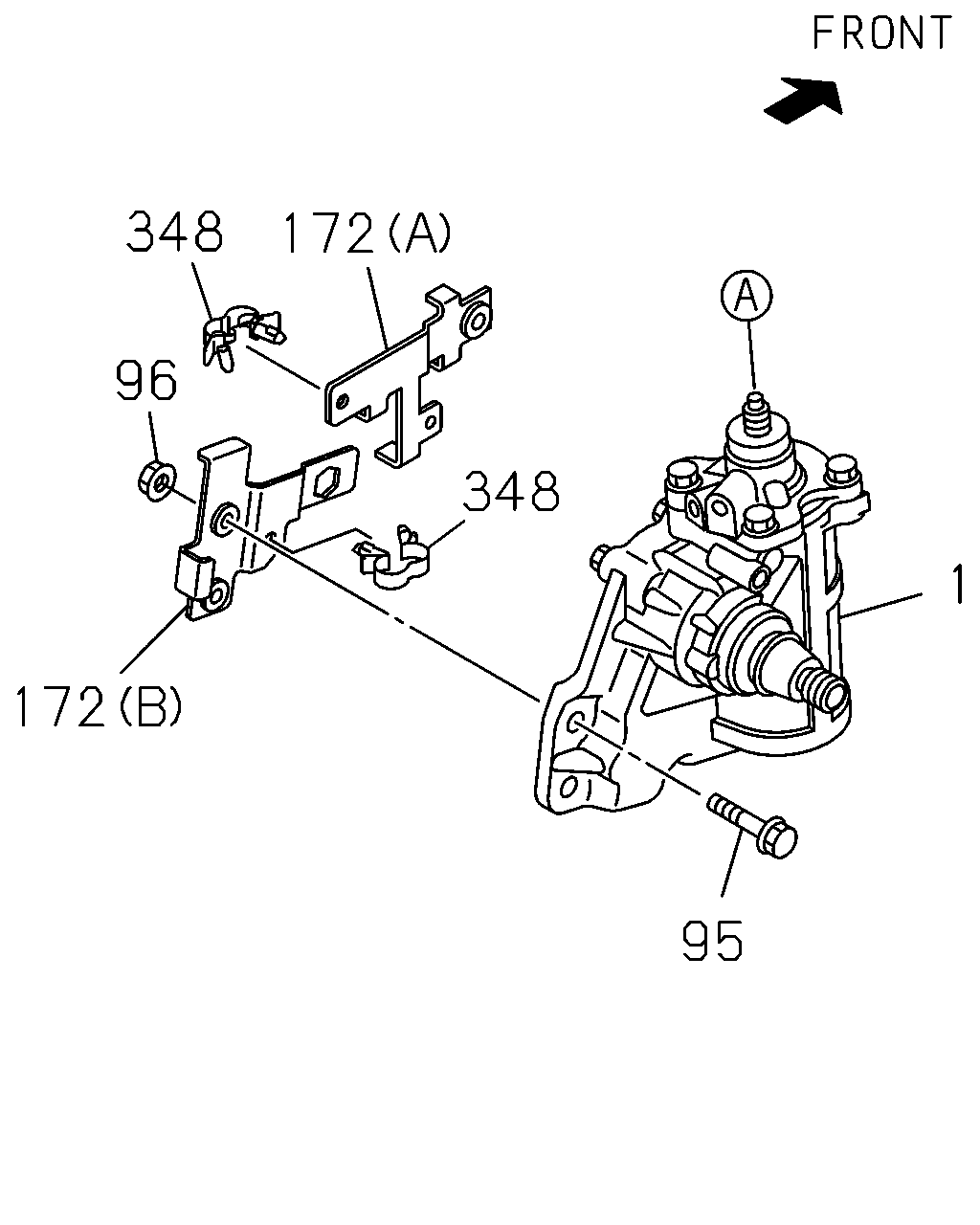

çizim 385646
172 96 348 172 348 95 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-98110-219-5 01 1 1311-1412 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-98110-219-5 01 1 1501- ● ●
95 BOLT; STRG UNIT
M12X47 FLANGE 		8-98055-055-0 04 1 1311-1412 ●
95 BOLT; STRG UNIT
M12X47 FLANGE 		8-98055-055-0 04 1 1501- ● ●
96 NUT; STRG UNIT
M12 FLANGE 		8-97359-618-0 01 1 1311-1412 ●
96 NUT; STRG UNIT
M12 FLANGE 		8-97359-618-0 01 1 1501- ● ●
172 BRACKET; STRG
(A) 		8-98055-256-1 01 1 1311-1412 ●
172 BRACKET; STRG
(A) 		8-98055-256-1 01 1 1501- ● ●
172 BRACKET; STRG
(B) 		8-98081-033-0 01 1 1311-1311 ●
172 BRACKET; STRG
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98081-033-0 01 1 1312-1412 ●
172 BRACKET; STRG
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98081-033-0 01 1 1501- ●
172 BRACKET; STRG
(B) 		8-98081-033-0 01 1 1501- ●
172 BRACKET; STRG
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98055-257-1 01 1 1312- ●
348 CLIP; BRKT,STRG
ID=5-12 L=22 		1-09709-288-0 02 1 1311-1311 ●
348 CLIP; BRKT,STRG
FRAME STRAIGHT TYPE<7KJ> ID=5-12 L=22 		1-09709-288-0 02 1 1312-1412 ●
348 CLIP; BRKT,STRG
FRAME STRAIGHT TYPE<7KJ> ID=5-12 L=22 		1-09709-288-0 02 1 1501- ●
348 CLIP; BRKT,STRG
ID=5-12 L=22 		1-09709-288-0 02 1 1501- ●
348 CLIP; BRKT,STRG
EXC. FRAME STRAIGHT TYPE<7KJ> ID=5-12 L=18 		1-09709-287-0 02 1 1312- ●
