4-20 — REAR AXLE CASE AND SHAFT (#130864) — 105 parça

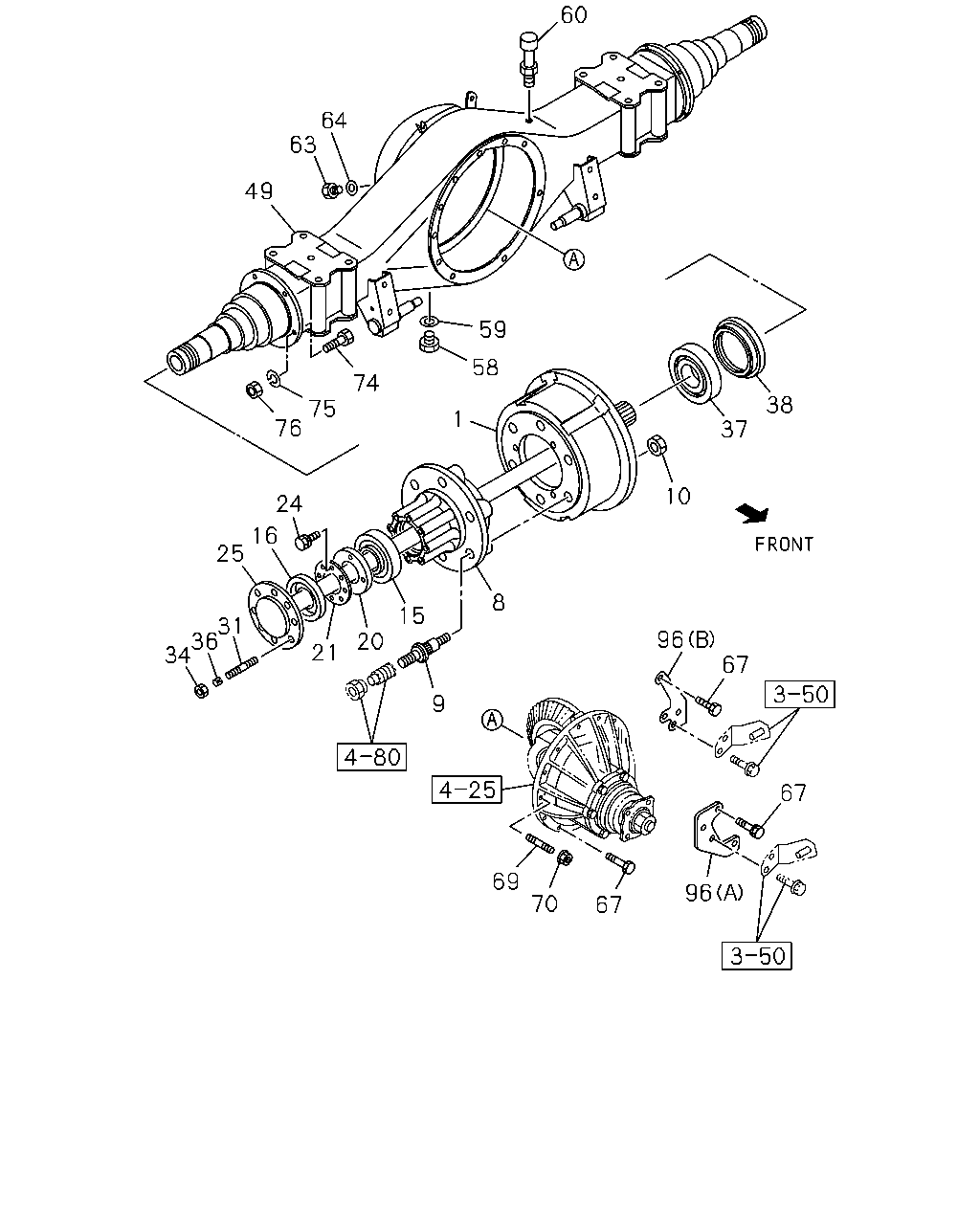

çizim 385774
60 64 63 49 76 75 74 24 46 25 31 36 34 21 8 9 15 20 69 70 67 96 67 67 96 1 58 59 10 37 38
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRUM; BRK,RR
G.V.W. 6.0-6.5TON(RPV) MAL 		8-98248-900-0 02 1 1311- ●
1 DRUM; BRK,RR
G.V.W. 7.0-7.5TON(RPX) MAL 		8-97081-219-2 02 1 1311-1412 ●
1 DRUM; BRK,RR
G.V.W. 7.0-7.5TON(RPX) MAL 		8-97081-219-2 02 1 1501- ●
1 DRUM; BRK,RR
MAL 		8-97081-219-2 02 1 1501- ●
8 HUB; RR AXLE
G.V.W. 6.0-6.5TON(RPV) MAL 		8-94382-893-4 02 1 1311- ●
8 HUB; RR AXLE
G.V.W. 7.0-7.5TON(RPX) MAL 		8-97081-323-2 02 1 1311-1412 ●
8 HUB; RR AXLE
G.V.W. 7.0-7.5TON(RPX) MAL 		8-97081-323-2 02 1 1501- ●
8 HUB; RR AXLE
MAL 		8-97081-323-2 02 1 1501- ●
9 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 1311- ●
9 PIN; WHEEL,RR AXLE
G.V.W. 6.0-6.5TON(RPV) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 1311- ●
9 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX) M20X28,M22X57 RH THREAD 		8-97081-584-4 06 1 1311-1412 ●
9 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX) M20X28,M22X57 RH THREAD 		8-97081-584-4 06 1 1501- ●
9 PIN; WHEEL,RR AXLE
M20X28,M22X57 RH THREAD 		8-97081-584-4 06 1 1501- ●
9 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX) M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-4 06 1 1311-1412 ●
9 PIN; WHEEL,RR AXLE
G.V.W. 7.0-7.5TON(RPX) M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-4 06 1 1501- ●
9 PIN; WHEEL,RR AXLE
M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-4 06 1 1501- ●
10 NUT; WHEEL PIN,RR AXLE
G.V.W. 6.0-6.5TON(RPV) M20 		0-91110-520-0 10 1 1311- ●
10 NUT; WHEEL PIN,RR AXLE
G.V.W. 7.0-7.5TON(RPX) M22 		0-91110-522-0 12 1 1311-1412 ●
10 NUT; WHEEL PIN,RR AXLE
G.V.W. 7.0-7.5TON(RPX) M22 		0-91110-522-0 12 1 1501- ●
10 NUT; WHEEL PIN,RR AXLE
M22 		0-91110-522-0 12 1 1501- ●
15 BEARING; HUB OUTER,RR AXLE
NSK MAL 		9-00093-607-0 02 1 1311-1412 ●
15 BEARING; HUB OUTER,RR AXLE
NSK MAL 		9-00093-607-0 02 1 1501- ● ●
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS MAL 		5-87610-139-0 02 1 1311-1412 ●
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS MAL 		5-87610-139-0 02 1 1501- ● ●
16 SEAL; OIL,RR HUB,OUTER
NOK 		8-98202-912-0 02 1 1311-1412 ●
16 SEAL; OIL,RR HUB,OUTER
NOK 		8-98202-912-0 02 1 1501- ● ●
20 NUT; BRG,RR HUB
M55 MAL 		8-97137-094-0 02 1 1311-1412 ●
20 NUT; BRG,RR HUB
M55 MAL 		8-97137-094-0 02 1 1501- ● ●
21 WASHER; LK,BRG NUT
ID=55 MAL 		9-09653-002-0 02 1 1311-1412 ●
21 WASHER; LK,BRG NUT
ID=55 		9-09653-002-1 02 1 1501- ● ●
24 BOLT; LK WASHER
M6X10 FLANGE 		0-28050-610-0 04 1 1311-1412 ●
24 BOLT; LK WASHER
M6X10 FLANGE 		0-28050-610-0 04 1 1501-1508 ● ●
24 BOLT; LK WASHER
M6X12 FLANGE MAL 		0-28050-612-0 04 1 1509- ● ●
25 SHAFT; AXLE,RR
G.V.W. 6.0-6.5TON(RPV) L=893 		8-97073-871-1 02 1 1311-1311 ●
25 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) L=893 		8-97073-871-1 02 1 1312- ●
25 SHAFT; AXLE,RR
G.V.W. 7.0-7.5TON(RPX) L=885 MAL 		8-97134-439-0 02 1 1311-1311 ●
25 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) L=885 MAL 		8-97134-439-0 02 1 1312-1412 ●
25 SHAFT; AXLE,RR
G.V.W. 7.0-7.5TON(RPX) L=885 MAL 		8-97134-439-0 02 1 1312-1412 ●
25 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) L=885 MAL 		8-97134-439-0 02 1 1501- ●
25 SHAFT; AXLE,RR
G.V.W. 7.0-7.5TON(RPX) L=885 MAL 		8-97134-439-0 02 1 1501- ●
25 SHAFT; AXLE,RR
L=885 MAL 		8-97134-439-0 02 1 1501- ●
31 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		8-97359-803-0 16 1 1311-1412 ●
31 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		8-97359-803-0 16 1 1501- ● ●
34 NUT; AXLE SHAFT
M10 FLANGE MAL 		0-91180-210-0 16 1 1311-1412 ●
34 NUT; AXLE SHAFT
M10 FLANGE MAL 		0-91180-210-0 16 1 1501- ● ●
36 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		8-97360-004-0 16 1 1311-1412 ●
36 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		8-97360-004-0 16 1 1501- ● ●
37 BEARING; HUB INNER,RR AXLE
NSK MAL 		9-00093-624-0 02 1 1311-1412 ●
37 BEARING; HUB INNER,RR AXLE
NSK MAL 		9-00093-624-0 02 1 1501- ● ●
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		5-87610-141-0 02 1 1311-1412 ●
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		5-87610-141-0 02 1 1501- ● ●
38 SEAL; OIL,RR HUB,INNER
TKK MAL 		8-94336-316-1 02 1 1311-1412 ●
38 SEAL; OIL,RR HUB,INNER
TKK MAL 		8-94336-316-1 02 1 1501- ● ●
38 SEAL; OIL,RR HUB,INNER
NOK MAL 		8-94367-958-0 02 1 1311-1412 ●
38 SEAL; OIL,RR HUB,INNER
NOK MAL 		8-94367-958-0 02 1 1501- ● ●
49 CASE; RR AXLE
G.V.W. 6.0-6.5TON(RPV) 		8-97222-081-3 01 1 1311-1311 ●
49 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 		8-97222-081-3 01 1 1312- ●
49 CASE; RR AXLE
G.V.W. 7.0-7.5TON(RPX) 		8-97222-080-3 01 1 1311-1311 ●
49 CASE; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) 		8-97222-080-3 01 1 1312-1412 ●
49 CASE; RR AXLE
G.V.W. 7.0-7.5TON(RPX) 		8-97222-080-3 01 1 1312-1412 ●
49 CASE; RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) 		8-97222-080-3 01 1 1501- ●
49 CASE; RR AXLE
G.V.W. 7.0-7.5TON(RPX) 		8-97222-080-3 01 1 1501- ●
49 CASE; RR AXLE 8-97222-080-3 01 1 1501- ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 1311-1412 ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 1501- ● ●
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 		9-09571-416-0 01 1 1311-1412 ●
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 		9-09571-416-0 01 1 1501- ● ●
60 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 1311-1412 ●
60 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 1501- ● ●
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		8-98009-333-0 01 1 1311-1412 ●
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		8-98009-333-0 01 1 1501- ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 1311-1412 ●
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 1501- ● ●
67 BOLT; FINAL DRIVE SETTING
G.V.W. 6.0-6.5TON(RPV) M10X40 W/LK WASHER 		0-50561-040-0 11 1 1311-1311 ●
67 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) M10X40 W/LK WASHER 		0-50561-040-0 11 1 1312- ●
67 BOLT; FINAL DRIVE SETTING
G.V.W. 7.0-7.5TON(RPX) M10X40 W/LK WASHER 		0-50561-040-0 07 1 1311-1311 ●
67 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) M10X40 W/LK WASHER 		0-50561-040-0 07 1 1312-1412 ●
67 BOLT; FINAL DRIVE SETTING
G.V.W. 7.0-7.5TON(RPX) M10X40 W/LK WASHER 		0-50561-040-0 07 1 1312-1412 ●
67 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) M10X40 W/LK WASHER 		0-50561-040-0 07 1 1501- ●
67 BOLT; FINAL DRIVE SETTING
G.V.W. 7.0-7.5TON(RPX) M10X40 W/LK WASHER 		0-50561-040-0 07 1 1501- ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50561-040-0 07 1 1501- ●
67 BOLT; FINAL DRIVE SETTING
G.V.W. 7.0-7.5TON(RPX) M10X50 W/LK WASHER 		0-50561-050-0 04 1 1311-1311 ●
67 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) M10X50 W/LK WASHER 		0-50561-050-0 04 1 1312-1412 ●
67 BOLT; FINAL DRIVE SETTING
G.V.W. 7.0-7.5TON(RPX) M10X50 W/LK WASHER 		0-50561-050-0 04 1 1312-1412 ●
67 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) M10X50 W/LK WASHER 		0-50561-050-0 04 1 1501- ●
67 BOLT; FINAL DRIVE SETTING
G.V.W. 7.0-7.5TON(RPX) M10X50 W/LK WASHER 		0-50561-050-0 04 1 1501- ●
67 BOLT; FINAL DRIVE SETTING
M10X50 W/LK WASHER 		0-50561-050-0 04 1 1501- ●
69 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97359-802-0 02 1 1311-1412 ●
69 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97359-802-0 02 1 1501- ● ●
70 NUT; CARRIER
M10 FLANGE MAL 		0-91180-210-0 02 1 1311-1412 ●
70 NUT; CARRIER
M10 FLANGE MAL 		0-91180-210-0 02 1 1501- ● ●
74 BOLT; RR BRK ASM SETTING
M12X32 MAL 		8-97359-819-0 12 1 1311-1412 ●
74 BOLT; RR BRK ASM SETTING
M12X32 MAL 		8-97359-819-0 12 1 1501- ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=12.2 MAL 		0-91510-812-0 12 1 1311-1412 ●
75 WASHER; LK,RR BRK ASM SETTING
ID=12.2 MAL 		0-91510-812-0 12 1 1501- ● ●
76 NUT; RR BRK ASM SETTING
M12 MAL 		0-91110-512-0 12 1 1311-1412 ●
76 NUT; RR BRK ASM SETTING
M12 MAL 		0-91110-512-0 12 1 1501- ● ●
96 BRACKET; LSPV,AXLE CASE
G.V.W. 6.0-6.5TON(RPV) (B) MAL 		8-98030-956-0 01 1 1311-1311 ●
96 BRACKET; LSPV,AXLE CASE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) (B) MAL 		8-98030-956-0 01 1 1312- ●
96 BRACKET; LSPV,AXLE CASE
G.V.W. 7.0-7.5TON(RPX) (A) 		8-98037-102-0 01 1 1311-1311 ●
96 BRACKET; LSPV,AXLE CASE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) (A) 		8-98037-102-0 01 1 1312-1412 ●
96 BRACKET; LSPV,AXLE CASE
G.V.W. 7.0-7.5TON(RPX) (A) 		8-98037-102-0 01 1 1312-1412 ●
96 BRACKET; LSPV,AXLE CASE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) (A) 		8-98037-102-0 01 1 1501- ●
96 BRACKET; LSPV,AXLE CASE
G.V.W. 7.0-7.5TON(RPX) (A) 		8-98037-102-0 01 1 1501- ●
96 BRACKET; LSPV,AXLE CASE
(A) 		8-98037-102-0 01 1 1501- ●
