4-10 — FRONT AXLE (#130862) — 93 parça

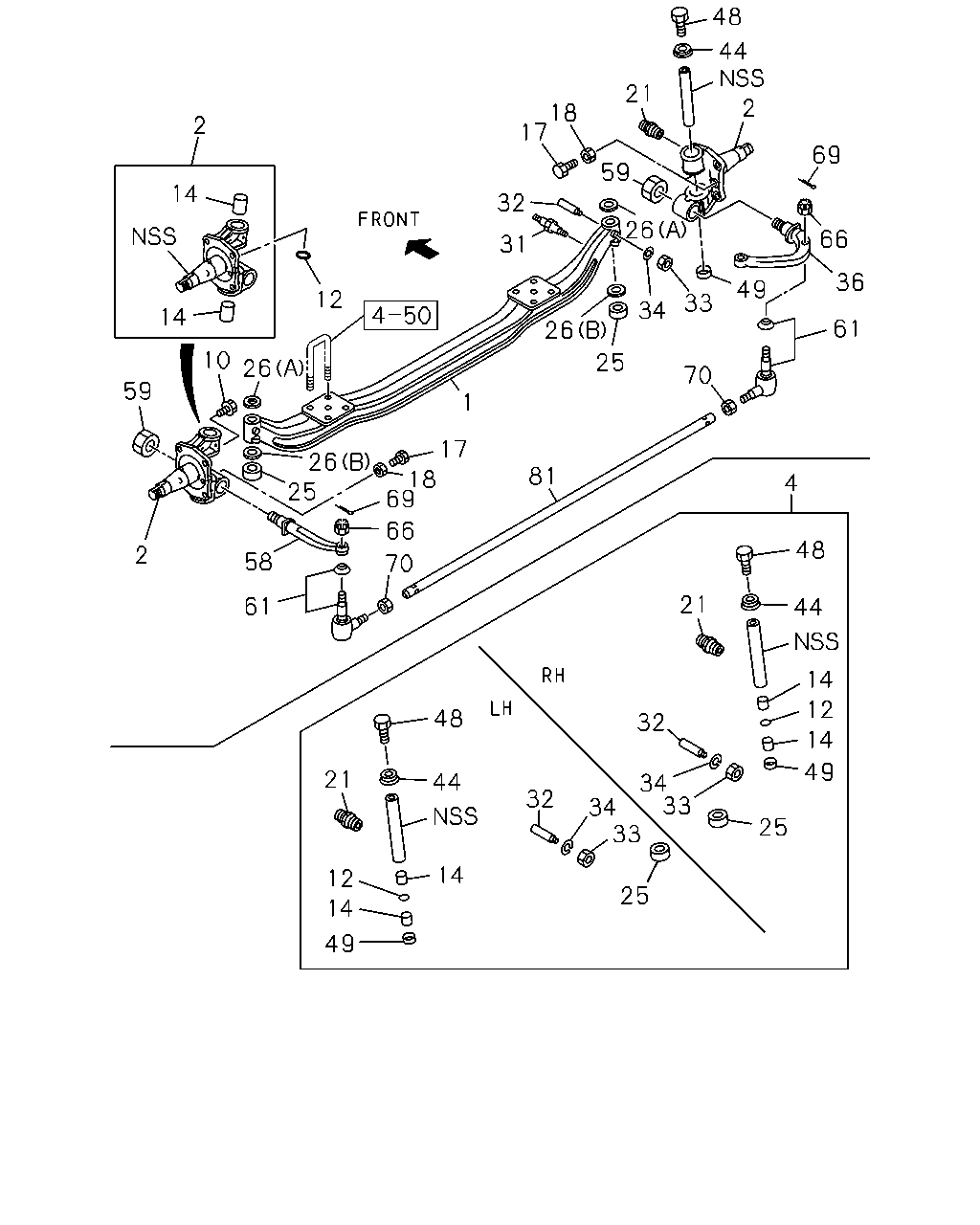

çizim 386096
48 4 44 14 12 14 49 21 32 34 33 25 25 33 34 32 44 48 14 12 14 49 21 70 69 66 17 18 81 70 25 26 34 33 32 31 17 18 21 48 44 2 69 66 36 61 49 26 59 2 59 14 2 61 58 25 26 1 26 10 12 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT 8-98038-384-3 01 1 1311-1412 ●
1 AXLE; FRT 8-98038-384-3 01 1 1501- ● ●
2 KNUCKLE; FRT AXLE
G.V.W. 7.0-7.5TON(RPX) 		8-97261-549-2 01 1 1311-1412 ●
2 KNUCKLE; FRT AXLE
G.V.W. 7.0-7.5TON(RPX) 		8-97261-549-2 01 1 1501- ●
2 KNUCKLE; FRT AXLE 8-97261-549-2 01 1 1501- ●
2 KNUCKLE; FRT AXLE
G.V.W. 7.0-7.5TON(RPX) 		8-97261-550-2 01 1 1311-1412 ●
2 KNUCKLE; FRT AXLE
G.V.W. 7.0-7.5TON(RPX) 		8-97261-550-2 01 1 1501- ●
2 KNUCKLE; FRT AXLE 8-97261-550-2 01 1 1501- ●
2 KNUCKLE; FRT AXLE
G.V.W. 6.0-6.5TON(RPV) 		8-97261-545-2 01 1 1311- ●
2 KNUCKLE; FRT AXLE
G.V.W. 6.0-6.5TON(RPV) 		8-97261-546-2 01 1 1311- ●
4 KING PIN KIT
FRAME STRAIGHT TYPE<7KJ> 		5-87832-220-2 01 1 1403-1412 ●
4 KING PIN KIT
FRAME STRAIGHT TYPE<7KJ> 		5-87832-220-2 01 1 1501- ●
4 KING PIN KIT 5-87832-220-2 01 1 1501- ●
4 KING PIN KIT 5-87832-219-2 01 1 1311-1402 ●
4 KING PIN KIT
EXC. FRAME STRAIGHT TYPE<7KJ> 		5-87832-219-2 01 1 1403- ●
10 PLUG; PLATE,KNUCKLE 8-97360-117-0 01 1 1311-1412 ●
10 PLUG; PLATE,KNUCKLE 8-97360-117-0 01 1 1501- ● ●
12 GASKET; KNUCKLE 8-98084-500-0 02 1 1311-1412 ●
12 GASKET; KNUCKLE 8-98084-500-0 02 1 1501- ● ●
14 BUSHING; KING PIN
DAIDO WO/NOTCH 		8-94107-672-3 04 1 1311-1412 ●
14 BUSHING; KING PIN
DAIDO WO/NOTCH 		8-94107-672-3 04 1 1501- ● ●
17 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 1311-1412 ●
17 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 1501- ● ●
18 NUT; STOPPER BOLT,KNUCKLE
M12 		0-91111-512-0 03 1 1311-1412 ●
18 NUT; STOPPER BOLT,KNUCKLE
M12 		0-91111-512-0 03 1 1501- ● ●
21 NIPPLE; GREASE,KING PIN
M6 STRAIGHT 		0-90301-406-0 04 1 1311-1412 ●
21 NIPPLE; GREASE,KING PIN
M6 STRAIGHT 		0-90301-406-0 04 1 1501- ● ●
25 BEARING; THRUST,KING PIN
OD=54 ID=30.2 T=13.8 		8-94248-883-2 02 1 1311-1402 ●
25 BEARING; THRUST,KING PIN
EXC. FRAME STRAIGHT TYPE<7KJ> OD=54 ID=30.2 T=13.8 		8-94248-883-3 02 1 1403- ●
25 BEARING; THRUST,KING PIN
FRAME STRAIGHT TYPE<7KJ> OD=54 ID=30.2 T=13.8 		8-94248-883-2 01 1 1403-1412 ●
25 BEARING; THRUST,KING PIN
FRAME STRAIGHT TYPE<7KJ> OD=54 ID=30.2 T=13.8 		8-94248-883-3 01 1 1501- ●
25 BEARING; THRUST,KING PIN
OD=54 ID=30.2 T=13.8 		8-94248-883-3 01 1 1501- ●
25 BEARING; THRUST,KING PIN
FRAME STRAIGHT TYPE<7KJ> OD=51.6 ID=30.5 T=15.6 		8-97141-943-1 01 1 1403-1412 ●
25 BEARING; THRUST,KING PIN
FRAME STRAIGHT TYPE<7KJ> OD=51.6 ID=30.5 T=15.6 		8-97141-943-1 01 1 1501- ●
25 BEARING; THRUST,KING PIN
OD=51.6 ID=30.5 T=15.6 		8-97141-943-1 01 1 1501- ●
26 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 1311-1412 ●
26 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 1501- ● ●
26 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 1311-1412 ●
26 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 1501- ● ●
26 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 1311-1412 ●
26 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 1501- ● ●
26 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 1311-1412 ●
26 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 1501- ● ●
26 SHIM; KING PIN,BRG
(B) T=1.95 		8-94168-490-0 02 1 1311-1402 ●
26 SHIM; KING PIN,BRG
(B) T=1.95 		8-94168-490-0 01 1 1403-1412 ●
26 SHIM; KING PIN,BRG
EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=1.95 		8-94168-490-0 01 1 1403-1412 ●
26 SHIM; KING PIN,BRG
(B) T=1.95 		8-94168-490-0 01 1 1501- ● ●
26 SHIM; KING PIN,BRG
EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=1.95 		8-94168-490-0 01 1 1501- ●
26 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 1311-1412 ●
26 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 1501- ● ●
26 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 1311-1412 ●
26 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 1501- ● ●
26 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 1311-1412 ●
26 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 1501- ● ●
31 PIN; S/ABS,LWR 8-97145-460-0 02 1 1311-1412 ●
31 PIN; S/ABS,LWR 8-97145-460-0 02 1 1501- ● ●
32 BOLT; KEY,KING PIN 8-97141-945-2 02 1 1311-1412 ●
32 BOLT; KEY,KING PIN 8-97141-945-2 02 1 1501- ● ●
33 NUT; KEY BOLT
M10 MAL 		0-91110-510-0 02 1 1311-1412 ●
33 NUT; KEY BOLT
M10 MAL 		0-91110-510-0 02 1 1501- ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 MAL 		0-91510-510-0 02 1 1311-1412 ●
34 WASHER; LK,KEY BOLT
ID=10.2 MAL 		0-91510-510-0 02 1 1501- ● ●
36 ARM; KNUCKLE
G.V.W. 7.0-7.5TON(RPX) 		8-97202-776-5 01 1 1311-1412 ●
36 ARM; KNUCKLE
G.V.W. 7.0-7.5TON(RPX) 		8-97202-776-5 01 1 1501- ●
36 ARM; KNUCKLE 8-97202-776-5 01 1 1501- ●
36 ARM; KNUCKLE
G.V.W. 6.0-6.5TON(RPV) 		8-97226-688-5 01 1 1311- ●
44 COVER; KING PIN
OD=36 		8-97360-023-0 02 1 1311-1412 ●
44 COVER; KING PIN
OD=36 		8-97360-023-0 02 1 1501- ● ●
48 BOLT; COVER
M10X12 FLANGE 		0-28051-012-0 02 1 1311-1412 ●
48 BOLT; COVER
M10X12 FLANGE 		0-28051-012-0 02 1 1501- ● ●
49 CAP; KNUCKLE 8-97360-024-0 02 1 1311-1412 ●
49 CAP; KNUCKLE 8-97360-024-0 02 1 1501- ● ●
58 ARM; TIE ROD 8-97138-304-2 01 1 1311-1412 ●
58 ARM; TIE ROD 8-97138-304-2 01 1 1501- ● ●
59 NUT; TIE ROD ARM 8-97360-123-0 02 1 1311-1412 ●
59 NUT; TIE ROD ARM 8-97360-123-0 02 1 1501- ● ●
61 ROD END; TIE ROD 8-97107-349-2 01 1 1311-1412 ●
61 ROD END; TIE ROD 8-97107-349-2 01 1 1501- ● ●
61 ROD END; TIE ROD 8-97142-100-1 01 1 1311-1311 ●
61 ROD END; TIE ROD 8-97107-348-2 01 1 1311-1412 ●
61 ROD END; TIE ROD 8-97107-348-2 01 1 1501- ● ●
61 ROD END; TIE ROD 8-97142-101-1 01 1 1311-1311 ●
66 NUT; TIE ROD END
M16 SLOTTED 		8-98049-689-0 02 1 1311-1412 ●
66 NUT; TIE ROD END
M16 SLOTTED 		8-98049-689-0 02 1 1501- ● ●
69 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		0-81124-020-0 02 1 1311-1412 ●
69 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		0-81124-020-0 02 1 1501- ● ●
70 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 1311-1412 ●
70 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 1501- ● ●
70 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 1311-1311 ●
70 NUT; TIE ROD END
M20 RH THREAD 		8-98043-530-0 01 1 1311-1412 ●
70 NUT; TIE ROD END
M20 RH THREAD 		8-98043-530-0 01 1 1501- ● ●
81 ROD; TIE 8-97061-869-0 01 1 1311-1412 ●
81 ROD; TIE 8-97061-869-0 01 1 1501- ● ●
