4-01 — PROPELLER SHAFT (#130861) — 154 parça

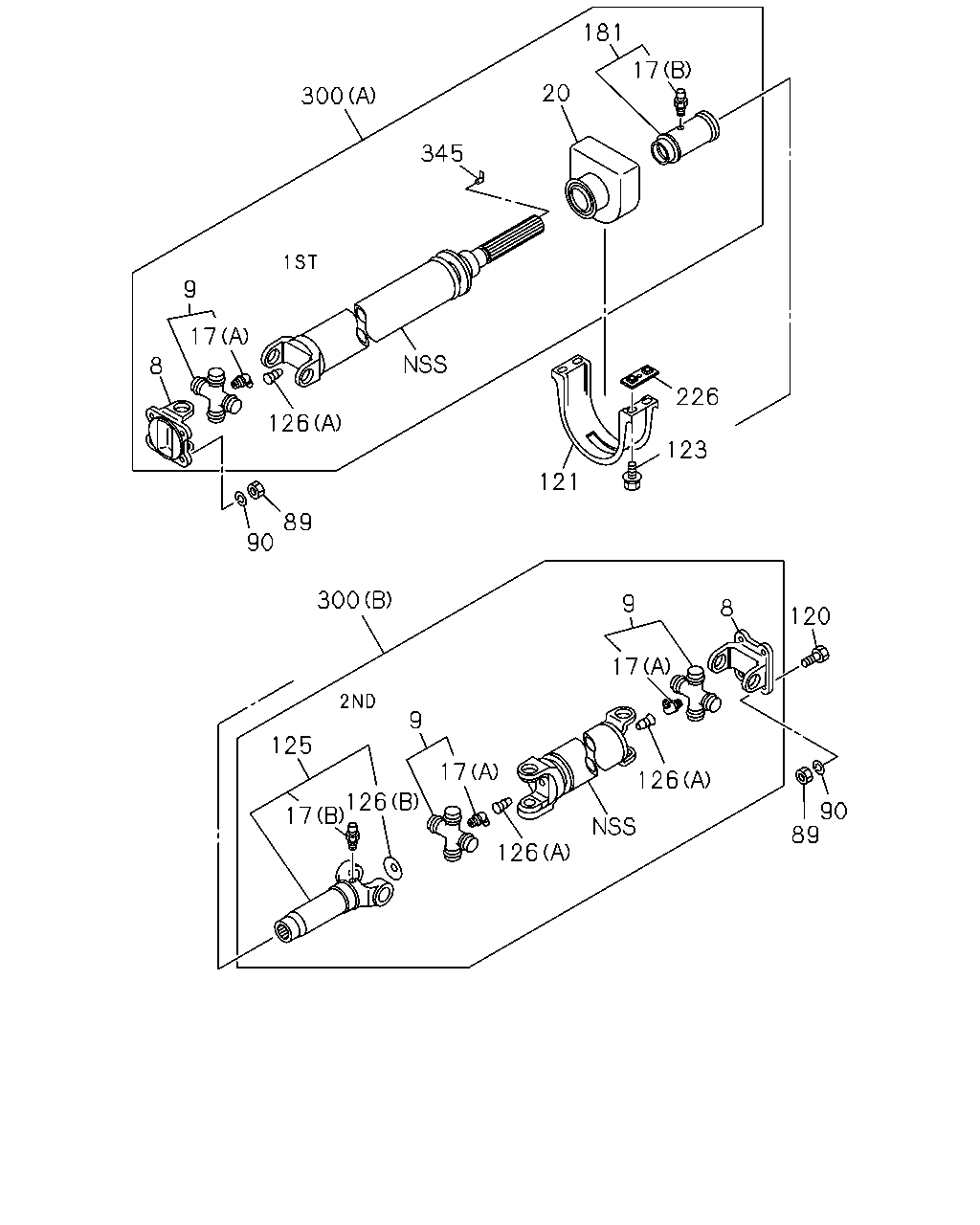

300 181 17 20 345 9 8 17 126 89 90 300 121 123 226 9 8 120 90 89 126 126 17 9 125 17 126 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP) D=80	8-97322-663-0	01	1	1311-	●
8	YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP) D=80	8-97322-663-0	01	1	1311-	●
8	YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ) D=80	1-37211-037-4	01	1	1312-1412	●
8	YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ) D=80	1-37211-037-4	01	1	1501-	●
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	01	1	1501-		●
8	YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ) D=80	1-37211-037-4	02	1	1312-1412	●
8	YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ) D=80	1-37211-037-4	02	1	1501-	●
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	02	1	1501-		●
9	JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP)	8-98033-605-1	01	1	1311-	●
9	JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP)	8-98033-605-1	02	1	1311-	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ)	8-98020-789-1	01	1	1312-1412	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ)	8-98020-789-1	01	1	1501-	●
9	JOURNAL ASM; PROP SHAFT	8-98020-789-1	01	1	1501-		●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ)	8-98020-789-1	02	1	1312-1412	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ)	8-98020-789-1	02	1	1501-	●
9	JOURNAL ASM; PROP SHAFT	8-98020-789-1	02	1	1501-		●
17	NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP) (B) M6 STRAIGHT	0-90301-406-0	02	1	1311-1412	●
17	NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	02	1	1501-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	01	1	1311-1412	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	01	1	1501-	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	02	1	1311-1412	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	02	1	1501-	●	●
20	BEARING ASM; CTR,PROP SHAFT 4HG1-T ENG(RDP)	8-98033-936-0	01	1	1311-	●
20	BEARING ASM; CTR,PROP SHAFT 4HK1-TCN ENG(RDQ)	8-98020-880-0	01	1	1312-1412	●
20	BEARING ASM; CTR,PROP SHAFT 4HK1-TCN ENG(RDQ)	8-98020-880-0	01	1	1501-	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-880-0	01	1	1501-		●
89	NUT; YOKE TO RR AXLE 4HG1-T ENG(RDP) M12	8-97365-450-1	08	1	1311-	●
89	NUT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) M12	8-97365-450-1	12	1	1312-1412	●
89	NUT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) M12	8-97365-450-1	12	1	1501-	●	●
90	WASHER; LK,YOKE TO RR AXLE 4HG1-T ENG(RDP) ID=12.2 MAL	0-91510-812-0	08	1	1311-	●
90	WASHER; LK,YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) ID=12.2 MAL	0-91510-812-0	12	1	1312-1412	●
90	WASHER; LK,YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) ID=12.2 MAL	0-91510-812-0	12	1	1501-	●	●
120	BOLT; YOKE TO RR AXLE 4HG1-T ENG(RDP) M12X35	8-97365-451-1	04	1	1311-	●
120	BOLT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) M12X35	8-97365-451-1	08	1	1312-1412	●
120	BOLT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) M12X35	8-97365-451-1	08	1	1501-	●	●
121	RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	1311-1412	●
121	RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	1501-	●	●
123	BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1311-1412	●
123	BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1501-	●	●
125	YOKE ASM; SPLINED,PROP SHAFT 4HG1-T ENG(RDP) L=183	8-98033-647-2	01	1	1311-	●
125	YOKE ASM; SPLINED,PROP SHAFT 4HK1-TCN ENG(RDQ) L=224	8-98044-229-0	01	1	1312-1412	●
125	YOKE ASM; SPLINED,PROP SHAFT 4HK1-TCN ENG(RDQ) L=224	8-98044-229-0	01	1	1501-	●
125	YOKE ASM; SPLINED,PROP SHAFT L=224	8-98044-229-0	01	1	1501-		●
126	PLUG; SPLINED YOKE 4HG1-T ENG(RDP) (A) MAL	1-09600-023-0	02	1	1311-1412	●
126	PLUG; SPLINED YOKE (A) MAL	1-09600-023-0	02	1	1501-	●
126	PLUG; SPLINED YOKE (A) MAL	1-09600-023-0	01	1	1311-1412	●
126	PLUG; SPLINED YOKE (A) MAL	1-09600-023-0	01	1	1501-	●	●
126	PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ) (A) MAL	1-09600-023-0	01	1	1501-		●
126	PLUG; SPLINED YOKE (A) MAL	1-09600-023-0	01	1	1501-		●
126	PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1311-1412	●
126	PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1501-	●	●
181	COVER; BRG,PROP SHAFT 4HG1-T ENG(RDP)	8-98046-526-0	01	1	1311-	●
226	PLATE; LK,CENTER BRG WHEEL BASE 3300MM(33W)	8-97371-572-0	02	1	1311-1311	●
226	PLATE; LK,CENTER BRG 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W)	8-97371-572-0	02	1	1312-1412	●
226	PLATE; LK,CENTER BRG WHEEL BASE 3300MM(33W)	8-97371-572-0	02	1	1312-1412	●
226	PLATE; LK,CENTER BRG 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W)	8-97371-572-0	02	1	1501-	●
226	PLATE; LK,CENTER BRG WHEEL BASE 3300MM(33W)	8-97371-572-0	02	1	1501-	●
226	PLATE; LK,CENTER BRG 4HK1-TCN ENG(RDQ)	8-97371-572-0	02	1	1501-		●
300	SHAFT ASM; PROP,RR 4HG1-T ENG(RDP) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) (B) L=1041	8-98107-141-2	01	1	1311-	●
300	SHAFT ASM; PROP,RR 4HG1-T ENG(RDP) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3800MM(38W) (B) L=1051	8-98107-142-2	01	1	1311-	●
300	SHAFT ASM; PROP,RR 4HG1-T ENG(RDP) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) (A) L=800	8-98107-137-1	01	1	1311-	●
300	SHAFT ASM; PROP,RR 4HG1-T ENG(RDP) M/T MYY5T(RSM) WHEEL BASE 3800MM(38W) (A) L=1240	8-98107-138-1	01	1	1311-	●
300	SHAFT ASM; PROP,RR 4HG1-T ENG(RDP) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3800MM(38W) (B) L=1036	8-98107-140-2	01	1	1311-	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) (A) L=630	8-98024-913-1	01	1	1312-	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) (A) L=1127	8-98040-793-1	01	1	1312-1412	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) (A) L=1127	8-98040-793-1	01	1	1501-	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A) L=1127	8-98040-793-1	01	1	1501-		●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W) (B) L=1001	8-98024-923-1	01	1	1312-	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3800MM(38W) (B) L=1011	8-98040-477-1	01	1	1312-1412	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3800MM(38W) (B) L=1011	8-98040-477-1	01	1	1501-	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (B) L=1011	8-98040-477-1	01	1	1501-		●
345	PLUG; PROP SHAFT 4HG1-T ENG(RDP)	8-98042-692-0	01	1	1311-	●

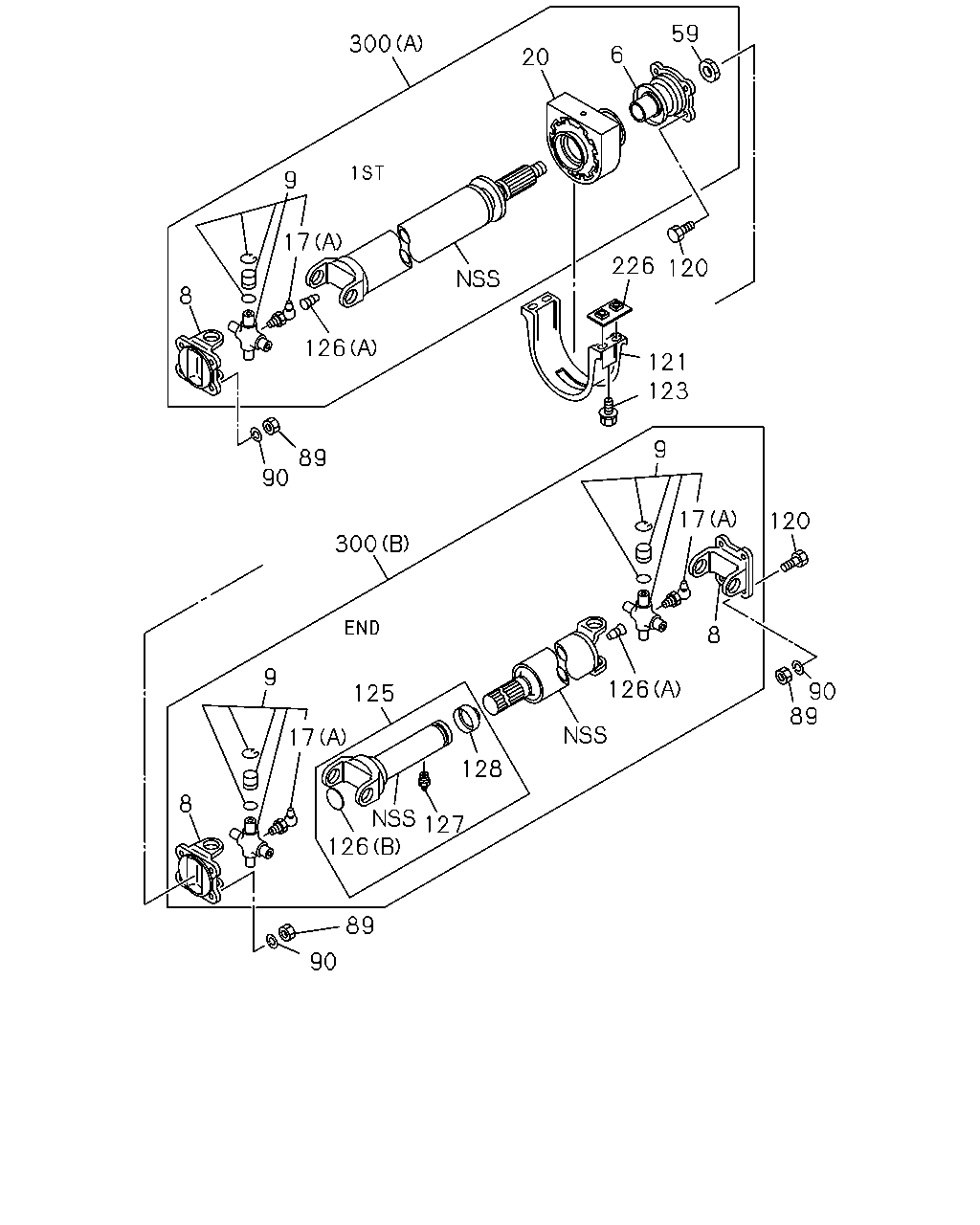

300 9 17 8 126 89 90 20 6 59 120 226 121 123 9 300 125 9 8 17 90 89 126 127 128 126 17 89 90 120 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	COUPLING ASM; DRIVER,PROP SHAFT 4HK1-TCN ENG(RDQ)	8-98020-796-0	01	1	1312-1412	●
6	COUPLING ASM; DRIVER,PROP SHAFT 4HK1-TCN ENG(RDQ)	8-98020-796-0	01	1	1501-	●
6	COUPLING ASM; DRIVER,PROP SHAFT	8-98020-796-0	01	1	1501-		●
8	YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP) D=80	8-97322-663-0	01	1	1311-	●
8	YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP) D=80	8-97322-663-0	01	1	1311-	●
8	YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ) D=80	1-37211-037-4	01	1	1312-1412	●
8	YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ) D=80	1-37211-037-4	01	1	1501-	●
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	01	1	1501-		●
8	YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ) D=80	1-37211-037-4	02	1	1312-1412	●
8	YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ) D=80	1-37211-037-4	02	1	1501-	●
8	YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	02	1	1501-		●
9	JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP)	8-98033-605-1	01	1	1311-	●
9	JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP)	8-98033-605-1	02	1	1311-	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ)	8-98020-789-1	01	1	1312-1412	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ)	8-98020-789-1	01	1	1501-	●
9	JOURNAL ASM; PROP SHAFT	8-98020-789-1	01	1	1501-		●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ)	8-98020-789-1	02	1	1312-1412	●
9	JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ)	8-98020-789-1	02	1	1501-	●
9	JOURNAL ASM; PROP SHAFT	8-98020-789-1	02	1	1501-		●
17	NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP) (B) M6 STRAIGHT	0-90301-406-0	02	1	1311-1412	●
17	NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	02	1	1501-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	01	1	1311-1412	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	01	1	1501-	●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	02	1	1311-1412	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	0-90301-610-0	02	1	1501-	●	●
20	BEARING ASM; CTR,PROP SHAFT 4HG1-T ENG(RDP)	8-98033-936-0	01	1	1311-	●
20	BEARING ASM; CTR,PROP SHAFT 4HK1-TCN ENG(RDQ)	8-98020-880-0	01	1	1312-1412	●
20	BEARING ASM; CTR,PROP SHAFT 4HK1-TCN ENG(RDQ)	8-98020-880-0	01	1	1501-	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-880-0	01	1	1501-		●
59	NUT; RET TO SUPPORT 4HK1-TCN ENG(RDQ) M30	8-97160-857-0	01	1	1312-1412	●
59	NUT; RET TO SUPPORT 4HK1-TCN ENG(RDQ) M30	8-97160-857-0	01	1	1501-	●
59	NUT; RET TO SUPPORT M30	8-97160-857-0	01	1	1501-		●
89	NUT; YOKE TO RR AXLE 4HG1-T ENG(RDP) M12	8-97365-450-1	08	1	1311-	●
89	NUT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) M12	8-97365-450-1	12	1	1312-1412	●
89	NUT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) M12	8-97365-450-1	12	1	1501-	●	●
90	WASHER; LK,YOKE TO RR AXLE 4HG1-T ENG(RDP) ID=12.2 MAL	0-91510-812-0	08	1	1311-	●
90	WASHER; LK,YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) ID=12.2 MAL	0-91510-812-0	12	1	1312-1412	●
90	WASHER; LK,YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) ID=12.2 MAL	0-91510-812-0	12	1	1501-	●	●
120	BOLT; YOKE TO RR AXLE 4HG1-T ENG(RDP) M12X35	8-97365-451-1	04	1	1311-	●
120	BOLT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) M12X35	8-97365-451-1	08	1	1312-1412	●
120	BOLT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) M12X35	8-97365-451-1	08	1	1501-	●	●
121	RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	1311-1412	●
121	RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	1501-	●	●
123	BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1311-1412	●
123	BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1501-	●	●
125	YOKE ASM; SPLINED,PROP SHAFT 4HG1-T ENG(RDP) L=183	8-98033-647-2	01	1	1311-	●
125	YOKE ASM; SPLINED,PROP SHAFT 4HK1-TCN ENG(RDQ) L=224	8-98044-229-0	01	1	1312-1412	●
125	YOKE ASM; SPLINED,PROP SHAFT 4HK1-TCN ENG(RDQ) L=224	8-98044-229-0	01	1	1501-	●
125	YOKE ASM; SPLINED,PROP SHAFT L=224	8-98044-229-0	01	1	1501-		●
126	PLUG; SPLINED YOKE 4HG1-T ENG(RDP) (A) MAL	1-09600-023-0	02	1	1311-1412	●
126	PLUG; SPLINED YOKE (A) MAL	1-09600-023-0	02	1	1501-	●
126	PLUG; SPLINED YOKE (A) MAL	1-09600-023-0	01	1	1311-1412	●
126	PLUG; SPLINED YOKE (A) MAL	1-09600-023-0	01	1	1501-	●	●
126	PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ) (A) MAL	1-09600-023-0	01	1	1501-		●
126	PLUG; SPLINED YOKE (A) MAL	1-09600-023-0	01	1	1501-		●
126	PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1311-1412	●
126	PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1501-	●	●
127	NIPPLE; GREASE,SPLINED YOKE 4HK1-TCN ENG(RDQ) M6 STRAIGHT	0-90301-406-0	01	1	1312-1412	●
127	NIPPLE; GREASE,SPLINED YOKE 4HK1-TCN ENG(RDQ) M6 STRAIGHT	0-90301-406-0	01	1	1501-	●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT	0-90301-406-0	01	1	1501-		●
128	SEAL; SLEEVE 4HK1-TCN ENG(RDQ)	8-97145-746-0	01	1	1312-1412	●
128	SEAL; SLEEVE 4HK1-TCN ENG(RDQ)	8-97145-746-0	01	1	1501-	●
128	SEAL; SLEEVE	8-97145-746-0	01	1	1501-		●
226	PLATE; LK,CENTER BRG WHEEL BASE 3300MM(33W)	8-97371-572-0	02	1	1311-1311	●
226	PLATE; LK,CENTER BRG 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W)	8-97371-572-0	02	1	1312-1412	●
226	PLATE; LK,CENTER BRG WHEEL BASE 3300MM(33W)	8-97371-572-0	02	1	1312-1412	●
226	PLATE; LK,CENTER BRG 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W)	8-97371-572-0	02	1	1501-	●
226	PLATE; LK,CENTER BRG WHEEL BASE 3300MM(33W)	8-97371-572-0	02	1	1501-	●
226	PLATE; LK,CENTER BRG 4HK1-TCN ENG(RDQ)	8-97371-572-0	02	1	1501-		●
300	SHAFT ASM; PROP,RR 4HG1-T ENG(RDP) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) (B) L=1041	8-98107-141-2	01	1	1311-	●
300	SHAFT ASM; PROP,RR 4HG1-T ENG(RDP) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3800MM(38W) (B) L=1051	8-98107-142-2	01	1	1311-	●
300	SHAFT ASM; PROP,RR 4HG1-T ENG(RDP) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) (A) L=800	8-98107-137-1	01	1	1311-	●
300	SHAFT ASM; PROP,RR 4HG1-T ENG(RDP) M/T MYY5T(RSM) WHEEL BASE 3800MM(38W) (A) L=1240	8-98107-138-1	01	1	1311-	●
300	SHAFT ASM; PROP,RR 4HG1-T ENG(RDP) M/T MYY5T(RSM) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3800MM(38W) (B) L=1036	8-98107-140-2	01	1	1311-	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) (A) L=630	8-98024-913-1	01	1	1312-	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) (A) L=1127	8-98040-793-1	01	1	1312-1412	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) (A) L=1127	8-98040-793-1	01	1	1501-	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A) L=1127	8-98040-793-1	01	1	1501-		●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3300MM(33W) (B) L=1001	8-98024-923-1	01	1	1312-	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3800MM(38W) (B) L=1011	8-98040-477-1	01	1	1312-1412	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) REAR AXLE HEAVY DUTY 320MM(6CP) WHEEL BASE 3800MM(38W) (B) L=1011	8-98040-477-1	01	1	1501-	●
300	SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (B) L=1011	8-98040-477-1	01	1	1501-		●
