◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51501 - NPR(MALAYSIA) ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶
3-60 — BRAKE PIPING; VACUUM (#130860) — 422 parça
çizim 385655
39 116 39 165 184 165 184 165 184 184
BalonParca AdiParca NoAdetTipApplied Date A B
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 04 1 1311-1412 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 04 1 1501- ● ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 1311-1412 ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 1501- ● ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-97329-628-0 02 1 1311-1412 ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-97329-628-0 02 1 1501- ● ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 1311-1412 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 1501- ● ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (F) 		8-98189-219-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1311-1412 ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1311-1412 ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1311-1412 ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1311-1412 ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) (F) 		8-98189-220-0 01 1 1311-1311 ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98189-220-0 01 1 1312-1509 ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (F) 		8-98189-220-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1311-1311 ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1311-1311 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1312-1412 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1312-1412 ●
116 HOSE; VAC,M/VAC
(E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
(E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1312-1412 ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1501- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (F) 		8-98158-378-0 01 1 1501- ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER MAL 		8-98031-842-0 02 1 1311-1412 ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER MAL 		8-98031-842-0 02 1 1501- ● ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE MAL 		0-28650-616-0 01 1 1311-1412 ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE MAL 		0-28650-616-0 01 1 1501- ● ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-548-0 01 1 1312-1412 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-548-0 01 1 1501- ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-467-1 01 1 1311-1412 ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-467-1 01 1 1501- ● ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (C) 		8-98017-628-1 01 1 1311-1412 ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (C) 		8-98017-628-1 01 1 1501- ● ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1311-1311 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-535-0 01 1 1312-1412 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-535-0 01 1 1501- ● ●

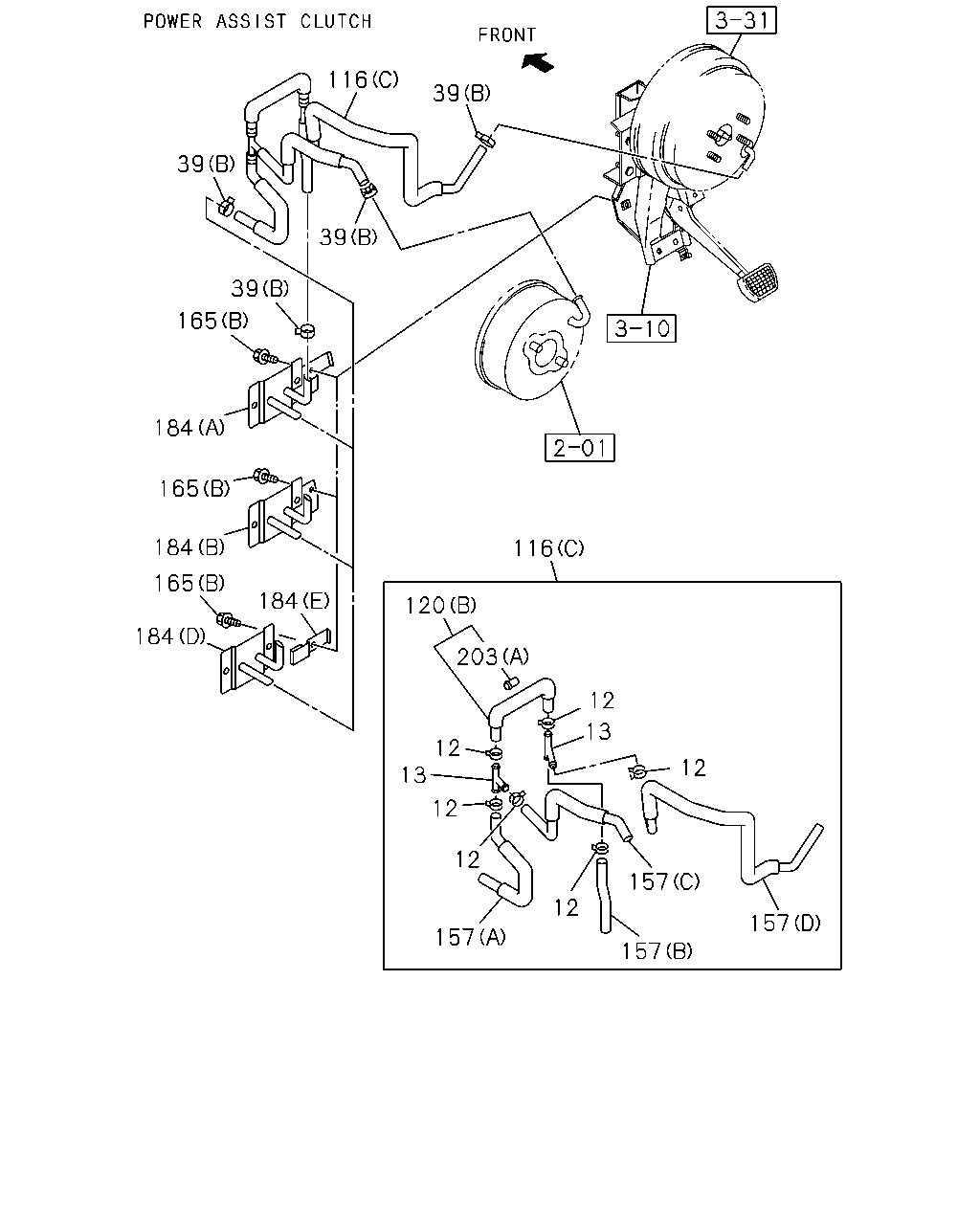

çizim 385688
116 39 39 165 184 165 184 165 184 184 39 39 116 120 203 12 13 12 12 12 157 12 13 12 157 157 157
BalonParca AdiParca NoAdetTipApplied Date A B
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 08 1 1311-1412 ●
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 08 1 1501- ● ●
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 02 1 1311-1412 ●
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 02 1 1501- ● ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 1311-1412 ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 1501- ● ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 1311-1412 ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 1501- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 04 1 1311-1412 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 04 1 1501- ● ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 1311-1412 ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 1501- ● ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-97329-628-0 02 1 1311-1412 ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-97329-628-0 02 1 1501- ● ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 1311-1412 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 1501- ● ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (F) 		8-98189-219-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1311-1412 ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1311-1412 ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1311-1412 ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1311-1412 ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) (F) 		8-98189-220-0 01 1 1311-1311 ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98189-220-0 01 1 1312-1509 ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (F) 		8-98189-220-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1311-1311 ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1311-1311 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1312-1412 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1312-1412 ●
116 HOSE; VAC,M/VAC
(E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
(E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1312-1412 ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1501- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (F) 		8-98158-378-0 01 1 1501- ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1311-1412 ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1501- ● ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1311-1412 ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1501- ● ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1311-1412 ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1501- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 1311-1412 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 1501- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 1311-1412 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 1501- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 1311-1412 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 1501- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 1311-1412 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 1501- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 1311-1412 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 1501- ● ●
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 1311-1412 ●
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 1501- ● ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER MAL 		8-98031-842-0 02 1 1311-1412 ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER MAL 		8-98031-842-0 02 1 1501- ● ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE MAL 		0-28650-616-0 01 1 1311-1412 ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE MAL 		0-28650-616-0 01 1 1501- ● ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-548-0 01 1 1312-1412 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-548-0 01 1 1501- ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-467-1 01 1 1311-1412 ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-467-1 01 1 1501- ● ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (C) 		8-98017-628-1 01 1 1311-1412 ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (C) 		8-98017-628-1 01 1 1501- ● ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1311-1311 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-535-0 01 1 1312-1412 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-535-0 01 1 1501- ● ●
203 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 1311-1412 ●
203 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 1501- ● ●
203 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1311-1412 ●
203 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1501- ● ●

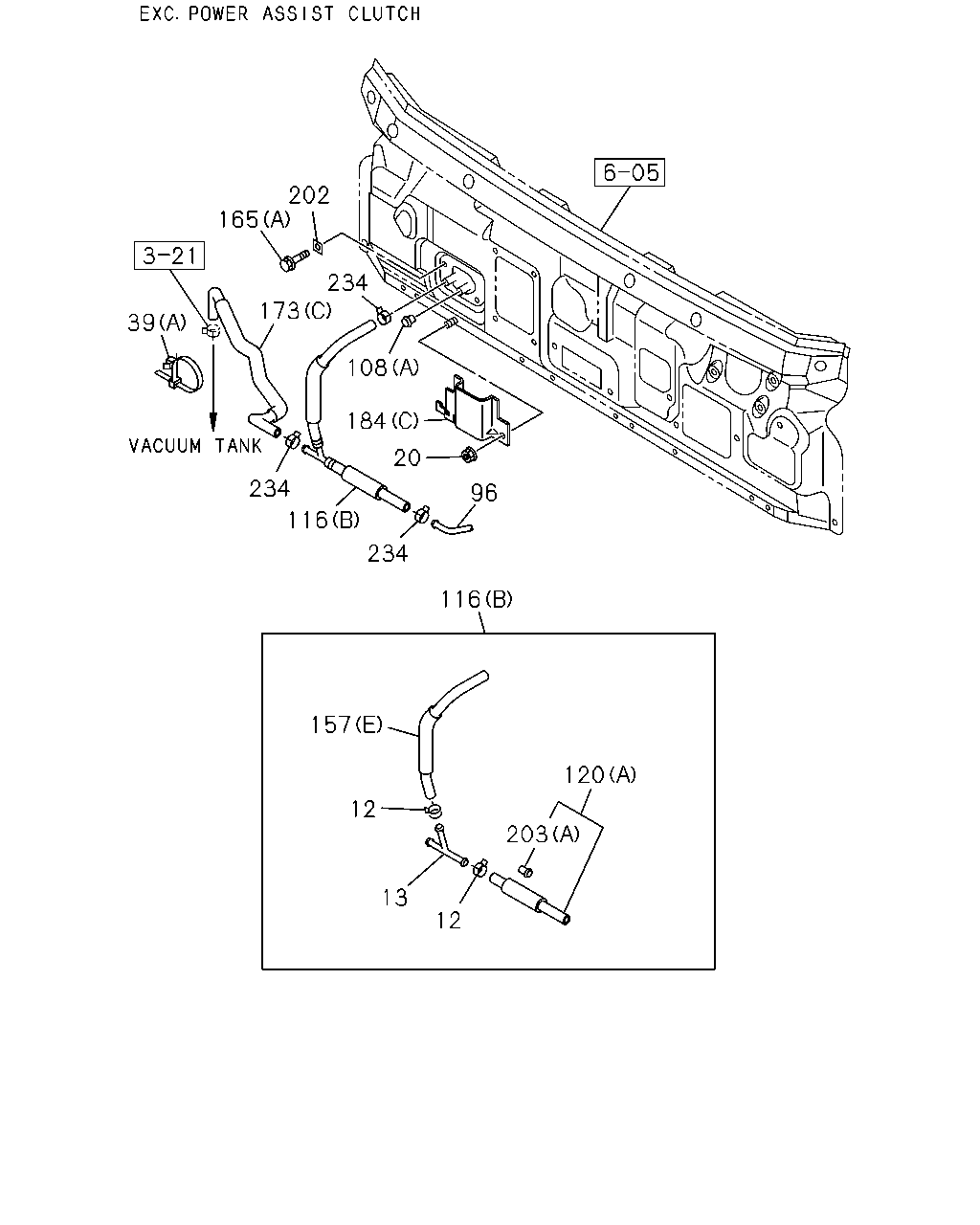

çizim 385702
173 165 202 234 108 184 96 234 116 116 234 39 157 12 13 12 203 120 20
BalonParca AdiParca NoAdetTipApplied Date A B
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 08 1 1311-1412 ●
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 08 1 1501- ● ●
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 02 1 1311-1412 ●
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 02 1 1501- ● ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 1311-1412 ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 1501- ● ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 1311-1412 ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 1501- ● ●
20 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) M6 FLANGE MAL 		0-91180-106-0 01 1 1311-1412 ●
20 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) M6 FLANGE MAL 		0-91180-106-0 01 1 1501- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 04 1 1311-1412 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 04 1 1501- ● ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 1311-1412 ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 1501- ● ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-97329-628-0 02 1 1311-1412 ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-97329-628-0 02 1 1501- ● ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 1311-1412 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 1501- ● ●
96 PIPE; VAC,M/VAC TO VAC PUMP
MAL 		8-98220-579-0 01 1 1311-1412 ●
96 PIPE; VAC,M/VAC TO VAC PUMP
MAL 		8-98220-579-0 01 1 1501- ● ●
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1311-1412 ●
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1501- ● ●
108 GROMMET; PIPE
4HG1-T ENG(RDP) (B) ID=17 		8-94128-319-2 01 1 1311-1311 ●
108 GROMMET; PIPE
4HG1-T ENG(RDP) (B) ID=17 		8-94128-319-2 01 1 1311-1311 ●
108 GROMMET; PIPE
(B) ID=17 		8-94128-319-2 01 1 1312-1412 ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 1312-1412 ●
108 GROMMET; PIPE
(B) ID=17 		8-94128-319-2 01 1 1501- ● ●
108 GROMMET; PIPE
(B) ID=17 		8-94128-319-2 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (F) 		8-98189-219-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1311-1412 ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1311-1412 ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1311-1412 ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1311-1412 ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) (F) 		8-98189-220-0 01 1 1311-1311 ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98189-220-0 01 1 1312-1509 ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (F) 		8-98189-220-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1311-1311 ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1311-1311 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1312-1412 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1312-1412 ●
116 HOSE; VAC,M/VAC
(E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
(E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1312-1412 ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1501- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (F) 		8-98158-378-0 01 1 1501- ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1311-1412 ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1501- ● ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1311-1412 ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1501- ● ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1311-1412 ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1501- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 1311-1412 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 1501- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 1311-1412 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 1501- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 1311-1412 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 1501- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 1311-1412 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 1501- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 1311-1412 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 1501- ● ●
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 1311-1412 ●
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 1501- ● ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER MAL 		8-98031-842-0 02 1 1311-1412 ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER MAL 		8-98031-842-0 02 1 1501- ● ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE MAL 		0-28650-616-0 01 1 1311-1412 ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE MAL 		0-28650-616-0 01 1 1501- ● ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98121-940-0 01 1 1311-1412 ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98121-940-0 01 1 1501- ● ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98121-941-0 01 1 1311-1412 ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98121-941-0 01 1 1501- ● ●
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 1311-1412 ●
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 1501- ● ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-548-0 01 1 1312-1412 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-548-0 01 1 1501- ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-467-1 01 1 1311-1412 ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-467-1 01 1 1501- ● ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (C) 		8-98017-628-1 01 1 1311-1412 ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (C) 		8-98017-628-1 01 1 1501- ● ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1311-1311 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-535-0 01 1 1312-1412 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-535-0 01 1 1501- ● ●
202 SEAL
MAL 		8-97856-616-0 02 1 1311-1412 ●
202 SEAL
MAL 		8-97856-616-0 02 1 1501- ● ●
203 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 1311-1412 ●
203 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 1501- ● ●
203 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1311-1412 ●
203 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1501- ● ●
234 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) ID=16 		8-94238-568-0 04 1 1311-1412 ●
234 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) ID=16 		8-94238-568-0 04 1 1501- ● ●
234 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) ID=16 		8-94238-568-0 03 1 1311-1412 ●
234 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) ID=16 		8-94238-568-0 03 1 1501- ● ●

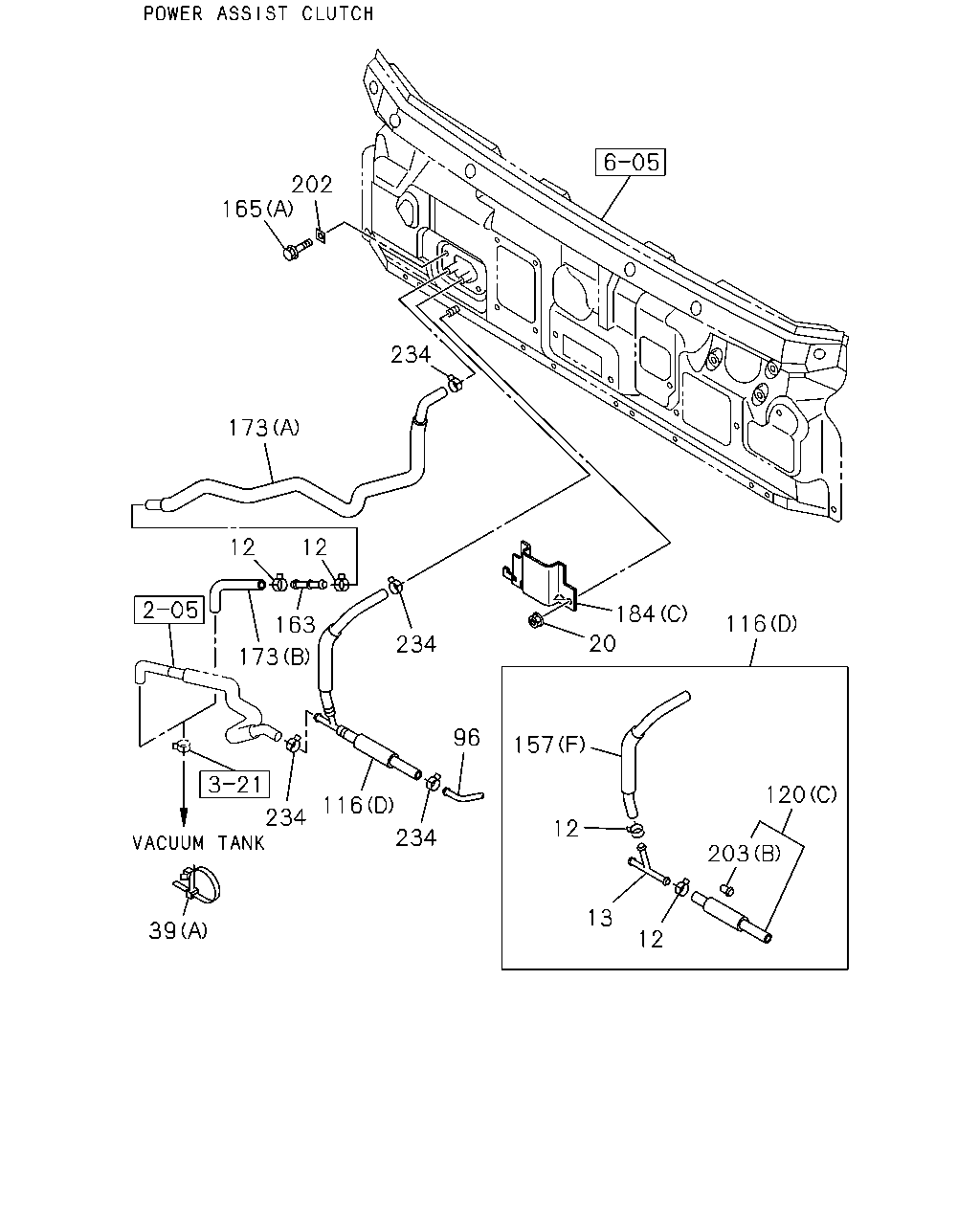

çizim 385746
165 202 234 20 116 184 234 163 173 12 12 173 116 234 234 96 39 157 12 13 12 203 120
BalonParca AdiParca NoAdetTipApplied Date A B
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 08 1 1311-1412 ●
12 CLIP; HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 08 1 1501- ● ●
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 02 1 1311-1412 ●
12 CLIP; HOSE
EXC. POWER ASSIST CLUTCH(S2T) ID=15.5 		8-98008-097-0 02 1 1501- ● ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 1311-1412 ●
13 JOINT; HOSE,VAC
POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 03 1 1501- ● ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 1311-1412 ●
13 JOINT; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) 		8-98035-106-0 01 1 1501- ● ●
20 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) M6 FLANGE MAL 		0-91180-106-0 01 1 1311-1412 ●
20 NUT; BRKT
EXC. PTO MANUAL CONTROL(6WC) M6 FLANGE MAL 		0-91180-106-0 01 1 1501- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 04 1 1311-1412 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 04 1 1501- ● ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 1311-1412 ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 1501- ● ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-97329-628-0 02 1 1311-1412 ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-97329-628-0 02 1 1501- ● ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 1311-1412 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 1501- ● ●
96 PIPE; VAC,M/VAC TO VAC PUMP
MAL 		8-98220-579-0 01 1 1311-1412 ●
96 PIPE; VAC,M/VAC TO VAC PUMP
MAL 		8-98220-579-0 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (F) 		8-98189-219-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1311-1412 ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1311-1412 ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1311-1412 ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1311-1412 ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) (F) 		8-98189-220-0 01 1 1311-1311 ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98189-220-0 01 1 1312-1509 ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (F) 		8-98189-220-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1311-1311 ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1311-1311 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1312-1412 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1312-1412 ●
116 HOSE; VAC,M/VAC
(E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
(E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1312-1412 ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1501- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (F) 		8-98158-378-0 01 1 1501- ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1311-1412 ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-695-2 01 1 1501- ● ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1311-1412 ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-352-3 01 1 1501- ● ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1311-1412 ●
120 HOSE; VAC,M/VAC,W/CHECK VALVE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-97389-696-2 01 1 1501- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 1311-1412 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (F) 		8-98017-168-3 01 1 1501- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 1311-1412 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (D) 		8-98027-350-3 01 1 1501- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 1311-1412 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (C) 		8-98027-351-3 01 1 1501- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 1311-1412 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (B) 		8-98027-353-3 01 1 1501- ● ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 1311-1412 ●
157 HOSE; JOINT
POWER ASSIST CLUTCH(S2T) (A) 		8-98027-354-2 01 1 1501- ● ●
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 1311-1412 ●
157 HOSE; JOINT
EXC. POWER ASSIST CLUTCH(S2T) (E) 		8-98022-868-3 01 1 1501- ● ●
163 JOINT; VAC HOSE
POWER ASSIST CLUTCH(S2T) 		8-97353-668-0 01 1 1311-1412 ●
163 JOINT; VAC HOSE
POWER ASSIST CLUTCH(S2T) 		8-97353-668-0 01 1 1501- ● ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER MAL 		8-98031-842-0 02 1 1311-1412 ●
165 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER MAL 		8-98031-842-0 02 1 1501- ● ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE MAL 		0-28650-616-0 01 1 1311-1412 ●
165 BOLT; BRKT
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE MAL 		0-28650-616-0 01 1 1501- ● ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98121-940-0 01 1 1311-1412 ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (A) 		8-98121-940-0 01 1 1501- ● ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98121-941-0 01 1 1311-1412 ●
173 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) (B) 		8-98121-941-0 01 1 1501- ● ●
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 1311-1412 ●
173 HOSE; VAC,VAC TANK SIDE
EXC. POWER ASSIST CLUTCH(S2T) (C) 		8-98107-558-0 01 1 1501- ● ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-548-0 01 1 1312-1412 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (E) 		8-98255-548-0 01 1 1501- ● ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-467-1 01 1 1311-1412 ●
184 BRACKET; UNION FIX
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98183-467-1 01 1 1501- ● ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (C) 		8-98017-628-1 01 1 1311-1412 ●
184 BRACKET; UNION FIX
EXC. PTO MANUAL CONTROL(6WC) (C) 		8-98017-628-1 01 1 1501- ● ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98183-462-1 01 1 1311-1311 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-535-0 01 1 1312-1412 ●
184 BRACKET; UNION FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> (D) 		8-98255-535-0 01 1 1501- ● ●
202 SEAL
MAL 		8-97856-616-0 02 1 1311-1412 ●
202 SEAL
MAL 		8-97856-616-0 02 1 1501- ● ●
203 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 1311-1412 ●
203 VALVE; CHECK
POWER ASSIST CLUTCH(S2T) (B) 		8-94104-021-0 01 1 1501- ● ●
203 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1311-1412 ●
203 VALVE; CHECK
(A) 		8-94386-540-0 01 1 1501- ● ●
234 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) ID=16 		8-94238-568-0 04 1 1311-1412 ●
234 CLAMP; PIPE
POWER ASSIST CLUTCH(S2T) ID=16 		8-94238-568-0 04 1 1501- ● ●
234 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) ID=16 		8-94238-568-0 03 1 1311-1412 ●
234 CLAMP; PIPE
EXC. POWER ASSIST CLUTCH(S2T) ID=16 		8-94238-568-0 03 1 1501- ● ●

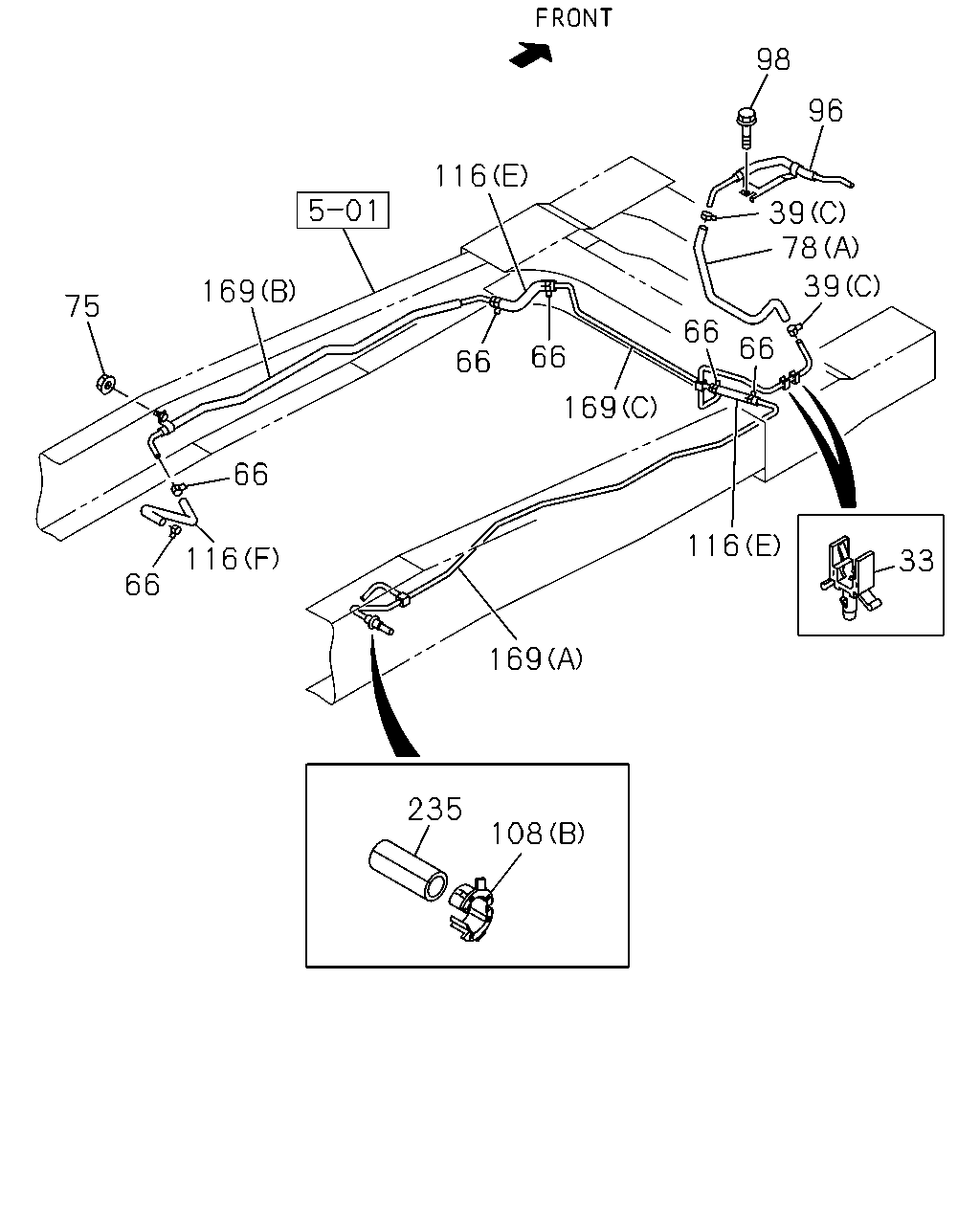

çizim 385771
98 39 96 78 66 39 66 33 116 169 108 235 169 66 66 66 116 66 75 169 116
BalonParca AdiParca NoAdetTipApplied Date A B
33 CLIP; VAC PIPE
ID=10 H=40 		8-94462-219-0 02 1 1311-1412 ●
33 CLIP; VAC PIPE
ID=10 H=40 		8-94462-219-0 02 1 1501- ● ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 04 1 1311-1412 ●
39 CLIP; HOSE,VAC
POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 04 1 1501- ● ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 1311-1412 ●
39 CLIP; HOSE,VAC
(A) L=170.3 		1-09987-182-0 01 1 1501- ● ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-97329-628-0 02 1 1311-1412 ●
39 CLIP; HOSE,VAC
(C) ID=16 		8-97329-628-0 02 1 1501- ● ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 1311-1412 ●
39 CLIP; HOSE,VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 		8-94238-568-0 02 1 1501- ● ●
66 CLIP; VAC HOSE,M/VAC
ID=16 		8-98008-098-0 02 1 1311-1311 ●
66 CLIP; VAC HOSE,M/VAC
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 02 1 1312-1509 ●
66 CLIP; VAC HOSE,M/VAC
4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 02 1 1510- ●
66 CLIP; VAC HOSE,M/VAC
ID=16 		8-98008-098-0 04 1 1311-1311 ●
66 CLIP; VAC HOSE,M/VAC
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 04 1 1312- ●
66 CLIP; VAC HOSE,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 06 1 1312-1412 ●
66 CLIP; VAC HOSE,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 06 1 1501- ●
66 CLIP; VAC HOSE,M/VAC
4HK1-TCN ENG(RDQ) ID=16 		8-98008-098-0 06 1 1501- ●
75 NUT; CLIP,VAC HOSE
4HG1-T ENG(RDP) M8 FLANGE MAL 		0-91180-108-0 01 1 1311-1311 ●
75 NUT; CLIP,VAC HOSE
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE MAL 		0-91180-108-0 01 1 1312-1412 ●
75 NUT; CLIP,VAC HOSE
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE MAL 		0-91180-108-0 01 1 1501- ●
75 NUT; CLIP,VAC HOSE
4HK1-TCN ENG(RDQ) M8 FLANGE MAL 		0-91180-108-0 01 1 1501- ●
78 HOSE; VAC,PIPE TO PIPE
(E) 		8-98189-103-0 01 1 1501- ●
78 HOSE; VAC,PIPE TO PIPE
(C) 		8-98057-462-0 01 1 1311- ●
78 HOSE; VAC,PIPE TO PIPE
(A) 		8-98080-833-1 01 1 1311-1412 ●
78 HOSE; VAC,PIPE TO PIPE
(A) 		8-98080-833-1 01 1 1501- ● ●
78 HOSE; VAC,PIPE TO PIPE
4HG1-T ENG(RDP) (D) 		8-98169-859-0 01 1 1311-1311 ●
78 HOSE; VAC,PIPE TO PIPE
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98169-859-0 01 1 1312-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D) 		8-98169-859-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
(B) 		8-98171-287-0 01 1 1311- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98112-680-0 01 1 1312-1412 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98112-680-0 01 1 1501- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (D) 		8-98112-680-0 01 1 1501- ●
96 PIPE; VAC,M/VAC TO VAC PUMP
MAL 		8-98220-579-0 01 1 1311-1412 ●
96 PIPE; VAC,M/VAC TO VAC PUMP
MAL 		8-98220-579-0 01 1 1501- ● ●
98 BOLT; VAC PIPE FIX
M6X12 FLANGE MAL 		0-28050-612-0 01 1 1311-1412 ●
98 BOLT; VAC PIPE FIX
M6X12 FLANGE MAL 		0-28050-612-0 01 1 1501- ● ●
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1311-1412 ●
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1501- ● ●
108 GROMMET; PIPE
4HG1-T ENG(RDP) (B) ID=17 		8-94128-319-2 01 1 1311-1311 ●
108 GROMMET; PIPE
4HG1-T ENG(RDP) (B) ID=17 		8-94128-319-2 01 1 1311-1311 ●
108 GROMMET; PIPE
(B) ID=17 		8-94128-319-2 01 1 1312-1412 ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 1312-1412 ●
108 GROMMET; PIPE
(B) ID=17 		8-94128-319-2 01 1 1501- ● ●
108 GROMMET; PIPE
(B) ID=17 		8-94128-319-2 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (F) 		8-98189-219-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1311-1412 ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (C) 		8-97389-674-3 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1311-1412 ●
116 HOSE; VAC,M/VAC
POWER ASSIST CLUTCH(S2T) (D) 		8-97389-689-3 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1311-1412 ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-97389-690-3 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1311-1412 ●
116 HOSE; VAC,M/VAC
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98094-547-0 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) (F) 		8-98189-220-0 01 1 1311-1311 ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98189-220-0 01 1 1312-1509 ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (F) 		8-98189-220-0 01 1 1510- ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1311-1311 ●
116 HOSE; VAC,M/VAC
4HG1-T ENG(RDP) (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1311-1311 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1312-1412 ●
116 HOSE; VAC,M/VAC
FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1312-1412 ●
116 HOSE; VAC,M/VAC
(E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
(E) L=140 SERVICED BY L=3000 		0-08158-300-0 01 1 1501- ● ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1312-1412 ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F) 		8-98158-378-0 01 1 1501- ●
116 HOSE; VAC,M/VAC
4HK1-TCN ENG(RDQ) (F) 		8-98158-378-0 01 1 1501- ●
169 PIPE; VAC,BOOSTER SIDE
(C) MAL 		8-98041-053-4 01 1 1311-1412 ●
169 PIPE; VAC,BOOSTER SIDE
(C) MAL 		8-98041-053-4 01 1 1501- ● ●
169 PIPE; VAC,BOOSTER SIDE
4HG1-T ENG(RDP) (B) MAL 		8-98100-234-2 01 1 1311-1311 ●
169 PIPE; VAC,BOOSTER SIDE
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (B) MAL 		8-98100-234-2 01 1 1312-1509 ●
169 PIPE; VAC,BOOSTER SIDE
4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B) MAL 		8-98100-234-2 01 1 1510- ●
169 PIPE; VAC,BOOSTER SIDE
4HG1-T ENG(RDP) (A) MAL 		8-98101-041-1 01 1 1311-1311 ●
169 PIPE; VAC,BOOSTER SIDE
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (A) MAL 		8-98101-041-1 01 1 1312- ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) MAL 		8-98041-052-2 01 1 1312-1412 ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) MAL 		8-98041-052-2 01 1 1501- ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) (B) MAL 		8-98041-052-2 01 1 1501- ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98067-259-2 01 1 1312-1412 ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98067-259-2 01 1 1501- ●
169 PIPE; VAC,BOOSTER SIDE
4HK1-TCN ENG(RDQ) (A) 		8-98067-259-2 01 1 1501- ●
235 RUBBER; SUPPORT,PIPE
4HG1-T ENG(RDP) OD=16.5 L=50 		8-97214-235-0 01 1 1311-1311 ●
235 RUBBER; SUPPORT,PIPE
4HG1-T ENG(RDP) OD=16.5 L=50 		8-97214-235-0 01 1 1311-1311 ●
235 RUBBER; SUPPORT,PIPE
OD=16.5 L=50 		8-97214-235-0 01 1 1312-1412 ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 01 1 1312-1412 ●
235 RUBBER; SUPPORT,PIPE
OD=16.5 L=50 		8-97214-235-0 01 1 1501- ● ●
235 RUBBER; SUPPORT,PIPE
OD=16.5 L=50 		8-97214-235-0 01 1 1501- ● ●

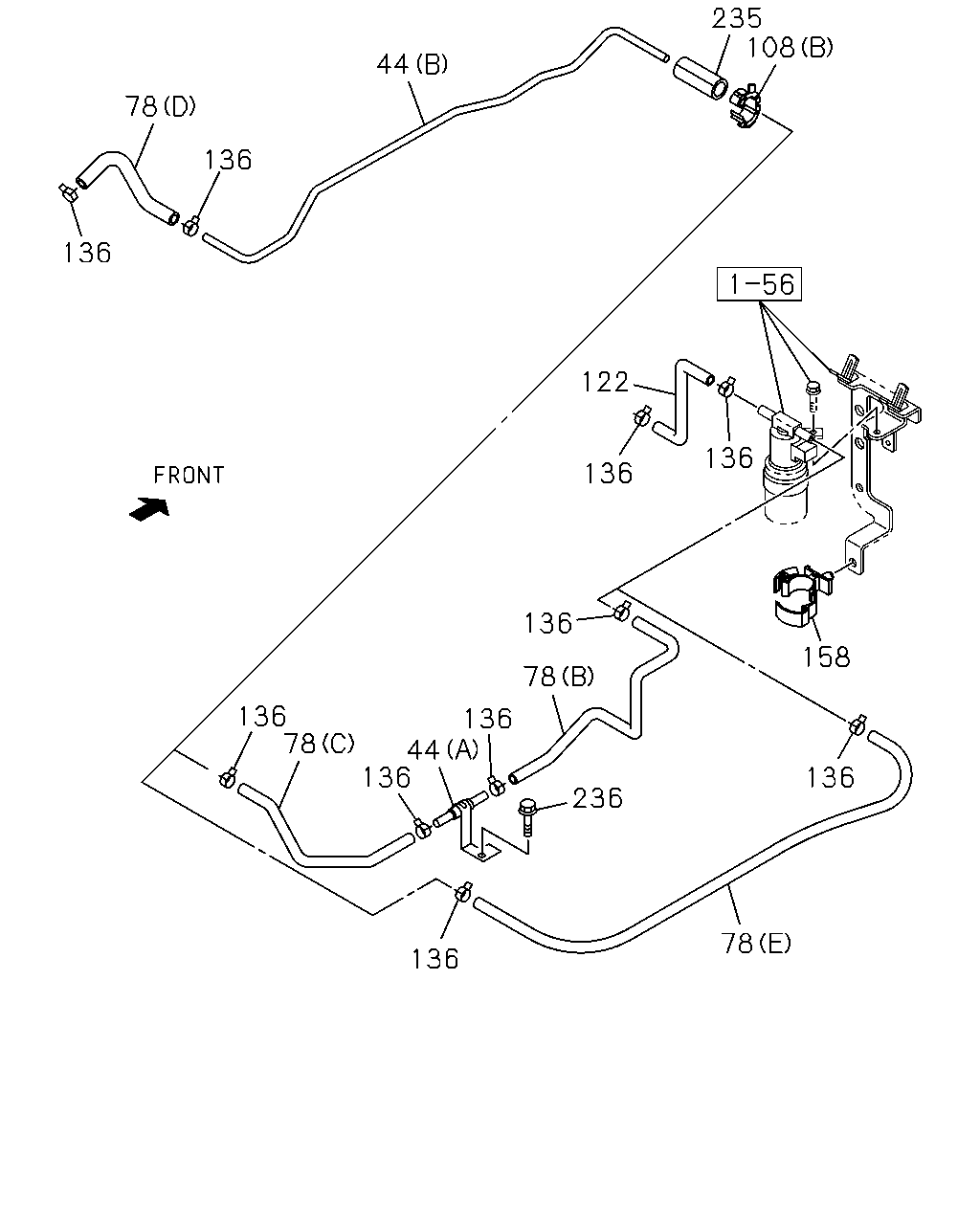

çizim 385793
78 136 136 44 235 122 108 136 136 158 136 78 136 236 136 78 136 44 136 78 136
BalonParca AdiParca NoAdetTipApplied Date A B
44 PIPE; VAC,MAG VLV
(B) MAL 		8-98057-425-1 01 1 1311-1412 ●
44 PIPE; VAC,MAG VLV
(B) MAL 		8-98057-425-1 01 1 1501- ● ●
44 PIPE; VAC,MAG VLV
(A) MAL 		8-98070-194-0 01 1 1311- ●
78 HOSE; VAC,PIPE TO PIPE
(E) 		8-98189-103-0 01 1 1501- ●
78 HOSE; VAC,PIPE TO PIPE
(C) 		8-98057-462-0 01 1 1311- ●
78 HOSE; VAC,PIPE TO PIPE
(A) 		8-98080-833-1 01 1 1311-1412 ●
78 HOSE; VAC,PIPE TO PIPE
(A) 		8-98080-833-1 01 1 1501- ● ●
78 HOSE; VAC,PIPE TO PIPE
4HG1-T ENG(RDP) (D) 		8-98169-859-0 01 1 1311-1311 ●
78 HOSE; VAC,PIPE TO PIPE
4HG1-T ENG(RDP) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98169-859-0 01 1 1312-1509 ●
78 HOSE; VAC,PIPE TO PIPE
4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D) 		8-98169-859-0 01 1 1510- ●
78 HOSE; VAC,PIPE TO PIPE
(B) 		8-98171-287-0 01 1 1311- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98112-680-0 01 1 1312-1412 ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98112-680-0 01 1 1501- ●
78 HOSE; VAC,PIPE TO PIPE
4HK1-TCN ENG(RDQ) (D) 		8-98112-680-0 01 1 1501- ●
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1311-1412 ●
108 GROMMET; PIPE
EXC. POWER ASSIST CLUTCH(S2T) (A) 		9-09956-353-0 01 1 1501- ● ●
108 GROMMET; PIPE
4HG1-T ENG(RDP) (B) ID=17 		8-94128-319-2 01 1 1311-1311 ●
108 GROMMET; PIPE
4HG1-T ENG(RDP) (B) ID=17 		8-94128-319-2 01 1 1311-1311 ●
108 GROMMET; PIPE
(B) ID=17 		8-94128-319-2 01 1 1312-1412 ●
108 GROMMET; PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=17 		8-94128-319-2 01 1 1312-1412 ●
108 GROMMET; PIPE
(B) ID=17 		8-94128-319-2 01 1 1501- ● ●
108 GROMMET; PIPE
(B) ID=17 		8-94128-319-2 01 1 1501- ● ●
122 HOSE; AIR,MAG VLV TO AIR PIPE 8-98189-105-0 01 1 1501- ●
122 HOSE; AIR,MAG VLV TO AIR PIPE 8-98189-104-0 01 1 1311- ●
136 CLIP; VAC HOSE
ID=16 		8-98008-098-0 02 1 1311- ●
136 CLIP; VAC HOSE
ID=16 		8-98008-098-0 06 1 1311-1412 ●
136 CLIP; VAC HOSE
FRAME STRAIGHT TYPE<7KJ> ID=16 		8-98008-098-0 06 1 1501-1509 ●
136 CLIP; VAC HOSE
4HK1-TCN ENG(RDQ) ID=16 		8-98008-098-0 06 1 1501-1509 ●
136 CLIP; VAC HOSE
ID=16 		8-98008-098-0 06 1 1510- ● ●
158 CLIP; HOSE
ID=14-20 		8-97061-603-0 01 1 1311- ●
235 RUBBER; SUPPORT,PIPE
4HG1-T ENG(RDP) OD=16.5 L=50 		8-97214-235-0 01 1 1311-1311 ●
235 RUBBER; SUPPORT,PIPE
4HG1-T ENG(RDP) OD=16.5 L=50 		8-97214-235-0 01 1 1311-1311 ●
235 RUBBER; SUPPORT,PIPE
OD=16.5 L=50 		8-97214-235-0 01 1 1312-1412 ●
235 RUBBER; SUPPORT,PIPE
FRAME STRAIGHT TYPE<7KJ> OD=16.5 L=50 		8-97214-235-0 01 1 1312-1412 ●
235 RUBBER; SUPPORT,PIPE
OD=16.5 L=50 		8-97214-235-0 01 1 1501- ● ●
235 RUBBER; SUPPORT,PIPE
OD=16.5 L=50 		8-97214-235-0 01 1 1501- ● ●
236 BOLT; PIPE
M8X25 FLANGE MAL 		0-28650-825-0 01 1 1311- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
