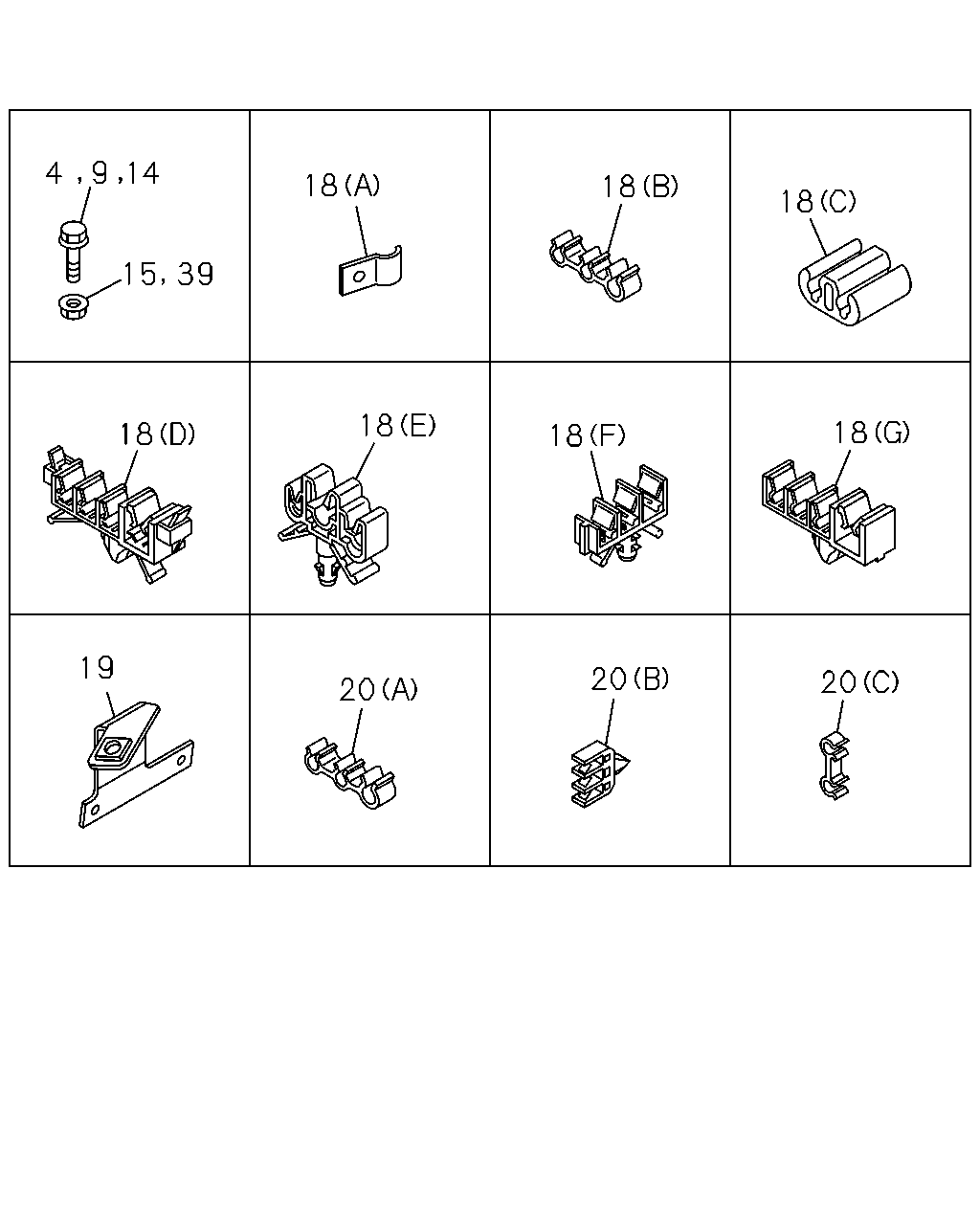

3-58 — FIXING PARTS; OIL PIPING (#130859) — 65 parça

4 9 14 15 39 18 19 20 18 18 18 18 18 18 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOLT; BRKT M8X25 FLANGE MAL	0-28650-825-0	02	1	1311-1412	●
4	BOLT; BRKT M8X25 FLANGE MAL	0-28650-825-0	02	1	1501-	●	●
9	BOLT; BRKT 4HG1-T ENG(RDP) M8X25 FLANGE MAL	0-28650-825-0	01	1	1311-1311	●
9	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE MAL	0-28650-825-0	01	1	1312-1412	●
9	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE MAL	0-28650-825-0	01	1	1501-	●
9	BOLT; BRKT 4HK1-TCN ENG(RDQ) M8X25 FLANGE MAL	0-28650-825-0	01	1	1501-		●
14	BOLT; CLIP,OIL PIPE 4HG1-T ENG(RDP) M8X25 FLANGE MAL	0-28650-825-0	02	1	1311-1311	●
14	BOLT; CLIP,OIL PIPE FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE MAL	0-28650-825-0	02	1	1312-1412	●
14	BOLT; CLIP,OIL PIPE FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE MAL	0-28650-825-0	02	1	1501-	●
14	BOLT; CLIP,OIL PIPE 4HK1-TCN ENG(RDQ) M8X25 FLANGE MAL	0-28650-825-0	02	1	1501-		●
15	NUT; CLIP,OIL PIPE 4HG1-T ENG(RDP) M8 FLANGE MAL	0-91180-108-0	02	1	1311-1311	●
15	NUT; CLIP,OIL PIPE FRAME STRAIGHT TYPE<7KJ> M8 FLANGE MAL	0-91180-108-0	02	1	1312-1412	●
15	NUT; CLIP,OIL PIPE FRAME STRAIGHT TYPE<7KJ> M8 FLANGE MAL	0-91180-108-0	02	1	1501-	●
15	NUT; CLIP,OIL PIPE 4HK1-TCN ENG(RDQ) M8 FLANGE MAL	0-91180-108-0	02	1	1501-		●
18	CLIP; BRK PIPE (E) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	1408-1412	●
18	CLIP; BRK PIPE (E) ID=12 & 6.35 & 4.76	8-97202-954-1	01	1	1501-	●	●
18	CLIP; BRK PIPE 4HG1-T ENG(RDP) (A) B=18 L=20	1-09700-372-0	02	1	1311-1311	●
18	CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) B=18 L=20	1-09700-372-0	02	1	1312-1412	●
18	CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (A) B=18 L=20	1-09700-372-0	02	1	1501-	●
18	CLIP; BRK PIPE 4HK1-TCN ENG(RDQ) (A) B=18 L=20	1-09700-372-0	02	1	1501-		●
18	CLIP; BRK PIPE 4HG1-T ENG(RDP) (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	1311-1311	●
18	CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	1312-1412	●
18	CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	1501-	●
18	CLIP; BRK PIPE 4HK1-TCN ENG(RDQ) (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	1501-		●
18	CLIP; BRK PIPE 4HG1-T ENG(RDP) (C) ID=4.8X2	8-94389-060-0	01	1	1311-1311	●
18	CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94389-060-0	01	1	1312-1412	●
18	CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2	8-94389-060-0	01	1	1501-	●
18	CLIP; BRK PIPE 4HK1-TCN ENG(RDQ) (C) ID=4.8X2	8-94389-060-0	01	1	1501-		●
18	CLIP; BRK PIPE 4HG1-T ENG(RDP) (F) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	1311-1311	●
18	CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (F) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	1312-1412	●
18	CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (F) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	1501-	●
18	CLIP; BRK PIPE 4HK1-TCN ENG(RDQ) (F) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	1501-		●
18	CLIP; BRK PIPE 4HG1-T ENG(RDP) (F) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1311-1311	●
18	CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (F) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1312-1412	●
18	CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (F) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1501-	●
18	CLIP; BRK PIPE 4HK1-TCN ENG(RDQ) (F) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1501-		●
18	CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97168-819-0	01	1	1311-1412	●
18	CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97168-819-0	01	1	1501-	●	●
18	CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97168-819-0	02	1	1311-1412	●
18	CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97168-819-0	02	1	1501-	●	●
18	CLIP; BRK PIPE 4HG1-T ENG(RDP) (E) ID=12 & 6.35 & 4.76	8-97202-954-1	03	1	1311-1311	●
18	CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (E) ID=12 & 6.35 & 4.76	8-97202-954-1	03	1	1312-1407	●
18	CLIP; BRK PIPE (E) ID=12 & 6.35 & 4.76	8-97202-954-1	01	1	1408-1412	●
18	CLIP; BRK PIPE FRAME STRAIGHT TYPE<7KJ> (E) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	1501-	●
18	CLIP; BRK PIPE 4HK1-TCN ENG(RDQ) (E) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	1501-		●
18	CLIP; BRK PIPE (D) ID=10 & 4.76X3	8-97326-158-1	07	1	1311-1412	●
18	CLIP; BRK PIPE (D) ID=10 & 4.76X3	8-97326-158-1	07	1	1501-	●	●
18	CLIP; BRK PIPE 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) (D) ID=10 & 4.76X3	8-97326-158-1	04	1	1311-1311	●
18	CLIP; BRK PIPE WHEEL BASE 3300MM(33W) (D) ID=10 & 4.76X3	8-97326-158-1	04	1	1312-	●
18	CLIP; BRK PIPE 4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W) (D) ID=10 & 4.76X3	8-97326-158-1	05	1	1311-1311	●
18	CLIP; BRK PIPE WHEEL BASE 3800MM(38W) (D) ID=10 & 4.76X3	8-97326-158-1	05	1	1312-1412	●
18	CLIP; BRK PIPE WHEEL BASE 3800MM(38W) (D) ID=10 & 4.76X3	8-97326-158-1	05	1	1501-	●
18	CLIP; BRK PIPE 4HK1-TCN ENG(RDQ) (D) ID=10 & 4.76X3	8-97326-158-1	05	1	1501-		●
19	BRACKET; OIL PIPE	8-97389-845-2	01	1	1311-1412	●
19	BRACKET; OIL PIPE	8-97389-845-2	01	1	1501-	●	●
20	CLIP; BRK PIPE (A) ID=6.4 & 4.8X2	8-94146-043-0	01	1	1311-1412	●
20	CLIP; BRK PIPE (A) ID=6.4 & 4.8X2	8-94146-043-0	01	1	1501-	●	●
20	CLIP; BRK PIPE (B) ID=6.35 & 4.76X2	8-94250-923-2	01	1	1311-1412	●
20	CLIP; BRK PIPE (B) ID=6.35 & 4.76X2	8-94250-923-2	01	1	1501-	●	●
20	CLIP; BRK PIPE (C)	8-94338-104-0	01	1	1311-1412	●
20	CLIP; BRK PIPE (C)	8-94338-104-0	01	1	1501-	●	●
39	NUT; BRKT FIX 4HG1-T ENG(RDP) M8 FLANGE MAL	0-91180-108-0	01	1	1311-1311	●
39	NUT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> M8 FLANGE MAL	0-91180-108-0	01	1	1312-1412	●
39	NUT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> M8 FLANGE MAL	0-91180-108-0	01	1	1501-	●
39	NUT; BRKT FIX 4HK1-TCN ENG(RDQ) M8 FLANGE MAL	0-91180-108-0	01	1	1501-		●
