Isuzu WW
▶
TRUCKS
▶
NPR
▶
51501 - NPR(MALAYSIA)
▶
3 - Brakes, Brake System
▶

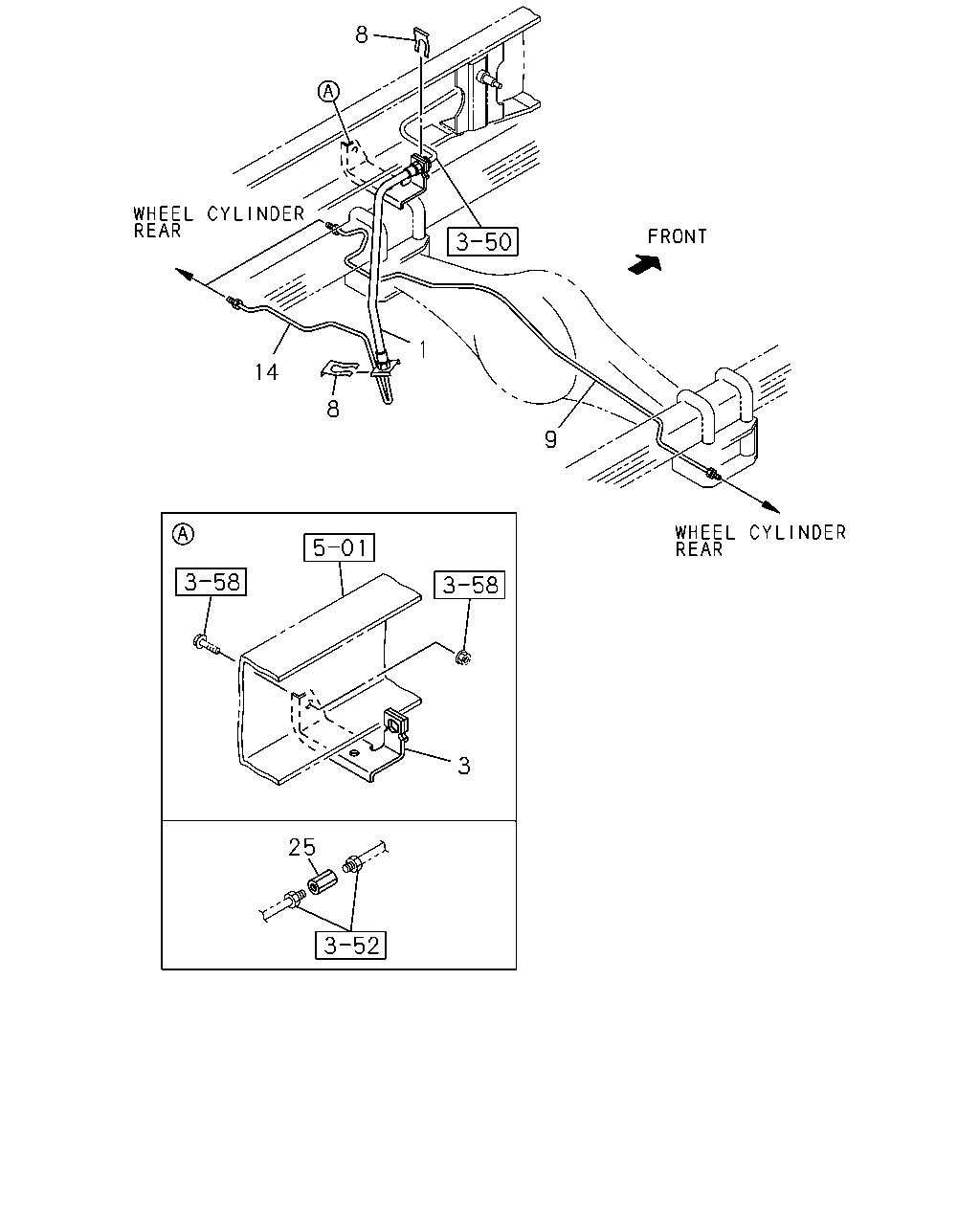

3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#130858) — 28 parça
Tümü
A - NPR5SN
B - NPR5WN
8
14
9
8
3
25
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HOSE; FLEX,RR BRK
L=405
8-97089-061-0
01
1
1311-1311
●
1
HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> L=405
8-97089-061-0
01
1
1312-1412
●
1
HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> L=405
8-97089-061-0
01
1
1501-
●
1
HOSE; FLEX,RR BRK
L=405
8-97089-061-0
01
1
1501-
●
3
BRACKET; FLEX HOSE,RR BRK
4HG1-T ENG(RDP)
8-97205-714-1
01
1
1311-1311
●
3
BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ>
8-97205-714-1
01
1
1312-1412
●
3
BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ>
8-97205-714-1
01
1
1501-
●
3
BRACKET; FLEX HOSE,RR BRK
4HK1-TCN ENG(RDQ)
8-97205-714-1
01
1
1501-
●
8
CLIP; RR BRK
8-97360-054-0
02
1
1311-1412
●
8
CLIP; RR BRK
8-97360-054-0
02
1
1501-
●
●
9
PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) MAL
8-98106-714-0
01
1
1311-1311
●
9
PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> MAL
8-98106-714-0
01
1
1312-
●
9
PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX)
8-98118-216-0
01
1
1311-1311
●
9
PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ>
8-98118-216-0
01
1
1312-
●
9
PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV)
8-98251-227-0
01
1
1311-1311
●
9
PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ>
8-98251-227-0
01
1
1312-
●
9
PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) MAL
8-98026-057-0
01
1
1311-1311
●
9
PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> MAL
8-98026-057-0
01
1
1312-1412
●
9
PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> MAL
8-98026-057-0
01
1
1501-
●
9
PIPE; BRK,RR AXLE
MAL
8-98026-057-0
01
1
1501-
●
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
MAL
8-97359-746-0
01
1
1311-1412
●
14
PIPE; BRK,FLEX HOSE TO WHEEL CYL
MAL
8-97359-746-0
01
1
1501-
●
●
25
CONNECTOR
4HG1-T ENG(RDP) M10 STRAIGHT
0-92107-005-0
01
1
1311-1311
●
25
CONNECTOR
4HG1-T ENG(RDP) M10 STRAIGHT
0-92107-005-0
01
1
1311-1311
●
25
CONNECTOR
M10 STRAIGHT
0-92107-005-0
01
1
1312-1412
●
25
CONNECTOR
M10 STRAIGHT
0-92107-005-0
01
1
1312-1412
●
25
CONNECTOR
M10 STRAIGHT
0-92107-005-0
01
1
1501-
●
●
25
CONNECTOR
M10 STRAIGHT
0-92107-005-0
01
1
1501-
●
●
