3-52 — BRAKE PIPING; OIL,FRONT (#130857) — 26 parça

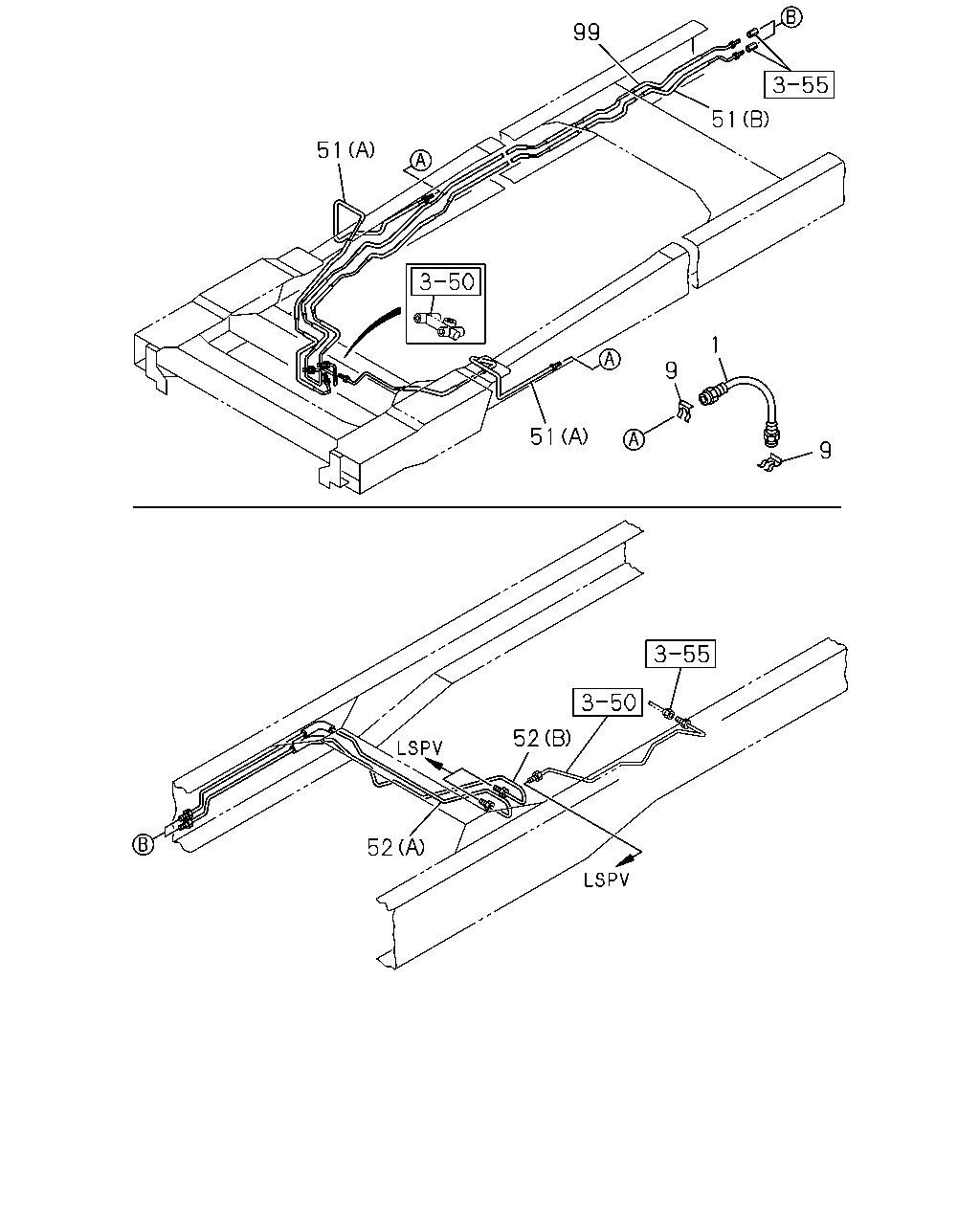

çizim 385835
51 9 1 8 51 99 51 52 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 1311-1412 ●
1 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 1501- ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1311-1412 ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1311-1412 ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1501- ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1501- ● ●
51 PIPE; BRK
(B) 4/6WAY TO 2WAY,FRONT MAL 		8-98057-260-0 01 1 1311-1412 ●
51 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (B) 4/6WAY TO 2WAY,FRONT MAL 		8-98057-260-0 01 1 1501- ●
51 PIPE; BRK
4HK1-TCN ENG(RDQ) (B) 4/6WAY TO 2WAY,FRONT MAL 		8-98057-260-0 01 1 1501- ●
51 PIPE; BRK
(A) 5/6WAY TO FRONT MAL 		8-98065-765-1 01 1 1311-1412 ●
51 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (A) 5/6WAY TO FRONT MAL 		8-98065-765-1 01 1 1501- ●
51 PIPE; BRK
4HK1-TCN ENG(RDQ) (A) 5/6WAY TO FRONT MAL 		8-98065-765-1 01 1 1501- ●
51 PIPE; BRK
(A) 5/6WAY TO FRONT MAL 		8-98065-766-1 01 1 1311-1412 ●
51 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (A) 5/6WAY TO FRONT MAL 		8-98065-766-1 01 1 1501- ●
51 PIPE; BRK
4HK1-TCN ENG(RDQ) (A) 5/6WAY TO FRONT MAL 		8-98065-766-1 01 1 1501- ●
52 PIPE; BRK
WHEEL BASE 3300MM(33W) (B) 2WAY TO LSPV,REAR MAL 		8-98057-265-0 01 1 1311- ●
52 PIPE; BRK
WHEEL BASE 3300MM(33W) (A) 2WAY TO LSPV,FRONT MAL 		8-98057-268-0 01 1 1311- ●
52 PIPE; BRK
WHEEL BASE 3800MM(38W) (B) 2WAY TO LSPV,REAR MAL 		8-98057-266-0 01 1 1311-1412 ●
52 PIPE; BRK
WHEEL BASE 3800MM(38W) (B) 2WAY TO LSPV,REAR MAL 		8-98057-266-0 01 1 1501- ●
52 PIPE; BRK
(B) 2WAY TO LSPV,REAR MAL 		8-98057-266-0 01 1 1501- ●
52 PIPE; BRK
WHEEL BASE 3800MM(38W) (A) 2WAY TO LSPV,FRONT MAL 		8-98057-269-0 01 1 1311-1412 ●
52 PIPE; BRK
WHEEL BASE 3800MM(38W) (A) 2WAY TO LSPV,FRONT MAL 		8-98057-269-0 01 1 1501- ●
52 PIPE; BRK
(A) 2WAY TO LSPV,FRONT MAL 		8-98057-269-0 01 1 1501- ●
99 PIPE ASM; 4/5/6 WAY
4/6WAY TO 2WAY,REAR MAL 		8-98057-259-0 01 1 1311-1412 ●
99 PIPE ASM; 4/5/6 WAY
FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR MAL 		8-98057-259-0 01 1 1501- ●
99 PIPE ASM; 4/5/6 WAY
4HK1-TCN ENG(RDQ) 4/6WAY TO 2WAY,REAR MAL 		8-98057-259-0 01 1 1501- ●
