◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51501 - NPR(MALAYSIA) ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#130856) — 59 parça

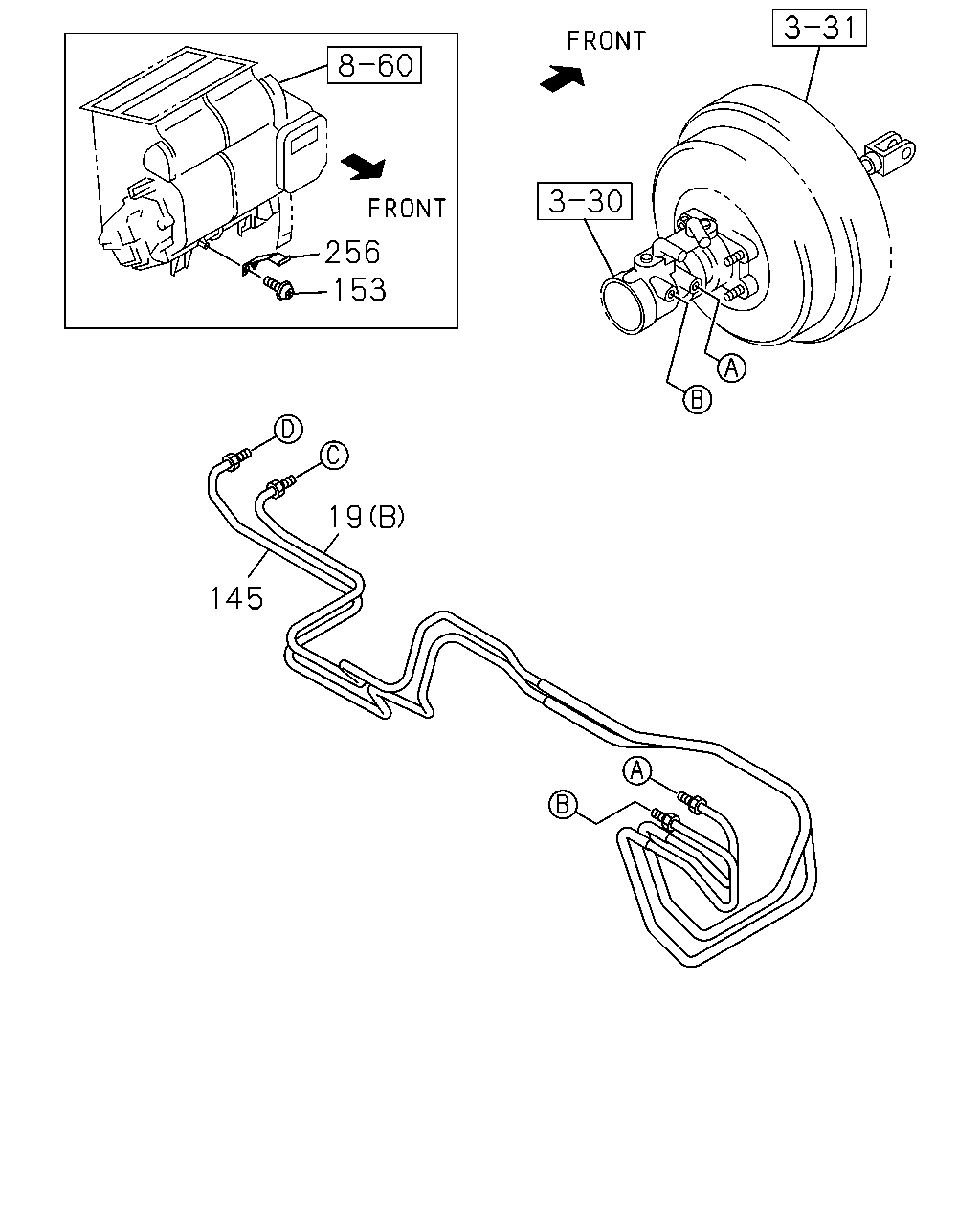

çizim 385745
256 153 145 19
BalonParca AdiParca NoAdetTipApplied Date A B
19 PIPE; BRK,M/CYL TO UNION
(B) MAL 		8-97389-337-3 01 1 1311-1412 ●
19 PIPE; BRK,M/CYL TO UNION
(B) MAL 		8-97389-337-3 01 1 1501- ● ●
19 PIPE; BRK,M/CYL TO UNION
(A) MAL 		8-97389-366-1 02 1 1311-1412 ●
19 PIPE; BRK,M/CYL TO UNION
(A) MAL 		8-97389-366-1 02 1 1501- ● ●
145 PIPE; BRK,METERING VLV TO UNION
MAL 		8-97389-295-3 01 1 1311-1412 ●
145 PIPE; BRK,METERING VLV TO UNION
MAL 		8-97389-295-3 01 1 1501- ● ●
153 SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. KD PREPARATORY PACK VAR.4<7TV> T25 M5X12 TAPPING HEXALOBULAR MAL 		0-72180-512-0 01 1 1311-1412 ●
153 SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. KD PREPARATORY PACK VAR.4<7TV> T25 M5X12 TAPPING HEXALOBULAR MAL 		0-72180-512-0 01 1 1501- ● ●
256 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1311-1412 ●
256 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1501- ● ●

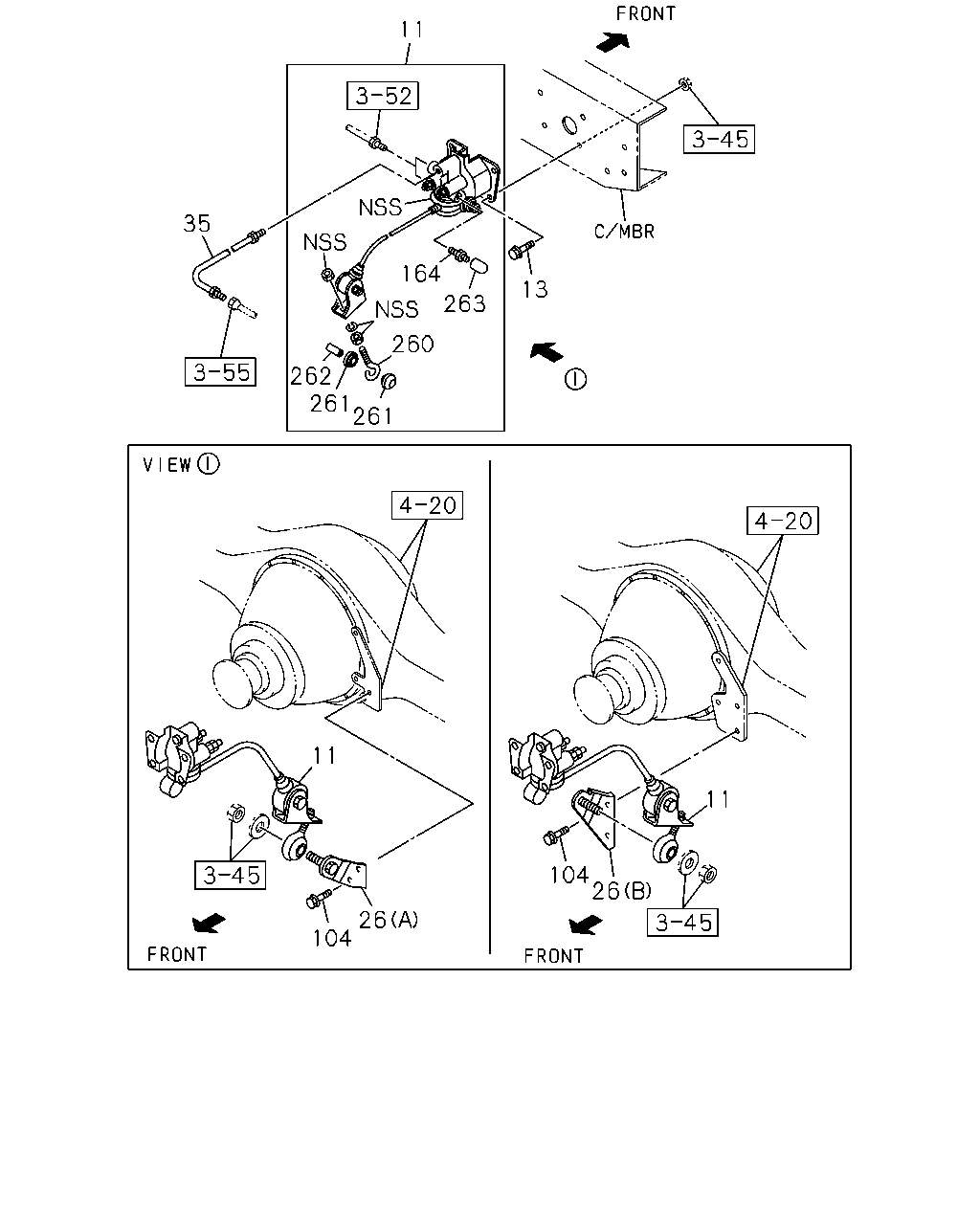

çizim 385768
11 13 261 260 263 164 262 35 261 104 26 11 26 104 11
BalonParca AdiParca NoAdetTipApplied Date A B
11 VALVE; BRK CONT 8-94427-224-2 01 1 1311-1412 ●
11 VALVE; BRK CONT 8-94427-224-2 01 1 1501- ● ●
13 BOLT; VLV TO BRKT
M8X16 FLANGE MAL 		0-28050-816-0 04 1 1311-1412 ●
13 BOLT; VLV TO BRKT
M8X16 FLANGE MAL 		0-28050-816-0 04 1 1501- ● ●
26 BRACKET; PROPORTIONING VLV
REAR AXLE HEAVY DUTY 292MM(G73) (B) 		8-98029-822-0 01 1 1311- ●
26 BRACKET; PROPORTIONING VLV
REAR AXLE HEAVY DUTY 320MM(6CP) (A) 		8-98029-821-0 01 1 1311-1412 ●
26 BRACKET; PROPORTIONING VLV
REAR AXLE HEAVY DUTY 320MM(6CP) (A) 		8-98029-821-0 01 1 1501- ●
26 BRACKET; PROPORTIONING VLV
(A) 		8-98029-821-0 01 1 1501- ●
35 PIPE; BRK,VLV TO RR AXLE
MAL 		8-98057-271-0 01 1 1311-1412 ●
35 PIPE; BRK,VLV TO RR AXLE
FRAME STRAIGHT TYPE<7KJ> MAL 		8-98057-271-0 01 1 1501- ●
35 PIPE; BRK,VLV TO RR AXLE
4HK1-TCN ENG(RDQ) MAL 		8-98057-271-0 01 1 1501- ●
104 BOLT; BRKT TO BODY
M8X16 FLANGE MAL 		0-28050-816-0 02 1 1311-1412 ●
104 BOLT; BRKT TO BODY
M8X16 FLANGE MAL 		0-28050-816-0 02 1 1501- ● ●
164 SCREW; BLEEDER 8-97093-663-0 01 1 1311-1412 ●
164 SCREW; BLEEDER 8-97093-663-0 01 1 1501- ● ●
260 SHACKLE; LSPV 8-97173-366-0 01 1 1311-1412 ●
260 SHACKLE; LSPV 8-97173-366-0 01 1 1501- ● ●
261 BUSHING; LSPV 8-97145-631-0 02 1 1311-1412 ●
261 BUSHING; LSPV 8-97145-631-0 02 1 1501- ● ●
262 COLLAR; LSPV 8-97139-186-0 01 1 1311-1412 ●
262 COLLAR; LSPV 8-97139-186-0 01 1 1501- ● ●
263 CAP; BLEEDER 8-97093-662-0 01 1 1311-1412 ●
263 CAP; BLEEDER 8-97093-662-0 01 1 1501- ● ●
çizim 385788
35
BalonParca AdiParca NoAdetTipApplied Date A B
35 PIPE; BRK,VLV TO RR AXLE
MAL 		8-98057-271-0 01 1 1311-1412 ●
35 PIPE; BRK,VLV TO RR AXLE
FRAME STRAIGHT TYPE<7KJ> MAL 		8-98057-271-0 01 1 1501- ●
35 PIPE; BRK,VLV TO RR AXLE
4HK1-TCN ENG(RDQ) MAL 		8-98057-271-0 01 1 1501- ●

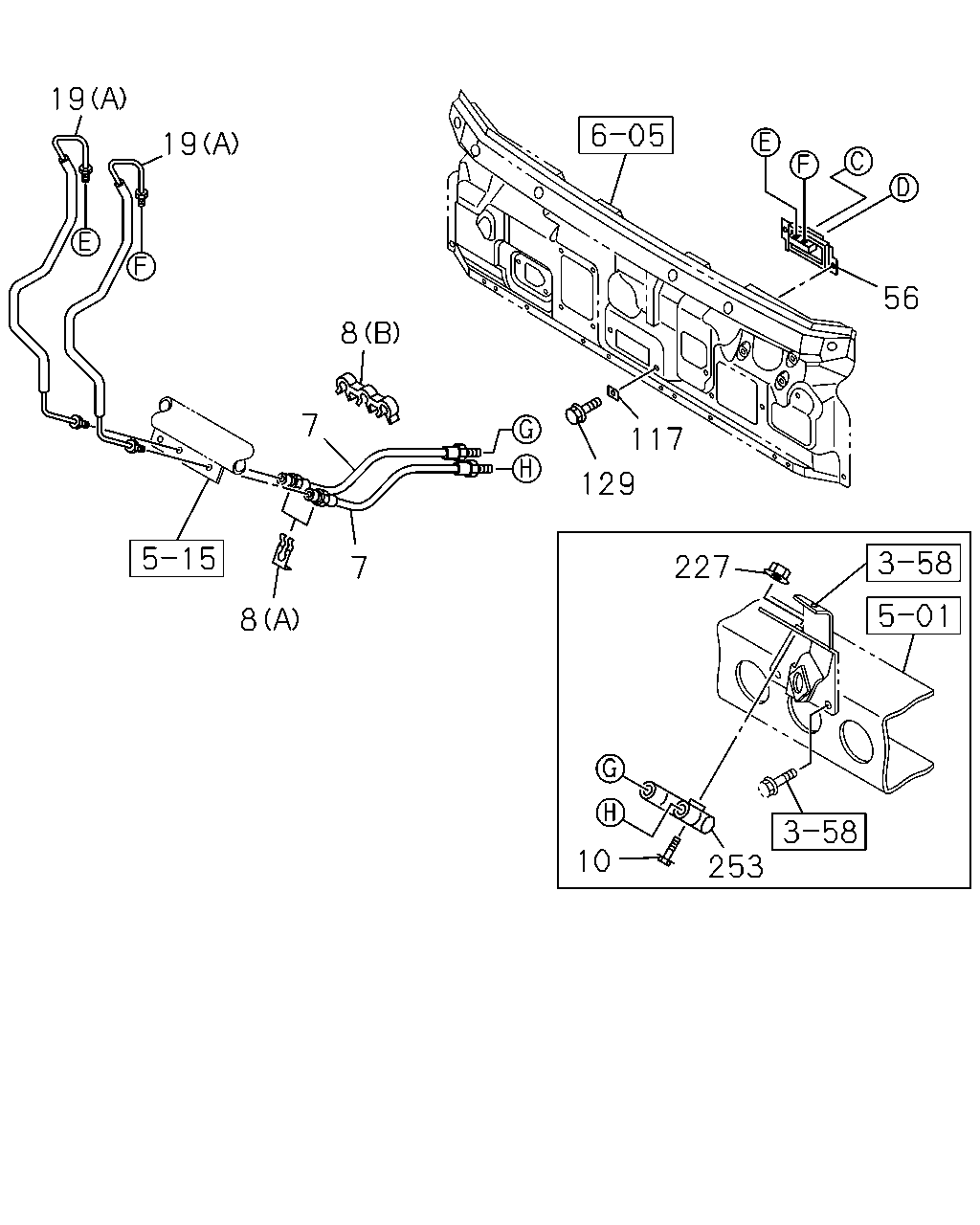

çizim 386189
19 19 8 7 7 129 117 56 227 253 10 8
BalonParca AdiParca NoAdetTipApplied Date A B
7 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98029-865-0 02 1 1311-1412 ●
7 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98029-865-0 02 1 1501- ● ●
8 CLIP; FLEX HOSE,CABLE SIDE
(B) 		8-97076-471-0 01 1 1311-1412 ●
8 CLIP; FLEX HOSE,CABLE SIDE
(B) 		8-97076-471-0 01 1 1501- ● ●
8 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 1311-1412 ●
8 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 1501- ● ●
10 BOLT; JOINT
M6X40 FLANGE 		0-28650-640-0 01 1 1311-1412 ●
10 BOLT; JOINT
M6X40 FLANGE 		0-28650-640-0 01 1 1501- ● ●
19 PIPE; BRK,M/CYL TO UNION
(B) MAL 		8-97389-337-3 01 1 1311-1412 ●
19 PIPE; BRK,M/CYL TO UNION
(B) MAL 		8-97389-337-3 01 1 1501- ● ●
19 PIPE; BRK,M/CYL TO UNION
(A) MAL 		8-97389-366-1 02 1 1311-1412 ●
19 PIPE; BRK,M/CYL TO UNION
(A) MAL 		8-97389-366-1 02 1 1501- ● ●
56 BRACKET; UNION,BRK 8-98154-264-1 01 1 1311-1412 ●
56 BRACKET; UNION,BRK 8-98154-264-1 01 1 1501- ● ●
117 SEAL; UNION,BRK PIPE JOINT
MAL 		8-97856-616-0 02 1 1311-1412 ●
117 SEAL; UNION,BRK PIPE JOINT
MAL 		8-97856-616-0 02 1 1501- ● ●
129 BOLT; BRKT
M6X20 W/LK&PL WASHER MAL 		8-98081-030-0 02 1 1311-1412 ●
129 BOLT; BRKT
M6X20 W/LK&PL WASHER MAL 		8-98081-030-0 02 1 1501- ● ●
227 NUT; JOINT
M8 FLANGE MAL 		0-91180-108-0 02 1 1311-1412 ●
227 NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE MAL 		0-91180-108-0 02 1 1501- ●
227 NUT; JOINT
4HK1-TCN ENG(RDQ) M8 FLANGE MAL 		0-91180-108-0 02 1 1501- ●
253 JOINT 8-97120-033-2 01 1 1311-1412 ●
253 JOINT 8-97120-033-2 01 1 1501- ● ●
