3-21 — VACUUM TANK (#130852) — 12 parça

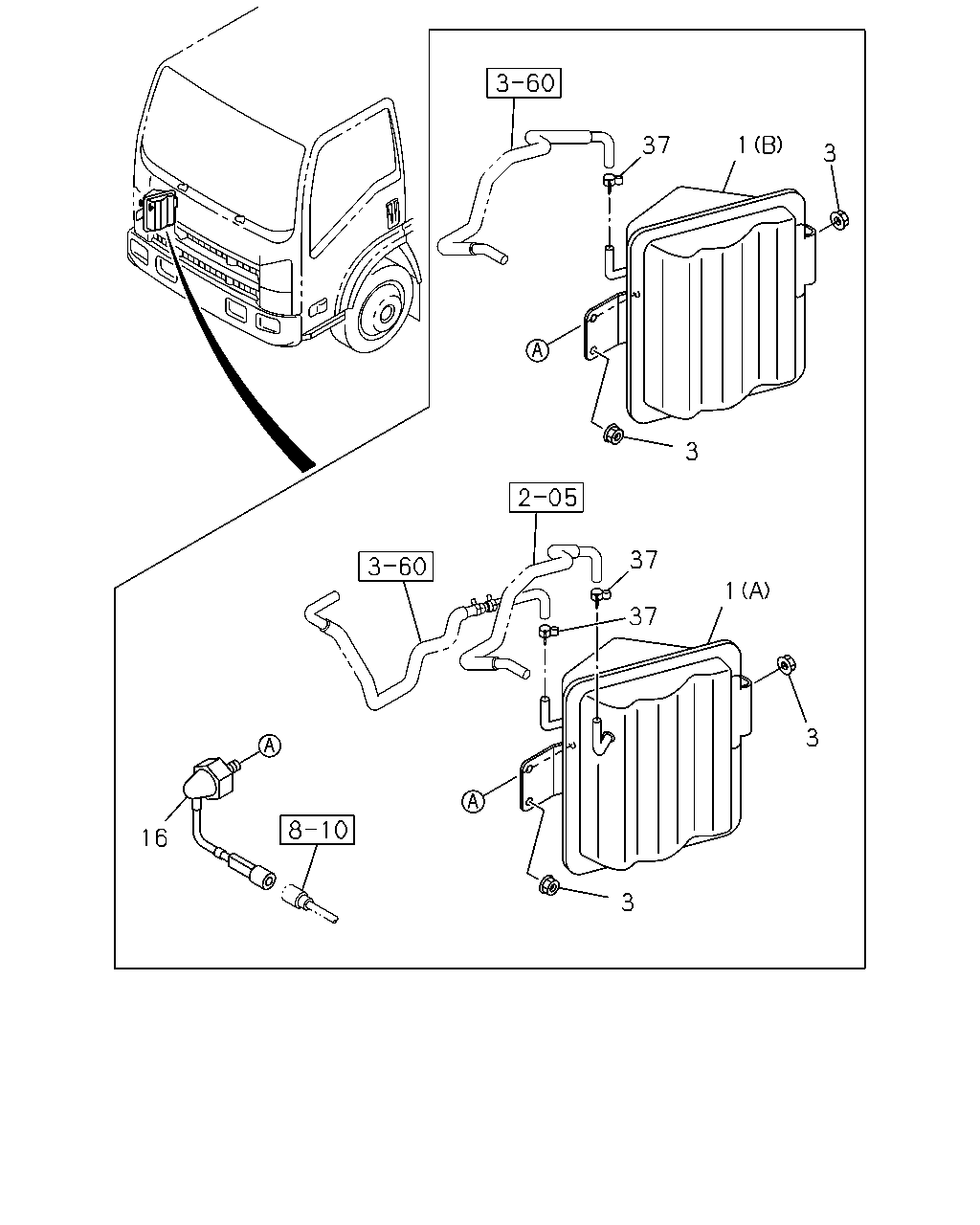

çizim 385783
37 3 1 3 37 1 3 3 16 37
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A) 		8-98009-121-2 01 1 1311-1412 ●
1 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) (A) 		8-98009-121-2 01 1 1501- ● ●
1 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98009-122-2 01 1 1311-1412 ●
1 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T) (B) 		8-98009-122-2 01 1 1501- ● ●
3 NUT; VAC TANK TO BRKT 8-98008-071-0 03 1 1311-1412 ●
3 NUT; VAC TANK TO BRKT 8-98008-071-0 03 1 1501- ● ●
16 SWITCH; VAC 8-98049-417-0 01 1 1311-1412 ●
16 SWITCH; VAC 8-98049-417-0 01 1 1501- ● ●
37 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 		8-94367-944-0 02 1 1311-1412 ●
37 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) ID=15.5 		8-94367-944-0 02 1 1501- ● ●
37 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) ID=15.5 		8-94367-944-0 01 1 1311-1412 ●
37 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) ID=15.5 		8-94367-944-0 01 1 1501- ● ●
