◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51501 - NPR(MALAYSIA) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#130851) — 148 parça

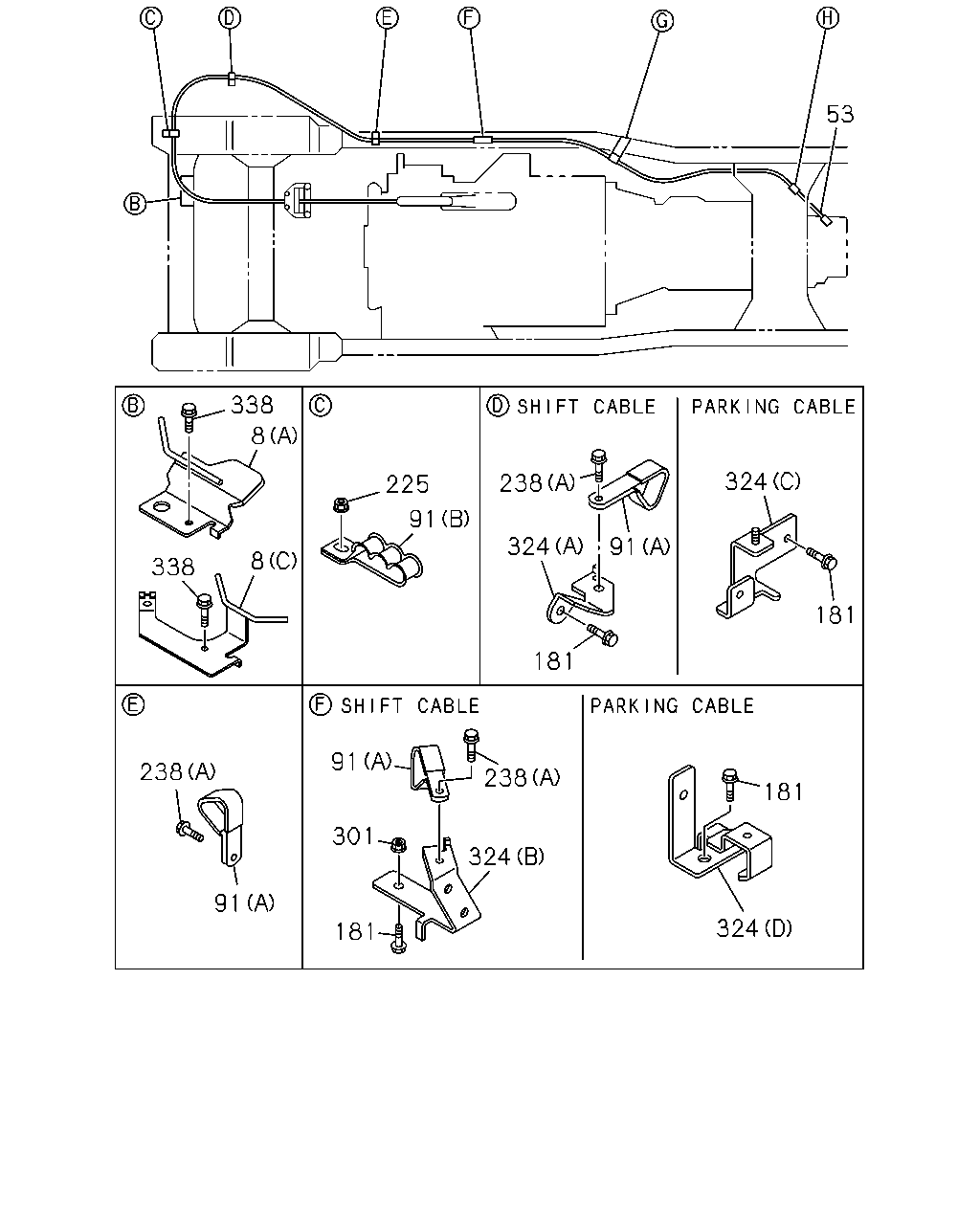

çizim 385527
338 8 8 338 225 91 238 324 91 181 324 181 181 324 324 238 91 301 181 91 238 53
BalonParca AdiParca NoAdetTipApplied Date A B
8 GUIDE; PARKING BRK
4HG1-T ENG(RDP) (C) 		8-98120-571-0 01 1 1311- ●
8 GUIDE; PARKING BRK
(B) 		8-98110-964-0 01 1 1311-1311 ●
8 GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98110-964-0 01 1 1312-1412 ●
8 GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98110-964-0 01 1 1501- ●
8 GUIDE; PARKING BRK
(B) 		8-98110-964-0 01 1 1501- ●
8 GUIDE; PARKING BRK
4HK1-TCN ENG(RDQ) (A) 		8-98096-374-0 01 1 1312-1412 ●
8 GUIDE; PARKING BRK
4HK1-TCN ENG(RDQ) (A) 		8-98096-374-0 01 1 1501- ● ●
53 CABLE; PARK BRK,FRT LWR
4HG1-T ENG(RDP) M/T MYY5T(RSM) 		8-98079-119-2 01 1 1311-1311 ●
53 CABLE; PARK BRK,FRT LWR
4HG1-T ENG(RDP) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 		8-98079-119-2 01 1 1312- ●
53 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 		8-98041-315-3 01 1 1312-1412 ●
53 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 		8-98041-315-3 01 1 1501- ●
53 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 		8-98041-315-3 01 1 1501- ●
91 CLIP; PARKING BRK CABLE
(B) 		8-98023-622-0 01 1 1311-1412 ●
91 CLIP; PARKING BRK CABLE
(B) 		8-98023-622-0 01 1 1501- ● ●
91 CLIP; PARKING BRK CABLE
(A) 		8-97036-333-1 01 1 1311-1311 ●
91 CLIP; PARKING BRK CABLE
(A) 		8-97036-333-1 01 1 1311-1311 ●
91 CLIP; PARKING BRK CABLE
4HG1-T ENG(RDP) (A) 		8-97036-333-1 01 1 1311-1311 ●
91 CLIP; PARKING BRK CABLE
(A) 		8-97036-333-1 01 1 1312-1412 ●
91 CLIP; PARKING BRK CABLE
(A) 		8-97036-333-1 01 1 1312-1412 ●
91 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 1312-1412 ●
91 CLIP; PARKING BRK CABLE
(A) 		8-97036-333-1 01 1 1501- ● ●
91 CLIP; PARKING BRK CABLE
(A) 		8-97036-333-1 01 1 1501- ● ●
91 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97036-333-1 01 1 1501- ●
91 CLIP; PARKING BRK CABLE
4HK1-TCN ENG(RDQ) (A) 		8-97036-333-1 01 1 1501- ●
181 BOLT; BRKT
M8X16 FLANGE MAL 		0-28050-816-0 01 1 1311-1412 ●
181 BOLT; BRKT
M8X16 FLANGE MAL 		0-28050-816-0 01 1 1501- ● ●
181 BOLT; BRKT
M8X25 FLANGE MAL 		0-28650-825-0 03 1 1311-1311 ●
181 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE MAL 		0-28650-825-0 03 1 1312-1412 ●
181 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE MAL 		0-28650-825-0 03 1 1501- ●
181 BOLT; BRKT
M8X25 FLANGE MAL 		0-28650-825-0 03 1 1501- ●
225 NUT; CABLE CLIP
M8 FLANGE MAL 		0-91180-108-0 02 1 1311-1412 ●
225 NUT; CABLE CLIP
M8 FLANGE MAL 		0-91180-108-0 02 1 1501- ● ●
225 NUT; CABLE CLIP
M/T MYY5T(RSM) M8 FLANGE MAL 		0-91180-108-0 01 1 1311-1311 ●
225 NUT; CABLE CLIP
M8 FLANGE MAL 		0-91180-108-0 01 1 1312-1412 ●
225 NUT; CABLE CLIP
M8 FLANGE MAL 		0-91180-108-0 01 1 1501- ● ●
238 BOLT; CLIP TO BRKT
(A) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1311-1311 ●
238 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1312-1412 ●
238 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1501- ●
238 BOLT; CLIP TO BRKT
(A) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1501- ●
238 BOLT; CLIP TO BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1311-1311 ●
238 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE 		0-28651-030-0 01 1 1312-1412 ●
238 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE 		0-28651-030-0 01 1 1501- ●
238 BOLT; CLIP TO BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1501- ●
301 NUT; BRKT,BRK & CLU PEDAL
M8 FLANGE MAL 		0-91180-108-0 01 1 1311-1311 ●
301 NUT; BRKT,BRK & CLU PEDAL
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE MAL 		0-91180-108-0 01 1 1312-1412 ●
301 NUT; BRKT,BRK & CLU PEDAL
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE MAL 		0-91180-108-0 01 1 1501- ●
301 NUT; BRKT,BRK & CLU PEDAL
M8 FLANGE MAL 		0-91180-108-0 01 1 1501- ●
324 BRACKET
(A) 		8-98034-115-0 01 1 1311-1412 ●
324 BRACKET
(A) 		8-98034-115-0 01 1 1501- ● ●
324 BRACKET
4HG1-T ENG(RDP) (B) 		8-98034-185-1 01 1 1311-1311 ●
324 BRACKET
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98034-185-1 01 1 1312-1412 ●
324 BRACKET
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98034-185-1 01 1 1501- ●
324 BRACKET
4HK1-TCN ENG(RDQ) (B) 		8-98034-185-1 01 1 1501- ●
324 BRACKET
(C) 		8-98099-516-0 01 1 1311-1311 ●
324 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98099-516-0 01 1 1312-1412 ●
324 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98099-516-0 01 1 1501-1508 ●
324 BRACKET
(C) 		8-98099-516-0 01 1 1501-1508 ●
324 BRACKET
FRAME STRAIGHT TYPE<7KJ> (C) 		8-98216-763-1 01 1 1509- ●
324 BRACKET
(C) 		8-98216-763-1 01 1 1509- ●
324 BRACKET
(D) 		8-98111-394-1 01 1 1311-1311 ●
324 BRACKET
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98111-394-1 01 1 1312-1412 ●
324 BRACKET
FRAME STRAIGHT TYPE<7KJ> (D) 		8-98111-394-1 01 1 1501- ●
324 BRACKET
(D) 		8-98111-394-1 01 1 1501- ●
338 SCREW; GUIDE
4HG1-T ENG(RDP) M8X25 FLANGE MAL 		0-28650-825-0 01 1 1311-1311 ●
338 SCREW; GUIDE
M8X25 FLANGE MAL 		0-28650-825-0 01 1 1311-1311 ●
338 SCREW; GUIDE
4HG1-T ENG(RDP) M8X25 FLANGE MAL 		0-28650-825-0 01 1 1312-1412 ●
338 SCREW; GUIDE
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE MAL 		0-28650-825-0 01 1 1312-1412 ●
338 SCREW; GUIDE
4HG1-T ENG(RDP) M8X25 FLANGE MAL 		0-28650-825-0 01 1 1501- ●
338 SCREW; GUIDE
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE MAL 		0-28650-825-0 01 1 1501- ●
338 SCREW; GUIDE
M8X25 FLANGE MAL 		0-28650-825-0 01 1 1501- ●
338 SCREW; GUIDE
4HK1-TCN ENG(RDQ) M8X35 FLANGE 		8-98046-876-0 01 1 1312-1412 ●
338 SCREW; GUIDE
4HK1-TCN ENG(RDQ) M8X35 FLANGE 		8-98046-876-0 01 1 1501- ● ●

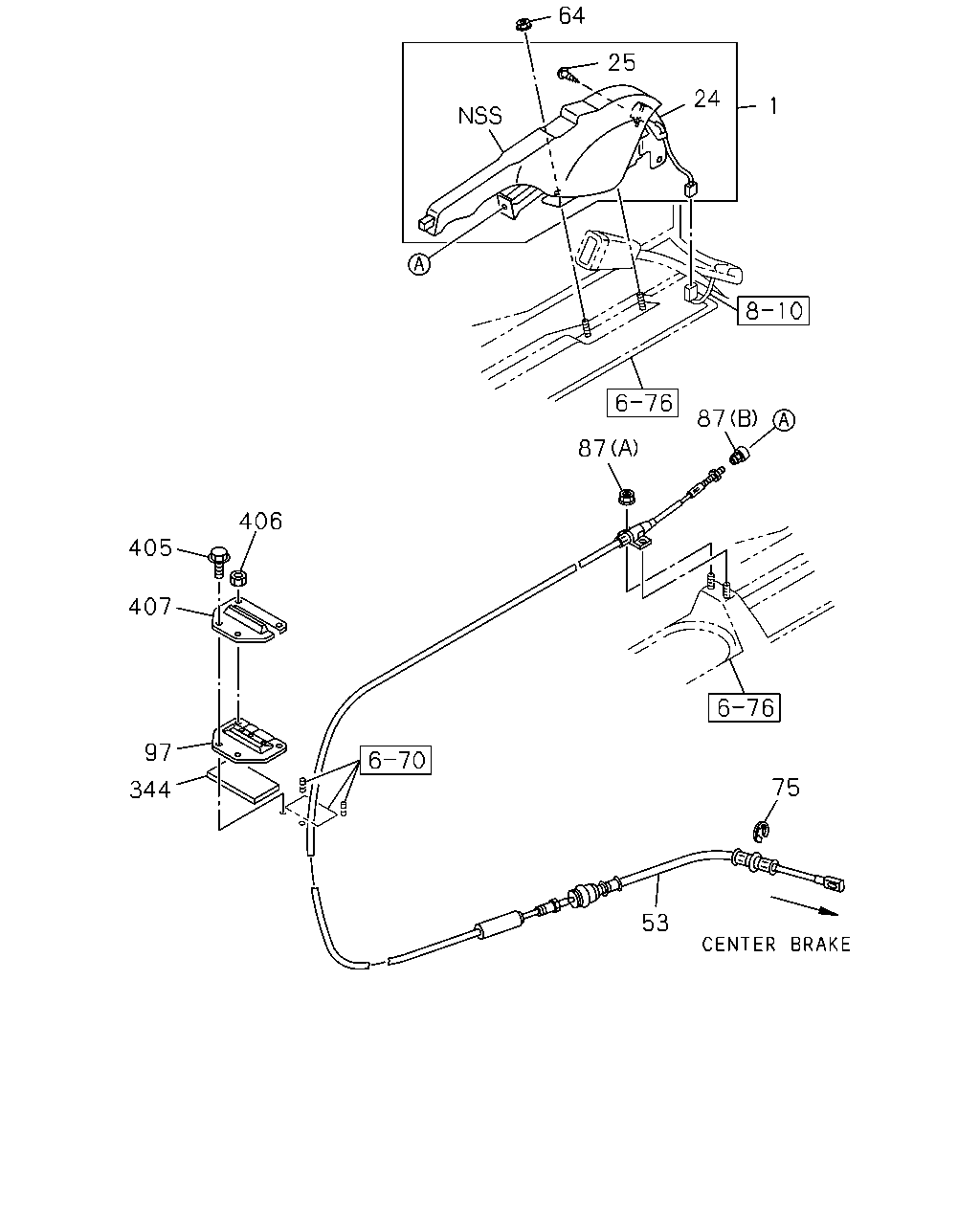

çizim 385530
64 25 24 1 87 87 75 406 405 407 97 344 53
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEM ASM; PARKING BRK
GRAY 		8-97426-513-0 01 1 1311-1412 ●
1 STEM ASM; PARKING BRK
GRAY 		8-97426-513-0 01 1 1501- ● ●
24 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1311-1412 ●
24 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1501- ● ●
25 SCREW; SW,PARKING BRK
MAL 		8-98152-463-0 01 1 1311-1412 ●
25 SCREW; SW,PARKING BRK
MAL 		8-98152-463-0 01 1 1501- ● ●
53 CABLE; PARK BRK,FRT LWR
4HG1-T ENG(RDP) M/T MYY5T(RSM) 		8-98079-119-2 01 1 1311-1311 ●
53 CABLE; PARK BRK,FRT LWR
4HG1-T ENG(RDP) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 		8-98079-119-2 01 1 1312- ●
53 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 		8-98041-315-3 01 1 1312-1412 ●
53 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> 		8-98041-315-3 01 1 1501- ●
53 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 		8-98041-315-3 01 1 1501- ●
64 NUT; PARKING BRK
M8 LOCK NUT FLANGE MAL 		0-91380-008-0 02 1 1311-1412 ●
64 NUT; PARKING BRK
M8 LOCK NUT FLANGE MAL 		0-91380-008-0 02 1 1501- ● ●
75 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 1311-1412 ●
75 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 1501- ● ●
87 NUT
(A) M8 FLANGE MAL 		0-91180-108-0 02 1 1311-1412 ●
87 NUT
(A) M8 FLANGE MAL 		0-91180-108-0 02 1 1501- ● ●
87 NUT
(B) M6 		8-98034-313-1 01 1 1311-1412 ●
87 NUT
(B) M6 		8-98034-313-1 01 1 1501- ● ●
97 GROMMET; PARKING BRK CABLE
MAL 		8-97065-212-1 01 1 1311-1412 ●
97 GROMMET; PARKING BRK CABLE
MAL 		8-97065-212-1 01 1 1501- ● ●
344 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 		8-97096-753-0 01 1 1311- ●
405 BOLT; GROMMET
M6X20 FLANGE MAL 		0-28450-620-0 02 1 1311-1412 ●
405 BOLT; GROMMET
M6X20 FLANGE MAL 		0-28450-620-0 02 1 1501- ● ●
406 NUT; GROMMET
M6 FLANGE MAL 		0-91180-106-0 02 1 1311-1412 ●
406 NUT; GROMMET
M6 FLANGE MAL 		0-91180-106-0 02 1 1501- ● ●
407 RETAINER; GROMMET
MAL 		1-33657-674-0 01 1 1311-1412 ●
407 RETAINER; GROMMET
MAL 		1-33657-674-0 01 1 1501- ● ●
çizim 386457
338 8 237 235 225 85 238 241 237 235
BalonParca AdiParca NoAdetTipApplied Date A B
8 GUIDE; PARKING BRK
4HG1-T ENG(RDP) (C) 		8-98120-571-0 01 1 1311- ●
8 GUIDE; PARKING BRK
(B) 		8-98110-964-0 01 1 1311-1311 ●
8 GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98110-964-0 01 1 1312-1412 ●
8 GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98110-964-0 01 1 1501- ●
8 GUIDE; PARKING BRK
(B) 		8-98110-964-0 01 1 1501- ●
8 GUIDE; PARKING BRK
4HK1-TCN ENG(RDQ) (A) 		8-98096-374-0 01 1 1312-1412 ●
8 GUIDE; PARKING BRK
4HK1-TCN ENG(RDQ) (A) 		8-98096-374-0 01 1 1501- ● ●
85 CLIP; BRKT
4HG1-T ENG(RDP) M/T MYY5T(RSM) ID=14.5 L=20 		1-09701-012-0 01 1 1311-1311 ●
85 CLIP; BRKT
FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20 		1-09701-012-0 01 1 1312-1412 ●
85 CLIP; BRKT
FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20 		1-09701-012-0 01 1 1501- ●
85 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1501- ●
225 NUT; CABLE CLIP
M8 FLANGE MAL 		0-91180-108-0 02 1 1311-1412 ●
225 NUT; CABLE CLIP
M8 FLANGE MAL 		0-91180-108-0 02 1 1501- ● ●
225 NUT; CABLE CLIP
M/T MYY5T(RSM) M8 FLANGE MAL 		0-91180-108-0 01 1 1311-1311 ●
225 NUT; CABLE CLIP
M8 FLANGE MAL 		0-91180-108-0 01 1 1312-1412 ●
225 NUT; CABLE CLIP
M8 FLANGE MAL 		0-91180-108-0 01 1 1501- ● ●
235 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM) (B) 		8-98087-322-0 01 1 1311-1311 ●
235 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98087-322-0 01 1 1312-1412 ●
235 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98087-322-0 01 1 1501- ●
235 BRACKET; CONT CABLE TO FRAME
(B) 		8-98087-322-0 01 1 1501- ●
235 BRACKET; CONT CABLE TO FRAME
(A) 		8-98106-986-1 01 1 1311-1311 ●
235 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98106-986-1 01 1 1312-1412 ●
235 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98106-986-1 01 1 1501- ●
235 BRACKET; CONT CABLE TO FRAME
(A) 		8-98106-986-1 01 1 1501- ●
237 NUT; BRKT TO FRAME
M10 FLANGE MAL 		0-91180-110-0 01 1 1311-1412 ●
237 NUT; BRKT TO FRAME
M10 FLANGE MAL 		0-91180-110-0 01 1 1501- ● ●
237 NUT; BRKT TO FRAME
M10 FLANGE MAL 		0-91180-110-0 01 1 1501- ●
238 BOLT; CLIP TO BRKT
(A) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1311-1311 ●
238 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1312-1412 ●
238 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1501- ●
238 BOLT; CLIP TO BRKT
(A) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1501- ●
238 BOLT; CLIP TO BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1311-1311 ●
238 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE 		0-28651-030-0 01 1 1312-1412 ●
238 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> (B) M10X30 FLANGE 		0-28651-030-0 01 1 1501- ●
238 BOLT; CLIP TO BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1501- ●
241 NUT; BRKT
M8 FLANGE MAL 		0-91180-108-0 02 1 1311-1311 ●
241 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE MAL 		0-91180-108-0 02 1 1312-1412 ●
241 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE MAL 		0-91180-108-0 02 1 1501- ●
241 NUT; BRKT
M8 FLANGE MAL 		0-91180-108-0 02 1 1501- ●
338 SCREW; GUIDE
4HG1-T ENG(RDP) M8X25 FLANGE MAL 		0-28650-825-0 01 1 1311-1311 ●
338 SCREW; GUIDE
M8X25 FLANGE MAL 		0-28650-825-0 01 1 1311-1311 ●
338 SCREW; GUIDE
4HG1-T ENG(RDP) M8X25 FLANGE MAL 		0-28650-825-0 01 1 1312-1412 ●
338 SCREW; GUIDE
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE MAL 		0-28650-825-0 01 1 1312-1412 ●
338 SCREW; GUIDE
4HG1-T ENG(RDP) M8X25 FLANGE MAL 		0-28650-825-0 01 1 1501- ●
338 SCREW; GUIDE
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE MAL 		0-28650-825-0 01 1 1501- ●
338 SCREW; GUIDE
M8X25 FLANGE MAL 		0-28650-825-0 01 1 1501- ●
338 SCREW; GUIDE
4HK1-TCN ENG(RDQ) M8X35 FLANGE 		8-98046-876-0 01 1 1312-1412 ●
338 SCREW; GUIDE
4HK1-TCN ENG(RDQ) M8X35 FLANGE 		8-98046-876-0 01 1 1501- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
