3-05 — REAR WHEEL BRAKE (#130848) — 100 parça

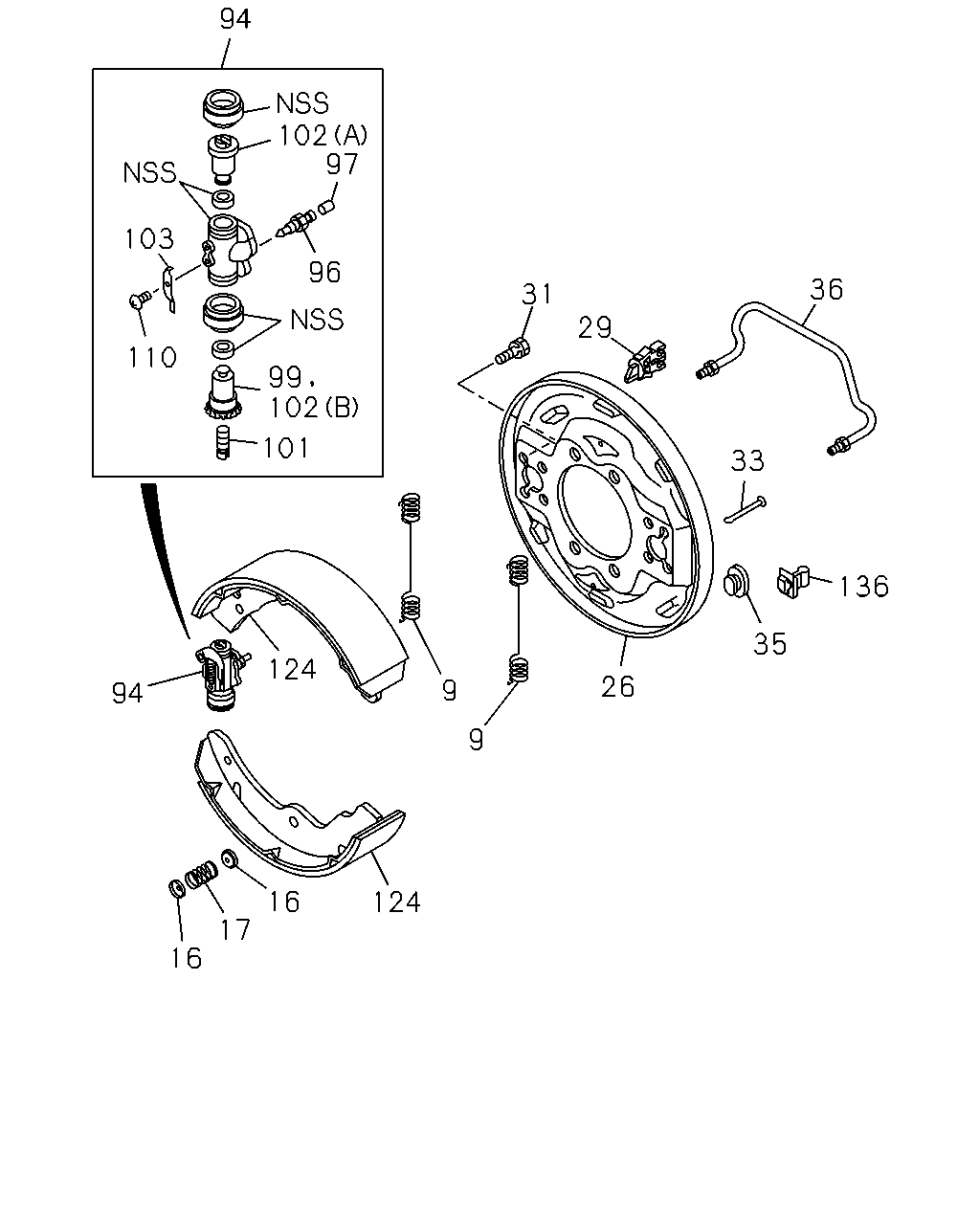

çizim 385521
94 102 96 97 99 101 102 110 103 31 36 29 33 136 34 26 9 9 124 124 16 17 16 94
BalonParca AdiParca NoAdetTipApplied Date A B
9 SPRING; RETURN,BRK SHOE
G.V.W. 6.0-6.5TON(RPV) 		5-09583-118-0 04 1 1311- ●
9 SPRING; RETURN,BRK SHOE
G.V.W. 7.0-7.5TON(RPX) 		8-97022-087-0 04 1 1311-1412 ●
9 SPRING; RETURN,BRK SHOE
G.V.W. 7.0-7.5TON(RPX) 		8-97022-087-0 04 1 1501- ●
9 SPRING; RETURN,BRK SHOE 8-97022-087-0 04 1 1501- ●
16 CUP; SHOE HOLDING 9-47165-096-0 08 1 1311-1412 ●
16 CUP; SHOE HOLDING 9-47165-096-0 08 1 1501- ● ●
17 SPRING; SHOE HOLD DOWN 5-09580-101-1 04 1 1311-1412 ●
17 SPRING; SHOE HOLD DOWN 5-09580-101-1 04 1 1501- ● ●
26 PLATE; BACK,RR BRK
G.V.W. 6.0-6.5TON(RPV) 		8-97078-605-0 01 1 1311- ●
26 PLATE; BACK,RR BRK
G.V.W. 6.0-6.5TON(RPV) 		8-97078-606-0 01 1 1311- ●
26 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97223-573-0 01 1 1311-1412 ●
26 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97223-573-0 01 1 1501- ●
26 PLATE; BACK,RR BRK 8-97223-573-0 01 1 1501- ●
26 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97223-574-0 01 1 1311-1412 ●
26 PLATE; BACK,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97223-574-0 01 1 1501- ●
26 PLATE; BACK,RR BRK 8-97223-574-0 01 1 1501- ●
29 CLIP; PIPE,BRK
G.V.W. 6.0-6.5TON(RPV) 		8-94128-306-0 02 1 1311- ●
29 CLIP; PIPE,BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97022-086-0 02 1 1311-1412 ●
29 CLIP; PIPE,BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97022-086-0 02 1 1501- ●
29 CLIP; PIPE,BRK 8-97022-086-0 02 1 1501- ●
31 BOLT; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 		5-09030-016-1 16 1 1311- ●
31 BOLT; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-97081-305-0 16 1 1311-1412 ●
31 BOLT; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-97081-305-0 16 1 1501- ●
31 BOLT; RR WHEEL CYL 8-97081-305-0 16 1 1501- ●
33 PIN; SHOE HOLD DOWN
G.V.W. 6.0-6.5TON(RPV) 		5-47162-001-0 04 1 1311- ●
33 PIN; SHOE HOLD DOWN
G.V.W. 7.0-7.5TON(RPX) 		8-97022-089-0 04 1 1311-1412 ●
33 PIN; SHOE HOLD DOWN
G.V.W. 7.0-7.5TON(RPX) 		8-97022-089-0 04 1 1501- ●
33 PIN; SHOE HOLD DOWN 8-97022-089-0 04 1 1501- ●
35 GROMMET; CHECK HOLE
G.V.W. 6.0-6.5TON(RPV) 		8-94171-287-0 02 1 1311- ●
35 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX) 		8-97017-507-0 02 1 1311-1412 ●
35 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX) 		8-97017-507-0 02 1 1501- ●
35 GROMMET; CHECK HOLE 8-97017-507-0 02 1 1501- ●
36 PIPE; OIL,RR BRK
G.V.W. 6.0-6.5TON(RPV) 		8-94154-916-0 02 1 1311- ●
36 PIPE; OIL,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97192-215-0 02 1 1311-1412 ●
36 PIPE; OIL,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97192-215-0 02 1 1501- ●
36 PIPE; OIL,RR BRK 8-97192-215-0 02 1 1501- ●
94 CYLINDER; WHEEL,RR BRK
FRONT 		8-97332-225-0 01 1 1501- ●
94 CYLINDER; WHEEL,RR BRK
REAR 		8-97332-226-0 01 1 1501- ●
94 CYLINDER; WHEEL,RR BRK 8-97332-227-0 02 1 1501- ●
94 CYLINDER; WHEEL,RR BRK
G.V.W. 6.0-6.5TON(RPV) FRONT 		8-97179-350-0 01 1 1311- ●
94 CYLINDER; WHEEL,RR BRK
G.V.W. 6.0-6.5TON(RPV) REAR 		8-97179-351-0 01 1 1311- ●
94 CYLINDER; WHEEL,RR BRK
G.V.W. 6.0-6.5TON(RPV) 		8-97179-352-0 02 1 1311- ●
94 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX) FRONT 		8-97139-822-0 01 1 1311- ●
94 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX) REAR 		8-97139-824-0 01 1 1311- ●
94 CYLINDER; WHEEL,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97139-825-0 02 1 1311- ●
96 SCREW; BLEEDER,RR BRK 8-98050-476-0 01 1 1311-1412 ●
96 SCREW; BLEEDER,RR BRK 8-98050-476-0 01 1 1501- ● ●
97 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 01 1 1311-1412 ●
97 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 01 1 1501- ● ●
99 PISTON; RR WHEEL CYL 8-97332-229-0 03 1 1501- ●
99 PISTON; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 		8-97078-622-0 03 1 1311- ●
99 PISTON; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-94414-700-1 04 1 1311- ●
101 SCREW; ADJ,RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 		8-97078-623-0 04 1 1311- ●
101 SCREW; ADJ,RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-94414-702-0 04 1 1311-1412 ●
101 SCREW; ADJ,RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-94414-702-0 04 1 1501- ●
101 SCREW; ADJ,RR WHEEL CYL 8-94414-702-0 04 1 1501- ●
102 PISTON; REAR WHEEL CYL
(A) 		8-97332-043-0 04 1 1501- ●
102 PISTON; REAR WHEEL CYL
(B) 		8-97332-229-0 01 1 1501- ●
102 PISTON; REAR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) (A) D=25.4 		8-94128-531-1 04 1 1311- ●
102 PISTON; REAR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) (B) 		8-97078-622-0 01 1 1311- ●
102 PISTON; REAR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) (A) 		8-97078-045-0 04 1 1311- ●
103 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 1311-1412 ●
103 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 1501- ● ●
110 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 1311-1412 ●
110 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 1501- ● ●
124 SHOE ASM; BRK,RR
G.V.W. 6.0-6.5TON(RPV) 		8-97287-778-0 04 1 1311- ●
124 SHOE ASM; BRK,RR
G.V.W. 7.0-7.5TON(RPX) 		8-97201-061-0 04 1 1311-1412 ●
124 SHOE ASM; BRK,RR
G.V.W. 7.0-7.5TON(RPX) 		8-97201-061-0 04 1 1501- ●
124 SHOE ASM; BRK,RR 8-97201-061-0 04 1 1501- ●
136 GROMMET
G.V.W. 6.0-6.5TON(RPV) MAL 		9-09756-034-0 04 1 1311- ●
136 GROMMET
G.V.W. 7.0-7.5TON(RPX) 		8-97044-742-1 04 1 1311-1412 ●
136 GROMMET
G.V.W. 7.0-7.5TON(RPX) 		8-97044-742-1 04 1 1501- ●
136 GROMMET 8-97044-742-1 04 1 1501- ●

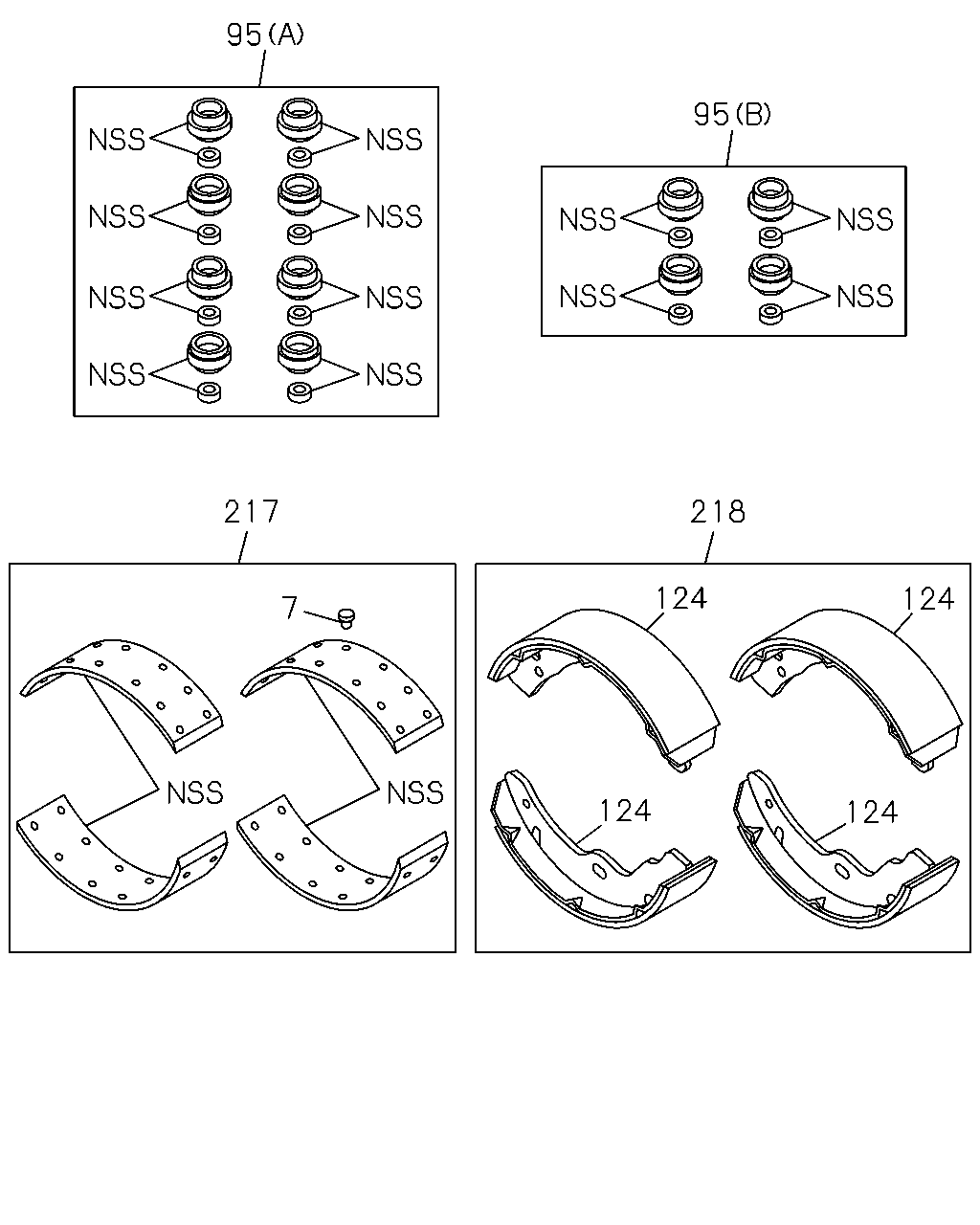

çizim 512641
95 95 217 7 218 124 124 124 124
BalonParca AdiParca NoAdetTipApplied Date A B
7 RIVET; LINING,RR BRK
G.V.W. 6.0-6.5TON(RPV) 		1-09732-029-0 40 1 1311- ●
7 RIVET; LINING,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		1-09732-029-0 48 1 1311-1412 ●
7 RIVET; LINING,RR BRK
G.V.W. 7.0-7.5TON(RPX) 		1-09732-029-0 48 1 1501- ●
7 RIVET; LINING,RR BRK 1-09732-029-0 48 1 1501- ●
35 GROMMET; CHECK HOLE
G.V.W. 6.0-6.5TON(RPV) 		8-94171-287-0 02 1 1311- ●
35 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX) 		8-97017-507-0 02 1 1311-1412 ●
35 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX) 		8-97017-507-0 02 1 1501- ●
35 GROMMET; CHECK HOLE 8-97017-507-0 02 1 1501- ●
95 CUP SET; RR WHEEL CYL
(B) 		5-87832-051-0 02 1 1501- ●
95 CUP SET; RR WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) (A) MAL 		5-87831-621-0 01 1 1311- ●
95 CUP SET; RR WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) (B) 		5-87831-598-0 02 1 1311- ●
124 SHOE ASM; BRK,RR
G.V.W. 6.0-6.5TON(RPV) 		8-97287-778-0 04 1 1311- ●
124 SHOE ASM; BRK,RR
G.V.W. 7.0-7.5TON(RPX) 		8-97201-061-0 04 1 1311-1412 ●
124 SHOE ASM; BRK,RR
G.V.W. 7.0-7.5TON(RPX) 		8-97201-061-0 04 1 1501- ●
124 SHOE ASM; BRK,RR 8-97201-061-0 04 1 1501- ●
217 LINING KIT; RR BRK
G.V.W. 6.0-6.5TON(RPV) 		5-87831-801-0 01 1 1311- ●
217 LINING KIT; RR BRK
G.V.W. 7.0-7.5TON(RPX) 		5-87831-774-0 01 1 1311-1412 ●
217 LINING KIT; RR BRK
G.V.W. 7.0-7.5TON(RPX) 		5-87831-774-0 01 1 1501- ●
217 LINING KIT; RR BRK 5-87831-774-0 01 1 1501- ●
217 LINING KIT; RR BRK
G.V.W. 6.0-6.5TON(RPV) BEST VALUE PARTS 		5-87610-121-0 01 1 1311- ●
217 LINING KIT; RR BRK
G.V.W. 7.0-7.5TON(RPX) BEST VALUE PARTS 		5-87610-120-0 01 1 1311-1412 ●
217 LINING KIT; RR BRK
G.V.W. 7.0-7.5TON(RPX) BEST VALUE PARTS 		5-87610-120-0 01 1 1501- ●
217 LINING KIT; RR BRK
BEST VALUE PARTS 		5-87610-120-0 01 1 1501- ●
218 SHOE KIT; BRK,RR
G.V.W. 6.0-6.5TON(RPV) 		5-87832-047-0 01 1 1311- ●
218 SHOE KIT; BRK,RR
G.V.W. 7.0-7.5TON(RPX) 		5-87831-775-0 01 1 1311-1412 ●
218 SHOE KIT; BRK,RR
G.V.W. 7.0-7.5TON(RPX) 		5-87831-775-0 01 1 1501- ●
218 SHOE KIT; BRK,RR 5-87831-775-0 01 1 1501- ●
