3-01 — FRONT WHEEL BRAKE (#130847) — 116 parça

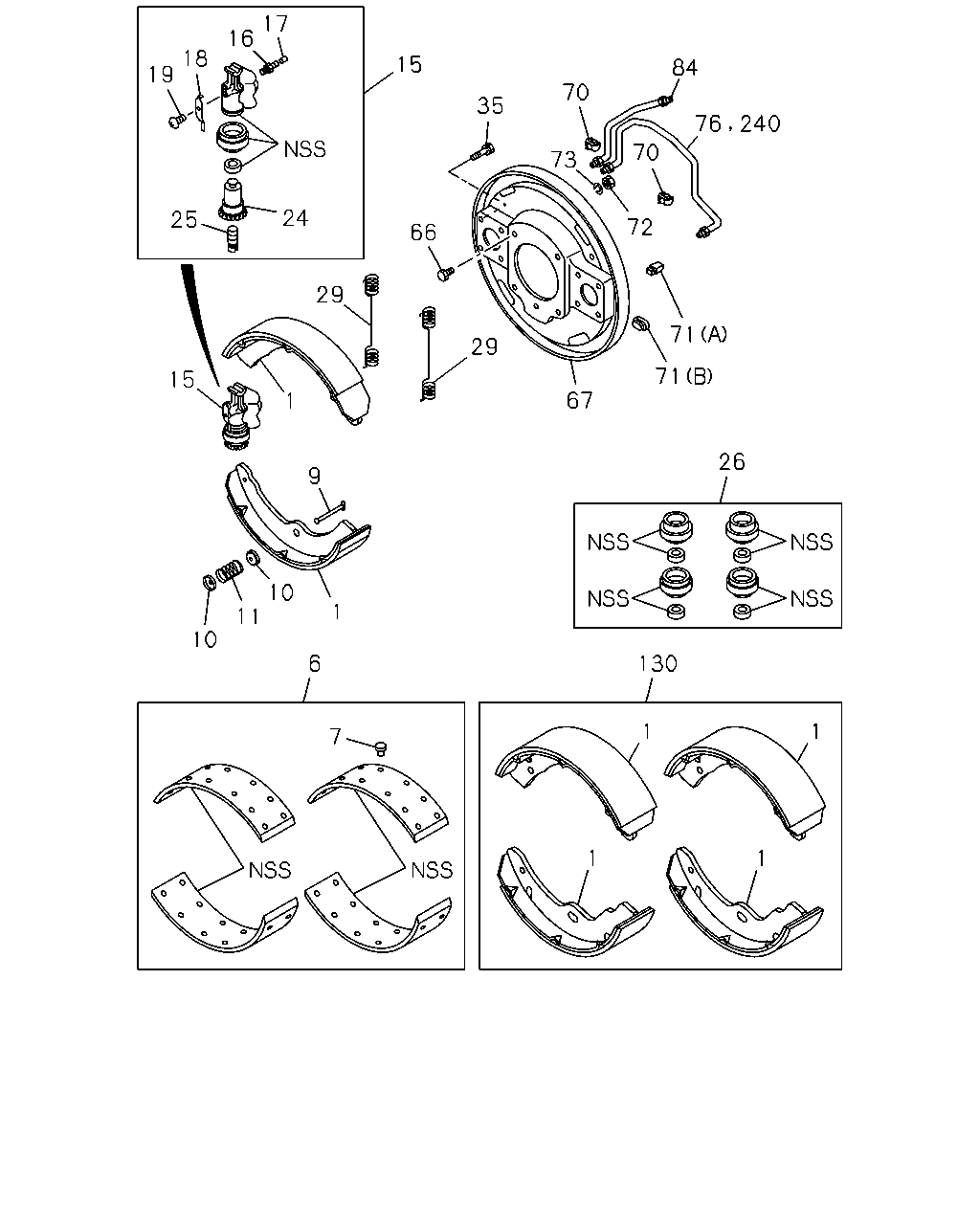

çizim 386391
17 16 18 19 25 24 29 1 9 15 10 11 10 1 6 7 130 1 1 1 1 26 71 71 72 67 29 66 15 35 70 76 84 240 70 73
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT
G.V.W. 7.0-7.5TON(RPX) 		8-97201-061-0 04 1 1311-1412 ●
1 SHOE; BRK,FRT
G.V.W. 7.0-7.5TON(RPX) 		8-97201-061-0 04 1 1501- ●
1 SHOE; BRK,FRT 8-97201-061-0 04 1 1501- ●
1 SHOE; BRK,FRT
G.V.W. 6.0-6.5TON(RPV) 		8-97287-778-0 04 1 1311- ●
6 LINING KIT; FRT BRK
G.V.W. 7.0-7.5TON(RPX) 		5-87831-774-0 01 1 1311-1412 ●
6 LINING KIT; FRT BRK
G.V.W. 7.0-7.5TON(RPX) 		5-87831-774-0 01 1 1501- ●
6 LINING KIT; FRT BRK 5-87831-774-0 01 1 1501- ●
6 LINING KIT; FRT BRK
G.V.W. 6.0-6.5TON(RPV) 		5-87831-801-0 01 1 1311- ●
6 LINING KIT; FRT BRK
G.V.W. 7.0-7.5TON(RPX) BEST VALUE PARTS 		5-87610-120-0 01 1 1311-1412 ●
6 LINING KIT; FRT BRK
G.V.W. 7.0-7.5TON(RPX) BEST VALUE PARTS 		5-87610-120-0 01 1 1501- ●
6 LINING KIT; FRT BRK
BEST VALUE PARTS 		5-87610-120-0 01 1 1501- ●
6 LINING KIT; FRT BRK
G.V.W. 6.0-6.5TON(RPV) BEST VALUE PARTS 		5-87610-121-0 01 1 1311- ●
7 RIVET; LINING,FRT BRK
G.V.W. 7.0-7.5TON(RPX) 		1-09732-029-0 48 1 1311-1412 ●
7 RIVET; LINING,FRT BRK
G.V.W. 7.0-7.5TON(RPX) 		1-09732-029-0 48 1 1501- ●
7 RIVET; LINING,FRT BRK 1-09732-029-0 48 1 1501- ●
7 RIVET; LINING,FRT BRK
G.V.W. 6.0-6.5TON(RPV) 		1-09732-029-0 40 1 1311- ●
9 PIN; SHOE HOLDER
G.V.W. 7.0-7.5TON(RPX) 		8-97022-089-0 04 1 1311-1412 ●
9 PIN; SHOE HOLDER
G.V.W. 7.0-7.5TON(RPX) 		8-97022-089-0 04 1 1501- ●
9 PIN; SHOE HOLDER 8-97022-089-0 04 1 1501- ●
9 PIN; SHOE HOLDER
G.V.W. 6.0-6.5TON(RPV) 		5-47162-001-0 04 1 1311- ●
10 CUP; SHOE HOLDING 9-47165-096-0 08 1 1311-1412 ●
10 CUP; SHOE HOLDING 9-47165-096-0 08 1 1501- ● ●
11 SPRING; SHOE HOLDING 5-09580-101-1 04 1 1311-1412 ●
11 SPRING; SHOE HOLDING 5-09580-101-1 04 1 1501- ● ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.0-7.5TON(RPX) REAR 		8-97139-818-0 01 1 1311-1412 ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.0-7.5TON(RPX) REAR 		8-97139-818-0 01 1 1501- ●
15 CYLINDER; WHEEL,FRT BRK
REAR 		8-97139-818-0 01 1 1501- ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.0-7.5TON(RPX) REAR 		8-97139-819-0 01 1 1311-1412 ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.0-7.5TON(RPX) REAR 		8-97139-819-0 01 1 1501- ●
15 CYLINDER; WHEEL,FRT BRK
REAR 		8-97139-819-0 01 1 1501- ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.0-7.5TON(RPX) FRONT 		8-97139-820-0 01 1 1311-1412 ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.0-7.5TON(RPX) FRONT 		8-97139-820-0 01 1 1501- ●
15 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97139-820-0 01 1 1501- ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.0-7.5TON(RPX) FRONT 		8-97139-821-0 01 1 1311-1412 ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.0-7.5TON(RPX) FRONT 		8-97139-821-0 01 1 1501- ●
15 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97139-821-0 01 1 1501- ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.0-6.5TON(RPV) FRONT 		8-97170-950-0 01 1 1311- ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.0-6.5TON(RPV) FRONT 		8-97170-951-0 01 1 1311- ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.0-6.5TON(RPV) REAR 		8-97170-952-0 01 1 1311- ●
15 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.0-6.5TON(RPV) REAR 		8-97170-953-0 01 1 1311- ●
16 SCREW; BLEEDER,FRT BRK 8-98050-476-0 02 1 1311-1412 ●
16 SCREW; BLEEDER,FRT BRK 8-98050-476-0 02 1 1501- ● ●
17 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 02 1 1311-1412 ●
17 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 02 1 1501- ● ●
18 STOPPER; ADJ SCREW 8-94128-486-0 04 1 1311-1412 ●
18 STOPPER; ADJ SCREW 8-94128-486-0 04 1 1501- ● ●
19 SCREW; STOPPER SETTING 8-94128-727-0 04 1 1311-1412 ●
19 SCREW; STOPPER SETTING 8-94128-727-0 04 1 1501- ● ●
24 PISTON; FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-94414-700-1 04 1 1311-1412 ●
24 PISTON; FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-94414-700-1 04 1 1501- ●
24 PISTON; FRT WHEEL CYL 8-94414-700-1 04 1 1501- ●
24 PISTON; FRT WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 		8-97078-621-0 04 1 1311- ●
25 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-94414-702-0 04 1 1311-1412 ●
25 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-94414-702-0 04 1 1501- ●
25 SCREW; ADJ,FRT WHEEL CYL 8-94414-702-0 04 1 1501- ●
25 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 		8-97078-623-0 04 1 1311- ●
26 CUP SET; FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		5-87831-598-0 01 1 1311-1412 ●
26 CUP SET; FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		5-87831-598-0 01 1 1501- ●
26 CUP SET; FRT WHEEL CYL 5-87831-598-0 01 1 1501- ●
26 CUP SET; FRT WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 		5-87831-602-0 01 1 1311- ●
29 SPRING; RETURN,FRT BRK SHOE
G.V.W. 7.0-7.5TON(RPX) 		8-97022-087-0 04 1 1311-1412 ●
29 SPRING; RETURN,FRT BRK SHOE
G.V.W. 7.0-7.5TON(RPX) 		8-97022-087-0 04 1 1501- ●
29 SPRING; RETURN,FRT BRK SHOE 8-97022-087-0 04 1 1501- ●
29 SPRING; RETURN,FRT BRK SHOE
G.V.W. 6.0-6.5TON(RPV) 		5-09583-118-0 04 1 1311- ●
35 BOLT; FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-97081-305-0 16 1 1311-1412 ●
35 BOLT; FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) 		8-97081-305-0 16 1 1501- ●
35 BOLT; FRT WHEEL CYL 8-97081-305-0 16 1 1501- ●
35 BOLT; FRT WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) 		5-09030-016-1 16 1 1311- ●
66 BOLT; OIL SHIELD COVER
G.V.W. 7.0-7.5TON(RPX) M14X40 		8-98007-879-0 08 1 1311-1412 ●
66 BOLT; OIL SHIELD COVER
G.V.W. 7.0-7.5TON(RPX) M14X40 		8-98007-879-0 08 1 1501- ●
66 BOLT; OIL SHIELD COVER
M14X40 		8-98007-879-0 08 1 1501- ●
66 BOLT; OIL SHIELD COVER
G.V.W. 6.0-6.5TON(RPV) M12X33 		8-98009-493-2 08 1 1311- ●
67 PLATE; BACK,FRT BRK
G.V.W. 7.0-7.5TON(RPX) 		8-98072-847-0 01 1 1311-1412 ●
67 PLATE; BACK,FRT BRK
G.V.W. 7.0-7.5TON(RPX) 		8-98072-847-0 01 1 1501- ●
67 PLATE; BACK,FRT BRK 8-98072-847-0 01 1 1501- ●
67 PLATE; BACK,FRT BRK
G.V.W. 7.0-7.5TON(RPX) 		8-98072-848-0 01 1 1311-1412 ●
67 PLATE; BACK,FRT BRK
G.V.W. 7.0-7.5TON(RPX) 		8-98072-848-0 01 1 1501- ●
67 PLATE; BACK,FRT BRK 8-98072-848-0 01 1 1501- ●
67 PLATE; BACK,FRT BRK
G.V.W. 6.0-6.5TON(RPV) 		8-97302-588-0 01 1 1311- ●
67 PLATE; BACK,FRT BRK
G.V.W. 6.0-6.5TON(RPV) 		8-97302-589-0 01 1 1311- ●
70 CLIP; PIPE HOLD
G.V.W. 7.0-7.5TON(RPX) 		8-97022-086-0 04 1 1311-1412 ●
70 CLIP; PIPE HOLD
G.V.W. 7.0-7.5TON(RPX) 		8-97022-086-0 04 1 1501- ●
70 CLIP; PIPE HOLD 8-97022-086-0 04 1 1501- ●
70 CLIP; PIPE HOLD
G.V.W. 6.0-6.5TON(RPV) 		8-94128-306-0 02 1 1311- ●
71 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX) (B) 		8-97017-507-0 02 1 1311-1412 ●
71 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX) (B) 		8-97017-507-0 02 1 1501- ●
71 GROMMET; CHECK HOLE
(B) 		8-97017-507-0 02 1 1501- ●
71 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX) (A) 		8-97044-742-1 04 1 1311-1412 ●
71 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX) (A) 		8-97044-742-1 04 1 1501- ●
71 GROMMET; CHECK HOLE
(A) 		8-97044-742-1 04 1 1501- ●
71 GROMMET; CHECK HOLE
G.V.W. 6.0-6.5TON(RPV) (B) 		8-94171-287-0 02 1 1311- ●
71 GROMMET; CHECK HOLE
G.V.W. 6.0-6.5TON(RPV) (A) MAL 		9-09756-034-0 04 1 1311- ●
72 NUT; OIL SHIELD COVER
G.V.W. 7.0-7.5TON(RPX) M14 MAL 		0-91110-514-0 08 1 1311-1412 ●
72 NUT; OIL SHIELD COVER
G.V.W. 7.0-7.5TON(RPX) M14 MAL 		0-91110-514-0 08 1 1501- ●
72 NUT; OIL SHIELD COVER
M14 MAL 		0-91110-514-0 08 1 1501- ●
72 NUT; OIL SHIELD COVER
G.V.W. 6.0-6.5TON(RPV) M12 MAL 		0-91110-512-0 08 1 1311- ●
73 WASHER; LK,OIL SHIELD COVER
G.V.W. 7.0-7.5TON(RPX) ID=14.2 MAL 		0-91510-814-0 08 1 1311-1412 ●
73 WASHER; LK,OIL SHIELD COVER
G.V.W. 7.0-7.5TON(RPX) ID=14.2 MAL 		0-91510-814-0 08 1 1501- ●
73 WASHER; LK,OIL SHIELD COVER
ID=14.2 MAL 		0-91510-814-0 08 1 1501- ●
73 WASHER; LK,OIL SHIELD COVER
G.V.W. 6.0-6.5TON(RPV) ID=12.2 MAL 		0-91510-812-0 08 1 1311- ●
76 PIPE; OIL,BACKWARD,FRT BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97079-847-0 02 1 1311-1412 ●
76 PIPE; OIL,BACKWARD,FRT BRK
G.V.W. 7.0-7.5TON(RPX) 		8-97079-847-0 02 1 1501- ●
76 PIPE; OIL,BACKWARD,FRT BRK 8-97079-847-0 02 1 1501- ●
84 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 7.0-7.5TON(RPX) MAL 		8-97039-676-0 01 1 1311-1412 ●
84 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 7.0-7.5TON(RPX) MAL 		8-97039-676-0 01 1 1501- ●
84 PIPE; BRK,WHEEL CYL TO HOSE
MAL 		8-97039-676-0 01 1 1501- ●
84 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 7.0-7.5TON(RPX) MAL 		8-97039-677-0 01 1 1311-1412 ●
84 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 7.0-7.5TON(RPX) MAL 		8-97039-677-0 01 1 1501- ●
84 PIPE; BRK,WHEEL CYL TO HOSE
MAL 		8-97039-677-0 01 1 1501- ●
84 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 6.0-6.5TON(RPV) MAL 		8-94154-917-0 01 1 1311- ●
84 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 6.0-6.5TON(RPV) MAL 		8-94154-918-0 01 1 1311- ●
130 SHOE KIT; BRK,FRT
G.V.W. 7.0-7.5TON(RPX) 		5-87831-775-0 01 1 1311-1412 ●
130 SHOE KIT; BRK,FRT
G.V.W. 7.0-7.5TON(RPX) 		5-87831-775-0 01 1 1501- ●
130 SHOE KIT; BRK,FRT 5-87831-775-0 01 1 1501- ●
130 SHOE KIT; BRK,FRT
G.V.W. 6.0-6.5TON(RPV) 		5-87832-047-0 01 1 1311- ●
240 PIPE; OIL,FRT BRK
G.V.W. 6.0-6.5TON(RPV) 		8-94154-916-0 02 1 1311- ●
