◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51501 - NPR(MALAYSIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-81 - POWER TAKE OFF; TRANSMISSION SIDE ▶

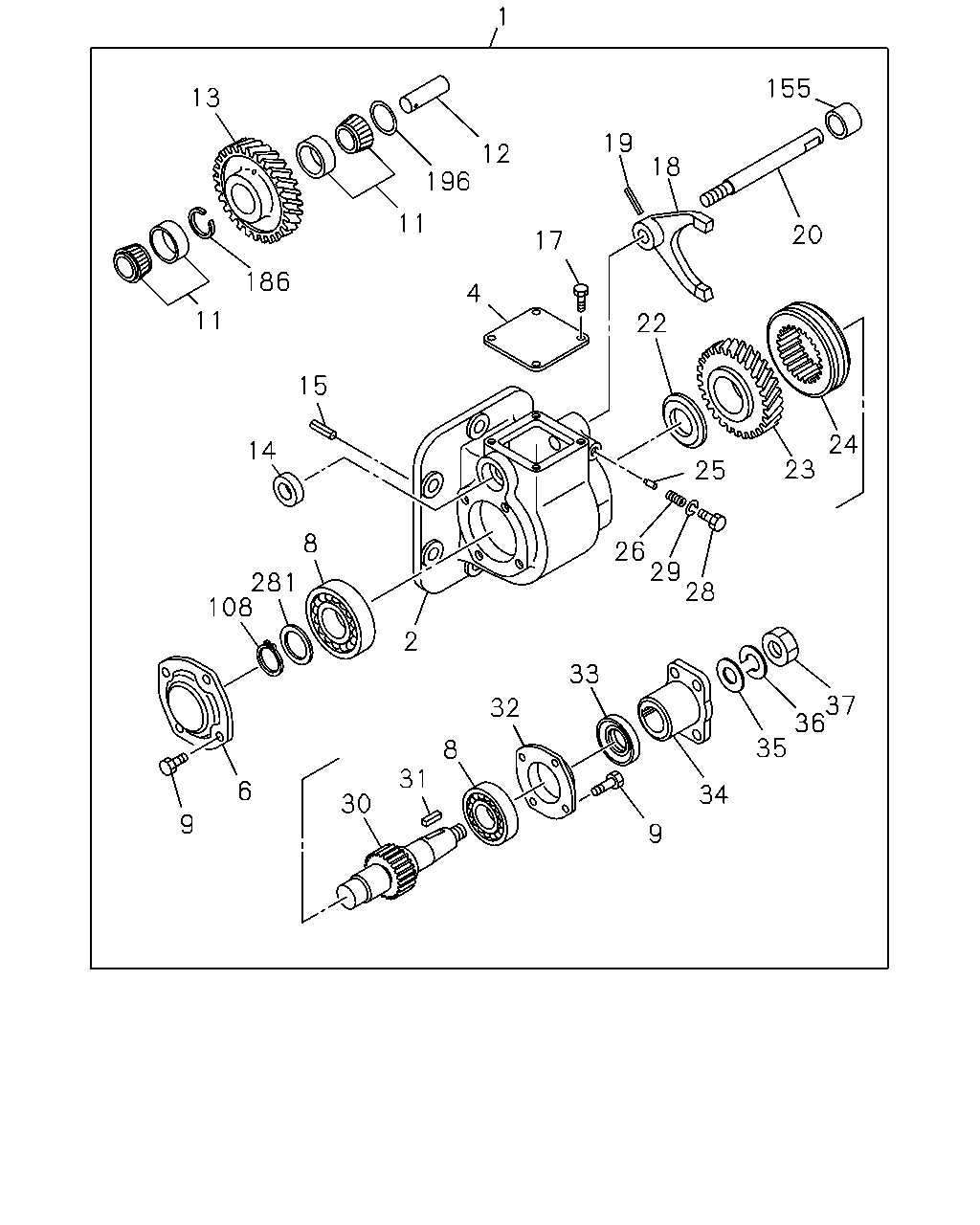

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#130845) — 81 parça
çizim 386307
1 13 86 11 196 4 12 17 22 19 18 155 20 24 23 25 29 28 26 35 36 37 34 9 32 8 31 30 6 9 108 8 2 281 14 15 11 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) IDENTIFICATION=YG 		8-98233-783-0 01 1 1311-1311 ●
1 POWER TAKE OFF ASM; TRANS SIDE
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) IDENTIFICATION=YG 		8-98233-783-1 01 1 1312- ● ●
2 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97308-689-2 01 1 1311-1311 ●
2 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97308-689-2 01 1 1312-1409 ● ●
2 CASE; GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98282-381-0 01 1 1410- ● ●
4 COVER; UPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98046-613-0 01 1 1311-1311 ●
4 COVER; UPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98046-613-0 01 1 1312- ● ●
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98233-778-0 01 1 1311-1311 ●
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98233-778-0 01 1 1312- ● ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=25 OD=62 		8-94343-031-1 02 1 1311-1311 ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=25 OD=62 		8-94343-031-1 02 1 1312- ● ●
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8X20 FLANGE MAL 		0-28050-820-0 08 1 1311-1311 ●
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8X20 FLANGE MAL 		0-28050-820-0 08 1 1312- ● ●
11 BEARING; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) NSK 		8-97106-734-0 02 1 1311-1311 ●
11 BEARING; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) NSK 		8-97106-734-0 02 1 1312- ● ●
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		9-38211-606-0 01 1 1311-1311 ●
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		9-38211-606-0 01 1 1312- ● ●
13 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=31 		8-97308-700-0 01 1 1311-1311 ●
13 GEAR; IDLE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=31 		8-97308-700-0 01 1 1312- ● ●
14 SEAL; OIL,GEAR CASE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98028-789-0 01 1 1311-1311 ●
14 SEAL; OIL,GEAR CASE,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98028-789-0 01 1 1312- ● ●
15 PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=16 		9-09878-613-0 01 1 1311-1311 ●
15 PIN; SPR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=16 		9-09878-613-0 01 1 1312- ● ●
17 BOLT; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8X20 FLANGE MAL 		0-28050-820-0 04 1 1311-1311 ●
17 BOLT; UPR COVER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8X20 FLANGE MAL 		0-28050-820-0 04 1 1312- ● ●
18 ARM; GEAR SHIFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97224-702-0 01 1 1311-1311 ●
18 ARM; GEAR SHIFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97224-702-0 01 1 1312- ● ●
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=25 OD=5 		8-94135-771-0 01 1 1311-1311 ●
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=25 OD=5 		8-94135-771-0 01 1 1312- ● ●
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98046-623-0 01 1 1311-1311 ●
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98046-623-0 01 1 1312- ● ●
22 COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		9-38245-603-1 01 1 1311-1311 ●
22 COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		9-38245-603-1 01 1 1312- ● ●
23 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=27 		8-98120-609-0 01 1 1311-1311 ●
23 GEAR; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=27 		8-98120-609-0 01 1 1312- ● ●
24 SLEEVE; DOG CLU,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97231-316-1 01 1 1311-1311 ●
24 SLEEVE; DOG CLU,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97231-316-1 01 1 1312- ● ●
25 PIN; LK,SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-94169-071-0 01 1 1311-1311 ●
25 PIN; LK,SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-94169-071-0 01 1 1312- ● ●
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		9-09940-380-0 01 1 1311-1311 ●
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		9-09940-380-0 01 1 1312- ● ●
28 BOLT; SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8 		8-98038-424-0 01 1 1311-1311 ●
28 BOLT; SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8 		8-98038-424-0 01 1 1312- ● ●
29 WASHER; LK,SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2 		0-91510-808-0 01 1 1311-1311 ●
29 WASHER; LK,SPRING,SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2 		0-91510-808-0 01 1 1312- ● ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98233-777-0 01 1 1311-1311 ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98233-777-0 01 1 1312- ● ●
31 KEY; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=25 		8-98068-088-0 01 1 1311-1311 ●
31 KEY; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=25 		8-98068-088-0 01 1 1312- ● ●
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97305-794-0 01 1 1311-1311 ●
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97305-794-0 01 1 1312- ● ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		1-38159-007-0 01 1 1311-1311 ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		1-38159-007-0 01 1 1312- ● ●
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98223-519-0 01 1 1311-1311 ●
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98223-519-0 01 1 1312- ● ●
35 WASHER; PL,FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=15 		0-91610-514-0 01 1 1311-1311 ●
35 WASHER; PL,FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=15 		0-91610-514-0 01 1 1312- ● ●
36 WASHER; LK,FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=14.2 MAL 		0-91510-814-0 01 1 1311-1311 ●
36 WASHER; LK,FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=14.2 MAL 		0-91510-814-0 01 1 1312- ● ●
37 NUT; FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M14 		0-91111-514-0 01 1 1311-1311 ●
37 NUT; FLANGE FIX,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M14 		0-91111-514-0 01 1 1312- ● ●
108 RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=23.2 		9-09180-025-0 01 1 1311-1311 ●
108 RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=23.2 		9-09180-025-0 01 1 1312- ● ●
155 PLUG; SHIFTER ROD
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98037-770-0 01 1 1311-1311 ●
155 PLUG; SHIFTER ROD
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-98037-770-0 01 1 1312- ● ●
186 RING; SNAP,IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97106-730-0 01 1 1311-1311 ●
186 RING; SNAP,IDLE GEAR,TRANS SIDE PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 		8-97106-730-0 01 1 1312- ● ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.50 		8-97106-724-0 02 1 1311-1311 ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.50 		8-97106-724-0 02 1 1312- ● ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.60 		8-97106-725-0 02 1 1311-1311 ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.60 		8-97106-725-0 02 1 1312- ● ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.65 		8-97106-726-0 02 1 1311-1311 ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.65 		8-97106-726-0 02 1 1312- ● ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.70 		8-97106-727-0 02 1 1311-1311 ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.70 		8-97106-727-0 02 1 1312- ● ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.80 		8-97106-728-0 02 1 1311-1311 ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.80 		8-97106-728-0 02 1 1312- ● ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.85 		8-97106-729-0 02 1 1311-1311 ●
196 PIECE; THRUST
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.85 		8-97106-729-0 02 1 1312- ● ●
281 SHIM; OUTPUT SHAFT
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.85 		8-97106-729-0 01 1 1311-1311 ●
281 SHIM; OUTPUT SHAFT
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.85 		8-97106-729-0 01 1 1312- ● ●
