◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51501 - NPR(MALAYSIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#130842) — 129 parça

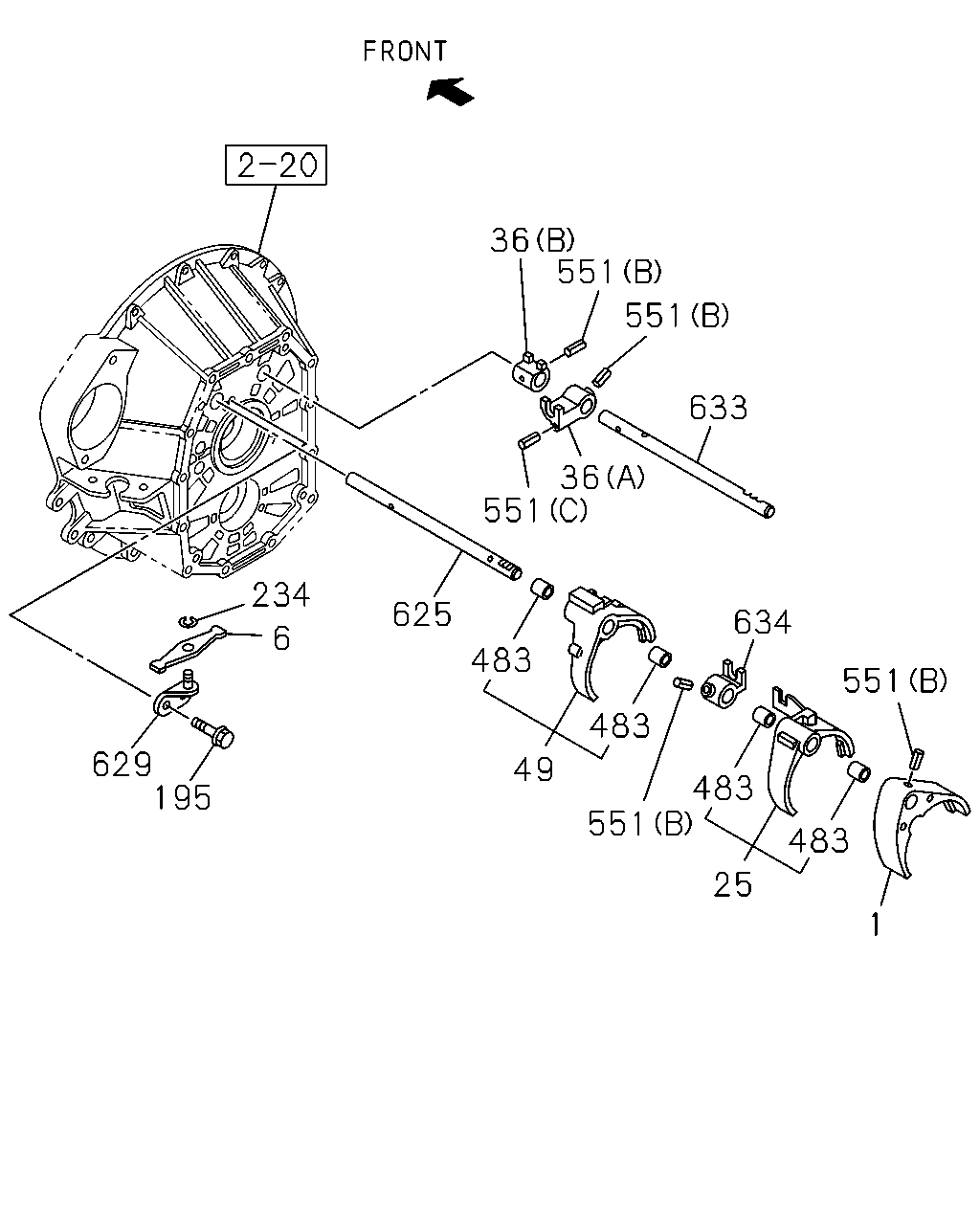

çizim 385458
551 1 483 25 483 551 483 49 483 625 234 195 629 6 633 36 551 551 551 36 634
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1311-1311 ●
1 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1312- ● ●
6 LEVER; RELAY 8-97241-344-0 01 1 1311- ●
25 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 1311-1311 ●
25 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 1312-1407 ● ●
25 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1408- ● ●
36 BLOCK; SHIFT,4TH & 5TH
(A) 		8-97241-329-1 01 1 1311- ●
36 BLOCK; SHIFT,4TH & 5TH
(B) 		8-97241-330-0 01 1 1311- ●
49 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1311- ●
49 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 1312- ●
195 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1311-1311 ●
195 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1312- ● ●
234 RING; SNAP
ID=12 		8-94460-357-0 01 1 1311- ●
234 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1312- ●
483 BUSHING; SHIFT ARM 8-97241-326-2 04 1 1311-1311 ●
483 BUSHING; SHIFT ARM 8-97241-326-2 02 1 1312- ● ●
483 BUSHING; SHIFT ARM 8-97241-326-2 02 1 1312- ● ●
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1311-1311 ●
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1312- ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 1311-1311 ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 1312- ● ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1311-1311 ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1312- ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 01 1 1312- ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97362-741-0 01 1 1311-1311 ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97362-741-0 01 1 1312- ● ●
629 BRIDGE; LEVER 8-97237-107-1 01 1 1311- ●
629 BRIDGE; LEVER 8-97241-345-1 01 1 1312- ●
633 ROD; GEAR SHIFT,4TH,5TH 8-97362-743-0 01 1 1311- ●
634 BLOCK; SHIFT,LOW,REV 8-97241-327-1 01 1 1311- ●

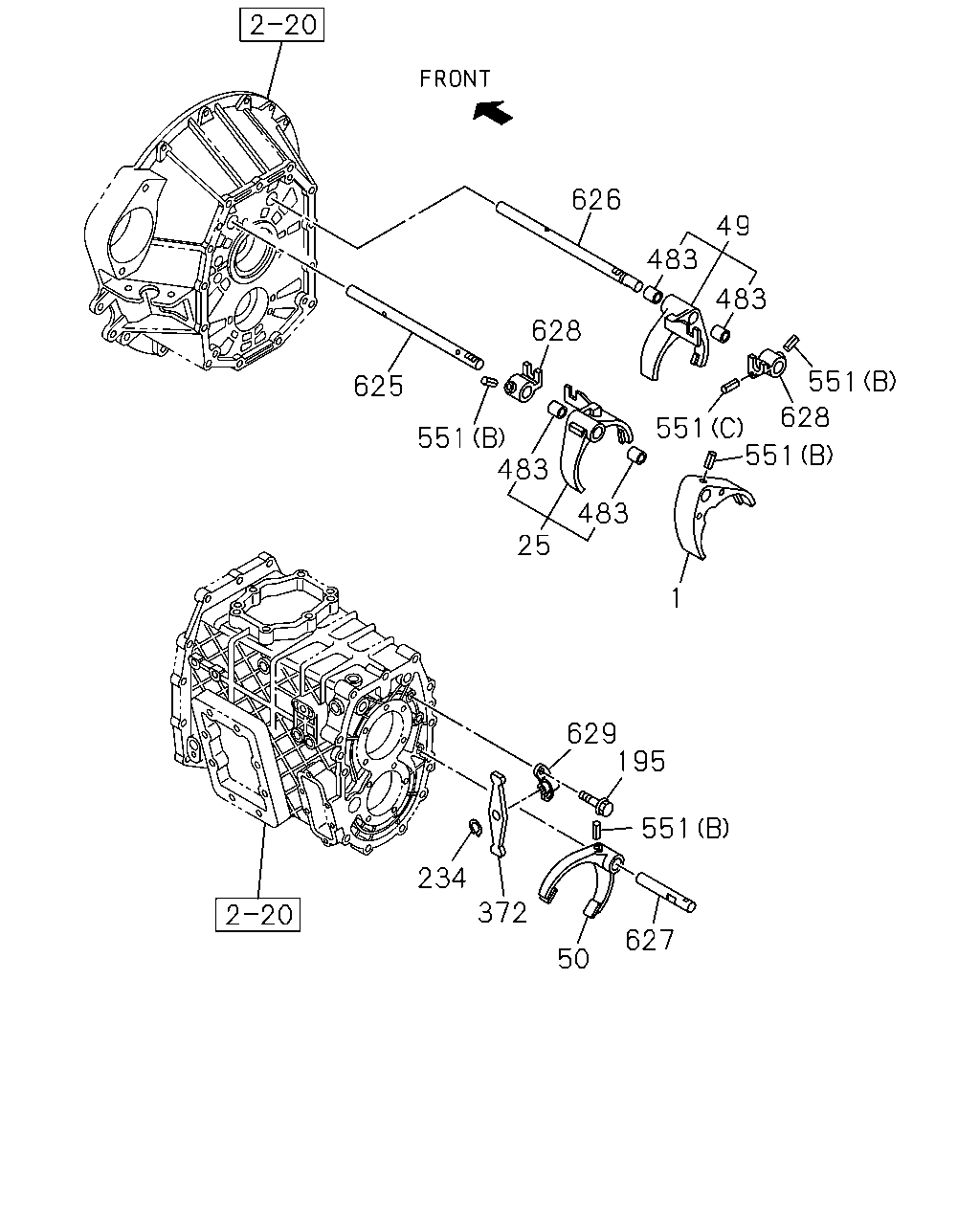

çizim 385461
625 551 25 483 483 551 551 628 626 483 483 49 551 628 195 629 551 627 50 372 234 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1311-1311 ●
1 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1312- ● ●
25 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 1311-1311 ●
25 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 1312-1407 ● ●
25 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1408- ● ●
49 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1311- ●
49 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 1312- ●
50 ARM; SHIFT,6TH 8-97241-325-1 01 1 1312- ●
195 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1311-1311 ●
195 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1312- ● ●
234 RING; SNAP
ID=12 		8-94460-357-0 01 1 1311- ●
234 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1312- ●
372 LEVER; RELAY,6TH 8-97241-343-0 01 1 1312- ●
483 BUSHING; SHIFT ARM 8-97241-326-2 04 1 1311-1311 ●
483 BUSHING; SHIFT ARM 8-97241-326-2 02 1 1312- ● ●
483 BUSHING; SHIFT ARM 8-97241-326-2 02 1 1312- ● ●
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1311-1311 ●
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1312- ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 1311-1311 ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 1312- ● ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1311-1311 ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1312- ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 01 1 1312- ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97362-741-0 01 1 1311-1311 ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97362-741-0 01 1 1312- ● ●
626 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97366-024-1 01 1 1312- ●
627 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 1312- ●
628 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 1312- ●
629 BRIDGE; LEVER 8-97237-107-1 01 1 1311- ●
629 BRIDGE; LEVER 8-97241-345-1 01 1 1312- ●

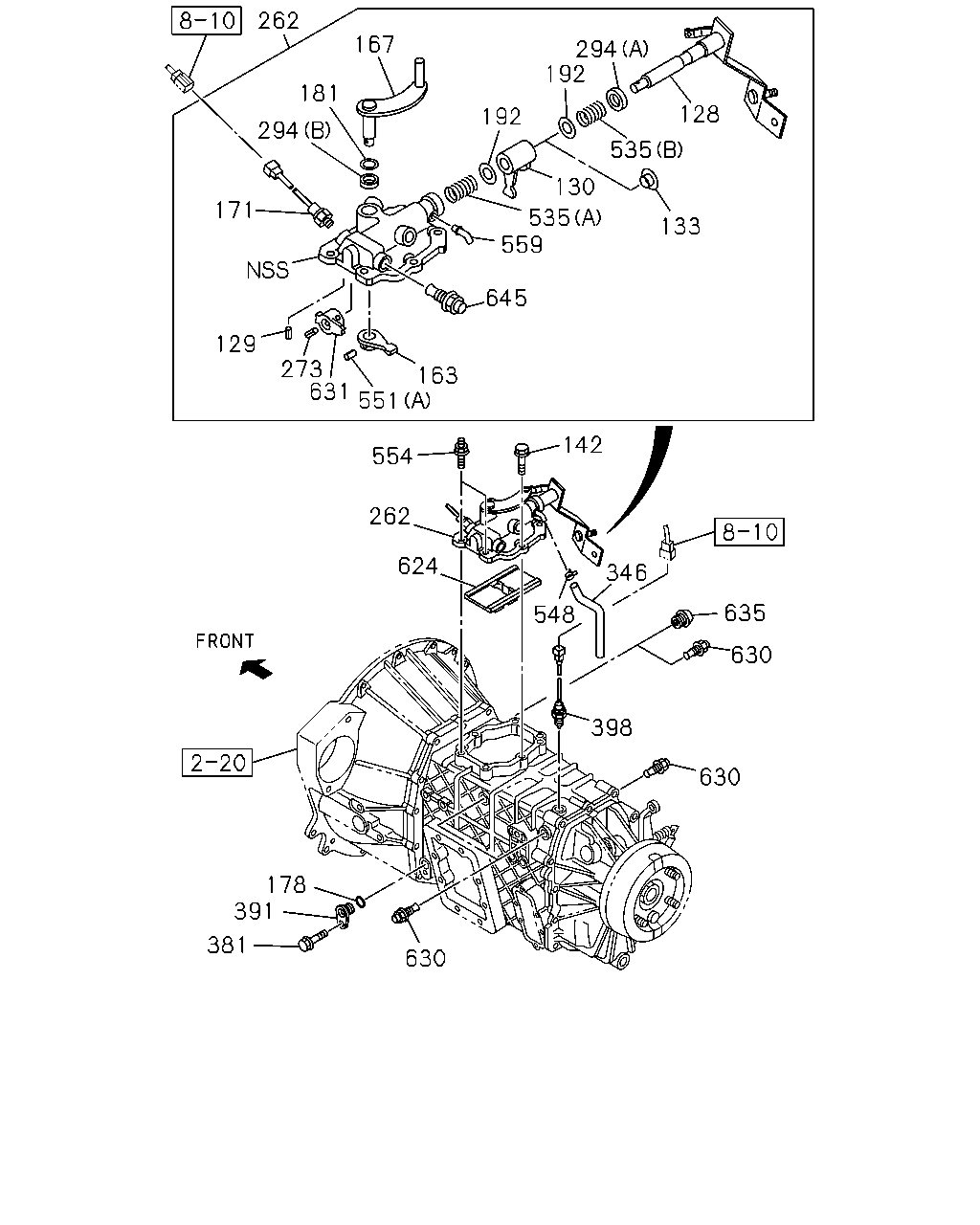

çizim 385970
262 167 181 294 171 129 551 631 273 163 645 559 535 133 535 128 294 192 192 130 554 262 142 635 630 346 548 398 630 624 178 391 381 630
BalonParca AdiParca NoAdetTipApplied Date A B
128 LEVER; SHIFT,EXTERNAL 8-98079-799-0 01 1 1311- ●
128 LEVER; SHIFT,EXTERNAL 8-98021-595-0 01 1 1312- ●
129 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 1311-1311 ●
129 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 1312- ● ●
130 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1311-1311 ●
130 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1312- ● ●
133 SEAT; SPR 8-97305-667-0 01 1 1311- ●
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-97365-376-0 04 1 1311-1311 ●
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-97365-376-0 04 1 1312- ● ●
163 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 1311-1311 ●
163 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 1312- ● ●
167 LEVER; SELECT,EXTERNAL 8-98039-444-0 01 1 1311-1311 ●
167 LEVER; SELECT,EXTERNAL 8-98039-444-0 01 1 1312- ● ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 1311-1311 ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 1312-1312 ● ●
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-1509 ● ●
171 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ● ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 1311-1311 ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 1312- ● ●
181 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 1311-1311 ●
181 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 1312- ● ●
192 WASHER; PL 8-97305-661-0 01 1 1311- ●
192 WASHER; PL 8-97305-661-0 02 1 1312- ●
262 BOX ASM; SHIFT CONT 8-98079-798-0 01 1 1311-1312 ●
262 BOX ASM; SHIFT CONT 8-98241-003-2 01 1 1401- ●
262 BOX ASM; SHIFT CONT 8-98021-592-1 01 1 1312-1312 ●
262 BOX ASM; SHIFT CONT 8-98240-994-2 01 1 1401- ●
273 PIN; SPR,STOPPER
D=4.2 L=25 		8-97103-142-0 01 1 1311-1311 ●
273 PIN; SPR,STOPPER
D=4.2 L=25 		8-97103-142-0 01 1 1312- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 1311-1311 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 1312- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 1311-1311 ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 1312- ● ●
346 HOSE; AIR 8-97309-855-0 01 1 1311-1311 ●
346 HOSE; AIR 8-97309-855-0 01 1 1312- ● ●
381 BOLT
M6X16 FLANGE MAL 		0-28650-616-0 01 1 1311-1311 ●
381 BOLT
M6X16 FLANGE MAL 		0-28650-616-0 01 1 1312- ● ●
391 PLUG; SW HOLE 8-97300-273-1 01 1 1311-1311 ●
391 PLUG; SW HOLE 8-97300-273-1 01 1 1312- ● ●
398 SWITCH; REV LAMP 8-98023-050-0 01 1 1311-1312 ●
398 SWITCH; REV LAMP 8-98242-173-1 01 1 1401- ●
398 SWITCH; REV LAMP 8-98186-003-0 01 1 1312-1312 ●
398 SWITCH; REV LAMP 8-98256-418-0 01 1 1312- ●
535 SPRING; LEVER
(A) 		8-97323-771-0 01 1 1311- ●
535 SPRING; LEVER
(B) 		8-97323-772-0 01 1 1311- ●
535 SPRING; LEVER
(A) 		8-97305-659-0 01 1 1312- ●
535 SPRING; LEVER
(B) 		8-97305-660-0 01 1 1312- ●
548 CLIP; HOSE 8-97031-674-0 01 1 1311-1311 ●
548 CLIP; HOSE 8-97031-674-0 01 1 1312- ● ●
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1311-1311 ●
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1312- ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 1311-1311 ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 1312- ● ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1311-1311 ●
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1312- ● ●
551 PIN; SPRING
(B) L=32 		8-97011-596-2 01 1 1312- ●
554 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 1311-1311 ●
554 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 1312- ● ●
559 PIPE; BREATHER 8-97358-318-0 01 1 1311-1311 ●
559 PIPE; BREATHER 8-97358-318-0 01 1 1312- ● ●
624 PLATE; INTER LOCK 8-97241-317-3 01 1 1311-1311 ●
624 PLATE; INTER LOCK 8-97241-317-3 01 1 1312- ● ●
630 DETENT ASM 8-98019-536-0 03 1 1311- ●
630 DETENT ASM 8-98019-536-0 04 1 1312- ●
631 STOPPER; SPRING 8-97305-666-0 01 1 1311-1311 ●
631 STOPPER; SPRING 8-97305-666-0 01 1 1312- ● ●
635 PLUG; DETENT 8-97380-892-0 01 1 1311- ●
645 DETENT ASM 8-98019-536-0 01 1 1311-1311 ●
645 DETENT ASM 8-98019-536-0 01 1 1312- ● ●
