Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#130841) — 293 parça

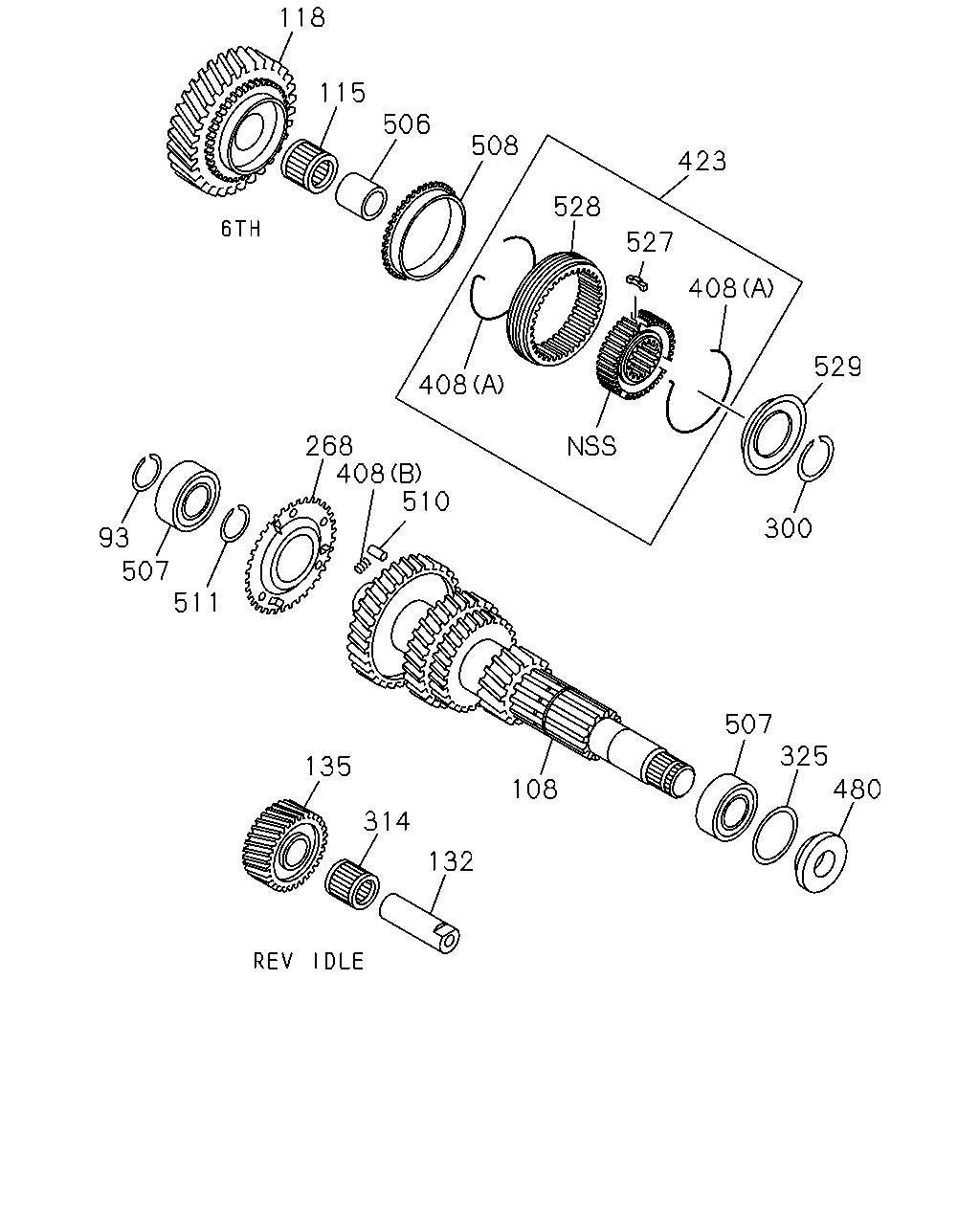

511 507 93 408 268 510 135 314 108 132 507 325 480 300 408 528 508 506 115 118 423 408 527 529

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1311-1311	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1312-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1311-1311	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1312-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1311-1311	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1312-	●	●
108	SHAFT; COUNTER Z=45-49-33-20	8-97380-630-1	01	1	1311-	●
108	SHAFT; COUNTER Z=47-39-33-20	8-97380-627-1	01	1	1312-		●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1312-		●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	1312-		●
118	GEAR; 6TH,COUNTER Z=50	8-97386-580-0	01	1	1312-		●
132	SHAFT; REV	8-97252-655-0	01	1	1311-1311	●
132	SHAFT; REV	8-97252-655-0	01	1	1312-	●	●
135	GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1311-1311	●
135	GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1312-	●	●
268	PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	1311-	●
268	PLATE; ANTI LASH,COUNTER	8-97252-684-1	01	1	1312-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.7	8-97254-727-0	01	1	1312-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.8	8-97254-728-0	01	1	1312-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.9	8-97254-734-0	01	1	1312-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.6	8-97365-617-0	01	1	1312-		●
314	BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1311-1311	●
314	BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1312-	●	●
408	SPRING (B)	8-94148-196-0	03	1	1311-1311	●
408	SPRING (B)	8-94148-196-0	03	1	1312-	●	●
408	SPRING (A)	8-97366-040-1	02	1	1311-1311	●
408	SPRING (A)	8-97366-040-1	02	1	1312-	●	●
408	SPRING (A)	8-97366-040-1	02	1	1312-		●
423	SLEEVE & HUB ASM; 6TH	8-97367-022-0	01	1	1312-		●
480	WASHER; THRUST,6TH	8-97253-123-1	01	1	1312-		●
506	COLLAR; 6TH,COUNTER	8-97253-121-1	01	1	1312-		●
507	BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1311-1311	●
507	BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1312-	●	●
508	RING; BLOCK,6TH Z=45	8-97309-532-0	01	1	1312-		●
510	PIN; STRAIGHT,ANTI LASH	9-08160-825-0	03	1	1311-1311	●
510	PIN; STRAIGHT,ANTI LASH	9-08160-825-0	03	1	1312-	●	●
511	RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1311-1311	●
511	RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1312-	●	●
527	INSERT; 6TH	8-94448-202-2	03	1	1312-		●
528	SLEEVE; 6TH Z=45	8-94421-871-1	01	1	1312-		●
529	PLATE; STOPPER,6TH	8-97248-952-0	01	1	1312-		●

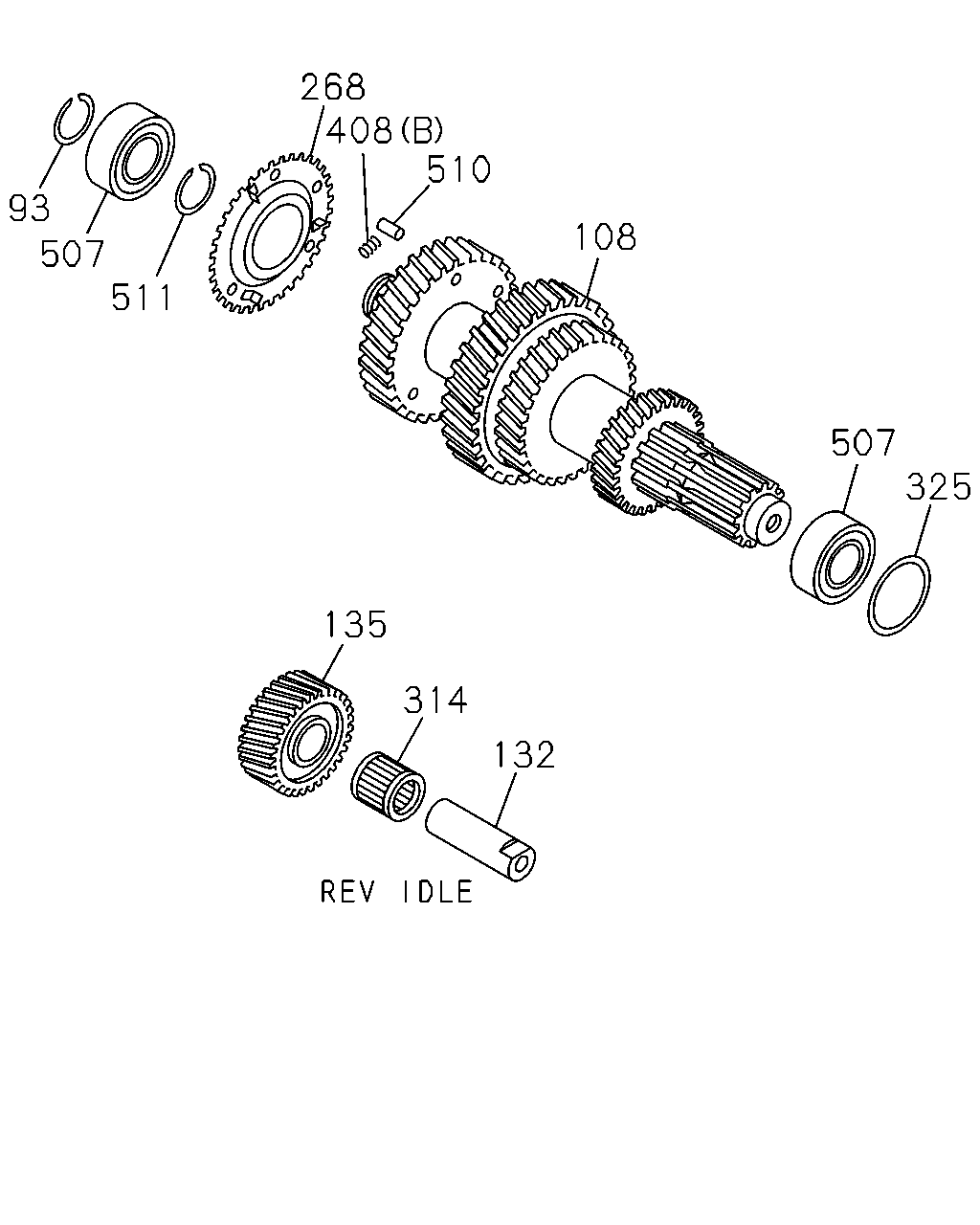

511 507 93 135 314 132 507 108 325 510 408 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1311-1311	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1312-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1311-1311	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1312-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1311-1311	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1312-	●	●
108	SHAFT; COUNTER Z=45-49-33-20	8-97380-630-1	01	1	1311-	●
108	SHAFT; COUNTER Z=47-39-33-20	8-97380-627-1	01	1	1312-		●
132	SHAFT; REV	8-97252-655-0	01	1	1311-1311	●
132	SHAFT; REV	8-97252-655-0	01	1	1312-	●	●
135	GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1311-1311	●
135	GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1312-	●	●
268	PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	1311-	●
268	PLATE; ANTI LASH,COUNTER	8-97252-684-1	01	1	1312-		●
314	BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1311-1311	●
314	BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1312-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1311-1311	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1312-	●	●
408	SPRING (B)	8-94148-196-0	03	1	1311-1311	●
408	SPRING (B)	8-94148-196-0	03	1	1312-	●	●
408	SPRING (A)	8-97366-040-1	02	1	1311-1311	●
408	SPRING (A)	8-97366-040-1	02	1	1312-	●	●
408	SPRING (A)	8-97366-040-1	02	1	1312-		●
507	BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1311-1311	●
507	BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1312-	●	●
510	PIN; STRAIGHT,ANTI LASH	9-08160-825-0	03	1	1311-1311	●
510	PIN; STRAIGHT,ANTI LASH	9-08160-825-0	03	1	1312-	●	●
511	RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1311-1311	●
511	RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1312-	●	●

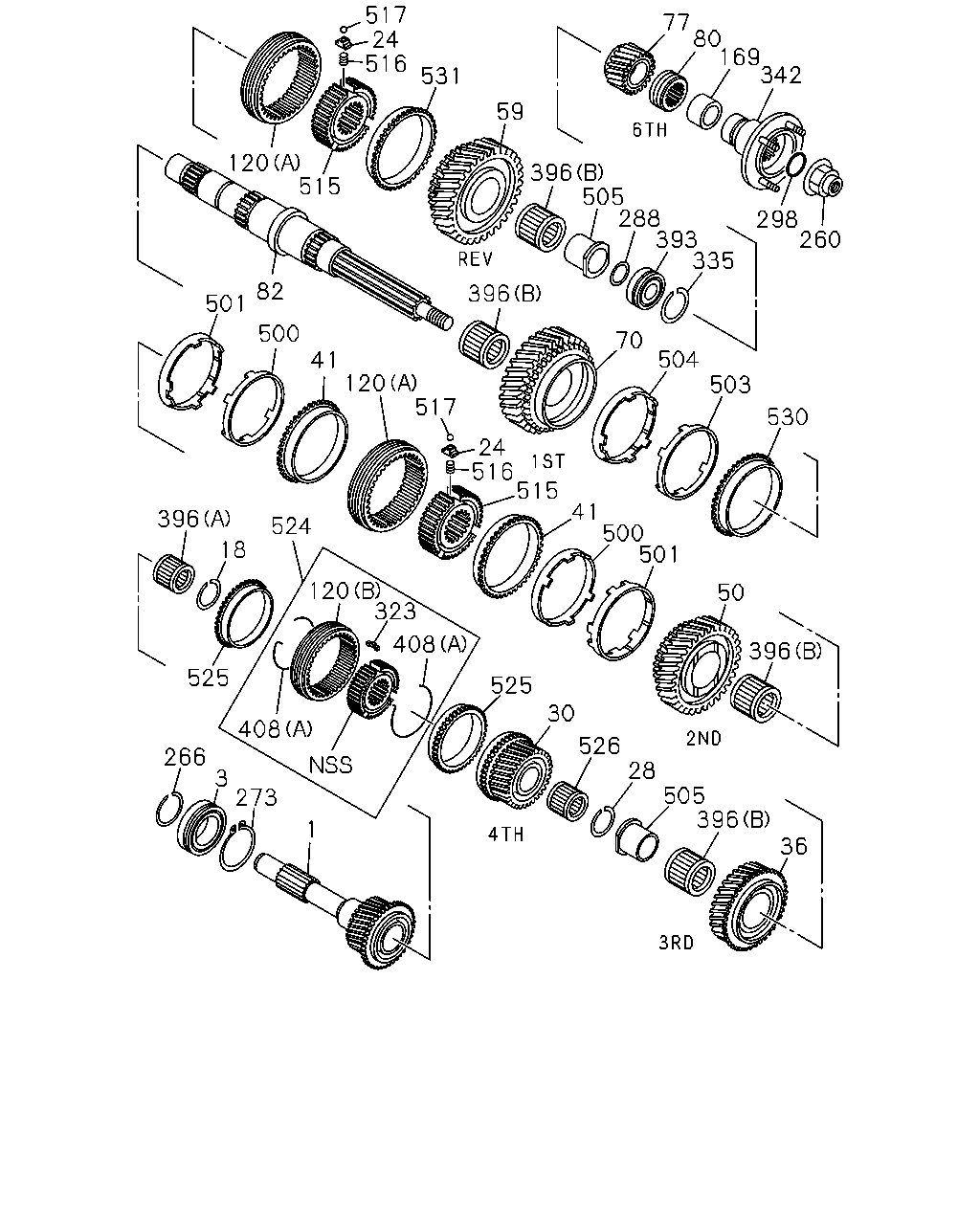

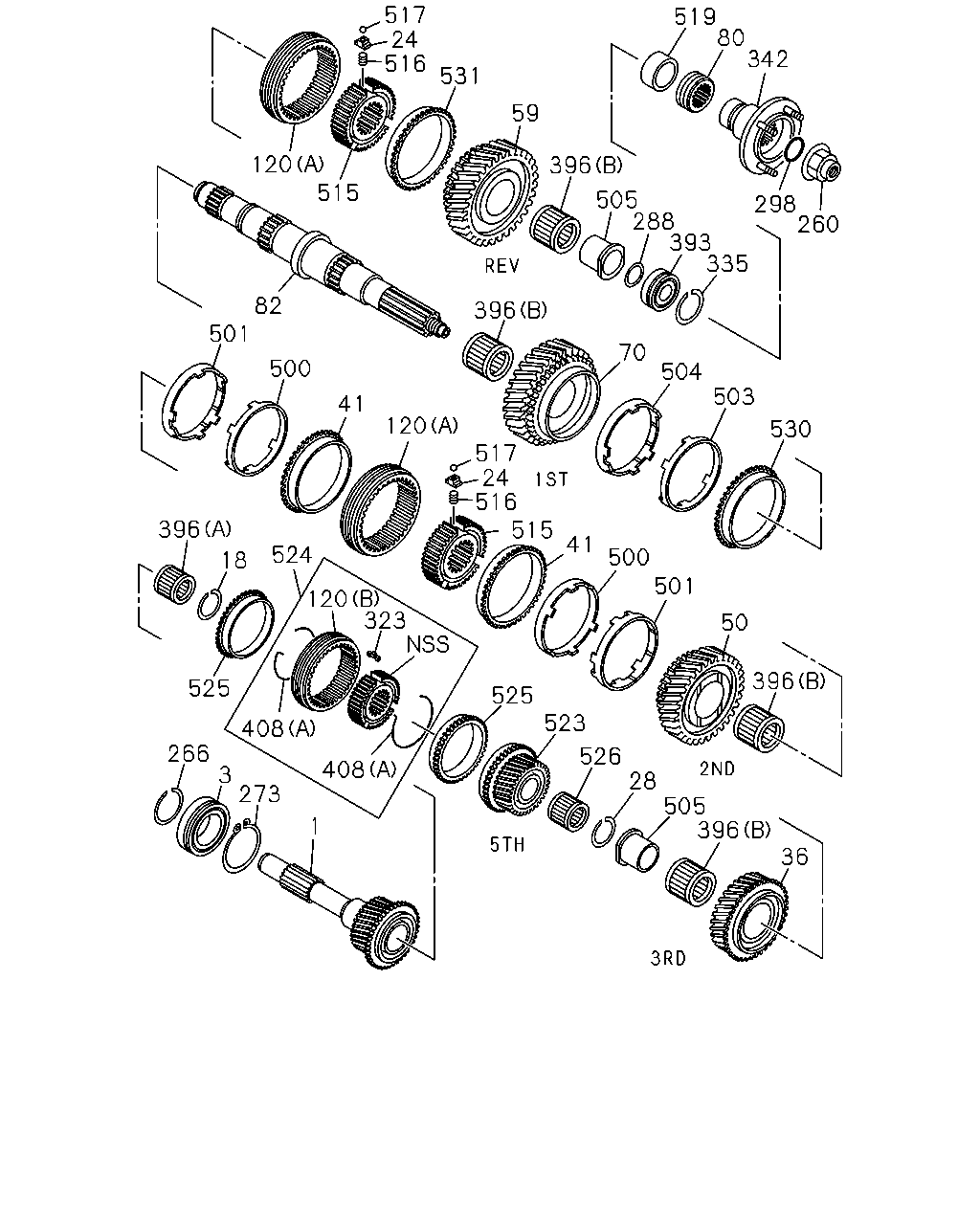

517 516 24 59 531 396 519 342 80 298 335 393 288 505 260 530 503 504 70 396 82 515 120 501 41 500 120 517 516 24 515 41 500 501 50 396 396 505 28 526 523 525 408 408 323 120 524 18 396 525 266 3 273 1 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=28	8-98031-848-0	01	1	1311-	●
1	SHAFT; TOP GEAR,TRANS Z=26	8-98021-266-0	01	1	1312-		●
3	BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1311-1311	●
3	BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1312-	●	●
18	RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1311-1311	●
18	RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1312-	●	●
24	BLOCK; INDEX,SYN	8-97241-313-1	06	1	1311-1311	●
24	BLOCK; INDEX,SYN	8-97241-313-1	06	1	1312-	●	●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1311-1311	●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1312-	●	●
36	GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1311-1311	●
36	GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1312-	●	●
41	RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1311-1311	●
41	RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1312-	●	●
50	GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1311-1311	●
50	GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1312-	●	●
59	GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1311-1311	●
59	GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1312-	●	●
70	GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1311-1311	●
70	GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1312-	●	●
80	GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1311-1311	●
80	GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1312-	●	●
82	SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	1311-	●
82	SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	1312-		●
120	SLEEVE (A) Z=45	8-97241-296-1	02	1	1311-1311	●
120	SLEEVE (A) Z=45	8-97241-296-1	02	1	1312-1312	●	●
120	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-	●	●
120	SLEEVE (B) Z=45	8-94421-871-1	01	1	1311-1311	●
120	SLEEVE (B) Z=45	8-94421-871-1	01	1	1312-	●	●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	1311-1311	●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	1312-	●	●
266	RING; SNAP,BRG INNER	8-97286-916-0	01	1	1311-1311	●
266	RING; SNAP,BRG INNER	8-97286-916-0	01	1	1312-	●	●
273	RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1311-1311	●
273	RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1312-	●	●
288	SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1311-1311	●
288	SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1312-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1311-1311	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1312-	●	●
323	INSERT	8-94448-202-2	03	1	1311-1311	●
323	INSERT	8-94448-202-2	03	1	1312-	●	●
335	RING; SNAP,BEARING	8-97254-722-0	01	1	1311-1311	●
335	RING; SNAP,BEARING	8-97254-722-0	01	1	1312-	●	●
342	FLANGE; OUTPUT	8-98031-640-0	01	1	1311-	●
342	FLANGE; OUTPUT	8-98031-862-0	01	1	1312-		●
393	BEARING; MAINSHAFT END	8-97253-105-1	01	1	1311-1311	●
393	BEARING; MAINSHAFT END	8-97253-105-1	01	1	1312-	●	●
396	BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	1311-1311	●
396	BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	1312-	●	●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1311-1311	●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1312-	●	●
408	SPRING (B)	8-94148-196-0	03	1	1311-1311	●
408	SPRING (B)	8-94148-196-0	03	1	1312-	●	●
408	SPRING (A)	8-97366-040-1	02	1	1311-1311	●
408	SPRING (A)	8-97366-040-1	02	1	1312-	●	●
408	SPRING (A)	8-97366-040-1	02	1	1312-		●
500	RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1311-1311	●
500	RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1312-	●	●
501	RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1311-1311	●
501	RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1312-	●	●
503	RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	1311-1311	●
503	RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	1312-	●	●
504	RING; INSIDE,LOW & REV	8-97241-312-1	01	1	1311-1311	●
504	RING; INSIDE,LOW & REV	8-97241-312-1	01	1	1312-	●	●
505	COLLAR; 3RD & REV	8-97253-119-2	02	1	1311-1311	●
505	COLLAR; 3RD & REV	8-97253-119-2	02	1	1312-	●	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	1311-1311	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	1312-	●	●
516	SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	1311-1311	●
516	SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	1312-	●	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	1311-1311	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	1312-	●	●
519	COLLAR; MAINSHAFT END,5TH	8-97252-940-0	01	1	1311-	●
523	GEAR; OD,MAINSHAFT Z=22	8-97241-231-0	01	1	1311-	●
524	SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1311-1311	●
524	SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1312-	●	●
525	RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1311-1311	●
525	RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1312-	●	●
526	BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1311-1311	●
526	BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1312-	●	●
530	RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	1311-1311	●
530	RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	1312-	●	●
531	RING; BLOCK,REV Z=45	8-97368-343-0	01	1	1311-1311	●
531	RING; BLOCK,REV Z=45	8-97368-343-0	01	1	1312-	●	●

517 531 516 24 120 501 82 515 59 396 396 70 503 504 530 260 298 335 393 288 505 342 169 80 77 501 500 50 396 41 515 516 24 517 120 41 500 120 18 396 524 323 525 30 526 28 505 396 36 273 3 266 408 252 408 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=28	8-98031-848-0	01	1	1311-	●
1	SHAFT; TOP GEAR,TRANS Z=26	8-98021-266-0	01	1	1312-		●
3	BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1311-1311	●
3	BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1312-	●	●
18	RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1311-1311	●
18	RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1312-	●	●
24	BLOCK; INDEX,SYN	8-97241-313-1	06	1	1311-1311	●
24	BLOCK; INDEX,SYN	8-97241-313-1	06	1	1312-	●	●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1311-1311	●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1312-	●	●
30	GEAR; 4TH,MAINSHAFT Z=28	8-97241-230-0	01	1	1312-		●
36	GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1311-1311	●
36	GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1312-	●	●
41	RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1311-1311	●
41	RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1312-	●	●
50	GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1311-1311	●
50	GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1312-	●	●
59	GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1311-1311	●
59	GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1312-	●	●
70	GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1311-1311	●
70	GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1312-	●	●
77	GEAR; 6TH,MAINSHAFT Z=21	8-97386-582-0	01	1	1312-		●
80	GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1311-1311	●
80	GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1312-	●	●
82	SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	1311-	●
82	SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	1312-		●
120	SLEEVE (A) Z=45	8-97241-296-1	02	1	1311-1311	●
120	SLEEVE (A) Z=45	8-97241-296-1	02	1	1312-1312	●	●
120	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-	●	●
120	SLEEVE (B) Z=45	8-94421-871-1	01	1	1311-1311	●
120	SLEEVE (B) Z=45	8-94421-871-1	01	1	1312-	●	●
169	COLLAR; MAINSHAFT	8-97252-937-1	01	1	1312-		●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	1311-1311	●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	1312-	●	●
266	RING; SNAP,BRG INNER	8-97286-916-0	01	1	1311-1311	●
266	RING; SNAP,BRG INNER	8-97286-916-0	01	1	1312-	●	●
273	RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1311-1311	●
273	RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1312-	●	●
288	SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1311-1311	●
288	SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1312-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1311-1311	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1312-	●	●
323	INSERT	8-94448-202-2	03	1	1311-1311	●
323	INSERT	8-94448-202-2	03	1	1312-	●	●
335	RING; SNAP,BEARING	8-97254-722-0	01	1	1311-1311	●
335	RING; SNAP,BEARING	8-97254-722-0	01	1	1312-	●	●
342	FLANGE; OUTPUT	8-98031-640-0	01	1	1311-	●
342	FLANGE; OUTPUT	8-98031-862-0	01	1	1312-		●
393	BEARING; MAINSHAFT END	8-97253-105-1	01	1	1311-1311	●
393	BEARING; MAINSHAFT END	8-97253-105-1	01	1	1312-	●	●
396	BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	1311-1311	●
396	BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	1312-	●	●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1311-1311	●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1312-	●	●
408	SPRING (B)	8-94148-196-0	03	1	1311-1311	●
408	SPRING (B)	8-94148-196-0	03	1	1312-	●	●
408	SPRING (A)	8-97366-040-1	02	1	1311-1311	●
408	SPRING (A)	8-97366-040-1	02	1	1312-	●	●
408	SPRING (A)	8-97366-040-1	02	1	1312-		●
500	RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1311-1311	●
500	RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1312-	●	●
501	RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1311-1311	●
501	RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1312-	●	●
503	RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	1311-1311	●
503	RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	1312-	●	●
504	RING; INSIDE,LOW & REV	8-97241-312-1	01	1	1311-1311	●
504	RING; INSIDE,LOW & REV	8-97241-312-1	01	1	1312-	●	●
505	COLLAR; 3RD & REV	8-97253-119-2	02	1	1311-1311	●
505	COLLAR; 3RD & REV	8-97253-119-2	02	1	1312-	●	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	1311-1311	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	1312-	●	●
516	SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	1311-1311	●
516	SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	1312-	●	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	1311-1311	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	1312-	●	●
524	SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1311-1311	●
524	SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1312-	●	●
525	RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1311-1311	●
525	RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1312-	●	●
526	BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1311-1311	●
526	BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1312-	●	●
530	RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	1311-1311	●
530	RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	1312-	●	●
531	RING; BLOCK,REV Z=45	8-97368-343-0	01	1	1311-1311	●
531	RING; BLOCK,REV Z=45	8-97368-343-0	01	1	1312-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
