◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51501 - NPR(MALAYSIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#130840) — 44 parça

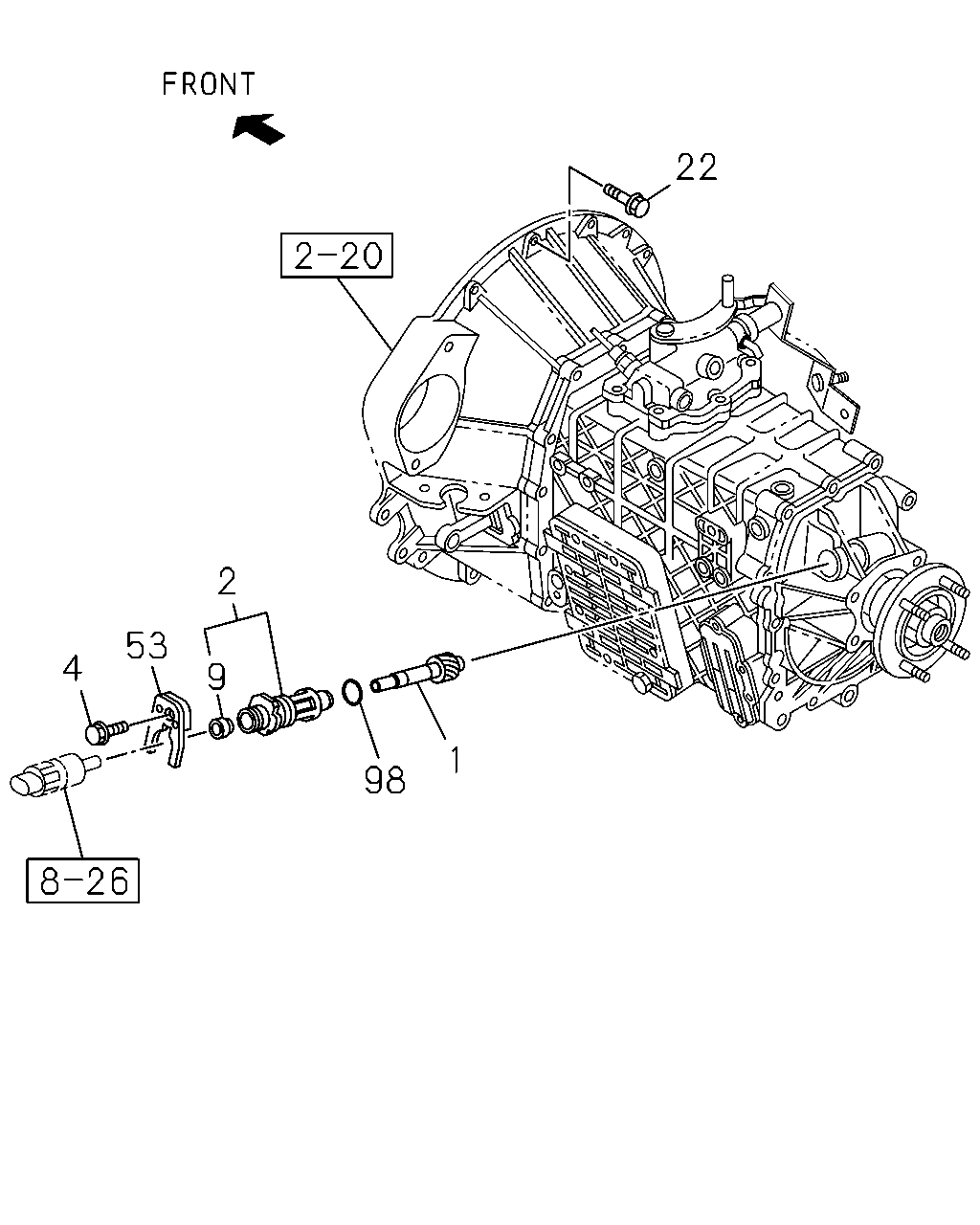

çizim 386254
22 1 98 9 2 53 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/7(GV1) Z=14 		8-97253-561-1 01 1 1311- ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) Z=14 		8-97253-561-1 01 1 1311- ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/7(R41) FRT&RR 7R-16-10 16X5.5F-115(07H) Z=15 		8-97253-560-1 01 1 1311- ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) Z=15 		8-97253-560-1 01 1 1311- ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/7(R42) FRT&RR 7R-16-10 16X5.5F-115(07H) Z=16 		8-97253-558-1 01 1 1311- ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/9(HC6) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) Z=11 		8-97253-559-1 01 1 1312-1412 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/9(HC6) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) Z=11 		8-97253-559-1 01 1 1501- ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/9(HC6) FRT&RR 7R-16-10 16X5.5F-115(07H) Z=12 		8-97253-563-1 01 1 1312-1412 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/9(S2J) Z=12 		8-97253-563-1 01 1 1312-1412 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/9(S2J) Z=12 		8-97253-563-1 01 1 1501- ● ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/9(HC6) FRT&RR 7R-16-10 16X5.5F-115(07H) Z=12 		8-97253-563-1 01 1 1501- ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) Z=13 		8-97253-562-1 01 1 1312-1412 ●
1 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) Z=13 		8-97253-562-1 01 1 1501- ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41) MARK "12,13,14,15" 		8-97253-125-0 01 1 1311-1311 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/7(R42) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) MARK "12,13,14,15" 		8-97253-125-0 01 1 1311-1311 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/9(S2J) MARK "12,13,14,15" 		8-97253-125-0 01 1 1312-1412 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/7(R42) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) MARK "12,13,14,15" 		8-97253-125-0 01 1 1312-1412 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/9(HC6) FRT&RR 7R-16-10 16X5.5F-115(07H) MARK "12,13,14,15" 		8-97253-125-0 01 1 1312-1412 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/9(S2J) MARK "12,13,14,15" 		8-97253-125-0 01 1 1501- ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/7(R42) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) MARK "12,13,14,15" 		8-97253-125-0 01 1 1501- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/9(HC6) FRT&RR 7R-16-10 16X5.5F-115(07H) MARK "12,13,14,15" 		8-97253-125-0 01 1 1501- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/7(R42) FRT&RR 7R-16-10 16X5.5F-115(07H) MARK "10,11,16,17" 		8-97253-124-0 01 1 1311-1311 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/9(HC6) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) MARK "10,11,16,17" 		8-97253-124-0 01 1 1312-1412 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/7(R42) FRT&RR 7R-16-10 16X5.5F-115(07H) MARK "10,11,16,17" 		8-97253-124-0 01 1 1312-1412 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/9(HC6) FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) MARK "10,11,16,17" 		8-97253-124-0 01 1 1501- ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/7(R42) FRT&RR 7R-16-10 16X5.5F-115(07H) MARK "10,11,16,17" 		8-97253-124-0 01 1 1501- ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE MAL 		0-28650-820-0 01 1 1311-1412 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE MAL 		0-28650-820-0 01 1 1501- ● ●
9 SEAL; OIL,DRIVEN GEAR
NOK 		8-97131-328-1 01 1 1311-1412 ●
9 SEAL; OIL,DRIVEN GEAR
NOK 		8-97131-328-1 01 1 1501- ● ●
22 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X30 FLANGE 		0-28151-030-0 02 1 1311-1412 ●
22 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X30 FLANGE 		0-28151-030-0 02 1 1501- ● ●
22 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X35 FLANGE 		0-28151-035-0 05 1 1311-1412 ●
22 BOLT; TRANS CASE TO ENG
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X35 FLANGE 		0-28151-035-0 05 1 1501- ● ●
22 BOLT; TRANS CASE TO ENG
M10X55 FLANGE 		8-97365-449-0 02 1 1311-1412 ●
22 BOLT; TRANS CASE TO ENG
M10X55 FLANGE 		8-97365-449-0 02 1 1501- ● ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X30 FLANGE 		0-28151-030-0 04 1 1311-1412 ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X30 FLANGE 		0-28151-030-0 04 1 1501- ● ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X35 FLANGE 		0-28151-035-0 03 1 1311-1412 ●
22 BOLT; TRANS CASE TO ENG
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X35 FLANGE 		0-28151-035-0 03 1 1501- ● ●
53 PLATE; LOCK,DRIVEN GEAR 8-98046-217-0 01 1 1311-1412 ●
53 PLATE; LOCK,DRIVEN GEAR 8-98046-217-0 01 1 1501- ● ●
98 SEAL; OIL,BUSH 9-09561-324-0 01 1 1311-1412 ●
98 SEAL; OIL,BUSH 9-09561-324-0 01 1 1501- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
