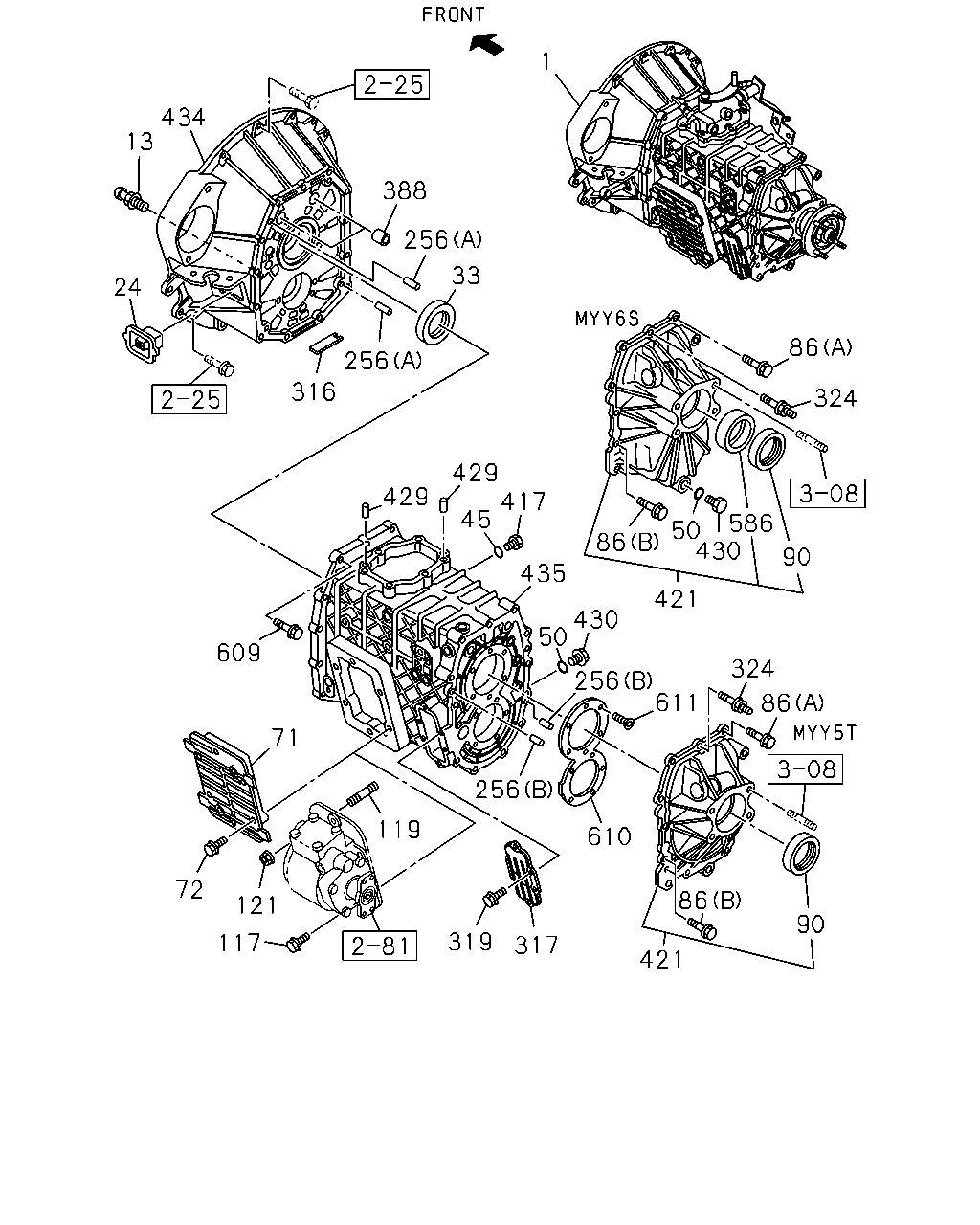

2-20 — MANUAL TRANSMISSION ASM AND CASE (#130839) — 69 parça

434 13 24 316 256 256 388 33 429 45 429 417 435 50 256 611 421 86 324 90 586 430 50 86 430 610 256 319 317 421 86 90 324 86 1 609 71 119 72 21 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98187-418-0	01	1	1311-	●
1	TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98187-418-0	01	1	1311-	●
1	TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98067-680-0	01	1	1312-		●
1	TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98067-680-0	01	1	1312-		●
13	SUPPORT; SHIFT FORK	8-97255-384-1	01	1	1311-	●
13	SUPPORT; SHIFT FORK	8-97255-385-1	01	1	1312-		●
24	COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	1311-1311	●
24	COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	1312-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1311-1311	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1312-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1311-1311	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1312-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1311-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1312-		●
71	COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-97252-625-0	01	1	1311-1311	●
71	COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-97252-625-0	01	1	1312-	●	●
72	BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X20 FLANGE	8-98014-142-0	06	1	1311-1311	●
72	BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X20 FLANGE	8-98014-142-0	06	1	1312-	●	●
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28151-040-0	09	1	1406-		●
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28151-040-0	10	1	1311-1311	●
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28151-040-0	10	1	1312-1405	●	●
86	BOLT; RR COVER (A) M10X40 FLANGE	0-28151-040-0	10	1	1406-	●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97365-377-0	02	1	1311-1311	●
86	BOLT; RR COVER (B) M10X40 FLANGE	8-97365-377-0	02	1	1312-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	1311-1311	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	1312-	●	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X30 FLANGE	0-28751-030-0	02	1	1311-1311	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X30 FLANGE	0-28751-030-0	02	1	1312-	●	●
119	STUD; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X25 L=40	0-44011-025-0	02	1	1311-1311	●
119	STUD; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X25 L=40	0-44011-025-0	02	1	1312-	●	●
119	STUD; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X30 L=45	0-44011-030-0	02	1	1311-1311	●
119	STUD; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X30 L=45	0-44011-030-0	02	1	1312-	●	●
121	NUT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10 FLANGE MAL	0-91180-210-0	04	1	1311-1311	●
121	NUT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10 FLANGE MAL	0-91180-210-0	04	1	1312-	●	●
256	PIN; KNOCK (A) OD=10 L=20	8-97135-423-0	02	1	1311-1311	●
256	PIN; KNOCK (A) OD=10 L=20	8-97135-423-0	02	1	1312-	●	●
256	PIN; KNOCK (B) ID=6 L=12	9-08160-612-0	02	1	1311-1311	●
256	PIN; KNOCK (B) ID=6 L=12	9-08160-612-0	02	1	1312-	●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1311-1311	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1312-	●	●
317	COVER; CASE	8-97252-626-0	01	1	1311-1311	●
317	COVER; CASE	8-97252-626-0	01	1	1312-	●	●
319	BOLT; COVER M8X20 FLANGE MAL	0-28050-820-0	06	1	1311-1311	●
319	BOLT; COVER M8X20 FLANGE MAL	0-28050-820-0	06	1	1312-	●	●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	02	1	1406-		●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	01	1	1311-1311	●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	01	1	1312-1405	●	●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	01	1	1406-	●
388	BUSHING; CLU HSG	8-97241-326-2	02	1	1311-1311	●
388	BUSHING; CLU HSG	8-97241-326-2	02	1	1312-	●	●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1311-1311	●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1312-	●	●
421	COVER; RR,TRANS	8-98020-029-0	01	1	1311-	●
421	COVER; RR,TRANS	8-98020-028-0	01	1	1312-		●
429	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	1311-1311	●
429	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	1312-	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1311-	●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1312-		●
434	HOUSING; CLU	8-97237-099-5	01	1	1311-1311	●
434	HOUSING; CLU	8-97237-099-5	01	1	1312-	●	●
435	CASE; TRANS	8-97379-375-0	01	1	1311-	●
435	CASE; TRANS	8-97379-374-0	01	1	1312-		●
586	BEARING; NEEDLE	8-97253-109-0	01	1	1312-		●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	1311-1311	●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	1312-	●	●
610	RETAINER; BRG	8-97241-315-1	01	1	1311-1311	●
610	RETAINER; BRG	8-97241-315-1	01	1	1312-	●	●
611	SCREW M10X27 TORQUES	8-97365-354-0	11	1	1311-1311	●
611	SCREW M10X27 TORQUES	8-97365-354-0	11	1	1312-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
