2-08 — CLUTCH MASTER CYLINDER (#130837) — 34 parça

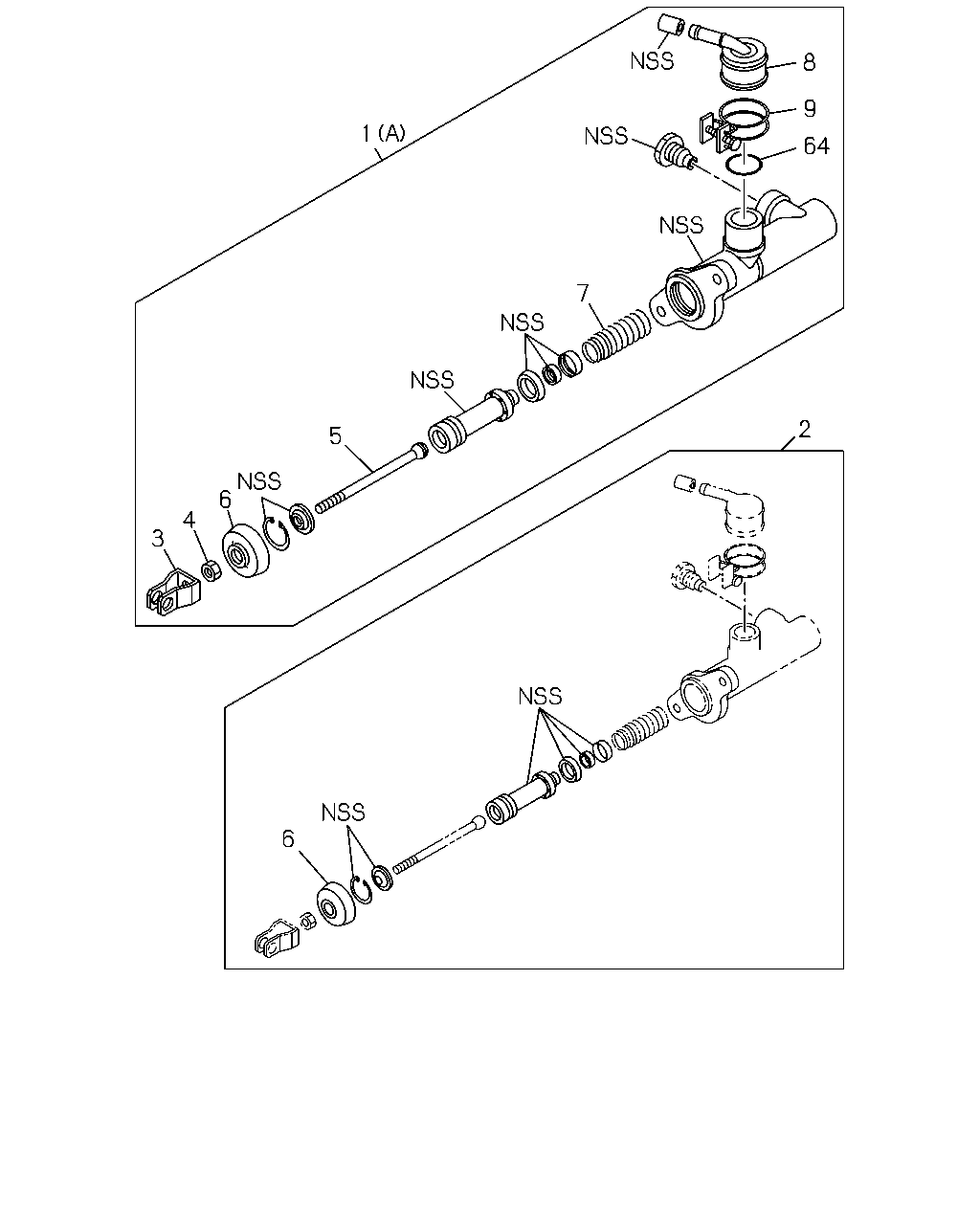

çizim 385435
1 3 4 6 5 7 8 9 64 2 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98098-250-0 01 1 1311- ● ●
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98062-277-0 01 1 1311- ● ●
1 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-639-0 01 1 1311-1311 ●
1 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-639-0 01 1 1312- ● ●
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 1311- ● ●
2 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 1311-1311 ●
2 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 1312- ● ●
3 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 1311-1311 ●
3 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 1312- ● ●
4 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH(S2T) M8 		0-91111-508-0 01 1 1311-1311 ●
4 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH(S2T) M8 		0-91111-508-0 01 1 1312- ● ●
5 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 1311-1311 ●
5 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 1312- ● ●
6 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 1311-1311 ●
6 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 1312- ● ●
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 1311- ● ●
7 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 1311-1311 ●
7 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 1312- ● ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 1311- ● ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 1311- ● ●
64 GASKET; CONNECTOR 8-97167-767-0 01 1 1311- ● ●

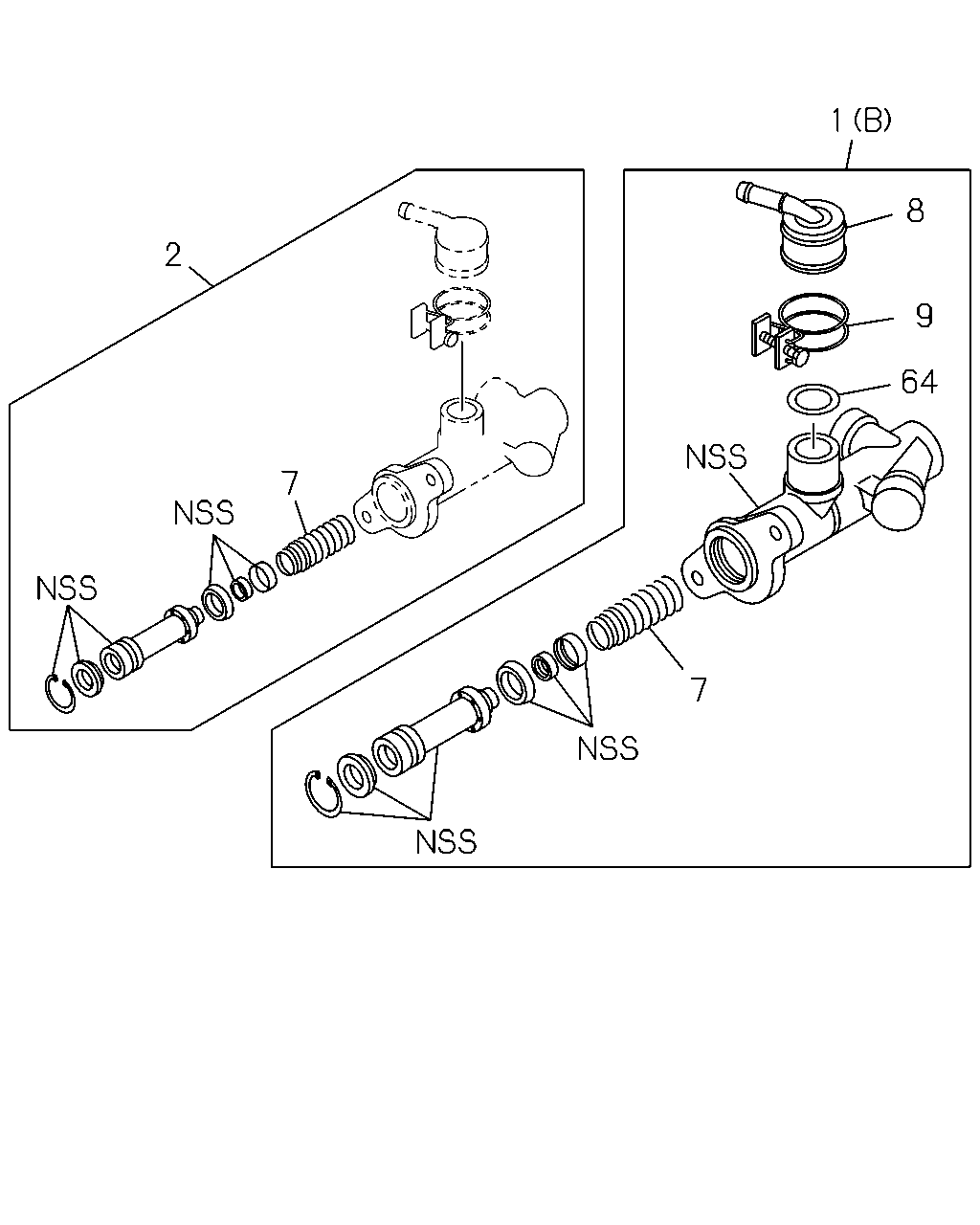

çizim 385964
2 7 1 8 9 64 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98098-250-0 01 1 1311- ● ●
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98062-277-0 01 1 1311- ● ●
1 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-639-0 01 1 1311-1311 ●
1 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-639-0 01 1 1312- ● ●
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 1311- ● ●
2 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 1311-1311 ●
2 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 1312- ● ●
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 1311- ● ●
7 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 1311-1311 ●
7 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 1312- ● ●
8 CONNECTOR; PIPE,CLU M/CYL 8-97163-191-0 01 1 1311- ● ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 1311- ● ●
64 GASKET; CONNECTOR 8-97167-767-0 01 1 1311- ● ●
