Isuzu WW
▶
TRUCKS
▶
NPR
▶
51501 - NPR(MALAYSIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-05 - CLUTCH PIPING
▶
2-05 — CLUTCH PIPING
(#130834) — 46 parça
Tümü

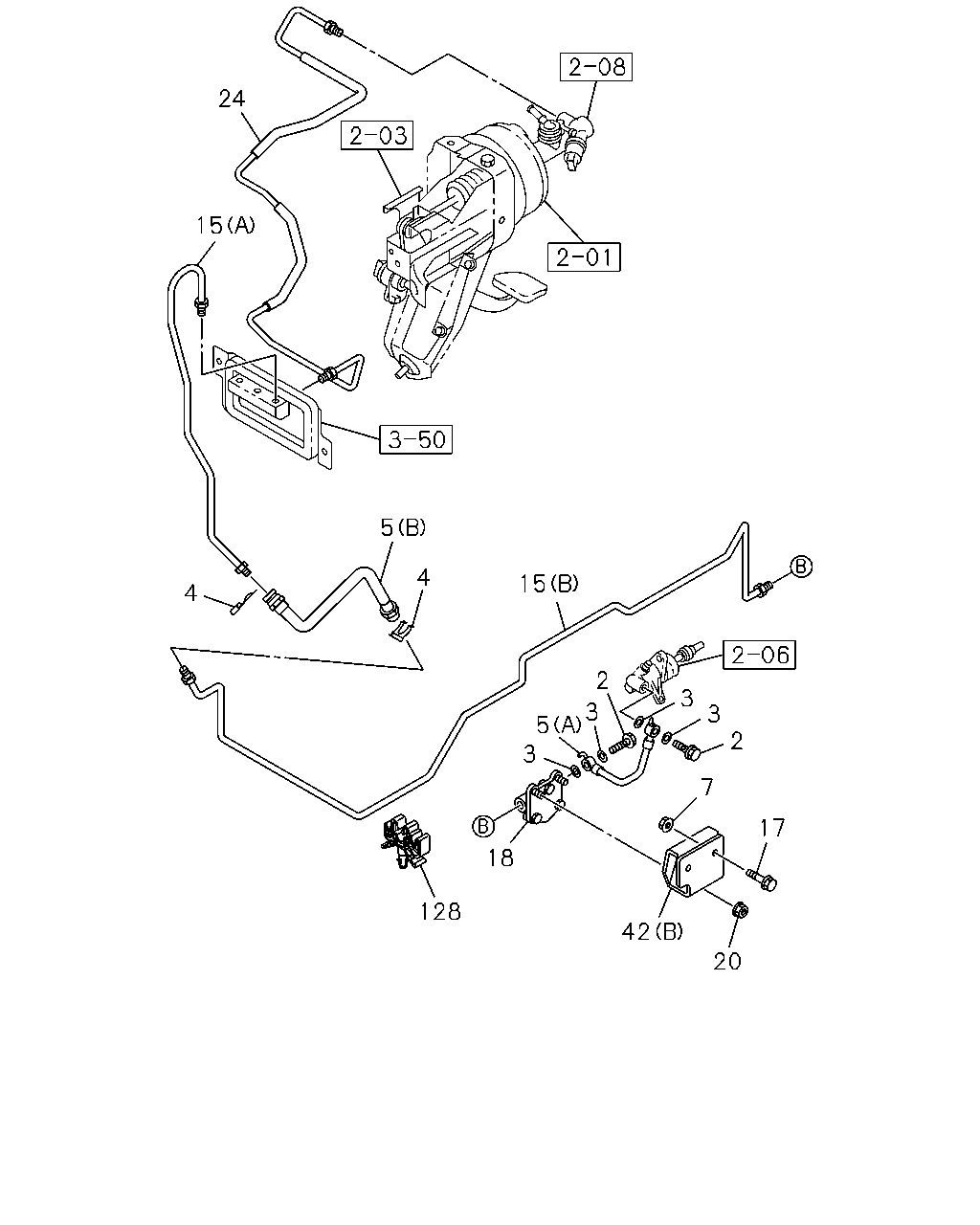

A - M/T MYY6S

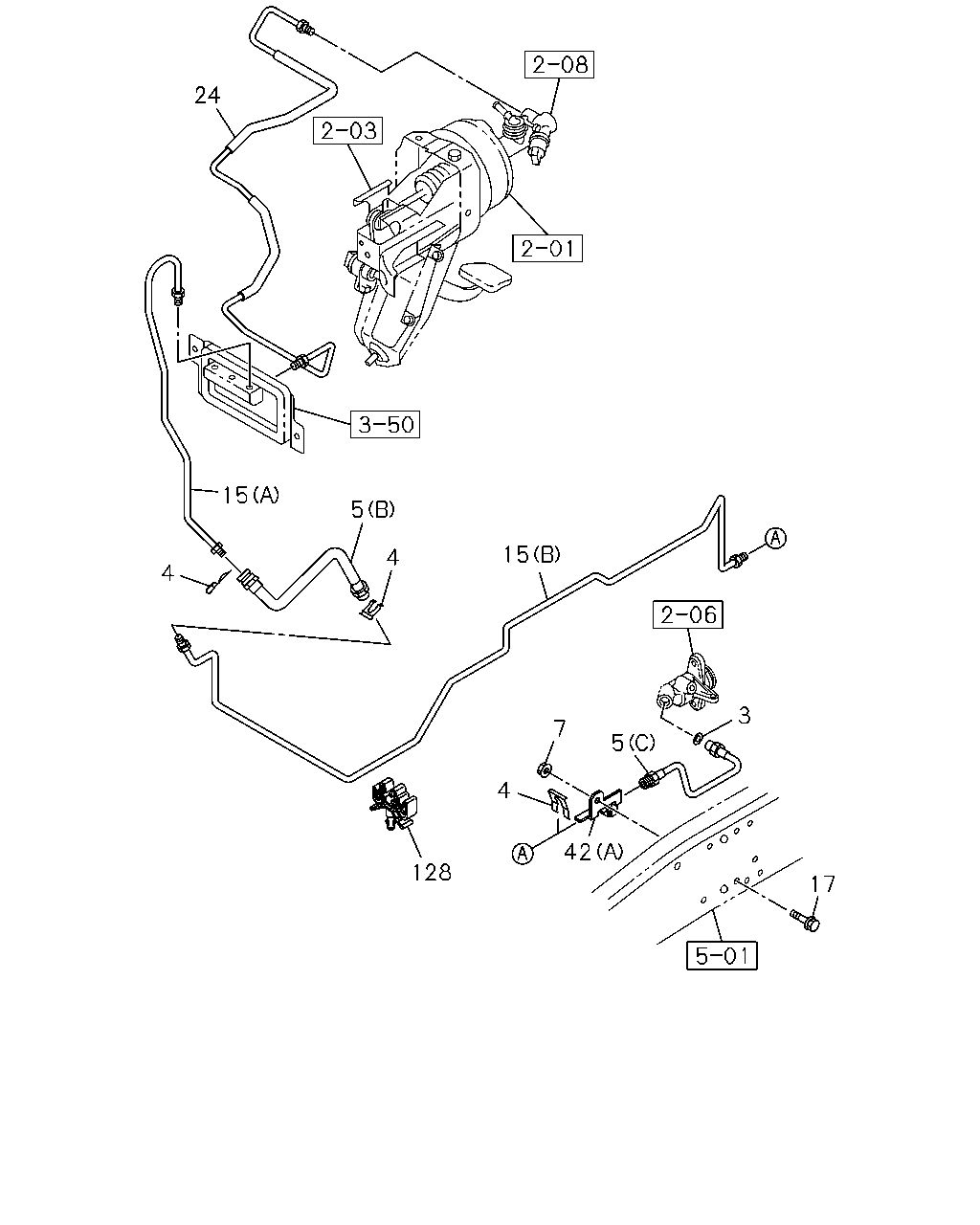

B - M/T MYY5T
◀
[205A] M/T MYY6S (24 parça)
[205A] M/T MYY5T (21 parça)
[205A] VAC HOSE (1 parça)
▶
24
15
5
4
15
5
3
2
18
128
42
20
3
2
3
7
17
3
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
BOLT; EYE,SLAVE CYL
M10X22
8-98014-005-0
02
1
1312-
●
3
GASKET; FLEX HOSE,CLU
9-09920-873-1
01
1
1311-
●
3
GASKET; FLEX HOSE,CLU
ID=10.2 OD=16.0
9-09571-410-0
04
1
1312-
●
4
CLIP; FLEX HOSE,CLU CONT
8-97365-304-0
01
1
1311-
●
4
CLIP; FLEX HOSE,CLU CONT
8-97365-304-0
02
1
1311-
●
●
5
HOSE; FLEX,CLU PIPE
(C)
8-97064-108-1
01
1
1311-
●
5
HOSE; FLEX,CLU PIPE
(B)
8-98083-907-0
01
1
1311-
●
●
5
HOSE; FLEX,CLU PIPE
(A)
8-98077-611-2
01
1
1312-
●
7
NUT; FLEX HOSE,CLU CONT
M8 FLANGE MAL
0-91180-108-0
01
1
1311-
●
7
NUT; FLEX HOSE,CLU CONT
M8 FLANGE MAL
0-91180-108-0
02
1
1312-
●
15
PIPE; CLU,FLEX HOSE
(A) MAL
8-97389-643-0
01
1
1311-1401
●
●
15
PIPE; CLU,FLEX HOSE
(A) MAL
8-98250-269-0
01
1
1402-
●
●
15
PIPE; CLU,FLEX HOSE
(B) MAL
8-98100-236-0
01
1
1311-
●
15
PIPE; CLU,FLEX HOSE
(B) MAL
8-98041-742-3
01
1
1312-
●
17
BOLT; BRKT
M8X25 FLANGE MAL
0-28650-825-0
01
1
1311-
●
17
BOLT; BRKT
M8X25 FLANGE MAL
0-28650-825-0
02
1
1312-
●
18
DAMPER ASM; CLU OIL
8-98077-610-1
01
1
1312-
●
20
NUT; CLU OIL DAMPER
M8 FLANGE MAL
0-91180-108-0
02
1
1312-
●
24
PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T)
8-97389-356-1
01
1
1311-
●
●
24
PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) MAL
8-98077-617-0
01
1
1311-
●
●
42
BRACKET; FLEX HOSE,CLU CONT
(A)
8-98102-893-0
01
1
1311-
●
42
BRACKET; FLEX HOSE,CLU CONT
(B)
8-98100-943-1
01
1
1312-
●
128
CLIP; AIR PIPE
ID=12 & 6.35 & 4.76
8-97202-954-1
01
1
1311-1311
●
128
CLIP; AIR PIPE
ID=12 & 6.35 & 4.76
8-97202-954-1
01
1
1312-
●
●
15
5
4
15
5
7
4
3
42
128
24
4
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
GASKET; FLEX HOSE,CLU
9-09920-873-1
01
1
1311-
●
3
GASKET; FLEX HOSE,CLU
ID=10.2 OD=16.0
9-09571-410-0
04
1
1312-
●
4
CLIP; FLEX HOSE,CLU CONT
8-97365-304-0
01
1
1311-
●
4
CLIP; FLEX HOSE,CLU CONT
8-97365-304-0
02
1
1311-
●
●
5
HOSE; FLEX,CLU PIPE
(C)
8-97064-108-1
01
1
1311-
●
5
HOSE; FLEX,CLU PIPE
(B)
8-98083-907-0
01
1
1311-
●
●
5
HOSE; FLEX,CLU PIPE
(A)
8-98077-611-2
01
1
1312-
●
7
NUT; FLEX HOSE,CLU CONT
M8 FLANGE MAL
0-91180-108-0
01
1
1311-
●
7
NUT; FLEX HOSE,CLU CONT
M8 FLANGE MAL
0-91180-108-0
02
1
1312-
●
15
PIPE; CLU,FLEX HOSE
(A) MAL
8-97389-643-0
01
1
1311-1401
●
●
15
PIPE; CLU,FLEX HOSE
(A) MAL
8-98250-269-0
01
1
1402-
●
●
15
PIPE; CLU,FLEX HOSE
(B) MAL
8-98100-236-0
01
1
1311-
●
15
PIPE; CLU,FLEX HOSE
(B) MAL
8-98041-742-3
01
1
1312-
●
17
BOLT; BRKT
M8X25 FLANGE MAL
0-28650-825-0
01
1
1311-
●
17
BOLT; BRKT
M8X25 FLANGE MAL
0-28650-825-0
02
1
1312-
●
24
PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T)
8-97389-356-1
01
1
1311-
●
●
24
PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) MAL
8-98077-617-0
01
1
1311-
●
●
42
BRACKET; FLEX HOSE,CLU CONT
(A)
8-98102-893-0
01
1
1311-
●
42
BRACKET; FLEX HOSE,CLU CONT
(B)
8-98100-943-1
01
1
1312-
●
128
CLIP; AIR PIPE
ID=12 & 6.35 & 4.76
8-97202-954-1
01
1
1311-1311
●
128
CLIP; AIR PIPE
ID=12 & 6.35 & 4.76
8-97202-954-1
01
1
1312-
●
●
183
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
183
HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T)
8-98121-942-0
01
1
1311-
●
●
